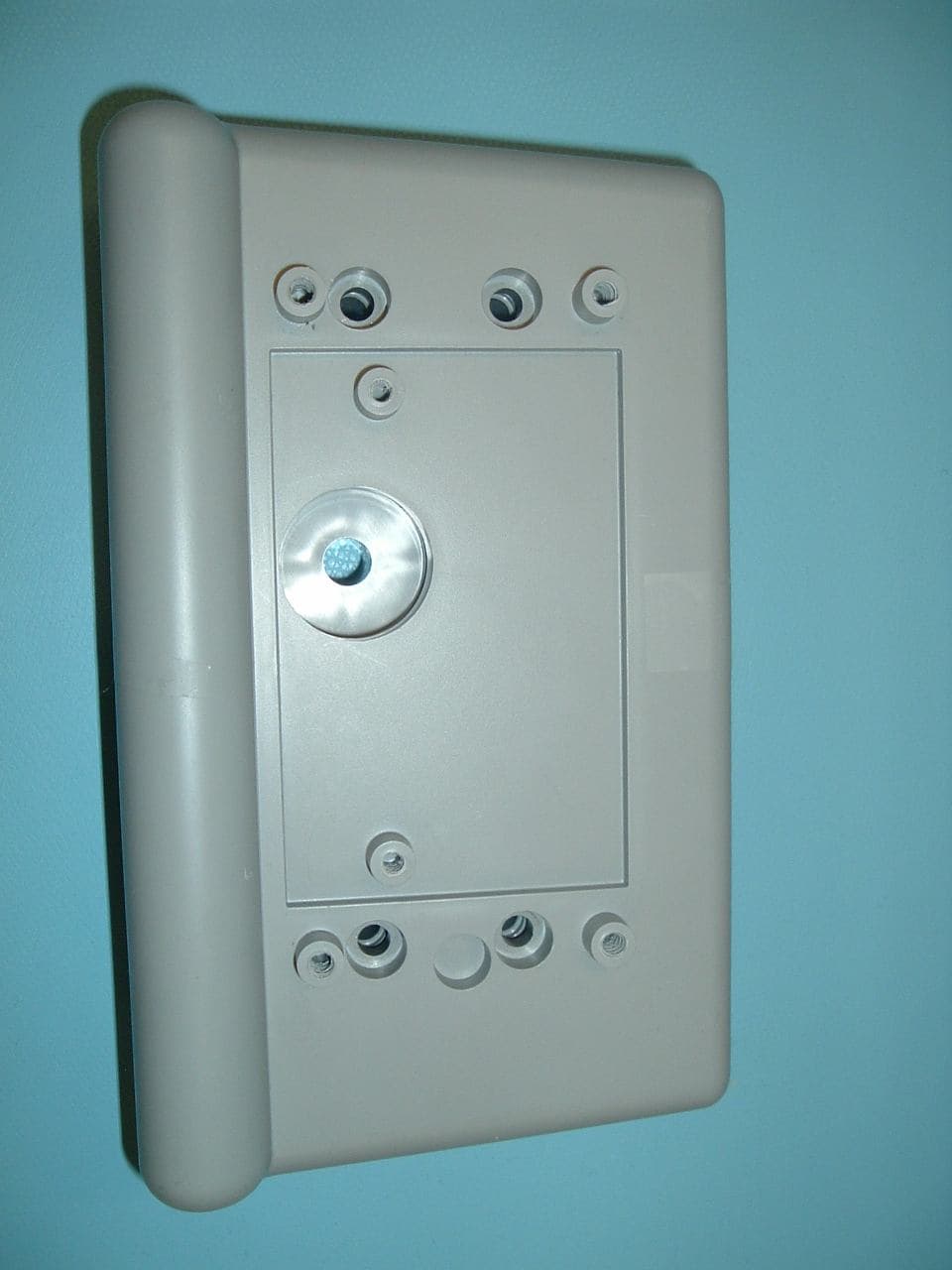

LLB11005XLLB11005X METER TRANSCEIVER UNIT

ACLARA RF SYSTEMS Former HEXAGRAM, Inc. 30400 Solon Road. Solon, OH 44139 440-528-7200 12/06/11 Users Manual FCC ID: LLB11005X The LLB11005X has no user adjustment or controls and are installed by factories trained personnel at the manufacturing facility .Aclara RF Systems formally Hexagram LLB11005X devices are shipped to the customer in the sealed LLB11005X enclosures. Thus, NO operational access can be made in the field, without breaking the factory sealed enclosure. The FCC wants you to know..... This equipment has been tested and complies with Part 15 and Part 90 of the FCC Rules. These limits are designed to provide reasonable protection against harmful interference. This equipment generates, uses and can radiate radio frequency energy, and, if not installed and used in accordance with the instructions, may cause harmful interference to radio communications. However, there is no guarantee that interference will not occur in a particular installation. If this equipment does cause harmful interference to radio or television reception, try to correct the interference by one or more of the following measures: • Reorient or relocate the equipment. • Increase the separation distance between the affected equipment and receiver. • Consult Hexagram, Inc. for help. Any changes or modifications to this equipment not expressly approved by the Hexagram, Inc. could void the authorization to operate the equipment. FCC RF Exposure Guidelines Hexagram’s low power RF devices and their antennas must be fixed- mounted on indoor or outdoor permanent structure(s) providing a separation distance of at least 20 cm from all persons during normal operation. This device is not designed (and it has no external connection) to operate in conjunction with any other antennas or transmitters. No other operating instructions for satisfying RF exposure compliance are needed. This unit has no user or installer serviceable parts, and requires no field adjustment or calibration. Units are sealed at the factory, and disruption of this seal could void the authorization to operate the equipment. Sincerely, Larry Murphy Executive Director of Engineering 440-528-7200 [email protected]

.75 .25 NOTES:1) MATERIAL: 4 MIL PRINTABLE POLYESTER/HIGH STRENGTH ACRYLIC SOLVENT ADHESIVE(AVERY) FASSON SPEC #72828 OR EQUIVALENT 2) BACKGROUND COLOR TO BE PANTONE 429 GRAY3) TEXT TO BE MINIMUM OF 0.125" HIGH4) TEXT COLOR TO BE BLACK .0005 1/2 ECO 11008 - INITIAL RELEASE D C B A A B C D SCALE: SIZE CAD FILE: B DWG. NO. 1 SHEET 1 REV. DATE APPROVALS DRAWN CHECKEDRESP ENG MFG ENGQUAL ENG UNLESS OTHERWISE SPECIFIED DIMENSIONS ARE IN INCHES TOLERANCES ARE: FRACTIONS DECIMALS ANGLES MATERIAL FINISH DO NOT SCALE DRAWING APPLICATION USED ON NEXT ASSY 1 2 3 4 5 6 7 8 8 7 6 5 4 3 2 1 REVISIONS REV. DATE DJG THE WRITTEN PERMISSION OF ACLARA RF SYSTEMS INC . IS PROHIBITED. ACLARA RF SYSTEMS INC. ANY REPRODUCTION IN PART OR WHOLE WITHOUT OF .XXX= THE INFORMATION CONTAINED IN THIS DRAWING IS THE SOLE PROPERTY OF SEE NOTES .010 .XX= .005 .XXXX= APPROVED 1/64 DJG 11/21/11 091-LLB11005X 4:1 091-LLB11005X A 11/21/11 DESCRIPTION A BY N/A DJG 11/21/11 DJG 11/21/11 DJG LABEL, FCC ID, LLB11005X (C) 2011 ACLARA RF SYSTEMS INC. ALL RIGHTS RESERVED. PROPRIETARY AND CONFIDENTIAL.

ACLARA RF SYSTEMS Former HEXAGRAM, Inc. 30400 Solon Road. Solon, OH 44139 440-528-7200 Dec. 07, 2011 Field Calibration and Tune-Up Procedure FCC ID: LLB11005X Aclara RF Systems, Formerly Hexagram’s low power RF devices have passed through extensive testing and calibration Procedures while in the factory. We test the LBB11005X units in production at the customer operating frequency of 467.3125MHz and measure the conducted power at 28 dBm with +/- 1.5 dB tolerance. The transmit power level is fixed and is set using a software setting in the Transceiver. The Hexagram’s low power RF devices are shipped to the customer in the sealed enclosures. Therefore, no additional calibration, tuning is required in the field. No adjustments can be made in the field, without breaking the factory sealed enclosure. Sincerely, Larry Murphy Executive Director of Engineering 440-528-7200 [email protected]

James R. Pollock HEXAGRAM INC. An ESCO Technologies Company 30400 Solon Road Solon OH 44139 (440) 528-7200 ENGINEERING TEST REPORT RADIO-FREQUENCY EMISSIONS TEST REPORT TRANSIENT BEHAVIOR FOR HIGH READ-RATE GAS METER TRANSMITTING UNIT Model 2011-005X, Rev. C FCC ID: LLB11005X December 5, 2011 Report Prepared by Agency Certification Control Technician TEST REPORT INTRODUCTION The Hexagram Model 2011-005X transceiver is a “Meter Transmitting Unit” (MTU) designed to provide remote meter reading capability for a gas meter. The transceiver is self- powered and mounts directly on a gas meter. On board batteries provide power. The transmitter provides a very short, intermittent radio frequency transmission to send a remote reading of the meter to a data collector unit. A microprocessor provides timing, control and data processing functions. The internal antenna is inaccessible to the user and no external antenna is provided. Two identical units were used as a test subjects for this report. The unit used for each test is identified under the test procedure. This report presents the data obtained in support of an application for Certification under Part 90 of the FCC rules. MEASUREMENTS PERFORMED Occupied Bandwidth Page 2 TRANSIENT STABILITY The transient stability measurements indicate the variation in tuned frequency during the brief interval of time during the start of the transmission and at the end of the transmission. The Model 2011-005X transmitter was tested for transient frequency behavior using the test method of TIA/EIA-603-C. A block diagram of the test setup is seen in Fig. 2. A Hexagram model 9975G-WB receiver was used. The storage oscilloscope was triggered by the output of the RSSI output of the receiver. Appropriate delay was provided by the digital delay circuitry of the oscilloscope. The 1 kHz test signal was provided by the Marconi signal generator. The generator’s output control was used to insure that the test signal was at least 50 dB below the received signal level from the 2011-005X. Transmitter Under Test 2011-005X RF Signal Generator Marconi 2955 Variable Attenuator Combining “Tee” Variable Delay Storage Oscilloscope Agilent 54622D Test Receiver 9975G-WB Fig. 2 Transient Frequency Behavior Test Setup RSSI Output trigger Test Requirements The test requirements per 90.214 are: 1. Frequency deviation during t 1 (10 ms duration after t on ) may be greater than ±12.5 kHz because the output power is less than 6 Watts. 2. Frequency deviation during t 2 (25 ms duration after t 1 ) must be less than ±6.25 kHz. 3. Frequency deviation after t 2 must be less than ±2.5 ppm, or ±1150 Hz at 460 MHz. 4. Frequency deviation during t 3 (10 ms duration after transmitter is turned off) may exceed ±12.5 kHz because output power is less than 6 Watts. Test Data Figures 3 through 7 show the Model 2011-006X transient frequency characteristics. The limit masks are indicated on each of the figures. Fig. 3 ±12.5 kHz modulated test signal . ±12.5 kHz = 3.00 V ±6.25 kHz = 1.50 V ±1.15 kHz = 276 mV +12.5 kHz -12.5 kHz Fig. 4 Start of Transmission Fig. 5 Full Transmission +1150 Hz -1150 Hz +6.25 kHz -6.25 kHz 35 mS Start Start Shut Off 10 msec 35 msec Fig. 6 Turn Off Transient The modulated signal appears well within the allowed 10 ms and does not exceed ±12.5 kHz beyond 10 ms. TEST EQUIPMENT USED Signal Generator Marconi Model 2955 RF Test Set S/N 132061 Cal Due: 2/25/2012 Test Receiver Hexagram 9975G-WB w/ RSSI trigger output Oscilloscope Agilent Model 54622D SN: MY40003551 Cal Due: 2/28/12 Test Performed November 30, 2011 Unit Tested: 2011S-005X Rev. B SN: 80003090 +12.5 kHz -12.5 kHz 10 mS Turn Off

Product Safety Engineering, Inc 12955 Bellamy Brothers Blvd. Dade City, FL 33525 352-588-2209 TEST REPORT Project Number: 11F430B Report Issue Date: 11/30/2011 Applicant: Aclara RF Systems 30400 Solon Road Solon, Ohio 44139 Product: Model - 2011-005X Rev C FCC ID:LLB11005X Gas Meter Transmitting Unit Test dates: 11/21/2011 - 11/29/2011 Receive Date: 11/17/2011 For the purpose of demonstrating compliance with FCC Part 90 Prepared by: Steven E. Hoke - EMC Site Manager FCC Registered Test Site Number 160606 This report may only be reproduced in full without written permission from Product Safety Engineering, Inc. Aclara RF Systems FCC ID: LLB11005X Page 1 of 11 Table of Contents Page 2 Table of contents Page 3-4 Test procedures Page 5 Equipment Calibration Page 6 Power Output and Spurious Emissions Page 7 Occupied Bandwidth Test Data Page 8 Frequency Stability vs. Temperature Page 9 Frequency Stability vs. Supply Voltage Page 10 Transient Stability (Separate report) Page 11 ERP Setup Photos Aclara RF Systems FCC ID: LLB11005X Page 2 of 11 Test Procedures EUT description: The Model - 2011-005X Rev C transceiver is designed to provide remote meter reading capability with the American Rockwell family of gas meters. The transceiver is mounted within the meter enclosure. The transmitter provides a very short intermittent RF transmission to provide a remote reading of the meter. A microprocessor provides timing, control and data processing functions. The built in antenna is inaccessible to the user and no provision is made for an external antenna. The receiver can be used to request a meter reading or other options available in the system. Power Output: The EUT operates in the frequency range of (450 - 470) MHz. The first step in the measurement process was to measure the field strength of the fundamental frequency at the lowest, highest and middle operating frequency. These measurements are made in both the vertical and horizontal polarity. The maximum field strength is reported by raising and lowering the measuring antenna height between (1-4) meters and by rotating the EUT (360) degrees. The measurement distance is (3) meters. The field strength measurements continue as described above for up to the tenth harmonic of each fundamental frequency. Once the field strength of each signal is recorded, the EUT is replaced with a substitution antenna and signal generator. The substitution antenna is placed at the same height as the EUT had been. The combination of antenna and signal generator is then adjusted to reproduce the recorded field strength at each frequency. The ERP is then calculated by the following: ERP = PG - CL + ANT ERP = Effective Radiated Power (dBm) PG = Signal Generator Output (dBm) CL = Cable loss (dB) ANT = antenna gain (dBd) dBd = (antenna gain dBi) - (2.2 dB) The measurements were made using the standard ANSI/TIA-603-C-2004. Occupied Bandwidth: The occupied bandwidth was measured with the EUT set to low, medium and high transmit frequencies. The emissions mask used was that specified in Part 90.210 (d). Radiated Spurious Emissions: The radiated spurious emissions measurements were measured with the EUT set to low, medium and high transmit frequencies. Based upon the low output power of this device, all spurious and harmonic signals are limited to (-20) dBm. This is based upon the calculation stated in 90.210(d)(3). The field strength of the spurious emissions were measured in the same manner as the power output measurements and then the substitution method was used to establish the power level expressed in dBm. Frequency Stability vs. Supply Voltage: One of the internal batteries was disconnected and replaced with an external variable power supply. The frequency was measured at the normal battery voltage of (7.20) VDC and again with the external power supply adjusted to an (85%) level or (6.12) volts. This was repeated with the external DC voltage adjusted to (8.28) VDC. The maximum allowed deviation is (2.5) ppm or (1,150) Hz at (460) MHz. Aclara RF Systems FCC ID: LLB11005X Page 3 of 11 Frequency Stability vs. Temperature: The fundamental frequency was measured at an ambient temperature of (20) degrees C and recorded. The transmitter was then placed in a container along with a small section of dry ice and the environment was adjusted until a low temperature of (-30) degrees C was achieved. The transmitter was allowed to stabilize for (30) minutes at this temperature and then the frequency was again measured with a spectrum analyzer. The environment was allowed to warm to (-20) degrees C and the measurement process was repeated. The environment was moved to a maximum temperature of (+80) degrees C in (10) degree increments, allowed to stabilize for (30) minutes and the frequency was re-measured. Aclara RF Systems FCC ID: LLB11005X Page 4 of 11 TEST EQUIPMENT CALIBRATION INFORMATION Manufacturer Model Description Serial Number Cal Due Date Hewlett Packard 8566B Spectrum Analyzer 2421A00526 10/13/12 Hewlett Packard 85662A Display 2403A07352 10/13/12 Hewlett Packard 85650A Quasi-Peak Adapter 2043A00209 10/13/12 Hewlett Packard 8447D Preamp 1937A03247 09/06/12 Hewlett Packard 8449B Preamp 3008A00320 04/11/12 Hewlett Packard 8648B Signal Generator 3443U00312 09/08/12 Hewlett Packard 8672A Signal Generator 2211A02426 12/16/11 Electro-Metrics BIA-30 Biconical Antenna 3852 04/01/12 Electro-Metrics LPA-30 Log Periodic Antenna 2280 02/14/12 Electro-Metrics 3115 Double Ridge Guide Antenna 3810 05/25/13 Electro-Metrics 3148 Log Periodic Antenna 00044783 03/07/12 ETS Lindgren 3117 Double Ridge Guide Antenna 00109296 01/12/12 Agilent 7402A Spectrum Analyzer US39150137 07/18/12 Fluke 52 Digital Thermometer 447533 01/08/12 Hewlett Packard DC Power Supply N/A Fluke 87V DVM 95570315 02/17/12 Aclara RF Systems FCC ID: LLB11005X Page 5 of 11 The spurious emissions shown above meet the requirements of Part 90.120 (d) (3) defined as: On any frequency removed from the center of the authorized bandwi…

Text truncated - open the document above for the full version.

Aclara RF SystemsFCC ID: LLB11005X Page 11 of 11 OUTPUT POWER AND SPURIOUS EMISSIONS SETUP PHOTOGRAPHS
