LLIHSCRRemote Controller

SET DISPLAYMENU CANCEL ARM LED REC

Covert Camera(HSCR50) HITRON SYSTEMS INC. LPFPA/N VCO LPF CHARGE PUMP PA /R OSC BIAS CONTROL <CC1000> uCOM

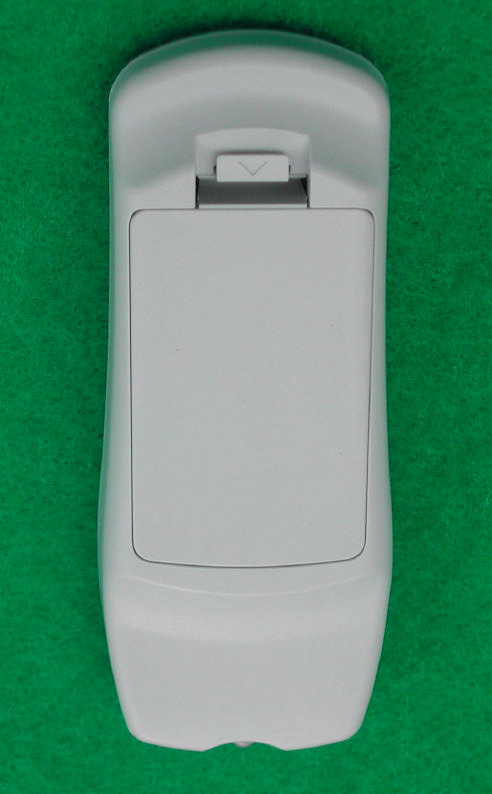

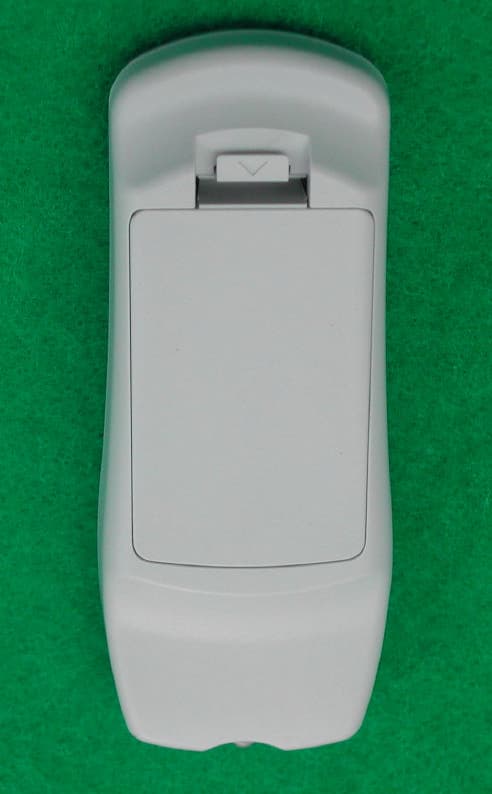

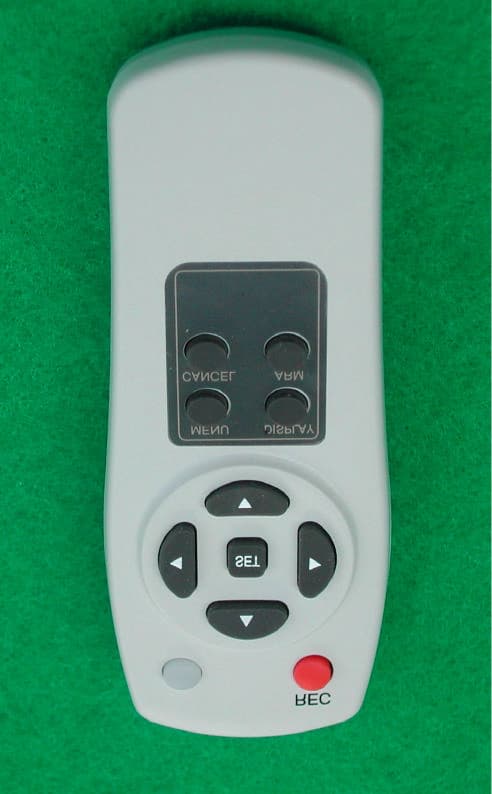

SK TECH CO., LTD. Page 1 of 1 SKT STR-02002U FCC ID: LLIHSCR External Photographs of EUT <Front View> SK TECH CO., LTD. Page 2 of 2 SKT STR-02002U FCC ID: LLIHSCR <Rear View>

SK TECH CO., LTD. Page 1 of 1 SKT STR-02002U FCC ID: LLIHSCR FCC ID Label Sample & Location Label is attached on the rear panel and side panel The Label shown shall be permanently affixed at a conspicuous location on the device and be readily visible to the user at the time of purchase. FCC ID: LLIHSCR THIS DEVICE COMPLIES WITH PART 15 OF THE FCC RULES. OPERATION IS SUBJECT TO THE FOLLOWING TWO CONDITIONS; (1) THIS DEVICE MAY NOT CAUSE HARMFUL INTERFERENCE. AND (2) THIS DEVICE MUST ACCEPT ANY INTERFERENCE RECEIVED. INCLUDING INTERFERENCE THAT MAY CAUSE UNDESIRED OPERATION.

SK TECH CO., LTD. Page 1 of 1 SKT STR-02002U FCC ID: LLIHSCR Internal Photographs of EUT SK TECH CO., LTD. Page 2 of 2 SKT STR-02002U FCC ID: LLIHSCR

SK TECH CO., LTD. Page 1 of 1 SKT STR-02002U FCC ID: LLIHSCR Operational Description This product is a small remote control transmitter that sends a control code to a receiver located in a camera manufactured by HITRON SYSTEMS INC. There are ten buttons on the product for the purpose of controlling the camera. Section. Primary Function - Remote Controller for the camera manufactured by HITRON. - Indicator (LED) turns on instantaneously when any button on the product is pressed. - Binary FSK modulation is used to transmit the control codes. Section. The Using Of this Remote Controller When any button out of ten on the product is pressed, a control code in accordance with the button is transmitted. REC : Recording,record current image when this button is push down. MENU : Display menu to configure camera options. DISPLAY : Change mode from live view mode to display mode(manual, auto and fast playback modes). Cancel : Escape from current menu mode. ARM / : Toggle between arm and disarm. when arm mode, start recording with an event and arming DISARM : Delay time configured by user in view mode, when disarm mode, stop recording. UP : Scroll up selection of menu items or options in menu mode / playback forward by event unit in display mode DOWN : Scroll down selection of menu items or options in menu mode / playback reverse by event unit in display mode LEFT : Scroll left selection of menu items or options in menu mode / playback reverse by page unit in display mode RIGHT : Scroll right selection of menu items or options in menu mode / playback forward by page unit in display mode SET : Set or select menu items of options in menu mode / Stop playing image in display mode

5 5 4 4 3 3 2 2 1 1 DD CC BB AA < HSCR50 RF_Remocon BOARD > A Schematic Diagram for HSCR50 RF_Remocon Board Hi-Tron Systems INC. SIZE : 16.5 x 11.7 HSC50 - RF_Remocon Saturday, June 29, 2002 Title SizeDocument NumberRev Date:Sheetof C1 18p D2 LL4148 U2 TK11233ATML 1 2 34 5 6 CTRL GND N/BVout GND Vin VC1 3pF GND OGH-0442A C14 3.9p C18 1000p C4 OPEN D8 KDS160 C17 6.8p L2 OPEN L4 27nH (2015) R3 47K D10 SI5315-C (6.3pi) R2 47K C2 1.8p C3 47p C12 4.7p R5 47K R4 220 C23 0.1u L3 6.2nH (1608) D5 KDS160 R6 47K C19 30p C20 30p D6 KDS160 ON OFF SW1 CHS-01TA1 S3 SW_UP ON OFF SW2 CHS-01TA1 S1 SW_ARM C10 220p C16 6.8p ANT1 ANTENNA (24mm) 1 2 BAT OGH-0441A C5 5.6p D9 KDS160 CN1 53261-0290 1 2 L5 BLM11A102S (1608) X2 4MHz C8 0.033u U1 CC1000 1 2 3 4 5 6 7 8 9 10 11 12 13 1415 16 17 18 19 20 21 22 23 24 25 26 27 28 AVDD1 AGND2 RF_IN RF_OUT AVDD5 AGND6 AGND7 AGND8 AVDD9 L1 L2 CHP_OUT R_BIAS AGND14AVDD15 AGND16 XOSC_Q2 XOSC_Q1 AGND19 DGND20 DVDD21 DGND22 DIO DCLK PCLK PDATA PALE RSSI/IF S5 SW_MENU + C21 10u10 (A) S7 SW_DISPLAY C13 390p R1 82K (F) L1 12nH (2015) S9 SW_LEFT D3 Z02W5.6V(Y) R7 0R0 C6 8.2p S2 SW_CANCEL S4 SW_REC D1 LL4148 + C22 10u10 (A) S6 SW_RIGHT D4 SR1316VT (1608) C11 220p S8 SW_DOWN D7 KDS160 U3 AT90S2313-4SC 1 2 3 4 5 6 7 8 9 10 12 13 14 15 16 17 18 19 20 11 RESET RXD TXD XTAL2 XTAL1 PD2(INT0) PD3(INT1) PD4 PD5 GND PB0 PB1 PB2 PB3 PB4 PB5 PB6 PB7 VCC PD6 X1 11.0592MHz S10 SW_SET C7 1000p C9 1000p

SK TECH CO., LTD. Page 1 of 13 SKT STR-02002U FCC ID: LLIHSCR Certificate of Compliance Test Report No.: STR-02002U NVLAP CODE: 200220-0 Applicant: HITRON SYSTEMS INC. Applicant Address: 109-19 MAJEON-RI, SAMJUK-MYEON, ANSUNG-CITY, KYUNGKI-DO, 456-880, KOREA Device Under Test: Remote Controller FCC ID: LLIHSCR Model No.: HSCR50 Receipt No.: TEA-02-009 Date of receipt: June 04, 2002 Date of Issue: July 03, 2002 Location of Testing: SK TECH CO., LTD. 820-2, Wolmoon-Ri, Wabu-Up, Namyangju-Si, Kyunggi-Do, Korea Test Procedure: ANSI C63.4 / 2000 Test Specification: FCC Title 47 Part 15 Subpart C Equipment Class: Part 15 Security/Remote Control Transmitter Test Result: The above-mentioned device has been tested and passed. Tested & Reported by: Jong-Soo, Yoon Approved by: Kyu-Sun, Kim r 2002. 07. 11 2002. 07. 11 Signature Date Signature Date Other Aspects: Abbreviations: · OK, Pass = passed · Fail = failed · N/A = not applicable •This test report is not permitted to copy partly without our permission. •This test result is dependent on only equipment to be used. •This test result is based on a single evaluation of one sample of the above mentioned. •This test report must not be used to claim product endorsement by NVLAP or any agency of the U.S Government. • We certify that this test report has been based on the measurement standards that is traceable to the national or International standards. NVLAP Lab. Code: 200220-0 SK TECH CO., LTD. Page 2 of 13 SKT STR-02002U FCC ID: LLIHSCR Contents 1. General 3 2. Test Site 3 2.1 Location 3 2.2 List of Test and Measurement Instruments 4 2.3 Test Date 4 2.4 Test Environment 4 3. Description of the Equipment Under Test 5 3.1 Rating and Physical Characteristics 5 3.2 Equipment Modifications 5 3.3 Submitted Documents 5 4. Measurement Conditions 6 4.1 Description of test configuration 6 4.2 List of Peripherals 6 4.3 Type of used Cables 6 4.4 Uncertainty 6 5. Test and Measurements 7 5.1 Transmission Requirements according to § 15.231(a)(1) 7 5.2 Field strength of emissions according to § 15.231(b) 8 5.3 Occupied bandwidth according to § 15.231(c) 10 Appendix: Measured data Appendix 1: Figure of the measured Transmission Duration 11 Appendix 2: Table of the measured Field strength 12 Appendix 3: Figure of the measured Occupied bandwidth 13 SK TECH CO., LTD. Page 3 of 13 SKT STR-02002U FCC ID: LLIHSCR 1. General These tests were performed using the test procedure outlined in ANSI C64.4, 1992 for intentional radiators, and in accordance with the limits set forth in FCC Part 15.231, for periodic transmitter and the equipment under test has been shown to be capable of compliance with the applicable technical standards. We attest to the accuracy of data. All measurements reported herein were performed by SK Tech Co., Ltd. and were made under Chief Engineer’s supervision. We assume full responsibility for the completeness of these measurements and vouch for the qualifications of all persons taking them. 2. Test Site SK TECH Co., Ltd. 2.1 Location 820-2, Wolmoon Ri, Wabu-Up, Namyangju-Si, Kyunggi-Do, Korea This test site is in compliance with ISO/IEC 17025 for general requirements for the competence of testing and calibration laboratories. This laboratory is accredited by NVLAP for NVLAP Lab. Code: 200220-0 and DATech for DAR-Registration No.: TTI-P-G155/97-10 SK TECH CO., LTD. Page 4 of 13 SKT STR-02002U FCC ID: LLIHSCR 2.2 List of Test and Measurement Instruments Equipment Type Manufacturer Model No. Serial No. Cal. Due Date EMI Test Receiver Rohde&Schwarz ESVS 10 825120/013 02. 2003 EMI Test Receiver Rohde&Schwarz ESVS 10 834468/008 11. 2002 Spectrum Analyzer Advantest R3361A 11730187 06. 2002 Amplifier H.P 8447F 3113A05153 06.2003 Log Periodic Antenna Schwarzbeck UHALP9107 1819 02.2003 Biconical Antenna Schwarzbeck BBA9106 91031626 02.2003 Horn Antenna Schwarzbeck SAS-200/571 304 04.2003 Antenna Mast TOKIN 5907 N/A N/A Antenna & Turntable controller TOKIN 5906 N/A N/A 50O Switcher Anritsu MP59B 6100214538 N/A 2.3 Test Date Date of Application : June 04, 2002 Date of Test : June 17, 2002 ~ June 28, 2002 2.4 Test Environment See each test item’s description. SK TECH CO., LTD. Page 5 of 13 SKT STR-02002U FCC ID: LLIHSCR 3. Description of the Equipment Under Test The EUT is a small remote control transmitter that sends a control code to a receiver located in a camera using the method of the FSK modulation, and has ten buttons for the purpose of controlling the camera manufactured by HITRON SYSTEMS INC. The EUT is manually operated and deactivated automatically within 40msec after pressing any button to transmit the control code. 3.1 Rating and Physical Characteristics Power source 3 X 1.5V (AAA battery) Output Power 5mW under Operating frequency 433.92 MHz Data Rate 2400 bps Operating temperature -20 ~ +60 Etc Binary FSK modulation (deviation 64KHz) 3.2 Equipment Modifications The test sample was programmed to send its activation code repeatedly by using modified firmware which was programmed into the sample’s processor, during the field strength measurements of the fundamental and spurious/harmonic emissions in FCC Section 15.231(b), to permit radiated emission measurements to be readily performed. This unit was then returned to normal operation for testing of the transmission duration, duty cycle and occupied bandwidth. 3.3 Submitted Documents N/A SK TECH CO., LTD. Page 6 of 13 SKT STR-02002U FCC ID: LLIHSCR 4. Measurement Conditions 4.1 Description of test configuration The EUT was powered using three new 1.5V AAA batteries and placed on a tabletop. The radiated data were taken in the peak detector function while the EUT sent its activation code repeatedly. The measurements of the transmission duration, duty cycle and occupied bandwidth were performed in the normal operation at the operating frequency. All initial investigations were performed with a spectrum analyzer or EMI receiver in manual mode scanning the frequency range continuously. Photographs are include…

Text truncated - open the document above for the full version.

SK TECH CO., LTD. Page 1 of 1 SKT STR-02002U FCC ID: LLIHSCR Test set up photos <Front View> <Rear View>
