LLIHTM190CLCD MONITER

Please read this manual thoroughly before use, and keep it handy for future reference. 15 17COLOR TFT-LCD MONITOR "/"/19"/20.1" INSTRUCTION MANUAL WARNING: Explanation of Graphical Symbols TO REDUCE THE RISK OF FIRE OR ELECTRIC SHOCK, DO NOT EXPOSE THIS PRODUCT TO RAIN OR MOISTURE. DO NOT INSERT ANY METALLIC OBJECT THROUGH VENTILATION GRILLS. CAUTION: CAUTION RISK OF ELECTRIC SHOCK DO NOT OPEN CAUTION: TO REDUCE THE RISK OF ELECTRIC SHOCK, DO NOT REMOVE COVER(OR BACK). NO USER-SERVICEABLE PARTS INSIDE. REFER SERVICING TO QUALIFIED SERVICE PERSONNEL. The lightning flash with arrowhead symbol, within an equilateral triangle, is intended to alert the user to the presence of uninsulated "dangerous voltage" within the product's enclosure that may be of sufficient magnitude to constitute a risk of electric shock to persons. The exclamation point within an equilateral triangle is intended to alert the user to the presence of important operating and maintenance (servicing) instructions in the literature accompanying the product. Should any liquid or solid object fall into the cabinet, unplug the unit and have it checked by the qualified personnel before operating it any further. Unplug the unit from the wall outlet if it is not going to be used for several days or more. To disconnect the cord, pull it out by the plug. Never pull the cord itself. Allow adequate air circulation to prevent internal heat build-up. Do not place the unit on surfaces (rugs, blankets, etc.) or near materials(curtains, draperies) that may block the ventilation holes. Do not install the unit in an extremely hot or humid place or in a place subject to excessive dust or mechanical vibration. The unit is not designed to be waterproof. Exposure to rain or water may damage the unit. Clean the unit with a slightly damp soft cloth. Use a mild household detergent. Never use strong solvents such as thinner or benzine as they might damage the finish of the unit. Retain the original carton and packing materials for safe transport of this unit in the future. Safety -----------------------------------------Installation ----------------------------------- Cleaning -------------------------------------- Precautions -2- -3- FCC COMPLIANCE STATEMENT INFORMATION TO THE USER:THIS EQUIPMENT HAS BEEN TESTED AND FOUND TO COMPLY WITH THE LIMITS FOR A CLASS B DIGITAL DEVICE, PURSUANT TO PART 15 OF THE FCC RULES. THESE LIMITS ARE DESIGNED TO PROVIDE REASONABLE PROTECTION AGAINST HARMFUL INTERFERENCE IN A RESIDENTIAL INSTALLATION. THIS EQUIPMENT GENERATES, USES AND CAN RADIATE RADIO FREQUENCY ENERGY AND, IF NOT INSTALLED AND USED IN ACCORDANCE WITH THE INSTRUCTIONS, MAY CAUSE HARMFUL INTERFERENCE TO RADIO COMMUNICATIONS. HOWEVER, THERE IS NO GUARANTEE THAT INTERFERENCE WILL NOT OCCUR IN A PARTICULAR INSTALLATION. IF THIS EQUIPMENT DOES CAUSE HARMFUL INTERFERENCE TO RADIO OR TELEVISION RECEPTION, WHICH CAN BE DETERMINED BY TURNING THE EQUIPMENT OFF AND ON, THE USER IS ENCOURAGED TO TRY TO CORRECT THE INTERFERENCE BY ONE ON MORE OF THE FOLLOWING MEASURES : - REORIENT OR RELOCATE THE RECEIVING ANTENNA - INCREASE THE SEPARATION BETWEEN THE EQUIPMENT AND RECEIVER. -CONNECT THE EQUIPMENT INTO AN OUTLET ON A CIRCUIT DIFFERENT FROM THAT TO WHICH THE RECEIVER IS CONNECTED. - CONSULT THE DEALER OR AN EXPERIENCED RADIO/TV TECHNICIAN FOR HELP CAUTION:CHANGES OR MODIFICATIONS NOT EXPRESSLY APPROVED BY THE PARTY RESPONSIBLE FOR COMPLIANCE COULD VOID THE USER'S AUTHORITY TO OPERATE THE EQUIPMENT. NORME NMB-003 DU CANADA. THIS CLASS B DIGITAL APPARATUS COMPLIES WITH CANADIAN ICES- 003. THIS PRODUCT COMPLIES WITH VARIOUS OTHER REGIONAL AND SAFETY REGULATIONS SUCH AS: UL, CUL, CE. THESE CERTIFICATIONS ARE NOTED ON THE PRODUCT LABEL. 1. 2. 3. 4. 5. 6. 6A. 7. 8. 9. 10. 11. 12. 13. 14. 15. 16. 17. 18. 19. IMPORTANT SAFEGUARDS READ INSTRUCTIONS -- All the safety and operating instructions should be read before the appliance is operated. RETAIN INSTRUCTIONS -- The safety and operating instructions should be retained for future reference. CLEANING -- Unplug video monitor or equipment from the wall outlet before cleaning. Do not use liquid cleaners or aerosol cleaners. Use a damp cloth for cleaning. ATTACHMENTS -- Do not use attachments not recommended by the video monitor or equipment manufacturer as they may result in the risk of fire, electric shock or injury to persons. WATER AND MOISTURE -- Do not use video monitor or equipment near water -- for example, near a bathtub, washbowl, kitchen sink, laundry tub, in a wet basement, or near a swimming pool, or the like. ACCESSORIES -- Do not place video monitor or equipment on an unstable cart, stand or table. The video monitor or equipment may fall, causing serious injury to a child or adult, and serious damage to the equipment. Wall or shelf mounting should follow the manufacturer's instructions, and should use a mounting kit approved by the manufacturer. Video monitor or equipment and cart combinations should be moved with care. Quick stops, excessive force, and uneven surfaces may cause the equipment and cart combination to overturn. VENTILATION -- Slots and openings in the cabinet and the back or bottom are provided for ventilation, and to ensure reliable operation of the video monitor or equipment and to protect it from overheating. These openings must not be blocked or covered. The openings should never be blocked by placing the video monitor or equipment on a bed, sofa, rug, or other similar surface. Video monitor or equipment should never be placed near or over a radiator or heat register. Video monitor or equipment receiver should not be placed in a built-in installation such as a bookcase unless proper ventilation is provided. POWER SOURCES -- Video monitor or equipment should be operated only from the type of power source indicated on the marking label. If you are not sure of the type of power supplied to your home, consult your video monitor or equipment dealer or local power company. For video monitor or equipm…

Text truncated - open the document above for the full version.

5 5 4 4 3 3 2 2 1 1 DD CC BB AA SCALER U501 VIDEO DECODER VPX3226E FRAME BUFFER K4S1616220-TC70 MICROCONTROLLER MTV212MS3224C08 EEPROM U301 MX88L284 U601,U602 U401U402 DC/DC CONVERTER U102 AIC1578CS SI4435DY U101 U104 AIC1085-33CM U105 AIC1085-33CM REGULATOR REGULATOR U103 SI4435DY U701 SI4435DY USER BUTTON A U801 AUDIO AMP TDA7053A SG9884A-110 U201 A/D CONVERTER TFT PANEL LTM190E1-L01 INVERTER AT-0170SS 12V SYS U901,U902 SN75LVDS83 LVDS J201 ANALOG RGB H/V SYNC PC J301,J302 COMPOSITE J303,J304 Y/C VIDEO J101 DC 12V POWER J801 AUDIO IN AUDIO 13.5MHz 130MHz 12.0MHz 108MHz 54MHz 20.250MHz HTM190C25S_BLOCK DIAGRAMA HTM190C25S BLOCK DIAGRAM 11Monday, July 21, 2003 Title SizeDocument NumberRev Date:Sheetof UP SPEAKER DOWN RIGHT POWER X401 12MHz SPEAKER LEFT MENU X301 20.250MHz . 5V SYS1 3.3V SYS1 3.3V SYS2 3.3V LCD 5V SYS2 VOLUME 3.3V SYS1

SK TECH CO., LTD. Page 1 of 1 SKT SKTFCE-030714-093 FCC ID : LLIHTM190C FCC ID Sample Label & Location Information LABELLING REQUIREMENTS PER ∫∫∫∫ 2.928 The Label shown shall be permanently affixed at a conspicuous location on the device and be readily visible to the user at the time of purchase. FCC ID : LLIHTM190C This device complies with part 15 of the FCC Rules. Operation is subject to the following two conditions: (1) This device may not cause harmful interference, and (2) this device must accept any interference received, including interference that may cause undesired operation.

SK TECH CO., LTD. Page 1 of 1 SKT SKTFCE-030714-093 FCC ID : LLIHTM190C FCC ID Label Sample

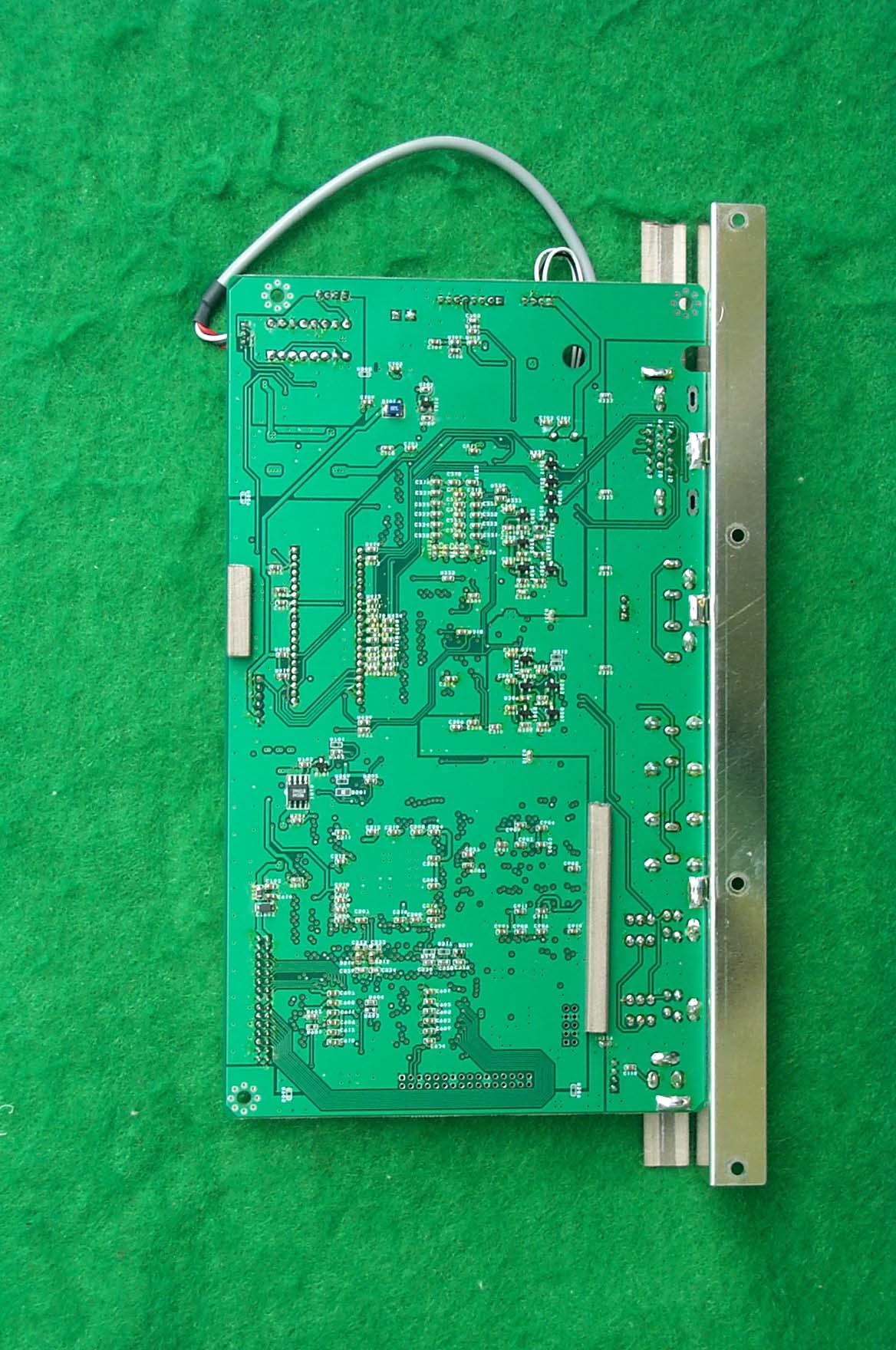

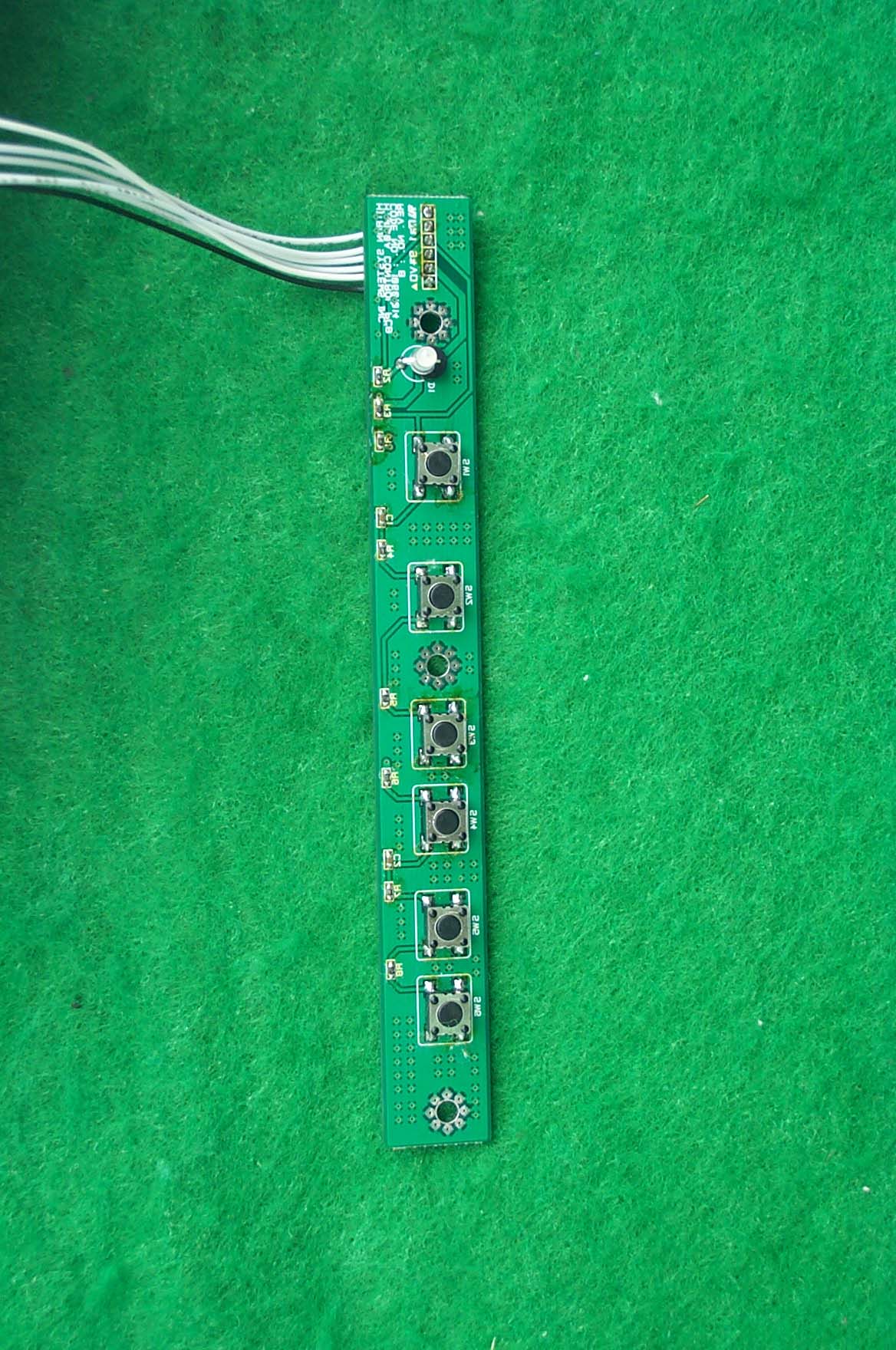

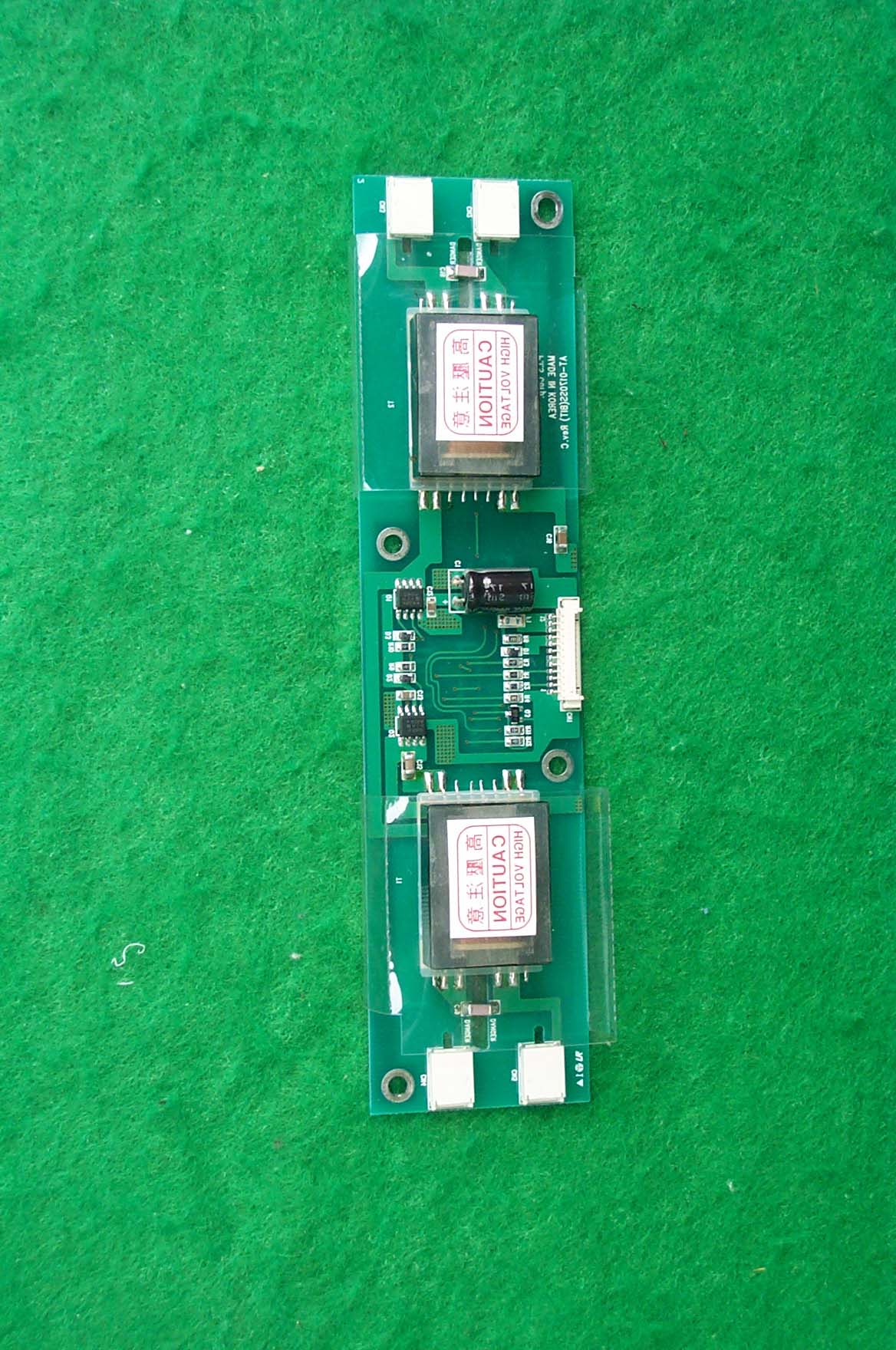

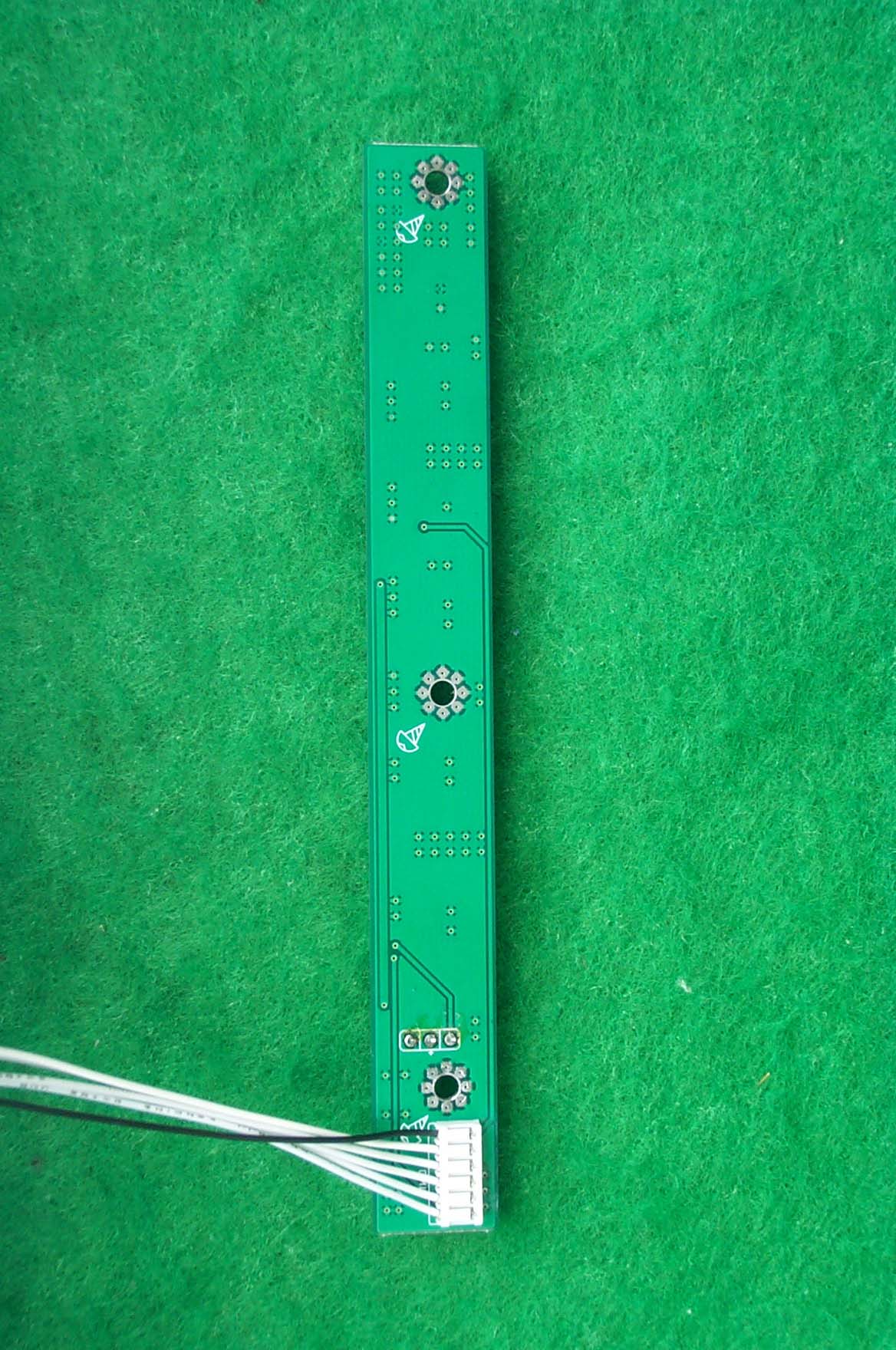

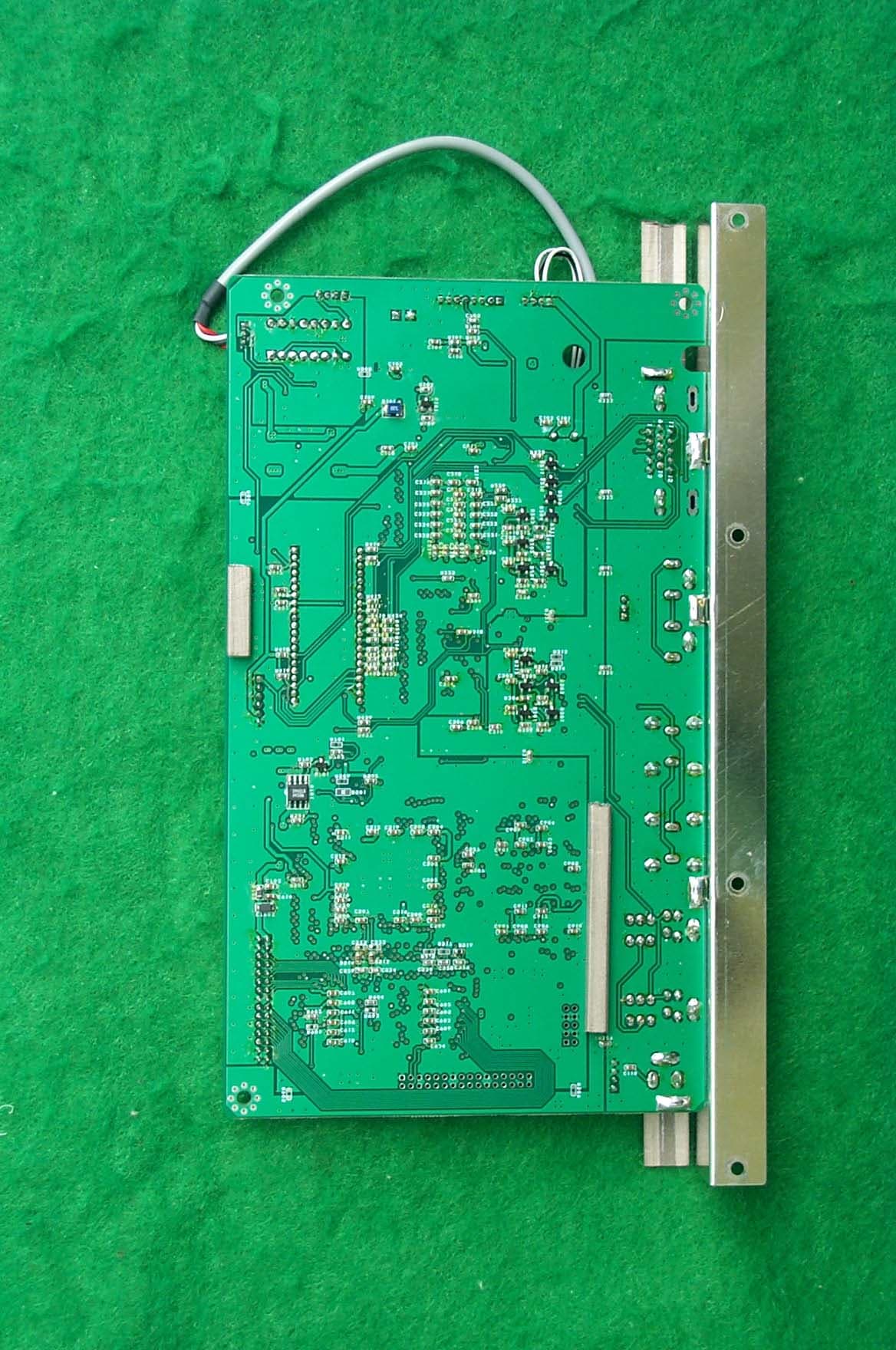

SK TECH CO., LTD. Page 1 of 9 SKT SKTFCE-030714-093 FCC ID : LLIHTM190C Internal Photographs of EUT SK TECH CO., LTD. Page 2 of 9 SKT SKTFCE-030714-093 FCC ID : LLIHTM190C SK TECH CO., LTD. Page 3 of 9 SKT SKTFCE-030714-093 FCC ID : LLIHTM190C SK TECH CO., LTD. Page 4 of 9 SKT SKTFCE-030714-093 FCC ID : LLIHTM190C SK TECH CO., LTD. Page 5 of 9 SKT SKTFCE-030714-093 FCC ID : LLIHTM190C SK TECH CO., LTD. Page 6 of 9 SKT SKTFCE-030714-093 FCC ID : LLIHTM190C SK TECH CO., LTD. Page 7 of 9 SKT SKTFCE-030714-093 FCC ID : LLIHTM190C SK TECH CO., LTD. Page 8 of 9 SKT SKTFCE-030714-093 FCC ID : LLIHTM190C SK TECH CO., LTD. Page 9 of 9 SKT SKTFCE-030714-093 FCC ID : LLIHTM190C

SK TECH CO., LTD. Page 1 of 1 SKT SKTFCE-030714-093 FCC ID : LLIHTM190C Operational Description I. Installing the Video Driver (Windows 95/98) To install the video driver, refer to the following sequence. Select Start/Setting/Control Panel. Click Add New Hardware. Click Next. Click Next after selecting No, the device isn’t in the list. Click Next after selecting No, I want to select the hardware from a list. Click Next after selecting Monitors. Click Have Disk... Insert the supplied 3.5 floppy disk to A Drive. Select OK. Select Next after selecting the same model which you purchased. Click Finish. II. Connections To make a normal connection to the monitor, bring a cord from a camera or other video source to one of the BNC jacks or from a PC to the PC jack on the back of the monitor, Either the left or right BNC jack can be used for input. To other jack may be optionally connected to another user of the same signal. Auto Termination The input circuit of the monitor normally terminates the incoming cable in 75ohms, but these BNCs jack are auto-terminating. When two cables are connected, the internal termination is switched out, letting the final destination equipment provide the end termination. This arrangement is also specially offered for the Y/C(S-Video) jacks.

SK TECH CO., LTD. Page 1 of 21 SKT SKTFCE-030714-093 FCC ID : LLIHTM190C Certificate of Compliance Test Report No.: SKTFCE-030714-093 NVLAP CODE : 200220-0 Applicant: HITRON SYSTEMS INC. Applicant Address: 109-19, Majeon-ri, Samjuk-Myeon, Ansung-City, Kyungki-Do, Korea Product: LCD MONITOR FCC ID: LLIHTM190C Model No.: HTM190C, HTM190C25S, HTM190C25SN Buyer M/N : See page 3 Receipt No.: SKTEU03-0417 Date of receipt: June 16, 2003 Date of Issue: July 14, 2003 Testing location: SK TECH CO., LTD. 820-2, Wolmoon-Ri, Wabu-Up, Namyangju-Si, Kyunggi-Do, Korea Test Standards: ANSI C63.4 / 2001 Rule Parts: FCC part 15 Subpart B ※ This device has shown compliance with the conducted emissions limits in 15.107, 15.207 or 18.307 adopted under FCC 02-157(ET Docket 98-80). The device may be marketed after July 11, 2005, and is not affected by the 15.37(j) or 18.123 transition provisions. Equipment Class : Class B Digital Device Peripheral Test Result: The above mentioned product has been tested and passed. Prepared by:Y.H.Kang Tested by: D.H.Kang/Engineer Approved by: C.H.Jung/ Manager & Chief Engineer Signature Date Signature Date Signature Date Other Aspects : Abbreviations : · OK, Pass = passed · Fail = failed · N/A = not applicable ☞ •This test report is not permitted to copy partly without our permission. •This test result is dependent on only equipment to be used. •This test result is based on a single evaluation of one sample of the above mentioned. •This test report must not be used by the client to claim product endorsement by NVLAP or any agency of the U.S Government. • We certify that this test report has been based on the measurement standards that is traceable to the national or International standards. NVLAP Lab. Code: 200220-0 SK TECH CO., LTD. Page 2 of 21 SKT SKTFCE-030714-093 FCC ID : LLIHTM190C 》》 Contents 《《 Contents 2 List of Tables 2 List of Figures 2 List of Photographs 2 Buyer Model No. 3 1. General 4 2. Test Site 4 2.1 Location 4 2.2 List of Test and Measurement Instruments 5 2.3 Test Date 5 2.4 Test Environment 5 3. Description of the tested samples 6 3.1 Rating and Physical Characteristics 6 3.2 Submitted Documents 6 4. Measurement Conditions 7 4.1 Modes of Operation 7 4.2 List of Peripherals 7 4.3 Type of Used cables 8 4.4 Test Setup 8 4.5 Uncertainty 9 5. EMISSION Test 12 5.1 Conducted Emissions 12 5.2 Radiated Emissions 19 》List of Tables Table 1 List of test and measurement Equipment 5 Table 2 Test Data, Conducted Emissions (640x480) 17 Table 3 Test Data, Conducted Emissions (1280x1024) 18 Table 4 Test Data, Radiated Emissions (640x480) 20 Table 5 Test Data, Radiated Emissions (1280x1024) 21 》List of Figures Figure 1 Spectral Diagram, LINE-PE (640x480) 13 Figure 2 Spectral Diagram, Neutral-PE (640x480) 14 Figure 3 Spectral Diagram, LINE-PE (1280x1024) 15 Figure 4 Spectral Diagram, Neutral-PE (1280x1024) 16 SK TECH CO., LTD. Page 3 of 21 SKT SKTFCE-030714-093 FCC ID : LLIHTM190C B UYER M ODEL N O . NE-LCD19 SK TECH CO., LTD. Page 4 of 21 SKT SKTFCE-030714-093 FCC ID : LLIHTM190C 1. General This equipment has been shown to be capable of compliance with the applicable technical standards and was tested in accordance with the measurement procedures as indicated in this report. We attest to the accuracy of data. All measurements reported herein were performed by SK Tech Co., Ltd. and were made under Chief Engineer’s supervision. We assume full responsibility for the completeness of these measurements and vouch for the qualifications of all persons taking them. 2. Test Site SK TECH Co., Ltd. 2.1 Location 820-2, Wolmoon Ri, Wabu-Up, Namyangju-Si, Kyunggi-Do, Korea The test site is in compliance with ISO/IEC 17025 for general requirements for the competence of testing and calibration laboratories. This laboratory is accredited by NVLAP for NVLAP Lab. Code : 200220-0 and DATech for DAR-Registration No.:DAT-P-076/97-01 SK TECH CO., LTD. Page 5 of 21 SKT SKTFCE-030714-093 FCC ID : LLIHTM190C 2.2 List of Test and Measurement Instruments Table 1 : List of Test and Measurement Equipment ■Conducted Disturbance Kind of Equipment Type S/N Calibrated until EMI Receiver ESHS10 862970/019 10.2003 Artificial Mains Network ESH2-Z5 834549/011 10.2003 EMI Receiver ESHS10 835871/002 10.2003 Artificial Mains Network ESH3-Z5 836679/018 10.2003 ■Radiated Disturbance Kind of Equipment Type S/N Calibrated until EMI Receiver ESVS 10 825120/013 10.2003 EMI Receiver ESVS 10 834468/008 10.2003 Spectrum Analyzer R3361A 11730187 10.2003 Amplifier 8447F 3113A05153 10.2003 Log Periodic Antenna UHALP9107 1819 10.2003 Biconical Antenna BBA9106 91031626 10.2003 Open Site Cable N/A N/A N/A Antenna Turntable Driver 5907 N/A N/A Antenna Turntable controller 5906 N/A N/A Amp & Receiver connection cable N/A N/A N/A Amp & Spectrum connection cable N/A N/A N/A 50Ω Switcher MP59B 6100214538 N/A 2.3 Test Date Date of Application : June 16, 2003 Date of Test : June 16, 2003 ~ July 08, 2003 2.4 Test Environment See each test item’s description. SK TECH CO., LTD. Page 6 of 21 SKT SKTFCE-030714-093 FCC ID : LLIHTM190C 3. Description of the tested samples The EUT is LCD Monitor. 3.1 Rating and Physical Characteristics Power Requirement DC 12V 3.5A Power Consumption LCD Panel 19.0 inches TFT LCD Panel Active display area 19.0 inches Pixel format 1280(H) x 1024(V), RGB vertical stripe Pixel pitch 0.294mm x 0.294mm Color depths 8 Bit / 16.7M Colors Contrast ratio 500:1 (Typical) Viewing angles (L/R/U/D) 85/85/85/85 (Typical) Light source 4CCFL Response time 25 ms Video Mode NTSC/PAL (Auto Selection) Scanning method Digital progressive scan (Still/Progressive mode) Composite : 0.7Vp-p / 75ohms S-Video : 0.7Vp-p (Luminance), 0.3Vp-p(Chrominance) Video input signal /75ohms Termination 75 ohms, Auto termination Resolution (Composite&Y/C) More than 500 TV lines PC Input signal Analog RGB (0.714Vp-p, 75ohms), H&V Sync(TTL) VGA 640 x 480 / 60 ~ 75Hz SVGA 800 x 600 / 56 ~ 75Hz XGA 1024 x 768 / 60 ~ 75Hz PC Input Resolution SXGA 1280 x 1…

Text truncated - open the document above for the full version.

SK TECH CO., LTD. Page 1 of 4 SKT SKTFCE-030714-093 FCC ID : LLIHTM190C Test set up photos Photograph 1: Setup for Conducted Emissions (640X480) SK TECH CO., LTD. Page 2 of 4 SKT SKTFCE-030714-093 FCC ID : LLIHTM190C Photograph 2: Setup for Conducted Emissions (1280X1024) SK TECH CO., LTD. Page 3 of 4 SKT SKTFCE-030714-093 FCC ID : LLIHTM190C Photograph 3: Setup for Radiated Emissions (640X480) SK TECH CO., LTD. Page 4 of 4 SKT SKTFCE-030714-093 FCC ID : LLIHTM190C Photograph 4: Setup for Radiated Emissions (1280X1024)
