LLIHTM170CLCD Monitor

148 (+/- 5)m m 2 1 0 ( + / - 5 ) m m LABEL MANUAL NAME (50201073) Please read this manual thoroughly before use, and keep it handy for future reference. 15"/17"/20.1" COLOR TFT-LCD MONITOR INSTRUCTION MANUAL P/ N TITLE SIZEREV. SCALE DWG No MATERIAL UNLESS OTHERWISE SPECIFIED ALL DIMENSIONS ARE IN MM. - TOLERANCE LABEL +/- 1.5 MANUAL +/- 3.5 ANGULAR +/- 0.5 FINISH DATE DRAWN CHKED APPROVALS PARTS LIST DESCRIPTION/MATERIAL ITEMQTY A4 DO NOT SCALE 2 3 PRODUCTION RELEASE & REVISION REV DESCRIPT'N/BUYER DWG No PARTS No. BY CHK DATE A MANUAL INSTRUCTION ------- 50301543 Y.Y.KIM N.C.PARK 07-11-M2 A INITIAL ------------------- 50301543 Y.Y.KIM N.C.PARK 07-11-M2 06 / 25 NOTES 1.MODEL: HTM150C, HTM170C, HTM201C / ALL BRAND 2.MATERIAL: ART PAPER BIND : STAPLES-2 FINISH: ------------- 4.COLOR: TEXT-BLACK 5.SIZE: 148(+/-5)mm x 210(+/-5)mm R: 0.0 6.ANY CHANGE OR ALTERNATION MUST BE APPROVED BY HITRON ENGINEERING. WHITE 07 / 1106 / 1106 / 12 BUYER BRAND TYPE BRAND MODEL No. POWER RATING ADDRESS Model No.: HTM150C 120mm ex) ALL BRAND TYPE 3 0 m m (DC 12V 3.0A) HITRON SYSTEMS INC. 109-19 MAJEON-RI, SAMJUK-MYEON, ANSUNG-CITY, KYUNGKI-DO, 456-880 KOREA 07-11-M2 07 / 11 Pleasereadthismanualthoroughlybeforeuse,andkeepithandyforfuturereference. 1517COLOR TFT-LCDMONITOR "/"/20.1" INSTRUCTIONMANUAL WARNING: ExplanationofGraphicalSymbols TOREDUCETHERISKOFFIREORELECTRICSHOCK,DONOTEXPOSETHISPRODUCT TORAINORMOISTURE. DONOTINSERTANYMETALLICOBJECTTHROUGHVENTILATIONGRILLS. CAUTION: RISKOFELECTRICSHOCK DONOTOPEN CAUTION:TOREDUCETHERISKOFELECTRICSHOCK, DONOTREMOVECOVER(ORBACK). NOUSER-SERVICEABLEPARTSINSIDE. REFERSERVICINGTOQUALIFIEDSERVICEPERSONNEL. Thelightningflashwitharrowheadsymbol,withinanequilateraltriangle,isintended toalerttheusertothepresenceofuninsulated"dangerousvoltage"withinthe product'senclosurethatmaybeofsufficientmagnitudetoconstituteariskofelectric shocktopersons. Theexclamationpointwithinanequilateraltriangleisintendedtoalerttheusertothe presenceofimportantoperatingandmaintenance(servicing)instructionsinthe literatureaccompanyingtheproduct. Shouldanyliquidorsolidobjectfallintothe cabinet,unplugtheunitandhaveitcheckedby thequalifiedpersonnelbeforeoperatingitany further. Unplugtheunitfromthewalloutletifitisnot goingtobeusedforseveraldaysormore.To disconnectthecord,pullitoutbytheplug.Never pullthecorditself. Allowadequateaircirculationtopreventinternal heatbuild-up.Donotplacetheunitonsurfaces (rugs,blankets,etc.)ornearmaterials(curtains, draperies)thatmayblocktheventilationholes. Donotinstalltheunitinanextremelyhotorhumid placeorinaplacesubjecttoexcessivedustor mechanicalvibration. Theunitisnotdesignedtobewaterproof. Exposuretorainorwatermaydamagetheunit. Cleantheunitwithaslightlydampsoftcloth. Useamildhouseholddetergent.Neverusestrong solventssuchasthinnerorbenzineastheymight damagethefinishoftheunit. Retaintheoriginalcartonandpackingmaterials forsafetransportofthisunitinthefuture. Safety-----------------------------------------Installation----------------------------------- Cleaning-------------------------------------- Precautions -2- -3- FCCCOMPLIANCESTATEMENT INFORMATIONTOTHEUSER: THISEQUIPMENTHASBEEN TESTEDANDFOUNDTOCOMPLYWITHTHELIMITSFORACLASSB DIGITALDEVICE,PURSUANTTOPART15OFTHEFCCRULES.THESE LIMITSAREDESIGNEDTOPROVIDEREASONABLEPROTECTION AGAINSTHARMFULINTERFERENCEINARESIDENTIALINSTALLATION. THISEQUIPMENTGENERATES,USESANDCANRADIATERADIO FREQUENCYENERGYAND,IFNOTINSTALLEDANDUSEDIN ACCORDANCEWITHTHEINSTRUCTIONS,MAYCAUSEHARMFUL INTERFERENCETORADIOCOMMUNICATIONS.HOWEVER,THEREIS NOGUARANTEETHATINTERFERENCEWILLNOTOCCURINA PARTICULARINSTALLATION.IFTHISEQUIPMENTDOESCAUSE HARMFULINTERFERENCETORADIOORTELEVISIONRECEPTION, WHICHCANBEDETERMINEDBYTURNINGTHEEQUIPMENTOFFAND ON,THEUSERISENCOURAGEDTOTRYTOCORRECTTHE INTERFERENCEBYONEONMOREOFTHEFOLLOWINGMEASURES: -REORIENTORRELOCATETHERECEIVINGANTENNA -INCREASETHESEPARATIONBETWEENTHEEQUIPMENTAND RECEIVER. -CONNECTTHEEQUIPMENTINTOANOUTLETONACIRCUIT DIFFERENTFROMTHATTOWHICHTHERECEIVERISCONNECTED. -CONSULTTHEDEALERORANEXPERIENCEDRADIO/TVTECHNICIAN FORHELP CAUTION: CHANGESORMODIFICATIONSNOTEXPRESSLY APPROVEDBYTHEPARTYRESPONSIBLEFORCOMPLIANCECOULD VOIDTHEUSER'SAUTHORITYTOOPERATETHEEQUIPMENT. NORMENMB-003DUCANADA. THISCLASSBDIGITALAPPARATUSCOMPLIESWITHCANADIANICES- 003. THISPRODUCTCOMPLIESWITHVARIOUSOTHERREGIONALAND SAFETYREGULATIONSSUCHAS:UL,CUL,CE.THESE CERTIFICATIONSARENOTEDONTHEPRODUCTLABEL. 1. 2. 3. 4. 5. 6. 6A. 7. 8. 9. 10. 11. 12. 13. 14. 15. 16. 17. 18. 19. IMPORTANTSAFEGUARDS READINSTRUCTIONS--Allthesafetyandoperating instructionsshouldbereadbeforetheapplianceisoperated. RETAININSTRUCTIONS--Thesafetyandoperating instructionsshouldberetainedforfuturereference. CLEANING--Unplugvideomonitororequipmentfromthe walloutletbeforecleaning.Donotuseliquidcleanersor aerosolcleaners.Useadampclothforcleaning. ATTACHMENTS--Donotuseattachmentsnot recommendedbythevideomonitororequipment manufacturerastheymayresultintheriskoffire,electric shockorinjurytopersons. WATERANDMOISTURE--Donotusevideomonitoror equipmentnearwater--forexample,nearabathtub, washbowl,kitchensink,laundrytub,inawetbasement,or nearaswimmingpool,orthelike. ACCESSORIES--Donotplacevideomonitororequipment onanunstablecart,standortable.Thevideomonitoror equipmentmayfall,causingseriousinjurytoachildoradult, andseriousdamagetotheequipment.Wallorshelf mountingshouldfollowthemanufacturer'sinstructions,and shoulduseamountingkitapprovedbythemanufacturer. Videomonitororequipmentandcart combinationsshouldbemovedwith care.Quickstops,excessiveforce, andunevensurfacesmaycausethe equipmentandcartcombinationtooverturn. VENTILATION--Slotsandopeningsinthecabinetandthe backorbottomareprovidedforventilation,andtoensure reliableoperationofthevideomonitororequipmentandto protectitfromoverheating.Theseopeningsmustnotbe blockedorcovered.Theopeningsshouldneverbeblocked byplacingthevideomonitororequipmentonabed,sofa, rug,orothersimilarsurface.Videomonitororequipment shouldneverbeplacednearoroveraradiatororheat register.Videomonitororequipm…

Text truncated - open the document above for the full version.

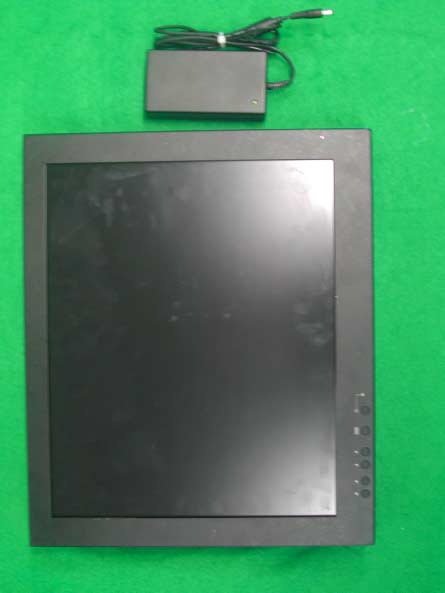

SK TECH CO., LTD. Page 1 of 2 SKT SKTOS-02077 FCC ID : LLIHTM170C External Photographs of EUT SK TECH CO., LTD. Page 2 of 2 SKT SKTOS-02077 FCC ID : LLIHTM170C

SK TECH CO., LTD. Page 1 of 1 SKT SKTOS-02077 FCC ID : LLIHTM170C FCC ID Sample Label & Location Information LABELLING REQUIREMENTS PER ∫∫∫∫ ∫∫∫∫∫∫∫∫ ∫∫∫∫2.928 The Label shown shall be permanently affixed at a conspicuous location on the device and be readily visible to the user at the time of purchase. FCC ID : LLIHTM170C This device complies with part 15 of the FCC Rules. Operation is subject to the following two conditions: (1) This device may not cause harmful interference, and (2) this device must accept any interference received, including interference that may cause undesired operation.

SK TECH CO., LTD. Page 1 of 1 SKT SKTOS-02077 FCC ID : LLIHTM170C FCC ID Label Sample

SK TECH CO., LTD. Page 1 of 6 SKT SKTOS-02077 FCC ID : LLIHTM170C Internal Photographs of EUT SK TECH CO., LTD. Page 2 of 6 SKT SKTOS-02077 FCC ID : LLIHTM170C SK TECH CO., LTD. Page 3 of 6 SKT SKTOS-02077 FCC ID : LLIHTM170C SK TECH CO., LTD. Page 4 of 6 SKT SKTOS-02077 FCC ID : LLIHTM170C SK TECH CO., LTD. Page 5 of 6 SKT SKTOS-02077 FCC ID : LLIHTM170C SK TECH CO., LTD. Page 6 of 6 SKT SKTOS-02077 FCC ID : LLIHTM170C

SK TECH CO., LTD. Page 1 of 14 SKT SKTOS-02077 FCC ID : LLIHTM170C Certificate of Compliance Test Report No.: SKTOS-02077 NVLAP CODE : 200220-0 Applicant: HITRON SYSTEMS INC. Applicant Address: 109-19, Majeon-ri, Samjuk-Myeon, Ansung-City, Kyungki-Do, Korea Product: LCD MONITOR FCC ID: LLIHTM170C Model No.: HTM170C Buyer M/N : See page 3 Receipt No.: SKE20020705-433 Date of receipt: July 05, 2002 Date of Issue: July 29, 2002 Testing location: SK TECH CO., LTD. 820-2, Wolmoon-Ri, Wabu-Up, Namyangju-Si, Kyunggi-Do, Korea Test Standards: ANSI C63.4 / 2000 Rule Parts: FCC part 15 Subpart B Equipment Class : Class B Digital Device Peripheral Test Result: The above mentioned product has been tested and passed. Prepared by:Y.H.Kang Tested by:Y.B.Kim/Engineer Approved by: K.S.Kim/ Manager & Chief Engineer Signature Date Signature Date Signature Date Other Aspects : Abbreviations : · OK, Pass = passed · Fail = failed · N/A = not applicable ☞ ☞☞ ☞ •This test report is not permitted to copy partly without our permission. •This test result is dependent on only equipment to be used. •This test result is based on a single evaluation of one sample of the above mentioned. •This test report must not be used by the client to claim product endorsement by NVLAP or any agency of the U.S Government. • We certify that this test report has been based on the measurement standards that is traceable to the national or International standards. NVLAP Lab. Code: 200220-0 SK TECH CO., LTD. Page 2 of 14 SKT SKTOS-02077 FCC ID : LLIHTM170C 》》 》》》》 》》 Contents 《《 《《《《 《《 Contents 2 List of Tables 2 List of Figures 2 List of Photographs 2 Buyer Model No. 3 1. General 4 2. Test Site 4 2.1 Location 4 2.2 List of Test and Measurement Instruments 5 2.3 Test Date 5 2.4 Test Environment 5 3. Description of the tested samples 6 3.1 Rating and Physical Characteristics 6 3.2 Submitted Documents 6 4. Measurement Conditions 7 4.1 Modes of Operation 7 4.2 List of Peripherals 7 4.3 Type of Used cables 8 4.4 Test Setup 8 4.5 Uncertainty 8 5. EMISSION Test 9 5.1 Conducted Emissions 9 5.2 Radiated Emissions 13 》 》》 》List of Tables Table 1 List of test and measurement Equipment 5 Table 2 Test Data, Conducted Emissions 12 Table 3 Test Data, Radiated Emissions 14 》 》》 》List of Figures Figure 1 Spectral Diagram, LINE-PE 10 Figure 2 Spectral Diagram, Neutral-PE 11 SK TECH CO., LTD. Page 3 of 14 SKT SKTOS-02077 FCC ID : LLIHTM170C B UYER M ODEL N O . NE-LCD17 VMC-17LCD-P SK TECH CO., LTD. Page 4 of 14 SKT SKTOS-02077 FCC ID : LLIHTM170C 1. General This equipment has been shown to be capable of compliance with the applicable technical standards and was tested in accordance with the measurement procedures as indicated in this report. We attest to the accuracy of data. All measurements reported herein were performed by SK Tech Co., Ltd. and were made under Chief Engineer’s supervision. We assume full responsibility for the completeness of these measurements and vouch for the qualifications of all persons taking them. 2. Test Site SK TECH Co., Ltd. 2.1 Location 820-2, Wolmoon Ri, Wabu-Up, Namyangju-Si, Kyunggi-Do, Korea The test site is in compliance with ISO/IEC 17025 for general requirements for the competence of testing and calibration laboratories. This laboratory is accredited by NVLAP for NVLAP Lab. Code : 200220-0 and DATech for DAR-Registration No.:TTI-P-G155/97-10 SK TECH CO., LTD. Page 5 of 14 SKT SKTOS-02077 FCC ID : LLIHTM170C 2.2 List of Test and Measurement Instruments Table 1 : List of Test and Measurement Equipment z Conducted Disturbance Kind of Equipment Type S/N Calibrated until EMI Receiver ESHS10 862970/019 02.2003 Artificial Mains Network ESH3-Z5 834549/001 10.2002 EMI Receiver ESHS10 835871/002 10.2002 Artificial Mains Network ESH3-Z5 836679/018 10.2002 Conducted Cable N/A N/A N/A z Radiated Disturbance Kind of Equipment Type S/N Calibrated until EMI Receiver ESVS 10 825120/013 02.2003 EMI Receiver ESVS 10 834468/008 11.2002 Spectrum Analyzer R3361A 11730187 07.2003 Amplifier 8447F 3113A05153 06.2003 Log Periodic Antenna UHALP9107 1819 02.2003 Biconical Antenna BBA9106 91031626 02.2003 Antenna Mast 5907 N/A N/A Antenna & Turntable controller 5906 N/A N/A Amp & Receiver connection cables N/A N/A N/A 50Ω Switcher MP59B 6100214538 N/A 2.3 Test Date Date of Application : July 05, 2002 Date of Test : July 24, 2002 2.4 Test Environment See each test item’s description. SK TECH CO., LTD. Page 6 of 14 SKT SKTOS-02077 FCC ID : LLIHTM170C 3. Description of the tested samples The EUT is LCD Monitor. 3.1 Rating and Physical Characteristics General Power Requirement DC 12V 3.25A Power Consumption 41 Watts AC Adaptor Connector IEC-320 Male, 100-240Vac User Controls Bright, Contrast, Tilt, Color, Sharpness, etc OSD Language English / France / German / Italian / Spanish / Polish Dimensions 398mm(W) x 333mm(H) x 56mm(D) Weight 3.7Kg Operating temperature 0 to 40 degree Storage temperature 0 to 50 degree Audio input connector RCA x 2 (Stereo) Audio amplifier 0.5W x 2 LCD LCD Panel 17.0 inches TFT LCD Panel Pixel format 1280(H) x 1024(V), RGB vertical stripe Pixel pitch 0.264mm x 0.264mm Color depths 8 Bit / 16.7M Colors Contrast ratio 350 : 1 (typical) Viewing angles(L/R/U/D) 80/80/80/80 (typical) Light source / Lifetime 4CCFL / 20,000Hrs(Minimum) Response time (tr/td) 20/15ms Video Video mode NTSC/PAL (Auto selection) Scanning method Digital progressive scan (Still/Progressive) Video input signal Composite : 1.0Vp-p, 75 ohm S-video : 0.7Vp-p (Luminance), 75ohm 0.3Vp-p (Chrominance), 75 ohm Video connector Composite : BNC x 2 S-video : 4 pin Mini-din x 2 Termination 75 ohm, Auto termination Resolution More than 500 lines PC Input signal Analog RGB(0.714Vp-p, 75 ohm), H&V Sync(TTL) Input connector 15 pin D-sub Input resolution VGA 640 x 480 60 to 75Hz SVGA 800 x 600 56 to 75Hz XGA 1024 x 768 60 to 75Hz SXGA 1280 x 1024 60Hz Plug & Play DDC 2B 3.2 Submitted Documents N/A SK TECH CO., LTD. Page 7 of 14 SKT SKTOS-02077 FCC ID : LLIHTM170C 4. Meas…

Text truncated - open the document above for the full version.

SK TECH CO., LTD. Page 1 of 2 SKT SKTOS-02077 FCC ID : LLIHTM170C Test set up photos Photograph 1: Setup for Conducted Emissions SK TECH CO., LTD. Page 2 of 2 SKT SKTOS-02077 FCC ID : LLIHTM170C Photograph 2: Setup for Radiated Emissions
