LLIHTM201CLCD Monitor

Please read this manual thoroughly before use, and keep it handy for future reference. 15"/17"/20.1" COLOR TFT-LCD MONITOR INSTRUCTION MANUAL WARNING: Explanation of Graphical Symbols TO REDUCE THE RISK OF FIRE OR ELECTRIC SHOCK, DO NOT EXPOSE THIS PRODUCT TO RAIN OR MOISTURE. DO NOT INSERT ANY METALLIC OBJECT THROUGH VENTILATION GRILLS. CAUTION: CAUTIONCAUTION RISK OF ELECTRIC SHOCK DO NOT OPEN CAUTION: TO REDUCE THE RISK OF ELECTRIC SHOCK, DO NOT REMOVE COVER(OR BACK). NO USER-SERVICEABLE PARTS INSIDE. REFER SERVICING TO QUALIFIED SERVICE PERSONNEL. The lightning flash with arrowhead symbol, within an equilateral triangle, is intended to alert the user to the presence of uninsulated "dangerous voltage" within the product's enclosure that may be of sufficient magnitude to constitute a risk of electric shock to persons. The exclamation point within an equilateral triangle is intended to alert the user to the presence of important operating and maintenance (servicing) instructions in the literature accompanying the product. Should any liquid or solid object fall into the cabinet, unplug the unit and have it checked by the qualified personnel before operating it any further. Unplug the unit from the wall outlet if it is not going to be used for several days or more. To disconnect the cord, pull it out by the plug. Never pull the cord itself. Allow adequate air circulation to prevent internal heat build-up. Do not place the unit on surfaces (rugs, blankets, etc.) or near materials(curtains, draperies) that may block the ventilation holes. Do not install the unit in an extremely hot or humid place or in a place subject to excessive dust or mechanical vibration. The unit is not designed to be waterproof. Exposure to rain or water may damage the unit. Clean the unit with a slightly damp soft cloth. Use a mild household detergent. Never use strong solvents such as thinner or benzine as they might damage the finish of the unit. Retain the original carton and packing materials for safe transport of this unit in the future. Safety ----------------------------------------- Installation ----------------------------------- Cleaning -------------------------------------- Precautions - 2 - - 3 - FCC COMPLIANCE STATEMENT INFORMATION TO THE USER: THIS EQUIPMENT HAS BEEN TESTED AND FOUND TO COMPLY WITH THE LIMITS FOR A CLASS B DIGITAL DEVICE, PURSUANT TO PART 15 OF THE FCC RULES. THESE LIMITS ARE DESIGNED TO PROVIDE REASONABLE PROTECTION AGAINST HARMFUL INTERFERENCE IN A RESIDENTIAL INSTALLATION. THIS EQUIPMENT GENERATES, USES AND CAN RADIATE RADIO FREQUENCY ENERGY AND, IF NOT INSTALLED AND USED IN ACCORDANCE WITH THE INSTRUCTIONS, MAY CAUSE HARMFUL INTERFERENCE TO RADIO COMMUNICATIONS. HOWEVER, THERE IS NO GUARANTEE THAT INTERFERENCE WILL NOT OCCUR IN A PARTICULAR INSTALLATION. IF THIS EQUIPMENT DOES CAUSE HARMFUL INTERFERENCE TO RADIO OR TELEVISION RECEPTION, WHICH CAN BE DETERMINED BY TURNING THE EQUIPMENT OFF AND ON, THE USER IS ENCOURAGED TO TRY TO CORRECT THE INTERFERENCE BY ONE ON MORE OF THE FOLLOWING MEASURES : - REORIENT OR RELOCATE THE RECEIVING ANTENNA - INCREASE THE SEPARATION BETWEEN THE EQUIPMENT AND RECEIVER. -CONNECT THE EQUIPMENT INTO AN OUTLET ON A CIRCUIT DIFFERENT FROM THAT TO WHICH THE RECEIVER IS CONNECTED. - CONSULT THE DEALER OR AN EXPERIENCED RADIO/TV TECHNICIAN FOR HELP CAUTION: CHANGES OR MODIFICATIONS NOT EXPRESSLY APPROVED BY THE PARTY RESPONSIBLE FOR COMPLIANCE COULD VOID THE USER'S AUTHORITY TO OPERATE THE EQUIPMENT. NORME NMB-003 DU CANADA. THIS CLASS B DIGITAL APPARATUS COMPLIES WITH CANADIAN ICES- 003. THIS PRODUCT COMPLIES WITH VARIOUS OTHER REGIONAL AND SAFETY REGULATIONS SUCH AS: UL, CUL, CE. THESE CERTIFICATIONS ARE NOTED ON THE PRODUCT LABEL. 1. 2. 3. 4. 5. 6. 6A. 7. 8. 9. 10. 11. 12. 13. 14. 15. 16. 17. 18. 19. IMPORTANT SAFEGUARDS READ INSTRUCTIONS -- All the safety and operating instructions should be read before the appliance is operated. RETAIN INSTRUCTIONS -- The safety and operating instructions should be retained for future reference. CLEANING -- Unplug video monitor or equipment from the wall outlet before cleaning. Do not use liquid cleaners or aerosol cleaners. Use a damp cloth for cleaning. ATTACHMENTS -- Do not use attachments not recommended by the video monitor or equipment manufacturer as they may result in the risk of fire, electric shock or injury to persons. WATER AND MOISTURE -- Do not use video monitor or equipment near water -- for example, near a bathtub, washbowl, kitchen sink, laundry tub, in a wet basement, or near a swimming pool, or the like. ACCESSORIES -- Do not place video monitor or equipment on an unstable cart, stand or table. The video monitor or equipment may fall, causing serious injury to a child or adult, and serious damage to the equipment. Wall or shelf mounting should follow the manufacturer's instructions, and should use a mounting kit approved by the manufacturer. Video monitor or equipment and cart combinations should be moved with care. Quick stops, excessive force, and uneven surfaces may cause the equipment and cart combination to overturn. VENTILATION -- Slots and openings in the cabinet and the back or bottom are provided for ventilation, and to ensure reliable operation of the video monitor or equipment and to protect it from overheating. These openings must not be blocked or covered. The openings should never be blocked by placing the video monitor or equipment on a bed, sofa, rug, or other similar surface. Video monitor or equipment should never be placed near or over a radiator or heat register. Video monitor or equipment receiver should not be placed in a built-in installation such as a bookcase unless proper ventilation is provided. POWER SOURCES -- Video monitor or equipment should be operated only from the type of power source indicated on the marking label. If you are not sure of the type of power supplied to your home, consult your video monitor or equipment dealer or local power company. For video monitor …

Text truncated - open the document above for the full version.













 !

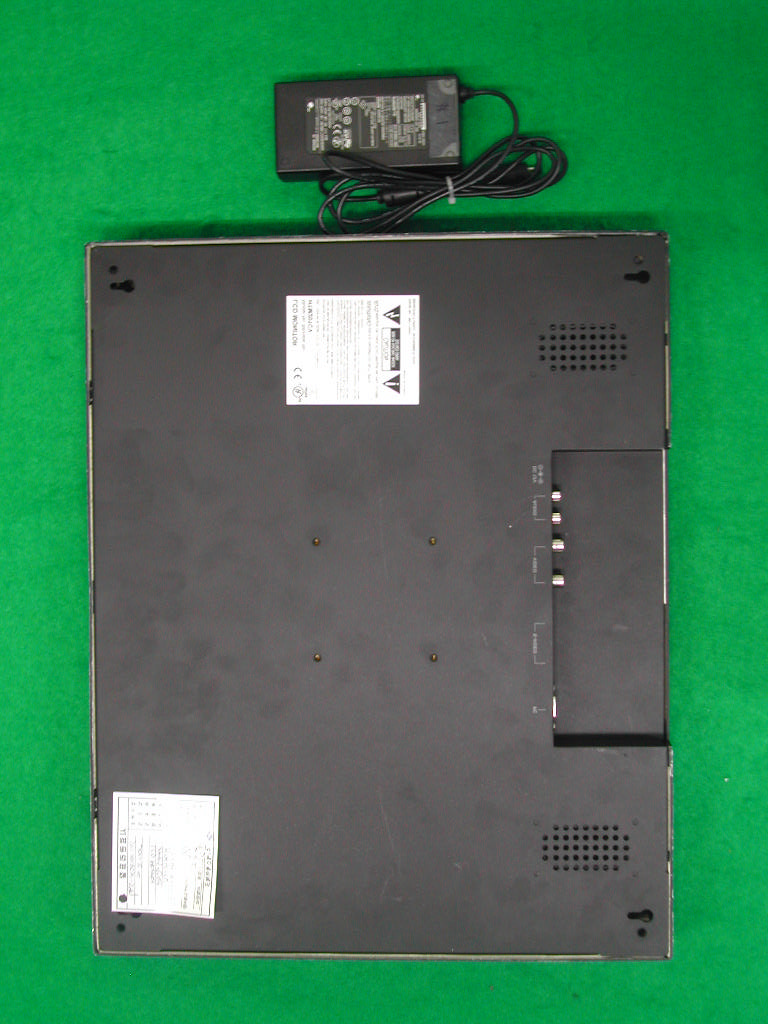

SK TECH CO., LTD. Page 1 of 2 SKT SKTFCE-021108-104 FCC ID : LLIHTM201C External Photographs of EUT SK TECH CO., LTD. Page 2 of 2 SKT SKTFCE-021108-104 FCC ID : LLIHTM201C

SK TECH CO., LTD. Page 1 of 1 SKT SKTFCE-021108-104 FCC ID : LLIHTM201C FCC ID Sample Label & Location Information LABELLING REQUIREMENTS PER 2.928 The Label shown shall be permanently affixed at a conspicuous location on the device and be readily visible to the user at the time of purchase. FCC ID : LLIHTM201C This device complies with part 15 of the FCC Rules. Operation is subject to the following two conditions: (1) This device may not cause harmful interference, and (2) this device must accept any interference received, including interference that may cause undesired operation.

SK TECH CO., LTD. Page 1 of 1 SKT SKTFCE-021108-104 FCC ID : LLIHTM201C FCC ID Label Sample

SK TECH CO., LTD. Page 1 of 6 SKT SKTFCE-021108-104 FCC ID : LLIHTM201C Internal Photographs of EUT SK TECH CO., LTD. Page 2 of 6 SKT SKTFCE-021108-104 FCC ID : LLIHTM201C SK TECH CO., LTD. Page 3 of 6 SKT SKTFCE-021108-104 FCC ID : LLIHTM201C SK TECH CO., LTD. Page 4 of 6 SKT SKTFCE-021108-104 FCC ID : LLIHTM201C SK TECH CO., LTD. Page 5 of 6 SKT SKTFCE-021108-104 FCC ID : LLIHTM201C SK TECH CO., LTD. Page 6 of 6 SKT SKTFCE-021108-104 FCC ID : LLIHTM201C

SK TECH CO., LTD. Page 1 of 14 SKT SKTFCE-021108-104 FCC ID : LLIHTM201C Certificate of Compliance Test Report No.: SKTFCE-021108-104 NVLAP CODE : 200220-0 Applicant: HITRON SYSTEMS INC. Applicant Address: 109-19, Majeon-ri, Samjuk-Myeon, Ansung-City, Kyungki-Do, Korea Product: LCD MONITOR FCC ID: LLIHTM201C Model No.: HTM201CV Buyer M/N : See page 3 Receipt No.: SKE20021030-597 Date of receipt: Oct. 30, 2002 Date of Issue: Nov. 08, 2002 Testing location: SK TECH CO., LTD. 820-2, Wolmoon-Ri, Wabu-Up, Namyangju-Si, Kyunggi-Do, Korea Test Standards: ANSI C63.4 / 2001 Rule Parts: FCC part 15 Subpart B Equipment Class : Class B Digital Device Peripheral Test Result: The above mentioned product has been tested and passed. Prepared by:Y.H.Kang Tested by:Y.B.Kim/Engineer Approved by: K.S.Kim/Manager & Chief Engineer Signature Date Signature Date Signature Date Other Aspects : Abbreviations : · OK, Pass = passed · Fail = failed · N/A = not applicable •This test report is not permitted to copy partly without our permission. •This test result is dependent on only equipment to be used. •This test result is based on a single evaluation of one sample of the above mentioned. •This test report must not be used by the client to claim product endorsement by NVLAP or any agency of the U.S Government. • We certify that this test report has been based on the measurement standards that is traceable to the national or International standards. NVLAP Lab. Code: 200220-0 SK TECH CO., LTD. Page 2 of 14 SKT SKTFCE-021108-104 FCC ID : LLIHTM201C Contents Contents 2 List of Tables 2 List of Figures 2 List of Photographs 2 Buyer Model No. 3 1. General 4 2. Test Site 4 2.1 Location 4 2.2 List of Test and Measurement Instruments 5 2.3 Test Date 5 2.4 Test Environment 5 3. Description of the tested samples 6 3.1 Rating and Physical Characteristics 6 3.2 Submitted Documents 6 4. Measurement Conditions 7 4.1 Modes of Operation 7 4.2 List of Peripherals 7 4.3 Type of Used cables 8 4.4 Test Setup 8 4.5 Uncertainty 8 5. EMISSION Test 9 5.1 Conducted Emissions 9 5.2 Radiated Emissions 13 List of Tables Table 1 List of test and measurement Equipment 5 Table 2 Test Data, Conducted Emissions 12 Table 3 Test Data, Radiated Emissions 14 List of Figures Figure 1 Spectral Diagram, LINE-PE 10 Figure 2 Spectral Diagram, Neutral-PE 11 SK TECH CO., LTD. Page 3 of 14 SKT SKTFCE-021108-104 FCC ID : LLIHTM201C BUYER MODEL NO. CPT-LCD20-VGA NE-LCD20 SK TECH CO., LTD. Page 4 of 14 SKT SKTFCE-021108-104 FCC ID : LLIHTM201C 1. General This equipment has been shown to be capable of compliance with the applicable technical standards and was tested in accordance with the measurement procedures as indicated in this report. We attest to the accuracy of data. All measurements reported herein were performed by SK Tech Co., Ltd. and were made under Chief Engineer’s supervision. We assume full responsibility for the completeness of these measurements and vouch for the qualifications of all persons taking them. 2. Test Site SK TECH Co., Ltd. 2.1 Location 820-2, Wolmoon Ri, Wabu-Up, Namyangju-Si, Kyunggi-Do, Korea The test site is in compliance with ISO/IEC 17025 for general requirements for the competence of testing and calibration laboratories. This laboratory is accredited by NVLAP for NVLAP Lab. Code : 200220-0 and DATech for DAR-Registration No.:TTI-P-G155/97-10 SK TECH CO., LTD. Page 5 of 14 SKT SKTFCE-021108-104 FCC ID : LLIHTM201C 2.2 List of Test and Measurement Instruments Table 1 : List of Test and Measurement Equipment l Conducted Disturbance Kind of Equipment Type S/N Calibrated until EMI Receiver ESHS10 862970/019 10.2003 Artificial Mains Network ESH2-Z5 834549/011 10.2003 EMI Receiver ESHS10 835871/002 10.2003 Artificial Mains Network ESH3-Z5 836679/018 10.2003 Conducted Cable N/A N/A N/A l Radiated Disturbance Kind of Equipment Type S/N Calibrated until EMI Receiver ESVS 10 825120/013 02.2003 EMI Receiver ESVS 10 834468/008 11.2002 Spectrum Analyzer R3361A 11730187 07.2003 Amplifier 8447F 3113A05153 06.2003 Log Periodic Antenna UHALP9107 1819 02.2003 Biconical Antenna BBA9106 91031626 02.2003 Antenna Mast 5907 N/A N/A Antenna & Turntable controller 5906 N/A N/A Amp & Receiver connection cables N/A N/A N/A 50 Switcher MP59B 6100214538 N/A 2.3 Test Date Date of Application : Oct. 30, 2002 Date of Test : Nov. 1, 2002 2.4 Test Environment See each test item’s description. SK TECH CO., LTD. Page 6 of 14 SKT SKTFCE-021108-104 FCC ID : LLIHTM201C 3. Description of the tested samples The EUT is LCD Monitor. 3.1 Rating and Physical Characteristics General Power Requirement DC 12V 4.25A Power Consumption 60 Watts DC power Connector Barrel, 5.5/2.5mm(+Center) AC Adaptor Connector IEC-320 Male, 100-240Vac Dimensions 467mm(W) x 380mm(H) x 56mm(D) Weight 5Kg Operating temperature 0 to 40 degree Storage temperature 0 to 50 degree LCD LCD Panel 20.1 inches TFT LCD Panel Pixel format 640(H) x 480(V), RGB vertical stripe Pixel pitch 0.6375mm x 0.6375mm Color depths 8 Bit / 16.7M Colors Contrast ratio 400 : 1 (typical) Brightness 400 cd/ (Typical) Viewing angles(L/R/U/D) 70/70/55/60 (typical) Light source / Lifetime 6CCFL / 40,000Hrs(typical) Response time (tr/td) 7/18ms Video Video mode NTSC/PAL (Auto selection) Scanning method Digital progressive scan (Still) Video input signal Composite : 1.0Vp-p, 75 ohm S-video : 0.7Vp-p (Luminance),75 ohm 0.3Vp-p (Chrominance), 75 ohm Video connector Composite : BNC x 2 S-video : 4 pin Mini-din x 2 Termination 75 ohm, Auto termination Resolution More than 500 lines (at Center) PC Input signal Analog RGB(0.714Vp-p, 75 ohm), H&V Sync(TTL) Input connector 15 pin D-sub Input resolution VGA 640 x 480 60 to 75Hz Plug & Play DDC 2B 3.2 Submitted Documents N/A SK TECH CO., LTD. Page 7 of 14 SKT SKTFCE-021108-104 FCC ID : LLIHTM201C 4. Measurement Conditions Operating of EUT voltage is 12V DC supplied by the adaptor which is structural element for EUT. ( Adaptor Input Voltage : AC 120V, 60Hz) 4.1 Modes of Operation The EUT was …

Text truncated - open the document above for the full version.

SK TECH CO., LTD. Page 1 of 2 SKT SKTFCE-021108-104 FCC ID : LLIHTM201C Test set up photos Photograph 1: Setup for Conducted Emissions SK TECH CO., LTD. Page 2 of 2 SKT SKTFCE-021108-104 FCC ID : LLIHTM201C Photograph 2: Setup for Radiated Emissions
