LNQ-WF670GWi-Fi 7 Outdoor Mesh AP

1 Notice: Actiontec has the sole right to make corrections, modifications, enhancements, improvements, and other changes to its products and services at any time, and to discontinue any product or service without notice. Actiontec has the final interpretation. Tri-Band Wi-Fi7 Outdoor Mesh AP WF-670G Product Datasheet VERSION1.1 Oct, 2025 www.actiontec.com 2 Notice: Actiontec has the sole right to make corrections, modifications, enhancements, improvements, and other changes to its products and services at any time, and to discontinue any product or service without notice. Actiontec has the final interpretation. ◼ Overview The tri-band Wi-Fi 7 WF-670G is designed to provide Wi-Fi network connectivity for homes and businesses leveraging the latest 802.11be chipset design. The WF-670G supports EasyMesh R4, which provides a self- configuring, self-healing and self-managing Wi-Fi network experience. It dynamically selects the most reliable Wi-Fi paths and facilitates fast and seamless handoffs for users. WF-670G is one of the top performing Wi-Fi 7 outdoor mesh AP on the market, supporting 802.11be across all Wi-Fi radio bands. ➢ 2.4G radio supports 2x2 802.11b/g/n/ax/be MIMO. ➢ 5G radio supports 2x2 802.11a/n/ac/ax/be MIMO. ➢ 6G radio supports 2x2 802.11a/ax/be MIMO WF-670G can meet the requirements for high-speed real-time traffic and high-bandwidth entertainment, including 4K video, video game streaming and VR. The integration of Optim Cloud significantly enhances the user experience for both network operators and end-users by providing efficient device management and advanced control capabilities. Designed for outdoor deployments, the WF-670G used a standard PoE power supply and reserve the DC jack for DC power supply. 3 Notice: Actiontec has the sole right to make corrections, modifications, enhancements, improvements, and other changes to its products and services at any time, and to discontinue any product or service without notice. Actiontec has the final interpretation. ◼ Key Features and Application Scenario ⚫ Outdoor AP support Wall mounting and Pole mounting ⚫ 2.4GHz 40MHz 2x2 802.11b/g/n/ax/be ⚫ 5GHz 160MHz 2x2 802.11a/n/ac/ax/be ⚫ 6GHz 320MHz 2x2 802.11a/ax/be ⚫ WPA/WPA2-PSK(AES)/WPA3 ⚫ Integrated Wi-Fi antennas ⚫ 1 x 2.5GbE LAN with 802.3at PoE (PD) ⚫ 1 x Status LED ⚫ BLE 5.0 ⚫ 1 x WPS button ⚫ 1 x Reset button ⚫ 1 x DC jack ⚫ Supports TR-069 management ⚫ Supports EasyMesh R4 4 Notice: Actiontec has the sole right to make corrections, modifications, enhancements, improvements, and other changes to its products and services at any time, and to discontinue any product or service without notice. Actiontec has the final interpretation. ◼ Hardware Specification Dimension 281mm x 68mm x 122.4mm Installation Wall mounting and Pole mounting LEDs 1x Status LED Interface 1 x 2.5GbE LAN with 802.3at PoE (PD) 1 x Rest 1 x WPS 1 x DC jack SoC Qualcomm Flash 256MB SPI NAND Flash DDR 1GB DDR4 RAM BLE BLE 5.0 Input Voltage +12V/2A Power consumption < 20W Operating Temperature Operation: -20°C～+55°C， Storage: -40°C～+85°C Operating Humidity 5%～95% (non-condensing) Elevations 86kPa～106kPa altitude Dustproof and Waterproof IP65 Compliance IEC 62368-1:2014 (Second Edition)+A11: 2017 UL 62368-1, 2nd Ed, 2014-12-01 (Audio/video, Information and Communication Technology Equipment Part 1: Safety Requirements) CAN/CSA C22.2 No. 62368-1-14, 2nd Ed (Audio/Video, Information and Communication Technology Equipment Part 1: Safety requirements) FCC ETL RoHS 2011/65/EU Compliant (RoHS 10 Compliant, No Pb) MTBF > 300,000 Hours Telcordia SR-332, Reliability Prediction Procedures for Electronic Equipment, Issue 3, Method 1, Case 3, GB/GC (Ground Benign, Controlled) environment, 25ºC ambient temperature. Steady state, not including software failure. 5 Notice: Actiontec has the sole right to make corrections, modifications, enhancements, improvements, and other changes to its products and services at any time, and to discontinue any product or service without notice. Actiontec has the final interpretation. ◼ Wi-Fi Specification Operating frequency 2.4G radio: 2.4000GHz~2.4835GHz 5G radio: 5.150~5.250,5.250~5.350,5.470~5.725, 5.725~5.850GHz 6G radio: 5.945 ~ 7.125GHz Data Rate 802.11b: 1, 2, 5.5, and 11Mbps 802.11g: 6, 9, 12, 18, 24, 36, 48, and 54Mbps 802.11a: 6, 9, 12, 18, 24, 36, 48 and 54Mb/s 802.11n: MCS0~MCS15 802.11ac: MCS0 ~ MCS9 802.11ax: MCS0~MCS11 802.11be: MCS0~MCS13 Receive Sensitivity 2.4 GHz: 11ax HE20 MCS0:-92dBm, 11ax HE20 MCS11:-64dBm 11ax HE40 MCS0:-89dBm, 11ax HE40 MCS11:-61dBm 11be EHT20 MCS0:-92dBm, 11be EHT20 MCS13:-57dBm 11be EHT40 MCS0:-89dBm, 11be EHT40 MCS13:-54dBm 5 GHz: 11ax HE20 MCS0:-91dBm, 11ax HE20 MCS11:-63dBm 11ax HE40 MCS0:-88dBm, 11ax HE40 MCS11:-60dBm 11ax HE80 MCS0:-85dBm, 11ax HE80 MCS11:-58dBm 11ax HE160 MCS0:-83dBm, 11ax HE160 MCS11:-55dBm 11be EHT20 MCS13:-57dBm, 11be EHT40 MCS13:-54dBm 11be EHT80 MCS13:-51dBm,11 be EHT160 MCS13:-48dBm 6 GHz: 11ax HE20 MCS0:-91dBm, 11ax HE20 MCS11:-62dBm 11ax HE40 MCS0:-88dBm, 11ax HE40 MCS11:-59dBm 11ax HE80 MCS0:-85dBm, 11ax HE80 MCS11:-57dBm 11ax HE160 MCS0:-82dBm, 11ax HE160 MCS11:-54dBm 11be EHT20 MCS13:-57dBm, 11be EHT40 MCS13:-54dBm 11be EHT80 MCS13:-51dBm, 11be EHT160 MCS13:-48dBm 11be EHT320 MCS0:-79dBm, 11be EHT320 MCS13:-45dB 6 Notice: Actiontec has the sole right to make corrections, modifications, enhancements, improvements, and other changes to its products and services at any time, and to discontinue any product or service without notice. Actiontec has the final interpretation. ◼ Software Features Category Features Network Bridge Mode - DHCP Client - Backhaul with 2.4G/5G Wi-Fi/Ethernet Router Mode - IPv4 - IPv6 - NAT - WAN DHCP client - LAN DHCP server - DNS server - DHCP reservation - uPNP - Port forwarding - Backhaul with Ethernet IGMP Snooping Wi-Fi 2.4GHz bandwidth: 20/40MHz, 5GHz bandwidth: 20/40/80/160MHz 6GHz bandwidth: 20/40/80/160/320MHz 802.11 k/v/r Band steering Channel scan DFS SSID broadcast WPA/WPA2/WPA3 PSK se…

Text truncated - open the document above for the full version.

1.1.Drill two Ø6 holes in the wall and embed Ø6X30 expansion tubes 1.2.Install the bracket on the wall with Ø4x32 self-tapping screws, ensuring the arrow on the diagram points upward 1.3.Hang the product from top to bottom onto the hanger and lock the side with ST2.9x16 self tapping screws 2.1.Fix the hanger on the Ø 40- Ø 80 pole with a hose clamp 2.2.Hang the product from top to bottom onto the hanger and lock the side with ST2.9x16 self tapping screws 1.Wall-mounted installation 2.Holding pole installation Actiontec QUICK START EasyMesh Wi-Fi Router July.11.2025 Quick Setup Wizard  Use your phone or laptop to connect to the Router via Wi-Fi or ethernet. (The label printed with default Wi-Fi is on the bottom/side of your router.)  Scan the QR Code. Or opening your browser, access to 'my-router.top' or '192.168.254.254'.  Follow the 'Quick Setup Wizard' to quick setup your Primary Router. Quick Setup Wizard---Check Internet Connection LaptopPhone  Make sure the network cable is securely plugged into the WAN(Internet) port.  Optional: Go to Advanced Settings to change the WAN(Internet) type if you have to. #Optional# Quick Setup Wizard---Advanced WAN(Internet) Settings LaptopPhone  Make sure the network cable is securely plugged into the WAN(Internet) port.  Optional: Go to Advanced Settings to change the WAN(Internet) type if you have to. #Optional# Quick Setup Wizard---Advanced WAN(Internet) Settings LaptopPhone  Make sure the network cable is securely plugged into the WAN(Internet) port.  Optional: Go to Advanced Settings to change the WAN(Internet) type if you have to. #Optional# Quick Setup Wizard---Advanced WAN(Internet) Settings LaptopPhone  Make sure the network cable is securely plugged into the WAN(Internet) port.  Optional: Go to Advanced Settings to change the WAN(Internet) type if you have to. Quick Setup Wizard---Preloading ISP pre-configurations LaptopPhone  Please wait... Quick Setup Wizard---Preloading ISP pre-configurations LaptopPhone  Next. Quick Setup Wizard---Welome Onboard! LaptopPhone  Next. Quick Setup Wizard---Agree to Privacy Policy and Terms of Service LaptopPhone  Next. Quick Setup Wizard---Setup Your Wi-Fi LaptopPhone  Next. #Optional# Quick Setup Wizard---Setup Smart Home Wi-Fi LaptopPhone  Turn on the Smart Home Wi-Fi for IoT devices as you wish. Quick Setup Wizard---Basics System LaptopPhone Please setup your:  Router hostname  Router Time Zone Quick Setup Wizard---System Login Password LaptopPhone Please setup your system login password. Quick Setup Wizard---Configuration Summary LaptopPhone  Next. Quick Setup Wizard---Applying Configuration LaptopPhone Congratulations on completing the Quick Setup Wizard!  Please wait for 2 minutes to connect to your new Wi-Fi. #Optional# Quick Setup Wizard---Login In LaptopPhone  Login In. #Optional# Quick Setup Wizard---Dashboard LaptopPhone  Dashboard #Optional# Restore the Router Laptop  Use reset button at the bottom to factory reset the router.  Go to Dashboard---System---Update & Restore and reset the router.

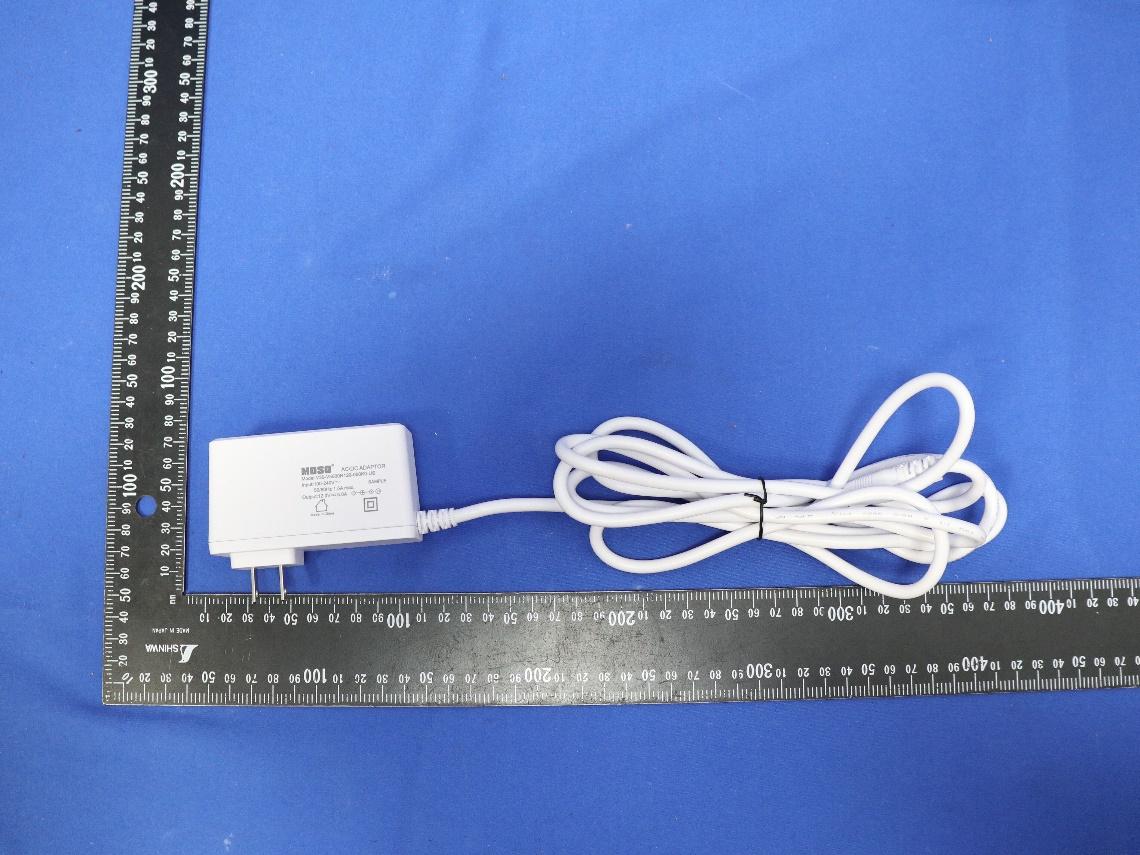

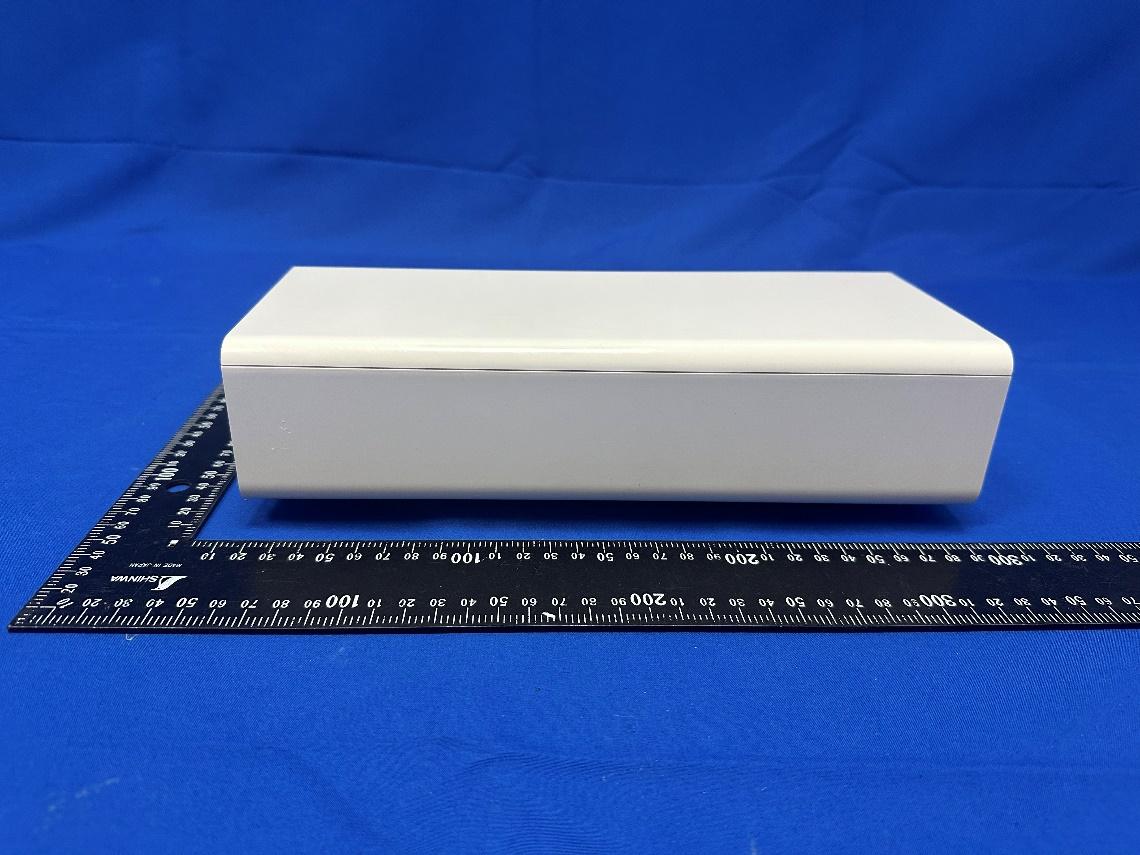

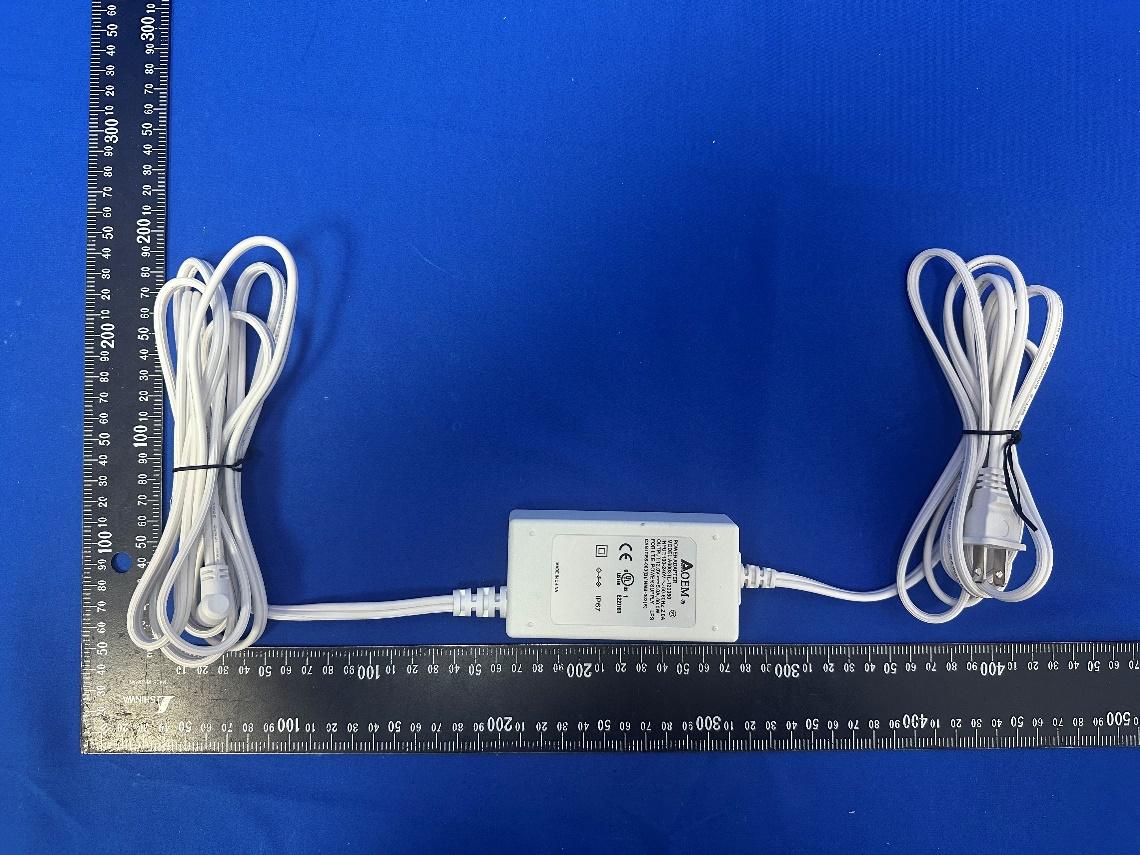

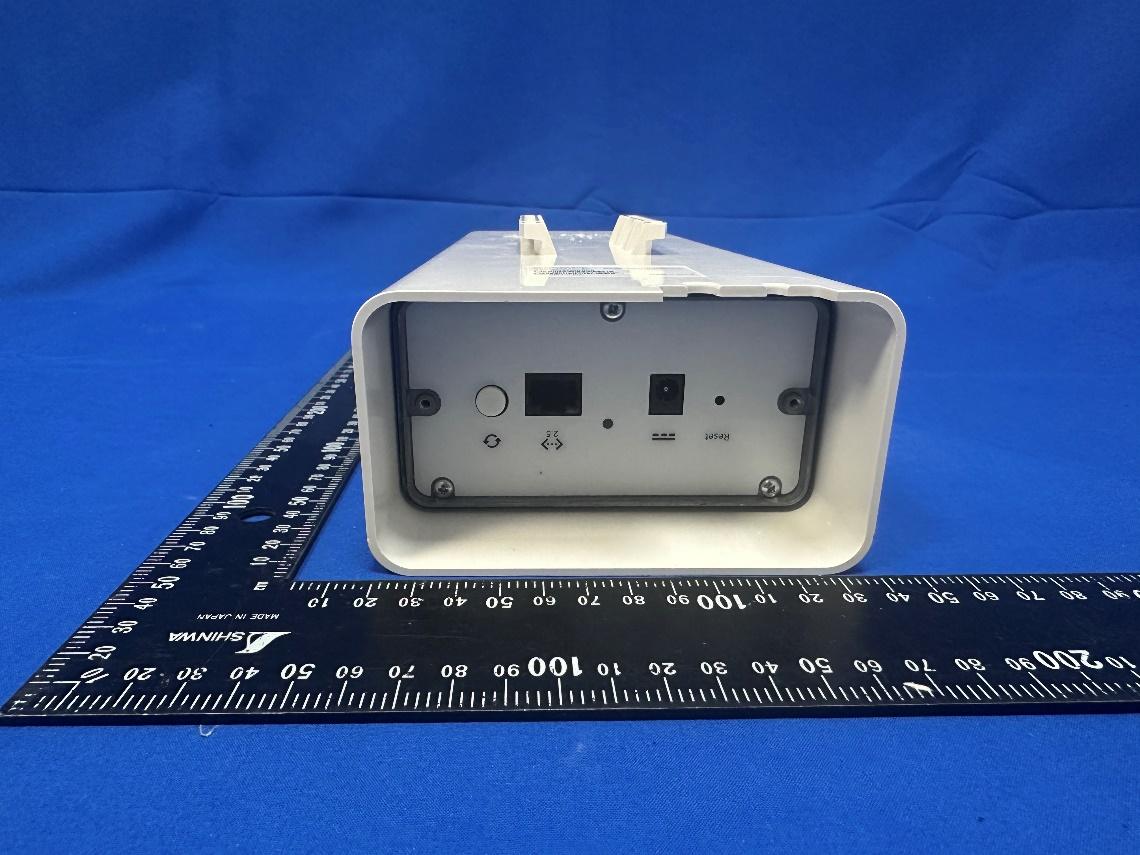

Report No.: 2411RSU008-UE 8 of 17 EUT Internal Photograph (14) EUT Photo (15) EUT Photo Report No.: 2411RSU008-UE 9 of 17 (16) EUT Photo (17) EUT Photo GPS Antenna Report No.: 2411RSU008-UE 10 of 17 (18) EUT Photo (19) EUT Photo Report No.: 2411RSU008-UE 11 of 17 (20) EUT Photo (21) EUT Photo - Receptor Report No.: 2411RSU008-UE 12 of 17 (22) EUT Photo (23) EUT Photo Report No.: 2411RSU008-UE 13 of 17 (24) EUT Photo (25) EUT Photo Report No.: 2411RSU008-UE 14 of 17 (26) EUT Photo (27) EUT Photo Report No.: 2411RSU008-UE 15 of 17 (28) EUT Photo (29) EUT Photo Report No.: 2411RSU008-UE 16 of 17 (30) EUT Photo (31) EUT Photo Report No.: 2411RSU008-UE 17 of 17 (32) EUT Photo

Report No.: 2411RSU008-UT RF Test Setup Photo Description: Front View of Conducted Emission Test Setup Description: Back View of Conducted Emission Test Setup Report No.: 2411RSU008-UT Description: Radiated Spurious Emission Test Setup for Below 30MHz Description: Radiated Spurious Emission Test Setup for Below 1GHz – Z axis Report No.: 2411RSU008-UT Description: Radiated Spurious Emission Test Setup for Above 1GHz Description: Conducted Test Setup Report No.: 2411RSU008-UT Description: DFS Test Setup

Customer:Actiontec Designer: ZW Date:2025/10/21 670G-WIFI-Antenna OUTLINE 1. Benchmark 2. S-Parameters (VSWR&isolation) 3. Antenna Efficiency& Peak Gain 4. Radiation patterns 5. Summary The Most Appropriate Antenna ForYour Design ! Shanghai JingHong Communication Technology co.,Ltd Measurement Report 0512-36877197 Test Environment and Equipments JingHong 3D ChamberStructure •EMT-24 Series System Components •Chambers •EMT Quest Software •PositioningSystems •Chamber Room Size: L*W*H=5*5*5 M VSWR were performed using a keysight S-parameter NetworkAnalyzer. E5071C High performance PC CMW500 Active Measurement Active switch E5071C Passive Measurement TestMethod TestCondition TestEngineer TestEnvironment(°C/%) TestDste RadiatedLean.ni20-24/45-6010.21.2025 Band(MHz)TestFrequency(MHz) 2400-25002400/2450/2500 5150-58505150/5500/5850 TestingLocation GaltronicsShanghai,EMTesting ShanghaiJingHongCommunicationTechnologyco.,LtdMeasurementReport 0512-36877197 TheMostAppropriateAntennaForYourDesign! TestInfornation ShanghaiJingHongCommunicationTechnologyco.,LtdMeasurementReport 0512-36877197 TheMostAppropriateAntennaForYourDesign! InstrumentManufacturerModelNO.AssetNoCali.IntervalCali.DueDate ENANetwork Analyzer KeysightE5071BHLW-SC-191Year2025/2/27 RF SwitchBoxEMTNANANANA EMTChamberEMTEMT-24HLW-SC-211Year2025/9/10 HornAntennaEMT0.8-6GHzNA1Year2025/9/10 Correlated Gain&UncorrelatedGain ShanghaiJingHongCommunicationTechnologyco.,LtdMeasurementReport 0512-36877197 TheMostAppropriateAntennaForYourDesign! The Most Appropriate Antenna ForYour Design ! Shanghai JingHong Communication Technology co.,Ltd Measurement Report 0512-36877197 1. Benchmark X Z Y The Most Appropriate Antenna ForYour Design ! Shanghai JingHong Communication Technology co.,Ltd Measurement Report 0512-36877197 1. Benchmark 2 1 4 3 1/4:2400-2500/5150-5850MHz 2/3:5925-7125MHz 5：BT 2400-2500MHz Antenna polarization：vertical 正面 背面 1 2 3 4 5 The Most Appropriate Antenna ForYour Design ! Shanghai JingHong Communication Technology co.,Ltd Measurement Report 0512-36877197 2. S-Parameters(VSWR) 1 2 The Most Appropriate Antenna ForYour Design ! Shanghai JingHong Communication Technology co.,Ltd Measurement Report 0512-36877197 2. S-Parameters(VSWR) 3 4 The Most Appropriate Antenna ForYour Design ! Shanghai JingHong Communication Technology co.,Ltd Measurement Report 0512-36877197 2. S-Parameters(VSWR) 5 The Most Appropriate Antenna ForYour Design ! Shanghai JingHong Communication Technology co.,Ltd Measurement Report 0512-36877197 2. S-Parameters(isolation) 1&21&3 The Most Appropriate Antenna ForYour Design ! Shanghai JingHong Communication Technology co.,Ltd Measurement Report 0512-36877197 2. S-Parameters(isolation) 1&42&3 The Most Appropriate Antenna ForYour Design ! Shanghai JingHong Communication Technology co.,Ltd Measurement Report 0512-36877197 2. S-Parameters(isolation) 2&43&4 The Most Appropriate Antenna ForYour Design ! Shanghai JingHong Communication Technology co.,Ltd Measurement Report 0512-36877197 2. S-Parameters(isolation) 1&52&5 The Most Appropriate Antenna ForYour Design ! Shanghai JingHong Communication Technology co.,Ltd Measurement Report 0512-36877197 2. S-Parameters(isolation) 3&54&5 The Most Appropriate Antenna ForYour Design ! Shanghai JingHong Communication Technology co.,Ltd Measurement Report 0512-36877197 3. Antenna Efficiency& Peak Gain（1） Efficiency Gain The Most Appropriate Antenna ForYour Design ! Shanghai JingHong Communication Technology co.,Ltd Measurement Report 0512-36877197 3. Antenna Efficiency& Peak Gain（2） Efficiency Gain The Most Appropriate Antenna ForYour Design ! Shanghai JingHong Communication Technology co.,Ltd Measurement Report 0512-36877197 3. Antenna Efficiency& Peak Gain（3） Efficiency Gain The Most Appropriate Antenna ForYour Design ! Shanghai JingHong Communication Technology co.,Ltd Measurement Report 0512-36877197 3. Antenna Efficiency& Peak Gain（4） Efficiency Gain The Most Appropriate Antenna ForYour Design ! Shanghai JingHong Communication Technology co.,Ltd Measurement Report 0512-36877197 3. Antenna Efficiency& Peak Gain（5） Efficiency Gain The Most Appropriate Antenna ForYour Design ! Shanghai JingHong Communication Technology co.,Ltd Measurement Report 0512-36877197 4. Radiation patterns (1-25G-2G) Z X -Z Y Z -Y -Z Y X -Y -X -X The Most Appropriate Antenna ForYour Design ! Shanghai JingHong Communication Technology co.,Ltd Measurement Report 0512-36877197 4. Radiation patterns (1-25G-5G) Z X -Z Y Z -Y -Z Y X -Y -X -X The Most Appropriate Antenna ForYour Design ! Shanghai JingHong Communication Technology co.,Ltd Measurement Report 0512-36877197 4. Radiation patterns (2-6G) Z X -Z Y Z -Y -Z Y X -Y -X -X The Most Appropriate Antenna ForYour Design ! Shanghai JingHong Communication Technology co.,Ltd Measurement Report 0512-36877197 4. Radiation patterns (3-6G) Z X -Z Y Z -Y -Z Y X -Y -X -X The Most Appropriate Antenna ForYour Design ! Shanghai JingHong Communication Technology co.,Ltd Measurement Report 0512-36877197 4. Radiation patterns (4-25G-2G) Z X -Z Y Z -Y -Z Y X -Y -X -X The Most Appropriate Antenna ForYour Design ! Shanghai JingHong Communication Technology co.,Ltd Measurement Report 0512-36877197 4. Radiation patterns (4-25G-5G) Z X -Z Y Z -Y -Z Y X -Y -X -X The Most Appropriate Antenna ForYour Design ! Shanghai JingHong Communication Technology co.,Ltd Measurement Report 0512-36877197 4. Radiation patterns (5-BT-2G) Z X -Z Y Z -Y -Z Y X -Y -X -X The Most Appropriate Antenna ForYour Design ! Shanghai JingHong Communication Technology co.,Ltd Measurement Report 0512-36877197 4. Radiation patterns (1&4system coverage 2.45GHz) Z X -Z Y Z -Y -Z -Y X Y -X -X The Most Appropriate Antenna ForYour Design ! Shanghai JingHong Communication Technology co.,Ltd Measurement Report 0512-36877197 4. Radiation patterns (1&4system coverage 5.5GHz) Z X -Z Y Z -Y -Z -Y X Y -X -X The Most Appropriate Antenna ForYour Design ! Shanghai JingHong Communication Technology co.,Ltd Measurement Report 0512-3…

Text truncated - open the document above for the full version.

Report No.: 2411RSU008-U2 83 of 220 A.6 Radiated Spurious Emission Test Result Test Site WJ-AC2 Test Engineer Carl Jiang Test Date 2024-12-05 ~ 2024-12-10 Test Mode 802.11b Remark: 1. Average measurement was not performed if peak level lower than average limit. 2. Other frequency was 20dB below limit line within 1-18GHz, there is not show in the report. Test Channel Frequency (MHz) Reading Level (dBμV) Factor (dB/m) Measure Level (dBμV/m) Limit (dBμV/m) Margin (dB) Detector Polarization 01 4826.7 41.7 0.0 41.7 74.0 -32.3 Peak Horizontal 8287.9 42.2 5.8 48.0 74.0 -26.0 Peak Horizontal 11162.6 42.2 5.1 47.3 74.0 -26.7 Peak Horizontal 4819.9 41.6 0.0 41.7 74.0 -32.3 Peak Vertical 7497.4 40.1 5.1 45.2 74.0 -28.8 Peak Vertical 12131.6 42.8 5.0 47.8 74.0 -26.2 Peak Vertical 06 8287.9 40.9 5.8 46.7 74.0 -27.4 Peak Horizontal 9343.6 39.8 6.2 46.0 74.0 -28.0 Peak Horizontal 12209.8 44.9 4.9 49.8 74.0 -24.2 Peak Horizontal 8395.0 39.5 6.0 45.5 74.0 -28.6 Peak Vertical 11347.9 42.0 5.5 47.5 74.0 -26.5 Peak Vertical 12204.7 45.0 4.9 50.0 74.0 -24.1 Peak Vertical 11 8287.9 41.6 5.8 47.3 74.0 -26.7 Peak Horizontal 11222.1 42.6 5.3 47.9 74.0 -26.1 Peak Horizontal 11849.4 43.7 4.9 48.6 74.0 -25.4 Peak Horizontal 9100.5 38.7 6.5 45.2 74.0 -28.8 Peak Vertical 11480.5 42.9 5.4 48.3 74.0 -25.7 Peak Vertical 12543.0 45.1 5.2 50.2 74.0 -23.8 Peak Vertical Note: Measure Level (dBμV/m) = Reading Level (dBμV) + Factor (dB/m) Factor (dB/m) = Cable Loss (dB) + Antenna Factor (dB/m) - Pre_Amplifier Gain (dB) Report No.: 2411RSU008-U2 84 of 220 Test Site WJ-AC2 Test Engineer Bob Zhang Test Date 2024-12-10 Test Mode 802.11g Remark: 1. Average measurement was not performed if peak level lower than average limit. 2. Other frequency was 20dB below limit line within 1-18GHz, there is not show in the report. Test Channel Frequency (MHz) Reading Level (dBμV) Factor (dB/m) Measure Level (dBμV/m) Limit (dBμV/m) Margin (dB) Detector Polarization 01 8287.9 41.1 5.8 46.9 74.0 -27.1 Peak Horizontal 11376.8 41.9 5.5 47.3 74.0 -26.7 Peak Horizontal 12369.6 44.5 4.7 49.2 74.0 -24.8 Peak Horizontal 8345.7 39.4 5.8 45.1 74.0 -28.9 Peak Vertical 11186.4 42.6 5.2 47.8 74.0 -26.2 Peak Vertical 12288.0 43.4 5.0 48.4 74.0 -25.6 Peak Vertical 06 8287.9 41.2 5.8 47.0 74.0 -27.0 Peak Horizontal 11145.6 41.8 5.1 46.9 74.0 -27.1 Peak Horizontal 12163.9 44.0 5.1 49.1 74.0 -24.9 Peak Horizontal 8381.4 40.1 5.9 46.0 74.0 -28.0 Peak Vertical 11521.3 42.6 5.2 47.7 74.0 -26.3 Peak Vertical 12517.5 43.2 5.0 48.2 74.0 -25.8 Peak Vertical 11 8287.9 42.6 5.8 48.4 74.0 -25.6 Peak Horizontal 11653.9 43.8 4.9 48.7 74.0 -25.3 Peak Horizontal 12605.9 43.2 5.3 48.6 74.0 -25.4 Peak Horizontal 8287.9 40.8 5.8 46.6 74.0 -27.4 Peak Vertical 11609.7 43.1 4.9 48.0 74.0 -26.0 Peak Vertical 12109.5 43.2 5.1 48.3 74.0 -25.7 Peak Vertical Note: Measure Level (dBμV/m) = Reading Level (dBμV) + Factor (dB/m) Factor (dB/m) = Cable Loss (dB) + Antenna Factor (dB/m) - Pre_Amplifier Gain (dB) Report No.: 2411RSU008-U2 85 of 220 Test Site WJ-AC2 Test Engineer Bob Zhang Test Date 2024-12-10 Test Mode 802.11n-HT20 Remark: 1. Average measurement was not performed if peak level lower than average limit. 2. Other frequency was 20dB below limit line within 1-18GHz, there is not show in the report. Test Channel Frequency (MHz) Reading Level (dBμV) Factor (dB/m) Measure Level (dBμV/m) Limit (dBμV/m) Margin (dB) Detector Polarization 01 8287.9 41.3 5.8 47.1 74.0 -27.0 Peak Horizontal 11706.6 43.1 4.8 48.0 74.0 -26.0 Peak Horizontal 12245.5 43.4 4.8 48.1 74.0 -25.9 Peak Horizontal 8400.1 39.3 6.0 45.3 74.0 -28.7 Peak Vertical 11407.4 41.8 5.5 47.3 74.0 -26.7 Peak Vertical 12177.5 43.6 5.1 48.7 74.0 -25.3 Peak Vertical 06 8287.9 41.4 5.8 47.2 74.0 -26.8 Peak Horizontal 11427.8 42.2 5.4 47.6 74.0 -26.4 Peak Horizontal 12573.6 42.6 5.2 47.8 74.0 -26.2 Peak Horizontal 8301.5 39.9 5.8 45.7 74.0 -28.3 Peak Vertical 11060.6 41.9 5.2 47.0 74.0 -27.0 Peak Vertical 12281.2 43.9 4.9 48.8 74.0 -25.2 Peak Vertical 11 8287.9 40.5 5.8 46.3 74.0 -27.7 Peak Horizontal 11271.4 41.4 5.4 46.8 74.0 -27.2 Peak Horizontal 12213.2 42.8 4.9 47.7 74.0 -26.3 Peak Horizontal 8211.4 39.3 5.7 45.0 74.0 -29.0 Peak Vertical 11013.0 41.6 5.1 46.7 74.0 -27.3 Peak Vertical 12298.2 43.2 4.8 48.0 74.0 -26.0 Peak Vertical Note: Measure Level (dBμV/m) = Reading Level (dBμV) + Factor (dB/m) Factor (dB/m) = Cable Loss (dB) + Antenna Factor (dB/m) - Pre_Amplifier Gain (dB) Report No.: 2411RSU008-U2 86 of 220 Test Site WJ-AC2 Test Engineer Bob Zhang Test Date 2024-12-10 Test Mode 802.11n-HT40 Remark: 1. Average measurement was not performed if peak level lower than average limit. 2. Other frequency was 20dB below limit line within 1-18GHz, there is not show in the report. Test Channel Frequency (MHz) Reading Level (dBμV) Factor (dB/m) Measure Level (dBμV/m) Limit (dBμV/m) Margin (dB) Detector Polarization 03 8287.9 41.6 5.8 47.4 74.0 -26.7 Peak Horizontal 11482.2 42.3 5.4 47.7 74.0 -26.3 Peak Horizontal 12641.6 43.3 5.5 48.8 74.0 -25.2 Peak Horizontal 8347.4 39.0 5.8 44.8 74.0 -29.2 Peak Vertical 11405.7 42.3 5.5 47.8 74.0 -26.2 Peak Vertical 12068.7 43.9 5.1 48.9 74.0 -25.1 Peak Vertical 06 8287.9 41.9 5.8 47.6 74.0 -26.4 Peak Horizontal 11693.0 42.5 4.8 47.4 74.0 -26.7 Peak Horizontal 12536.2 43.2 5.1 48.4 74.0 -25.6 Peak Horizontal 8383.1 39.2 5.9 45.1 74.0 -28.9 Peak Vertical 11395.5 41.6 5.5 47.1 74.0 -26.9 Peak Vertical 12286.3 43.7 5.0 48.7 74.0 -25.3 Peak Vertical 09 8287.9 42.7 5.8 48.5 74.0 -25.5 Peak Horizontal 11227.2 42.2 5.3 47.5 74.0 -26.5 Peak Horizontal 12197.9 43.6 5.0 48.5 74.0 -25.5 Peak Horizontal 8418.8 39.7 5.9 45.6 74.0 -28.4 Peak Vertical 11443.1 42.7 5.3 48.0 74.0 -26.0 Peak Vertical 12179.2 43.5 5.1 48.6 74.0 -25.4 Peak Vertical Note: Measure Level (dBμV/m) = Reading Level (dBμV) + Factor (dB/m) Factor (dB/m) = Cable Loss (dB) + Antenna Factor (dB/m) - Pre_Amplifier Gain (dB) Report No.: 2411RSU008-U2 87 of 220 Test Site WJ-AC2 Test Engineer Bob Zhang Test Date 2024-12-10 Test Mode 802.11ax-HE20 Remark…

Text truncated - open the document above for the full version.

Report No.: 2411RSU008-U2 65 of 220 802.11 be-EHT40 Out-of-Band Emissions – Ant 0 Channel 03 (2422MHz) Reference Level Low Band Edge Spurious Emission Channel 06 (2437MHz) Reference Level Spurious Emission Report No.: 2411RSU008-U2 66 of 220 802.11 be-EHT40 Out-of-Band Emissions – Ant 0 Channel 09 (2452MHz) Reference Level High Band Edge Spurious Emission Report No.: 2411RSU008-U2 67 of 220 802.11b Out-of-Band Emissions – Ant 1 Channel 01 (2412MHz) Reference Level Low Band Edge Spurious Emission Channel 06 (2437MHz) Reference Level Spurious Emission Report No.: 2411RSU008-U2 68 of 220 802.11b Out-of-Band Emissions – Ant 1 Channel 11 (2462MHz) Reference Level High Band Edge Spurious Emission Report No.: 2411RSU008-U2 69 of 220 802.11g Out-of-Band Emissions – Ant 1 Channel 01 (2412MHz) Reference Level Low Band Edge Spurious Emission Channel 06 (2437MHz) Reference Level Spurious Emission Report No.: 2411RSU008-U2 70 of 220 802.11g Out-of-Band Emissions – Ant 1 Channel 11 (2462MHz) Reference Level High Band Edge Spurious Emission Report No.: 2411RSU008-U2 71 of 220 802.11n-HT20 Out-of-Band Emissions – Ant 1 Channel 01 (2412MHz) Reference Level Low Band Edge Spurious Emission Channel 06 (2437MHz) Reference Level Spurious Emission Report No.: 2411RSU008-U2 72 of 220 802.11n-HT20 Out-of-Band Emissions – Ant 1 Channel 11 (2462MHz) Reference Level High Band Edge Spurious Emission Report No.: 2411RSU008-U2 73 of 220 802.11n-HT40 Out-of-Band Emissions – Ant 1 Channel 03 (2422MHz) Reference Level Low Band Edge Spurious Emission Channel 06 (2437MHz) Reference Level Spurious Emission Report No.: 2411RSU008-U2 74 of 220 802.11n-HT40 Out-of-Band Emissions – Ant 1 Channel 09 (2452MHz) Reference Level High Band Edge Spurious Emission Report No.: 2411RSU008-U2 75 of 220 802.11ax-HE20 Out-of-Band Emissions – Ant 1 Channel 01 (2412MHz) Reference Level Low Band Edge Spurious Emission Channel 06 (2437MHz) Reference Level Spurious Emission Report No.: 2411RSU008-U2 76 of 220 802.11ax-HE20 Out-of-Band Emissions – Ant 1 Channel 11 (2462MHz) Reference Level High Band Edge Spurious Emission Report No.: 2411RSU008-U2 77 of 220 802.11ax-HE40 Out-of-Band Emissions – Ant 1 Channel 03 (2422MHz) Reference Level Low Band Edge Spurious Emission Channel 06 (2437MHz) Reference Level Spurious Emission Report No.: 2411RSU008-U2 78 of 220 802.11ax-HE40 Out-of-Band Emissions – Ant 1 Channel 09 (2452MHz) Reference Level High Band Edge Spurious Emission Report No.: 2411RSU008-U2 79 of 220 802.11be-EHT20 Out-of-Band Emissions – Ant 1 Channel 01 (2412MHz) Reference Level Low Band Edge Spurious Emission Channel 06 (2437MHz) Reference Level Spurious Emission Report No.: 2411RSU008-U2 80 of 220 802.11 be-EHT20 Out-of-Band Emissions – Ant 1 Channel 11 (2462MHz) Reference Level High Band Edge Spurious Emission Report No.: 2411RSU008-U2 81 of 220 802.11 be-EHT40 Out-of-Band Emissions – Ant 1 Channel 03 (2422MHz) Reference Level Low Band Edge Spurious Emission Channel 06 (2437MHz) Reference Level Spurious Emission Report No.: 2411RSU008-U2 82 of 220 802.11 be-EHT40 Out-of-Band Emissions – Ant 1 Channel 09 (2452MHz) Reference Level High Band Edge Spurious Emission

Report No.: 2411RSU008-U2 48 of 220 802.11ax-HE20 - AVGPSD - Ant 1 Channel 01 (2412MHz) Channel 06 (2437MHz) Channel 11 (2462MHz) 802.11ax-HE40 - AVGPSD - Ant 1 Channel 03 (2422MHz) Channel 06 (2437MHz) Channel 09 (2452MHz) Report No.: 2411RSU008-U2 49 of 220 802.11be-EHT20 - AVGPSD - Ant 1 Channel 01 (2412MHz) Channel 06 (2437MHz) Channel 11 (2462MHz) 802.11be-EHT40 - AVGPSD - Ant 1 Channel 03 (2422MHz) Channel 06 (2437MHz) Channel 09 (2452MHz) Report No.: 2411RSU008-U2 50 of 220 A.5 Conducted Band Edge and Out-of-Band Emissions Test Result Test Site WJ-SR8 Test Engineer Jake Lan Test Date 2024-11-28 ~ 2024-11-29 Test Mode Data Rate / MCS Channel No. Frequency (MHz) Limit 11b 1Mbps 01 2412 30dBc 11b 1Mbps 06 2437 30dBc 11b 1Mbps 11 2462 30dBc 11g 6Mbps 01 2412 30dBc 11g 6Mbps 06 2437 30dBc 11g 6Mbps 11 2462 30dBc 11n-HT20 MCS0 01 2412 30dBc 11n-HT20 MCS0 06 2437 30dBc 11n-HT20 MCS0 11 2462 30dBc 11n-HT40 MCS0 03 2422 30dBc 11n-HT40 MCS0 06 2437 30dBc 11n-HT40 MCS0 09 2452 30dBc 11ax-HE20 MCS0 01 2412 30dBc 11ax-HE20 MCS0 06 2437 30dBc 11ax-HE20 MCS0 11 2462 30dBc 11ax-HE40 MCS0 03 2422 30dBc 11ax-HE40 MCS0 06 2437 30dBc 11ax-HE40 MCS0 09 2452 30dBc 11be-EHT20 MCS0 01 2412 30dBc 11be-EHT20 MCS0 06 2437 30dBc 11be-EHT20 MCS0 11 2462 30dBc 11be-EHT40 MCS0 03 2422 30dBc 11be-EHT40 MCS0 06 2437 30dBc 11be-EHT40 MCS0 09 2452 30dBc Report No.: 2411RSU008-U2 51 of 220 802.11b Out-of-Band Emissions – Ant 0 Channel 01 (2412MHz) Reference Level Low Band Edge Spurious Emission Channel 06 (2437MHz) Reference Level Spurious Emission Report No.: 2411RSU008-U2 52 of 220 802.11b Out-of-Band Emissions – Ant 0 Channel 11 (2462MHz) Reference Level High Band Edge Spurious Emission Report No.: 2411RSU008-U2 53 of 220 802.11g Out-of-Band Emissions – Ant 0 Channel 01 (2412MHz) Reference Level Low Band Edge Spurious Emission Channel 06 (2437MHz) Reference Level Spurious Emission Report No.: 2411RSU008-U2 54 of 220 802.11g Out-of-Band Emissions – Ant 0 Channel 11 (2462MHz) Reference Level High Band Edge Spurious Emission Report No.: 2411RSU008-U2 55 of 220 802.11n-HT20 Out-of-Band Emissions – Ant 0 Channel 01 (2412MHz) Reference Level Low Band Edge Spurious Emission Channel 06 (2437MHz) Reference Level Spurious Emission Report No.: 2411RSU008-U2 56 of 220 802.11n-HT20 Out-of-Band Emissions – Ant 0 Channel 11 (2462MHz) Reference Level High Band Edge Spurious Emission Report No.: 2411RSU008-U2 57 of 220 802.11n-HT40 Out-of-Band Emissions – Ant 0 Channel 03 (2422MHz) Reference Level Low Band Edge Spurious Emission Channel 06 (2437MHz) Reference Level Spurious Emission Report No.: 2411RSU008-U2 58 of 220 802.11n-HT40 Out-of-Band Emissions – Ant 0 Channel 09 (2452MHz) Reference Level High Band Edge Spurious Emission Report No.: 2411RSU008-U2 59 of 220 802.11ax-HE20 Out-of-Band Emissions – Ant 0 Channel 01 (2412MHz) Reference Level Low Band Edge Spurious Emission Channel 06 (2437MHz) Reference Level Spurious Emission Report No.: 2411RSU008-U2 60 of 220 802.11ax-HE20 Out-of-Band Emissions – Ant 0 Channel 11 (2462MHz) Reference Level High Band Edge Spurious Emission Report No.: 2411RSU008-U2 61 of 220 802.11ax-HE40 Out-of-Band Emissions – Ant 0 Channel 03 (2422MHz) Reference Level Low Band Edge Spurious Emission Channel 06 (2437MHz) Reference Level Spurious Emission Report No.: 2411RSU008-U2 62 of 220 802.11ax-HE40 Out-of-Band Emissions – Ant 0 Channel 09 (2452MHz) Reference Level High Band Edge Spurious Emission Report No.: 2411RSU008-U2 63 of 220 802.11be-EHT20 Out-of-Band Emissions – Ant 0 Channel 01 (2412MHz) Reference Level Low Band Edge Spurious Emission Channel 06 (2437MHz) Reference Level Spurious Emission Report No.: 2411RSU008-U2 64 of 220 802.11 be-EHT20 Out-of-Band Emissions – Ant 0 Channel 11 (2462MHz) Reference Level High Band Edge Spurious Emission

MRT Technology (Suzhou) Co., Ltd Report No.: 2411RSU008-U2 Phone: +86-512-66308358 Report Version: V01 Web: www.mrt-cert.com Issue Date: 2025-10-23 Template Version:1.7 1 of 220 RF MEASUREMENT REPORT FCC ID: LNQ-WF670G Applicant: Actiontec Electronics Inc. Product: Wi-Fi 7 Outdoor Mesh AP Model No.: WF-670G Brand Name: Actiontec FCC Classification: Digital Transmission System (DTS) FCC Rule Part(s): Part 15 Subpart C (Section 15.247) Result: Complies Received Date: 2024-11-07 Test Date: 2024-11-14 ~ 2025-10-23 Reviewed By: Kevin Guo Approved By: Robin Wu The test results relate only to the samples tested. This equipment has been shown to be capable of compliance with the applicable technical standards as indicated in the measurement report and was tested in accordance with …

Text truncated - open the document above for the full version.
