LNQ-WF810G-2Wi-Fi 6E Mesh Extender

1 Notice: Actiontec has the sole right to make corrections, modifications, enhancements, improvements, and other changes to its products and services at any time, and to discontinue any product or service without notice. Actiontec has the final interpretation. DeskPod Ultra WF-810G Product Datasheet VERSION1.0 May, 2022 www.actiontec.com 2 ◼ Overview The tri-band Wi-Fi 6 WF-810G is designed to extend Wi-Fi network connectivity for homes and business based on the latest 802.11ax chipset design. With the WF-810G, the user can utilize EasyMesh R4, which provides a self-configuring, self-healing and self-managing Wi-Fi network. It dynamically selects the most reliable Wi-Fi path and enables fast and seamless handoffs for end-users. WF-810G is one of the best performing WiFi 6 router/extender in the market with up to 7.8Gbps aggregate throughput (AX7800). It supports 802.11ax on all Wi-Fi radio bands. The 2.4G radio supports 2x2 802.11b/g/n/ax MIMO. The 5G radio supports 2x2 802.11a/n/ac/ax MIMO with triple160MHz channel width. The 6G radio supports 4x4 802.11a/ax MIMO WF-810G can meet the requirements for high-speed real-time traffic and high-bandwidth entertainment, such as 4K video, video game streaming and VR. With global deployments in mind, the WF-810G utilized standard USB-C AC adapter, allowing easy adaptation everywhere as locally certified USB-C AC adapters are available in every country. 3 Notice: Actiontec has the sole right to make corrections, modifications, enhancements, improvements, and other changes to its products and services at any time, and to discontinue any product or service without notice. Actiontec has the final interpretation. ◼ Key Features ⚫ Desktop placement ⚫ Highest performance at 7.8Gbps aggregate throughput (AX7800) ⚫ 2.4GHz 40MHz 2x2 802.11b/g/n/ax ⚫ 5GHz 160MHz 2x2 802.11a/n/ac/ax ⚫ 6GHz 160MHz 4x4 802.11a/ax ⚫ WPA/WPA2-PSK(AES)/WPA3 ⚫ BLE 5.0 ⚫ 7 x Integrated Wi-Fi antennas ⚫ 1 x Integrated BLE antennas ⚫ 1 x 2.5GbE WAN ⚫ 1 x GE RJ45 LAN ⚫ 1 x Status LED (multi-color) ⚫ 1 x USB-C PD AC adapter ⚫ Supports router/extender functions ⚫ Supports TR-069 management ⚫ Supports EasyMesh R4 4 Notice: Actiontec has the sole right to make corrections, modifications, enhancements, improvements, and other changes to its products and services at any time, and to discontinue any product or service without notice. Actiontec has the final interpretation. ◼ Application Scenario ⚫ Three WF-810Gs forms a Wi-Fi mesh network. One configured as the Gateway and the other two configured as the Wi-Fi Extender: 5 Notice: Actiontec has the sole right to make corrections, modifications, enhancements, improvements, and other changes to its products and services at any time, and to discontinue any product or service without notice. Actiontec has the final interpretation. ◼ Software Features Category Features Network Bridge Mode - DHCP Client - Backhaul with 2.4G/5G/6G Wi-Fi/Ethernet Router Mode - IPv4 - IPv6 - NAT - WAN DHCP client - LAN DHCP server - DNS server - DHCP reservation - uPNP - Port forwarding - Backhaul with Ethernet IGMP Snooping Wi-Fi 2.4GHz bandwidth: 20/40MHz, 5/6GHz bandwidth: 20/40/80/160MHz 802.11 k/ v/ r Band steering Channel scan DFS SSID broadcast WPA/WPA2/WPA3 PSK security TR-069 Management Network topology display - Device connected - Client accessed - Channel - Backhaul type Network optimize WPA/WPA2/WPA3 PSK security Freeze client Device information - Status - Online time - IP address - MAC address - Firmware version - Channel 6 Notice: Actiontec has the sole right to make corrections, modifications, enhancements, improvements, and other changes to its products and services at any time, and to discontinue any product or service without notice. Actiontec has the final interpretation. Client information - Status - Online time - IP address - MAC address - Channel Network statistic chart - Bandwidth usage - RSSI - Channel congestion - Event Utilities - Reboot device - Upgrade remotely - Speed Test LED Green Solid: Device power on. Blue Blinks: Device is connecting to the Cloud. OFF: Device has been connected to the Cloud. Blue Double Blinks: Network optimization in progress or locate device. ◼ Specification Item WF-810G Dimension (D x H) 94mm (Diameter) × 124mm (High) Weight 390g Installation Desktop placement LEDs 1x Status LED (multi-color) Interface 1 x 2.5GbE RJ45 WAN 1 x GE RJ45 LAN 1 x DC jack, support USB-C PD DC 12V in Input Voltage +12V/3A Power consumption < 25W 7 Notice: Actiontec has the sole right to make corrections, modifications, enhancements, improvements, and other changes to its products and services at any time, and to discontinue any product or service without notice. Actiontec has the final interpretation. Item WF-810G Environmental Specification Temperature Operation: 0°C～+40°C Storage: -40°C～+85°C Operating Humidity 5%～95% (non-condensing) Elevations 86kPa～106kPa altitude Dustproof and Waterproof IP20 Compliance • IEC 62368-1:2014 (Second Edition)+A11: 2017 • UL 62368-1, 2nd Ed, 2014-12-01 (Audio/video, information and communication technology equipment Part 1: Safety requirements) • CAN/CSA C22.2 No. 62368-1-14, 2nd Ed (Audio/video, information and communication technology equipment Part 1: Safety requirements) • FCC • CE • RoHS 2011/65/EU compliant (RoHS 10 compliant, no Pb) Reliability MTBF > 300,000 Hours Telcordia SR-332, Reliability Prediction Procedures for Electronic Equipment, Issue 3, Method 1, Case 3, GB/GC (Ground Benign, Controlled) environment, 25ºC ambient temperature. Steady state, not including software failure. AFR AFR (Annualized Failure Rate) < 1.5% (in continuous operation) Chipset Wi-Fi SoC Qualcomm Flash 256MB NAND flash DDR 512MB DDR3L RAM Wi-Fi Interface Operating frequency 2.4G radio: 2.4000GHz~2.4835GHz 8 Notice: Actiontec has the sole right to make corrections, modifications, enhancements, improvements, and other changes to its products and services at any time, and to discontinue any product or service without n…

Text truncated - open the document above for the full version.

Actiontec Electronics Inc 2445 Augustine Drive Suite 501, Santa Clara, California 95054, United States 012423-17 rev2 Certification Application Attestation Statements Date: March 8, 2024 American Certification Body, Inc. 313 Park Avenue Suite 300 Falls Church, VA 22046 To Whom It May Concern: Statement for 47 CFR section 2.911(d)(5)(i) ____ Actiontec Electronics Inc _____ certifies that as of the date of the application the equipment for which authorization is sought is not “covered” equipment 1 prohibited from receiving an equipment authorization pursuant to section 2.903 of the FCC rules. If the equipment for which the applicant seeks authorization is produced by any of the entities identified on the current Covered List, including affiliates or subsidiaries of the named companies, the applicant must include an explanation on why the equipment is not “covered” equipment. Additional Explanation: <N/A> Statement for 47 CFR section 2.911(d)(5)(ii) _____ Actiontec Electronics Inc _____ (“the applicant”) certifies that, as of the date of the filing of this application, the applicant ☐ - is / ☑ - is not identified on the Covered List as an entity producing “covered” equipment. Thank you, By: __________________________ ______ Zhe Liu ______ (Signature 2 ) (Print name) Title: _______ Product Manager _____ Company: __ Actiontec Electronics Inc _ Telephone: __ (909) 313-8262 ___ 1 - The Commission’s Covered List is published by the Public Safety and Homeland Security Bureau and posted on the Commission’s website. This Covered List, which is periodically updated, identifies particular equipment, produced by particular entities, that constitutes “covered” equipment. https://www.fcc.gov/supplychain/coveredlist . 2 - Letters should be placed on appropriate letterhead.

Actiontec Electronics Inc. 2445 Augustine Drive Suite 501, Santa Clara, California 95054, United States U.S. Agent Designation for Service of Process TO: American Certification Body, Inc. 313 Park Avenue Suite 300 Falls Church, VA 22046 ATTENTION: FCC Certification – Section 2.911(d)(7) Information This letter is to confirm that the Applicant will also serve as the U.S. Agent for Service of Process as required by 47 CFR 2.911(d)(7). The Applicant acknowledges that they must maintain an agent for no less than one year after terminating all marketing and importation OR the conclusion of any Commission-related proceeding involving the equipment. The Applicant further acknowledges their responsibility to inform the FCC whenever the Designated U.S. Agent information changes. Applicant Company name: Actiontec Electronics, Inc. Grantee Code: LNQ Contact Name: Zhe Liu Street Address: 2445 Augustine Dr Suite 501 City/Province/Zip: Santa Clara, CA 95054 Telephone No: (909) 313-8262 Email: [email protected] FRN: 0005810783 Applicant Signature 1 : Date: 2024/03/01 Signed by (Printed Name/Title): Zhe Liu / Product Manager 1 - Letters should be placed on appropriate letterhead.

Attestation Letter Federal Communications Commission Authorization and Evaluation Division W e Name: Actiontec Electronics Inc Address: 2445 Augustine Drive Suite 501, Santa Clara, California 95054, United States Dec lare that the device does not support channel 12 ~ 13 in 2.4GHz band and any non-US channels in all the operational mode(s) for the following product. P roduct: FCC ID: Model: Wi-Fi 6E Mesh Extender LNQ-WF810G-2 GE6E220C, WF-810G S incerely, ____ _____________ Name: Zhe Liu Position: Product Manager Date: 2024-02-28

Confidentiality Request Letter Federal Communications Commission Authorization and Evaluation Division FCC ID: LNQ-WF810G-2 Confidentiality Request Pursuant to Sections 0.457 and 0.459 of the Commission’s Rules, we hereby request confidential treatment of information accompanying this application as outlined below: 1. Block Diagram 2. Schematics 3. Operational Description The above materials contain trade secrets and proprietary information not customarily released to the public. The public disclosure of these matters might be harmful to the applicant and provide unjustified benefits to its competitors. The applicant understands that pursuant to Rule 0.457, disclosure of this application and all accompanying documentation will not be made before the date of the Grant for this application. Sincerely, _________________ Name: Zhe Liu Position: Product Manager Date: 2024-02-28

Declaration of Authorization We Name: Actiontec Electronics Inc Address: 2445 Augustine Drive Suite 501, Santa Clara, California 95054, United States De clare that: Name Representative of agent: Marlin Chen Agent Company name: MRT Technology (Suzhou) Co., Ltd Address: D8 Building, Youxin Industrial Park, No.2 Tian'edang Rd., Wuzhong Economic Development Zone City: Suzhou Country: China is au thorized to apply for Certification of the following product(s): Product: FCC ID: Model: Wi-Fi 6E Mesh Extender LNQ-WF810G-2 GE6E220C, WF-810G Sin cerely, _______ __________ Name: Zhe Liu Position: Product Manager Date: 2024-02-28

Declaration of Conformity We Name: Actiontec Electronics Inc Address: 2445 Augustine Drive Suite 501, Santa Clara, California 95054, United States D eclare that: Product: FCC ID: Model: Wi-Fi 6E Mesh Extender LNQ-WF810G-2 GE6E220C, WF-810G P roduct which bears the above FCC ID is also compliant with the FCC requirements for sDOC. And the sDOC procedure shall be carried out prior to marketing the device in the US. S incerely, ____ _____________ Name: Zhe Liu Position: Product Manager Date: 2024-02-28

Refer to KDB 442812 D01 SDR apps Guide v02r03 Section II FCC ID: LNQ-WF810G-2 Description Software (Section 2.944 (c)) 1.1 General software operational description. ACTIONTEC WiFi Extender WF-810G supports IEEE 802.11 a/b/g/n/ac/ax standards, Modulation Techniques as follows: GFSK OFDM ,OFDMA and DSSS 802.11b_DSSS: DBPSK, DQPSK, CCK 802.11a/n-HT20/n-HT40_OFDM: BPSK, QPSK, 16QAM, 64QAM 802.11ac-VHT20/ac-VHT40/ac-VHT80/ac-VHT160_OFDM: BPSK, QPSK, 16QAM, 64QAM, 256QAM 802.11ax-HE20/ax-HE40/ax-HE80/ax-HE160_OFDMA: BPSK, QPSK, 16QAM, 64QAM, 256QAM, 1024QAM 1.2 Describe all the radio frequency parameters that are modified by the software without any hardware changes. This device does not supports to modify TX power via software or hardware after leaving the factory. Users are allowed to modify the frequency channels, allowed channel list is compliance with FCC regulatory requirements. 1.3 High level (simplified) block diagram of the software architecture. Refer to exhibit 2 behind this table. Labelling 2.1 How is the device to be labeled? Will the device have a single label or will it use an electronic label per Section 2.925 (e)? Each device will have a single label with Model Number and FCC ID. 2.2 How can the FCC verify, in the field, that the correct version of the software is running in the device? Submit a description of this capability and instructions for the FCC to use in the field to verify that proper software is operating in the device The FW revision will be displayed in the TR-069 management system and APP. 2.3 Describe the means by which software version numbers can be related to any future Class III permissive changes. For example: v01.01 was the software version for the Initial grant. Version v17.01 was for the first Class III Change. Any Version betweenV01.001 to V16.99 is assumed to be representative of the equipment exhibits in the initial grant. Version V22.15 would represent the version as modified by the Class III change. The firmware version of the WF-810G follows the format 0.3.yy.xx-WF810G-pro.yy can be used to identify any future Class III permissive changes, xx is the firmware revision. Security 3.1 Describe the procedure that ensures that third parties (Professional installers, qualified personnel, authorized certified technicians, end users, etc. – not direct employees) cannot operate US sold devices on any other regulatory domain frequencies, or in any manner that is in violation of the certification. All the access including console port and Telnet/SSH are all disabled. The source is a read‐only web page. And the web server is secured with firewalls. This device does not support field upgrade. The only management interface is TR-069 management system. And RF-related and country code are not under control of TR-069 management system. All parameters (RF, Frequencies and etc.) indicating different countries are permanent settings in ROM. So if a device is a product for US, it cannot be changed to another region. 3.2 Explain if any third parties have the capability to operate a US sold device on any other regulatory domain frequencies, or in any manner that is in violation of the certification. Third parties don’t have the capability. 3.3 Describe how the software updates are distributed for all regulatory domains and what procedures ensures that a product sold in the US can only operate as granted on US frequencies and at authorized radio parameters. All the access including console port and Telnet/SSH are all disabled. The source is a read‐only web page. And the web server is secured with firewalls. This device does not support field upgrade. The only management interface is TR-069 management system. And RF-related and country code are not under control of TR-069 management system. All parameters (RF, Frequencies and etc.) indicating different countries are permanent settings in ROM. So if a device is a product for US, it cannot be changed to another region. 3.4 If the product cannot be modified by third parties and can only operate as granted on US frequencies and with authorized radio parameters, explain how this is achieved. All the access including console port and Telnet/SSH are all disabled. The source is a read‐only web page. And the web server is secured with firewalls. This device does not support field upgrade. The only management interface is TR-069 management system. And RF-related and country code are not under control of TR-069 management system. All parameters (RF, Frequencies and etc.) indicating different countries are permanent settings in ROM. So if a device is a product for US, it cannot be changed to another region. 3.5 What stops third parties from loading non-US versions of software onto products intended for US sale? All the access including console port and Telnet/SSH are all disabled. The source is a read‐only web page. And the web server is secured with firewalls. This device does not support field upgrade. The only management interface is TR-069 management system. And RF-related and country code are not under control of TR-069 management system. All parameters (RF, Frequencies and etc.) indicating different countries are permanent settings in ROM. So if a device is a product for US, it cannot be changed to another region. 3.6 Can third parties make factory level changes to reload non-US domain codes, etc. No Unauthorized changes (hack) to the software 4.1 Describe how open source is the operating code for granted RF properties. Describe the difficulty and proprietary nature of the code that controls the RF parameters as granted. ACTIONTEC firmware in WF-810G is not open source, it is locked and installed at the factory, it is not permitted to load any open source codes. How the firmware controls the RF parameters as granted: See more details in 3.1 Exhibit 1: Radio Parameters The product disabled console port and Telnet/SSH. The source is a read‐only web page. And the web server is secured with firewalls. Available settings to the end u…

Text truncated - open the document above for the full version.

Declaration letter For our business issue and marketing requirement, we would like to list different model numbers as following: Model No.: GE6E220C, WF-810G Model Difference: there is not any hardware or software differences between GE6E220C and WF-810G, only for different brand name. _________________ Name: Zhe Liu Position: Product Manager Date: 2024-02-28

SDR (Software Defined Radio) Cover Letter Refer to KDB 442812 D01 SDR apps Guide v02r03. The following six questions can be used for determining if a radio can elect to be, or must be an SDR. 1. Can the RF parameters of the device be altered through software? Ye s - go to 2. No, not an SDR Answer: YES 2. Can third parties not permitted by the Commission through specific filings modify, configure, or load different software, or make configuration settings to operate the device or host hardware radio frequency parameters (frequency range, modulation type, maximum output power or other radio parameters) in any other way than granted (or expected to be granted)? Yes, must be an SDR. No - go to 3. Answer: YES 3. Is the device capable of operating in any other in any other way than granted, or will be, granted? Ye s , - go to 4. No - go to 5. Answer: YES 4. Is this a Part 15 client Device as defined in Section 15.202 (as opposed to a master device)? Yes, qualifies as a part 15 client devices - go to 5. No, must be an SDR. Answer: NO 5. Does the manufacturer elect SDR? Yes, elects to be an SDR. No, Not an SDR Answer: YES Conclusion: According to the above questions reply, we can confirm this device (FCC ID: LNQ-WF810G-2) must be a SDR device. __________________ Name: Zhe Liu Position: Product Manager Date: 2024-02-28

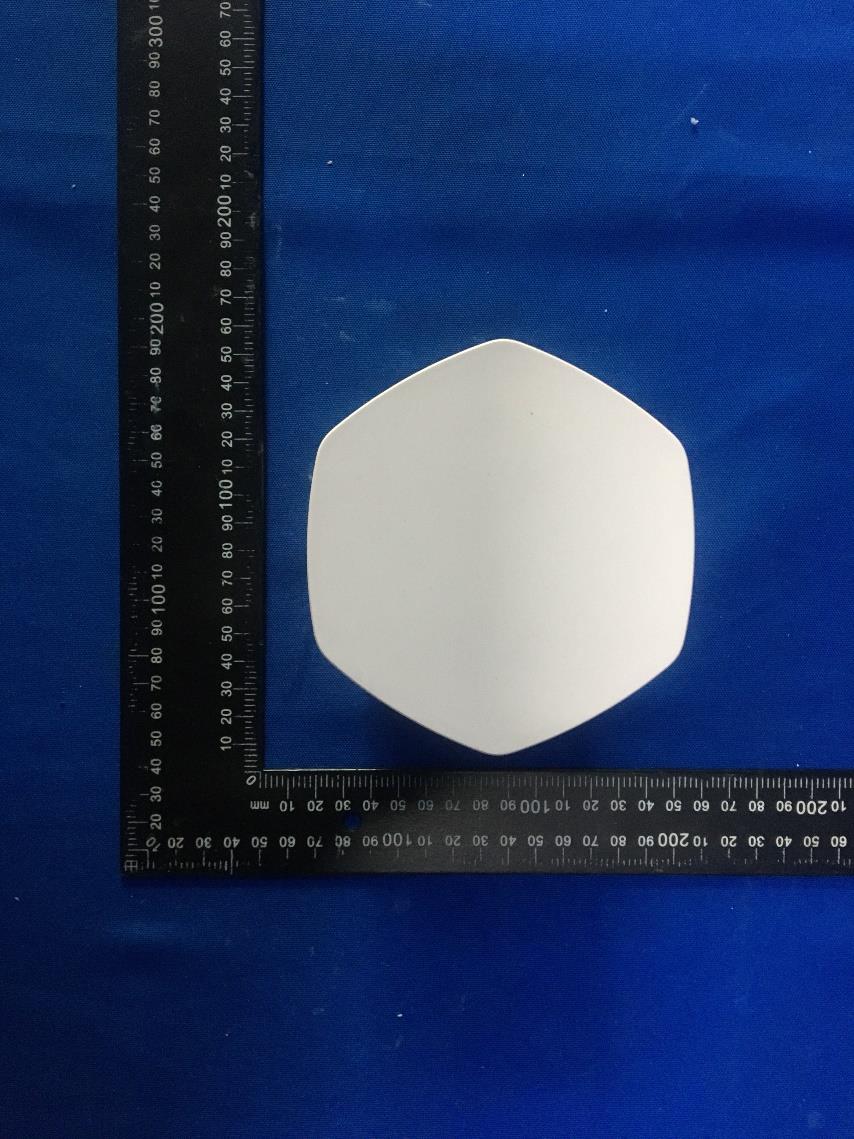

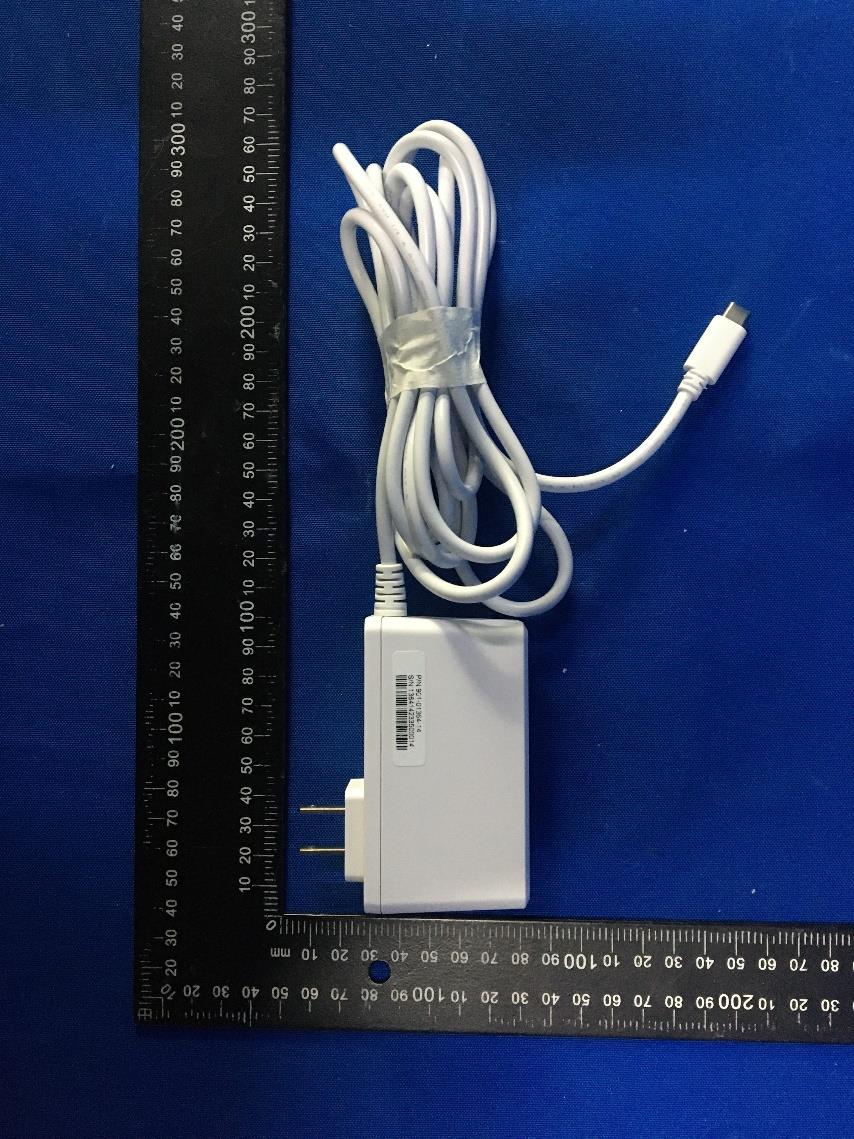

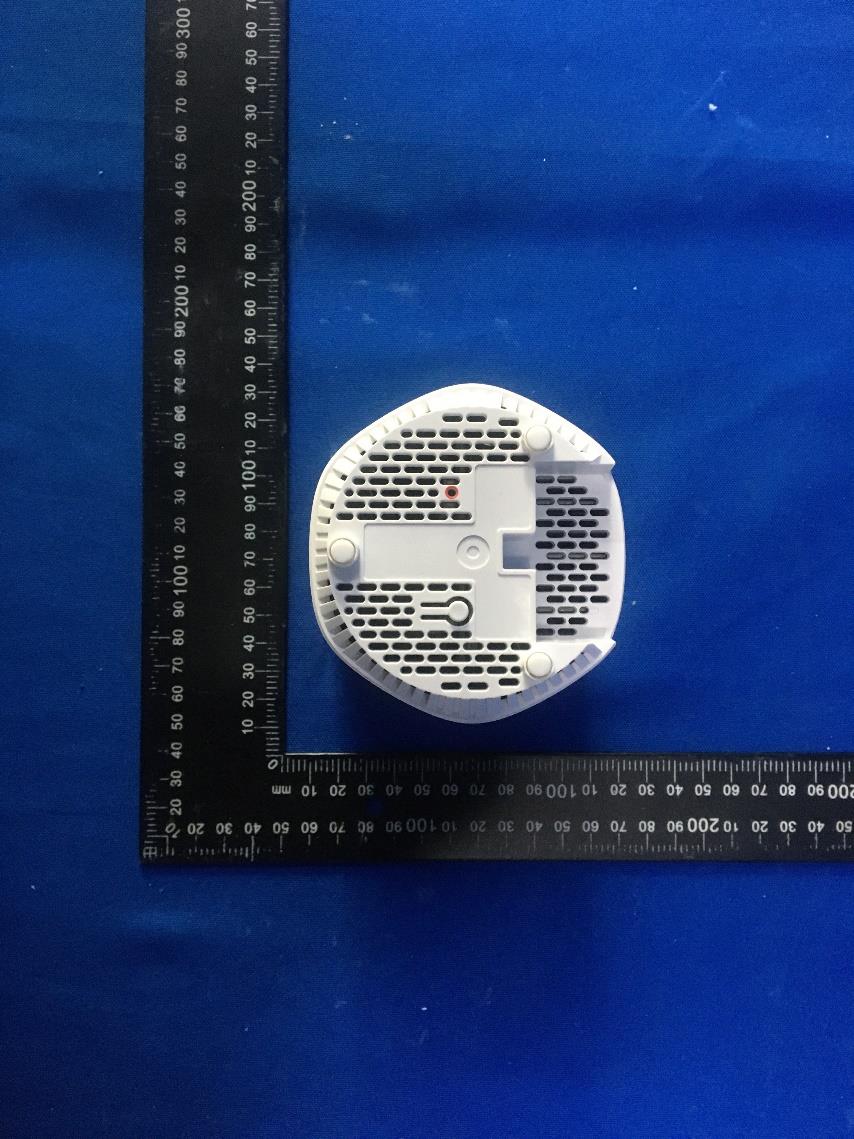

Report No.: 2401RSU026-UE 1 of 6 External Photograph (1) EUT Photo (2) EUT Photo Report No.: 2401RSU026-UE 2 of 6 (3) EUT Photo (4) EUT Photo Report No.: 2401RSU026-UE 3 of 6 (5) EUT Photo (6) EUT Photo Report No.: 2401RSU026-UE 4 of 6 (7) EUT Photo (8) EUT Photo Report No.: 2401RSU026-UE 5 of 6 (9) EUT Photo (10) EUT Photo Report No.: 2401RSU026-UE 6 of 6 (11) EUT Photo
