LNQWF186WWi-Fi 6 Indoor AP

High Performance Dual-Band WiFi 6 Wall Plate AP WF-186W Product Datasheet VERSION3.0 Feb, 2023 www.actiontec.com Notice: Actiontec has the sole right to make corrections, modifications, enhancements, improvements, and other changes to its products and services at any time, and to discontinue any product or service without notice. Actiontec has the final interpretation. 1  Overview WF-186W，is a versatile dual-band 2x2 MU-MIMO 802.11ax wall plate Wi-Fi Access Point, thoughtfully crafted to meet the demands of apartments and hotels seeking premium performance. With its support for 802.11ax 2.4G/5G Wi-Fi access, users can enjoy remarkable data rates of up to 2.974Gbps, ensuring a seamless and high-speed wireless network experience throughout their space. Built with enhanced transmission power and receive sensitivity, the WF-186W delivers the high throughput and reliable coverage required to keep everyone connected. Its compatibility with most wireless terminals makes it easy to establish a high-capacity Wi-Fi network, catering to diverse connectivity needs. Beyond standard Wi-Fi capabilities, the WF-186W may go the extra mile by supporting BLE 5.1 and Zigbee features, making it an excellent choice for expanding into the realm of IoT applications, such as integrating smart home devices into the network. Furthermore, this Wi-Fi AP supports PoE power supply, allowing simultaneous provisioning of 802.3af PoE PSE for other devices, streamlining power management and reducing clutter. The WF-186W is designed to adapt to various regions with its universal bracket, ensuring a hassle-free installation process. For developers, the WF-186W offers support for Qualcomm's QSDK and OpenWiFi development platforms. This opens the door to streamlined software development, thanks to standardized interfaces, well-defined APIs, and pre-integrated stacks, reducing complexities and enhancing reliability. Additionally, OpenWiFi’s active community support provides valuable troubleshooting assistance, ensuring a future-proof and cost-efficient solution for innovative Wi-Fi applications. Notice: Actiontec has the sole right to make corrections, modifications, enhancements, improvements, and other changes to its products and services at any time, and to discontinue any product or service without notice. Actiontec has the final interpretation. 2 Notice: Actiontec has the sole right to make corrections, modifications, enhancements, improvements, and other changes to its products and services at any time, and to discontinue any product or service without notice. Actiontec has the final interpretation. 3 Key Features Wall mounting with universal bracket 2.4G 2x2/ 40MHz Wi-Fi (802.11b/ g/ n/ ax), up to 574Mbps link rate 5G 2x2/ 160MHz Wi-Fi(802.11a/ n/ ac/ ax), up to 2.4Gbps link rate BLE 5.1 2 x Integrated dual-band antennas 1 x Integrated Bluetooth antenna 1 x GE WAN with 802.3 bt PoE（PD） ** Operates with 802.3bt PoE PoE (PD), with 802.3af PoE (PSE) working ** Operates with 802.3af PoE (PD), without 802.3af PoE (PSE) working 4x RJ45 GbE LAN, LAN4 with 802.3af PoE(PSE) 1 x Reset button on the side 1x RBG LEDs for visual indication TIP OpenWiFi development platform  Specifications Item WF-186W Dimension (W x D x H) 180mm × 89.5mm × 29.3mm Weight 280g, without bracket Installation Wall mounting LEDs 1 x RBG LED (Software definition) Interface 1 x GE WAN with 802.3 bt PoE(PD） 4x RJ45 GbE LAN, LAN4 with 802.3af PoE(PSE) 1 x Reset Button Input Voltage • 42.5V~ 57V , 802.3bt PoE (PD), with LAN4 port supporting 802.3af PoE(PSE) • 37V ~ 57V, 802.3 af PoE (PD), without supporting 802.3af PoE (PSE) Power consumption < 12.5W, without 802.3af PoE (PSE) Environmental Specification Temperature Operation: 0°C～+40°C Storage: -40°C～+70°C Operating Humidity 5%～95% (non-condensing) Elevations 86kPa～106kPa altitude Dustproof and Waterproof IP30 Compliance • NRTL Listed 62368-1 (US & CA) • CB with IEC/EN 62368-1 (Basic safety certificate for worldwide marketing) • GB 9254 -2008(Class B of Product) , EN55032, CISPR 32:2010, Notice: Actiontec has the sole right to make corrections, modifications, enhancements, improvements, and other changes to its products and services at any time, and to discontinue any product or service without notice. Actiontec has the final interpretation. 4 Item WF-186W EN55024, CISPR 24:2010 • RoHS 2011/65/EU compliant (RoHS 11 compliant, no Pb) • WEEE 2002/96/EC recyclable materials requirements Reliability MTBF > 300,000 Hours Telcordia SR-332: Reliability Prediction Procedures for Electronic Equipment, Issue 3, Method 1, Case 3. This is based on a GB/GC (Ground Benign, Controlled) environment with a steady state condition at a 25ºC ambient temperature. It does not account for software failures. AFR AFR (Annualized Failure Rate) < 1.5% (in continuous operation) Chipset SoC Qualcomm chipset (IPQ5018) Flash 128MB NAND Flash DDR 512MB DDR3 RAM Wi-Fi Interface Operating frequency 2.4G radio:2.4000GHz~2.4835GHz 5G radio:5.150~5.250,5.250~5.350,5.470~5.725, 5.725~5.850 GHz Data Rate 802.11b: 1, 2, 5.5, and 11Mbps 802.11g: 6, 9, 12, 18, 24, 36, 48, and 54Mbps 802.11a: 6, 9, 12, 18, 24, 36, 48 and 54Mb/s 802.11n HT20/ HT40: MCS0~MCS15 802.11ac VHT20/VHT40/VHT80: MCS0 ~ MCS9 802.11ax HE20/ HE40/HE80/HE160: MSC0 ~ MCS11 Receive Sensitivity 802.11g: -90dBm@6Mbps -74dBm@54Mbps 5 Notice: Actiontec has the sole right to make corrections, modifications, enhancements, improvements, and other changes to its products and services at any time, and to discontinue any product or service without notice. Actiontec has the final interpretation. Item WF-186W 802.11n: 802.11a: -90dBm@6Mbps -74dBm@54Mbps 802.11ac: VHT20 VHT40 VHT80 MCS0 -90dBm -87dBm -84dBm MCS8 -67dBm -64dBm -61dBm MCS9 -61dBm -58dBm 802.11ax: HE20 HE40 HE80 HE160 MCS0 -90dBm -87dBm -84dBm -81 dBm MCS11 -60dBm -57dBm -54dBm -51 dBm 6 HT20 HT40 MCS0/8/16 -90dBm -87dBm MCS7/15 -71dBm -68dBm Notice: Actiontec has the sole right to make corrections, modifications, enha…

Text truncated - open the document above for the full version.

Actiontec Electronics Inc 2445 Augustine Drive Suite 501, Santa Clara, California 95054, United States 012423-17 rev2 Certification Application Attestation Statements Date: June 30, 2023 American Certification Body, Inc. 313 Park Avenue Suite 300 Falls Church, VA 22046 To Whom It May Concern: Statement for 47 CFR section 2.911(d)(5)(i) ____ Actiontec Electronics Inc _____ certifies that as of the date of the application the equipment for which authorization is sought is not “covered” equipment 1 prohibited from receiving an equipment authorization pursuant to section 2.903 of the FCC rules. If the equipment for which the applicant seeks authorization is produced by any of the entities identified on the current Covered List, including affiliates or subsidiaries of the named companies, the applicant must include an explanation on why the equipment is not “covered” equipment. Additional Explanation: <N/A> Statement for 47 CFR section 2.911(d)(5)(ii) _____ Actiontec Electronics Inc _____ (“the applicant”) certifies that, as of the date of the filing of this application, the applicant ☐ - is / ☑ - is not identified on the Covered List as an entity producing “covered” equipment. Thank you, By: ______ Brian Henrichs ______ (Signature 2 ) (Print name) Title: President Company: __ Actiontec Electronics Inc _ Telephone: __ (408) 857-9658 ___ 1 - The Commission’s Covered List is published by the Public Safety and Homeland Security Bureau and posted on the Commission’s website. This Covered List, which is periodically updated, identifies particular equipment, produced by particular entities, that constitutes “covered” equipment. https://www.fcc.gov/supplychain/coveredlist . 2 - Letters should be placed on appropriate letterhead.

Actiontec Electronics Inc. 2445 Augustine Drive Suite 501, Santa Clara, California 95054, United States U.S. Agent Designation for Service of Process TO: American Certification Body, Inc. 313 Park Avenue Suite 300 Falls Church, VA 22046 ATTENTION: FCC Certification – Section 2.911(d)(7) Information This letter is to confirm that the Applicant will also serve as the U.S. Agent for Service of Process as required by 47 CFR 2.911(d)(7). The Applicant acknowledges that they must maintain an agent for no less than one year after terminating all marketing and importation OR the conclusion of any Commission-related proceeding involving the equipment. The Applicant further acknowledges their responsibility to inform the FCC whenever the Designated U.S. Agent information changes. Applicant Company name: Actiontec Electronics, Inc. Grantee Code: LNQ Contact Name: Brian J Henrichs Street Address: 2445 Augustine Dr Suite 501 City/Province/Zip: Santa Clara, CA 95054 Telephone No: (408) 857-9658 Email: [email protected] FRN: 0005810783 Applicant Signature 1 : Date: 2023/06/01 Signed by (Printed Name/Title): Brian J Henrichs / President 1 - Letters should be placed on appropriate letterhead.

Confidentiality Request Letter Federal Communications Commission Authorization and Evaluation Division FCC ID: LNQWF186W Confidentiality Request Pursuant to Sections 0.457 and 0.459 of the Commission’s Rules, we hereby request confidential treatment of information accompanying this application as outlined below: 1. Block Diagram 2. Schematics 3. Operational Description The above materials contain trade secrets and proprietary information not customarily released to the public. The public disclosure of these matters might be harmful to the applicant and provide unjustified benefits to its competitors. The applicant understands that pursuant to Rule 0.457, disclosure of this application and all accompanying documentation will not be made before the date of the Grant for this application. Sincerely, _________________ Name: Brian Henrichs Position: President Date: 2023-09-19

Declaration of Authorization We Name: Actiontec Electronics Inc Address: 2445 Augustine Drive Suite 501, Santa Clara, California 95054, United States Declare that: Name Representative of agent: Marlin Chen Agent Company name: MRT Technology (Suzhou) Co., Ltd Address: D8 Building, Youxin Industrial Park, No.2 Tian'edang Rd., Wuzhong Economic Development Zone City: Suzhou Country: China is authorized to apply for Certification of the following product(s): Product: Wi-Fi 6 Indoor AP FCC ID: LNQWF186W Model: WF-186W, WF-186H Sincerely, _________________ Name: Brian Henrichs Position: President Date: 2023-09-19

Declaration of Conformity We Name: Actiontec Electronics Inc Address: 2445 Augustine Drive Suite 501, Santa Clara, California 95054, United States Declare that: Product: Wi-Fi 6 Indoor AP FCC ID: LNQWF186W Model: WF-186W, WF-186H Product which bears the above FCC ID is also compliant with the FCC requirements for sDOC. And the sDOC procedure shall be carried out prior to marketing the device in the US. Sincerely, _________________ Name: Brian Henrichs Position: President Date: 2023-09-19

Declaration letter For our business issue and marketing requirement, we would like to list different model numbers as following: Model No.: WF-186W, WF-186H Model Difference: The model difference is the WF-186H removes two LAN ports from the WF-186W, others are exactly the same. _________________ Name: Brian Henrichs Position: President Date: 2023-10-16

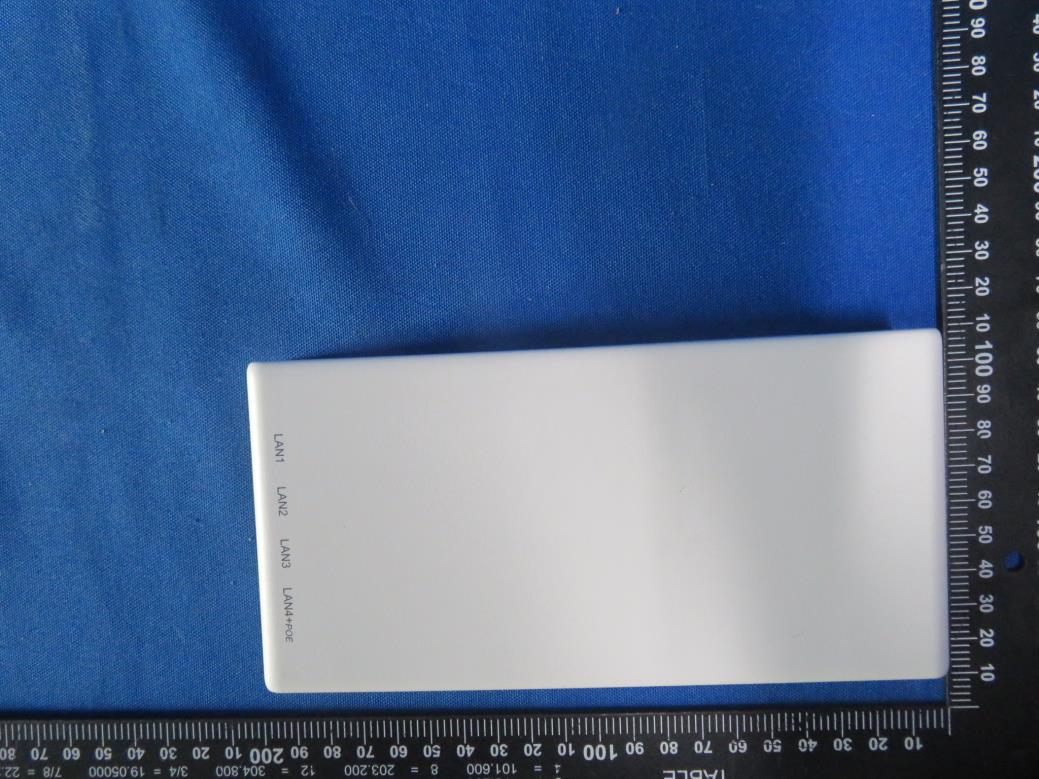

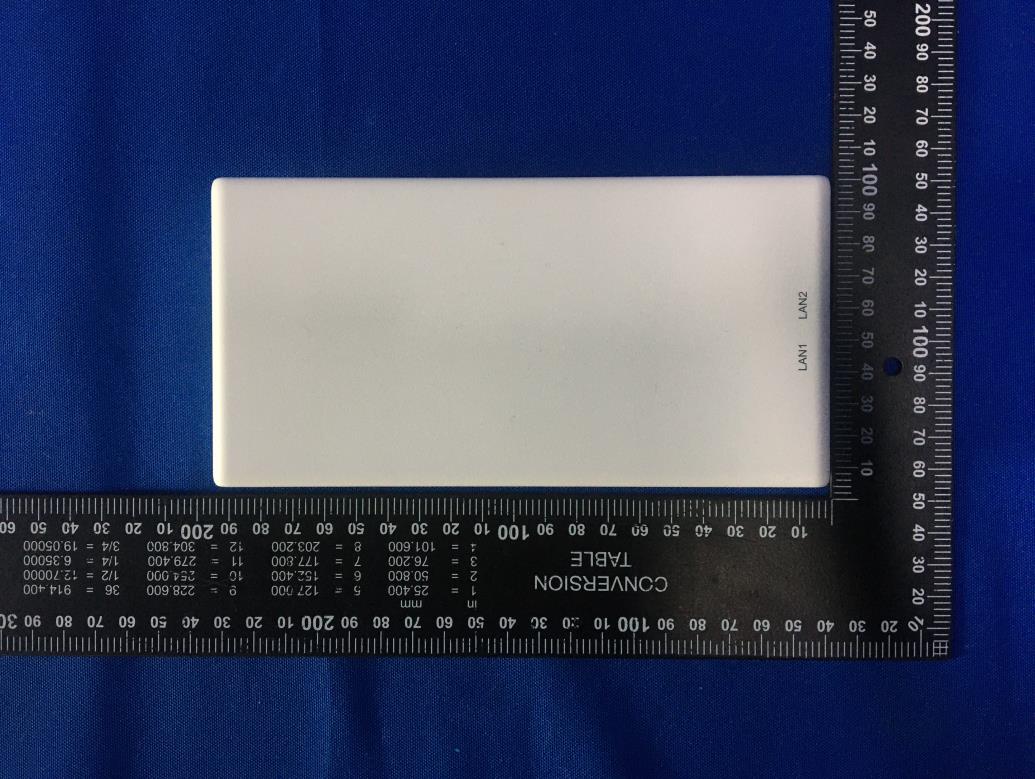

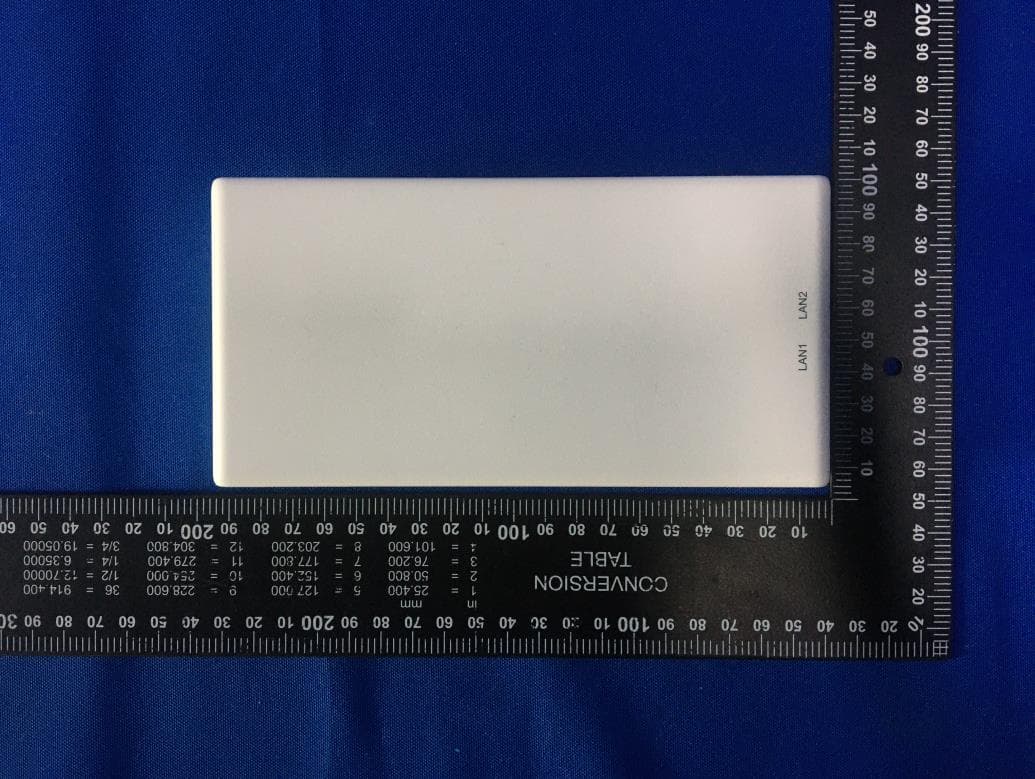

Report No.: 2305RSU014-UE 1 of 6 EUT External Photograph WF-186W: (1) EUT Photo (2) EUT Photo Report No.: 2305RSU014-UE 2 of 6 (3) EUT Photo (4) EUT Photo Report No.: 2305RSU014-UE 3 of 6 (5) EUT Photo (6) EUT Photo Report No.: 2305RSU014-UE 4 of 6 WF-186H: (7) EUT Photo (8) EUT Photo Report No.: 2305RSU014-UE 5 of 6 (9) EUT Photo (10) EUT Photo Report No.: 2305RSU014-UE 6 of 6 (11) EUT Photo (12) EUT Photo

Label Label Location Label Here Label Here

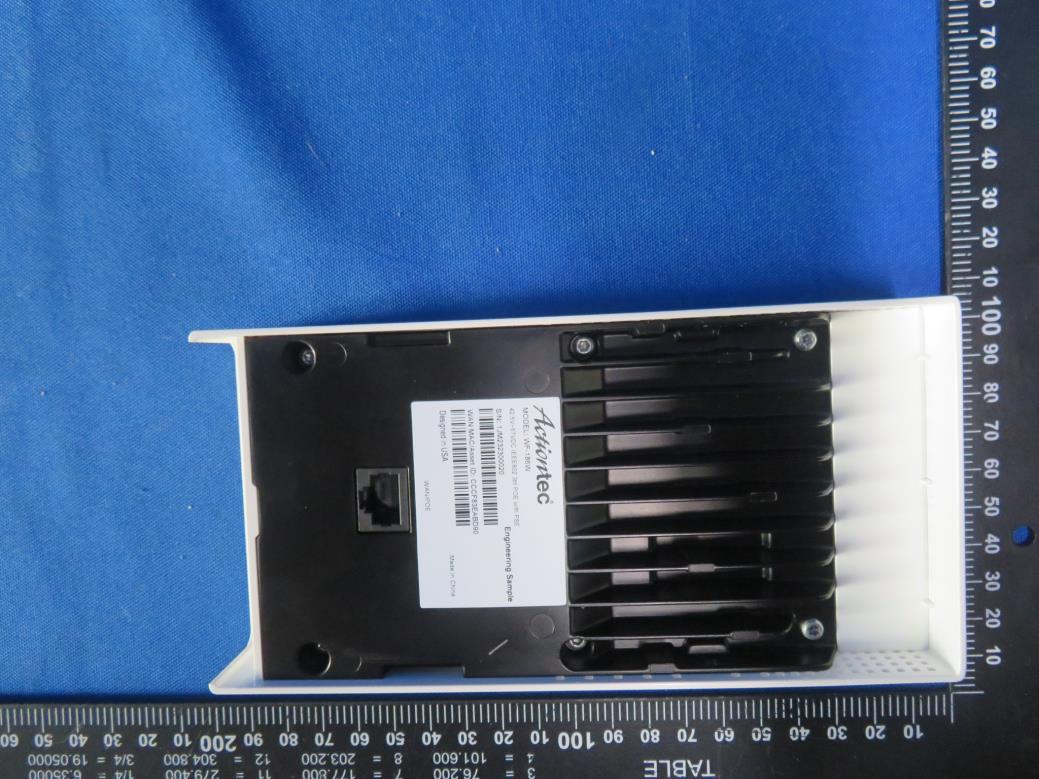

Report No.: 2305RSU014-UE 1 of 11 EUT Internal Photograph WF-186W: (1) EUT Photo (2) EUT Photo Report No.: 2305RSU014-UE 2 of 11 (3) EUT Photo (4) EUT Photo Report No.: 2305RSU014-UE 3 of 11 (5) EUT Photo (6) EUT Photo Report No.: 2305RSU014-UE 4 of 11 (7) EUT Photo (8) EUT Photo Report No.: 2305RSU014-UE 5 of 11 (9) EUT Photo (10) EUT Photo Report No.: 2305RSU014-UE 6 of 11 (11) EUT Photo Report No.: 2305RSU014-UE 7 of 11 WF-186H: (12) EUT Photo (13) EUT Photo Report No.: 2305RSU014-UE 8 of 11 (14) EUT Photo (15) EUT Photo Report No.: 2305RSU014-UE 9 of 11 (16) EUT Photo (17) EUT Photo Report No.: 2305RSU014-UE 10 of 11 (18) EUT Photo (19) EUT Photo Report No.: 2305RSU014-UE 11 of 11 (20) EUT Photo (21) EUT Photo

MRT Technology (Suzhou) Co., Ltd Report No.: 2305RSU014-U3 Phone: +86-512-66308358 Report Version: V02 Web: www.mrt-cert.com Issue Date: 2023-10-26 Template Version:0.0 1 of 313 RF MEASUREMENT REPORT FCC ID: LNQWF186W Applicant: Actiontec Electronics Inc. Product: Wi-Fi 6 Indoor AP Model No.: WF-186W, WF-186H Brand Name: Actiontec FCC Classification: Unlicensed National Information Infrastructure (NII) FCC Rule Part(s): Part 15 Subpart E (Section 15.407) Result: Complies Received Date: 2023-06-19 Test Date: 2023-06-27 ~ 2023-08-02 Reviewed By: Kevin Guo Approved By: Robin Wu The test results relate only to the samples tested. This equipment has been shown to be capable of compliance with the applicable technical standards as indicated in the measurement report and was tested in accordance with the measurement procedures specified in KDB789033. Test results reported herein relate only to the item(s) tested. The test report shall not be reproduced except in full without the written approval of MRT Technology (Suzhou) Co., Ltd. Report No.: 2305RSU014-U3 2 of 313 Revision History Report No. Version Description Issue Date Note 2305RSU014-U3 V01 Initial Report 2023-09-16 Invalid 2305RSU014-U3 V02 Correct the Bluetooth version 2023-10-26 Valid Report No.: 2305RSU014-U3 3 of 313 CONTENTS Description Page 1. General Information ................................................................................................................................ 6 1.1. Applicant ..................................................................................................................................... 6 1.2. Manufacturer............................................................................................................................... 6 1.3. Testing Facility ............................................................................................................................ 6 1.4. Product Information .................................................................................................................... 7 1.5. Radio Specification under Test ................................................................................................... 7 1.6. Working Frequencies .................................................................................................................. 8 1.7. Antenna Details .......................................................................................................................... 9 2. Test Configuration ................................................................................................................................. 10 2.1. Test Mode ................................................................................................................................. 10 2.2. Test System Connection Diagram ............................................................................................. 11 2.3. Test System Details ................................................................................................................... 11 2.4. Test Software ............................................................................................................................. 11 2.5. Applied Standards ..................................................................................................................... 11 2.6. Test Environment Condition ...................................................................................................... 12 3. Antenna Requirements ......................................................................................................................... 13 4. Measuring Instrument ........................................................................................................................... 14 5. Decision Rules and Measurement Uncertainty .................................................................................. 15 5.1. Decision Rules .......................................................................................................................... 15 5.2. Measurement Uncertainty ........................................................................................................ 15 6. Test Result .............................................................................................................................................. 16 6.1. Summary .................................................................................................................................. 16 6.2. 26dB & 99% Bandwidth Measurement ..................................................................................... 17 6.2.1. Test Limit ................................................................................................................................... 17 6.2.2. Test Procedure ......................................................................................................................... 17 6.2.3. Test Setting ............................................................................................................................... 17 6.2.4. Test Setup ................................................................................................................................. 17 6.2.5. Test Result ................................................................................................................................ 18 6.3. 6dB Bandwidth Measurement .................................................................................................. 19 6.3.1. Test Limit ................................................................................................................................... 19 6.3.2. Test Procedure ......................................................................................................................... 19 6.3.3. Test Setting ............................................................................................................................... 19 6.3.4. Test Se…

Text truncated - open the document above for the full version.

Report No.: 2305RSU014-U3 52 of 313 802.11ax-HE80 26dB Bandwidth Channel 42 (5210MHz) Channel 58 (5290MHz) Channel 106 (5530MHz) Channel 122 (5610MHz) Channel 138 (5690MHz) Channel 155 (5775MHz) Report No.: 2305RSU014-U3 53 of 313 802.11ax-HE160 26dB Bandwidth Channel 50 (5250MHz) Channel 114 (5570MHz) Report No.: 2305RSU014-U3 54 of 313 A.3 6dB Bandwidth Test Result Test Site SIP-TR1 Test Engineer Alisa Deng Test Date 2023-07-31 Test Mode Data Rate/ MCS Channel No. Frequency (MHz) 6dB Bandwidth (MHz) Limit (MHz) 11a 18Mbps 149 5745 15.14 ≥ 0.5 11a 18Mbps 157 5785 15.10 ≥ 0.5 11a 18Mbps 165 5825 15.09 ≥ 0.5 11ac-VHT20 MCS2 149 5745 17.00 ≥ 0.5 11ac-VHT20 MCS2 157 5785 14.74 ≥ 0.5 11ac-VHT20 MCS2 165 5825 17.57 ≥ 0.5 11ac-VHT40 MCS5 151 5755 35.11 ≥ 0.5 11ac-VHT40 MCS5 159 5795 34.12 ≥ 0.5 11ac-VHT80 MCS2 155 5775 76.55 ≥ 0.5 11ax-HE20 MCS2 149 5745 12.85 ≥ 0.5 11ax-HE20 MCS2 157 5785 16.52 ≥ 0.5 11ax-HE20 MCS2 165 5825 18.33 ≥ 0.5 11ax-HE40 MCS2 151 5755 33.26 ≥ 0.5 11ax-HE40 MCS2 159 5795 34.65 ≥ 0.5 11ax-HE80 MCS3 155 5775 77.57 ≥ 0.5 Report No.: 2305RSU014-U3 55 of 313 802.11a 6dB Bandwidth Channel 149 (5745MHz) Channel 157 (5785MHz) Channel 165 (5825MHz) 802.11ac-VHT20 6dB Bandwidth Channel 149 (5745MHz) Channel 157 (5785MHz) Channel 165 (5825MHz) Report No.: 2305RSU014-U3 56 of 313 802.11ac-VHT40 6dB Bandwidth Channel 151 (5755MHz) Channel 159 (5795MHz) 802.11ac-VHT80 6dB Bandwidth Channel 155 (5775MHz) Report No.: 2305RSU014-U3 57 of 313 802.11ax-HE20 6dB Bandwidth Channel 149 (5745MHz) Channel 157 (5785MHz) Channel 165 (5825MHz) 802.11ax-HE40 6dB Bandwidth Channel 151 (5755MHz) Channel 159 (5795MHz) Report No.: 2305RSU014-U3 58 of 313 802.11ax-HE80 6dB Bandwidth Channel 155 (5775MHz) Report No.: 2305RSU014-U3 59 of 313 A.4 Output Power Test Result Test Site SIP-TR1 Test Engineer Alisa Deng Test Date 2023-06-29~2023-07-15 Test Mode Data Rate MCS Channel No. Freq. (MHz) Average Power (dBm) Total Average Power (dBm) Power Limit (dBm) Ant 0 Ant 1 11a 18Mbps 36 5180 21.42 20.98 24.22 ≤ 30.00 11a 18Mbps 44 5220 23.09 22.02 25.60 ≤ 30.00 11a 18Mbps 48 5240 23.29 21.90 25.66 ≤ 30.00 11a 18Mbps 52 5260 17.39 15.69 19.63 ≤ 23.61 11a 18Mbps 60 5300 17.28 15.58 19.52 ≤ 23.61 11a 18Mbps 64 5320 17.44 15.85 19.73 ≤ 23.61 11a 18Mbps 100 5500 17.06 16.39 19.75 ≤ 23.61 11a 18Mbps 116 5580 16.92 16.31 19.64 ≤ 23.61 11a 18Mbps 140 5700 17.60 16.41 20.06 ≤ 23.61 11a 18Mbps 144 5720 17.46 16.33 19.94 ≤ 22.54 11a 18Mbps 149 5745 23.82 23.48 26.66 ≤ 30.00 11a 18Mbps 157 5785 24.86 24.40 27.65 ≤ 30.00 11a 18Mbps 165 5825 23.26 23.51 26.40 ≤ 30.00 11ac-VHT20 MCS2 36 5180 22.75 21.91 25.36 ≤ 30.00 11ac-VHT20 MCS2 44 5220 23.50 24.13 26.84 ≤ 30.00 11ac-VHT20 MCS2 48 5240 23.30 23.53 26.43 ≤ 30.00 11ac-VHT20 MCS2 52 5260 19.18 17.28 21.34 ≤ 23.86 11ac-VHT20 MCS2 60 5300 18.86 17.29 21.16 ≤ 23.86 11ac-VHT20 MCS2 64 5320 19.05 17.43 21.33 ≤ 23.86 11ac-VHT20 MCS2 100 5500 18.76 18.17 21.49 ≤ 23.86 11ac-VHT20 MCS2 116 5580 18.71 17.99 21.38 ≤ 23.86 11ac-VHT20 MCS2 140 5700 18.80 17.58 21.24 ≤ 23.86 11ac-VHT20 MCS2 144 5720 19.20 17.96 21.63 ≤ 22.67 11ac-VHT20 MCS2 149 5745 23.10 22.71 25.92 ≤ 30.00 11ac-VHT20 MCS2 157 5785 24.80 24.37 27.60 ≤ 30.00 11ac-VHT20 MCS2 165 5825 22.65 22.69 25.68 ≤ 30.00 Report No.: 2305RSU014-U3 60 of 313 Test Mode Data Rate MCS Channel No. Freq. (MHz) Average Power (dBm) Total Average Power (dBm) Average Power Limit (dBm) Ant 0 Ant 1 11ac-VHT40 MCS5 38 5190 19.81 18.96 22.42 ≤ 30.00 11ac-VHT40 MCS5 46 5230 23.31 21.83 25.64 ≤ 30.00 11ac-VHT40 MCS5 54 5270 21.29 19.87 23.65 ≤ 23.98 11ac-VHT40 MCS5 62 5310 21.06 19.45 23.34 ≤ 23.98 11ac-VHT40 MCS5 102 5510 18.11 18.77 21.46 ≤ 23.98 11ac-VHT40 MCS5 110 5550 20.69 20.78 23.75 ≤ 23.98 11ac-VHT40 MCS5 134 5670 21.13 19.92 23.58 ≤ 23.98 11ac-VHT40 MCS5 142 5710 21.12 20.20 23.69 ≤ 23.98 11ac-VHT40 MCS5 151 5755 23.28 22.78 26.05 ≤ 30.00 11ac-VHT40 MCS5 159 5795 24.05 23.76 26.92 ≤ 30.00 11ac-VHT80 MCS2 42 5210 20.08 19.17 22.66 ≤ 30.00 11ac-VHT80 MCS2 58 5290 20.08 19.11 22.63 ≤ 23.98 11ac-VHT80 MCS2 106 5530 18.42 18.18 21.31 ≤ 23.98 11ac-VHT80 MCS2 122 5610 20.76 20.43 23.61 ≤ 23.98 11ac-VHT80 MCS2 138 5690 21.22 20.33 23.81 ≤ 23.98 11ac-VHT80 MCS2 155 5775 21.48 20.91 24.21 ≤ 30.00 11ac-VHT160 MCS0 50 5250 19.75 18.25 22.07 ≤ 23.98 11ac-VHT160 MCS0 114 5570 18.54 18.25 21.41 ≤ 23.98 11ax-HE20 MCS2 36 5180 21.66 21.02 24.36 ≤ 30.00 11ax-HE20 MCS2 44 5220 23.28 23.62 26.46 ≤ 30.00 11ax-HE20 MCS2 48 5240 23.21 23.46 26.35 ≤ 30.00 11ax-HE20 MCS2 52 5260 19.38 17.55 21.57 ≤ 23.98 11ax-HE20 MCS2 60 5300 19.09 17.49 21.37 ≤ 23.98 11ax-HE20 MCS2 64 5320 18.80 17.17 21.07 ≤ 23.98 11ax-HE20 MCS2 100 5500 18.59 17.72 21.19 ≤ 23.98 11ax-HE20 MCS2 116 5580 18.93 18.25 21.61 ≤ 23.98 11ax-HE20 MCS2 140 5700 19.01 17.75 21.44 ≤ 23.98 11ax-HE20 MCS2 144 5720 18.80 17.72 21.30 ≤ 22.86 11ax-HE20 MCS2 149 5745 22.77 22.48 25.64 ≤ 30.00 11ax-HE20 MCS2 157 5785 22.74 22.67 25.72 ≤ 30.00 11ax-HE20 MCS2 165 5825 22.74 22.87 25.82 ≤ 30.00 Report No.: 2305RSU014-U3 61 of 313 Test Mode Data Rate MCS Channel No. Freq. (MHz) Average Power (dBm) Total Average Power (dBm) Average Power Limit (dBm) Ant 0 Ant 1 11ax-HE40 MCS2 38 5190 20.73 19.81 23.30 ≤ 30.00 11ax-HE40 MCS2 46 5230 22.91 21.60 25.31 ≤ 30.00 11ax-HE40 MCS2 54 5270 20.98 19.76 23.42 ≤ 23.98 11ax-HE40 MCS2 62 5310 20.77 19.22 23.07 ≤ 23.98 11ax-HE40 MCS2 102 5510 18.61 18.08 21.36 ≤ 23.98 11ax-HE40 MCS2 110 5550 18.68 19.33 22.03 ≤ 23.98 11ax-HE40 MCS2 134 5670 20.54 19.48 23.05 ≤ 23.98 11ax-HE40 MCS2 142 5710 20.93 20.02 23.51 ≤ 23.98 11ax-HE40 MCS2 151 5755 22.88 22.32 25.62 ≤ 30.00 11ax-HE40 MCS2 159 5795 22.98 22.80 25.90 ≤ 30.00 11ax-HE80 MCS3 42 5210 19.55 18.64 22.13 ≤ 30.00 11ax-HE80 MCS3 58 5290 19.89 18.74 22.36 ≤ 23.98 11ax-HE80 MCS3 106 5530 18.53 18.06 21.31 ≤ 23.98 11ax-HE80 MCS3 122 5610 20.78 20.86 23.83 ≤ 23.98 11ax-HE80 MCS3 138 5690 21.28 20.25 23.81 ≤ 23.98 11ax-HE80 MCS3 155 5775 22.92 22.51 25.73 ≤ 30.00 11ax-HE160 MCS0 50 5250 20.12 18.59 22.43 ≤ 23.98 11ax-HE160 MCS0 114 5570 18.82…

Text truncated - open the document above for the full version.

Report No.: 2305RSU014-U3 76 of 313 802.11ax-HE40 Power Spectral Density- Ant 0 Channel 38 (5190MHz) Channel 46 (5230MHz) Channel 54 (5270MHz) Channel 62 (5310MHz) Channel 102 (5510MHz) Channel 110 (5550MHz) Report No.: 2305RSU014-U3 77 of 313 802.11ax-HE40 Power Spectral Density- Ant 0 Channel 134 (5670MHz) Channel 142(5710MHz) Channel 151 (5755MHz) Channel 159 (5795MHz) Report No.: 2305RSU014-U3 78 of 313 802.11ax-HE80 Power Spectral Density- Ant 0 Channel 42 (5210MHz) Channel 58 (5290MHz) Channel 106 (5530MHz) Channel 122 (5610MHz) Channel 138 (5690MHz) Channel 155 (5775MHz) Report No.: 2305RSU014-U3 79 of 313 802.11ax-HE160 Power Spectral Density- Ant 0 Channel 50 (5250MHz) Channel 114 (5570MHz) Report No.: 2305RSU014-U3 80 of 313 802.11a Power Spectral Density- Ant 1 Channel 36 (5180MHz) Channel 44 (5220MHz) Channel 48 (5240MHz) Channel 52 (5260MHz) Channel 60 (5300MHz) Channel 64 (5320MHz) Report No.: 2305RSU014-U3 81 of 313 Channel 100 (5500MHz) Channel 116 (5580MHz) Channel 140 (5700MHz) Channel 144(5720MHz) Channel 149 (5745MHz) Channel 157 (5785MHz) Channel 165 (5825MHz) Report No.: 2305RSU014-U3 82 of 313 802.11ac-VHT20 Power Spectral Density- Ant 1 Channel 36 (5180MHz) Channel 44 (5220MHz) Channel 48 (5240MHz) Channel 52 (5260MHz) Channel 60 (5300MHz) Channel 64 (5320MHz) Report No.: 2305RSU014-U3 83 of 313 802.11ac-VHT20 Power Spectral Density- Ant 1 Channel 100 (5500MHz) Channel 116 (5580MHz) Channel 140 (5700MHz) Channel 144(5720MHz) Channel 149 (5745MHz) Channel 157 (5785MHz) Channel 165 (5825MHz) Report No.: 2305RSU014-U3 84 of 313 802.11ac-VHT40 Power Spectral Density- Ant 1 Channel 38 (5190MHz) Channel 46 (5230MHz) Channel 54 (5270MHz) Channel 62 (5310MHz) Channel 102 (5510MHz) Channel 110 (5550MHz) Report No.: 2305RSU014-U3 85 of 313 802.11ac-VHT40 Power Spectral Density- Ant 1 Channel 134 (5670MHz) Channel 142(5710MHz) Channel 151 (5755MHz) Channel 159 (5795MHz) Report No.: 2305RSU014-U3 86 of 313 802.11ac-VHT80 Power Spectral Density- Ant 1 Channel 42 (5210MHz) Channel 58 (5290MHz) Channel 106 (5530MHz) Channel 122 (5610MHz) Channel 138 (5690MHz) Channel 155 (5775MHz) Report No.: 2305RSU014-U3 87 of 313 802.11ac-VHT160 Power Spectral Density- Ant 1 Channel 50 (5250MHz) Channel 114 (5570MHz) Report No.: 2305RSU014-U3 88 of 313 802.11ax-HE20 Power Spectral Density- Ant 1 Channel 36 (5180MHz) Channel 44 (5220MHz) Channel 48 (5240MHz) Channel 52 (5260MHz) Channel 60 (5300MHz) Channel 64 (5320MHz) Report No.: 2305RSU014-U3 89 of 313 802.11ax-HE20 Power Spectral Density- Ant 1 Channel 100 (5500MHz) Channel 116 (5580MHz) Channel 140 (5700MHz) Channel 144(5720MHz) Channel 149 (5745MHz) Channel 157 (5785MHz) Channel 165 (5825MHz) Report No.: 2305RSU014-U3 90 of 313 802.11ax-HE40 Power Spectral Density- Ant 1 Channel 38 (5190MHz) Channel 46 (5230MHz) Channel 54 (5270MHz) Channel 62 (5310MHz) Channel 102 (5510MHz) Channel 110 (5550MHz)

Report No.: 2305RSU014-U3 91 of 313 802.11ax-HE40 Power Spectral Density- Ant 1 Channel 134 (5670MHz) Channel 142(5710MHz) Channel 151 (5755MHz) Channel 159 (5795MHz) Report No.: 2305RSU014-U3 92 of 313 802.11ax-HE80 Power Spectral Density- Ant 1 Channel 42 (5210MHz) Channel 58 (5290MHz) Channel 106 (5530MHz) Channel 122 (5610MHz) Channel 138 (5690MHz) Channel 155 (5775MHz) Report No.: 2305RSU014-U3 93 of 313 802.11ax-HE160 Power Spectral Density- Ant 1 Channel 50 (5250MHz) Channel 114 (5570MHz) Report No.: 2305RSU014-U3 94 of 313 A.6 Frequency Stability Test Result Test Site SIP-TR1 Test Engineer Alisa Deng Test Date 2023-07-10~2023-07-11 Test Mode 5180MHz (Carrier Mode) Voltage (%) Power (VAC) Temp (°C) Frequency Tolerance (ppm) 0 minutes 2 minutes 5 minutes 10 minutes 100% 120 - 30 21.01 21.01 20.96 20.99 - 20 20.94 20.67 20.52 20.15 - 10 19.33 18.31 17.58 17.16 0 15.05 14.07 13.44 12.83 + 10 9.69 9.16 8.50 8.08 + 20 3.28 2.58 2.38 2.34 + 30 0.36 -0.19 -0.67 -1.70 + 40 -2.51 -3.04 -3.61 -4.28 + 50 -5.07 -5.49 -5.67 -5.62 115% 138 + 20 4.19 3.07 2.58 2.51 85% 102 + 20 -2.43 -3.14 0.97 2.57 Note: Frequency Tolerance (ppm) = {[Measured Frequency (Hz) - Declared Frequency (Hz)] / Declared Frequency (Hz)} *10 6 . Report No.: 2305RSU014-U3 95 of 313 A.7 Radiated Spurious Emission Test Result Test Site SIP-AC1 Test Engineer Mero Zhou Test Date 2023-07-03 Test Mode 802.11a – Channel 36 Remark 1. Average measurement was not performed if peak level lower than average limit. 2. Other frequency was 20dB below limit line within 1-18GHz, there is not show in the report. Mark Frequency (MHz) Reading Level (dBμV) Factor (dB/m) Measure Level (dBμV/m) Limit (dBμV/m) Margin (dB) Detector Polarization 8284.5 52.9 -5.2 47.7 74.0 -26.3 Peak Horizontal * 10290.5 47.6 -4.5 43.1 68.2 -25.1 Peak Horizontal * 14982.5 43.9 1.5 45.4 68.2 -22.8 Peak Horizontal 16121.5 42.5 4.0 46.5 74.0 -27.5 Peak Horizontal 8284.5 51.5 -5.2 46.3 74.0 -27.7 Peak Vertical * 9891.0 47.2 -4.3 42.9 68.2 -25.3 Peak Vertical * 14727.5 43.8 1.3 45.1 68.2 -23.1 Peak Vertical 15824.0 43.4 3.2 46.6 74.0 -27.4 Peak Vertical Note 1: “*” is not in restricted band, its limit is -27dBm/MHz. At a distance of 3 meters, the field strength limit in dBμV/m can be determined by adding a “conversion” factor of 95.2dB to the EIRP limit of -27dBm/MHz to obtain the limit for out of band spurious emissions. Note 2: Measure Level (dBμV/m) = Reading Level (dBμV) + Factor (dB/m) Factor (dB/m) = Cable Loss (dB) + Antenna Factor (dB/m) - Pre_Amplifier Gain (dB) Report No.: 2305RSU014-U3 96 of 313 Test Site SIP-AC1 Test Engineer Mero Zhou Test Date 2023-07-03 Test M…
