LNQ802MAGMiniPCI Atheros 802.11b/g WLAN Card

MiniPCI 802.11b/g Wireless Card 802MAG User’s Manual Contents 1. Contents 2. Introduction 3. Bluetooth Basics 4. Installation Overview 5. Federal Communication Commission Interface Statement 6. Statement 2. Introduction Thank you for purchasing MiniPCI 802.11b/g wireless lan Module. This manual will assist you with the installation procedure. The package you have received should contain the following items: • Mini PCI 802.11b/g Wireless LAN Card • User manual • CD containing Wireless LAN Management utility and driver software. Note: if anything is missing, please contact your vendor 3. MiniPCI 802.11b/g Wireless Lan Card Basics Wireless systems offer a great number of advantages over a traditional, wired system. MiniPCI Wireless LAN Card are more flexible, easier to setup and manage and often more cost effective than their wired equivalence. With Mini PCI wireless LAN Card users can access shared information without looking for a place to plug in and network managers can set up or augment networks without installing or moving wires. MiniPCI Wireless LAN Card offers the following productivity, convenience and cost advantages over traditional wired networks. • Mobility – Wireless systems can provide LAN users with access to real-time information anywhere in their organization. This mobility supports productivity and service opportunities not possible with wired networks. • Installation Speed and Simplicity – Installing a MiniPCI Wireless LAN Card system can be fast and easy and can eliminate the need to pull cable through walls and ceilings. • Installation Flexibility – wireless technology allows the network to go where wires cannot go. • Reduced Cost-of-Ownership – While the initial investment required for MiniPCI Wireless LAN Card hardware might be higher than the cost of wired LAN hardware, overall installation expenses and life-cycle costs will be significantly lower. Long- term cost benefits are greatest in dynamic environments requiring frequent moves, adds, and changes. • Scalability – MiniPCI Wireless LAN Card systems can be configured in a variety of topologies to meet the needs of specific applications and installations. Configurations are easily changed and range from peer-to-peer networks suitable for a small number of users to full infrastructure networks of thousands of users that allows roaming over a broad area. 4. Installation and Overview Here are some steps you will perform in establishing your wireless network connection: 1. Install Atheros Utility using the Installation CD. 2. The Installshield Wizard will showed up 3. Please choose the language in English 4. The “Atheros Client Installation Program” will show up, please click Next. . 5. Please click I accept the terms of the license agreement. Then click Next 6. Recommended you to click Install Client Utilities and Driver and then click Next 7. Please click Yes to continue. 8. Please click Browse to find the Atheros driver destination location. And then click Next 9. Please click OK to continue 10. Wait, while Setup is performing the request operations. 11. “ Digital Signature Not Found” will appear, please click Yes to continue 12. Recommend you to choose Yes, I want to restart my computer now Please click Finish to complete the installation 13. If you install the driver successfully. The Atheros Icon will be showed up. 14. You could double click the Atheros Icon to check the Signal Strength. Federal Communication Commission Interference Statement This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to Part 15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful interference in a residential installation. This equipment generates, uses and can radiate radio frequency energy and, if not installed and used in accordance with the instructions, may cause harmful interference to radio communications. However, there is no guarantee that interference will not occur in a particular installation. If this equipment does cause harmful interference to radio or television reception, which can be determined by turning the equipment off and on, the user is encouraged to try to correct the interference by one of the following measures: - Reorient or relocate the receiving antenna. - Increase the separation between the equipment and receiver. - Connect the equipment into an outlet on a circuit different from that to which the receiver is connected. - Consult the dealer or an experienced radio/TV technician for help. FCC Caution: Any changes or modifications not expressly approved by the party responsible for compliance could void the user's authority to operate this equipment. This device complies with Part 15 of the FCC Rules. Operation is subject to the following two conditions: (1) This device may not cause harmful interference, and (2) this device must accept any interference received, including interference that may cause undesired operation. IMPORTANT NOTE: FCC Radiation Exposure Statement: This equipment complies with FCC radiation exposure limits set forth for an uncontrolled environment. This equipment should be installed and operated with minimum distance 20cm between the radiator & your body. This transmitter must not be co-located or operating in conjunction with any other antenna or transmitter. Statement Actiontec declares that US model of 802MAG, ( FCC ID: LNQ802MAG ) is limited in CH1~CH11 for 2.4 G band by specific firmware controlled by the manufacturer and is not user changeable. Federal Communication Commission Interference Statement This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to Part 15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful interference in a residential installation. This equipment generates, uses and can radiate radio frequency energy and, if not installed and used in accordance with the instructions, may …

Text truncated - open the document above for the full version.

FCC ID: LNQ802MAG Report No. 950727L06 Modular Approval Request Letter Advance Data Technology 24 August, 2006 Dear Application Examiner, Actiontec Electronics Inc., It’s MiniPCI Atheros 802.11b/g WLAN Card , FCC ID: LNQ802MAG would like to have your authorization as a modular approval specific to the mobile device such as Broadband Home Router, etc. The requirements of Public Notice DA00-1407 have been met and shown on the following statements. 1. “The modular transmitter must have its own RF shielding.” The radio portion of this module has been shielded, please see exhibition External Photo. 2. “The modular transmitter must have buffered modulation/data inputs.” The EUT has buffered data inputs, it is integrated in chip AR2413. 3. “The modular transmitter must have its own power supply regulation.” The part number of this regulator is CXT2907A. 4. “The modular transmitter must comply with the antenna requirements of section 15.203 and 15.204(C).” The EUT meets the FCC antenna requirements. The spurious emission, unique antenna connector and photo of antennas are shown in the test report. 5. “The modular transmitter must be tested in a stand-alone configuration” The EUT was tested in a stand-alone configuration via a PCMCIA to mini-PCI extender. Please see section Photographs of Test Configuration in the test report, the EUT was plugged in this extender. 6. “The modular transmitter must be labeled with its own FCC ID number.” Please see exhibition Label Sample for the FCC ID of this module. And also in the exhibition Users Manual, there are instructions give to the OEM on how to label the end product. FCC ID: LNQ802MAG Report No. 950727L06 7. “The modular transmitter must comply with any specific rule or operating requirements applicable to the transmitter and the manufacturer must provide adequate instructions along with the module to explain any such requirements.” The EUT is compliant with all applicable FCC rules. Detail instructions for maintaining compliance are given in the Users Manual. 8. “The modular transmitter must comply with any applicable RF exposure requirements.” The EUT is compliant with all applicable RF exposure requirements. RF Exposure is addressed in the RF exposure exhibition. Please contact me if you have any further questions. Thanks for your attention. Best Regards, Gary Chang Supervisor Advance Data Technology

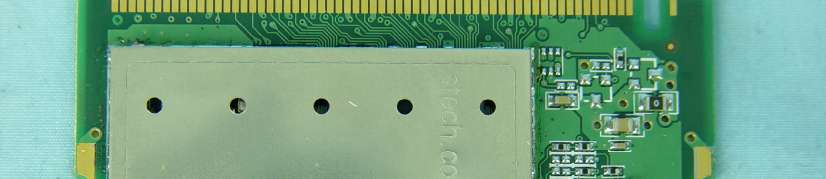

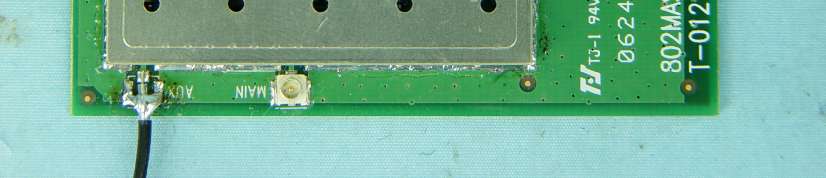

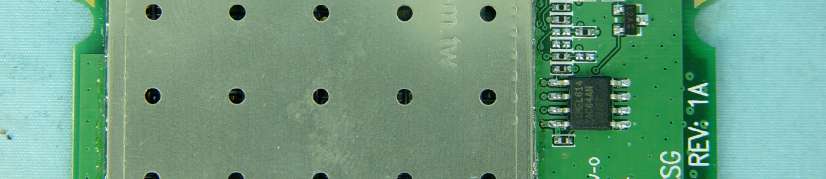

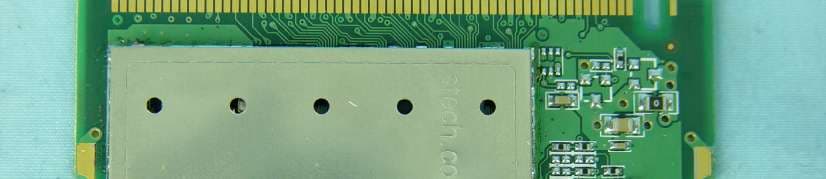

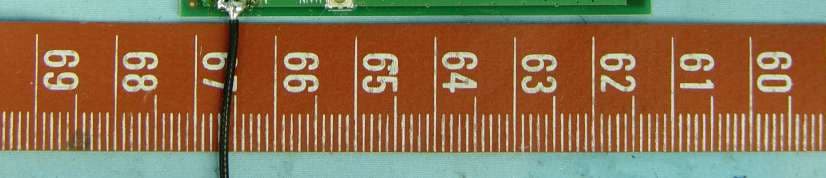

Page 1 CONSTRUCTION PHOTOS OF EUT Page 2 Page 3 Page 4

Page 1 FCC ID.: LNQ802MAG Label Location

Page 5 Page 6

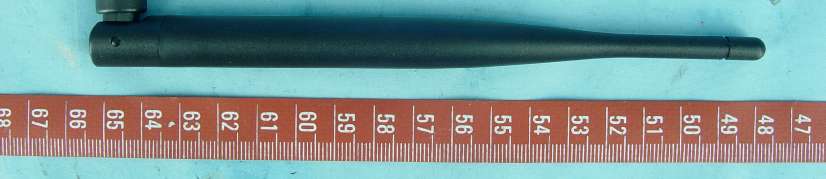

FCC ID: LNQ802MAG Report No.: RF950727L06 Technical Description This device is a MiniPCI Atheros 802.11b/g WLAN Card, which operates in the 2.4GHz frequency spectrum with throughput of up to 54Mbps which OFDM technique will be applied. If the signal to noise radio is too poor which could not support 54Mbps, the 11Mbps data rate with DSSS technique will be applied. The transmitter of the EUT is powered by host equipment. The antenna used in this product is Dipole antenna with R-SMA connector ad Printed antenna without connector. The other instruction, please have a look at the users manual.

FCC ID: LNQ802MAG Report No: SA950727L06 1 RF EXPOSURE REPORT REPORT NO.: SA950727L06 MODEL NO.: 802MAG ACCORDING: FCC Guidelines for Human Exposure IEEE C95.1 APPLICANT: Actiontec Electronics Inc. ADDRESS: 760 North Mary Avenue Sunnyvale, CA94085. U.S.A ISSUED BY: Advance Data Technology Corporation LAB LOCATION: 47 14th Lin, Chiapau Tsun, Linko, Taipei, Taiwan, R.O.C. TEST LOCATION: No. 19, Hwa Ya 2nd Rd., Wen Hwa Tsuen, Kwei Shan Hsiang, Taoyuan Hsien 333, Taiwan, R.O.C. FCC ID: LNQ802MAG Report No: SA950727L06 2 RF Exposure Measurement (Mobile Device) 1. Introduction In this document, we try to prove the safety of radiation harmfulness to the human body for our product. The limit for Maximum Permissible Exposure (MPE) specified in FCC 1.1310 is followed. The Gain of the antenna used in this product is measured in a Fully Anechoic Chamber (FAC) calibrated for antenna measurement in ADT, and also the maximum total power input to the antenna is measured. Through the Friis transmission formula and the maximum gain of the antenna, we can calculate the distance, away from the product, where the limit of MPE is reached. Although the Friis transmission formula is a far field assumption, the calculated result of that is an over-prediction for near field power density. We will take that as the worst case to specify the safety range. 2. RF Exposure Limit According to FCC 1.1310: The criteria listed in the following table shall be used to evaluate the environmental impact of human exposure to radio-frequency (RF) radiation as specified in 1.1307(b) LIMITS FOR MAXIMUM PERMISSIBLE EXPOSURE (MPE) Frequency Range (MHz) Electric Field Strength (V/m) Magnetic Field Strength (A/m) Power Density (mW/cm 2 ) Average Time (minutes) (A)Limits For Occupational / Control Exposures 300-1500......F/3006 1500-100,000......56 (B)Limits For General Population / Uncontrolled Exposure 300-1500......F/15006 1500-100,000......1.030 F = Frequency in MHz FCC ID: LNQ802MAG Report No: SA950727L06 3 3. Friis Formula Friis transmission formula : Pd = (Pout*G) / (4*pi*r 2 ) where Pd = power density in mW/cm 2 Pout = output power to antenna in mW G = gain of antenna in linear scale Pi = 3.1416 R = distance between observation point and center of the radiator in cm If we know the maximum Gain of the antenna and the total power input to the antenna, through the calculation, we will know the MPE value at distance r. Ref. : David K. Cheng, Field and Wave Electromagnetics, Second Edition, Page 640, Eq. (11-133). 4. EUT Operating condition The software provided by Manufacturer enabled the EUT to transmit and receive data at lowest, middle and highest channel individually. 5. Classification This modular is specified to be installed in Broadband Home Router, which is connected with host through wire. So it is easy to be re-located in the place where at least 20cm far away from the body of the user. Warning statement to the user for keeping at least 20cm or more separation distance with the antenna should be included in users manual. So, this device is classified as Mobile Device. FCC ID: LNQ802MAG Report No: SA950727L06 4 6. Test Results 6.1 Antenna Gain The maximum Gain measured in Fully Anechoic Chamber is 5dBi or 3.162(numeric) 6.2 Output Power Into Antenna & RF Exposure value at distance 20cm: 802.11b DSSS MODULATION CHANNEL CHANNEL FREQUENCY (MHz) OUTPUT POWER TO ANTENNA (mW) POWER DENSITY (mW/cm 2 ) LIMIT OF POWER DENSITY (mW/cm 2 ) 1241272.1110.0451.0 6243771.7790.0451.0 11246263.8260.0401.0 802.11g OFDM MODULATION CHANNEL CHANNEL FREQUENCY (MHz) OUTPUT POWER TO ANTENNA (mW) POWER DENSITY (mW/cm 2 ) LIMIT OF POWER DENSITY (mW/cm 2 ) 1241263.6800.0401.0 6243763.2410.0401.0 11246264.2690.0401.0

Report No.: RF950727L061Report Format Version 2.0.4 FCC TEST REPORT REPORT NO.: RF950727L06 MODEL NO.: 802MAG RECEIVED: Jul. 28, 2006 TESTED: Aug. 02 ~ Aug. 07, 2006 ISSUED: Aug. 14, 2006 APPLICANT: Actiontec Electronics Inc. ADDRESS: 760 North Mary Avenue Sunnyvale, CA94085. U.S.A ISSUED BY:Advance Data Technology Corporation LAB ADDRESS:47 14 th Lin, Chiapau Tsun, Linko, Taipei, Taiwan, R.O.C. TEST LOCATION:No. 19, Hwa Ya 2 nd Rd., Kueishan, Taoyuan, Taiwan, R.O.C. This test report consists of 66 pages in total. It may be duplicated completely for legal use with the approval of the applicant. It should not be reproduced except in full, without the written approval of our laboratory. The client should not use it to claim product endorsement by CNLA, A2LA or any government agencies. The test results in the report only apply to the tested sample. No. 2177-01 Report No.: RF950727L062Report Format Version 2.0.4 Table of Contents 1CERTIFICATION ....................................................................................................................... 4 2SUMMARY OF TEST RESULTS............................................................................................... 5 2.1MEASUREMENT UNCERTAINTY............................................................................................ 5 3GENERAL INFORMATION ....................................................................................................... 6 3.1GENERAL DESCRIPTION OF EUT ......................................................................................... 6 3.2DESCRIPTION OF TEST MODES ........................................................................................... 7 3.2.1CONFIGURATION OF SYSTEM UNDER TEST....................................................................... 7 3.2.2TEST MODE APPLICABILITY AND TESTED CHANNEL DETAIL ........................................... 8 3.3GENERAL DESCRIPTION OF APPLIED STANDARDS ........................................................ 10 3.4DESCRIPTION OF SUPPORT UNITS.................................................................................... 10 4TEST TYPES AND RESULTS ..................................................................................................11 4.1CONDUCTED EMISSION MEASUREMENT.......................................................................... 11 4.1.1LIMITS OF CONDUCTED EMISSION MEASUREMENT ........................................................11 4.1.2TEST INSTRUMENTS .............................................................................................................11 4.1.3TEST PROCEDURES ............................................................................................................. 12 4.1.4DEVIATION FROM TEST STANDARD ................................................................................... 12 4.1.5TEST SETUP .......................................................................................................................... 13 4.1.6EUT OPERATING CONDITIONS............................................................................................ 13 4.1.7TEST RESULTS ...................................................................................................................... 14 4.2RADIATED EMISSION MEASUREMENT............................................................................... 20 4.2.1LIMITS OF RADIATED EMISSION MEASUREMENT ............................................................ 20 4.2.2TEST INSTRUMENTS ............................................................................................................ 21 4.2.3TEST PROCEDURES ............................................................................................................. 22 4.2.4DEVIATION FROM TEST STANDARD ................................................................................... 22 4.2.5TEST SETUP .......................................................................................................................... 23 4.2.6EUT OPERATING CONDITIONS............................................................................................ 23 4.2.7TEST RESULTS ...................................................................................................................... 24 4.36dB BANDWIDTH MEASUREMENT ...................................................................................... 35 4.3.1LIMITS OF 6dB BANDWIDTH MEASUREMENT ................................................................... 35 4.3.2TEST INSTRUMENTS ............................................................................................................ 35 4.3.3TEST PROCEDURE ............................................................................................................... 36 4.3.4DEVIATION FROM TEST STANDARD ................................................................................... 36 4.3.5TEST SETUP .......................................................................................................................... 36 4.3.6EUT OPERATING CONDITIONS............................................................................................ 36 4.3.7TEST RESULTS ...................................................................................................................... 37 4.4MAXIMUM PEAK OUTPUT POWER ...................................................................................... 43 4.4.1LIMITS OF MAXIMUM PEAK OUTPUT POWER MEASUREMENT ...................................... 43 4.4.2TEST INSTRUMENTS ............................................................................................................ 43 4.4.3TEST PROCEDURES ............................................................................................................. 44 Report No.: RF950727L063Report Format Version 2.0.4 4.4.4DEVIATION FROM TEST STANDARD ................................................................................... 44 4.4.5TEST SETUP ...............…

Text truncated - open the document above for the full version.

1 PHOTOGRAPHS OF THE TEST CONFIGURATION CONDUCTED EMISSION TEST 2 3 4 RADIATED EMISSION TEST 5 6
