LNQAU802C802.11g Access Point

AU802C User’s Manual 1. Installation: Connect AP to PC with Cross Over Ethernet cable. Connect 5V 1.6A power adapter to the AP. You can see all LEDs are turn on. 2. Configuration: Setting Ethernet card IP address with 192.168.1.X, subnet mask with 255.255.255.0, restart machine if asked to do so. 3. AP setting: Open a internet explore, such as Netscape or Internet explore, enter URL http://192.168.1.240 ,Then you can see a pop up window with user name and password. Enter nothing and click OK to continue. Then you enter into setting web page. Here you can set AP’s parameter, go to wireless icon, set SSID and wireless channel. For 802.11g AP, channel should be 2.4G channel 1 to channel 14. 4. Connect with a Client: In order to be associated with the AP, one client should have same SSID, and select Access Point as communication mode. Also Set client IP Address and subnet mask as 192.168.1.X, subnet mask with 255.255.255.0. Client can automatically search for a near by AP to get connected. Regulatory Compliance Notices Class B Equipment This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to Part 15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful interference in a residential installation. This equipment generates, uses, and can radiate radio frequency energy and, if not installed and used in accordance with the instructions, may cause harmful interference to radio communications. However, there is no guarantee that interference will not occur in a particular installation. If this equipment does cause harmful interference to radio or television reception, which can be determined by turning the equipment off and on, the user is encouraged to try to correct the interference by one or more of the following measures: • Reorient or relocate the receiving antenna. • Increase the separation between the equipment and receiver. • Connect the equipment into an outlet on a circuit different from that to which the receiver is connected. • Consult the dealer or an experienced radio or television technician for help. Modifications The FCC requires the user to be notified that any changes or modifications made to this device that are not expressly approved by Actiontec Electronics, Inc may void the user’s authority to operate the equipment. Declaration of conformity for products marked with the FCC logo – United States only This device complies with Part 15 of the FCC Rules and with RSS-210 of Industry of Canada. Operation is subject to the following two conditions: (1) This device may not cause harmful interference, and (2) This device must accept any interference received, including interference that may cause undesired operation. "IMPORTANT NOTE: To comply with FCC RF exposure compliance requirements the antenna used for this transmitter must be installed to provide a separation distance of at least 20 cm from all persons and must not be co-located or operating in conjunction with any other antenna or transmitter." For questions regarding your product, or the FCC declaration, contact: Actiontec Electronics, Inc 760 North Mary Ave, Sunnyvale, CA 94086 United States

Card Bus Connector Programable Processor IP2022 Ethernet Physical AX88796L Transformer RJ45 Flash Memory SRAM 802CIG CARD(see below) AU802C (Eureka) Block Diagram 1/2 3.2MHz 25MHz 40MHz 32KHz 802 CIG BLOCK DIAGRAM ISL3890 BBMAC ISL3090 VCO ISL3690 ZIF Filter + 2.4G Balun Filter + 2.4G Balun ISL3990 DUAL RFPA TX Diplexer Combiner + Filter RX Diplexer Splitter + Filter Diversity T/R Switch I Q I Q Card Bus 40Mhz 32kHz AU802C (Eureka) Block Diagram 2/2

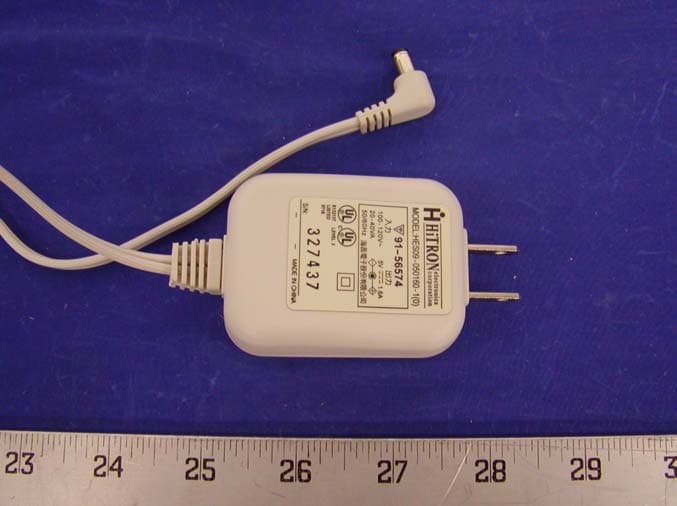

EXHIBIT C - EUT EXTERNAL PHOTOGRAPHS EUT – Chassis Top View EUT – Chassis Rear View EUT – Chassis Bottom View Power Adapter View

EXHIBIT C - EUT INTERNAL PHOTOGRAPHS EUT – Chassis Cover Off View EUT – Component View EUT – Solder View EUT – Transceiver Component View EUT – Transceiver Component View with Shield Removed EUT – Transceiver Solder View Antenna Connection View

AU802C Theory of Operations Functional Description Card Bus Connector Programable Processor IP2022 Ethernet Physical AX88796L Transformer RJ45 Flash Memory SRAM 802.11g wireless card IP2022: IP2022 Internet Processor is the core processor of the 802.11gAP. It connects with 802.11g wireless PCMCIA card and Ethernet controller. It combines support for communication physical layer, Internet protocol stack, device-specific application, and device-specific peripheral software modules. SRAM: Store the program and data that run on IP2022. Flash: Store firmware and parameter used in processing. AX88796L: The AX88796 Fast Ethernet Controller is a high performance and highly integrated local CPU bus Ethernet Controller with embedded 10/100Mbps PHY/Transceiver and 8K*16 bit SRAM. It connected with Ip2022 with local ISA bus. The AX88796 implements both 10Mbps and 100Mbps Ethernet function based on IEEE802.3 / IEEE802.3u LAN standard. Transformer: Cable interface for isolation and low common mode emissions. RJ45: Ethernet connect.

Reset to Factory Defaults Switch ASIX IP2022 Reset Switch (Optional) IP2022 Debug & Programming Header (+/-1% tolerance) *Heat-Sink DC 5V In Cardbus PC-Card Connector Hirose 1 Mbit SRAM 4 Mbit Flash Ethernet Straight-Through or Cross-over Switch Vout = 1.25 x (1 + 165/150) + (0.000060 * 165) = 2.625 v Power Supplies 8-bit Latch Quad Bilateral Switch RJ-45 (Optional) Link LED Speed LED (not used) Activity LED Ethernet Link & Activity LED LED FUNCTION TABLE D1 On Power On -- Ready for Use Blinking Slow Upgrade Application Running Blinking Fast IP2022 Self-Programming Off Power Off D2 On Ethernet Link Blinking Slow Ethernet Activity Off No Ethernet Link D3 On WLAN On (AP) On Associated or Ad-hoc (Bridge) Blinking WLAN Rx Activity (Bridge or AP) Off WLAN Off (AP) Off Not Associated (Bridge) Power & Status LED WLAN Link & Activity LED http://www.actiontec.com 3A. ACTIONTEC ELECTRONICS, INC EUREKA- 0494 Wednesday, February 12, 200311 Custom 760 N. MARY AVE. SUNNYVALE, CA94086 802.11A/B/G ACCESS POINT DW-12/12/2001 SCH Size Scale CAGE Code DWG NO Rev Sheet of Modified: RC1 RE1 RG6 RD6 RB4 RE5 RB5 RB2 RE6 RD0 RB6 RC2 RC3 RE2 RD4 RG5 RC4 RC6 RG7 RE0 RA0 RC0 RC6 RB6 RG4 RC1 RF3RB0 RE7 RG1 RB3 RB5 RE3 RC7 RB7 RC5RD1 RG1 RC0 RG0 RA2 RC4 RE4 RB4 RD3 RC3 RD2 RC2 RG3 RG2 RB7 RA3 RD5 RC5 RG3 RA1 RC7 RB1 RD7 RF7 RF6 RF5 RF4 RF2 RF1 RF0 RG0 LA0 LA2 RF5 RE5 RA1 RE7 RF6 RF2 RG2 RA0 RE1 LA1 RA2 LA3 LA4 RF1 RE3 RE4 RF0 RE6 RE2 RF7 LA5 RE0 RF3 RF4 RG6 RD4 RD5 RD6 RD7 RD1 RD2 RD0 RD3 LA4 LA6 LA3 LA0 LA1 RB7 RB0 RE6 RF2 RA0 RA2 RE2 RA1 RE4 RF3 RF5 RG4 RE1 RF4 RE0 RE3 LA2 RF7 RF6 RE7 RF0 LA5 RE5 RF1 LA7 RB2 RE3 RF3 RC7 RC3 RF5 INT/ RD0 CCD2 RF4 I_RB7 I_RB4 RD1 RE7 RC1 RC0 RB3 RA2 RD7 RE2 LOCK/ RG7 RA1 RC4 RG5 RF0 RF2 RE0 RF6 CLKRUN/ RC5 RD3 PERR/ I_RB6 RD2 RF7 RE1 CCD1 RE5 RC2 I_RB5 RB0 RC6 RE4 CAUDIO/ RB1 RD4RD5 SERR/ PAR RE6 RA0 RF1 RD6 RB1 RA2 RB0 RA1 RA0 RB2 RB4 RB5 I_RB4 I_RB7 I_RB6 I_RB5 RB7 RB6 CAUDIO/ SERR/ LOCK/ CCD1 CCD2 PAR PERR/ CLKRUN/ RB5 RB4 I_RB7 I_RB6 RB7 I_RB4 I_RB5 RB6 I_RB7 RB5 I_RB6 I_RB5 RB7 I_RB4 RB4 RG1 RG1 RB6 INT/ RA3 RA3 +2.625 +2.625 +2.625+2.625 +3.3 +2.625 +3.3 +3.3 +2.625 +2.625 +3.3 +3.3 +3.3 +2.625 +3.3 +3.3 +3.3 +3.3 +3.3 +3.3 +3.3 +3.3 +3.3 +3.3+3.3+3.3 +2.625 +3.3 +3.3 +3.3 +C44 22u,10V 6032 R7 51 0603 C16 0.1u 0603 R23 C8 0.01u 0603 R15 R26 470 0603 R27 NL C27 0.47u 0603 U6 74AC573 SOG.050.300-20 2 3 4 5 6 7 8 9 11 1 19 18 17 16 15 14 13 12 10 20 D0 D1 D2 D3 D4 D5 D6 D7 LE OE Q0 Q1 Q2 Q3 Q4 Q5 Q6 Q7 GND VCC R16 R25 C13 0.1u 0603 C34 0.1u 0603 R18 R1324.9k0603 R14 5.1k 0603 SW1 spst1_1 D2 CMD15-21VGD/TR8 (Green) 1 2 C14 0.1u 0603 C43 0.47u 0603 C31 0.1u 0603 R22 C35 0.1u 0603 SW2 OMRON_B3S C3 1u 0603 R44 5.1k 0603 C17 0.1u 0603 R49 0_NL 0603 + C33 47u,10V 6032 C29 0.1u 0603 U8 LM1117-3.3 TO-252 32 1 VINVOUT ADJ R41 0.5,1/4W 1206 R9 75 0603 R39 J2 AMP_556591-1 AMP_556591 1 2 3 4 5 6 7 8 910 U2 IP2022/PQ80-160 QFP14X20-80 1 2 3 4 5 6 7 8 9 10 11 12 13 14 15 16 17 18 19 20 21 22 23 24 25262728293031323334353637383940 64 63 62 61 60 59 58 57 56 55 54 53 52 51 50 49 48 47 46 45 44 43 42 41 80797877767574737271706968676665 TSS TSCK TSI TSO RA0 RA1 RA2 RA3 DVDD DVSS IOVSS IOVDD RB0 RB1 RB2 RB3 RB4 RB5 RB6 RB7 RC0 RC1 RC2 RC3 RC4RC5RC6RC7RD0RD1DVDDDVSSIOVSSIOVDDRD2RD3RD4RD5RD6RD7 RG3 RG2 RG1 RG0 RF7 RF6 RF5 RF4 DVDD DVSS IOVSS IOVDD RF3 RF2 RF1 RF0 RE7 RE6 RE5 RE4 RE3 RE2 RE1 RE0 RST OSC2OSC1 XVSS XVDD RTCLK2RTCLK1 DVSS DVDD AVSS AVDD RG7RG6RG5RG4 GVDD C7 0.1u 0603 C15 0.1u 0603 R3 2M0603 C36 1u 0603 R4 33k 0603 R2 51 0603 C37 0.1u 0603 C11 0.1u 0603 C30 0.1u 0603 J10 BERG 94898-020 PCMCIA 2 3 4 5 6 1 7 8 9 10 11 12 13 14 15 16 17 18 19 20 21 22 23 24 25 26 27 28 29 30 31 32 33 3468 67 66 65 64 63 62 61 60 59 58 57 56 55 54 53 52 51 50 49 48 47 46 45 44 43 42 41 40 39 38 37 36 35 CAD0 CAD1 CAD3 CAD5 CAD7 GND CC/BE0 CAD9 CAD11 CAD12 CAD14 CC/BE1 CPAR CPERR CGNT CINT VCC VPP1 CCLK CIRDY CC/BE2 CAD18 CAD20 CAD21 CAD22 CAD23 CAD24 CAD25 CAD26 CAD27 CAD29 RFU CLKRUN GNDGND CCD2 CAD31 CAD30 CAD28 CSTSCHG CAUDIO CC/BE3 CREQ CSERR CRST CVS2 CAD19 CAD17 CFRAME CTRDY VPP2 VCC CDVSEL CSTOP CBLOCK RFU CAD16 CAD15 CAD13 CVS1 CAD10 CAD8 RFU CAD6 CAD4 CAD2 CCD1 GND R10 75 0603 R46 C6 0.1u 0603 X1 3.200MHz HC-49 R6 51 0603 R29 NL U4 SST39VF040 TSOP8X14-32 20 19 18 17 16 15 14 13 3 2 31 1 12 4 5 11 10 21 22 23 25 26 27 28 29 6 8 24 32 7 30 9 A0 A1 A2 A3 A4 A5 A6 A7 A8 A9 A10 A11 A12 A13 A14 A15 A16 D0 D1 D2 D3 D4 D5 D6 D7 A17 VCC GND OE WE CE A18 R11 75 0603 C1 33p 0603 + C32 47u,16V 7343 R31 5.1k 0603 R28 NL C10 0.01u,1.5kV CAP_DISC.250 J3 HEADER.100-5X2 HDR.100-5X2 2 4 6 8 10 1 3 5 7 9 R30 NL R51 0 0805 R52 0 0805 R53 0 0805 R122.49k0603 R50 0 0805 R47 C18 1u 0603 U5 PI3C3245Q_NL tssop20 218 19 1020 3 4 5 9 8 7 6 17 16 15 14 11 12 13 A0B0 BE VSS VCC A1 A2 A3 A7 A6 A5 A4 B1 B2 B3 B4 B7 B6 B5 SW3 EG4208_NL EG4208 14710 36912 11 5 2 8 R33R45 C42 0.47u 0603 R24NL0603 C38 0.1u 0603 U3 ESMT21L128A-10J SOJ.050.300-32 9 6 7 10 11 22 23 26 27 20 17 29 21 19 12 24 5 28 1 2 3 4 13 14 15 16 18 30 31 32 25 8 GND D0 D1 D2 D3 D4 D5 D6 D7 A11 A8 A13 A12 A10 WE VCC CE OE A0 A1 A2 A3 A4 A5 A6 A7 A9 A14 A15 A16 GND VCC C20 0.1u 0603 R32 TX RX T1 16ST8515 16ST8515 16 14 15 1 3 26 5 7 11 12 10 R40 470_NL 0603 U1 AX88796L QFP14X20-128 4 5 6 7 8 9 10 11 12 15 42 41 39 38 37 36 35 33 32 31 30 29 26 25 24 23 70 71 88 87 92 84 83 74 95 96 97 98 102 99 109 110 111 112 108 107 100 101 66 67 48 49 50 51 60 61 62 120 103 106 113 79 80 44 12611410457534027136956 14283443525463941051151275568727585 76 7793 7891 81908986 3 58 59 117 118 119 22 16 2 128 19 18 123 1 116 46 7382 SA0 SA1 SA2 SA3 SA4 SA5 SA6 SA7 SA8 SA9 SD0 SD1 SD2 SD3 SD4 SD5 SD6 SD7 SD8 SD9 SD10 SD11 SD12 SD13 SD14 SD15 TPI+ TPI- TPO+ TPO- ZVREG REXT10 REXT100 REXTBS RXD0 RXD1 RXD2 RXD3 RX_DV RX_CLK TXD0 TXD1 TXD2 TXD3 TX_EN TX_CLK CRS COL MDIO MDC EEDO EEDI EECK EECS LED_0 LED_SPEED LED_2 GPO0 GPI0 GPI1 GPI2 XTAL_IN XTAL_OUT CLK25 VDDVDDVDDVDDVDDVDDVDDVDD VDDAVDDA VSSVSSVSSVSSVSSVSSVSSVSSVSSVSSVSSVSSAVSSAVSSAVSSAVSSA VDDM VSSMVSSM VDDPD VDDO VSSPDVSSOVSSOVSSO RESET CP…

Text truncated - open the document above for the full version.

Note: This test report is specially limited to the above client company and product model only. It may not be duplicated without prior written consent of Bay Area Compliance Laboratory Corporation. This report must not be used by the client to claim product endorsement by NVLAP or any agency of the U.S. Government. FCC PART 15 SUBPART C EMI MEASUREMENT AND TEST REPORT For Actiontec Electronics, Inc. 760 N. Mary Ave. Sunnyvale, CA 94086 FCC ID: LNQAU802C 2003-05-30 This Report Concerns: Original Report Equipment Type: 802.11g Access Point Test Engineer: Ling Zhang / Report No.: R0305051 Test Date: 2003-05-09 Reviewed By: Ming Jing / Prepared By: Bay Area Compliance Laboratory Corporation (BACL) 230 Commercial Street Sunnyvale, CA 94085 Tel: (408) 732-9162 Fax: (408) 732 9164 Actiontec Electronics, Inc. FCC ID: LNQAU802C Report # R0305051Rpt.doc Page 2 of 43 FCC Part 15.247 Test Report TABLE OF CONTENTS 1 - GENERAL INFORMATION..................................................................................................................................4 1.1 PRODUCT DESCRIPTION FOR EQUIPMENT UNDER TEST (EUT) .......................................................................4 1.2 OBJECTIVE.............................................................................................................................................................4 1.3 RELATED SUBMITTAL(S)/GRANT(S).......................................................................................................................4 1.4 TEST METHODOLOGY............................................................................................................................................4 1.5 TEST FACILITY.......................................................................................................................................................4 1.6 TEST EQUIPMENT LIST...........................................................................................................................................5 1.7 SUPPORT EQUIPMENT LIST AND DETAILS..............................................................................................................5 1.8 EXTERNAL I/O CABLING LIST AND DETAILS.........................................................................................................5 1.9 POWER SUPPLY INFORMATION...............................................................................................................................6 2 - SYSTEM TEST CONFIGURATION.....................................................................................................................7 2.1 JUSTIFICATION.......................................................................................................................................................7 2.2 EUT EXERCISE SOFTWARE....................................................................................................................................7 2.3 SPECIAL ACCESSORIES...........................................................................................................................................7 2.4 SCHEMATICS / BLOCK DIAGRAM...........................................................................................................................7 2.5 EQUIPMENT MODIFICATIONS.................................................................................................................................7 2.6 CONFIGURATION OF TEST SYSTEM.........................................................................................................................8 2.7 TEST SETUP BLOCK DIAGRAM...............................................................................................................................8 3 - SUMMARY OF TEST RESULTS..........................................................................................................................9 4 - CONDUCTED OUTPUT POWER MEASUREMENT......................................................................................10 4.1 STANDARD APPLICABLE......................................................................................................................................10 4.2 MEASUREMENT PROCEDURE................................................................................................................................10 4.3 TEST EQUIPMENT.................................................................................................................................................10 4.4 MEASUREMENT RESULT......................................................................................................................................10 5 – 6 DB BANDWIDTH ..............................................................................................................................................14 5.1 STANDARD APPLICABLE......................................................................................................................................14 5.2 MEASUREMENT PROCEDURE................................................................................................................................14 5.3 TEST EQUIPMENT.................................................................................................................................................14 5.4 MEASUREMENT RESULT......................................................................................................................................14 6 - SPURIOUS EMISSION AT ANTENNA TERMINAL.......................................................................................18 6.1 STANDARD APPLICABLE......................................................................................................................................18 6.2 MEASUREMENT PROCEDURE................................................................................................................................18 6.3 TEST EQUIPMENT......................................................................…

Text truncated - open the document above for the full version.

EXHIBIT B - TEST SETUP PHOTOGRAPHS Conducted Emission - Front View Conducted Emission - Side View Radiated Emission - Front View Radiated Emission - Rear View
