LNQC1000AWireless 11n VDSL2/GigE Modem Gateway

1 Actiontec Electronics, Inc. 760 North Mary Ave., Sunnyvale, CA 94085 USA Wireless 11n VDSL2/GigE Modem Gateway Model #: C1000A Quick Start Guide Version: 1.0 (Draft to be review) 2 Connect the Gateway to a Computer 1. Get C1000A Wireless 11n VDSL2 Modem Gateway from the Quick Start Kit and take it out of the bag. 2. Get the Power Cord from your DSL Quick Start Kit. (Power: External, 12V DC, 1.5A made by Leader Electronics Inc.; Model: MU18‐D120150‐A1) 3. Plug the smaller end of the Power Cord into the Black Port on the back of the Gateway. 4. Plug the larger end of the Power Cord into a Power Outlet. 5. Make sure the Power Switch is On. 6. Make sure the Power Light on the Gateway is SOLID Green. 7. Get the Yellow Cable. 8. Plug one end of the Yellow Cable into any of the Yellow Ports on the back of the Wireless DSL Gateway. 9. Make sure that your computer is turned on. Then, plug the other end of the Yellow Cable into the Ethernet Port on the back of the computer. An Ethernet Port looks similar to a regular Phone Jack, but is slightly larger. 10. Make sure that 1 of the 4 Ethernet lights on the Gateway is Green. This may take a few moments. 11. Get the Black or Green DSL Cable from your DSL Quick Start Kit. 12. Plug one end of the DSL Cable into the Green Port located on the back of the Gateway. 13. Plug the other end of the DSL Cable into the Phone Jack closest to your Computer. 14. Make sure All Devices with the same phone number as your DSL Line has Phone Filters. This includes telephones, fax machines, caller ID boxes, satellite TV receivers, TiVo devices, and answering machines. 15. Make sure that that Power and DSL Lights are solid Green. This may take up to 30 seconds. Note: If the DSL Light continues to blink, make sure you received notification from your DSL Internet Service Provider that your DSL service has been activated. 3 Configure the Gateway 1. Open a Web Browser (FireFox or Internet Explorer, for example). In the address bar, enter http://192.168.0.1 then press Enter on the keyboard. Note: When you open your web browser you may get a page cannot be displayed error. This is normal and will not effect the instructions in step 1. 2. The "Main Menu" screen appears. Select Quick Setup Note: If this screen does not appear, make sure our Ethernet port is configured for Dynamic IP. 3. Select No Realm from the drop down menu then enter the PPP username and password. Configure Wireless Connection and Security 1. Click on Wireless Setup. 2. Select a name for your wireless network and enter it in the "Network Name" field. Then click Apply. 3. Click on Wireless Security from the left column menu. 4. Select the type of wireless security that you want to use Actiontec recommends using WPA&WPA2. The following steps will show you how to enable WPA&WPA2 wireless security. Note: All of your other wireless devices will need to support that same type of wireless security chosen in order to connect to your wireless network. 5. Enter in a password or pre‐shared key. The key must be at least 8 characters long. Click Apply to continue. Congratulations you are now connected! 4 Specifications 1. Features • Supports Plug‐and‐Play installation. • Compliant with full‐rate ANSI T1.413 Issue 2 and ITU G.992.1 (G.dmt) standard. • ADSL2+ / VDSL2 Compliant • DMT modulation and demodulation. • Supports RFC1483 (bridged Ethernet over ATM) for LAN mode. • Full‐rate adaptive modem: max. Downstream rate is 8 Mbps, max. Upstream rate is 1 Mbps. • Compliant with IEEE 802.3 Ethernet standard. • Supports 10BaseT, 100BaseT and 1000BaseT. • 2.4 GHz IEEE 802.11n. • Supports 20 MHz channels with optional SGI. • Full IEEE 802.11 b/g/n legacy compatibility with enhanced performance. Comprehensive wireless network security support that includes WPA, WPA2, and AES encryption/decryption coupled with TKIP and IEEE 802.1X support • Support 802.11b and Draft STD 802.11g Modulation. • 802.11b Data Rates: 11Mbit/s, 5.5Mbit/s, 2Mbit/s, 1Mbit/s (And 22Mbit/s with PBCC). • 802.11g Data Rates: 6Mbit/s, 9Mbit/s, 12Mbit/s, 18Mbit/s, 24Mbit/s, 36Mbit/s, 48Mbit/s, 54Mbit/s. • 802.11g Data Rates: 65Mbit/s, 130Mbit/s. 2. Power requirements • Operating voltage: +12V +/‐ 5% @ 1.5A max • Power Dissipation Active: 12V DC @ xxx mA (typical) 3. Environmental Operating Range • Operating temperature: 0º C to 40º C (32º F to 104º F) • Humidity: 8‐95%, non‐condensing 4. Dimension and Weight • 8.8” (L) x 5.6” (W) x 1.4” (H) 0.75 lb. 5. Certifications • FCC Part 15 Class B, Class C and Part 68; Safety UL/cUL General Regulatory and Compliance Notices Important Safety Instructions I f applicable, when using telephone equipment, basic safety precautions should always be followed to reduce the risk of fire, electrical shock, and personal injury, including the following: • Do not use this product near water –for example, near a bathtub, kitchen sink, laundry tub, or swimming pool, or in a wet basement; • Avoid using a telephone (other than a cordless type) during an electrical storm, as there may be a remote risk of electrical shock d ue to lightning; • Do not use the telephone to report a gas leak in the vicinity of the leak; • Use only the power cord and batteries indicated in this manual; • Do not dispose of batteries in fire, as they may explode –check with local codes for possible special disposal instructions. T elephone Line Cord Caution To reduce the risk of fire, use only No. 26 AWG or larger (e.g., 24 AWG) UL Listed or CSA Certified Telecommunication Line Cord. Coaxial Cable If applicable, the coaxial cable screen shield needs to be connected to the Earth at the building entrance per ANSI/NFPA 70, the National Electrical Code (NEC), in particular Section 820.93, “Grounding of Outer Conductive Shield of a Coaxial Cable,” or in accordance with local regulation. FCC Class B Equipment This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to Part 15 of the FCC Rules. These limits are designed to …

Text truncated - open the document above for the full version.

Actiontec Electronics, Inc. 760 North Mary Avenue • Sunnyvale • CA • 94085 • USA Phone (408) 752-7700 • Fax (408) 541-9003 • www.actiontec.com Solutions for the Digital Life™ FCC Confidential Authorization February 27, 2012 FEDERAL COMMUNICATIONS COMMISSIONS Authorization and Evaluation Division 7435 Oakland Mills Road Columbia, MD 21046 Subject: Confidentiality Request regarding application for certification of FCC ID: LNQC1000A In accordance with Sections 0.457 and 0.459 of the Commission’s Rules, Actiontec Electronics, Inc., hereby requests long-term confidential treatment of information accompanying this application as outlined below: • Block Diagram • Schematics • Operation Description The above materials contain proprietary and confidential information not customarily released to the public. The public disclosure of these materials provides unjustified benefits to its competitors in the market. Sincerely Yours, Angela Yao / Sr. Program Manager Actiontec Electronics, Inc. 760 North Mary Ave., Sunnyvale, CA 94085 Phone (408) 752-7700 E m a i l [email protected]

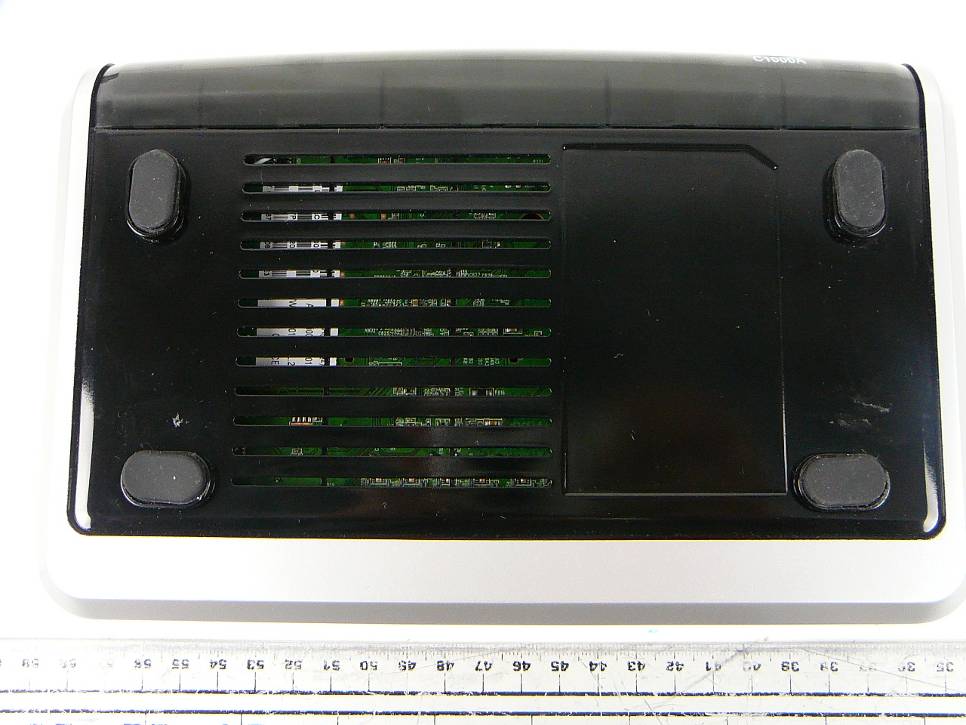

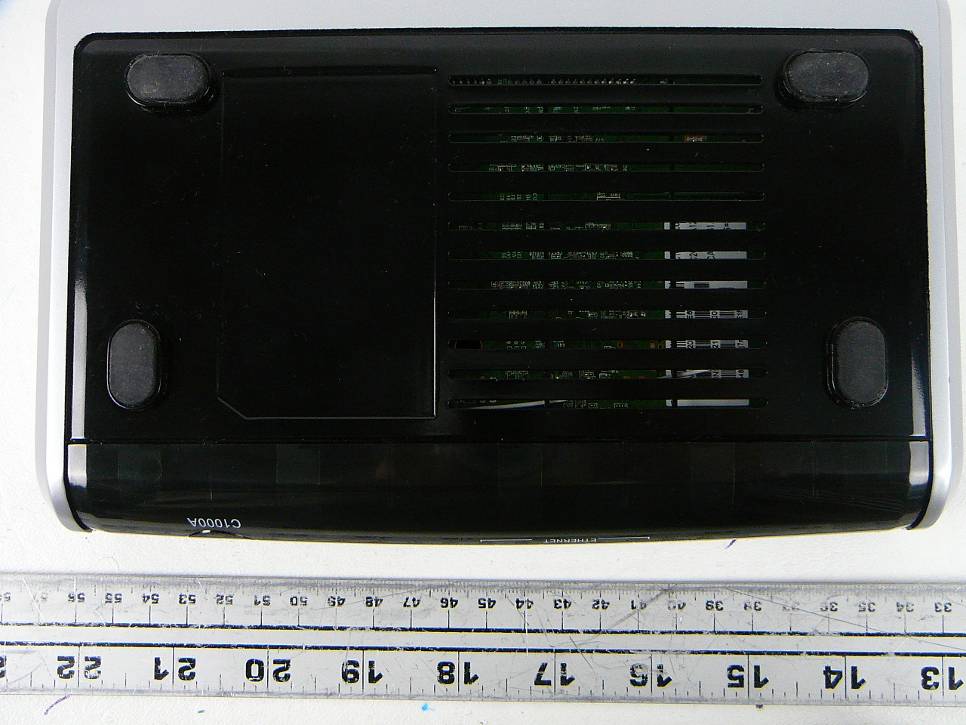

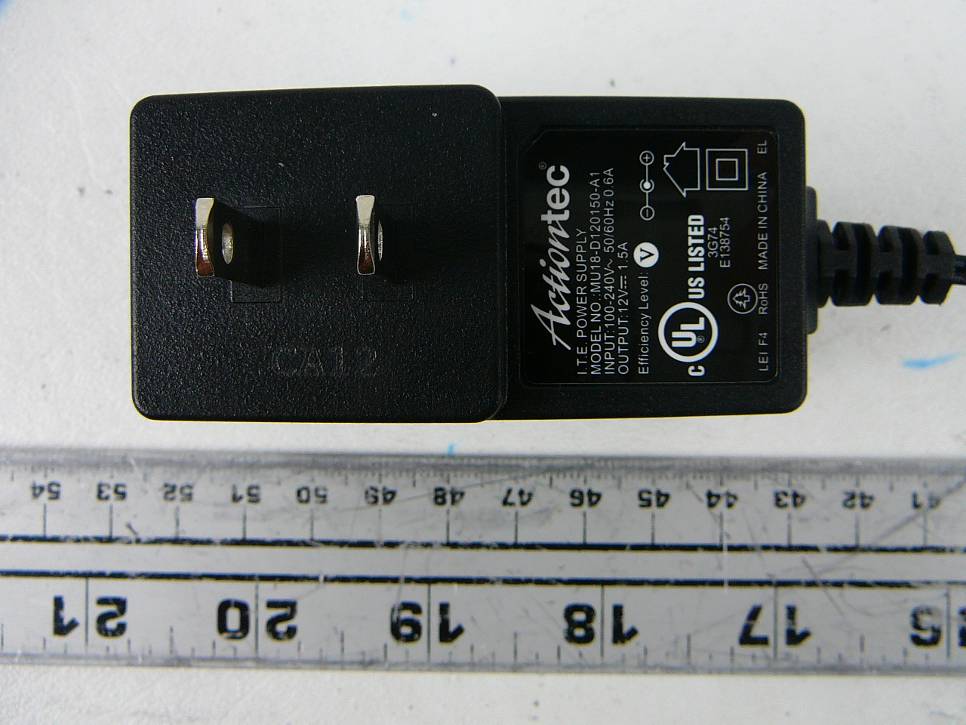

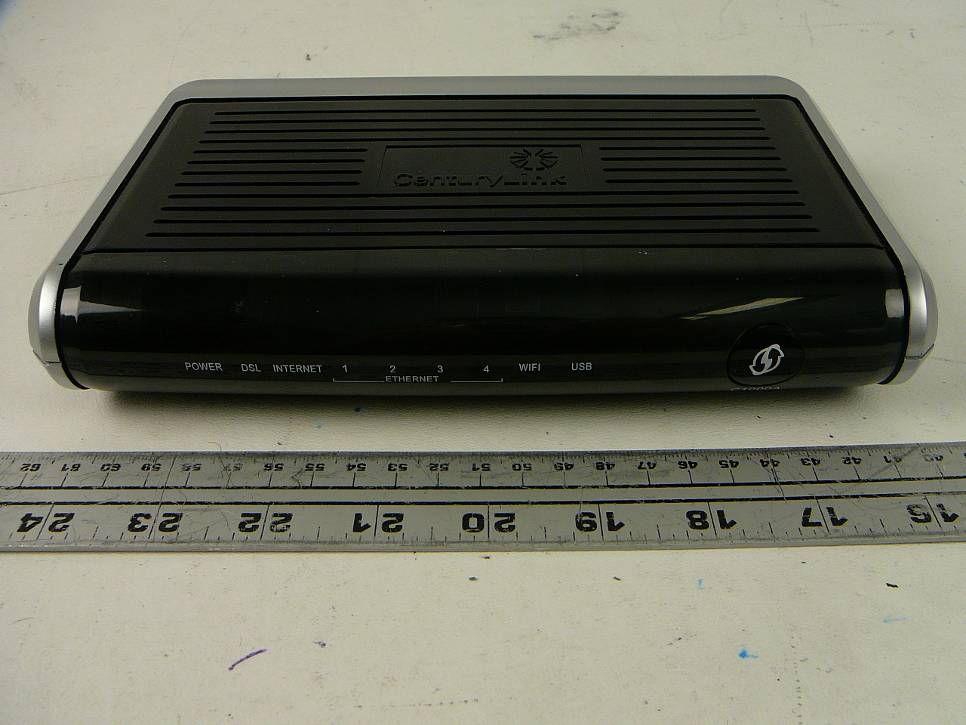

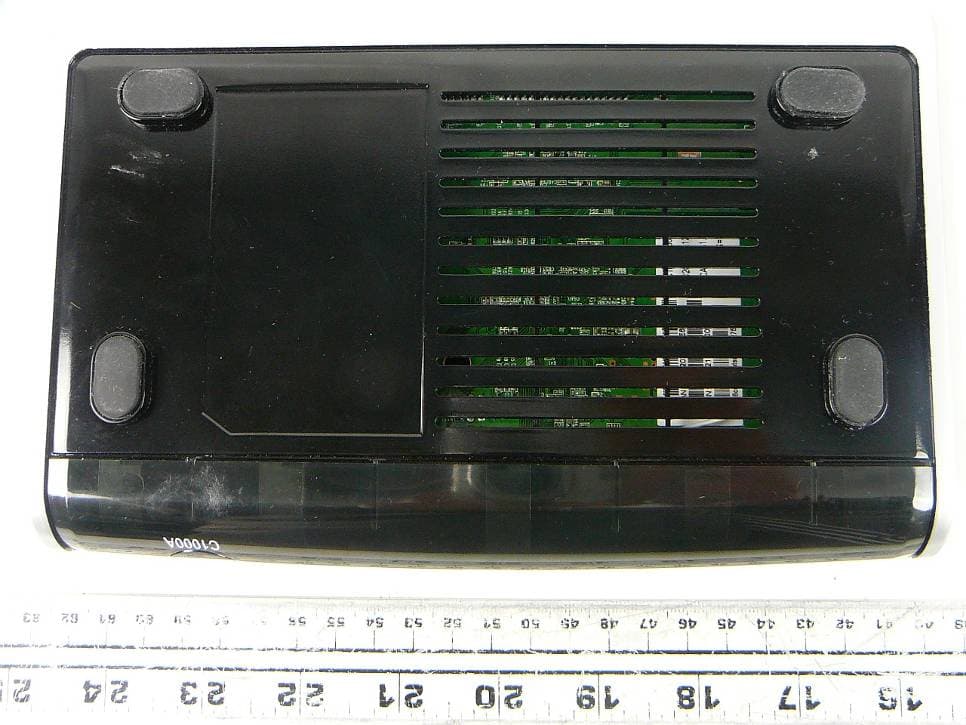

1.1 EUT – Front View TDK 1.2 EUT – Back View TDK 1.3 EUT – Front View UMEC 1.4 EUT – Back View UMEC 1.5 EUT – Front View MAGCOM 1.6 EUT – Back View MAGCOM 1.7 EUT – Power Top View

Actiontec Electronics, Inc. FCC ID: LNQC1000A Report Number: R1202143-247 Page 71 of 84 FCC Part15C Test Report 13 Exhibit A - FCC Equipment Labeling Requirements 13.1 FCC ID Label Requirements As Per FCC §2.925, (a) Each equipment covered in an application for equipment authorization shall bear a nameplate or label listing the following: (1) FCC Identifier consisting of the two elements in the exact order specified in §2.926. The FCC Identifier shall be preceded by the term FCC ID in capital letters on a single line, and shall be of a type size large enough to be legible without the aid of magnification. Example: FCC ID: XXX123 XXX—Grantee Code 123—Equipment Product Code As Per FCC §15.19 (a) In addition to the requirements in part 2 of this chapter, a device subject to certification, or verification shall be labeled as follows: (3) All other devices shall bear the following statement in a conspicuous location on the device: This device complies with part 15 of the FCC Rules. Operation is subject to the following two conditions: (1) This device may not cause harmful interference, and (2) this device must accept any interference received, including interference that may cause undesired operation. (5) When the device is so small or for such use that it is not practicable to place the statement specified under paragraph (a) of this section on it, the information required by this paragraph shall be placed in a prominent location in the instruction manual or pamphlet supplied to the user or, alternatively, shall be placed on the container in which the device is marketed. However, the FCC identifier or the unique identifier, as appropriate, must be displayed on the device. 13.2 FCC ID Label Contents and Location As per FCC §15.19 (b) (4), the label shall not be a stick-on, paper label. The label on these products shall be permanently affixed to the product and shall be readily visible to the purchaser at the time of purchase, as described in Section 2.925(d) of this chapter. "Permanently affixed" means that the label is etched, engraved, stamped, silk-screened, indelibly printed, or otherwise permanently marked on a permanently attached part of the equipment or on a nameplate of metal, plastic, or other material fastened to the equipment by welding, riveting, or a permanent adhesive. The label must be designed to last the expected lifetime of the equipment in the environment in which the equipment may be operated and must not be readily detachable. Actiontec Electronics, Inc. FCC ID: LNQC1000A Report Number: R1202143-247 Page 72 of 84 FCC Part15C Test Report 13.3 FCC ID Label Location on EUT Label here

1.1 EUT PCB Top View (with Shielding) MAGCOM 1.2 EUT PCB Bottom View (with Shielding) MAGCOM 1.3 EUT PCB Top View (with Shielding) TDK 1.4 EUT PCB Bottom View (with Shielding) TDK 1.5 EUT PCB Top View (with Shielding) UMEC 1.6 EUT PCB Bottom View (with Shielding) UMEC 1.7 EUT- Antennas Location View 1.8 EUT Antenna View 1.9 EUT –Component View TDK (Without Shielding) 1.10 EUT – Solder View TDK (Without Shielding) 1.11 EUT –Component View UMEC (Without Shielding) 1.12 EUT – Solder View UMEC (Without Shielding) 1.13 EUT –Component View MAGCOM (Without Shielding) 1.14 EUT – Solder View MAGCOM (Without Shielding)

Actiontec Electronics, Inc. FCC ID: LNQC1000A Report Number: R1202143-247 Page 11 of 84 FCC Part15C Test Report 4 FCC §15.247 (i), §2.1091 - RF Exposure 4.1 Applicable Standard According to FCC §15.247(i) and §1.1307(b)(1), systems operating under the provisions of this section shall be operated in a manner that ensures that the public is not exposed to radio frequency energy level in excess of the Commission’s guidelines. Limits for General Population/Uncontrolled Exposure Frequency Range (MHz) Electric Field Strength (V/m) Magnetic Field Strength (A/m) Power Density (mW/cm 2 ) Averaging Time (minutes) Limits for General Population/Uncontrolled Exposure 0.3-1.34 614 1.63 * (100) 30 1.34-30 824/f 2.19/f * (180/f 2 ) 30 30-300 27.5 0.073 0.2 30 300-1500 / / f/1500 30 1500-100,000 / / 1.0 30 f = frequency in MHz * = Plane-wave equivalent power density 4.2 MPE Prediction Predication of MPE limit at a given distance, Equation from OET Bulletin 65, Edition 97-01 S = PG/4
R² Where: S = power density P = power input to antenna G = power gain of the antenna in the direction of interest relative to an isotropic radiator R = distance to the center of radiation of the antenna 4.3 MPE Results 2.4GHz band: Maximum peak output power at antenna input terminal (dBm): 25.65 Maximum peak output power at antenna input terminal (mW): 367.28 Prediction distance (cm): 20 Prediction frequency (MHz): 2437 Maximum Antenna Gain, typical (dBi): 4.5 Maximum Antenna Gain (numeric): 2.82 Power density of prediction frequency at 20.0 cm (mW/cm 2 ): 0.2061 MPE limit for uncontrolled exposure at prediction frequency (mW/cm 2 ): 1.0 The device is compliant with the requirement MPE limit for uncontrolled exposure.

Note: This test report is prepared for the customer shown above and for the device described herein. It may not be duplicated or used in part without prior written consent from Bay Area Compliance Laboratories Corp. This report must not be used by the customer to claim product certification, approval, or endorsement by NVLAP*, NIST, or any agency of the Federal Government. * This report may contain data that are not covered by the NVLAP accreditation and are marked with an asterisk “*” (Rev.2) FCC PART 15 SUBPART C TEST AND MEASUREMENT REPORT For Actiontec Electronics, Inc. 760 N. Mary Ave. Sunnyvale, CA 94085, USA Report Type: Original Report Product Type: Wireless 11n VDSL2/GigE Modem Gateway Test Engineer: Lionel Lara Report Number: R1202143-247 Report Date: 2012-04-20 Reviewed By: Victor Zhang RF/EMC Lead Prepared By: (SP) Bay Area Compliance Laboratories Corp. 1274 Anvilwood Avenue, Sunnyvale, CA 94089, USA Tel: (408) 732-9162 Fax: (408) 732 9164 FCC ID: LNQC1000A Model: C1000A Actiontec Electronics, Inc. FCC ID: LNQC1000A Report Number: R1202143-247 Page 2 of 69 FCC Part15C Test Report TABLE OF CONTENTS 1 GENERAL DESCRIPTION......................................................................................................................................... 5 1.1 PRODUCT DESCRIPTION FOR EQUIPMENT UNDER TEST (EUT) ................................................................................ 5 1.2 MECHANICAL DESCRIPTION OF EUT ....................................................................................................................... 5 1.3 OBJECTIVE............................................................................................................................................................... 5 1.4 RELATED SUBMITTAL(S)/GRANT(S) ........................................................................................................................ 5 1.5 TEST METHODOLOGY.............................................................................................................................................. 5 1.6 MEASUREMENT UNCERTAINTY...............................................................................................................................6 1.7 TEST FACILITY........................................................................................................................................................ 6 2 SYSTEM TEST CONFIGURATION .......................................................................................................................... 7 2.1 JUSTIFICATION......................................................................................................................................................... 7 2.2 EUT EXERCISE SOFTWARE...................................................................................................................................... 7 2.3 SPECIAL ACCESSORIES............................................................................................................................................ 7 2.4 EQUIPMENT MODIFICATIONS................................................................................................................................... 7 2.5 LOCAL SUPPORT EQUIPMENT.................................................................................................................................. 7 2.6 POWER SUPPLY AND LINE FILTERS.......................................................................................................................... 7 2.7 INTERFACE PORTS AND CABLING............................................................................................................................ 8 2.8 EUT INTERNAL CONFIGURATION DETAILS.............................................................................................................. 8 3 SUMMARY OF TEST RESULTS ............................................................................................................................... 9 4 FCC §15.247 (I), §2.1091 - RF EXPOSURE.............................................................................................................. 10 4.1 APPLICABLE STANDARD........................................................................................................................................ 10 4.2 MPE PREDICTION.................................................................................................................................................. 10 4.3 MPE RESULTS....................................................................................................................................................... 10 5 FCC §15.203 – ANTENNA DESCRIPTION............................................................................................................. 11 5.1 APPLICABLE STANDARD........................................................................................................................................ 11 5.2 ANTENNA CONNECTOR CONSTRUCTION................................................................................................................ 11 6 FCC §15.207 - CONDUCTED EMISSIONS ............................................................................................................. 12 6.1 APPLICABLE STANDARDS...................................................................................................................................... 12 6.2 TEST SETUP........................................................................................................................................................... 12 6.3 TEST EQUIPMENT LIST AND DETAILS.................................................................................................................... 12 6.4 TEST SETUP BLOCK DIAGRAM...............................................................................................................................13 6.5 TEST PROCEDURE................................................................…

Text truncated - open the document above for the full version.

1.1 Radiated Emission Front View 1.2 Radiated Emission below 1 GHz Rear View 1.3 Radiated Emission above 1 GHz Rear View 1.4 AC Line Conducted Emission Front View 1.5 AC Line Conducted Emission Side View
