LNQGT724WGADSL/4 port Ethernet/USB/Wireless Gateway

1 54 Mbps Wireless DSL Gateway Model #: GT724-WG User Manual Version: 0.0 (Draft to be review) 2 Table of Contents 1 Introduction 1 Package Contents 1 Minimum System Requirements 2 Features 2 Getting to Know the Gateway 4 2 Setting Up the Gateway 7 Connecting a Computer to the Gateway 7 Installing Phone Filters 22 Setting Up the DSL Connection 26 3 Performing a Basic Setup 33 Basic Setup 33 Changing the User Name and Password 35 4 Using Advanced Setup 37 Accessing Advanced Setup 37 WAN IP Address 38 LAN IP Address 42 DHCP Server 42 Services Blocking 44 Website Blocking 45 Remote Management 46 Application Layer Gateway and Port Forwarding 47 DMZ Hosting 48 Firewall 49 Dynamic Routing 51 NAT (Network Address Translation) 52 Static Routing 52 UPnP (Universal Plug and Play) 53 Time Zone 53 Remote Syslog Capture 54 Wireless Settings 54 Wireless MAC Authentication 58 Wireless Advanced Settings 59 5 Viewing the Gateway’s Status 61 General Status 61 Routing Table 63 ARP Table 63 WAN Status 64 LAN Status 65 Active User List 65 i 3 Actiontec 54 Mbps Wireless DSL Gateway User Manual i 6 Using Utilities 67 Web Activity Log 67 System Log 68 DSL Settings 69 Restore Default Settings 70 Upgrade Firmware 70 7 Setting Up a Network 71 Ethernet 71 USB 76 Wireless 80 8 Troubleshooting 81 Troubleshooting 81 Frequently Asked Questions 82 a Reference 87 Locating Computer Information 87 Locating Windows Operating System Files 88 b Setting Up Static IP on the Computer 91 Windows 98 SE 91 Windows Me 94 Windows 2000 97 Windows XP 101 c Computer Security 105 Comparing DSL Service with a Dial-Up Modem 105 Gateway Security 106 Computer Security 106 Electronic Security 107 d Specifications 109 General 109 Wireless Operating Range 110 LED Indicators 110 Environmental 110 e Glossary 111 f Non-Windows System Setup 115 Classic 115 OS X 117 Notices 119 Regulatory Compliance Notices 119 Modifications 119 Miscellaneous Legal Notices 120 Limited Warranty 121 i 4 1 Introduction Thank you for purchasing the Actiontec 54 Mbps Wireless DSL Gateway. The Gateway is the simplest way to connect computers to a high-speed broadband connection. This easy-to-use product is perfect for the home office or small business. If you want to take your computing to the next level, the Actiontec 54 Mbps Wireless DSL Gateway is sure to be one of the keys to your success. Package Contents s Actiontec 54 Mbps Wireless DSL Gateway s Power cord s Phone filters s DSL cable s Yellow (Ethernet) cable s Blue (USB) cable s Installation CD s Quick start guide s Start here guide s Wireless start here guide s Technical support card 1 Actiontec 54 Mbps Wireless DSL Gateway User Manual 2 Minimum System Requirements s Active DSL service s Computer with a 10/100 Mbps Ethernet connection, or USB connection s Microsoft Windows 98 Second Edition (SE), Windows Millennium Edition (Me), Windows NT 4.0, Windows 2000 , Windows XP , Mac OS 7.1 and above ? Note: USB LAN port is not supported with Microsoft Windows NT 4.0 or any Mac OS. s Internet Explorer 4.0 or higher (5.x recommended) or Netscape Navigator 4.0 or higher (4.7 recommended) 5 s TCP/IP network protocol installed on each computer Features s Plug-and-Play installation support for systems with Windows operating systems (98, 98SE, Me, 2000, and XP) s ADSL WAN port (RJ-11) s Compliant with full-rate ANSI T1.413 Issue 2, ITU G.992.1 (G.dmt) and G.992.2 (G.lite) standard s Auto-handshake for different ADSL flavors s USB 1.1 device specification compliance s 12 Mbps USB data rate (full speed) s Multiprotocol Encapsulation over ATM, PPP over ATM, PPP over Ethernet s Precise ATM traffic shaping s IP packet routing and transparent bridging s Routing protocol supports RIP -1, RIP -2, static routing s Built-in NAT, DHCP server 3 Chapter 1 Introduction s DNS relay support s PAP/CHAP authentication, administrative passwords through Telnet and HTTP s 64-, 128-, and 256-bit WEP/WPA wireless LAN security s Compliant with IEEE 802.3 Ethernet standard s 10/100 Base-T Ethernet ports (4) s Flow control support for Fast Ethernet s Web-based configuration setup s Default configuration backup restore s FTP upgradeable s Web download support s 802.11b/g support 4 Actiontec 54 Mbps Wireless DSL Gateway User Manual Getting to Know the Gateway This section contains a quick description of the Gateway’s lights, ports, etc.The Gateway contains several indicator lights (LEDs) on its front panel and a series of ports on its rear panel. Front Panel The front panel of the Gateway features nine lights: Power, DSL , Internet, Ethernet (4), USB , and Wireless. 6 PowerDSLInternet EthernetUSBWirelessPowerDSLInternetEthernet1Wireless234USB1234 Power Light The Power light displays the Gateway’s current status. If the Power light glows steadily green, the Gateway is receiving power and fully operational. When the Power light flashes rapidly, the Gateway is initializing. If the Power light is not illuminated when the Power cord is plugged in and the Power switch is turned on, the Gateway has suffered a critical error and technical support should be contacted. DSL Light The DSL light illuminates when the Gateway is connected to a DSL (Digital Subscriber Line) line. When it flashes, the Gateway’s built-in DSL modem is training for DSL service. 5 Chapter 1 Introduction Internet Light When the Internet light glows steadily, the Gateway is connected to the DSL provider. Ethernet Lights The Ethernet lights illuminate when the Gateway is connected via one or more of its Ethernet ports. USB Light The USB light illuminates when the Gateway is connected via its USB port. Wireless Light The Wireless light illuminates when the Gateway is activated for wireless use. Rear Panel The rear panel of the Gateway contains seven ports (Ethernet [4], Phone, USB, and Power), as well as Reset and Power switches. PowerUSBEthernet 4ResetPhoneEthernet 3Ethernet 2Ethernet 1 Phone Port The Phone port is used to connect the Gateway to a DSL connection. 6 Actiontec 54 Mbps Wireless DS…

Text truncated - open the document above for the full version.

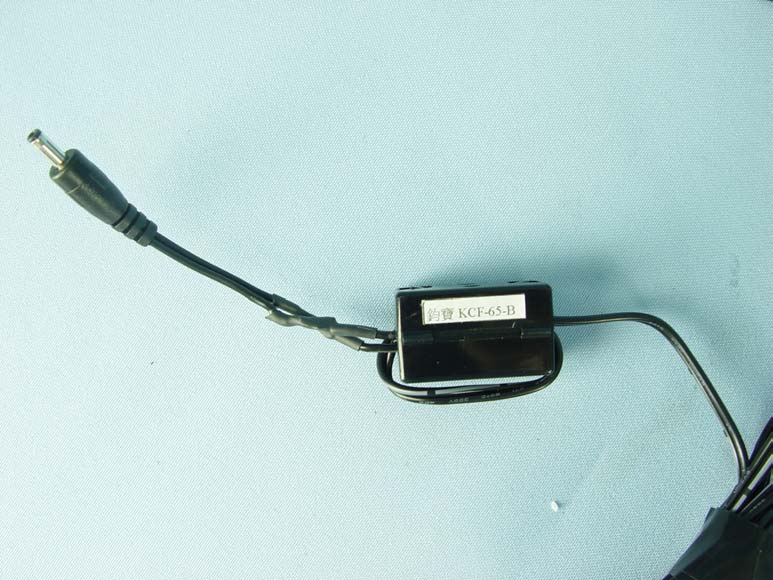

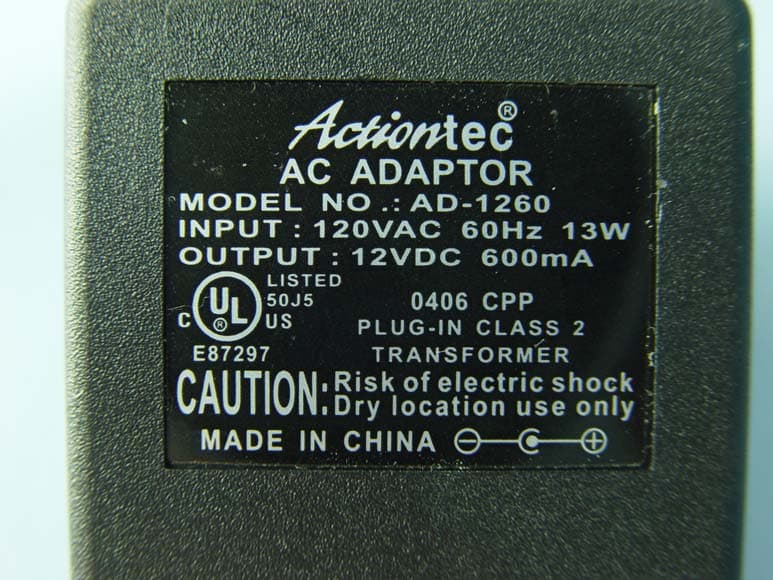

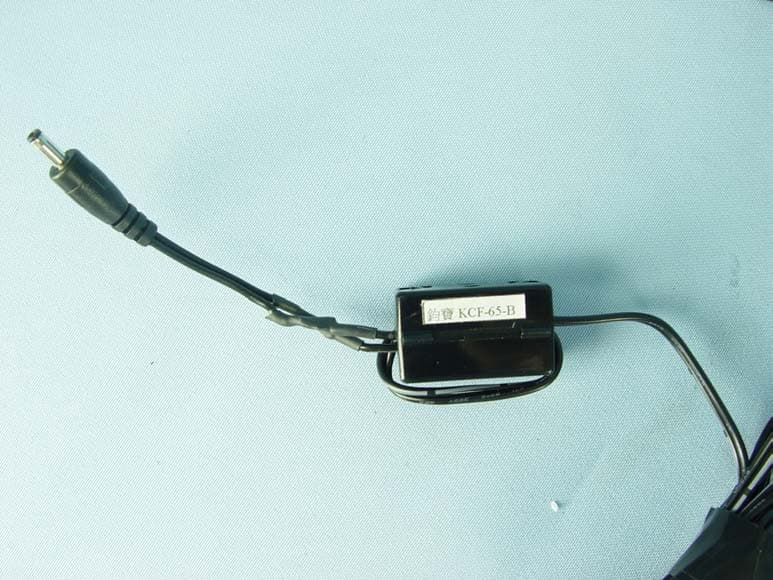

Page 1 CONSTRUCTION PHOTOS OF EUT Page 2 Page 3 Page 4

FCC ID .: LNQGT724WG Label Location

Page 1 Page 2 Page 3 Page 4

FCC ID: LNQGT724WG Report No. RF951120L04 Operational Description This device is a ADSL/4 port Ethernet/USB/Wireless Gateway in the 2.4GHz frequency spectrum with throughput of up to 54Mbps which OFDM technique will be applied. If the signal to noise radio is too poor which could not support 54Mbps, the 11Mbps data rate with DSSS technique will be applied. The transmitter of the EUT is powered by AC adapter. The antenna is Dipole antenna with R-SMA connector. The other instruction, please have a look at the users manual.

FCC ID: LNQGT724WG Report No: SA951120L04 1 RF EXPOSURE REPORT REPORT NO.:SA951120L04 MODEL NO.:GT724WG ACCORDING: FCC Guidelines for Human Exposure IEEE C95.1 APPLICANT:Actiontec Electronics, Inc. ADDRESS: 760 North Mary Ave., Sunnyvale, CA 94086 USA ISSUED BY: Advance Data Technology Corporation LAB ADDRESS: No. 47, 14 th Ling, Chia Pau Tsuen, Lin Kou Hsiang 244, Taipei Hsien, Taiwan, R.O.C. TEST LOCATION: No. 19, Hwa Ya 2 nd Rd., Wen Hwa Tsuen, Kwei Shan Hsiang, Taoyuan Hsien 333, Taiwan, R.O.C. FCC ID: LNQGT724WG Report No: SA951120L04 2 RF Exposure Measurement (Mobile Device) 1. Introduction In this document, we try to prove the safety of radiation harmfulness to the human body for our product. The limit for Maximum Permissible Exposure (MPE) specified in FCC 1.1310 is followed. The Gain of the antenna used in this product is measured in a Fully Anechoic Chamber (FAC) calibrated for antenna measurement in ADT, and also the maximum total power input to the antenna is measured. Through the Friis transmission formula and the maximum gain of the antenna, we can calculate the distance, away from the product, where the limit of MPE is reached. Although the Friis transmission formula is a far field assumption, the calculated result of that is an over-prediction for near field power density. We will take that as the worst case to specify the safety range. 2. RF Exposure Limit According to FCC 1.1310: The criteria listed in the following table shall be used to evaluate the environmental impact of human exposure to radio-frequency (RF) radiation as specified in 1.1307(b) LIMITS FOR MAXIMUM PERMISSIBLE EXPOSURE (MPE) Frequency Range (MHz) Electric Field Strength (V/m) Magnetic Field Strength (A/m) Power Density (mW/cm 2 ) Average Time (minutes) (A)Limits For Occupational / Control Exposures 300-1500 ... ... F/300 6 1500-100,000 ... ... 5 6 (B)Limits For General Population / Uncontrolled Exposure 300-1500 ... ... F/1500 6 1500-100,000 ... ... 1.0 30 F = Frequency in MHz FCC ID: LNQGT724WG Report No: SA951120L04 3 3. Friis Formula Friis transmission formula: Pd = (Pout*G) / (4*pi*r 2 ) where Pd = power density in mW/cm 2 Pout = output power to antenna in mW G = gain of antenna in linear scale Pi = 3.1416 R = distance between observation point and center of the radiator in cm If we know the maximum Gain of the antenna and the total power input to the antenna, through the calculation, we will know the MPE value at distance 20cm. Ref.: David K. Cheng, Field and Wave Electromagnetics, Second Edition, Page 640, Eq. (11-133). 4 EUT Operating condition The software provided by Manufacturer enabled the EUT to transmit and receive data at lowest, middle and highest channel individually. 5. Classification The antenna of the product, under normal use condition, is at least 20cm away from the body of the user. Warning statement for keeping 20cm-separation distance and the prohibition of operating next to a person has been printed on the user’s manual. So, this product is classified as the Mobile Device. FCC ID: LNQGT724WG Report No: SA951120L04 4 6 Test Results 6.1 Antenna Gain The maximum Gain measured in Fully Anechoic Chamber is 2.06dBi or 1.60694 (numeric). 6.2 Output Power Into Antenna & RF Exposure value at distance 20cm: For 802.11b DSSS MODULATION: Channel Channel Frequency (MHz) Output Power to Antenna (mW) Power Density (mW/cm 2 ) Limit of Power Density (mW/cm 2 ) 1 2412 25.527 0.008 1.0 6 2437 39.811 0.013 1.0 11 2462 40.551 0.013 1.0 For 802.11g OFDM MODULATION: Channel Channel Frequency (MHz) Output Power to Antenna (mW) Power Density (mW/cm 2 ) Limit of Power Density (mW/cm 2 ) 1 2412 102.094 0.033 1.0 6 2437 159.588 0.051 1.0 11 2462 114.288 0.037 1.0

Report No.: RF951120L04 1 Report Format Version 2.0.5 FCC TEST REPORT REPORT NO.:RF951120L04 MODEL NO.:GT724WG RECEIVED:Nov. 20, 2006 TESTED:Dec. 05 ~ Dec. 22, 2006 ISSUED:Dec. 27, 2006 APPLICANT : Actiontec Electronics, Inc. ADDRESS : 760 North Mary Ave., Sunnyvale, CA 94086 USA ISSUED BY : Advance Data Technology Corporation LAB ADDRESS : No. 47, 14th Ling, Chia Pau Tsuen, Lin Kou Hsiang 244, Taipei Hsien, Taiwan, R.O.C. TEST LOCATION : No. 19, Hwa Ya 2nd Rd., Wen Hwa Tsuen, Kwei Shan Hsiang, Taoyuan Hsien 333, Taiwan, R.O.C. This test report consists of 74 pages in total. It may be duplicated completely for legal use with the approval of the applicant. It should not be reproduced except in full, without the written approval of our laboratory. The client should not use it to claim product endorsement by CNLA, A2LA or any government agencies. The test results in the report only apply to the tested sample. Report No.: RF951120L04 2 Report Format Version 2.0.5 Table of Contents 1 CERTIFICATION......................................................................................................................... 4 2 SUMMARY OF TEST RESULTS ................................................................................................ 5 2.1 MEASUREMENT UNCERTAINTY ............................................................................................. 5 3 GENERAL INFORMATION......................................................................................................... 6 3.1 GENERAL DESCRIPTION OF EUT........................................................................................... 6 3.2 DESCRIPTION OF TEST MODES............................................................................................. 8 3.2.1 CONFIGURATION OF SYSTEM UNDER TEST ........................................................................ 8 3.2.2 TEST MODE APPLICABILITY AND TESTED CHANNEL DETAIL ............................................ 9 3.3 GENERAL DESCRIPTION OF APPLIED STANDARDS ...........................................................11 3.4 DESCRIPTION OF SUPPORT UNITS ......................................................................................11 4 TEST TYPES AND RESULTS .................................................................................................. 12 4.1 CONDUCTED EMISSION MEASUREMENT ........................................................................... 12 4.1.1 LIMITS OF CONDUCTED EMISSION MEASUREMENT ........................................................ 12 4.1.2 TEST INSTRUMENTS.............................................................................................................. 12 4.1.3 TEST PROCEDURES .............................................................................................................. 13 4.1.4 DEVIATION FROM TEST STANDARD .................................................................................... 13 4.1.5 TEST SETUP............................................................................................................................ 14 4.1.6 EUT OPERATING CONDITIONS ............................................................................................. 14 4.1.7 TEST RESULTS ....................................................................................................................... 15 4.2 RADIATED EMISSION MEASUREMENT ................................................................................ 33 4.2.1 LIMITS OF RADIATED EMISSION MEASUREMENT ............................................................. 33 4.2.2 TEST INSTRUMENTS.............................................................................................................. 34 4.2.3 TEST PROCEDURES .............................................................................................................. 35 4.2.4 DEVIATION FROM TEST STANDARD .................................................................................... 35 4.2.5 TEST SETUP............................................................................................................................ 36 4.2.6 EUT OPERATING CONDITIONS ............................................................................................. 36 4.2.7 TEST RESULTS ....................................................................................................................... 37 4.3 6dB BANDWIDTH MEASUREMENT ....................................................................................... 49 4.3.1 LIMITS OF 6dB BANDWIDTH MEASUREMENT..................................................................... 49 4.3.2 TEST INSTRUMENTS.............................................................................................................. 49 4.3.3 TEST PROCEDURE................................................................................................................. 49 4.3.4 DEVIATION FROM TEST STANDARD .................................................................................... 49 4.3.5 TEST SETUP............................................................................................................................ 50 4.3.6 EUT OPERATING CONDITIONS ............................................................................................. 50 4.3.7 TEST RESULTS ....................................................................................................................... 51 4.4 MAXIMUM PEAK OUTPUT POWER ....................................................................................... 55 4.4.1 LIMITS OF MAXIMUM PEAK OUTPUT POWER MEASUREMENT ....................................... 55 4.4.2 TEST INSTRUMENTS.............................................................................................................. 55 4.4.3 TEST PROCEDURES .............................................................................................................. 56 Report No.: RF951120L04 3 Report Format Version 2.0.5 4.4.4 DEVI…

Text truncated - open the document above for the full version.

1 PHOTOGRAPHS OF THE TEST CONFIGURATION CONDUCTED EMISSION TEST _ TEST MODE A 2 CONDUCTED EMISSION TEST _ TEST MODE B 3 CONDUCTED EMISSION TEST _ TEST MODE C 4 RADIATED EMISSION TEST _ TEST MODE A 5 RADIATED EMISSION TEST _ TEST MODE B 6 RADIATED EMISSION TEST _ TEST MODE C
