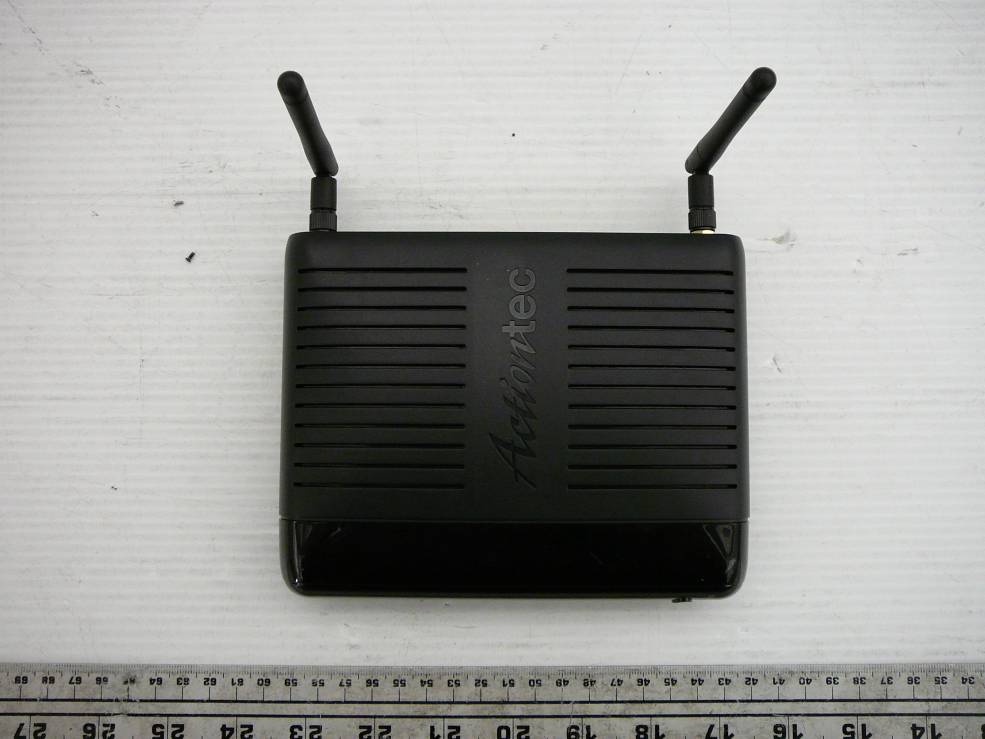

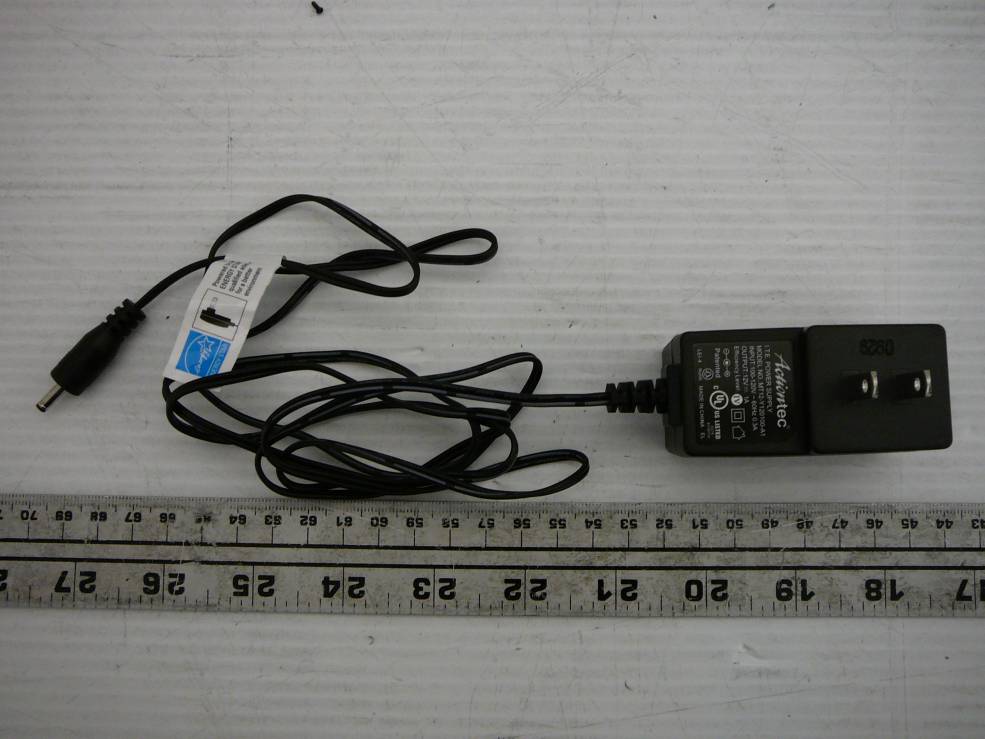

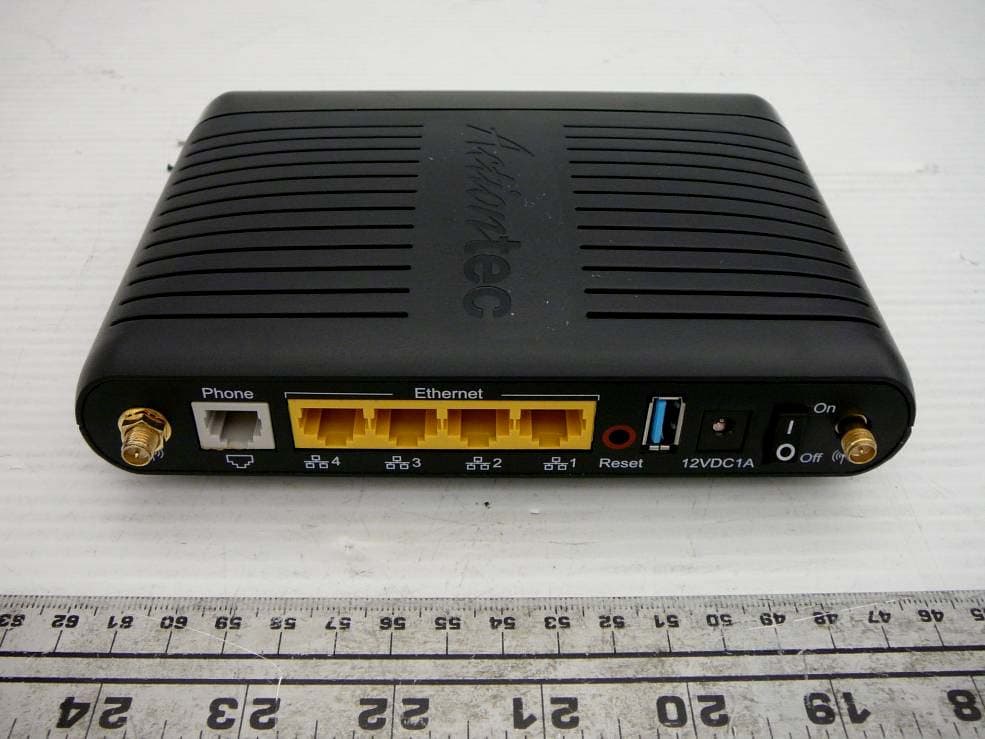

Actiontec Electronics, Inc. FCC ID: LNQGT784WN Report Number: R10081714-247 Page 100 of 104 FCC Part 15.247 Test Report 15 Exhibit C - EUT Photographs 15.1 EUT – Front View 15.2 EUT – Top View Actiontec Electronics, Inc. FCC ID: LNQGT784WN Report Number: R10081714-247 Page 101 of 104 FCC Part 15.247 Test Report 15.3 EUT- Port View 15.4 EUT –Bottom View Actiontec Electronics, Inc. FCC ID: LNQGT784WN Report Number: R10081714-247 Page 102 of 104 FCC Part 15.247 Test Report 15.5 Antenna View 15.6 AC/DC Adapter
Actiontec Electronics, Inc. FCC ID: LNQGT784WN Report Number: R10081714-247 Page 95 of 104 FCC Part 15.247 Test Report 13 Exhibit A - FCC ID Label Information 13.1 FCC ID Label Requirements As Per FCC § 2.925, (a) Each equipment covered in an application for equipment authorization shall bear a nameplate or label listing the following: (1) FCC Identifier consisting of the two elements in the exact order specified in §2.926. The FCC Identifier shall be preceded by the term FCC ID in capital letters on a single line, and shall be of a type size large enough to be legible without the aid of magnification. Example: FCC ID: XXX123 XXX—Grantee Code 123—Equipment Product Code As Per FCC § 15.19 (a) In addition to the requirements in part 2 of this chapter, a device subject to certification, or verification shall be labeled as follows: (3) All other devices shall bear the following statement in a conspicuous location on the device: This device complies with part 15 of the FCC Rules. Operation is subject to the following two conditions: (1) This device may not cause harmful interference, and (2) this device must accept any interference received, including interference that may cause undesired operation. (5) When the device is so small or for such use that it is not practicable to place the statement specified under paragraph (a) of this section on it, the information required by this paragraph shall be placed in a prominent location in the instruction manual or pamphlet supplied to the user or, alternatively, shall be placed on the container in which the device is marketed. However, the FCC identifier or the unique identifier, as appropriate, must be displayed on the device. 13.2 FCC ID Label Content As per FCC §15.19 (b) (4), the label shall not be a stick-on, paper label. The label on these products shall be permanently affixed to the product and shall be readily visible to the purchaser at the time of purchase, as described in Section 2.925(d) of this chapter. "Permanently affixed" means that the label is etched, engraved, stamped, silk-screened, indelibly printed, or otherwise permanently marked on a permanently attached part of the equipment or on a nameplate of metal, plastic, or other material fastened to the equipment by welding, riveting, or a permanent adhesive. The label must be designed to last the expected lifetime of the equipment in the environment in which the equipment may be operated and must not be readily detachable. Actiontec Electronics, Inc. FCC ID: LNQGT784WN Report Number: R10081714-247 Page 96 of 104 FCC Part 15.247 Test Report 13.3 FCC ID Label Location on EUT Label here
Actiontec Electronics, Inc. FCC ID: LNQGT784WN Report Number: R10081714-247 Page 103 of 104 FCC Part 15.247 Test Report 15.7 EUT –Cover off View 15.8 Main Board Top View Actiontec Electronics, Inc. FCC ID: LNQGT784WN Report Number: R10081714-247 Page 104 of 104 FCC Part 15.247 Test Report 15.9 Main Board Bottom View 15.10 Main Board RF Potion near View ***** END OF REPORT *****
Actiontec Electronics, Inc. FCC ID: LNQGT784WN Report Number: R10081714-247 Page 10 of 104 FCC Part 15.247 Test Report 4 FCC §15.247 (i) & § 2.1091 - RF Exposure 4.1 Applicable Standard According to §15.247(i) and §1.1307(b)(1), systems operating under the provisions of this section shall be operated in a manner that ensures that the public is not exposed to radio frequency energy level in excess of the Commission’s guidelines. According to §1.1310 and §2.1091 RF exposure is calculated. Limits for General Population/Uncontrolled Exposure Frequency Range (MHz) Electric Field Strength (V/m) Magnetic Field Strength (A/m) Power Density (mW/cm 2 ) Averaging Time (minutes) 0.3-1.34 614 1.63 *(100) 30 1.34-30 824/f 2.19/f *(180/f 2 ) 30 30-300 27.5 0.073 0.2 30 300-1500 / / f/1500 30 1500-100,000 / / 1.0 30 f = frequency in MHz * = Plane-wave equivalent power density 4.2 MPE Prediction Predication of MPE limit at a given distance, Equation from OET Bulletin 65, Edition 97-01 S = PG/4πR² Where: S = power density P = power input to antenna G = power gain of the antenna in the direction of interest relative to an isotropic radiator R = distance to the center of radiation of the antenna 4.3 MPE Results Mode Frequency Band MPE Distance (cm) Output Power (dBm) Antenna Gain (dBi) Power Density (mw/cm 2 ) Result WLAN 2.4 GHz 20 20.42 2 0.035 Compliance The predicted power density level at 20 cm is 0.035 mw/cm 2 which is below the uncontrolled exposure limit of 1.0 mW/cm 2 . The EUT is used at least 20 cm away from user’s body. It is determined as mobile equipment and complies with the MPE limit.
Note: This test report is prepared for the customer shown above and for the device described herein. It may not be duplicated or used in part without prior written consent from Bay Area Compliance Laboratories Corp. This report must not be used by the customer to claim product certification, approval, or endorsement by NVLAP*, NIST, or any agency of the Federal Government. * This report may contain data that are not covered by the NVLAP accreditation and are marked with an asterisk “*” (Rev.2) FCC PART 15 SUBPART C TEST AND MEASUREMENT REPORT For Actiontec Electronics, Inc. 760 N. Mary Avenue, Sunnyvale, CA 94085, USA FCC ID: LNQGT784WN Model: GT784WN Report Type: Original Report Product Type: Wireless 11n ADSL2 Modem Gateway Test Engineers: Jack Liu Report Number: R10081714-247 Report Date: 2010-10-01 Reviewed By: Victor Zhang RF Lead Prepared By: (84) Bay Area Compliance Laboratories Corp. 1274 Anvilwood Ave. Sunnyvale, CA 94089, USA Tel: (408) 732-9162 Fax: (408) 732-9164 Actiontec Electronics, Inc. FCC ID: LNQGT784WN Report Number: R10081714-247 Page 2 of 104 FCC Part 15.247 Test Report TABLE OF CONTENTS 1 GENERAL DESCRIPTION......................................................................................................................................... 5 1.1 PRODUCT DESCRIPTION FOR EQUIPMENT UNDER TEST (EUT) ................................................................................ 5 1.2 MECHANICAL DESCRIPTION OF EUT ....................................................................................................................... 5 1.3 OBJECTIVE............................................................................................................................................................... 5 1.4 RELATED SUBMITTAL(S)/GRANT(S) ........................................................................................................................ 5 1.5 TEST METHODOLOGY.............................................................................................................................................. 5 1.6 MEASUREMENT UNCERTAINTY...............................................................................................................................5 1.7 TEST FACILITY........................................................................................................................................................ 6 2 SYSTEM TEST CONFIGURATION .......................................................................................................................... 7 2.1 JUSTIFICATION......................................................................................................................................................... 7 2.2 EUT EXERCISE SOFTWARE...................................................................................................................................... 7 2.3 EQUIPMENT MODIFICATIONS................................................................................................................................... 7 2.4 SPECIAL ACCESSORIES............................................................................................................................................ 7 2.5 LOCAL SUPPORT EQUIPMENT.................................................................................................................................. 7 2.6 INTERNAL CONFIGURATION..................................................................................................................................... 7 2.7 POWER SUPPLY AND LINE FILTERS.......................................................................................................................... 8 2.8 INTERFACE PORTS AND CABLING............................................................................................................................ 8 4 FCC §15.247 (I) & § 2.1091 - RF EXPOSURE ......................................................................................................... 10 4.1 APPLICABLE STANDARD........................................................................................................................................ 10 4.2 MPE PREDICTION.................................................................................................................................................. 10 4.3 MPE RESULTS....................................................................................................................................................... 10 5 FCC §15.203 - ANTENNA REQUIREMENT........................................................................................................... 11 5.1 APPLICABLE STANDARD........................................................................................................................................ 11 5.2 ANTENNA CONNECTOR CONSTRUCTION................................................................................................................ 11 5.3 ANTENNA PHOTO.................................................................................................................................................. 11 6 FCC §15.207 - CONDUCTED EMISSIONS ............................................................................................................. 12 6.1 APPLICABLE STANDARD........................................................................................................................................ 12 6.2 TEST SETUP........................................................................................................................................................... 12 6.3 TEST EQUIPMENT LIST AND DETAILS.................................................................................................................... 12 6.4 TEST SETUP BLOCK DIAGRAM...............................................................................................................................13 6.5 TEST PROCEDURE..............................................…
Text truncated - open the document above for the full version.
Actiontec Electronics, Inc. FCC ID: LNQGT784WN Report Number: R10081714-247 Page 97 of 104 FCC Part 15.247 Test Report 14 Exhibit B - Test Setup Photographs 14.1 Conducted Emissions –Front View 14.2 Conducted Emissions – Side View Actiontec Electronics, Inc. FCC ID: LNQGT784WN Report Number: R10081714-247 Page 98 of 104 FCC Part 15.247 Test Report 14.3 Radiated Emissions – Front View (Below 1 GHz) 14.4 Radiated Emissions – Rear View (Below 1 GHz) Actiontec Electronics, Inc. FCC ID: LNQGT784WN Report Number: R10081714-247 Page 99 of 104 FCC Part 15.247 Test Report 14.5 Radiated Emissions – Front View (Above 1 GHz) 14.6 Radiated Emissions – Rear View (Above 1 GHz)
