LNQMI424WRGWireless 11n Broadband Home Router

© 2009 Verizon. All Rights Reserved. Wireless Broadband Router MI424WG rev. G User Manual Contents FiOS Router User Manual 1 Introduction 1.0 Introduction 1.1 Package Contents 1.2 System Requirements 1.3 Features 1.4 Getting to Know the FiOS Router 2 Connecting the FiOS Router 2.0 Introduction 2.1 Setting Up the FiOS Router 2.2 Computer Network Configuration 2.3 Configuring the FiOS Router 2.4 Features 2.5 Main Screen 3 Setting Up a Wireless Network 3.0 Introduction 3.1 Overview 3.2 Connecting a Wireless Client 3.3 Wireless Status 3.4 Basic Security Settings 3.5 Advanced Security Settings 3.6 Setting Up a Wireless Client 4 Configuring My Network Settings 4.0 Introduction 4.1 Accessing My Network Settings 4.2 Using My Network Settings Contents FiOS Router User Manual (con’t) 5 Using Network Connections 5.0 Introduction 5.1 Accessing Network Connections 5.2 Network (Home/Office) Connection 5.3 Ethernet Connection 5.4 Wireless Access Point Connection 5.5 Coax Connection 5.6 Broadband Ethernet Connection 5.7 Broadband Coax Connection 5.8 WAN PPPoE Connection 5.9 WAN PPPoE 2 Connection 6 Configuring Security Security 6.0 Introduction 6.1 Overview 6.2 Firewall 6.3 Access Control 6.4 Port Forwarding 6.5 DMZ Host 6.6 Port Triggering 6.7 Remote Administration 6.8 Static NAT 6.9 Advanced Filtering 6.10 Security Log 7 Parental Controls 7.0 Introduction 7.1 Activating Parental Controls 7.2 Rule Summary Contents FiOS Router User Manual (con’t) 8 Configuring Advanced Settings 8.0 Introduction 8.1 Using Advanced Settings 8.2 Utilities 8.3 DNS Settings 8.4 Network Settings 8.5 Configuration Settings 8.6 Time Settings 8.7 Firmware Upgrade 8.8 Routing Settings 9 Monitoring the FiOS Router 9.0 Introduction 9.1 Router Status 9.2 Advanced Status 10 Troubleshooting 10.0 Introduction 10.1 Troubleshooting Tips 10.2 Frequently Asked Questions A Configuring Quality of Service A.0 Introduction A.1 Traffic Priority A.2 Traffic Shaping Contents FiOS Router User Manual (con’t) B Specifications B.0 Introduction B.1 General B.2 LED Indicators B.3 Environmental C Notices C.0 Introduction C.1 Regulatory Compliance Notices C.2 Modifications C.3 NEBS Requirements C.4 GPL 6 © 2009 Verizon. All Rights Reserved. 1 Introduction 1.0 Introduction 1.1 Package Contents 1.2 System Requirements 1.3 Features 1.4 Getting to Know the FiOS Router 7 © 2009 Verizon. All Rights Reserved. The Verizon FiOS® Router lets you transmit and distribute digital entertainment and information to multiple devices via coaxial cables. The FiOS Router also supports Ethernet and Wi-Fi networking, making it the most versatile and !exible router available today. Introduction 1.1 Package Content 1 8 © 2009 Verizon. All Rights Reserved. 1.1 Package Content The following is a list of the items included with the FiOS Router: Black Power adaptert
Yellow cable (Ethernet, t
6 ft.) White cable (Ethernet, t
10 ft.) Quick Start Guidet
Installation Guidet
User Manual t
CD Wireless Networking Guidet
Wall-mount templatet
Vertical standt
1.2 Minimum System Requirements The FiOS Router must be used with the following systems and software: Computer with Ethernet capabilityt
Microsoft Windows 98SE, Me, 2000, XP, or Vista; Mac OS 9 or greater; Linux/t
BSD, Unix Internet Explorer 5.0 or higher; Netscape Navigator 7.0 or highert
TCP/IP network protocol installed on each computert
FiOS Router User Manual 9 © 2009 Verizon. All Rights Reserved. 1.3 Features The FiOS Router features: Multiple networking standards support, including:t
WAN ·- Ethernet and MoCA interfaces LAN ·- 802.11g, 802.11b, Ethernet, and MoCA interfaces Integrated wired networking with t
4-port 10/100 Mbps Ethernet switch and MoCA Integrated wireless networking with t
802.11g access point featuring: 802 ·.11g enabled to support speeds up to 54 Mbps wirelessly 802 ·.11b compatibility, communicating with 802.11b wireless products at speeds up to 11 Mbps Enterprise-level security, includingt
: Fully customizable firewall with Stateful Packet Inspection · Content filtering with ·URL-keyword based filtering, parental control, customizable filtering policies per computer, and E-mail notification Denial of service protection against ·IP spoofing attacks, intrusion and scanning attacks, IP fragment overlap, ping of death, and fragmentation attacks Event logging · Intrusion detection · MAC · address filtering NAT · DMZ ·hosting Access control · Advanced wireless protection featuring ·WPA, WPA2, WEP 64/128 bit encryption, 802.1x authentication, and MAC address filtering ICSA ·certification Other options, including:t
DHCP ·server option Introduction 1.3 Features 1 10 © 2009 Verizon. All Rights Reserved. DHCP ·server/PPPoE server auto-detection DNS ·server LAN IP ·and WAN IP address selection MAC ·address cloning Port forwarding · PPP ·oE support Q ·oS support (end to end layer 2/3) featuring Diffserv, 802.1p/q prioritization, configurable upstream/downstream traffic shaping, random early detection and pass-through of WAN-side DSCPs, PHBs, and queuing to LAN-side devices Remote management and secured remote management using ·HTTPS Reverse ·NAT Static ·NAT Static routing · Time zone support · VLAN ·multicast support VPN IPS ·ec (VPN pass-through only) FiOS Router User Manual 11 © 2009 Verizon. All Rights Reserved. 1.4 Getting to Know the FiOS Router This section contains a quick description of the FiOS Router’s lights (LEDs), ports, etc. The FiOS Router has several indicator lights on its front panel, and a series of ports and switches on its rear panel. 1.4a Front Panel The front panel of the FiOS Router has a series of indicator lights: Power, WAN Ethernet, WAN Coax, Internet, LAN Ethernet (4), LAN Coax, USB, and Wireless. It also features a WPS button. Front view – Verizon FiOS Router (rev. F) Introduction 1.4 Getting to Know the FiOS Router 1 12 © 2009 Verizon. All Rights Reserved. Front view – Verizon FiOS Router (rev. F2) Power Light The Power light displays the FiOS Router’s current status. If the Power l…

Text truncated - open the document above for the full version.

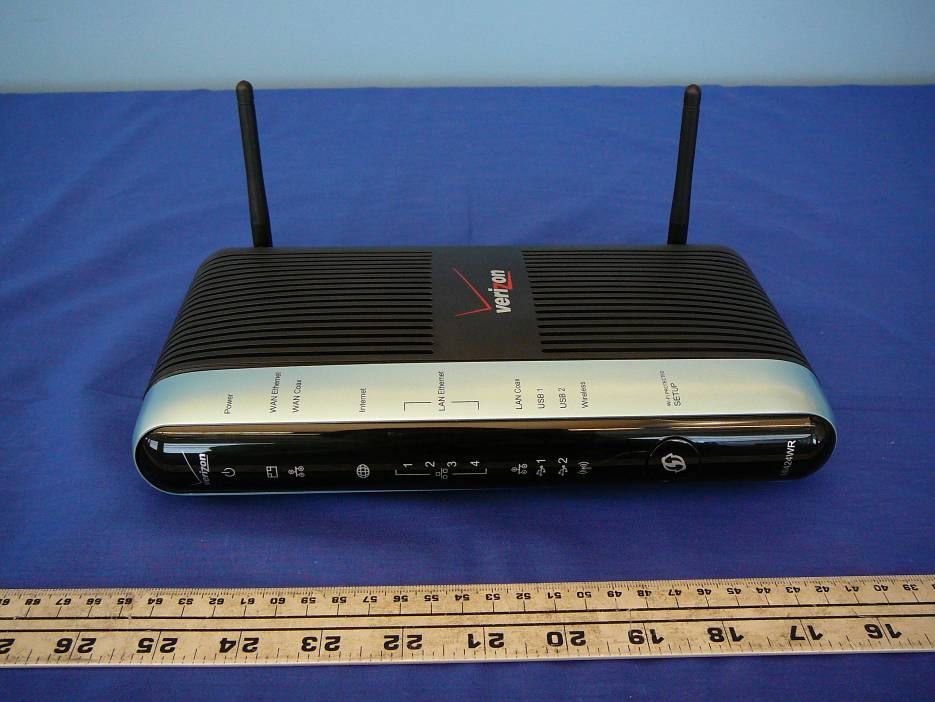

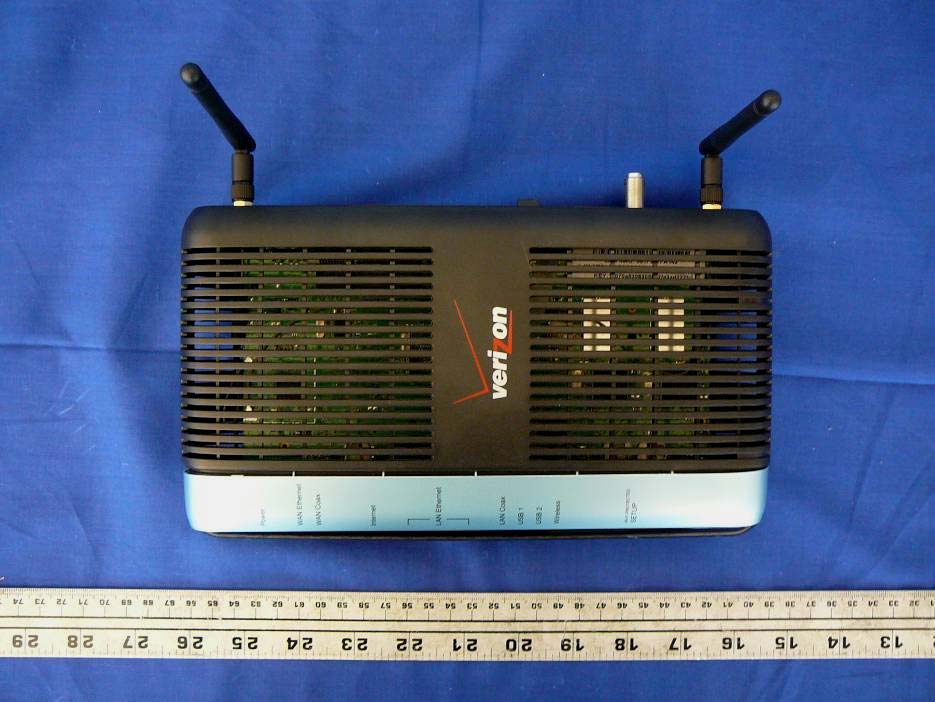

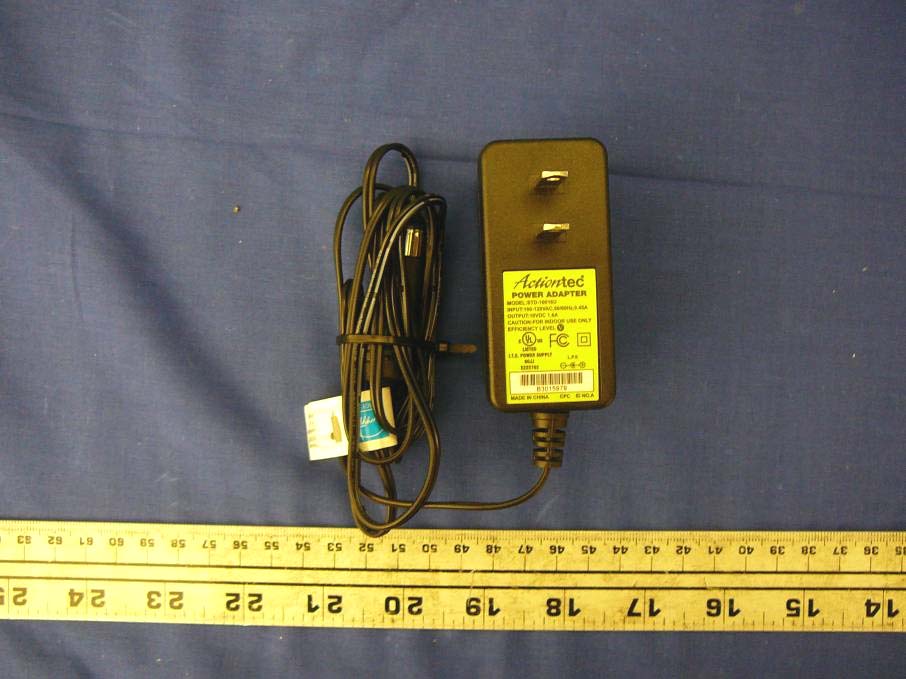

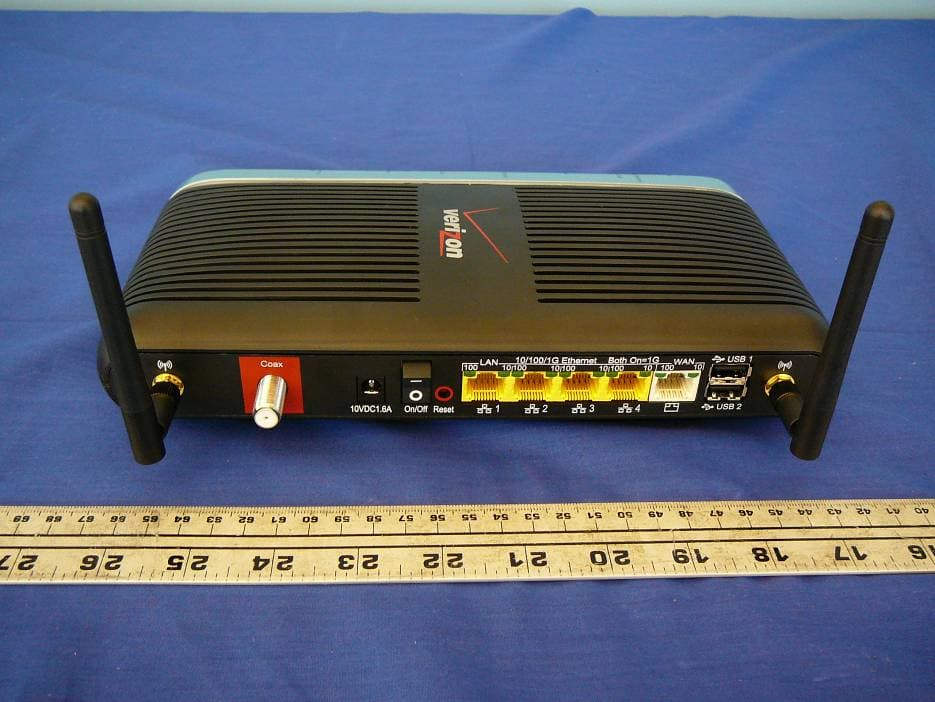

Actiontec Electronics, Inc. FCC ID: LNQMI424WRG Report Number: R1001125-247 Page 99 of 103 FCC Part 15.247 Test Report 15 Exhibit C - EUT Photographs 15.1 EUT – Front View 15.2 EUT – Top View Actiontec Electronics, Inc. FCC ID: LNQMI424WRG Report Number: R1001125-247 Page 100 of 103 FCC Part 15.247 Test Report 15.3 EUT- Port View 15.4 EUT –Bottom View Actiontec Electronics, Inc. FCC ID: LNQMI424WRG Report Number: R1001125-247 Page 101 of 103 FCC Part 15.247 Test Report 15.5 Antenna View 15.6 AC/DC Adapter

FCC ID Label FCC ID Label Location on EUT Label here

Actiontec Electronics, Inc. FCC ID: LNQMI424WRG Report Number: R1001125-247 Page 102 of 103 FCC Part 15.247 Test Report 15.7 EUT –Cover off View 15.8 Main Board Top View (with Shielding) Actiontec Electronics, Inc. FCC ID: LNQMI424WRG Report Number: R1001125-247 Page 103 of 103 FCC Part 15.247 Test Report 15.9 Main Board Top View (without Shielding) 15.10 Main Board Bottom View ***** END OF REPORT *****

Actiontec Electronics, Inc. FCC ID: LNQMI424WRG Report Number: R1001125-247 Page 10 of 103 FCC Part 15.247 Test Report 4 FCC §15.247 (i) & § 2.1091 - RF Exposure 4.1 Applicable Standard According to §15.247(i) and §1.1307(b)(1), systems operating under the provisions of this section shall be operated in a manner that ensures that the public is not exposed to radio frequency energy level in excess of the Commission’s guidelines. According to §1.1310 and §2.1091 RF exposure is calculated. Limits for General Population/Uncontrolled Exposure Frequency Range (MHz) Electric Field Strength (V/m) Magnetic Field Strength (A/m) Power Density (mW/cm 2 ) Averaging Time (minutes) 0.3-1.34 614 1.63 *(100) 30 1.34-30 824/f 2.19/f *(180/f 2 ) 30 30-300 27.5 0.073 0.2 30 300-1500 / / f/1500 30 1500-100,000 / / 1.0 30 f = frequency in MHz * = Plane-wave equivalent power density 4.2 MPE Prediction Predication of MPE limit at a given distance, Equation from OET Bulletin 65, Edition 97-01 S = PG/4πR² Where: S = power density P = power input to antenna G = power gain of the antenna in the direction of interest relative to an isotropic radiator R = distance to the center of radiation of the antenna 4.3 MPE Results Mode Frequency Band MPE Distance (cm) Output Power (dBm) Antenna Gain (dBi) Power Density (mw/cm 2 ) Result WLAN 2.4 GHz 20 23.70 5 0.248 Compliance The predicted power density level at 20 cm is 0.248mw/cm 2 which is below the uncontrolled exposure limit of 1.0 mW/cm 2 . The EUT is used at least 20 cm away from user’s body. It is determined as mobile equipment and complies with the MPE limit.

Note: This test report is prepared for the customer shown above and for the device described herein. It may not be duplicated or used in part without prior written consent from Bay Area Compliance Laboratories Corp. This report must not be used by the customer to claim product certification, approval, or endorsement by NVLAP*, NIST, or any agency of the Federal Government. * This report may contain data that are not covered by the NVLAP accreditation and are marked with an asterisk “*” (Rev.2) FCC PART 15 SUBPART C TEST AND MEASUREMENT REPORT For Actiontec Electronics, Inc. 760 N. Mary Avenue, Sunnyvale, CA 94085, USA FCC ID: LNQMI424WRG Model: MI424WR REV.G Report Type: Original Report Product Type: Wireless 11b/g/n 2x2 Broadband Home Router Test Engineers: Kevin Li Report Number: R1001125-247 Report Date: 2010-01-27 Reviewed By: Boni Baniqued EMC/RF Supervisor Prepared By: (84) Bay Area Compliance Laboratories Corp. 1274 Anvilwood Avenue, Sunnyvale, CA 94089, USA Tel: (408) 732-9162 Fax: (408) 732-9164 Actiontec Electronics, Inc. FCC ID: LNQMI424WRG Report Number: R1001125-247 Page 2 of 103 FCC Part 15.247 Test Report TABLE OF CONTENTS 1 General Description .................................................................................................................................................... 5 1.1 Product Description for Equipment Under Test (EUT).......................................................................................... 5 1.2 Mechanical Description of EUT............................................................................................................................. 5 1.3 EUT Photo.............................................................................................................................................................. 5 1.4 Objective ................................................................................................................................................................ 5 1.5 Related Submittal(s)/Grant(s)................................................................................................................................. 6 1.6 Test Methodology .................................................................................................................................................. 6 1.7 Measurement Uncertainty ...................................................................................................................................... 6 1.8 Test Facility............................................................................................................................................................ 6 2 System Test Configuration ......................................................................................................................................... 7 2.1 Justification ............................................................................................................................................................ 7 2.2 EUT Exercise Software .......................................................................................................................................... 7 2.3 Equipment Modifications ....................................................................................................................................... 7 2.4 Special Accessories ................................................................................................................................................ 7 2.5 Local Support Equipment....................................................................................................................................... 7 2.6 Internal Configuration ............................................................................................................................................ 7 2.7 Power Supply and Line Filters ............................................................................................................................... 8 2.8 Interface Ports and Cabling .................................................................................................................................... 8 3 Summary of Test Results............................................................................................................................................ 9 4 FCC §15.247 (i) & § 2.1091 - RF Exposure............................................................................................................... 10 4.1 Applicable Standard ............................................................................................................................................. 10 4.2 MPE Prediction .................................................................................................................................................... 10 4.3 MPE Results ......................................................................................................................................................... 10 5 FCC §15.203 - Antenna Requirement ....................................................................................................................... 11 5.1 Applicable Standard ............................................................................................................................................. 11 5.2 Antenna Connector Construction ......................................................................................................................... 11 5.3 Antenna Photo ...................................................................................................................................................... 11 6 FCC §15.207 - Conducted Emissions......................................................................................................................... 12 6.1 Applicable Standard ...........................................................................................................................................…

Text truncated - open the document above for the full version.

Actiontec Electronics, Inc. FCC ID: LNQMI424WRG Report Number: R1001125-247 Page 96 of 103 FCC Part 15.247 Test Report 14 Exhibit B - Test Setup Photographs 14.1 Conducted Emissions –Front View 14.2 Conducted Emissions – Side View Actiontec Electronics, Inc. FCC ID: LNQMI424WRG Report Number: R1001125-247 Page 97 of 103 FCC Part 15.247 Test Report 14.3 Radiated Emissions – Front View 14.4 Radiated Emissions – Rear View (Below 1 GHz) Actiontec Electronics, Inc. FCC ID: LNQMI424WRG Report Number: R1001125-247 Page 98 of 103 FCC Part 15.247 Test Report 14.5 Radiated Emissions – Rear View (Above 1 GHz)
