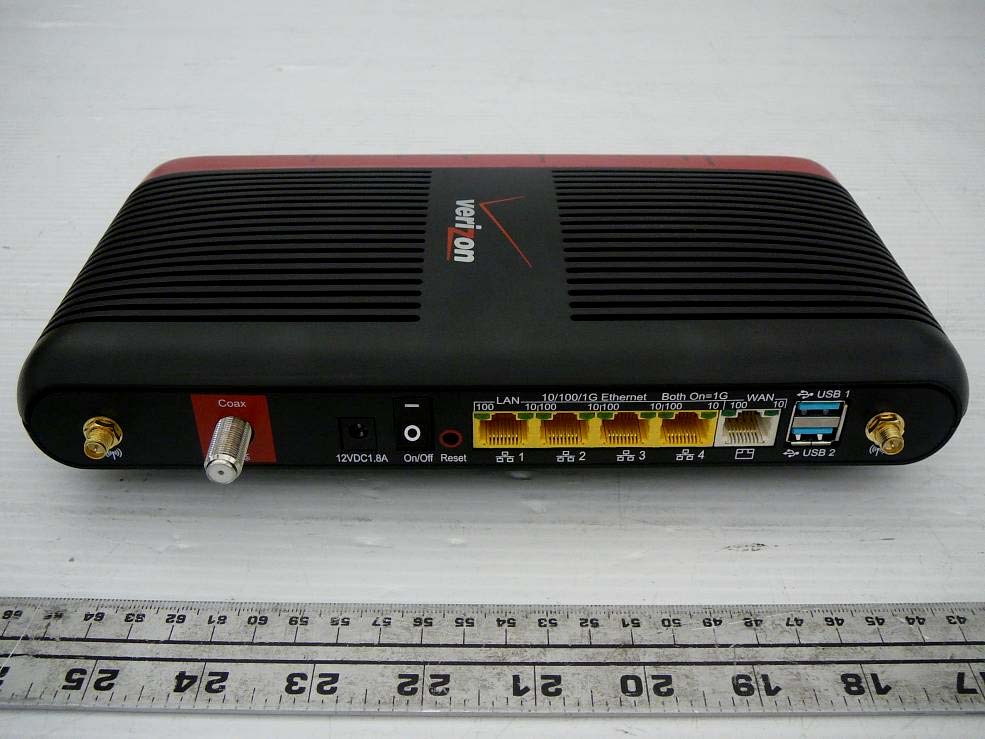

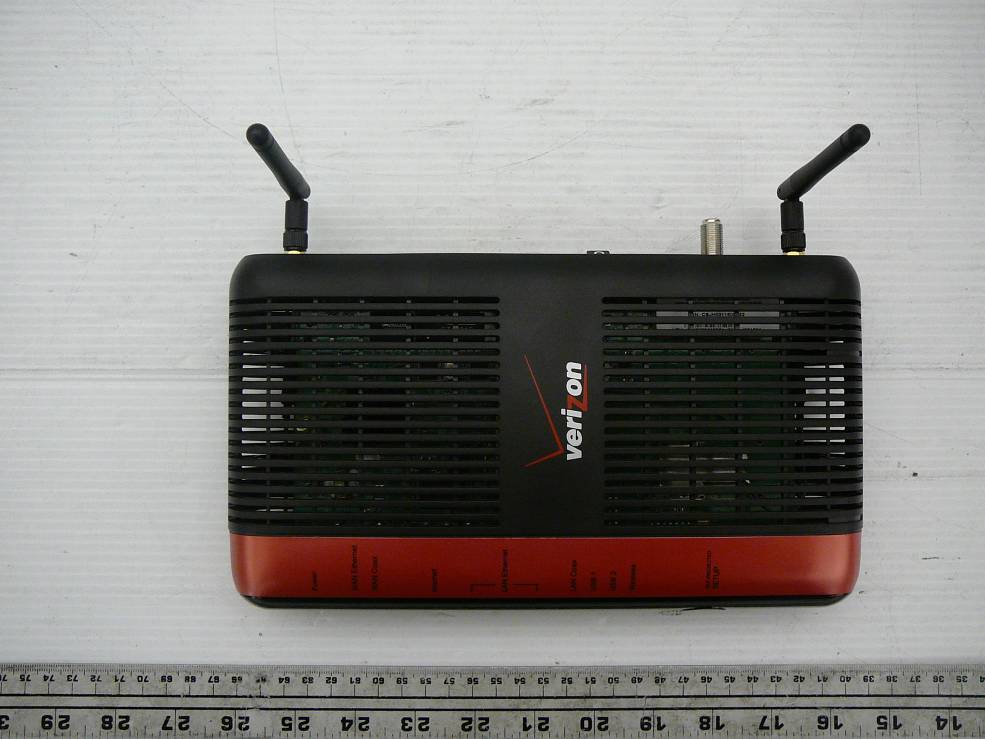

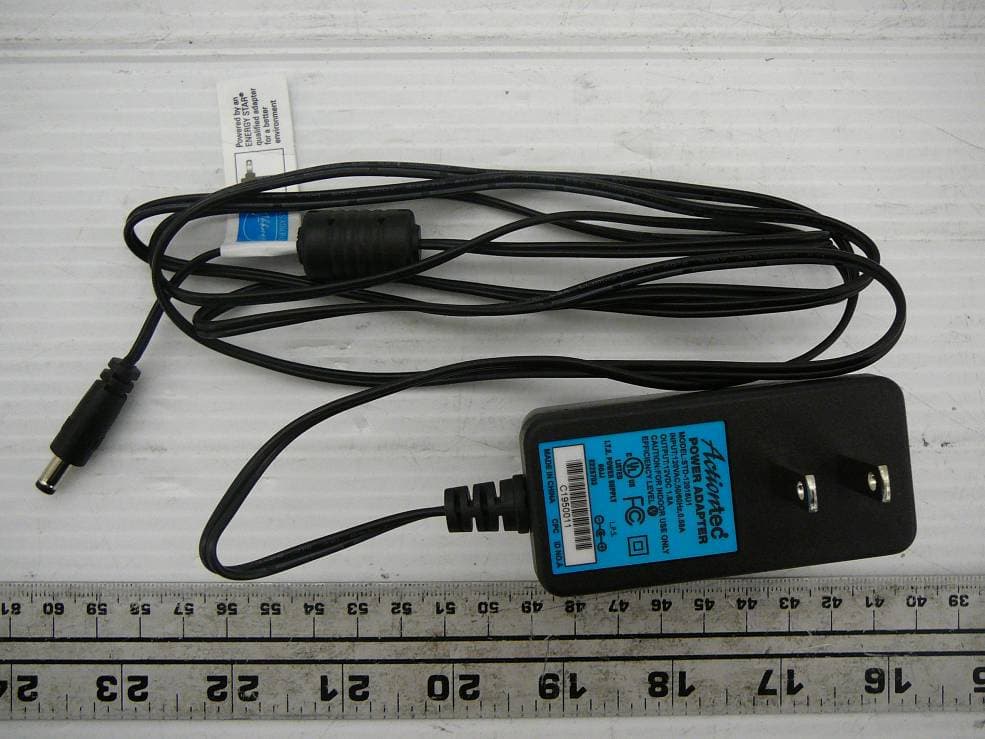

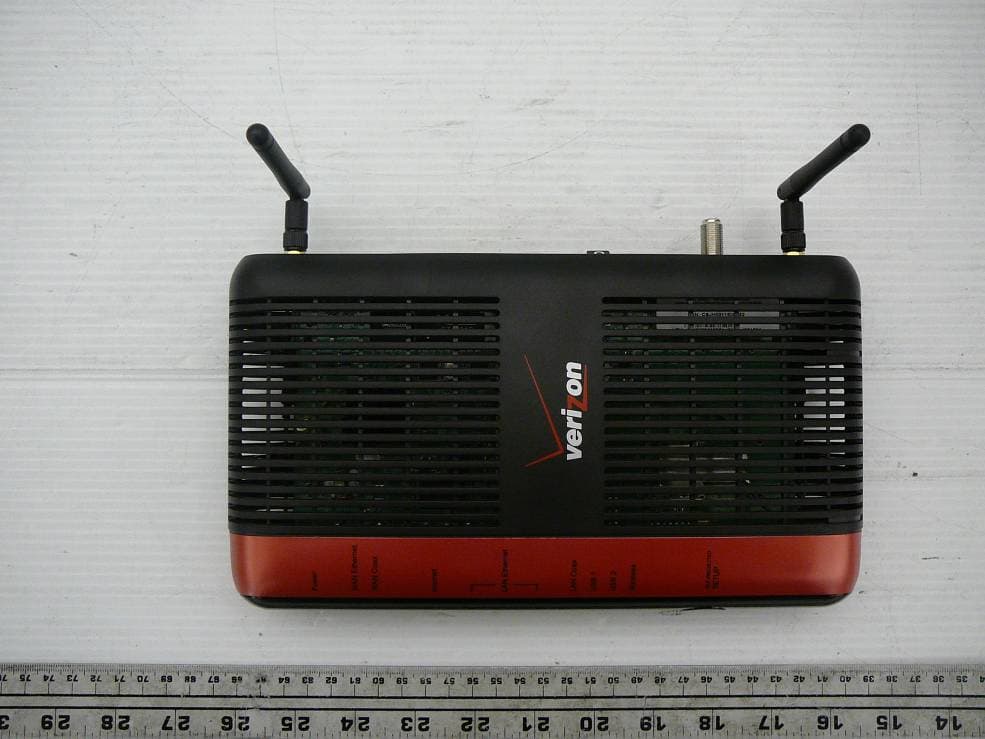

Actiontec Electronics, Inc. FCC ID: LNQMI424WRH Report Number: R1007192-247 Page 99 of 104 FCC Part 15.247 Test Report 15 Exhibit C - EUT Photographs 15.1 EUT – Front View 15.2 EUT – Top View Actiontec Electronics, Inc. FCC ID: LNQMI424WRH Report Number: R1007192-247 Page 100 of 104 FCC Part 15.247 Test Report 15.3 EUT- Port View 15.4 EUT –Bottom View Actiontec Electronics, Inc. FCC ID: LNQMI424WRH Report Number: R1007192-247 Page 101 of 104 FCC Part 15.247 Test Report 15.5 Antenna View 15.6 AC/DC Adapter

FCC ID Label Location on EUT Label here

Actiontec Electronics, Inc. FCC ID: LNQMI424WRH Report Number: R1007192-247 Page 102 of 104 FCC Part 15.247 Test Report 15.7 EUT –Cover off View 15.8 Main Board Top View (with Shielding) Actiontec Electronics, Inc. FCC ID: LNQMI424WRH Report Number: R1007192-247 Page 103 of 104 FCC Part 15.247 Test Report 15.9 Main Board Top View (without Shielding) 15.10 Main Board Bottom View Actiontec Electronics, Inc. FCC ID: LNQMI424WRH Report Number: R1007192-247 Page 104 of 104 FCC Part 15.247 Test Report 15.11 RF Potion near View ***** END OF REPORT *****

Actiontec Electronics, Inc. FCC ID: LNQMI424WRH Report Number: R1007192-247 Page 10 of 104 FCC Part 15.247 Test Report 4 FCC §15.247 (i) & § 2.1091 - RF Exposure 4.1 Applicable Standard According to §15.247(i) and §1.1307(b)(1), systems operating under the provisions of this section shall be operated in a manner that ensures that the public is not exposed to radio frequency energy level in excess of the Commission’s guidelines. According to §1.1310 and §2.1091 RF exposure is calculated. Limits for General Population/Uncontrolled Exposure Frequency Range (MHz) Electric Field Strength (V/m) Magnetic Field Strength (A/m) Power Density (mW/cm 2 ) Averaging Time (minutes) 0.3-1.34 614 1.63 *(100) 30 1.34-30 824/f 2.19/f *(180/f 2 ) 30 30-300 27.5 0.073 0.2 30 300-1500 / / f/1500 30 1500-100,000 / / 1.0 30 f = frequency in MHz * = Plane-wave equivalent power density 4.2 MPE Prediction Predication of MPE limit at a given distance, Equation from OET Bulletin 65, Edition 97-01 S = PG/4πR² Where: S = power density P = power input to antenna G = power gain of the antenna in the direction of interest relative to an isotropic radiator R = distance to the center of radiation of the antenna 4.3 MPE Results Mode Frequency Band MPE Distance (cm) Output Power (dBm) Antenna Gain (dBi) Power Density (mw/cm 2 ) Result WLAN 2.4 GHz 20 26.38 2.0 0.137 Compliance The predicted power density level at 20 cm is 0.137 mw/cm 2 which is below the uncontrolled exposure limit of 1.0 mW/cm 2 . The EUT is used at least 20 cm away from user’s body. It is determined as mobile equipment and complies with the MPE limit.

Note: This test report is prepared for the customer shown above and for the device described herein. It may not be duplicated or used in part without prior written consent from Bay Area Compliance Laboratories Corp. This report must not be used by the customer to claim product certification, approval, or endorsement by NVLAP*, NIST, or any agency of the Federal Government. * This report may contain data that are not covered by the NVLAP accreditation and are marked with an asterisk “*” (Rev.2) FCC PART 15C TEST AND MEASUREMENT REPORT For Actiontec Electronics, Inc. 760 N. Mary Avenue, Sunnyvale, CA 94085, USA FCC ID: LNQMI424WRH Model: MI424-WR REV H Report Type: Original Report Product Type: Wireless Broadband Home Router Test Engineers: Jack Liu Report Number: R1007192-247 Report Date: 2010-09-07 Reviewed By: Victor Zhang Test Engineer, RF Lead Prepared By: (84) Bay Area Compliance Laboratories Corp. 1274 Anvilwood Ave. Sunnyvale, CA 94089, USA Tel: (408) 732-9162 Fax: (408) 732-9164 Actiontec Electronics, Inc. FCC ID: LNQMI424WRH Report Number: R1007192-247 Page 2 of 104 FCC Part 15.247 Test Report TABLE OF CONTENTS 1 General Description ..................................................................................................................................................... 5 1.1 Product Description for Equipment Under Test (EUT)....................................................................................... 5 1.2 Mechanical Description of EUT ......................................................................................................................... 5 1.3 Objective ............................................................................................................................................................. 5 1.4 Related Submittal(s)/Grant(s) ............................................................................................................................. 5 1.5 Test Methodology ............................................................................................................................................... 5 1.6 Measurement Uncertainty ................................................................................................................................... 5 1.7 Test Facility......................................................................................................................................................... 6 2 System Test Configuration.......................................................................................................................................... 7 2.1 Justification ......................................................................................................................................................... 7 2.2 EUT Exercise Software....................................................................................................................................... 7 2.3 Equipment Modifications .................................................................................................................................... 7 2.4 Special Accessories ............................................................................................................................................. 7 2.5 Local Support Equipment................................................................................................................................... 7 2.6 Internal Configuration ......................................................................................................................................... 7 2.7 Power Supply and Line Filters ............................................................................................................................ 8 2.8 Interface Ports and Cabling ................................................................................................................................. 8 3 Summary of Test Results............................................................................................................................................. 9 4 FCC §15.247 (i) & § 2.1091 - RF Exposure................................................................................................................ 10 4.1 Applicable Standard .......................................................................................................................................... 10 4.2 MPE Prediction ................................................................................................................................................. 10 4.3 MPE Results...................................................................................................................................................... 10 5 FCC §15.203 - Antenna Requirement ........................................................................................................................ 11 5.1 Applicable Standard .......................................................................................................................................... 11 5.2 Antenna Connector Construction ...................................................................................................................... 11 5.3 Antenna Photo................................................................................................................................................... 11 6 FCC §15.207 - Conducted Emissions ......................................................................................................................... 12 6.1 Applicable Standard .......................................................................................................................................... 12 6.2 Test Setup.......................................................................................................................................................... 12 6.3 Test Setup Block Diagram ...................................................…
