LNQMI424WRIWireless 802.11b/g/n Broadband Home Router

© 2011 Verizon. All Rights Reserved. Wireless Broadband Router MI424WR rev. I User Manual Contents FiOS Router User Manual 1 Introduction 1.0 Introduction 1.1 Package Contents 1.2 System Requirements 1.3 Features 1.4 Getting to Know the FiOS Router 2 Connecting the FiOS Router 2.0 Introduction 2.1 Setting Up the FiOS Router 2.2 Computer Network Configuration 2.3 Configuring the FiOS Router 2.4 Features 2.5 Main Screen 3 Setting Up a Wireless Network 3.0 Introduction 3.1 Overview 3.2 Connecting a Wireless Client 3.3 Wireless Status 3.4 Basic Security Settings 3.5 Advanced Security Settings 3.6 Setting Up a Wireless Client 4 Configuring My Network Settings 4.0 Introduction 4.1 Accessing My Network Settings 4.2 Using My Network Settings Contents FiOS Router User Manual (con’t) 5 Using Network Connections 5.0 Introduction 5.1 Accessing Network Connections 5.2 Network (Home/Office) Connection 5.3 Ethernet Connection 5.4 Wireless Access Point Connection 5.5 Coax Connection 5.6 Broadband Ethernet Connection 5.7 Broadband Coax Connection 5.8 WAN PPPoE Connection 5.9 WAN PPPoE 2 Connection 6 Configuring Security Settings 6.0 Introduction 6.1 Overview 6.2 Firewall 6.3 Access Control 6.4 Port Forwarding 6.5 DMZ Host 6.6 Port Triggering 6.7 Remote Administration 6.8 Static NAT 6.9 Advanced Filtering 6.10 Security Log 7 Parental Controls 7.0 Introduction 7.1 Activating Parental Controls 7.2 Rule Summary Contents FiOS Router User Manual (con’t) 8 Configuring Advanced Settings 8.0 Introduction 8.1 Using Advanced Settings 8.2 Utilities 8.3 DNS Settings 8.4 Network Settings 8.5 Configuration Settings 8.6 Time Settings 8.7 Firmware Upgrade 8.8 Routing Settings 9 Monitoring the FiOS Router 9.0 Introduction 9.1 Router Status 9.2 Advanced Status 10 Troubleshooting 10.0 Introduction 10.1 Troubleshooting Tips 10.2 Frequently Asked Questions A Configuring Quality of Service A.0 Introduction A.1 Traffic Priority A.2 Traffic Shaping Contents FiOS Router User Manual (con’t) B Specifications B.0 Introduction B.1 General B.2 LED Indicators B.3 Environmental C Notices C.0 Introduction C.1 Regulatory Compliance Notices C.2 Modifications C.3 NEBS Requirements C.4 GPL 6 © 2011 Verizon. All Rights Reserved. 1 Introduction 1.0 Introduction 1.1 Package Contents 1.2 System Requirements 1.3 Features 1.4 Getting to Know the FiOS Router 7 © 2011 Verizon. All Rights Reserved. The Verizon FiOS® Router lets you transmit and distribute digital entertainment and information to multiple devices via coaxial cables. The FiOS Router also supports Ethernet and Wi-Fi networking, making it one of the most versatile and powerful routers available. Introduction 1.1 Package Content 1 8 © 2011 Verizon. All Rights Reserved. 1.1 Package Content The following is a list of the items included with the FiOS Router: Black Power adaptert
Ye l l o w c a b l e ( E t h e r n e t , t
6 ft.) White cable (Ethernet, t
10 ft.) Quick Start Guidet
Installation Guidet
User Manual t
CD Wireless Networking Guidet
Wall-mount templatet
Vertical standt
1.2 Minimum System Requirements The FiOS Router must be used with the following systems and software: Computer with Ethernet capabilityt
Microsoft Windows 2000, XP, Vista, or 7; Mac OS 10.1 or greater; t
Linux/BSD, Unix Internet Explorer 5.0 or higher; Netscape Navigator 7.0 or highert
TCP/IP network protocol installed on each computert
FiOS Router User Manual 9 © 2011 Verizon. All Rights Reserved. 1.3 Features The FiOS Router features: Multiple networking standards support, including:t
WAN ·- Ethernet and MoCA interfaces LAN ·- 802.11b/g/n, Ethernet, and MoCA interfaces Integrated wired networking with t
4-port 10/100/1000 Mbps Ethernet switch and MoCA Integrated wireless networking with t
802.11b/g/n access point featuring: 802 ·.11n enabled to support speeds up to 160 Mbps wirelessly 802 ·.11g enabled to support speeds up to 54 Mbps wirelessly 802 ·.11b compatibility, communicating with 802.11b wireless products at speeds up to 11 Mbps Enterprise-level security, includingt
: Fully customizable firewall with Stateful Packet Inspection · Content filtering with ·URL-keyword based filtering, parental control, customizable filtering policies per computer, and E-mail notification Denial of service protection against ·IP spoofing attacks, intrusion and scanning attacks, IP fragment overlap, ping of death, and fragmentation attacks Event logging · Intrusion detection · MAC · address filtering NAT · DMZ ·hosting Access control · Advanced wireless protection featuring ·WPA, WPA2, WEP 64/128 bit encryption, 802.1x authentication, and MAC address filtering ICSA ·certification Introduction 1.3 Features 1 10 © 2011 Verizon. All Rights Reserved. Other options, including:t
DHCP ·server option DHCP ·server/PPPoE server auto-detection DNS ·server LAN IP ·and WAN IP address selection MAC ·address cloning Port forwarding · PPP ·oE support Q ·oS support (end to end layer 2/3) featuring Diffserv, 802.1p/q prioritization, configurable upstream/downstream traffic shaping, random early detection and pass-through of WAN-side DSCPs, PHBs, and queuing to LAN-side devices Remote management and secured remote management using ·HTTPS Reverse ·NAT Static ·NAT Static routing · Time zone support · VLAN ·multicast support VPN IPS ·ec (VPN pass-through only) FiOS Router User Manual 11 © 2011 Verizon. All Rights Reserved. 1.4 Getting to Know the FiOS Router This section contains a quick description of the FiOS Router’s lights (LEDs), ports, etc. The FiOS Router has several indicator lights on its front panel, a sticker on its bottom panel, and a series of ports and switches on its rear panel. 1.4a Front Panel The front panel of the FiOS Router has a series of indicator lights: Power, WAN Ethernet, WAN Coax, Internet, LAN Ethernet (4), LAN Coax, USB (2), and Wireless. It also features a WPS button. Front view – Verizon FiOS Router (rev. I) Introduction 1.4 Getting to Know the FiOS Router 1 12 © 2011 Verizon. All Rights Reserved. Power The P…

Text truncated - open the document above for the full version.

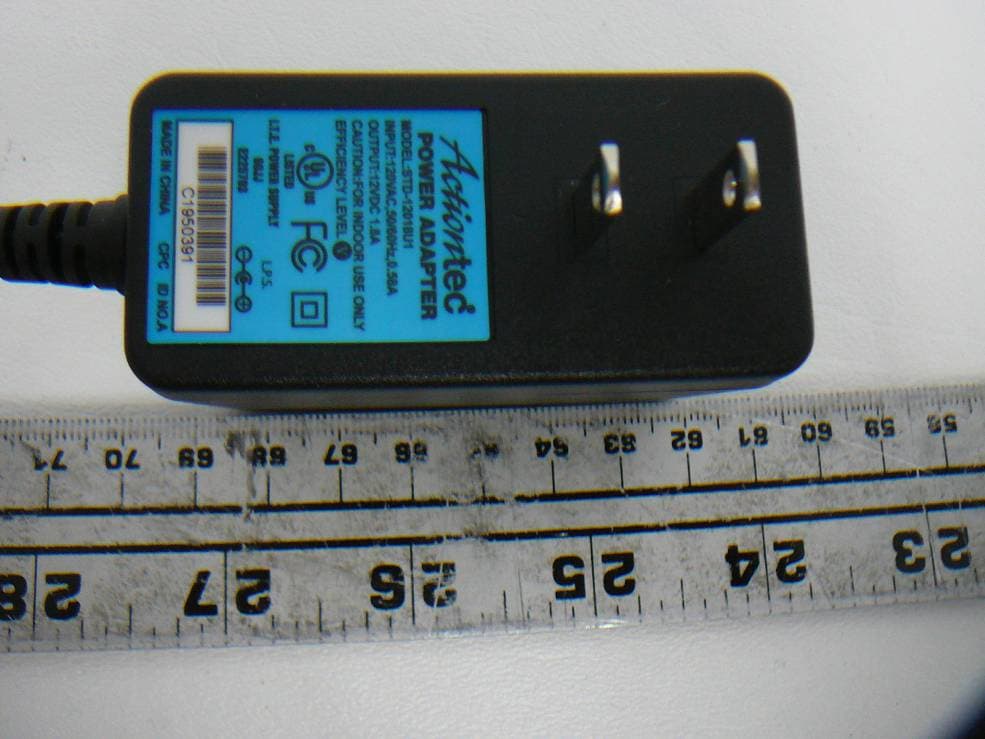

Actiontec Electronics, Inc. FCC ID: LNQMI424WRI Report Number: R1104076-247 Page 85 of 88 FCC Part 15.247 Test Report 15 Exhibit C - EUT Photographs 15.1 EUT – Top View 15.2 EUT – Back View Actiontec Electronics, Inc. FCC ID: LNQMI424WRI Report Number: R1104076-247 Page 86 of 88 FCC Part 15.247 Test Report 15.3 EUT –Port View 15.4 AC/DC Power Supply

Actiontec Electronics, Inc. FCC ID: LNQMI424WRI Report Number: R1104076-247 Page 80 of 88 FCC Part 15.247 Test Report 13 Exhibit A - FCC ID Label Information 13.1 FCC ID Label Requirements As Per FCC §2.925, (a) Each equipment covered in an application for equipment authorization shall bear a nameplate or label listing the following: (1) FCC Identifier consisting of the two elements in the exact order specified in §2.926. The FCC Identifier shall be preceded by the term FCC ID in capital letters on a single line, and shall be of a type size large enough to be legible without the aid of magnification. Example: FCC ID: XXX123 Where: XXX—Grantee Code, 123—Equipment Product Code As Per FCC §15.19 (a) In addition to the requirements in part 2 of this chapter, a device subject to certification, or verification shall be labeled as follows: (3) All other devices shall bear the following statement in a conspicuous location on the device: This device complies with part 15 of the FCC Rules. Operation is subject to the following two conditions: (1) This device may not cause harmful interference, and (2) This device must accept any interference received, including interference that may cause undesired operation. (5) When the device is so small or for such use that it is not practicable to place the statement specified under paragraph (a) of this section on it, the information required by this paragraph shall be placed in a prominent location in the instruction manual or pamphlet supplied to the user or, alternatively, shall be placed on the container in which the device is marketed. However, the FCC identifier or the unique identifier, as appropriate, must be displayed on the device. 13.2 FCC ID Label Contents As per FCC §15.19 (b) (4), the label shall not be a stick-on, paper label. The label on these products shall be permanently affixed to the product and shall be readily visible to the purchaser at the time of purchase, as described in Section 2.925(d) of this chapter. "Permanently affixed" means that the label is etched, engraved, stamped, silk-screened, indelibly printed, or otherwise permanently marked on a permanently attached part of the equipment or on a nameplate of metal, plastic, or other material fastened to the equipment by welding, riveting, or a permanent adhesive. The label must be designed to last the expected lifetime of the equipment in the environment in which the equipment may be operated and must not be readily detachable. Actiontec Electronics, Inc. FCC ID: LNQMI424WRI Report Number: R1104076-247 Page 81 of 88 FCC Part 15.247 Test Report 13.3 FCC ID Label Location on EUT Label here

Actiontec Electronics, Inc. FCC ID: LNQMI424WRI Report Number: R1104076-247 Page 87 of 88 FCC Part 15.247 Test Report 15.5 EUT – Cover off view 15.6 EUT – Main Board with Shielding Actiontec Electronics, Inc. FCC ID: LNQMI424WRI Report Number: R1104076-247 Page 88 of 88 FCC Part 15.247 Test Report 15.7 EUT – Main Board without Shielding 15.8 EUT – Main Board Solder View ***** END OF REPORT *****

Actiontec Electronics, Inc. FCC ID: LNQMI424WRI Report Number: R1104076-247 Page 9 of 88 FCC Part 15.247 Test Report 4 FCC §15.247(i) & §2.1091 - RF Exposure Information 4.1 Applicable Standards According to FCC §15.247(i) and §1.1307(b)(1), systems operating under the provisions of this section shall be operated in a manner that ensures that the public is not exposed to radio frequency energy level in excess of the Commission’s guidelines. According to §1.1310 and §2.1091 RF exposure is calculated. Limits for General Population/Uncontrolled Exposure Frequency Range (MHz) Electric Field Strength (V/m) Magnetic Field Strength (A/m) Power Density (mW/cm 2 ) Averaging Time (minutes) 0.3-1.34 614 1.63 *(100) 30 1.34-30 824/f 2.19/f *(180/f 2 ) 30 30-300 27.5 0.073 0.2 30 300-1500 / / f/1500 30 1500-100,000 / / 1.0 30 f = frequency in MHz * = Plane-wave equivalent power density 4.2 MPE Prediction Predication of MPE limit at a given distance, Equation from OET Bulletin 65, Edition 97-01 S = PG/4πR² Where: S = power density P = power input to antenna G = gain of the antenna in the direction of interest relative to an isotropic radiator R = distance to the center of radiation of the antenna 4.3 MPE Results Mode Frequency Band MPE Distance (cm) Output Power (dBm) Output Power (mw) Antenna Gain (dBi) Power Density (mw/cm 2 ) MPE Limit (mw/cm 2 ) WLAN 2.4 GHz 20 22.69 185.78 2.0 0.06 1.0 The predicted power density level at 20 cm is 0.06 mw/cm 2 which is below the uncontrolled exposure limit of 1.0 mW/cm 2 . The EUT is used at least 20 cm away from user’s body. It is determined as mobile equipment and complies with the MPE limit.

Note: This test report is prepared for the customer shown above and for the device described herein. It may not be duplicated or used in part without prior written consent from Bay Area Compliance Laboratories Corp. This report must not be used by the customer to claim product certification, approval, or endorsement by NVLAP*, NIST, or any agency of the Federal Government. * This report may contain data that are not covered by the NVLAP accreditation and are marked with an asterisk “*” (Rev.2) FCC PART 15 SUBPART C TEST AND MEASUREMENT REPORT For Actiontec Electronics, Inc. 760 N. Mary Avenue, Sunnyvale, CA 94085, USA FCC ID: LNQMI424WRI Model: MI424WR Rev.I Report Type: Original Report Product Type: 802.11b/g/n Wireless Broadband Router Test Engineer: Kevin Li Report Number: R1104076-247 Report Date: 2011-05-04 Reviewed By: Jack Liu RF Engineer Prepared By: (84) Bay Area Compliance Laboratories Corp. 1274 Anvilwood Avenue, Sunnyvale, CA 94089, USA Tel: (408) 732-9162 Fax: (408) 732 9164 Actiontec Electronics, Inc. FCC ID: LNQMI424WRI Report Number: R1104076-247 Page 2 of 88 FCC Part 15.247 Test Report TABLE OF CONTENTS 1 GENERAL DESCRIPTION......................................................................................................................................... 5 1.1 PRODUCT DESCRIPTION FOR EQUIPMENT UNDER TEST (EUT)................................................................................. 5 1.2 MECHANICAL DESCRIPTION OF EUT ....................................................................................................................... 5 1.3 OBJECTIVE............................................................................................................................................................... 5 1.4 RELATED SUBMITTAL(S)/GRANT(S) ........................................................................................................................ 5 1.5 TEST METHODOLOGY.............................................................................................................................................. 5 1.6 MEASUREMENT UNCERTAINTY...............................................................................................................................5 1.7 TEST FACILITY........................................................................................................................................................ 6 2 SYSTEM TEST CONFIGURATION .......................................................................................................................... 7 2.1 JUSTIFICATION......................................................................................................................................................... 7 2.2 EUT EXERCISE SOFTWARE...................................................................................................................................... 7 2.3 EQUIPMENT MODIFICATIONS................................................................................................................................... 7 2.4 POWER SUPPLY AND LINE FILTERS.......................................................................................................................... 7 2.5 REMOTE SUPPORT EQUIPMENT................................................................................................................................7 2.6 INTERFACE PORTS AND CABLING............................................................................................................................ 7 4 FCC §15.247(I) & §2.1091 - RF EXPOSURE INFORMATION............................................................................... 9 4.1 APPLICABLE STANDARDS........................................................................................................................................ 9 4.2 MPE PREDICTION.................................................................................................................................................... 9 4.3 MPE RESULTS......................................................................................................................................................... 9 5 FCC §15.203 - ANTENNA REQUIREMENT........................................................................................................... 10 5.1 APPLICABLE STANDARD........................................................................................................................................ 10 5.2 ANTENNA CONNECTOR CONSTRUCTION................................................................................................................ 10 5.3 TEST RESULT......................................................................................................................................................... 10 6 FCC §15.207 – AC LINE CONDUCTED EMISSIONS ........................................................................................... 11 6.1 APPLICABLE STANDARD........................................................................................................................................ 11 6.2 TEST SETUP BLOCK DIAGRAM...............................................................................................................................11 6.3 TEST SETUP........................................................................................................................................................... 12 6.4 TEST PROCEDURE.................................................................................................................................................. 12 6.5 TEST EQUIPMENT LIST AND DETAILS.................................................................................................................... 12 6.6 TEST ENVIRONMENTAL CONDITIONS..................................................................................................................... 12 6.7 SUMMARY OF TEST RESULTS......................................................…

Text truncated - open the document above for the full version.

Actiontec Electronics, Inc. FCC ID: LNQMI424WRI Report Number: R1104076-247 Page 82 of 88 FCC Part 15.247 Test Report 14 Exhibit B - Test Setup Photographs 14.1 AC Line Conducted Emissions –Front View 14.2 AC Line Conducted Emissions – Side View Actiontec Electronics, Inc. FCC ID: LNQMI424WRI Report Number: R1104076-247 Page 83 of 88 FCC Part 15.247 Test Report 14.3 Radiated Emissions – Front View (Below 1 GHz) 14.4 Radiated Emissions – Rear View (Below 1 GHz) Actiontec Electronics, Inc. FCC ID: LNQMI424WRI Report Number: R1104076-247 Page 84 of 88 FCC Part 15.247 Test Report 14.5 Radiated Emissions – Front View (Above 1 GHz) 14.6 Radiated Emissions – Rear View (Above 1 GHz)
