LNQSBRT8812AUScreenBeam 802.11 a/b/g/n/ac WiFi Module

PRODUCT SPECIFICATION Version 1.1 ScreenBeam 802.11 a/b/g/n/ac WiFi Module Model Number: SBRT8812AU 2.4G channel：1-11 5G channel：36-48 ;149-165 Custom Approval Section Custom Name Department Approval Date： DESIGN CHECK APPROVAL Actiontec Electronics, Inc. 760 North Mary Ave., Sunnyvale, California 94086 United States PRODUCTS SPECIFICATION PAGE 2 OF 13 SBRT8812AU Version 1.1 Document revision history Revision Date Approved by Remarks Version 1.0 2015-02-27 Draft Version 1.1 2015-04-17 Adding statement PRODUCTS SPECIFICATION PAGE 3 OF 13 SBRT8812AU Version 1.1 1. General Description This document is to specify the product requirements for 802.11a/b/g/n/ac USB Module. This Card is based on Realtek RTL8812AU chipset that complied with IEEE 802.11b/g/n/ac Draft 3.0 compatible WLAN ,and it is also backward complied with IEEE 802.11a standard from 5.15~5.825GHz wideband and IEEE 802.11b/g standard from 2.4~2.5GHz. It can be used to provide up to 54Mbps for IEEE 802.11a and IEEE 802.11g,11Mbps for IEEE 802.11b and 150Mbps for IEEE 802.11n and 433.3Mbps for IEEE 802.11ac to connect your wireless LAN. With seamless roaming, fully interoperability and advanced security with WEP standard, 802.11 a/b/g/n/ac USB Module offers absolute interoperability with different vendors 802.11a/b/g/n/ac.Access Points through the wireless LAN. 2. Features z Compatible with IEEE 802.11b standard to provide wireless 11Mbps date rate. z Compatible with IEEE 802.11g standard to provide wireless 54Mbps date rate. z Compatible with IEEE 802.11n standard to provide wireless 150Mbps date rate. z Compatible with IEEE 802.11ac standard to provide wireless 433.3Mbps date rate. z Operation at 2.4~2.5GHz and 5.15~5.825GHz frequency band to meet worldwide regulations z Provides simple legacy and 20MHz/40MHz/80MHz co-existence mechanisms to ensure backward and network compatibility. z Supports infrastructure networks via Access Point and ad-hoc network via peer-to-peer communication z Supports IEEE 802.11i(WPA and WPA2),WAPI,. enhanced security z Friendly user configuration and diagnostic utilities z Drivers support Windows XP,Vista.Win7 z High speed USB 2.0 interface z ROHS compliant PRODUCTS SPECIFICATION PAGE 4 OF 13 SBRT8812AU Version 1.1 3. Application Diagrams 3.1 Functional Block Diagram 3.2 General Requirements 3.2.1 IEEE 802.11b Section Feature Detailed Description 3.2.1.1 Standard ● IEEE 802.11b 3.2.1.2 Radio and Modulation Schemes ● DQPSK , DBPSK , DSSS , and CCK 3.2.1.3 Operating Frequency ● 2412 ～ 2472MHz ISM band 3.2.1.4 Channel Numbers ● 11 channels for United States ● 13 channels for Europe Countries ● 14 channels for Japan 3.2.1.5 Data Rate ● 11,5.5,2,and 1Mbps 3.2.1.6 Media Access Protocol ● CSMA/CA with ACK 3.2.1.7 Transmitter Output Power at Antenna Connector ● Typical RF Output Power at each RF chain,Data Rate and at room Temp. 25°C ● 17dBm(±2dB) at 1,2,5.5,11Mbps 3.2.1.8 Receiver Sensitivity at Antenna Connector ● Typical Sensitivity at Which Frame(1000-byte PDUs)Error Rate=8% ● -76 dBm at 2Mbps ● -76 dBm for 11Mbps PRODUCTS SPECIFICATION PAGE 5 OF 13 SBRT8812AU Version 1.1 3.2.2 IEEE 802.11g Section Feature Detailed Description 3.2.2.1 Standard ● IEEE 802.11 g 3.2.2.2 Radio and Modulation T ype ● QPSK , BPSK , 16QAM ,64QAM with OFDM 3.2.2.3 Operating Frequenc y ● 2412 ～ 2472MHz ISM band 3.2.2.4 Channel Numbers ● 11 channels for United States ● 13 channels for Europe Countries ● 13 channels for Japan 3.2.2.5 Data Rate ● 6,9,12,18,24,36,48,54Mbps 3.2.2.6 Media Access Protocol ● CSMA/CA with ACK 3.2.2.7 Transmitter Output Power at Antenna Connector ● Typical RF Output Power(tolerance±2dB) at each RF chain, Data Rate and at roomTem p. 25°C ● +17 dBm at 6,9Mbps ● +16 dBm at 12,18Mbps ● +15 dBm at 24,36Mbps ● +14 dBm at 48,54Mbps 3.2.2.8 Receiver Sensitivity at Antenna Connector ● Typical Sensitivity at each RF chain. Frame(1000-byte PDUs)Error Rate<10% at room Temp 25°C ● -82 dBm at 6Mbps ● -81 dBm at 9Mbps ● -79 dBm at 12Mbps ● -77 dBm at 18Mbps ● -74 dBm at 24Mbps ● -70 dBm at 36Mbps ● -66 dBm at 48Mbps ● -65 dBm at 54Mbps PRODUCTS SPECIFICATION PAGE 6 OF 13 SBRT8812AU Version 1.1 3.2.3 IEEE 802.11a Section Feature Detailed Description 3.2.3.1 Standard ● IEEE 802.11a 3.2.3.2 Radio and Modulation T ype ● QPSK , BPSK , 16QAM ,64QAM with OFDM 3.2.3.3 Operating Frequency ● 5.18 ~ 5.24GHZ, 5.745~5.825GHz for US and Canada ● 5.18 ~ 5.24GHZ, 5.745~5.825GHz for Japan ● 5.18 ~ 5.24GHZ, 5.745~5.825GHz Hz for Europe ● 5.18 ~ 5.24GHZ, 5.745~5.825GHzfor China 3.2.3.4 Channel Numbers ● 12 non-overlapping channels for US and Canada ● 8 non-overlapping channels for Japan ● 19 non-overlapping channels for Europe ● 4 non-overlapping channels for China 3.2.3.5 Data Rate ● 6,9,12,18,24,36,48,54Mbps 3.2.3.6 Media Access Protocol ● CSMA/CA with ACK 3.2.3.7 Transmitter Output Power at Antenna Connector ● Typical RF Output Power(tolerance±2dB) at each RF chain, Data Rate and at roomTemp. 25°C ● +14 dBm at 6,9Mbps ● +13 dBm at 12,18Mbps ● +12 dBm at 24,36Mbps ● +11 dBm at 48,54Mbps 3.2.3.8 Receiver Sensitivity at Antenna Connector ● Typical Sensitivity at each RF chain. Frame(1000-byte PDUs)Error Rate<10% at room Temp 25°C ● -82 dBm at 6Mbps ● -81 dBm at 9Mbps ● -79 dBm at 12Mbps ● -77 dBm at 18Mbps ● -74 dBm at 24Mbps ● -70 dBm at 36Mbps ● -66 dBm at 48Mbps ● -65 dBm at 54Mbps PRODUCTS SPECIFICATION PAGE 7 OF 13 SBRT8812AU Version 1.1 3.2.4 IEEE 802.11n Section Feature Detailed Description 3.2.4.1 Standard ● IEEE 802.11n 3.2.4.2 Radio and Modulation Type ● BPSK , QPSK , 16QAM ,64QAM with OFDM 3.2.4.3 Operating Frequency ● 2.4GHz band:2412 ~ 2472MHz 2412 ~ 2462MHz (for FCC) ● 5GHz and:5.18 ~ 5.24GHZ, 5.745~5.825GHz 3.2.4.4 Data Rate MCS GI=800ns GI=400ns 20MHz 40MH 20MHz 40MHz 0 6.5 13.5 7.2 15 1 13 27 14.4 30 2 19.5 40.5 21.7 45 3 26 54 28.9 60 4 39 81 43.3 90 5 52 108 57.8 120 6 58.5 121.5 65.0 135 7 65 135 72.2 150 3.2.4.5 Media Access Protocol ● CSMA/CA with ACK 3.2.4.6 Transmitter Output Power at Antenna Connector ● Typical RF O…

Text truncated - open the document above for the full version.

SCS-F18: Project and Product Certification Representative Authorization Letter Page 1 of 2 Rev 5.0 775 Montague Expressway Milpitas, CA 95035 Tel: 408-526-1188 Fax: 408-526-1088 Email: [email protected] Project and Product Certification Representative Authorization Letter Reason for Amendment (current / obsolete) Revision History Approved Date From To Initial Release (obsolete) 1.0 1.0 Nov-14-2006 Revised wording (obsolete) 1.0 2.0 Sept–25-2007 Updated company template (obsolete) 2.0 3.0 Jan-31-2012 Updated letter information (obsolete) 3.0 4.0 May-23-2014 Added FCC ID field (current) 4.0 5.0 Sept 16 2014 SCS-F18: Project and Product Certification Representative Authorization Letter Page 2 of 2 Rev 5.0 Actiontec Electronics Inc 2015-04-13 To: SIEMIC, INC. 775 Montague Expressway, Milpitas, CA 95035 USA Dear Sir/Madam, Re: Product Certification Representative Authorization Letter We, _____ Actiontec Electronics Inc____hereby authorize SIEMIC, Inc. to act as a Certification Body for certifying for the following project(s): (ScreenBeam 802.11 a/b/g/n/ac WiFi Module, SBRT8812AU) FCC ID: LNQSBRT8812AU Sincerely, Client’s signature Client’s name / title Angela Yao / Program Manager Contact information / address 760 North Mary Ave., Sunnyvale, California 94086 United States

Actiontec Electronics, Inc. SCS-F19: Confidentiality Request Letter Page 1 of 2 Rev 3.0 775 Montague Expressway Milpitas, CA 95035 Tel: 408-526-1188 Fax: 408-526-1088 Email: [email protected] Confidentiality Request Letter Reason for Amendment (current / obsolete) Revision History Approved Date From To Initial Release (obsolete) 1.0 1.0 Nov-14-2006 Adding CFR 2.459 (obsolete) 1.0 2.0 August – 11 - 2008 Updated company template & Added text box (current) 2.0 3.0 Jan-31-2012 Actiontec Electronics, Inc. SCS-F19: Confidentiality Request Letter Page 2 of 2 Rev 3.0 2015-04-13 To: Federal Communications Commission Authorization and Evaluation Division 7435 Oakland Mills Road Columbia, MD Subject: Permanent Confidentiality Request for FCC ID: LNQSBRT8812AU We hereby request confidential treatment of information accompanying this application as outlined below: - Block Diagram - Schematics - Operational Description The above materials contain trade secrets and proprietary information not customarily released to the public. The public disclosure of these materials may be harmful to the applicant and provide unjustified benefits to its competitors. The applicant understands that pursuant to Section 0.457 & 0.459 of the Rules, disclosure of this application and all accompanying documentation will not be made before the date of the Grant for this application. Sincerely, Client’s signature Client’s name / title Angela Yao/Program Manager Contact information / address 760 North Mary Ave., Sunnyvale, California 94086 United States

SCS-F26 Modular Approval Letter Page 1 of 4 Rev 10.0 775 Montague Expressway Milpitas, CA 95035 Tel: 408-526-1188 Fax: 408-526-1088 Email: [email protected] Modular Approval Declaration Letter Reason for Amendment (current / obsolete) Revision History Approved Date From To Initial Release (Obsolete) 1.0 1.0 Dec-04-2006 Added IC Modular Letter (Obsolete) 1.0 2.0 Feb 16 2009 Add LMA and MA option (Obsolete) 2.0 3.0 April 14 2010 Revised per RSS Gen issue 3.0 (Obsolete) 3.0 4.0 Jan 12 2011 Removed Foot(2) (obsolete) 4.0 5.0 July 19 2011 Adding New note per KDB996369 D01 V01R03 (obsolete) 5.0 6.0 August 29 2011 Updated company template & Added text box (obsolete) 6.0 7.0 Jan-31-2012 Updated modular requirement (obsolete) 7.0 8.0 Sept 05 2014 Updated template to meet RSP 100 issue 10 (obsolete) 8.0 9.0 Nov 20 2014 Updated template to meet RSP 100 issue 11 (current) 9.0 10.0 March 19 2015 SCS-F26 Modular Approval Letter Page 2 of 4 Rev 10.0 (Date) 04 / 13 / 2015 ScreenBeam 802.11 a/b/g/n/ac WiFi Module FCC ID : LNQSBRT8812AU , is seeking FCC Authorization as a Single Modular transmitter / Single Limited Modular Approval (Please check one). The EUT meets the requirements for Single Modular approval / Single Limited Modular Approval (please check one) as detailed in FCC public Notice DA00-1407. Compliance to each of the requirements is described below : Questions are: * Please provide a detailed explanation if the answer is “No.” Item Modular requirement Yes No 1 The radio elements must have the radio frequency circuitry shielded. Physical components and tuning capacitor(s) may be located external to the shield, but must be on the module assembly; Yes 2 The module must have buffered modulation/data inputs to ensure that the device will comply with Part 15 requirements with any type of input signal; Yes 3 The module must contain power supply regulation on the module; Yes 4 The module must contain a permanently attached antenna, or contain a unique antenna connector, and be marketed and operated only with specific antenna(s), per Sections 15.203, 15.204(b), 15.204(c), 15.212(a), 2.929(b); Yes 5 The module must demonstrate compliance in a stand-alone configuration; Yes 6 The module must be labeled with its permanently affixed FCC ID label, or use an electronic display (See KDB Publication 784748 about labeling requirements); Yes 7 The module must comply with all specific rules applicable to the transmitter including all the conditions provided in the integration instructions by the grantee; Yes 8 The module must comply with RF exposure requirements Yes Note: (1) LMA may be granted when one or more of the requirements in the table above cannot be demonstrated. LMA will also be issued in those instances where applicants can demonstrate that they will retain control over the final installation of the device, such that compliance of the end product is assured. In such cases, an operating condition on the LMA for the module must state that the module is only approved for use when installed in devices produced by a specific manufacturer. When LMA is sought, the application for equipment certification must specifically state how control of the end product into which the module will be installed, and will be maintained, such that full compliance of the end product is always ensured. (2) Please provide Clear and specific instructions describing the conditions, limitations and procedures for third-parties to use and/or integrate the module into a host device. (3) For non-Software Defined Radio transmitter modules where software is used to ensure compliance of the device, technical description of how such control is implemented to ensure prevention of third party modification must be provided (see KDB 594280). Note 1: Compliance of a module in its final configuration is the responsibility of the applicant. A host device will not be considered certified if the instructions regarding antenna configuration provided in the original description, of one or more separately certified modules it contains, were not followed. Example: A separately certified low-power transceiver module using Bluetooth technology which is housed in a desktop computer, laptop or peripheral does not require the overall system to be recertified, if the desktop computer, laptop or peripheral, as a stand-alone unit, complies with all applicable technical standards. Client’s signature Client’s name / title Angela Yao/Program Manager Contact information / address 760 North Mary Ave., Sunnyvale, California 94086 United States AActionntec EElectroniccs, Incc.

We Na m Add He r Pr o Typ Bra FCC The MH can In a mar Cli e Cli e Con 760 A e, the unde me: Actio dress: 76 reby confir oduct Desc pe Design and: Action C ID: LNQ e equipme Hz), 5G Ban n only oper addition, th rked to the ent’s sign ent’s nam ntact infor 0 North Ma Action A rsigning co ontec Elect 60 North M rm that the cription: S ation: SBR ntec QSBRT8812 ent acting nd (5180~5 rating in the he frequenc e US. ature e / title: rmation / A ary Ave., S ntec E Ad Hoc M ompany tronics, Inc Mary Ave., following p ScreenBea RT8812AU 2AU as slave 5240MHz a ese US op cy selectio Angela Y Address : unnyvale, Elect Mode De c. Sunnyval e products: am 802.11 U and oper a and 5745~ perating ba on feature i Yao/Progra California ronic eclaratio e, Californi a/b/g/n/ac ating in 2. ~5825MHz and. is disabled m Manage 94086 Un cs, Inc on a 94086 U WiFi Mod 4GHz Ban ). Ad Hoc d by firmwa er ited States c. United Stat ule nd(2412~2 Mode func are for dev s es 2462 ction vices

Report No.: TB-FCC143424 Page: 3 of 6 TB-RF-075-1.0 Appendix III EUT External Photographs Photo 1 Appearance of EUT Photo 2 Appearance of EUT

Report No.: TB-FCC143424 Page: 1 of 6 TB-RF-074-1.0 Appendix IFCC ID Label

Report No.: TB-FCC143424 Page: 2 of 6 TB-RF-075-1.0 Appendix II ID Label Location ID LOCATION

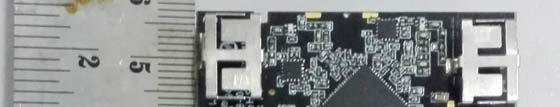

Report No.: TB-FCC143424 Page: 4 of 6 TB-RF-075-1.0 Appendix IV EUT Internal Photographs Photo 3 Internal of EUT Antenna Antenna

Shenzhen Toby Technology Co., Ltd. Report No.: TB-MPE143425 Page: 1 of 4 TB-RF-075-1.0 1A/F., Bldg.6, Yusheng Industrial Zone, The National Road No.107 Xixiang Section 467, Xixiang, Bao’an, Shenzhen, China Tel: +86 75526509301 Fax: +86 75526509195 Maximum Permissible Exposure Evaluation FCC ID: LNQSBRT8812AU 1. Client Information Applicant : Actiontec Electronics Inc Address : 760 North Mary Ave., Sunnyvale, California 94086 United States Manufacturer : Actiontec Electronics Inc Address : 760 North Mary Ave., Sunnyvale, California 94086 United States 2. General Description of EUT EUT Name : ScreenBeam 802.11 a/b/g/n/ac WiFi Module Models No. : SBRT8812AU Brand Name : Actiontec Product Description : Operation Frequency: 2.4G: 802.11b/g/n(HT20): 2412MHz~2462MHz 802.11n(HT40): 2422MHz~2452MHz 5G : U-NII-1: 5150MHz~5250MHz U-NII-3: 5725MHz~5850MHz Number of Channel: 2.4G: 802.11b/g/n(HT20): 11channels 802.11n(HT40): 7channels 5G: U-NII-1: 20MHz Bandwidth: 4 channels 40MHz Bandwidth: 2 channels 80MHz Bandwidth: 1 channels U-NII-3: 20MHz Bandwidth: 5 channels 40MHz Bandwidth: 2 channels 80MHz Bandwidth: 1 channels Output Power 2.4G:802.11b: 21.61 dBm 802.11g: 26.38 dBm 802.11n (HT20): 26.88 dBm 802.11n (HT40): 25.53 dBm Shenzhen Toby Technology Co., Ltd. Report No.: TB-MPE143425 Page: 2 of 4 TB-RF-075-1.0 1A/F., Bldg.6, Yusheng Industrial Zone, The National Road No.107 Xixiang Section 467, Xixiang, Bao’an, Shenzhen, China Tel: +86 75526509301 Fax: +86 75526509195 5G: U-NII-1: 802.11a: 14.11dBm 802.11n(HT20): 13.47dBm 802.11n(HT40): 13.66dBm 802.11ac(20): 13.16dBm 802.11ac(40): 13.55dBm 802.11ac(80): 13.88dBm U-NII-3: 802.11a: 14.26dBm 802.11n(HT20): 14.02dBm 802.11n(HT40): 14.45dBm 802.11ac(20): 13.83dBm 802.11ac(40): 13.85dBm 802.11ac(80): 13.98dBm Antenna Gain: 2412MHz~2462MHz:2.18 dBi (PIFA Antenna) 5150MHz~5250MHz:4.33 dBi (PIFA Antenna) 5725MHz~5850MHz:5.62 dBi (PIFA Antenna) Modulation Type: 802.11b: DSSS (CCK, DQPSK, DBPSK) 802.11g: QPSK , BPSK, 16QAM , 64QAM with OFDM 802.11n: BPSK , QPSK , 16QAM ,64QAM with OFDM 802.11a: OFDM (QPSK, BPSK, 16QAM) 802.11ac: OFDM (QPSK, BPSK, 16QAM, 64QAM, 256QAM) Bit Rate of Transmitter: 802.11b:11/5.5/2/1 Mbps 802.11g:54/48/36/24/18/12/9/6 Mbps 802.11n:up to 150Mbps 802.11a: 6/9/12/18/24/36/48/54 Mbps 802.11ac: at most 433.3 Mbps Power Supply : DC Power by USB Cable Power Rating : DC 5V by USB Cable for Host System. Connecting I/O Port(S) : Please refer to the User's Manual Note:More detail information about Equipment, please refer to User’s manual, more information about the RF，please refer to test report. Report No.: TB-MPE143425 Page: 3 of 4 TB-RF-075-1.0 MPE Calculations for WIFI 1. Antenna Gain: 2412MHz~2462MHz:2.18 dBi (PIFA Antenna) 5150MHz~5250MHz:4.33 dBi (PIFA Antenna) 5725MHz~5850MHz:5.62 dBi (PIFA Antenna) 2. EUT Operation Condition: Software provided by client enabled the EUT to transmit and receive data at lowest, middle and highest channel individually. 3. Exposure Evaluation: Equation from page 18 of OET Bulletin 65, Edition 97-01 S=(PG)/4πR 2 Where S: power density P: power input to the antenna G: power gain of the antenna in the direction of interest relative to an isotropic radiator. R: distance to the center of radiation of the antenna 4. Test Result: Worst Maximum MPE Result Mode N TX Frequency (MHz) Power (dBm) [P] ANT Gain (dBi) [G] Turn-up Power Tolerance (dB) Distance (cm) [R] Power Density (mW/ cm 2 ) [S] 2.4G 802.11b 1 2412 21.61 2.18 ±1 20 0.05994 802.11g 1 2412 26.38 2.18 ±1 20 0.17978 802.11n (HT20) 2 2412 26.88 2.18 ±1 20 0.20172 802.11n (HT40) 2 2422 25.53 2.18 ±1 20 0.14782 5G U-NII-1 802.11a 1 5200 14.11 4.33 ±1 20 0.01749 802.11n (HT20) 2 5240 13.47 4.33 ±1 20 0.01509 802.11ac (HT20) 2 5240 13.66 4.33 ±1 20 0.01577 802.11n (HT40) 2 5230 13.16 4.33 ±1 20 0.01405 802.11 ac(40) 2 5230 13.55 4.33 ±1 20 0.01537 802.11 ac(80) 2 5210 13.88 4.33 ±1 20 0.01659 Report No.: TB-MPE143425 Page: 4 of 4 TB-RF-075-1.0 5G U-NII-3 802.11a 1 5825 14.26 5.62 ±1 20 0.02436 802.11n (HT20) 2 5745 14.02 5.62 ±1 20 0.02305 802.11ac (HT20) 2 5745 14.45 5.62 ±1 20 0.02545 802.11n (HT40) 2 5755 13.83 5.62 ±1 20 0.02207 802.11 ac(40) 2 5755 13.85 5.62 ±1 20 0.02217 802.11 ac(80) 2 5775 13.98 5.62 ±1 20 0.02284 Note: (1) N TX = Number of Transmit Antennas (2) RF Output power specifies that Maximum Conducted Peak Output Power. 5. Conclusion: As specified in Table 1B of 47 CFR 1.1310- Limits for Maximum Permissible Exposure (MPE), Limits for General Population/ Uncontrolled Exposure Frequency Range (MHz) Power density (mW/ cm 2 ) 300-1,500 F/1500 1,500-100,000 1.0 For 2.4G: 802.11b/g/n (2412~2462 MHz) 5G: U-NII-1: 5150MHz~5250MHz U-NII-3: 5725MHz~5850MHz MPE limit S: 1 mW/ cm 2 The MPE is calculated as 0.20172mW / cm 2 < limit 1 mW / cm 2 . So, RF exposure limit warning or SAR test are not required. The EUT will only be used with a separation of 20cm or greater between the antenna and nearby persons and can therefore be considered a mobile transmitter per 47 CFR2.1091 (b). The RF Exposure Information page from the manual is included here for reference. Note For a more detailed features description, please refer to the RF Test Report.

Shenzhen Toby Technology Co., Ltd. Report No.: TB-FCC143423 Page: 1 of 92 TB-RF-074-1.0 1A/F., Bldg.6, Yusheng Industrial Zone, The National Road No.107 Xixiang Section 467, Xixiang, Bao’an, Shenzhen, China Tel: +86 75526509301 Fax: +86 75526509195 FCC Radio Test Report FCC ID: LNQSBRT8812AU Original Grant Report No. : TB-FCC143423 Applicant : Actiontec Electronics Inc Equipment Under Test (EUT) EUT Name : ScreenBeam 802.11 a/b/g/n/ac WiFi Module Model No. : SBRT8812AU Brand Name : Actiontec Receipt Date : 2015-02-26 Test Date : 2015-03-09 to 2015-04-10 Issue Date : 2015-04-14 Standards : FCC Part 15, Subpart C (15.247:2014) Test Method : ANSI C63.10: 2013 Conclusions : PASS In the configuration tested, the EUT complied with the standards specified above, The EUT technically complies with the FCC and IC requirements Test/Witness Engineer : Approved& Authorized : This report details the results of the testing carried out on one sample. The results contained in this test report do not relate to other samples of the same product. The manufacturer should ensure that all products in series production are in conformity with the product sample detailed in the report. Report No.: TB-FCC143423 Page: 2 of 92 TB-RF-074-1.0 Contents CONTENTS ............................................................................................................................................. 2 1. GENERAL INFORMATION ABOUT EUT ............................................................................. 4 1.1 Client Information ................................................................................................................. 4 1.2 General Description of EUT (Equipment Under Test) ................................................... 4 1.3 Block Diagram Showing the Configuration of System Tested ...................................... 5 1.4 Description of Support Units .............................................................................................. 6 1.5 Description of Test Mode .................................................................................................... 6 1.6 Description of Test Software Setting ................................................................................ 7 1.7 Test Facility ........................................................................................................................... 8 2. TEST SUMMARY ....................................................................................................................... 8 3. TEST EQUIPMENT .................................................................................................................. 10 4. CONDUCTED EMISSION TEST ........................................................................................... 11 4.1 Test Standard and Limit .................................................................................................... 11 4.2 Test Setup ........................................................................................................................... 11 4.3 Test Procedure ................................................................................................................... 11 4.4 EUT Operating Mode ........................................................................................................ 12 4.5 Test Data ............................................................................................................................. 12 5. RADIATED EMISSION TEST ................................................................................................ 15 5.1 Test Standard and Limit .................................................................................................... 15 5.2 Test Setup ........................................................................................................................... 16 5.3 Test Procedure ................................................................................................................... 17 5.4 EUT Operating Condition ................................................................................................. 17 5.5 Test Data ............................................................................................................................. 18 6. RESTRICTED BANDS REQUIREMENT ............................................................................. 45 6.1 Test Standard and Limit .................................................................................................... 45 6.2 Test Setup ........................................................................................................................... 45 6.3 Test Procedure ................................................................................................................... 45 6.4 EUT Operating Condition ................................................................................................. 46 6.5 Test Data ............................................................................................................................. 46 7. BANDWIDTH TEST ................................................................................................................. 69 7.1 Test Standard and Limit .................................................................................................... 69 7.2 Test Setup ........................................................................................................................... 69 7.3 Test Procedure ................................................................................................................... 69 7.4 EUT Operating Condition ................................................................................................. 69 7.5 Test Data ............................................................................................................................. 70 8. PEAK OUTPUT POWER TEST ................................................................................…

Text truncated - open the document above for the full version.

Report No.: TB-FCC143424 Page: 5 of 6 TB-RF-075-1.0 Appendix V EUT Test Photographs 15C Test Setup Photo of Setup for Radiated Emission (Above 1 GHz) Photo of Setup for Radiated Emission (Below 1 GHz) Report No.: TB-FCC143424 Page: 6 of 6 TB-RF-075-1.0 Photo of Setup for Conducted Emission
