LNQSG250Gateway Device with Z-Wave Home Control and Optional WiFi

1 Actiontec Electronics, Inc. 760 North Mary Ave., Sunnyvale, CA 94085 USA Gateway Device with Z‐Wave Home Control and optional WiFi Model #: SG250 Quick Start Guide Version: 0.0 (Draft to be review) 2 Connect the SG250 Gateway to Power and Router 1. Plug one end of the Ethernet cable to the Ethernet port on the SG250 gateway. 2. Plug the other end of the Ethernet cable into the LAN port on the back of your router. 3. Plug the AC power adapter connector to the SG250 gateway’s power port. (Power: External, 12V DC, 1A made by Leader Electronics Inc.; Model: MT12‐Y120100‐A1) 4. Now plug the power adapter into a properly grounded power outlet. 5. Make sure the power LED light on the Gateway device is green. 6. Your Ethernet LED light is green if the Ethernet cable is connected. Connect the SG250 to Router Wirelessly (WiFi is optional) 1. Find out the IP address of the SG250 Gateway. Usually you can do this by looking up the DHCP client list from the router’s webpage. Let’s assume it is 192.168.1.2. 2. Using a computer with a SSH client, connect to the SG250 Gateway. a. For Windows computers, Putty is a good SSH client program. Configure Putty using its GUI and enter the IP address as 192.168.1.2 and port 22, then hit the connect button. b. For Linux computers, open a terminal and enter “ssh [email protected]”. 3. If prompted for username, enter “root”. There is no password. 4. Create a configuration file. Type this command vi /config/wpa_supplicant.conf Enter the following information inside the vi text editor. Enter “i” to start the editing mode. network={ ssid="Your_Access_Point's_SSID" psk="Your_WPA_or_WPA2_Passphrase" } Press “ESC” to exit the editing mode. Save the file by typing “:wq!”. 5. Now connect to the router. Type the command wpa_supplicant –Dwext –iwlan0 –c/config/wpa_supplicant.conf –B 6. Get an IP from the router. Type the command dhclient wlan0 If you see a message similar to “bound to 192.168.1.3 ‐‐ renewal in 35739 seconds.” that means you are successfully connected. Note this instruction works with WPA or WPA2 encrypted wireless networks only. Congratulations you are now connected! 3 Specifications 1. Features • Marvell 800 MHz CPU, ARMv5 architecture • 256 MB NAND SLC flash memory • 256 MB DDR3 RAM memory • Compliant with IEEE 802.3 Ethernet standard, supports 100BaseT. • 2.4 GHz IEEE 802.11n compliant • 2‐stream spatial multiplexing up to 135 Mbps • Supports 20 MHz channels • Full IEEE 802.11 b/g/n legacy compatibility with enhanced performance • Comprehensive wireless network security support that includes WPA, WPA2, and AES encryption/decryption coupled with TKIP and IEEE 802.1X support • 802.11b Data Rates: 11Mbit/s, 5.5Mbit/s, 2Mbit/s, 1Mbit/s (And 22Mbit/s with PBCC); • 802.11g Data Rates: 6Mbit/s, 9Mbit/s, 12Mbit/s, 18Mbit/s, 24Mbit/s, 36Mbit/s, 48Mbit/s, 54Mbit/s. • Z‐Wave 908.42 MHz, static controller API version 5.03 2. Power requirements • Operating voltage: +12V DC @ 1A max 3. Environmental Operating Range • Operating temperature: 0º C to 40º C (32º F to 104º F) • Humidity: 5‐95%, non‐condensing 4. Dimension and Weight • 6.5” x 5” x 1.5” (L x W x D), 0.65 lbs. 5. Certifications • FCC Part 15 Class B and Class C; UL General Regulatory and Compliance Notices Important Safety Instructions I f applicable, when using telephone equipment, basic safety precautions should always be followed to reduce the risk of fire, electrical shock, and personal injury, including the following: • Do not use this product near water –for example, near a bathtub, kitchen sink, laundry tub, or swimming pool, or in a wet basement; • Avoid using a telephone (other than a cordless type) during an electrical storm, as there may be a remote risk of electrical shock d ue to lightning; • Do not use the telephone to report a gas leak in the vicinity of the leak; • Use only the power cord and batteries indicated in this manual; • Do not dispose of batteries in fire, as they may explode –check with local codes for possible special disposal instructions. T elephone Line Cord Caution To reduce the risk of fire, use only No. 26 AWG or larger (e.g., 24 AWG) UL Listed or CSA Certified Telecommunication Line Cord. Coaxial Cable If applicable, the coaxial cable screen shield needs to be connected to the Earth at the building entrance per ANSI/NFPA 70, the National Electrical Code (NEC), in particular Section 820.93, “Grounding of Outer Conductive Shield of a Coaxial Cable,” or in accordance with local regulation. FCC Class B Equipment This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to Part 15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful interference in a residential installation. This equipment generates, uses and can radiate radio frequency energy and, if not installed and used in accordance with the instructions, may cause harmful interference to radio communications. However, there is no guarantee that interference will not occur in a particular installation. If this equipment does cause harmful interference to radio or television reception, which can be determined by turning the equipment off and on, the user is encouraged to try and correct the interference by implementing one or more of the following measures: • Reorient or relocate the receiving antenna; • Increase the separation between the equipment and receiver; • Connect the equipment to an outlet on a circuit different from that to which the receiver is connected; • Consult the dealer or an experience radio or television technician for help. Modifications The FCC requires the user to be notified that any changes or modifications made to this device that are not expressly approved by Actiontec Electronics, Inc, may void the user’s authority to operate the equipment. Declaration of conformity for products marked with the FCC logo –United States only. This devices complies with Part 15 of the FCC Rules and with Industry Canada license-exem…

Text truncated - open the document above for the full version.

Actiontec Electronics, Inc. 760 North Mary Avenue • Sunnyvale • CA • 94085 • USA Phone (408) 752-7700 • Fax (408) 541-9003 • www.actiontec.com Solutions for the Digital Life™ FCC Confidential Authorization July 19, 2012 FEDERAL COMMUNICATIONS COMMISSIONS Authorization and Evaluation Division 7435 Oakland Mills Road Columbia, MD 21046 Subject: Confidentiality Request regarding application for certification of FCC ID: LNQSG250 In accordance with Sections 0.457 and 0.459 of the Commission’s Rules, Actiontec Electronics, Inc., hereby requests long-term confidential treatment of information accompanying this application as outlined below: • Block Diagram • Schematics • Operation Description The above materials contain proprietary and confidential information not customarily released to the public. The public disclosure of these materials provides unjustified benefits to its competitors in the market. Sincerely Yours, Angela Yao / Sr. Program Manager Actiontec Electronics, Inc. 760 North Mary Ave., Sunnyvale, CA 94085 Phone (408) 752-7700 E m a i l [email protected]

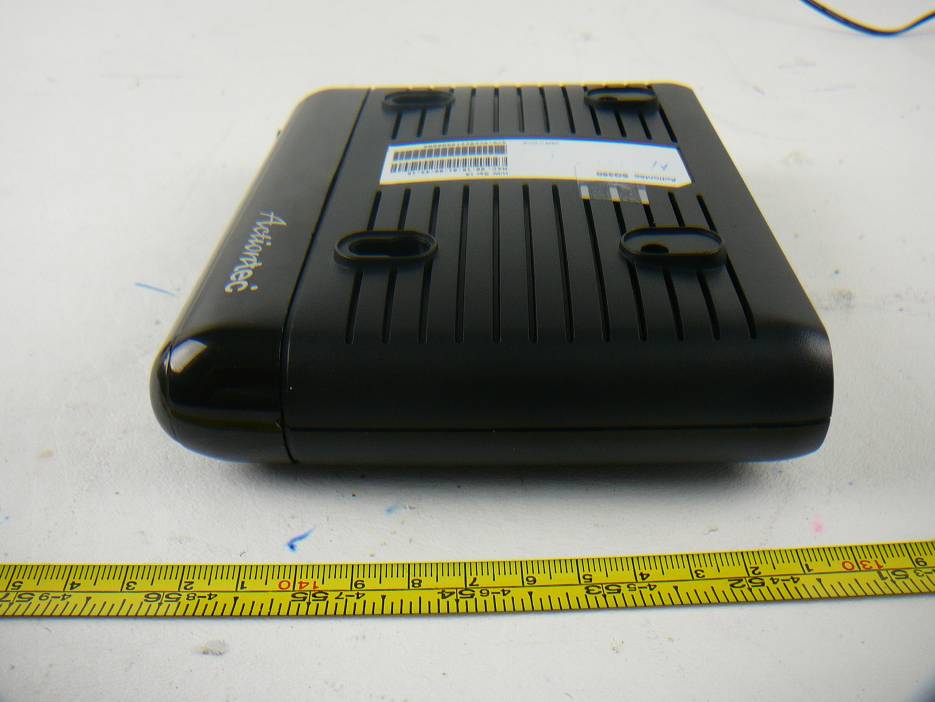

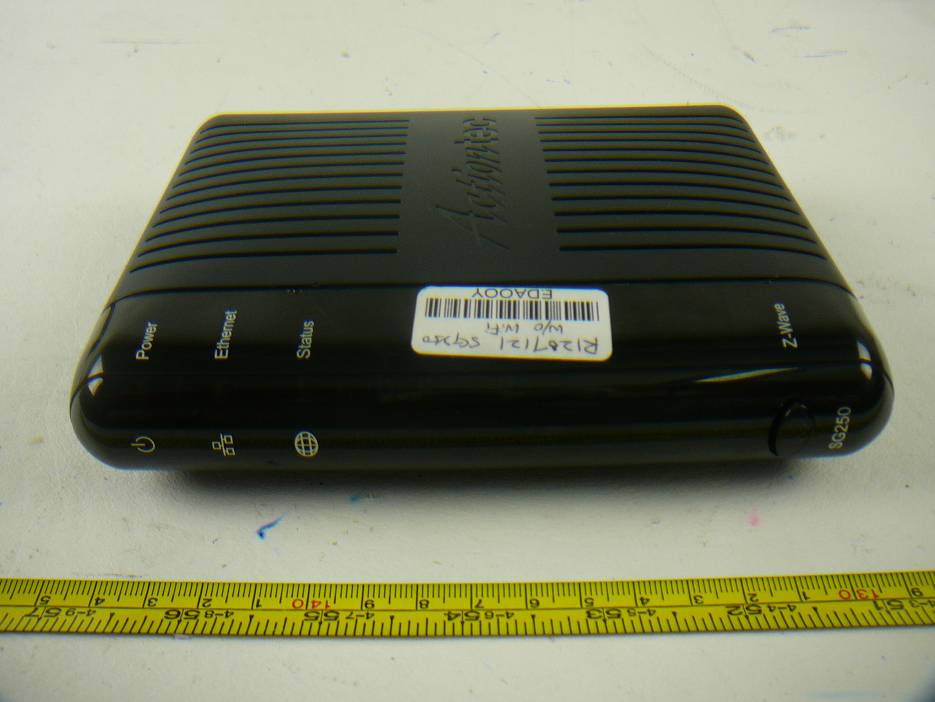

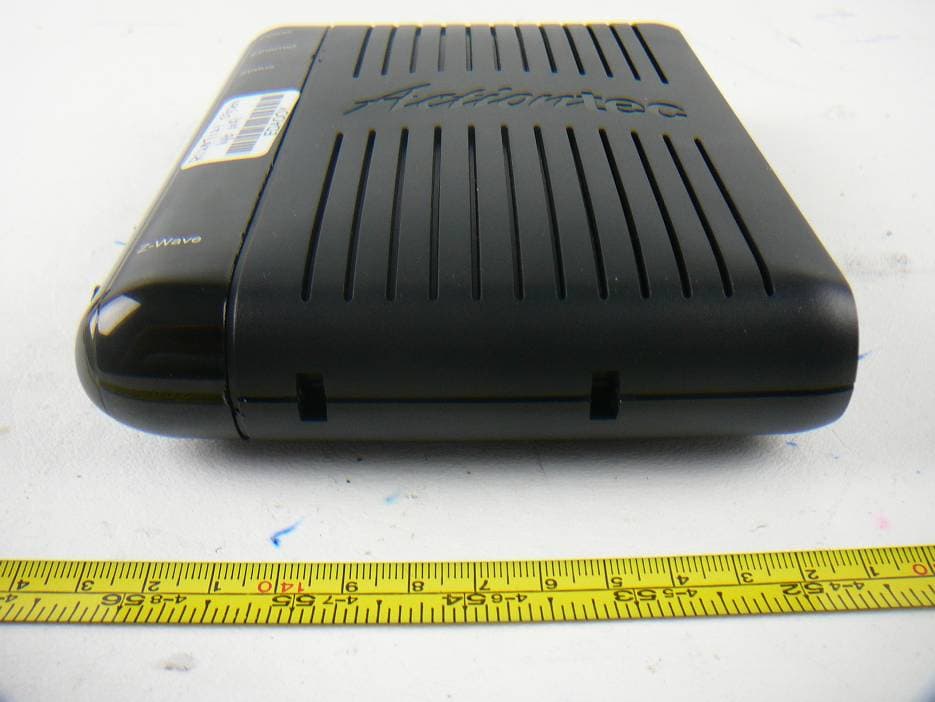

Actiontec Electronics, Inc. FCC ID: LNQSG250 Report Number: R1207121-249 Page 26 of 30 FCC Part 15.249 Test Report 10 Exhibit C – EUT Photographs 10.1 EUT – Front View 10.2 EUT – Rear View Actiontec Electronics, Inc. FCC ID: LNQSG250 Report Number: R1207121-249 Page 27 of 30 FCC Part 15.249 Test Report 10.3 EUT – Top View 10.4 EUT – Bottom View Actiontec Electronics, Inc. FCC ID: LNQSG250 Report Number: R1207121-249 Page 28 of 30 FCC Part 15.249 Test Report 10.5 EUT – Side View 1 10.6 EUT – Side View 2

Actiontec Electronics, Inc. FCC ID: LNQSG250 Report Number: R1207121-249 Page 22 of 30 FCC Part 15.249 Test Report 8 Exhibit A – FCC Equipment Labeling Requirements 8.1 FCC ID Label Requirements As per FCC §2.925, (a) Each equipment covered in an application for equipment authorization shall bear a nameplate or label listing the following: (1) FCC Identifier consisting of the two elements in the exact order specified in §2.926. The FCC Identifier shall be preceded by the term FCC ID in capital letters on a single line, and shall be of a type size large enough to be legible without the aid of magnification. Example: FCC ID XXX123. XXX—Grantee Code 123—Equipment Product Code As per FCC §15.19, (a) In addition to the requirements in part 2 of this chapter, a device subject to certification, or verification shall be labeled as follows: (3) All other devices shall bear the following statement in a conspicuous location on the device: This device complies with part 15 of the FCC Rules. Operation is subject to the following two conditions: (1) This device may not cause harmful interference, and (2) this device must accept any interference received, including interference that may cause undesired operation. (4) Where a device is constructed in two or more sections connected by wires and marketed together, the statement specified above is required to be affixed only to the main control unit. If the EUT is integrated within another device then a label affixed to the host shall also state, “Contains FCC ID: XXXXXX” (5) When the device is so small or for such use that it is not practicable to place the statement specified under paragraph (a) of this section on it, the information required by this paragraph shall be placed in a prominent location in the instruction manual or pamphlet supplied to the user or, alternatively, shall be placed on the container in which the device is marketed. However, the FCC identifier or the unique identifier, as appropriate, must be displayed on the device. 8.2 FCC ID Label Content and Location

Actiontec Electronics, Inc. FCC ID: LNQSG250 Report Number: R1207121-249 Page 29 of 30 FCC Part 15.249 Test Report 10.7 EUT PCB Board – Top View 10.8 EUT PCB Board – Bottom View Actiontec Electronics, Inc. FCC ID: LNQSG250 Report Number: R1207121-249 Page 30 of 30 FCC Part 15.249 Test Report 10.9 EUT – AC/DC Power Adapter --- END OF REPORT ---

Note: This test report is prepared for the customer shown above and for the device described herein. It may not be duplicated or used in part without prior written consent from Bay Area Compliance Laboratories Corp. This report must not be used by the customer to claim product certification, approval, or endorsement by A2LA* or any agency of the Federal Government. * This report may contain data that are not covered by the A2LA accreditation and are marked with an asterisk “*” (Rev.3) FCC PART 15.249 TEST AND MEASUREMENT REPORT For Actiontec Electronics, Inc. 760 N. Mary Avenue, Sunnyvale, CA 94085, USA FCC ID: LNQSG250 Model: SG250 Report Type: Original Report Product Type: Wireless Gateway Prepared By: Lionel Lara Report Number: R1207121-249 Report Date: 2012-08-31 Reviewed By: Victor Zhang EMC/RF Lead Bay Area Compliance Laboratories Corp. 1274 Anvilwood Avenue, Sunnyvale, CA 94089, USA Tel: (408) 732-9162 Fax: (408) 732-9164 Actiontec Electronics, Inc. FCC ID: LNQSG250 Report Number: R1207121-249 Page 2 of 30 FCC Part 15.249 Test Report TABLE OF CONTENTS 1 GENERAL INFORMATION ..................................................................................................................................... 5 1.1 PRODUCT DESCRIPTION FOR EQUIPMENT UNDER TEST (EUT)................................................................................ 5 1.2 MECHANICAL DESCRIPTION OF EUT ...................................................................................................................... 5 1.3 OBJECTIVE.............................................................................................................................................................. 5 1.4 RELATED SUBMITTAL(S)/GRANT(S)........................................................................................................................ 5 1.5 TEST METHODOLOGY............................................................................................................................................. 5 1.6 MEASUREMENT UNCERTAINTY...............................................................................................................................5 1.7 TEST FACILITY........................................................................................................................................................ 6 2 SYSTEM TEST CONFIGURATION ........................................................................................................................ 7 2.1 JUSTIFICATION........................................................................................................................................................ 7 2.2 EUT EXERCISE SOFTWARE..................................................................................................................................... 7 2.3 EQUIPMENT MODIFICATIONS.................................................................................................................................. 7 2.4 LOCAL SUPPORT EQUIPMENT.................................................................................................................................. 7 2.5 EUT INTERNAL CONFIGURATION DETAILS............................................................................................................. 7 2.6 INTERFACE PORTS AND CABLING........................................................................................................................... 7 2.7 EXTERNAL I/O CABLING LIST AND AC CORD......................................................................................................... 7 2.8 POWER SUPPLY LIST AND DETAILS......................................................................................................................... 7 3 SUMMARY OF TEST RESULTS ............................................................................................................................. 8 4 FCC §15.203 – ANTENNA REQUIREMENT .......................................................................................................... 9 4.1 APPLICABLE STANDARD......................................................................................................................................... 9 4.2 ANTENNA CONNECTOR CONSTRUCTION................................................................................................................. 9 4.3 ANTENNA LIST....................................................................................................................................................... 9 5 FCC §15.207 – AC LINE CONDUCTED EMISSIONS ........................................................................................... 10 5.1 APPLICABLE STANDARD....................................................................................................................................... 10 5.2 EUT SETUP........................................................................................................................................................... 10 5.3 TEST PROCEDURE................................................................................................................................................. 10 5.4 TEST SETUP BLOCK DIAGRAM.............................................................................................................................. 11 5.5 CORRECTED AMPLITUDE & MARGIN CALCULATION............................................................................................ 11 5.6 TEST EQUIPMENT LIST AND DETAILS................................................................................................................... 12 5.7 TEST ENVIRONMENTAL CONDITIONS.................................................................................................................... 12 5.8 SUMMARY OF TEST RESULTS................................................................................................................................12 5.9 CONDUCTED EMISSIONS TEST PLOTS AND DATA........…

Text truncated - open the document above for the full version.

Actiontec Electronics, Inc. FCC ID: LNQSG250 Report Number: R1207121-249 Page 23 of 30 FCC Part 15.249 Test Report 9 Exhibit B – Test Setup Photographs 9.1 Radiated Emissions (Below 1 GHz) – Front View 9.2 Radiated Emissions (Below 1 GHz) – Rear View Actiontec Electronics, Inc. FCC ID: LNQSG250 Report Number: R1207121-249 Page 24 of 30 FCC Part 15.249 Test Report 9.3 Radiated Emissions (Above 1 GHz) – Front View 9.4 Radiated Emissions (Above 1 GHz) – Rear View Actiontec Electronics, Inc. FCC ID: LNQSG250 Report Number: R1207121-249 Page 25 of 30 FCC Part 15.249 Test Report 9.5 AC Line Conducted Emissions – Front View 9.6 AC Line Conducted Emissions – Side View
