LNQWF660AGWi-Fi 6 Outdoor AP

1 Notice: Actiontec has the sole right to make corrections, modifications, enhancements, improvements, and other changes to its products and services at any time, and to discontinue any product or service without notice. Actiontec has the final interpretation. High performance dual-band 802.11ax Outdoor Wireless AP WF-660AG Product Datasheet VERSION2.0 April, 2023 www.actiontec.com 2 Notice: Actiontec has the sole right to make corrections, modifications, enhancements, improvements, and other changes to its products and services at any time, and to discontinue any product or service without notice. Actiontec has the final interpretation. ◼ Overview WF-660AG is a dual-band 2x2 MU-MIMO 802.11ax outdoor Wi-Fi AP, which is designed for high- density deployments in outdoor location that require premium performance. WF-660AG supports 802.11ax 2.4G/ 5G Wi-Fi access and can provide up to 1,774Gbps aggregated data rates. It helps you to establish the high speed and stable wireless network. The enhanced transmission power and receive sensitivity make it deliver the high throughput and reliable coverage required. WF-660AG provides the most economical and effective way for Wi-Fi backhaul solution. Having perfect compatibility, WF-660AG works with most wireless terminals and CPEs to build a high capacity Wi-Fi system. WF-660AG supports OpenWi-Fi development platform. This is easy for the user to develop the applications according to their customization requirement. 3 Notice: Actiontec has the sole right to make corrections, modifications, enhancements, improvements, and other changes to its products and services at any time, and to discontinue any product or service without notice. Actiontec has the final interpretation. ◼ Key Features ⚫ Supports pole and wall mounting ⚫ Supports 2.4G 2x2/ 40MHz Wi-Fi (802.11b/ g/ n/ ax), up to 574Mbps link rate ⚫ Supports 5G 2x2/ 80MHz Wi-Fi(802.11a/ n/ ac/ ax), up to 1.2Gbps link rate ⚫ Supports BLE 5.0 ⚫ Supports GPS ⚫ 2 x Dual-band Integrated 120 o directional antennas ⚫ 1 x Integrated Bluetooth antenna ⚫ 1 x 2.5GE WAN with 802.3 at PoE（PD） ⚫ Reserved 1x M.2 socket, for Wi-Fi6E expansion (Optional) ⚫ 1x Reset Button ⚫ 1x RBG LEDs for visual indication ⚫ Supports OpenWiFi development platform Business Users Home Users CPE CPE WF-660A WF-660A Wireless AP WF-660A Wireless AP 4 Notice: Actiontec has the sole right to make corrections, modifications, enhancements, improvements, and other changes to its products and services at any time, and to discontinue any product or service without notice. Actiontec has the final interpretation. ◼ Specification Item WF-660AG Dimension (W x D x H) 260mm x 140mm x 71mm, without bracket Weight 1500g, without bracket Installation Pole and wall mounting LEDs 1 x RBG LED (Software definition) Interface 1 x 2.5GE WAN with 802.3 at PoE(PD） 1 x Reset botton Input Voltage 50V ~ 57V, 802.3 at PoE (PD) Power consumption < 20W Environmental Specification Temperature Operation: -40°C～+65°C Storage: -40°C～+85°C Operating Humidity 5%～95% (non-condensing) Elevations 86kPa～106kPa altitude Dustproof and Waterproof IP67 Safety • NRTL Listed 62368-1 (US & CA) • CB with IEC/EN 62368-1 IEC 60950-22 (Basic safety certificate for worldwide marketing) • GB 9254 -2008(Class B of Product) EN55032 , EN55035, EN61000-4-3 Level 4; EN61000-4-2, FCC Part 15B • WEEE 2002/96/EC recyclable materials requirements 5 Notice: Actiontec has the sole right to make corrections, modifications, enhancements, improvements, and other changes to its products and services at any time, and to discontinue any product or service without notice. Actiontec has the final interpretation. Item WF-660AG Reliability MTBF > 300,000 Hours • Telcordia SR-332, Reliability Prediction Procedures for Electronic Equipment, Issue 3, Method 1, Case 3, GB/GC (Ground Benign, Controlled) environment, 25ºC ambient temperature. Steady state, not including software failure. AFR AFR (Annualized Failure Rate) < 1.5% (in continuous operation) Chipset SoC Qualcomm chipset (IPQ6028) Flash eMMC5.0 4BG DDR 512MB 16bit DDR4 memory Wi-Fi Interface Operating frequency 2.4G radio:2.4000GHz~2.4835GHz 5G radio:5.150~5.250,5.250~5.350,5.470~5.725, 5.725~5.850 GHz Data Rate 802.11b: 1, 2, 5.5, and 11Mbps 802.11g: 6, 9, 12, 18, 24, 36, 48, and 54Mbps 802.11a: 6, 9, 12, 18, 24, 36, 48 and 54Mb/s 802.11n: MCS0~MCS7 802.11ac: MCS0 ~ MCS9 802.11ax: MSC0 ~ MCS11 Receive Sensitivity 802.11g: -90dBm@6Mbps -74dBm@54Mbps 802.11n: HT20 HT40 MCS0/8/16 -90dBm -87dBm 6 Notice: Actiontec has the sole right to make corrections, modifications, enhancements, improvements, and other changes to its products and services at any time, and to discontinue any product or service without notice. Actiontec has the final interpretation. Item WF-660AG MCS7/15 -71dBm -68dBm 802.11a: -90dBm@6Mbps -74dBm@54Mbps 802.11ac: VHT20 VHT40 VHT80 MCS0 -90dBm -87dBm -84dBm MCS8 -67dBm -61dBm -58dBm 802.11ax: HE20 HE40 HE80 MCS0 -90dBm -87dBm -84dBm MCS11 -60dBm -57dBm -54dBm 7 Notice: Actiontec has the sole right to make corrections, modifications, enhancements, improvements, and other changes to its products and services at any time, and to discontinue any product or service without notice. Actiontec has the final interpretation. ◼ Installation Guide 8 Notice: Actiontec has the sole right to make corrections, modifications, enhancements, improvements, and other changes to its products and services at any time, and to discontinue any product or service without notice. Actiontec has the final interpretation. Federal Communications Commission (FCC) Interference Statement This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to Part 15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful interference in a residential installation. This equipment generate, uses and can radiate radio frequency energy and, if not installed and used in accordance with the instructions, may ca…

Text truncated - open the document above for the full version.

Actiontec Electronics Inc. 2445 Augustine Drive Suite 501, Santa Clara, California 95054, United States U.S. Agent Designation for Service of Process TO: American Certification Body, Inc. 313 Park Avenue Suite 300 Falls Church, VA 22046 ATTENTION: FCC Certification – Section 2.911(d)(7) Information This letter is to confirm that the Applicant will also serve as the U.S. Agent for Service of Process as required by 47 CFR 2.911(d)(7). The Applicant acknowledges that they must maintain an agent for no less than one year after terminating all marketing and importation OR the conclusion of any Commission-related proceeding involving the equipment. The Applicant further acknowledges their responsibility to inform the FCC whenever the Designated U.S. Agent information changes. Applicant Company name: Actiontec Electronics, Inc. Grantee Code: LNQ Contact Name: Brian J Henrichs Street Address: 2445 Augustine Dr Suite 501 City/Province/Zip: Santa Clara, CA 95054 Telephone No: (408) 857-9658 Email: [email protected] FRN: 0005810783 Applicant Signature 1 : Date: 2023/06/01 Signed by (Printed Name/Title): Brian J Henrichs / President 1 - Letters should be placed on appropriate letterhead.

Actiontec Electronics Inc 2445 Augustine Drive Suite 501, Santa Clara, California 95054, United States 012423-17 rev2 Certification Application Attestation Statements Date: June 30, 2023 American Certification Body, Inc. 313 Park Avenue Suite 300 Falls Church, VA 22046 To Whom It May Concern: FCC ID: LNQWF660AG Statement for 47 CFR section 2.911(d)(5)(i) ____ Actiontec Electronics Inc _____ certifies that as of the date of the application the equipment for which authorization is sought is not “covered” equipment 1 prohibited from receiving an equipment authorization pursuant to section 2.903 of the FCC rules. If the equipment for which the applicant seeks authorization is produced by any of the entities identified on the current Covered List, including affiliates or subsidiaries of the named companies, the applicant must include an explanation on why the equipment is not “covered” equipment. Additional Explanation: <N/A> Statement for 47 CFR section 2.911(d)(5)(ii) _____ Actiontec Electronics Inc _____ (“the applicant”) certifies that, as of the date of the filing of this application, the applicant ☐ - is / ☑ - is not identified on the Covered List as an entity producing “covered” equipment. Thank you, By: ______ Brian Henrichs ______ (Signature 2 ) (Print name) Title: President Company: __ Actiontec Electronics Inc _ Telephone: __ (408) 857-9658 ___ 1 - The Commission’s Covered List is published by the Public Safety and Homeland Security Bureau and posted on the Commission’s website. This Covered List, which is periodically updated, identifies particular equipment, produced by particular entities, that constitutes “covered” equipment. https://www.fcc.gov/supplychain/coveredlist . 2 - Letters should be placed on appropriate letterhead.

Confidentiality Request Letter Federal Communications Commission Authorization and Evaluation Division FCC ID: LNQWF660AG Confidentiality Request Pursuant to Sections 0.457 and 0.459 of the Commission’s Rules, we hereby request confidential treatment of information accompanying this application as outlined below: 1. Block Diagram 2. Schematics 3. Operational Description The above materials contain trade secrets and proprietary information not customarily released to the public. The public disclosure of these matters might be harmful to the applicant and provide unjustified benefits to its competitors. The applicant understands that pursuant to Rule 0.457, disclosure of this application and all accompanying documentation will not be made before the date of the Grant for this application. Sincerely, _________________ Name: Brian Henrichs Position: President Date: 2023-08-01 DocuSign Envelope ID: 879A7747-0479-4631-9235-7D5155A1F8D1

Declaration of Authorization We Name: Actiontec Electronics Inc Address: 2445 Augustine Drive Suite 501, Santa Clara, California 95054, United States Declare that: Name Representative of agent: Marlin Chen Agent Company name: MRT Technology (Suzhou) Co., Ltd Address: D8 Building, Youxin Industrial Park, No.2 Tian'edang Rd., Wuzhong Economic Development Zone City: Suzhou Country: China is authorized to apply for Certification of the following product(s): Product: Wi-Fi 6 Outdoor AP FCC ID: LNQWF660AG Model: WF-660AG, WF-660A Sincerely, _________________ Name: Brian Henrichs Position: President Date: 2023-08-01 DocuSign Envelope ID: 23DDE541-8A40-4395-AC67-BD7224930F3B

Declaration of Conformity We Name: Actiontec Electronics Inc Address: 2445 Augustine Drive Suite 501, Santa Clara, California 95054, United States Declare that: Product: Wi-Fi 6 Outdoor AP FCC ID: LNQWF660AG Model: WF-660AG, WF-660A Product which bears the above FCC ID is also compliant with the FCC requirements for sDOC. And the sDOC procedure shall be carried out prior to marketing the device in the US. Sincerely, _________________ Name: Brian Henrichs Position: President Date: 2023-08-01 DocuSign Envelope ID: C3C908D4-4449-4BAF-8A66-033211FDDB4C

Declaration letter For our business issue and marketing requirement, we would like to list different model numbers as following: Model No.: WF-660AG, WF-660A Model Difference: WF-660AG is the full configuration mode, WF-660A is model to remove GPS module based upon WF-660AG, and the other parts were the same. _________________ Name: Brian Henrichs Position: President Date: 2023-08-01 DocuSign Envelope ID: 3CB7A8A0-D9FD-4192-80AB-853BE3B196BC

SDR (Software Defined Radio) Cover Letter Refer to KDB 442812 D01 SDR apps Guide v02r03. The following six questions can be used for determining if a radio can elect to be, or must be an SDR. 1. Can the RF parameters of the device be altered through software? Yes - go to 2. No, not an SDR Answer: YES 2. Can third parties not permitted by the Commission through specific filings modify, configure, or load different software, or make configuration settings to operate the device or host hardware radio frequency parameters (frequency range, modulation type, maximum output power or other radio parameters) in any other way than granted (or expected to be granted)? Yes, must be an SDR. No - go to 3. Answer: YES 3. Is the device capable of operating in any other in any other way than granted, or will be, granted? Yes, - go to 4. No - go to 5. Answer: YES 4. Is this a Part 15 client Device as defined in Section 15.202 (as opposed to a master device)? Yes, qualifies as a part 15 client devices - go to 5. No, must be an SDR. Answer: NO 5. Does the manufacturer elect SDR? DocuSign Envelope ID: 5FFA3746-95FD-49B9-AA42-C8D6A5FFD4DD Yes, elects to be an SDR. No, Not an SDR Answer: YES Conclusion: According to the above questions reply, we can confirm this device (FCC ID: LNQWF660AG) must be a SDR device. __________________ Name: Brian Henrichs Position: President Date: 2023-08-01 DocuSign Envelope ID: 5FFA3746-95FD-49B9-AA42-C8D6A5FFD4DD

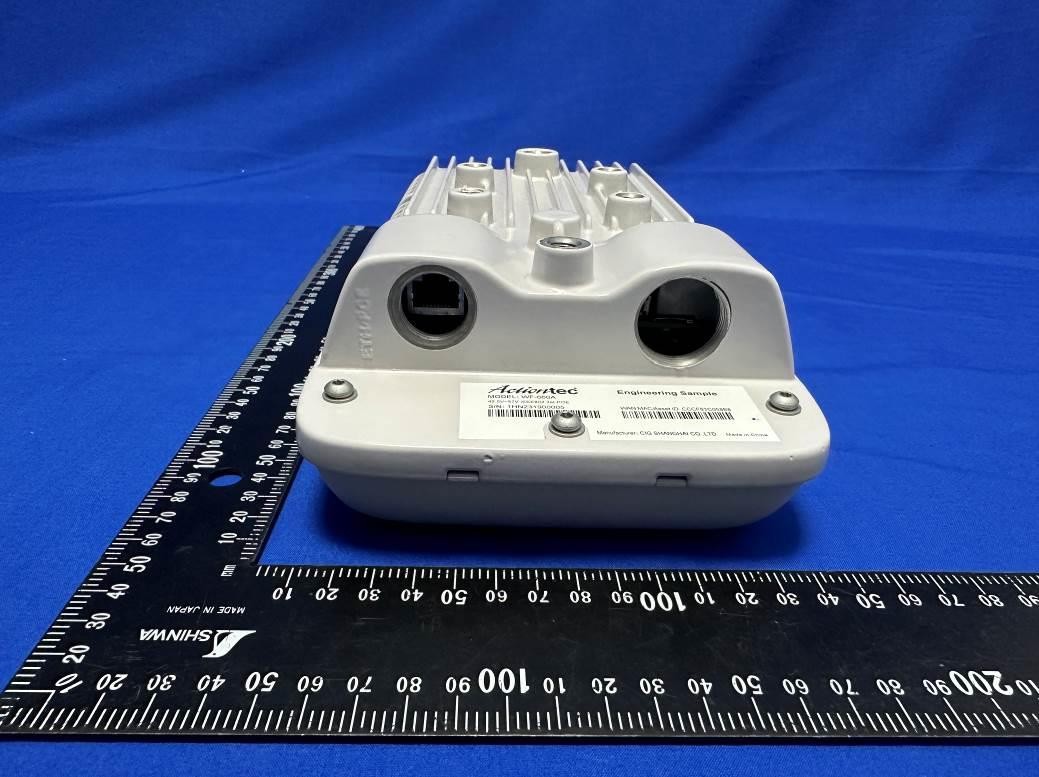

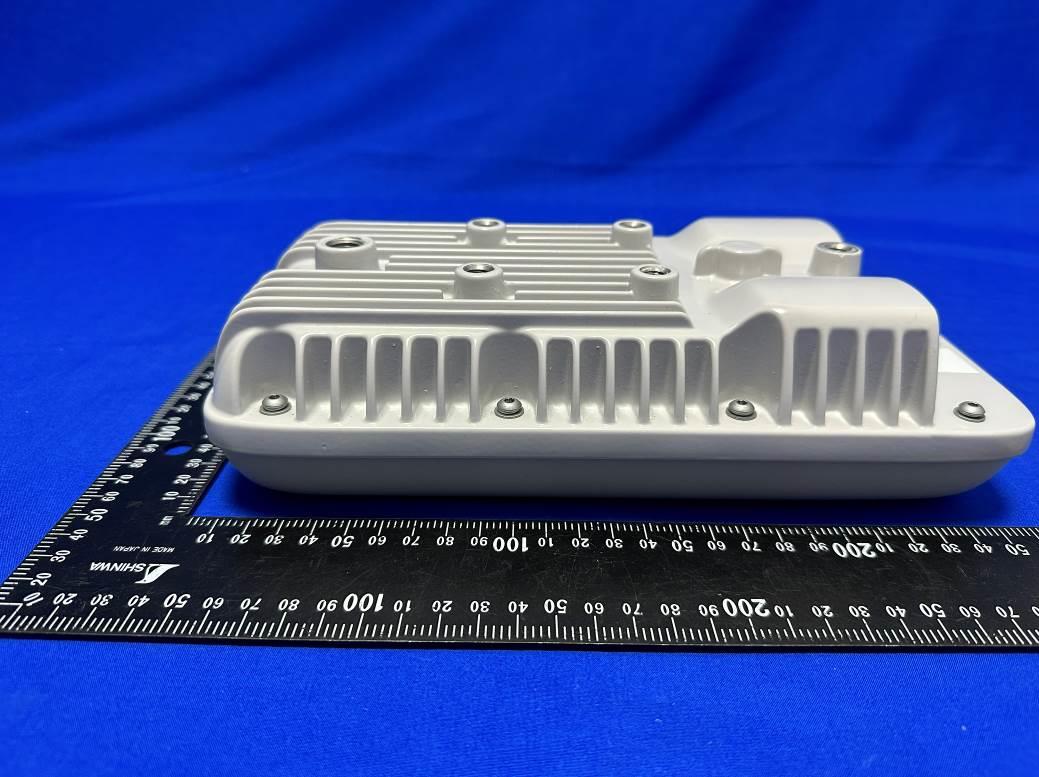

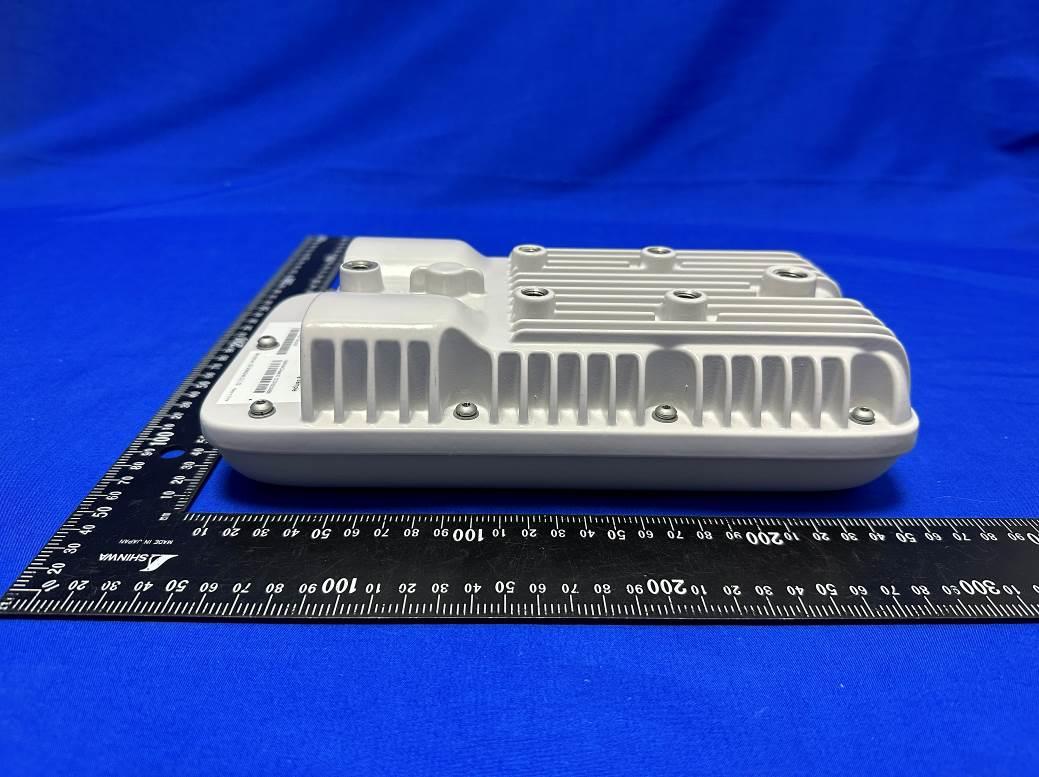

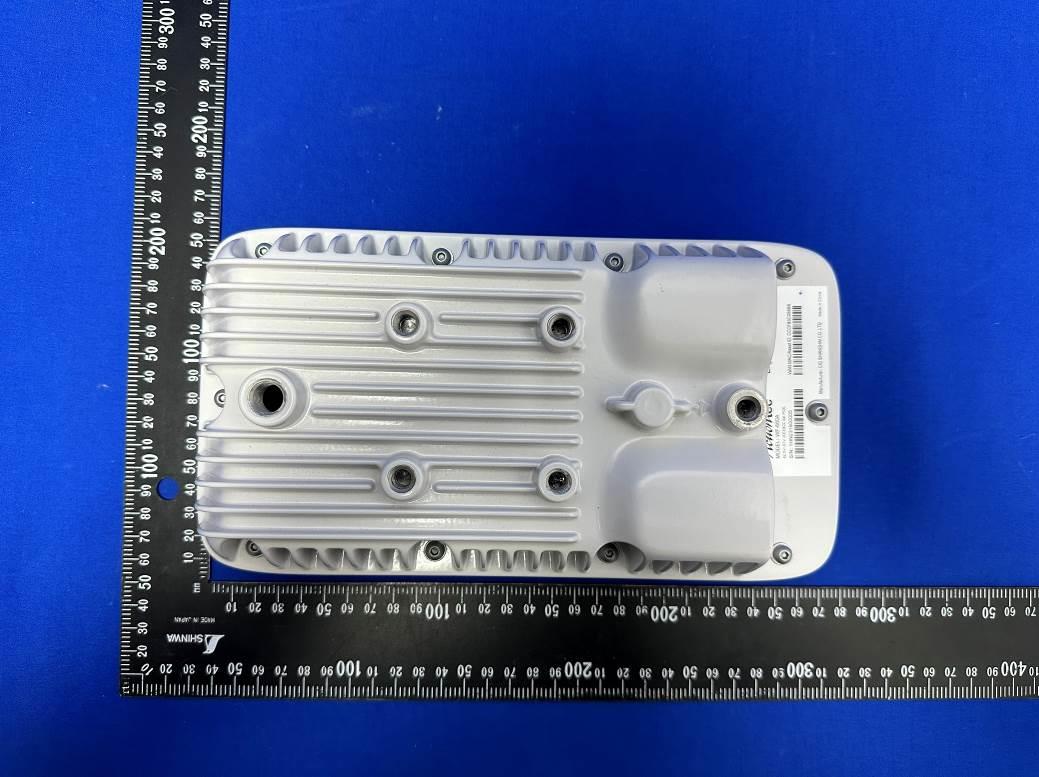

Report No.: 2305RSU058-UE 1 of 3 External Photograph (1) EUT Photo (2) EUT Photo Report No.: 2212RSU044-UE 2 of 3 (3) EUT Photo (4) EUT Photo Report No.: 2212RSU044-UE 3 of 3 (5) EUT Photo (6) EUT Photo

Label Label Location Label Here

Report No.: 2305RSU058-UE 1 of 10 Internal Photograph (1) EUT Photo (WF-660AG, with GPS module) (2) EUT Photo (WF-660AG, with GPS module) Report No.: 2212RSU044-UE 2 of 10 (3) EUT Photo (4) EUT Photo Report No.: 2212RSU044-UE 3 of 10 (5) EUT Photo (6) EUT Photo Report No.: 2212RSU044-UE 4 of 10 (7) EUT Photo (8) EUT Photo Report No.: 2212RSU044-UE 5 of 10 (9) EUT Photo (10) EUT Photo Report No.: 2212RSU044-UE 6 of 10 (11) EUT Photo (12) EUT Photo Report No.: 2212RSU044-UE 7 of 10 (13) EUT Photo (14) EUT Photo Report No.: 2212RSU044-UE 8 of 10 (15) EUT Photo (16) EUT Photo Report No.: 2212RSU044-UE 9 of 10 (17) EUT Photo (GPS module) (18) EUT Photo (GPS module) Report No.: 2212RSU044-UE 10 of 10 (19) EUT Photo (GPS module)

MRT Technology (Suzhou) Co., Ltd Report No.: 2305RSU058-U5 Phone: +86-512-66308358 Report Version: V01 Web: www.mrt-cert.com Issue Date: 2023-08-12 Template Version:0.0 1 of 10 RF Exposure Evaluation Declaration FCC ID: LNQWF660AG Applicant: Actiontec Electronics Inc. Product: Wi-Fi 6 Outdoor AP Model No.: WF-660AG, WF-660A Brand Name: Actiontec FCC Classification: Digital Transmission System (DTS) Unlicensed National Information Infrastructure (NII) FCC Rule Part(s): FCC Part 2.1091 Received Date: 2023-02-09 Result: Complies Reviewed By: Kevin Guo Approved By: Robin Wu The test results relate only to the samples tested. The test results shown in the test report are traceable to the national/international standards through the calibration of the equipment and evaluated measurement uncertainty herein. The test report shall not be reproduced except in full without the written approval of MRT Technology (Suzhou) Co., Ltd. Report No.: 2305RSU058-U5 2 of 10 Revision History Report No. Version Description Issue Date Note 2305RSU058-U5 V01 Initial Report 2023-08-12 Valid Report No.: 2305RSU058-U5 3 of 10 CONTENTS Description Page 1. General Information ................................................................................................................................ 4 1.1. Applicant ........................................................................................................................................ 4 1.2. Manufacturer ................................................................................................................................. 4 1.3. Testing Facility ............................................................................................................................... 4 1.4. Product Information ....................................................................................................................... 5 1.5. Antenna Details ............................................................................................................................. 5 1.6. Device Classification ..................................................................................................................... 6 1.7. Applied Standards ......................................................................................................................... 6 2. RF Exposure Evaluation ......................................................................................................................... 7 2.1. Test Limits ..................................................................................................................................... 7 2.2. MPE Exemptions ........................................................................................................................... 8 2.3. Calculated Result ......................................................................................................................... 11 Report No.: 2305RSU058-U5 4 of 10 1. General Information 1.1. Applicant Actiontec Electronics Inc. 3301 Olcott St. Santa Clara, CA 95054 1.2. Manufacturer Actiontec Electronics Inc. 3301 Olcott St. Santa Clara, CA 95054 1.3. Testing Facility Test Site – MRT Suzhou Laboratory Laboratory Location (Suzhou - Wuzhong) D8 Building, No.2 Tian’edang Rd., Wuzhong Economic Development Zone, Suzhou, China Laboratory Location (Suzhou - SIP) 4b Building, Liando U Valley, No.200 Xingpu Rd., Shengpu Town, Suzhou Industrial Park, China Laboratory Accreditations A2LA: 3628.01 CNAS: L10551 FCC: CN1166 ISED: CN0001 VCCI: R-20025 G-20034 C-20020 T-20020 R-20141 G-20134 C-20103 T-20104 Test Site – MRT Shenzhen Laboratory Laboratory Location (Shenzhen) 1G, Building A, Junxiangda Building, Zhongshanyuan Road West, Nanshan District, Shenzhen, China Laboratory Accreditations A2LA: 3628.02 CNAS: L10551 FCC: CN1284 ISED: CN0105 Test Site – MRT Taiwan Laboratory Laboratory Location (Taiwan) No. 38, Fuxing 2nd Rd., Guishan Dist., Taoyuan City 333, Taiwan (R.O.C.) Laboratory Accreditations TAF: L3261-190725 FCC: 291082, TW3261 ISED: TW3261 Report No.: 2305RSU058-U5 5 of 10 1.4. Product Information Product Name Wi-Fi 6 Outdoor AP Model No. WF-660AG, WF-660A Wi-Fi Specification 802.11b/g/n/ac/ax Bluetooth Specification V5.0 single mode, BLE only Antenna Information Refer to section 1.5 Working Voltage By PoE Note: 1. The information of EUT was provided by the manufacturer, and the accuracy of the information shall be the responsibility of the manufacturer. 2. The model difference is the WF-660A removes the GPS circuit from the WF-66AG, others are exactly the same. 1.5. Antenna Details Antenna Type Frequency (MHz) TX Paths Antenna Gain (dBi) Directional Gain (Elevation angle above 30 degrees) (dBi) Directional Gain (dBi) Ant 0 Ant 1 Correlated Uncorrelated Correlated Uncorrelated Wi-Fi Antenna PIFA 2400 ~ 2500 2 4.47 5.80 -- -- 7.92 4.95 5150 ~ 5350 2 5.45 5.28 7.04 4.07 8.31 5.30 5470 ~ 5725 2 6.56 6.45 -- -- 9.49 6.48 5725 ~ 5850 2 7.03 6.95 -- -- 10.00 6.99 Bluetooth Antenna PIFA 2400 ~ 2500 1 4.34 -- -- -- -- Note: 1. The antenna gain and directional gain refer to manufacturer’s antenna specification. 2. The device supports CDD Mode and STBC mode, details refer to the table as below. 3. CDD signals are correlated, the directional gain as follows, the max directional gain (each angle) = 10 log[(10 G1 /20 + 10 G2 /20 + ... + 10 GN /20 ) 2 /N ANT ] 4. STBC signals are uncorrelated, the directional gain as follows, the max directional gain (each angle) = 10 log[(10 G1 /10 + 10 G2 /10 + ... + 10 GN /10 )/N ANT ] Report No.: 2305RSU058-U5 6 of 10 Test Mode T X Paths CDD Mode STBC Mode Wi-Fi 2.4G 802.11b/g 2 √ X 802.11n/ax 2 X √ Wi-Fi 5G 802.11a 2 √ X 802.11n/ac/ax 2 X √ Note: “√” means “Support”, “X” means “Not support”. 1.6. Device Classification According to the user manual, the antenna of this device is at least 20cm away from the body of the user, this device is classified as a Mobile Device. So, the RF exposure evaluation requirements o…

Text truncated - open the document above for the full version.

MRT Technology (Suzhou) Co., Ltd Report No.: 2305RSU058-U2 Phone: +86-512-66308358 Report Version: V01 Web: www.mrt-cert.com Issue Date: 2023-08-12 Template Version:0.0 1 of 297 RF MEASUREMENT REPORT FCC ID: LNQWF660AG Applicant: Actiontec Electronics Inc. Product: Wi-Fi 6 Outdoor AP Model No.: WF-660AG, WF-660A Brand Name: Actiontec FCC Classification: Unlicensed National Information Infrastructure (NII) FCC Rule Part(s): Part 15 Subpart E (Section 15.407) Result: Complies Received Date: 2023-06-12 Test Date: 2023-06-15 ~ 2023-07-13 Reviewed By: Kevin Guo Approved By: Robin Wu The test results relate only to the samples tested. This equipment has been shown to be capable of compliance with the applicable technical standards as indicated in the measurement report and was tested in accordance with the measurement procedures specified in KDB789033. Test results reported herein relate only to the item(s) tested. The test report shall not be reproduced except in full without the written approval of MRT Technology (Suzhou) Co., Ltd. Report No.: 2305RSU058-U2 2 of 297 Revision History Report No. Version Description Issue Date Note 2305RSU058-U2 V01 Initial Report 2023-08-12 Valid Report No.: 2305RSU058-U2 3 of 297 CONTENTS Description Page 1. General Information ................................................................................................................................ 6 1.1. Applicant ..................................................................................................................................... 6 1.2. Manufacturer............................................................................................................................... 6 1.3. Testing Facility ............................................................................................................................ 6 1.4. Product Information .................................................................................................................... 7 1.5. Radio Specification under Test ................................................................................................... 7 1.6. Working Frequencies .................................................................................................................. 8 1.7. Antenna Details .......................................................................................................................... 9 2. Test Configuration ................................................................................................................................. 10 2.1. Test Mode ................................................................................................................................. 10 2.2. Test System Connection Diagram ............................................................................................ 10 2.3. Test Software ............................................................................................................................. 11 2.4. Applied Standards ..................................................................................................................... 11 2.5. Test Environment Condition ....................................................................................................... 11 3. Antenna Requirements ......................................................................................................................... 12 4. Measuring Instrument ........................................................................................................................... 13 5. Decision Rules and Measurement Uncertainty .................................................................................. 14 5.1. Decision Rules .......................................................................................................................... 14 5.2. Measurement Uncertainty ........................................................................................................ 14 6. Test Result .............................................................................................................................................. 15 6.1. Summary .................................................................................................................................. 15 6.2. 26dB & 99% Bandwidth Measurement ..................................................................................... 16 6.2.1. Test Limit ................................................................................................................................... 16 6.2.2. Test Procedure ......................................................................................................................... 16 6.2.3. Test Setting ............................................................................................................................... 16 6.2.4. Test Setup ................................................................................................................................. 16 6.2.5. Test Result ................................................................................................................................ 17 6.3. 6dB Bandwidth Measurement .................................................................................................. 18 6.3.1. Test Limit ................................................................................................................................... 18 6.3.2. Test Procedure ......................................................................................................................... 18 6.3.3. Test Setting ............................................................................................................................... 18 6.3.4. Test Setup ................................................................................................................................. 18 6.3.5. Test Result ....................................................…

Text truncated - open the document above for the full version.

Report No.: 2305RSU058-U2 55 of 297 802.11a 6dB Bandwidth Channel 149 (5745MHz) Channel 157 (5785MHz) Channel 165 (5825MHz) Report No.: 2305RSU058-U2 56 of 297 802.11ac-VHT20 6dB Bandwidth Channel 149 (5745MHz) Channel 157 (5785MHz) Channel 165 (5825MHz) 802.11ac-VHT40 6dB Bandwidth Channel 151 (5755MHz) Channel 159 (5795MHz) Report No.: 2305RSU058-U2 57 of 297 802.11ac-VHT80 6dB Bandwidth Channel 155 (5775MHz) Report No.: 2305RSU058-U2 58 of 297 802.11ax-HE20 6dB Bandwidth Channel 149 (5745MHz) Channel 157 (5785MHz) Channel 165 (5825MHz) 802.11ac-VHT40 6dB Bandwidth Channel 151 (5755MHz) Channel 159 (5795MHz) Report No.: 2305RSU058-U2 59 of 297 802.11ax-HE80 6dB Bandwidth Channel 155 (5775MHz) Report No.: 2305RSU058-U2 60 of 297 A.4 Output Power Test Result Test Site WZ-SR5 Test Engineer Jeff Yang Test Date 2023-06-26 ~ 2023-07-05 Test Mode UNII-1 Test Mode Data Rate MCS Channel No. Freq. (MHz) Average Power (dBm) Total Average Power (dBm) Average Power Limit (dBm) 30 Degree EIRP (dBm) EIRP Limit (dBm) Result Ant 0 Ant 1 11a 6Mbps 36 5180 10.90 9.77 13.38 ≤ 27.69 20.45 ≤ 21.00 Pass 11a 6Mbps 44 5220 10.82 10.15 13.51 ≤ 27.69 20.58 ≤ 21.00 Pass 11a 6Mbps 48 5240 10.71 10.27 13.51 ≤ 27.69 20.58 ≤ 21.00 Pass 11ac-VHT20 MCS0 36 5180 14.06 13.17 16.65 ≤ 30.00 20.72 ≤ 21.00 Pass 11ac-VHT20 MCS0 44 5220 13.66 13.05 16.38 ≤ 30.00 20.45 ≤ 21.00 Pass 11ac-VHT20 MCS0 48 5240 13.98 13.47 16.74 ≤ 30.00 20.81 ≤ 21.00 Pass 11ac-VHT40 MCS0 38 5190 13.81 12.98 16.43 ≤ 30.00 20.50 ≤ 21.00 Pass 11ac-VHT40 MCS0 46 5230 13.86 13.41 16.65 ≤ 30.00 20.72 ≤ 21.00 Pass 11ac-VHT80 MCS0 42 5210 13.97 13.17 16.60 ≤ 30.00 20.67 ≤ 21.00 Pass 11ax-HE20 MCS0 36 5180 13.87 13.13 16.53 ≤ 30.00 20.60 ≤ 21.00 Pass 11ax-HE20 MCS0 44 5220 13.96 13.44 16.72 ≤ 30.00 20.79 ≤ 21.00 Pass 11ax-HE20 MCS0 48 5240 13.82 13.32 16.59 ≤ 30.00 20.66 ≤ 21.00 Pass 11ax-HE40 MCS0 38 5190 13.86 12.88 16.41 ≤ 30.00 20.48 ≤ 21.00 Pass 11ax-HE40 MCS0 46 5230 13.94 13.47 16.72 ≤ 30.00 20.79 ≤ 21.00 Pass 11ax-HE80 MCS0 42 5210 13.88 12.91 16.43 ≤ 30.00 20.50 ≤ 21.00 Pass Note 1: Total Average Power (dBm) = 10*log {10 (Ant 0 Average Power /10) + 10 (Ant 1 Average Power /10) }. Note 2: EIRP Above 30 Degree Angle (dBm) = Total Average Power (dBm) + Directional Gain (Elevation angle above 30 degrees) (dBi) Note 3: For 802.11a-NII-1 band, Power Limit (dBm) = 30-(8.31-6) = 27.69dBm Report No.: 2305RSU058-U2 61 of 297 Test Site WZ-SR5 Test Engineer Jeff Yang Test Date 2023-06-26 ~ 2023-06-30 Test Mode UNII-2a & UNII-2c & UNII-3 Test Mode Data Rate MCS Channel No. Freq. (MHz) Average Power (dBm) Total Average Power (dBm) Average Power Limit (dBm) Ant 0 Ant 1 11a 6Mbps 52 5260 17.23 16.87 20.06 ≤ 21.66 11a 6Mbps 60 5300 16.54 16.45 19.51 ≤ 21.66 11a 6Mbps 64 5320 15.73 15.55 18.65 ≤ 21.66 11a 6Mbps 100 5500 15.21 15.42 18.33 ≤ 20.39 11a 6Mbps 116 5580 15.32 15.21 18.28 ≤ 20.39 11a 6Mbps 140 5700 15.76 15.32 18.56 ≤ 20.39 11a 6Mbps 144 5720 15.19 15.21 18.21 ≤ 19.21 11a 6Mbps 149 5745 22.79 22.58 25.70 ≤ 26.00 11a 6Mbps 157 5785 22.76 22.48 25.63 ≤ 26.00 11a 6Mbps 165 5825 22.55 22.80 25.69 ≤ 26.00 11ac-VHT20 MCS0 52 5260 20.16 20.03 23.11 ≤ 23.98 11ac-VHT20 MCS0 60 5300 19.60 19.75 22.69 ≤ 23.98 11ac-VHT20 MCS0 64 5320 19.23 19.47 22.36 ≤ 23.98 11ac-VHT20 MCS0 100 5500 19.32 18.77 22.06 ≤ 23.50 11ac-VHT20 MCS0 116 5580 19.27 19.55 22.42 ≤ 23.50 11ac-VHT20 MCS0 140 5700 16.34 16.65 19.51 ≤ 23.50 11ac-VHT20 MCS0 144 5720 19.23 19.62 22.44 ≤ 22.47 11ac-VHT20 MCS0 149 5745 24.21 23.78 27.01 ≤ 29.01 11ac-VHT20 MCS0 157 5785 24.02 24.12 27.08 ≤ 29.01 11ac-VHT20 MCS0 165 5825 24.25 24.51 27.39 ≤ 29.01 11ac-VHT40 MCS0 54 5270 20.88 20.67 23.79 ≤ 23.98 11ac-VHT40 MCS0 62 5310 19.95 19.53 22.76 ≤ 23.98 11ac-VHT40 MCS0 102 5510 20.33 20.23 23.29 ≤ 23.50 11ac-VHT40 MCS0 110 5550 20.20 19.87 23.05 ≤ 23.50 11ac-VHT40 MCS0 134 5670 18.32 18.71 21.53 ≤ 23.50 11ac-VHT40 MCS0 142 5710 20.35 20.24 23.31 ≤ 23.50 11ac-VHT40 MCS0 151 5755 24.18 24.17 27.19 ≤ 29.01 11ac-VHT40 MCS0 159 5795 24.31 24.43 27.38 ≤ 29.01 Report No.…
