LOB2H06SmaRT Portable Radio

2013 Cervis, Inc. HH-xH06 Manual DN: U076.0.4-SmaRT_HP-2/4/6_hhr ™ ™ SmaRT HH-xH06 This document is the property of Cervis, Inc. and cannot be copied, modified, e-mailed, or reproduced without the express prior written consent of Cervis, Inc. Cervis, Inc. reserves the right to change this manual or edit, delete, or modify any information without prior notification. FCC Statements 15.19 – Two Part Warning This device complies with Part 15 of the FCC rules. Operation is subject to the following two conditions: (1) This device may not cause harmful interference and (2) This device must accept any interference received, including interference that may cause undesired operation. 15.21 – Unauthorized Modification NOTICE: The manufacturer is not responsible for any unauthorized modifications to this equipment made by the user. Such modifications could void the user’s authority to operate the equipment. 15.105(b) – Note: Note: This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to part 15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful interference in a residential installation. The equipment generates, uses and can radiate radio frequency energy and, if not installed and used in accordance with the instructions, may cause harmful interference to radio communications. However, there is no guarantee that interference will not occur in a particular installation. If this equipment does cause harmful interference to radio or television reception, which can be determined by turning the equipment off and on, the user is encouraged to try to correct the interference by one or more of the following measures: —Reorient or relocate the receiving antenna. —Increase the separation between the equipment and receiver. —Connect the equipment into an outlet on a circuit different from that to which the receiver is connected. —Consult the dealer or an experienced radio/TV technician for help. Industry Canada Statement This device complies with Industry Canada licence-exempt RSS standard(s). Operation is subject to the following two conditions: (1) this device may not cause interference, and (2) this device must accept any interference, including interference that may cause undesired operation of the device. Le présent appareil est conforme aux CNR d'Industrie Canada applicables aux appareils radio exempts de licence. L'exploitation est autorisée aux deux conditions suivantes : (1) l'appareil ne doit pas produire de brouillage, et (2) l'utilisateur de l'appareil doit accepter tout brouillage radioélectrique subi, même si le brouillage est susceptible d'en compromettre le fonctionnement. RoHS Compliance Statement Cervis, Inc. complies with the requirements of Restriction of Hazardous Substances (RoHS/WEEE) Specification based on in-house practice and declaration of compliance from our vendors. For additional information concerning RoHS compliance, please contact Cervis, Inc. at: CERVIS, Inc. 170 Thorn Hill Road  Warrendale, PA 15086 Phone: 724.741.9000  Fax: 724.741.9001 This product may contain material that may be hazardous to human health and the environment. In compliance with EU Directive 2002/96/EC on Waste Electrical and Electronic Equipment (WEEE):  Do not dispose of the product as unsorted municipal waste.  This product should be recycled in accordance with local regulations. Contact local authorities for detailed information.  This product may be returnable to the distributor for recycling. Contact your distributor for details. Industry Canada Statement This device complies with Canadian RSS-210. The installer of this radio equipment must ensure that the antenna is located or pointed such that it does not emit RF field in excess of Health Canada limits for the general population; consult Safety Code 6, obtainable from Health Canada’s website www.hc-sc.gc.ca/ewh-semt/pubs/radiation/radio_guide-lignes_direct- eng.php. Cet appareil est conforme à la norme canadienne RSS-210. L'installateur de cet équipement radio doit s'assurer que l'antenne est située ou dirigée de manière à ne pas émettre un champ RF excédant les limites imposées par Santé Canada pour la population en général; consultez le Code de sécurité 6, disponible sur le site web de Santé Canada www. hc- sc.gc.ca/ewh-semt/pubs/radiation/radio_guide-lignes_direct-eng.php. Handheld Remotes Manual 2013 Cervis, Inc. i Notes/Definitions Associate SmaRT configuration method using a series of specific remote unit button presses to establish a communication link between a SmaRT Handheld and a SmaRT Base Unit. DSSS Direct sequence spread spectrum; an advanced wireless communication technology. Dissociate Dissolution of all established communication links between handhelds and a base unit. PTO Push to Operate: Command broadcast only while a button is depressed. The command ends when the button is released. DO Dual Operation: Used to define handheld remotes that use one button for two operations. For instance, the SmaRT DO-206 handheld remote uses one button (button 6, typical) to both turn on the handheld remote and turn the units off. OO On and Off Operation: Where two buttons or buttons are used for two operations or processes. For instance, the SmaRT DO-206 handheld remote uses one button (button 6, typical) to both turn on the handheld remote and turn the unist off. Line of Sight (aka Direct-Line-of-Sight) Type of communication between transceivers, or a transmitter and a receiver, where the pathway between the two units must be clear of obstacles. TX/RX Transmit/Receive Document Conventions Note: Notes are used to indicate points of interest or pertinent information. Cautions are used to warn of serious consequences of actions or inactions that may result in injury, death, or serious damage to the equipment. SmaRT HH-xH06 U076.0.4-SmaRT_HP-2/4/6_hhr ii Table of Contents Document Conventions ...........................................................…

Text truncated - open the document above for the full version.

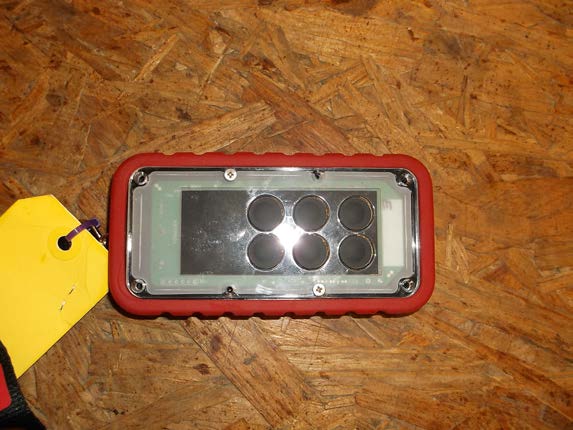

Structured Mining Systems, Inc. d.b.a. Cervis Inc. SmaRT Portable Radio HH-2H06 EXTERNAL PHOTOGRAPHS Page 1 of 4 Structured Mining Systems, Inc. d.b.a. Cervis Inc. SmaRT Portable Radio HH-2H06 EXTERNAL PHOTOGRAPHS Page 2 of 4 Structured Mining Systems, Inc. d.b.a. Cervis Inc. SmaRT Portable Radio HH-2H06 EXTERNAL PHOTOGRAPHS Page 3 of 4 Structured Mining Systems, Inc. d.b.a. Cervis Inc. SmaRT Portable Radio HH-2H06 EXTERNAL PHOTOGRAPHS Page 4 of 4

Cervis SmaRT MODEL: HH-2H06 FCC ID: LOB2H06 IC: 7955A-2H06 0.50” 1.25” L078.0.1 SmaRT HH-2H06 External Radio Label Notes: 1. Cuts on solid lines. 2. CLEAR background, adhesive-backed vinyl material. 3. Dimensions in inches. 4. Indelible BLACK print. 5. Scale 1:1 0976 gms 12/13/2013 Input: 4.5V

gms 1/3//2014 Cervis SmaRT MODEL: PTO-2H06 FCC ID: LOB2H06 IC: 7955A-2H06 0.50” 1.25” Notes: 1. Cuts on solid lines. 2. CLEAR background, adhesive-backed vinyl material. 3. Dimensions in inches. 0976 Input: 4.5V Cervis SmaRT MODEL: PTO-2H04 FCC ID: LOB2H06 IC: 7955A-2H06 0.50” 1.25” 0976 Input: 4.5V B (PTO-2H04) Cervis SmaRT MODEL: PTO-2H02 FCC ID: LOB2H06 IC: 7955A-2H06 0.50” 1.25” 0976 Input: 4.5V C (PTO-2H02) A (PTO-2H06) Cervis SmaRT MODEL: OO-2H06 FCC ID: LOB2H06 IC: 7955A-2H06 0.50” 1.25” 0976 Input: 4.5V D (OO-2H06) Cervis SmaRT MODEL: OO-2H04 FCC ID: LOB2H06 IC: 7955A-2H06 0.50” 1.25” 0976 Input: 4.5V E (OO-2H04) Cervis SmaRT MODEL: OO-2H02 FCC ID: LOB2H06 IC: 7955A-2H06 0.50” 1.25” 0976 Input: 4.5V F (OO-2H02) Cervis SmaRT MODEL: DO-2H06 FCC ID: LOB2H06 IC: 7955A-2H06 0.50” 1.25” 0976 Input: 4.5V G (DO-2H06) Cervis SmaRT MODEL: DO-2H04 FCC ID: LOB2H06 IC: 7955A-2H06 0.50” 1.25” 0976 Input: 4.5V H (DO-2H04) Cervis SmaRT MODEL: DO-2H02 FCC ID: LOB2H06 IC: 7955A-2H06 0.50” 1.25” 0976 Input: 4.5V I (DO-2H02) Cervis SmaRT MODEL: PTO-2H06S FCC ID: LOB2H06 IC: 7955A-2H06 0.50” 1.25” 0976 Input: 4.5V J (PTO-2H06S) Cervis SmaRT MODEL: OO-2H06S FCC ID: LOB2H06 IC: 7955A-2H06 0.50” 1.25” 0976 Input: 4.5V K (OO-2H06S) Cervis SmaRT MODEL: DO-2H06S FCC ID: LOB2H06 IC: 7955A-2H06 0.50” 1.25” 0976 Input: 4.5V L (DO-2H06S) Cervis SmaRT MODEL: PTO-2H06B FCC ID: LOB2H06 IC: 7955A-2H06 0.50” 1.25” 0976 Input: 4.5V M (PTO-2H06B) Cervis SmaRT MODEL: PTO-2H04B FCC ID: LOB2H06 IC: 7955A-2H06 0.50” 1.25” 0976 Input: 4.5V N (PTO-2H04B) Cervis SmaRT MODEL: PTO-2H02B FCC ID: LOB2H06 IC: 7955A-2H06 0.50” 1.25” 0976 Input: 4.5V O (PTO-2H02B) Cervis SmaRT MODEL: OO-2H06B FCC ID: LOB2H06 IC: 7955A-2H06 0.50” 1.25” 0976 Input: 4.5V P (OO-2H06B) Cervis SmaRT MODEL: OO-2H04B FCC ID: LOB2H06 IC: 7955A-2H06 0.50” 1.25” 0976 Input: 4.5V Q (OO-2H04B) Cervis SmaRT MODEL: OO-2H02B FCC ID: LOB2H06 IC: 7955A-2H06 0.50” 1.25” 0976 Input: 4.5V R (OO-2H02B) Cervis SmaRT MODEL: DO-2H06B FCC ID: LOB2H06 IC: 7955A-2H06 0.50” 1.25” 0976 Input: 4.5V S (DO-2H06B) Cervis SmaRT MODEL: DO-2H04B FCC ID: LOB2H06 IC: 7955A-2H06 0.50” 1.25” 0976 Input: 4.5V T (DO-2H04B) Cervis SmaRT MODEL: DO-2H02B FCC ID: LOB2H06 IC: 7955A-2H06 0.50” 1.25” 0976 Input: 4.5V U (DO-2H02B) 4. Indelible BLACK print. 5. Scale 1:1 L078.2.0 SmaRT HH-2H06 External Radio Labels

Structured Mining Systems, Inc. d.b.a. Cervis Inc. SmaRT Portable Radio HH-2H06 INTERNAL PHOTOGRAPHS Page 1 of 3 Structured Mining Systems, Inc. d.b.a. Cervis Inc. SmaRT Portable Radio HH-2H06 INTERNAL PHOTOGRAPHS Page 2 of 3 Structured Mining Systems, Inc. d.b.a. Cervis Inc. SmaRT Portable Radio HH-2H06 INTERNAL PHOTOGRAPHS Page 3 of 3

802 N. Twin Oaks Valley Road, Suite 105 • San Marcos, CA 92069 • U.S.A. TEL (760) 471-2100 • FAX (760) 471-2121 http://www.rfexposurelab.com CERTIFICATE OF COMPLIANCE SAR EVALUATION Cervis Incorporated Dates of Test: Aug. 29 & Dec. 13, 2013 170 Thorn Hill Road Test Report Number: SAR.20130811 Warrendale, PA 15086 Revision C This wireless mobile and/or portable device has been shown to be compliant for localized specific absorption rate (SAR) for uncontrolled environment/general exposure limits specified in ANSI/IEEE Std. C95.1-1992 and had been tested in accordance with the measurement procedures specified in IEEE 1528-2003, IEC 62209-2 and OET Bulletin 65 Supp. C (See test report). I attest to the accuracy of the data. All measurements were performed by myself or were made under my supervision and are correct to the best of my knowledge and belief. I assume full responsibility for the completeness of these measurements and vouch for the qualifications of all persons taking them. RF Exposure Lab, LLC certifies that no party to this application is subject to a denial of Federal benefits that includes FCC benefits pursuant to Section 5301 of the Anti-Drug Abuse Act of 1988, 21 U.S.C. 853(a). Jay M. Moulton Vice President Testing Cert. # 2387.01 FCC ID: LOB2H06 IC Certificate: 7955A-2 H06 Model(s): HH-2H06 including sub-models PTO-2H06, OO-2H06 and DO-2H06 Test Sample: Engineering Unit Same as Production Serial Number: Exhibit #9.2 Equipment Type: Wireless Handheld/Belt Worn Cervo Controller Classification: Portable Transmitter Next to Body TX Frequency Range: 2402 – 2480 MHz Frequency Tolerance: ± 2.5 ppm Maximum RF Output: 2450 MHz – 19.99 dB Peak Conducted Signal Modulation: QPSK Antenna Type: Antenna Factor, P/N ANT-2.4-μSP; Chip Antenna Application Type: Certification FCC Rule Parts: Part 2, 15C KDB Test Methodology: KDB 447498 D01 v05 Industry Canada: RSS-102, Safety Code 6 Maximum SAR Value: 0.16 W/kg Reported Separation Distance: 0 mm © 2013 RF Exposure Lab, LLC This report shall not be reproduced except in full without the written approval of RF Exposure Lab, LLC. Report Number: SAR.20130811 Table of Contents 1. Introduction ........................................................................................................................ 3 SAR Definition [5] ................................................................................................................... 4 2. SAR Measurement Setup ................................................................................................... 5 Robotic System ...................................................................................................................... 5 System Hardware ................................................................................................................... 5 System Description ................................................................................................................ 5 E-Field Probe ......................................................................................................................... 6 3. Robot Specifications ........................................................................................................... 8 4. Probe and Dipole Calibration .............................................................................................. 9 5. Phantom & Simulating Tissue Specifications .....................................................................10 Head & Body Simulating Mixture Characterization ................................................................10 6. ANSI/IEEE C95.1 – 1992 RF Exposure Limits [2] ..............................................................11 Uncontrolled Environment .....................................................................................................11 Controlled Environment .........................................................................................................11 7. Measurement Uncertainty .................................................................................................12 8. System Validation..............................................................................................................13 Tissue Verification .................................................................................................................13 Test System Verification ........................................................................................................13 9. SAR Test Data Summary ..................................................................................................14 Procedures Used To Establish Test Signal ...........................................................................14 Device Test Condition ...........................................................................................................14 SAR Data Summary – 2450 MHz Body 802.15 .....................................................................18 10. Test Equipment List .......................................................................................................19 11. Conclusion ....................................................................................................................20 12. References ....................................................................................................................21 Appendix A – System Validation Plots and Data .......................................................................22 Appendix B – SAR Test Data Plots ...........................................................................................27 Appendix C – SAR Test Setup Photos ......................................................................................30 Appendix D – Probe Calibration Data Sheets ............................................................................39 Appendix E – Dipole Calibration Data Sheets ...........................................................................50 Ap…

Text truncated - open the document above for the full version.

Form EMC009-091213 Report Number: F2LQ5479A-01E Rev. 3 Page 1 of 61 Issue Date: Dec. 19, 2013 F2 Labs 16740 Peters Road Middlefield, Ohio 44062 United States of America www.f2labs.com CERTIFICATION TEST REPORT Manufacturer: Structured Mining Systems, Inc. d.b.a. Cervis Inc. 170 Thornhill Road Warrendale, Pennsylvania 15086 United States of America Applicant: Same As Above Product: SmaRT Portable Radio Model: HH-2H06 FCC ID: LOB2H06 Testing Commenced: Aug. 22, 2013 Testing Ended: Dec. 4, 2013 Summary of Test Results: Page 4 Standards:  FCC Part 15 Subpart C, Section 15.247 Evaluation Conducted by: Ken Littell, EMC Tech. Mgr. Report Reviewed by: Wendy Fuster, President F2 Labs F2 Labs 26501 Ridge Road 16740 Peters Road Damascus, MD 20872 Middlefield, OH 44062 Ph 301.253.4500 Ph 440.632.5541 Fax 301.253.5179 Fax 440.632.5542 This test report may be reproduced in full; partial reproduction only may be made with the written consent of F2 Labs. The results in this report apply only to the equipment tested. Order Number: F2LQ5479A Client: Cervis Inc. Model: HH-2H06 Form EMC001-012413 Report Number: F2LQ5479A-01E Rev. 3 Page 2 of 61 Issue Date: Dec. 19, 2013 TABLE OF CONTENTS Section Title Page 1 ADMINISTRATIVE INFORMATION 3 2 SUMMARY OF TEST RESULTS/MODIFICATIONS 4 3 TABLE OF MEASURED RESULTS 5 4 ENGINEERING STATEMENT 6 5 EUT INFORMATION AND DATA 7 6 FCC Part 15.247(a)(2) – -6dB Occupied Bandwidth 8 7 FCC Part 15.247(b)(3) – Conducted Output Power 12 8 FCC Part 15.247(d) – Conducted Spurious Emissions 16 9 Radiated Spurious Emission 32 10 FCC PART 15.247 – Peak Power Spectral Density (PSD) 57 11 Photos/Exhibits – Product Photos, Test Setups 60 Order Number: F2LQ5479A Client: Cervis Inc. Model: HH-2H06 Form EMC001-012413 Report Number: F2LQ5479A-01E Rev. 3 Page 3 of 61 Issue Date: Dec. 19, 2013 1 ADMINISTRATIVE INFORMATION 1.1 Measurement Location: F2 Labs in Middlefield, Ohio. Site description and attenuation data are on file with the FCC's Sampling and Measurement Branch at the FCC Laboratory in Columbia, MD. 1.2 Measurement Procedure: All measurements were performed according to the 2003 version of ANSI C63.4 and recommended FCC procedure of measurement of DTS operating under Section 15.247 and in KDB558074. A list of the measurement equipment can be found in Section 6. 1.3 Uncertainty Budget: Radiated Emission  Combined Uncertainty (+ or -) 2.24 dB  Expanded Uncertainty (+ or -) 4.48 dB This uncertainty represents an expanded uncertainty expressed at approximately the 95% confidence level using a coverage factor of k=2. 1.4 Document History: Document Number Description Issue Date Approved By F2LQ5479A-01E First Issue Oct. 16, 2013 W. Fuster F2LQ5479A-01E Rev. 1 Pg. 34; pp. 69-75; pp. 76-78 Nov. 15, 2013 W. Fuster F2LQ5479A-01E Rev. 2 Revision to finished product certification Dec. 11, 2013 W. Fuster F2LQ5479A-01E Rev. 3 Revisions to test equipment listings Dec. 19, 2013 W. Fuster Order Number: F2LQ5479A Client: Cervis Inc. Model: HH-2H06 Form EMC001-012413 Report Number: F2LQ5479A-01E Rev. 3 Page 4 of 61 Issue Date: Dec. 19, 2013 2 SUMMARY OF TEST RESULTS Test Name Standard(s) Results -6dB Occupied Bandwidth CFR 47 Part 15.247(a)(2) / KDB558074 Complies Conducted Output Power CFR 47 Part 15.247(b)(3) / KDB558074 Complies Conducted Spurious Emissions CFR 47 Part 15.247(d) / Part 15.209 / KDB558074 Complies Radiated Spurious Emission with 3.8dBi Integral Antenna CFR 47 Part 15.247(d) / Part 15.209 / KDB558074 Complies Peak Power Spectral Density CFR 47 Part 15.247(e) / KDB558074 Complies Note: product was operated using AAA batteries. Requirements of 15.31 were met by using new batteries. Modifications Made to the Equipment None Order Number: F2LQ5479A Client: Cervis Inc. Model: HH-2H06 Form EMC001-012413 Report Number: F2LQ5479A-01E Rev. 3 Page 5 of 61 Issue Date: Dec. 19, 2013 3 TABLE OF MEASURED RESULTS Test High Channel 2.480GHz Mid Channel 2.440GHz Low Channel 2.405GHz Conducted Output Power 99.77mW (19.99dBm) 98.628mW (19.94dBm) 99.083mW (19.95dBm) Conducted Output Power Limit 1 Watt, (30dBm) 1 Watt, (30dBm) 1 Watt, (30dBm) E.I.R.P. with 3.8dBi Integral antenna 239.33mW (23.79dBm) 236.591mW (23.74dBm) 237.68mW (23.76dBm) E.I.R.P. Limit 4 Watts, (36.02dBm) 4 Watts, (36.02dBm) 4 Watts, (36.02dBm) Peak Power Spectral Density 7.327 dBm 7.312 dBm 7.831 dBm Peak Power Spectral Density Limit 8 dBm 8 dBm 8 dBm -6dB Occupied bandwidth 2.335 MHz 2.310 MHz 2.270 MHz -6dB Occupied Bandwidth Limit ≥ 500KHz ≥ 500KHz ≥ 500KHz Order Number: F2LQ5479A Client: Cervis Inc. Model: HH-2H06 Form EMC001-012413 Report Number: F2LQ5479A-01E Rev. 3 Page 6 of 61 Issue Date: Dec. 19, 2013 4 ENGINEERING STATEMENT This report has been prepared on behalf of Cervis Inc. to provide documentation for the testing described herein. This equipment has been tested and found to comply with Part 15.247 of the FCC Rules using ANSI C63.4 2003 and KDB558074 standards. The test results found in this test report relate only to the items tested. Order Number: F2LQ5479A Client: Cervis Inc. Model: HH-2H06 Form EMC001-012413 Report Number: F2LQ5479A-01E Rev. 3 Page 7 of 61 Issue Date: Dec. 19, 2013 5 EUT INFORMATION AND DATA 5.1 Equipment Under Test: Product: SmaRT Portable Radio Model: HH-2H06 Serial No.: None FCC ID: LOB2H06 5.2 Trade Name: Structured Mining Systems, Inc. d.b.a. Cervis Inc. 5.3 Power Supply: Non-rechargeable AAA Batteries 5.4 Applicable Rules: CFR 47, Part 15.247, subpart C 5.5 Equipment Category: Radio Transmitter-DTS 5.6 Antenna: 3.8dBi gain Integral Chip antenna 5.7 Accessories: N/A 5.8 Test Item Condition: The equipment to be tested was received in good condition. 5.9 Testing Algorithm: The EUT was configured to permit frequency changes from low-mid-upper transmission channel using digital modulation (required for digital transmission systems). For RF antenna conducted tests, the EUT was equipped with an SMA connector for connection to the measuring equipment. For radiated emissions tests, in a semi-anechoic c…

Text truncated - open the document above for the full version.

Structured Mining Systems, Inc. d.b.a. Cervis Inc. SmaRT Portable Radio HH-2H06 TEST SETUP PHOTOGRAPHS Page 1 of 2 Radiated Spurious Emission with 3.8dBi Integral Antenna Structured Mining Systems, Inc. d.b.a. Cervis Inc. SmaRT Portable Radio HH-2H06 TEST SETUP PHOTOGRAPHS Page 2 of 2 Conducted Output Power, Peak Power Spectral Density, -6dB Occupied Bandwidth, and Conducted Spurious Emissions
