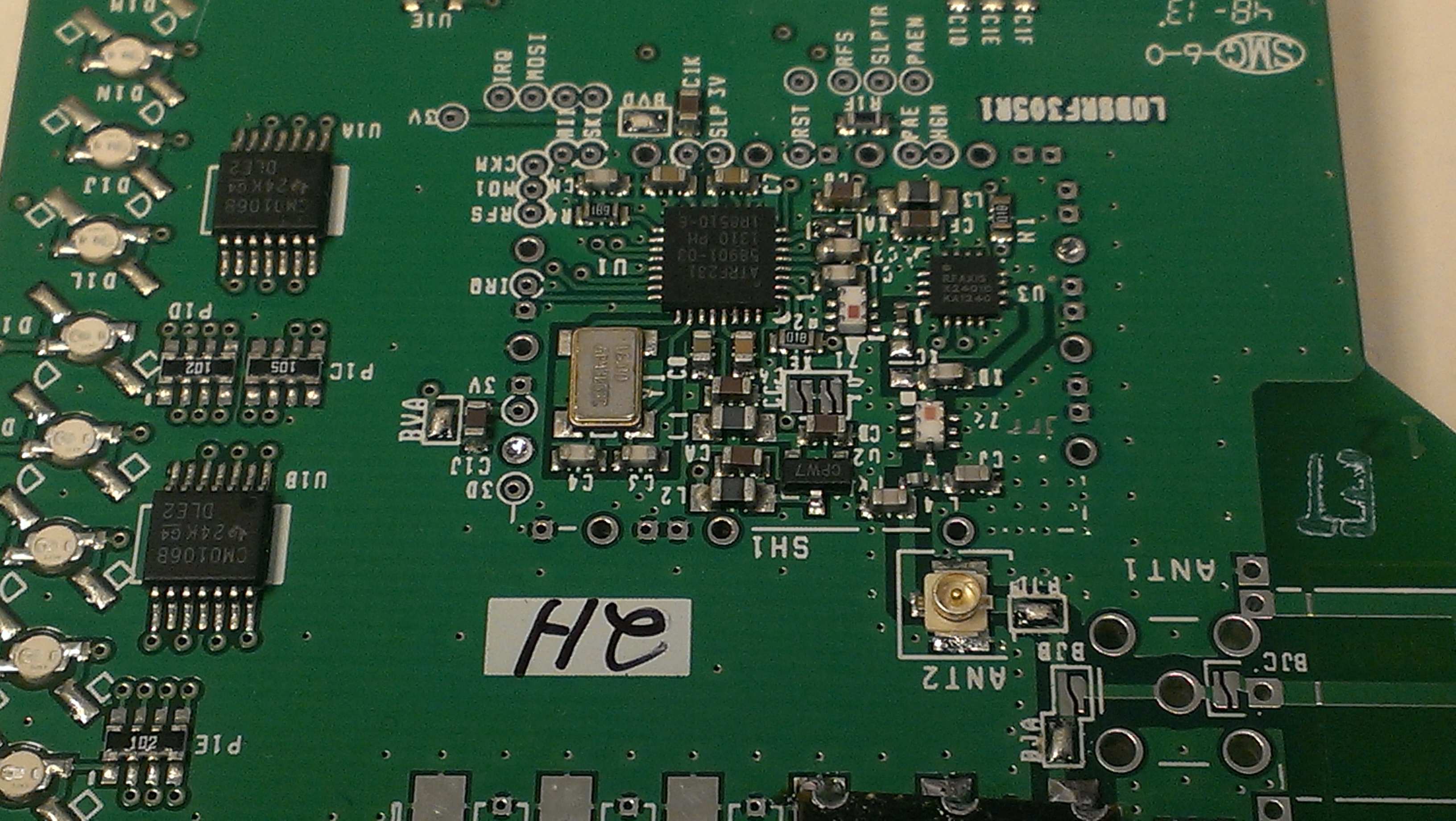

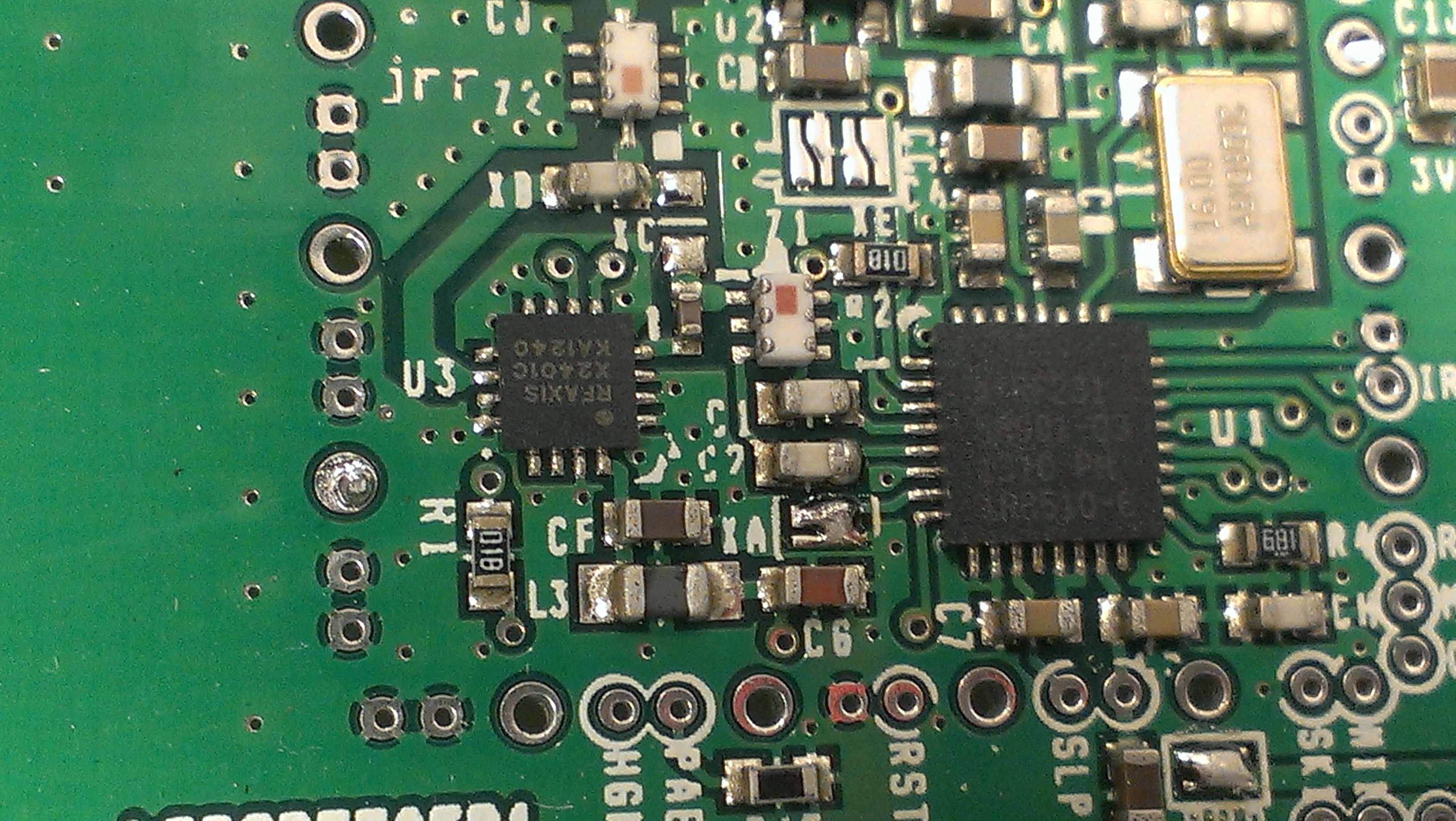

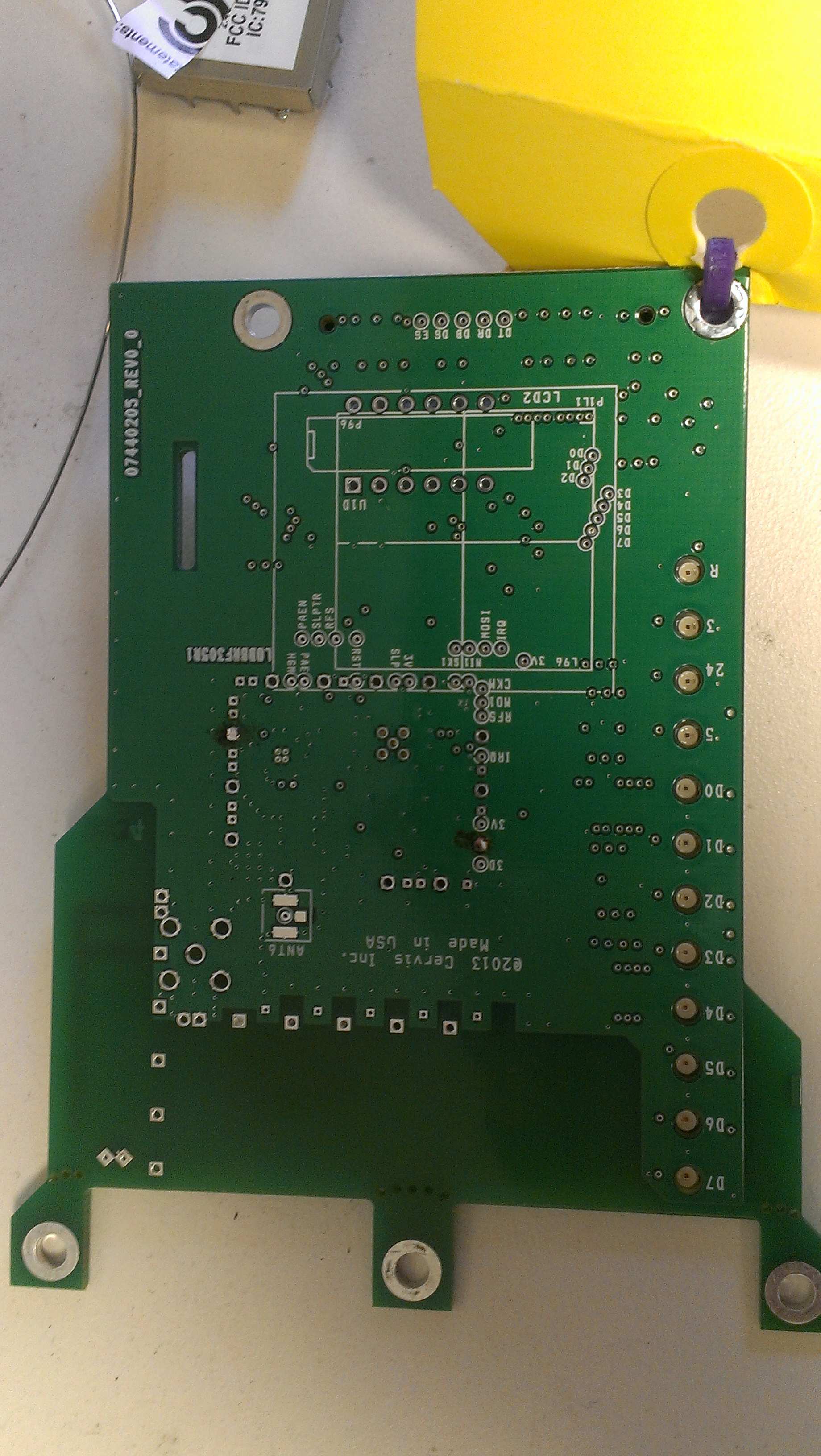

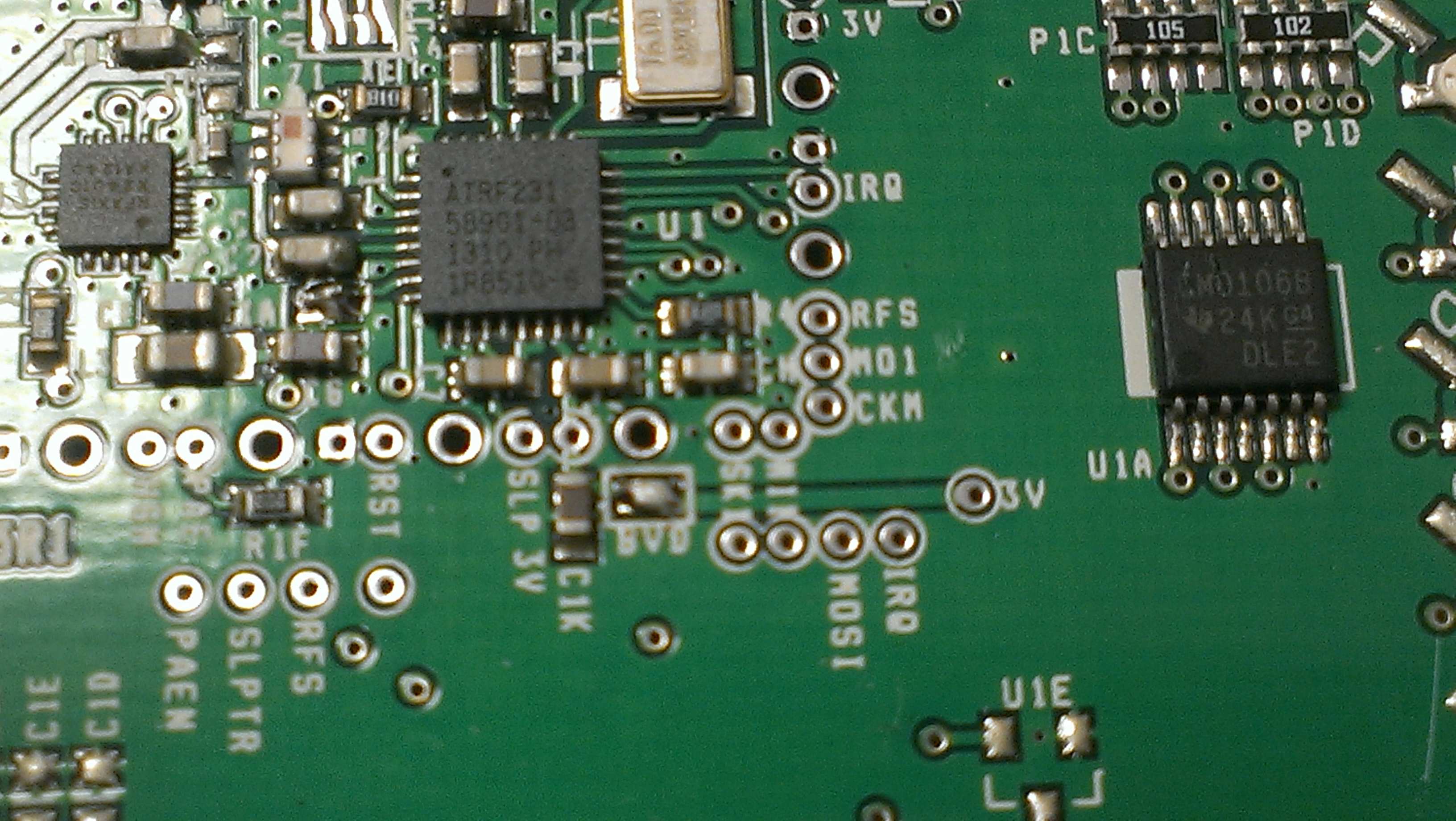

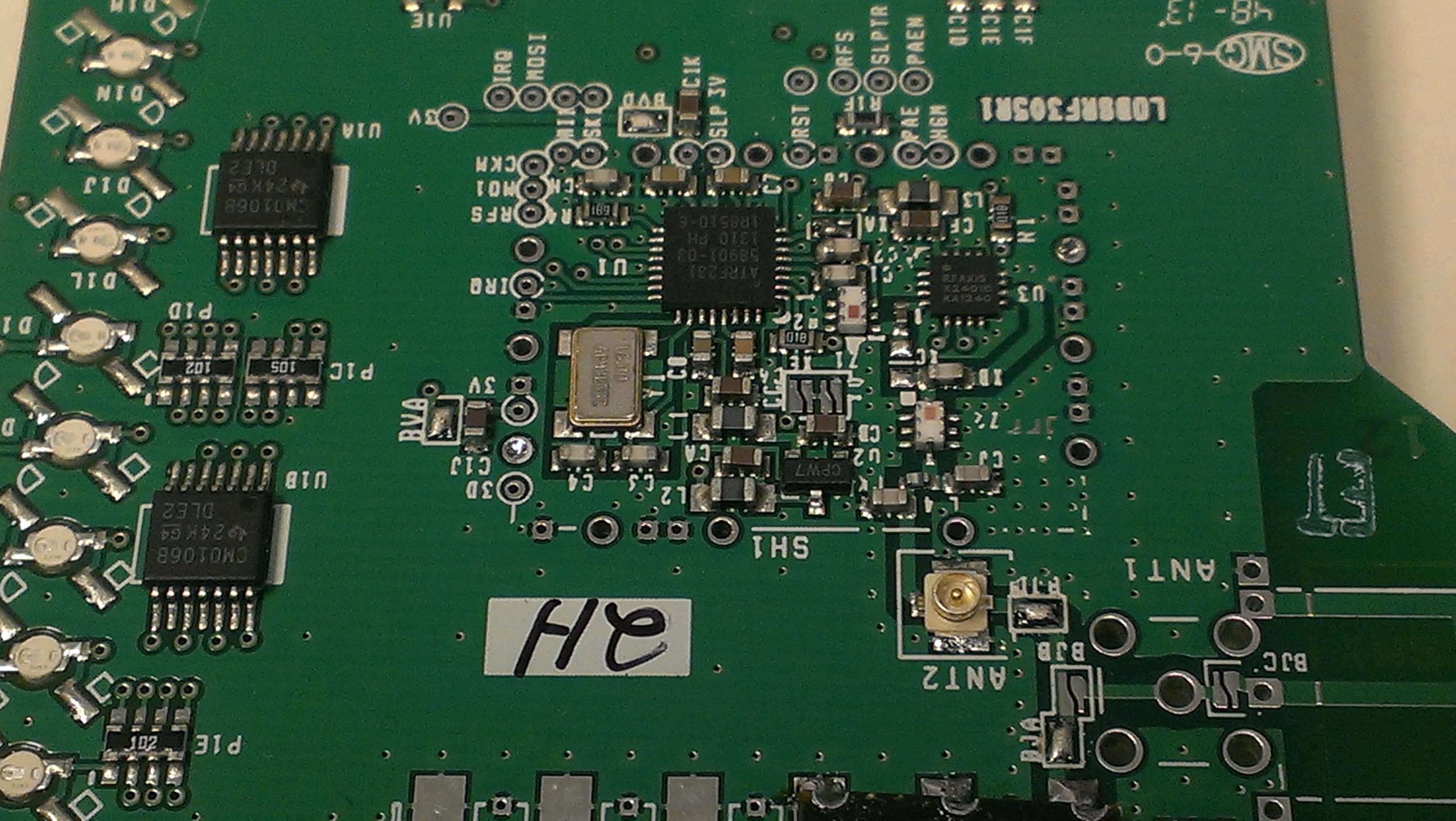

LOBSRF305SRF305 Receive/Transmit Module

2014 Cervis, Inc. SRF305 User Manual 17 April 2014 U080.0.2-SRF305 ™ Module SRF305 This document is the property of Cervis, Inc. and cannot be copied, modified, e-mailed, or reproduced without the express prior written consent of Cervis, Inc. Cervis, Inc. reserves the right to change this manual or edit, delete, or modify any information without prior notification. Industry Canada Statements RSS-GEN 7.1.2 – Transmitter Antenna / Antenne de L'émetteur Under Industry Canada regulations, this radio transmitter may only operate using an antenna of a type and maximum (or lesser) gain approved for the transmitter by Industry Canada. To reduce potential radio interference to other users, the antenna type and its gain should be so chosen that the equivalent isotropically radiated power (e.i.r.p.) is not more than that necessary for successful communication. Conformément à la réglementation d'Industrie Canada, le présent émetteur radio peut fonctionner avec une antenne d'un type et d'un gain maximal (ou inférieur) approuvé pour l'émetteur par Industrie Canada. Dans le but de réduire les risques de brouillage radioélectrique à l'intention des autres utilisateurs, il faut choisir le type d'antenne et son gain de sorte que la puissance isotrope rayonnée équivalente (p.i.r.e.) ne dépasse pas l'intensité nécessaire à l'établissement d'une communication satisfaisante. This radio transmitter 7955A-SRF305 has been approved by Industry Canada to operate with the antenna types listed below with the maximum permissible gain and required antenna impedance for each antenna type indicated. Antenna types not included in this list, having a gain greater than the maximum gain indicated for that type, are strictly prohibited for use with this device. Le présent émetteur radio 7955A-SRF305 a été approuvé par Industrie Canada pour fonctionner avec les types d'antenne énumérés ci-dessous et ayant un gain admissible maximal et l'impédance requise pour chaque type d'antenne. Les types d'antenne non inclus dans cette liste, ou dont le gain est supérieur au gain maximal indiqué, sont strictement interdits pour l'exploitation de l'émetteur. Approved Antenna List / Liste Antenne Approuvé Manufacturer Part Number Stock Number Gain Impedance Antenna-Factor/Linx Tech ANT-2.4-uSP B141 +3.8dBipeak 50 Ohm RFM Or Equivalent OMNI242R Or Equivalent BB3-07 +3dBipeak 50 Ohm Alfa Or Equivalent ARSN19TNC Or equivalent BB3-08 +9dBipeak 50 Ohm RSS-GEN 7.1.3 – Notice / D élai This device complies with Industry Canada licence-exempt RSS standard(s). Operation is subject to the following two conditions: (1) this device may not cause interference, and (2) this device must accept any interference, including interference that may cause undesired operation of the device. Le présent appareil est conforme aux CNR d'Industrie Canada applicables aux appareils radio exempts de licence. L'exploitation est autorisée aux deux conditions suivantes : (1) l'appareil ne doit pas produire de brouillage, et (2) l'utilisateur de l'appareil doit accepter tout brouillage radioélectrique subi, même si le brouillage est susceptible d'en compromettre le fonctionnement. FCC Statements 15.19 – Two Part Warning This device complies with Part 15 of the FCC rules. Operation is subject to the following two conditions: (1) This device may not cause harmful interference and (2) This device must accept any interference received, including interference that may cause undesired operation. 15.21 – Unauthorized Modification NOTICE: The manufacturer is not responsible for any unauthorized modifications to this equipment made by the user. Such modifications could void the user’s authority to operate the equipment. 15.27 – Special Accessories This device is supplied with special accessories that include an RF adapter cable and antenna. These special accessories must be used with the device. It is the responsibility of the user to use the needed special accessories supplied with the equipment. 15.105(b) – Note: This equipment has been tested and found to comply with the limits for a Class A digital device, pursuant to part 15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful interference when the equipment is operated in a commercial environment. This equipment generates, uses, and can radiate radio frequency energy and, if not installed and used in accordance with the instruction manual, may cause harmful interference to radio communications. Operation of this equipment in a residential area is likely to cause harmful interference in which case the user will be required to correct the interference at his own expense. User Manual 2014Cervis, Inc. i Table of Contents Table of Contents .......................................................................................................................... i List of Figures ............................................................................................................................... i List of Tables ................................................................................................................................. i Cervis Inc. Safety Precautions ................................................................................................... 1 1.0 SRF305 Introduction ............................................................................................................ 2 1.1 SRF305 Features ............................................................................................................... 2 1.2 SRF305 Pinouts ................................................................................................................ 4 2.0 SRF305 Installation ............................................................................................................ 14 3.0 SRF305 Tune-up Procedure .............................................................................................. 14 4.0 SRF305 Electrical Characteristics ......................…

Text truncated - open the document above for the full version.

F2LQ5898A Page 1 of 7 Feb. 28, 2014 PHOTOGRAPHS: TEST SETUP Cervis, SRF305 Order Number: F2LQ5898A Client: Cervis Inc. Model: SRF305 F2LQ5898A Page 2 of 7 Feb. 28, 2014 Order Number: F2LQ5898A Client: Cervis Inc. Model: SRF305 F2LQ5898A Page 3 of 7 Feb. 28, 2014 Order Number: F2LQ5898A Client: Cervis Inc. Model: SRF305 F2LQ5898A Page 4 of 7 Feb. 28, 2014 Order Number: F2LQ5898A Client: Cervis Inc. Model: SRF305 F2LQ5898A Page 5 of 7 Feb. 28, 2014 Order Number: F2LQ5898A Client: Cervis Inc. Model: SRF305 F2LQ5898A Page 6 of 7 Feb. 28, 2014 Order Number: F2LQ5898A Client: Cervis Inc. Model: SRF305 F2LQ5898A Page 7 of 7 Feb. 28, 2014

Module ID Label Placement (sample) Example finished product placement

F2LQ5898A Page 1 of 7 Feb. 28, 2014 PHOTOGRAPHS: TEST SETUP Cervis, SRF305 Order Number: F2LQ5898A Client: Cervis Inc. Model: SRF305 F2LQ5898A Page 2 of 7 Feb. 28, 2014 Order Number: F2LQ5898A Client: Cervis Inc. Model: SRF305 F2LQ5898A Page 3 of 7 Feb. 28, 2014 Order Number: F2LQ5898A Client: Cervis Inc. Model: SRF305 F2LQ5898A Page 4 of 7 Feb. 28, 2014 Order Number: F2LQ5898A Client: Cervis Inc. Model: SRF305 F2LQ5898A Page 5 of 7 Feb. 28, 2014 Order Number: F2LQ5898A Client: Cervis Inc. Model: SRF305 F2LQ5898A Page 6 of 7 Feb. 28, 2014 Order Number: F2LQ5898A Client: Cervis Inc. Model: SRF305 F2LQ5898A Page 7 of 7 Feb. 28, 2014

Small Receiver Transmitter (SmaRT) LOBSRF305 RT Module Radio Transceiver SAR Testing 2013 December 11 V0.0  2013 Cervis Inc. All rights reserved. 170 Thorn Hill Road • Warrendale, PA 15086 Phone 724.741.9000 • Fax 724.741.9001 www.cervisinc.com 2 Table of Contents Introduction Operational and SAR testing of LOBSRF305 3 Overview Introduction This document describes in detail SAR testing of the LOBSRF305 RF transceiver (RT) module for use in host applications. An HH-2H06 is provided to control the RT module in a typical way. It is assumed that the reader has some hardware and software background related to microprocessor based embedded systems and RF transmitting and receiving devices. Equipment provided Several exhibits are provided to facilitate the emissions testing of the LOBSRF305 RT module: 1: LOBSRF305 attached to HH-2H06 host application, U.FL antenna fitting LOBSRF305 has an attached fixed internal dipole antenna with a U.FL connector 2: External 9 dBi omni antenna, RP-TNC 3: RG-316 adapter cable, U.FL<->RP-TNC 4: Spare AAA alkaline batteries Typical operational firmware is provided in the HH-2H06 device controlling Exhibit 1. Setup - General Set up a demonstration by attaching an antenna to the LOBSRF305 and installing the batteries in the HH-2H06 device to be tested. If the HH-2H06 doesn’t turn on immediately then briefly press any button 1-5 to turn on power. It is OK to operate an HH-2H06 without an antenna. No damage will occur, but RF performance will be limited to leakage signals. Exhibit 1 is mechanically fragile. Handle with care and do not bend the wires too much. Operational and SAR testing of LOBSRF305 Exhibits 1, 2, and 3 are provided to demonstrate and test normal operation of a host application that uses an LOBSRF305 RT module. All devices have typical application firmware installed. Setup for internal fixed antenna Chapter 1 4 The LOBSRF305 internal antenna may be connected to the U.FL connector on the PCB by carefully snapping the U.FL plug into the U.FL socket. Setup for external replaceable antenna Setup of the LOBSRF305, exhibit 1, requires installation of the batteries. If the unit does not immediately start operation briefly press any button 1-5. Press and hold button 6 for several seconds to turn the unit off. Normal operation is indicated by the green TX LED blinking every 100 ms. Pressing any button 1-5 will cause the TX LED to become brighter. The LOBSRF305 external antenna, exhibit 2, may be connected to the U.FL connector on the PCB by carefully snapping the U.FL plug of exhibit 3 into the U.FL socket. Connect the external antenna, exhibit 2, to the RP-TNC connector of exhibit 3. The RP-TNC connector should be finger tight. Normal Operation The equipment provided for these test has typical production firmware installed, as would be used in a typical host application. The TX RF duty cycle of the HH-2H06 is approximately 1% and the conducted RF power is approximately +19.94 dBm. Every 100 mS, indicated by the green TX LED blinking, the HH-2H06 will transmit a message. Whenever a button on the HH-2H06 is pressed, the TX LED will blink longer and appear brighter. Press any button 1-5 to turn the HH-2H06 on. The TX LED will start blinking. Press and hold button 6 to turn the HH-2H06 off. The unit will be off when the LEDs are off. SAR Testing SAR testing may be performed on the LOBSRF305 RT module portion of exhibit 1.

802 N. Twin Oaks Valley Road, Suite 105 • San Marcos, CA 92069 • U.S.A. TEL (760) 471-2100 • FAX (760) 471-2121 http://www.rfexposurelab.com CERTIFICATE OF COMPLIANCE SAR EVALUATION Cervis Incorporated Dates of Test: December 13-14, 2013 170 Thorn Hill Road Test Report Number: SAR.20131205 Warrendale, PA 15086 Revision A This wireless mobile and/or portable device has been shown to be compliant for localized specific absorption rate (SAR) for uncontrolled environment/general exposure limits specified in ANSI/IEEE Std. C95.1-1992 and had been tested in accordance with the measurement procedures specified in IEEE 1528-2003, IEC 62209-2 and OET Bulletin 65 Supp. C (See test report). I attest to the accuracy of the data. All measurements were performed by myself or were made under my supervision and are correct to the best of my knowledge and belief. I assume full responsibility for the completeness of these measurements and vouch for the qualifications of all persons taking them. RF Exposure Lab, LLC certifies that no party to this application is subject to a denial of Federal benefits that includes FCC benefits pursuant to Section 5301 of the Anti-Drug Abuse Act of 1988, 21 U.S.C. 853(a). Jay M. Moulton Vice President Testing Cert. # 2387.01 FCC ID: LOBSRF305 IC Certificate: 7955A-SRF305 Model(s): SRF305 Test Sample: Engineering Unit Same as Production MAC Address: Eng 1 Equipment Type: Wireless Module Classification: Portable Transmitter Next to Body TX Frequency Range: 2400 – 2484 MHz Frequency Tolerance: ± 2.5 ppm Maximum RF Output: 2450 MHz – 19.99 dB Conducted Signal Modulation: QPSK Antenna Type: Antenna Factor, P/N ANT-2.4-μSP; Chip Antenna Application Type: Certification FCC Rule Parts: Part 2, 15C KDB Test Methodology: KDB 447498 D01 v05, KDB 616217 D04 v01 Industry Canada: RSS-102, Safety Code 6 Maximum SAR Value (Internal): 0.78 W/kg Reported Maximum SAR Value (External): 0.76 W/kg Reported Separation Distance: 3 mm Internal; 8 mm External © 2013 RF Exposure Lab, LLC This report shall not be reproduced except in full without the written approval of RF Exposure Lab, LLC. Report Number: SAR.20131205 Table of Contents 1. Introduction ........................................................................................................................ 3 SAR Definition [5] ................................................................................................................... 4 2. SAR Measurement Setup ................................................................................................... 5 Robotic System ...................................................................................................................... 5 System Hardware ................................................................................................................... 5 System Electronics ................................................................................................................. 6 Probe Measurement System .................................................................................................. 6 3. Probe and Dipole Calibration .............................................................................................11 4. Phantom & Simulating Tissue Specifications .....................................................................12 Head & Body Simulating Mixture Characterization ................................................................12 5. ANSI/IEEE C95.1 – 1992 RF Exposure Limits [2] ..............................................................13 Uncontrolled Environment .....................................................................................................13 Controlled Environment .........................................................................................................13 6. Measurement Uncertainty .................................................................................................14 7. System Validation..............................................................................................................15 Tissue Verification .................................................................................................................15 Test System Verification ........................................................................................................15 8. SAR Test Data Summary ..................................................................................................16 Procedures Used To Establish Test Signal ...........................................................................16 Device Test Condition ...........................................................................................................16 SAR Data Summary – 2450 MHz Body 802.15 .....................................................................20 9. Test Equipment List ...........................................................................................................21 10. Conclusion ....................................................................................................................22 11. References ....................................................................................................................23 Appendix A – System Validation Plots and Data .......................................................................24 Appendix B – SAR Test Data Plots ...........................................................................................27 Appendix C – SAR Test Setup Photos ......................................................................................30 Appendix D – Probe Calibration Data Sheets ............................................................................40 Appendix E – Dipole Calibration Data Sheets ...........................................................................52 Appendix F – Phantom Calibration Data Sheets .......................................................................61 © 2013 RF Exposur…

Text truncated - open the document above for the full version.

021414 Report Number: F2LQ5898A-01E Page 1 of 99 Issue Date: Apr. 28, 2014 F2 Labs 16740 Peters Road Middlefield, Ohio 44062 United States of America www.f2labs.com CERTIFICATION TEST REPORT Manufacturer: Structured Mining Systems, Inc. d.b.a. Cervis Inc. 170 Thorn Hill Road Warrendale, Pennsylvania 15086 United States of America Applicant: Same As Above Product: Radio Module, DSSS, 2.4GHz, 100mW Model: SRF305 FCC ID: LOBSRF305 Testing Commenced: Jan. 17, 2014 Testing Ended: Apr. 21, 2014 Summary of Test Results: Page 5 Standards:
FCC Part 15 Subpart C, Section 15.247
FCC Part 15, Subpart C, Section 15.207
FCC Part 15, Subpart C, Section 15.209 Order Number: F2LQ5898A Client: Cervis Inc. Model: SRF305 021414 Report Number: F2LQ5898A-01E Page 2 of 99 Issue Date: Apr. 28, 2014 Evaluation Conducted by: Joe Knepper, EMC Proj. Eng. Michael Toth, Senior EMC Eng. Ken Littell, EMC Tech. Mgr. Report Reviewed by: Wendy Fuster, President F2 Labs F2 Labs 26501 Ridge Road 16740 Peters Road Damascus, MD 20872 Middlefield, OH 44062 Ph 301.253.4500 Ph 440.632.5541 Fax 301.253.5179 Fax 440.632.5542 This test report may be reproduced in full; partial reproduction only may be made with the written consent of F2 Labs. The results in this report apply only to the equipment tested. Order Number: F2LQ5898A Client: Cervis Inc. Model: SRF305 021414 Report Number: F2LQ5898A-01E Page 3 of 99 Issue Date: Apr. 28, 2014 TABLE OF CONTENTS Section Title Page 1 ADMINISTRATIVE INFORMATION 4 2 SUMMARY OF TEST RESULTS/MODIFICATIONS 5 3 TABLE OF MEASURED RESULTS 6 4 ENGINEERING STATEMENT 7 5 EUT INFORMATION AND DATA 8 6 FCC Part 15.247(a)(2) – -6dB Occupied Bandwidth 9 7 FCC Part 15.247(b)(3) – Conducted Output Power 13 8 FCC Part 15.247(d) – Conducted Spurious Emissions 17 9 Radiated Spurious Emission 31 10 FCC PART 15.247 – Peak Power Spectral Density (PSD) 87 11 FCC PART 15.207 – Conducted Emissions 90 12 Photos/Exhibits – Product Photos, Test Setups 96 Order Number: F2LQ5898A Client: Cervis Inc. Model: SRF305 021414 Report Number: F2LQ5898A-01E Page 4 of 99 Issue Date: Apr. 28, 2014 1 ADMINISTRATIVE INFORMATION 1.1 Measurement Location: F2 Labs in Middlefield, Ohio. Site description and attenuation data are on file with the FCC's Sampling and Measurement Branch at the FCC Laboratory in Columbia, MD. 1.2 Measurement Procedure: All measurements were performed according to the 2003 version of ANSI C63.4 and recommended FCC procedure of measurement of DTS operating under Section 15.247 and in KDB558074. A list of the measurement equipment can be found in Section 6. 1.3 Uncertainty Budget: Radiated Emission • Combined Uncertainty (+ or -) 2.67 dB • Expanded Uncertainty (+ or -) 5.35 dB Conducted Emissions • Combined Uncertainty (+ or -) 1.88 dB • Expanded Uncertainty (+ or -) 3.75 dB This uncertainty represents an expanded uncertainty expressed at approximately the 95% confidence level using a coverage factor of k=2. 1.4 Document History: Document Number Description Issue Date Approved By F2LQ5898A-01E First Issue Apr. 28, 2014 W. Fuster Order Number: F2LQ5898A Client: Cervis Inc. Model: SRF305 021414 Report Number: F2LQ5898A-01E Page 5 of 99 Issue Date: Apr. 28, 2014 2 SUMMARY OF TEST RESULTS Test Name Standard(s) Results -6dB Occupied Bandwidth CFR 47 Part 15.247(a)(2) / KDB558074 Complies Conducted Output Power CFR 47 Part 15.247(b)(3) / KDB558074 Complies Conducted Spurious Emissions CFR 47 Part 15.247(d) / Part 15.209 / KDB558074 Complies Radiated Spurious Emission with 3.8dBi Integral Antenna CFR 47 Part 15.247(d) / Part 15.209 / KDB558074 Complies Radiated Spurious Emission with 9dBi Whip Antenna CFR 47 Part 15.247(d) / Part 15.209 / KDB558074 Complies Peak Power Spectral Density CFR 47 Part 15.247(e) / KDB558074 Complies Conducted Emissions CFR 47 Part 15.207(a) Complies Note: product was operated using AAA batteries. There is an option for the Host product to be powered from other DC sources, so Voltage Variation testing in 15.31(3)(e) was performed using 12VDC as the nominal voltage, and then the 85% and 115% of that voltage was tested also. The output power at the High, Mid, and Low channels was measured to verify how much the power and frequency was affected by the variation of the input power. No shift in frequency or power was measured at either of the varied voltages on any of the channels. Modifications Made to the Equipment None Order Number: F2LQ5898A Client: Cervis Inc. Model: SRF305 021414 Report Number: F2LQ5898A-01E Page 6 of 99 Issue Date: Apr. 28, 2014 3 TABLE OF MEASURED RESULTS Test High Channel 2.480GHz Mid Channel 2.440GHz Low Channel 2.405GHz Conducted Output Power 97.50mW (19.89dBm) 98.86mW (19.95dBm) 95.72mW (19.81dBm) Conducted Output Power Limit 1 Watt, (30dBm) 1 Watt, (30dBm) 1 Watt, (30dBm) Conducted Output Power Limit with 3.8dBi Integral Antenna 233.88mW (23.69dBm) 237.14mW (23.75dBm) 229.61mW (23.61dBm) E.I.R.P. with 9dBi Whip Antenna 774.46mW (28.89dBm) 785.24mW (28.95dBm) 760.33mW (28.81dBm) E.I.R.P. Limit 4 Watts, (36.02dBm) 4 Watts, (36.02dBm) 4 Watts, (36.02dBm) Peak Power Spectral Density 6.54 dBm 7.21 dBm 7.74 dBm Peak Power Spectral Density Limit 8 dBm 8 dBm 8 dBm -6dB Occupied Bandwidth 1.603MHz 1.593MHz 1.583MHz -6dB Occupied Bandwidth Limit ≥ 500KHz ≥ 500KHz ≥ 500KHz Order Number: F2LQ5898A Client: Cervis Inc. Model: SRF305 021414 Report Number: F2LQ5898A-01E Page 7 of 99 Issue Date: Apr. 28, 2014 4 ENGINEERING STATEMENT This report has been prepared on behalf of Cervis Inc. to provide documentation for the testing described herein. This equipment has been tested and found to comply with parts 15.247, 15.207 and 15.209 of the FCC Rules using ANSI C63.4 2009 and KDB558074 standards. The test results found in this test report relate only to the items tested. Order Number: F2LQ5898A Client: Cervis Inc. Model: SRF305 021414 Report Number: F2LQ5898A-01E Page 8 of 99 Issue Date: Apr. 28, 2014 5 EUT INFORMATION AND DATA 5.1 Equipment Under Test: Product: Radio Module, DSSS, 2.4…

Text truncated - open the document above for the full version.

021414 Report Number: F2LQ5898A-03E Page 1 of 40 Issue Date: July 1, 2014 F2 Labs 16740 Peters Road Middlefield, Ohio 44062 United States of America www.f2labs.com CERTIFICATION TEST REPORT Manufacturer: Structured Mining Systems, Inc. d.b.a. Cervis Inc. 170 Thorn Hill Road Warrendale, Pennsylvania 15086 United States of America Applicant: Same As Above Product: Radio Module, DSSS, 2.4GHz, 100mW Model: SRF305 FCC ID: LOBSRF305 Testing Commenced: May 2, 2014 Testing Ended: June 30, 2014 Summary of Test Results: Page 5 Standards:  FCC Part 15 Subpart C, Section 15.247  FCC Part 15, Subpart C, Section 15.209 Order Number: F2LQ5898A-C1 Client: Cervis Inc. Model: SRF305 021414 Report Number: F2LQ5898A-03E Page 2 of 40 Issue Date: July 1, 2014 Evaluation Conducted by: Joe Knepper, EMC Proj. Eng. Ken Littell, EMC Tech. Mgr. Report Reviewed by: Wendy Fuster, President F2 Labs F2 Labs 26501 Ridge Road 16740 Peters Road Damascus, MD 20872 Middlefield, OH 44062 Ph 301.253.4500 Ph 440.632.5541 Fax 301.253.5179 Fax 440.632.5542 This test report may be reproduced in full; partial reproduction only may be made with the written consent of F2 Labs. The results in this report apply only to the equipment tested. Order Number: F2LQ5898A-C1 Client: Cervis Inc. Model: SRF305 021414 Report Number: F2LQ5898A-03E Page 3 of 40 Issue Date: July 1, 2014 TABLE OF CONTENTS Section Title Page 1 ADMINISTRATIVE INFORMATION 4 2 SUMMARY OF TEST RESULTS/MODIFICATIONS 5 3 TABLE OF MEASURED RESULTS 6 4 ENGINEERING STATEMENT 7 5 EUT INFORMATION AND DATA 8 6 FCC Part 15.247(b)(3) – Conducted Output Power 9 7 Radiated Spurious Emission 13 8 Photos/Exhibits – Product Photos, Test Setups 39 Order Number: F2LQ5898A-C1 Client: Cervis Inc. Model: SRF305 021414 Report Number: F2LQ5898A-03E Page 4 of 40 Issue Date: July 1, 2014 1 ADMINISTRATIVE INFORMATION 1.1 Measurement Location: F2 Labs in Middlefield, Ohio. Site description and attenuation data are on file with the FCC's Sampling and Measurement Branch at the FCC Laboratory in Columbia, MD. 1.2 Measurement Procedure: All measurements were performed according to the 2009 version of ANSI C63.4 and recommended FCC procedure of measurement of DTS operating under Section 15.247 and in KDB558074. A list of the measurement equipment can be found in Section 6. 1.3 Uncertainty Budget: Radiated Emission • Combined Uncertainty (+ or -) 2.67 dB • Expanded Uncertainty (+ or -) 5.35 dB Conducted Emissions • Combined Uncertainty (+ or -) 1.88 dB • Expanded Uncertainty (+ or -) 3.75 dB This uncertainty represents an expanded uncertainty expressed at approximately the 95% confidence level using a coverage factor of k=2. 1.4 Document History: Document Number Description Issue Date Approved By F2LQ5898A-03E First Issue July 1, 2014 W. Fuster Order Number: F2LQ5898A-C1 Client: Cervis Inc. Model: SRF305 021414 Report Number: F2LQ5898A-03E Page 5 of 40 Issue Date: July 1, 2014 2 SUMMARY OF TEST RESULTS Test Name Standard(s) Results Conducted Output Power CFR 47 Part 15.247(b)(3) / KDB558074 Complies Radiated Spurious Emission CFR 47 Part 15.247(d) / Part 15.209 / KDB558074 Complies Modifications Made to the Equipment None Order Number: F2LQ5898A-C1 Client: Cervis Inc. Model: SRF305 021414 Report Number: F2LQ5898A-03E Page 6 of 40 Issue Date: July 1, 2014 3 TABLE OF MEASURED RESULTS Test High Channel 2.480GHz Mid Channel 2.440GHz Low Channel 2.405GHz Conducted Output Power 97.05mW (19.87dBm) 97.72mW (19.90dBm) 97.05mW (19.87dBm) Conducted Output Power Limit 1 Watt, (30dBm) 1 Watt, (30dBm) 1 Watt, (30dBm) E.I.R.P. with 9dBi Whip Antenna 770.90mW (28.87dBm) 776.25mW (28.90dBm) 770.90mW (28.87dBm) E.I.R.P. Limit 4 Watts, (36.02dBm) 4 Watts, (36.02dBm) 4 Watts, (36.02dBm) Order Number: F2LQ5898A-C1 Client: Cervis Inc. Model: SRF305 021414 Report Number: F2LQ5898A-03E Page 7 of 40 Issue Date: July 1, 2014 4 ENGINEERING STATEMENT This report has been prepared on behalf of Cervis Inc. to provide documentation for the testing described herein to be used as evidence that the Class II changes made to radio module SRF305 have not increased the output power or radiated spurs to exceed the limits allowed. This equipment has been tested and found to comply with parts 15.247 and 15.209 of the FCC Rules using ANSI C63.4 2009 and KDB558074 standards. The test results found in this test report relate only to the items tested. Order Number: F2LQ5898A-C1 Client: Cervis Inc. Model: SRF305 021414 Report Number: F2LQ5898A-03E Page 8 of 40 Issue Date: July 1, 2014 5 EUT INFORMATION AND DATA 5.1 Equipment Under Test: Product: Radio Module, DSSS, 2.4GHz Model: SRF305 Serial No.: None FCC ID: LOBSRF305 5.2 Trade Name: Structured Mining Systems, Inc. d.b.a. Cervis Inc. 5.3 Power Supply: Non-rechargeable AAA Batteries 5.4 Applicable Rules: CFR 47, Part 15.247, subpart C CFR 47, Part 15.209 5.5 Equipment Category: Radio Transmitter-DTS 5.6 Antenna: 9dBi gain Whip Antenna 5.7 Accessories: N/A 5.8 Test Item Condition: The equipment to be tested was received in good condition. 5.9 Testing Algorithm: EUT was set up in a normal operating mode, with device transmitting in three different channels (low, mid, high). Order Number: F2LQ5898A-C1 Client: Cervis Inc. Model: SRF305 021414 Report Number: F2LQ5898A-03E Page 9 of 40 Issue Date: July 1, 2014 7 FCC PART 15.247(b)(3) – CONDUCTED OUTPUT POWER The EUT antenna port was fitted with an SMA connector and directly connected to the input of the receiver. The peak power output was measured. 7.1 Requirements: The peak power output shall be 1 watt (30 dBm) or less when using an antenna with a gain of less than 6dBi. For antennas having a gain of more than 6dBi, the limit is reduced by 1dB for every dB the antenna gain is over 6dBi. 7.2 Equipment Used: Equipment Type Asset Number Manufacturer Model Serial Number Calibration Due Date Temp/Hum. Recorder CL119 Extech RH520 H005869 Jan. 8, 2015 Receiver CL151 Rohde & Schwarz ESU40 100319 Oct. 31, 2014 Cable: 0.3m Low Loss CL116 A.H. Systems, Inc. SA…

Text truncated - open the document above for the full version.

F2LQ5898A Page 1 of 3 Feb. 28, 2014 PHOTOGRAPHS: TEST SETUP Cervis, SRF305 Radiated Spurious Emission with 3.8dBi Integral Antenna: Prescan Radiated Spurious Emission with 3.8dBi Integral Antenna: OATS Order Number: F2LQ5898A Client: Cervis Inc. Model: SRF305 F2LQ5898A Page 2 of 3 Feb. 28, 2014 Radiated Spurious Emission with 9dBi Whip Antenna: Prescan Radiated Spurious Emission with 9dBi Whip Antenna: OATS Order Number: F2LQ5898A Client: Cervis Inc. Model: SRF305 F2LQ5898A Page 3 of 3 Feb. 28, 2014 Conducted Output Power, Occupied Bandwidth, Conducted Spurious, Peak Power Spectral Density
