LOB9H06SmaRT Portable Radio HH-9H06

2013 Cervis, Inc. HH-xH06 Manual DN: U076.0.3-SmaRT_HP-2/4/6_hhr ™ ™ SmaRT HH-xH06 This document is the property of Cervis, Inc. and cannot be copied, modified, e-mailed, or reproduced without the express prior written consent of Cervis, Inc. Cervis, Inc. reserves the right to change this manual or edit, delete, or modify any information without prior notification. FCC Statements 15.19 – Two Part Warning This device complies with Part 15 of the FCC rules. Operation is subject to the following two conditions: (1) This device may not cause harmful interference and (2) This device must accept any interference received, including interference that may cause undesired operation. 15.21 – Unauthorized Modification NOTICE: The manufacturer is not responsible for any unauthorized modifications to this equipment made by the user. Such modifications could void the user’s authority to operate the equipment. 15.105(b) – Note: Note: This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to part 15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful interference in a residential installation. The equipment generates, uses and can radiate radio frequency energy and, if not installed and used in accordance with the instructions, may cause harmful interference to radio communications. However, there is no guarantee that interference will not occur in a particular installation. If this equipment does cause harmful interference to radio or television reception, which can be determined by turning the equipment off and on, the user is encouraged to try to correct the interference by one or more of the following measures: —Reorient or relocate the receiving antenna. —Increase the separation between the equipment and receiver. —Connect the equipment into an outlet on a circuit different from that to which the receiver is connected. —Consult the dealer or an experienced radio/TV technician for help. Industry Canada Statement This device complies with Industry Canada licence-exempt RSS standard(s). Operation is subject to the following two conditions: (1) this device may not cause interference, and (2) this device must accept any interference, including interference that may cause undesired operation of the device. Le présent appareil est conforme aux CNR d'Industrie Canada applicables aux appareils radio exempts de licence. L'exploitation est autorisée aux deux conditions suivantes : (1) l'appareil ne doit pas produire de brouillage, et (2) l'utilisateur de l'appareil doit accepter tout brouillage radioélectrique subi, même si le brouillage est susceptible d'en compromettre le fonctionnement. RoHS Compliance Statement Cervis, Inc. complies with the requirements of Restriction of Hazardous Substances (RoHS/WEEE) Specification based on in-house practice and declaration of compliance from our vendors. For additional information concerning RoHS compliance, please contact Cervis, Inc. at: CERVIS, Inc. 170 Thorn Hill Road  Warrendale, PA 15086 Phone: 724.741.9000  Fax: 724.741.9001 This product may contain material that may be hazardous to human health and the environment. In compliance with EU Directive 2002/96/EC on Waste Electrical and Electronic Equipment (WEEE):  Do not dispose of the product as unsorted municipal waste.  This product should be recycled in accordance with local regulations. Contact local authorities for detailed information.  This product may be returnable to the distributor for recycling. Contact your distributor for details. Handheld Remotes Manual 2013 Cervis, Inc. i Notes/Definitions Associate SmaRT configuration method using a series of specific remote unit button presses to establish a communication link between a SmaRT Handheld and a SmaRT Base Unit. DSSS Direct sequence spread spectrum; an advanced wireless communication technology. Dissociate Dissolution of all established communication links between handhelds and a base unit. PTO Push to Operate: Command broadcast only while a button is depressed. The command ends when the button is released. DO Dual Operation: Used to define handheld remotes that use one button for two operations. For instance, the SmaRT DO-206 handheld remote uses one button (button 6, typical) to both turn on the handheld remote and turn the units off. OO On and Off Operation: Where two buttons or buttons are used for two operations or processes. For instance, the SmaRT DO-206 handheld remote uses one button (button 6, typical) to both turn on the handheld remote and turn the unist off. Line of Sight (aka Direct-Line-of-Sight) Type of communication between transceivers, or a transmitter and a receiver, where the pathway between the two units must be clear of obstacles. TX/RX Transmit/Receive Document Conventions Note: Notes are used to indicate points of interest or pertinent information. Cautions are used to warn of serious consequences of actions or inactions that may result in injury, death, or serious damage to the equipment. SmaRT HH-xH06 U076.0.3-SmaRT_HP-2/4/6_hhr ii Table of Contents Document Conventions ................................................................................................................ i List of Figures ............................................................................................................................... ii List of Tables ................................................................................................................................. ii Cervis Inc. Safety Precautions .................................................................................................... 1 1.0 SmaRT Two, Four and Six Button Handheld Remotes ..................................................... 2 1.1 DO and OO Button Operation .......................................................................................... 4 2.0 Associate Handheld to Base Unit .............................................................…

Text truncated - open the document above for the full version.

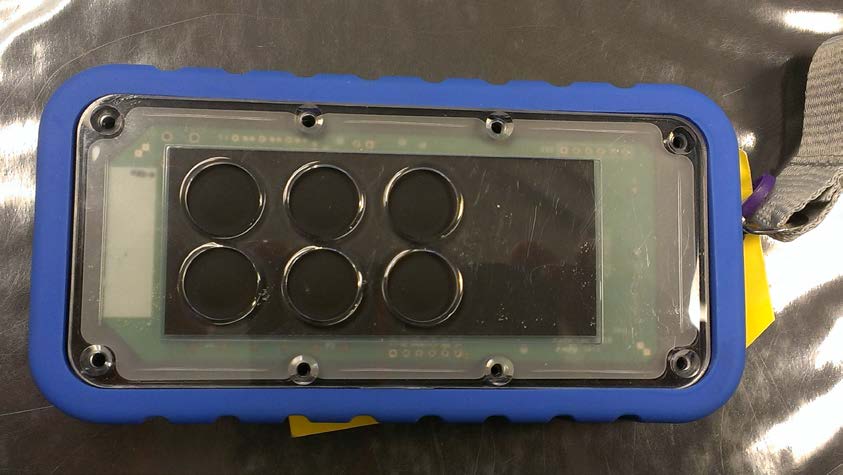

F2 Labs Job No.: F2LQ5836 Jan. 16, 2014 CERVIS SmaRT Portable Radio HH9-H06 FCC ID: LOB9H06 PHOTOGRAPHS/EXHIBITS – EXTERNAL PHOTOGRAPHS F2 Labs Job No.: F2LQ5836 Jan. 16, 2014 F2 Labs Job No.: F2LQ5836 Jan. 16, 2014 F2 Labs Job No.: F2LQ5836 Jan. 16, 2014

9H06 Product Labeling The application must have a label applied to the external enclosure that identifies the regulatory approval codes applicable to the to the application, as well as any other required information. In cases where the application is too small to mount the full label, a smaller label may be placed where it can be viewed without excessive disassembly. Label placement is shown in Figs. 3a, 3b, 3c. The external label in Figs 3a or 3b is always installed so it can be seen when the 9H06 is fully assembled. The internal label in Fig. 3c is always installed so it can be seen when the battery cover is in place. In all case the interior and exterior labels are the same. Fig. 3a: Label on enclosure exterior, belt clip. Fig. 3b: Label on enclosure exterior, no belt clip. Fig. 3c: Label on enclosure interior.

gms 1/8//2014 Cervis SmaRT MODEL: PTO-9H06 FCC ID: LOB9H06 IC: 7955A-9H06 0.50” 1.25” Notes: 1. Cuts on solid lines. 2. CLEAR background, adhesive-backed vinyl material. Input: 4.5V Cervis SmaRT MODEL: PTO-9H04 FCC ID: LOB9H06 IC: 7955A-9H06 0.50” 1.25” Input: 4.5V B (PTO-9H04) Cervis SmaRT MODEL: PTO-9H02 FCC ID: LOB9H06 IC: 7955A-9H06 0.50” 1.25” Input: 4.5V C (PTO-9H02) A (PTO-9H06) Cervis SmaRT MODEL: OO-9H06 FCC ID: LOB9H06 IC: 7955A-9H06 0.50” 1.25” Input: 4.5V D (OO-9H06) Cervis SmaRT MODEL: OO-9H04 FCC ID: LOB9H06 IC: 7955A-9H06 0.50” 1.25” Input: 4.5V E (OO-9H04) Cervis SmaRT MODEL: OO-9H02 FCC ID: LOB9H06 IC: 7955A-9H06 0.50” 1.25” Input: 4.5V F (OO-9H02) Cervis SmaRT MODEL: DO-9H06 FCC ID: LOB9H06 IC: 7955A-9H06 0.50” 1.25” Input: 4.5V G (DO-9H06) Cervis SmaRT MODEL: DO-9H04 FCC ID: LOB9H06 IC: 7955A-9H06 0.50” 1.25” Input: 4.5V H (DO-9H04) Cervis SmaRT MODEL: DO-9H02 FCC ID: LOB9H06 IC: 7955A-9H06 0.50” 1.25” Input: 4.5V I (DO-9H02) Cervis SmaRT MODEL: PTO-9H06S FCC ID: LOB9H06 IC: 7955A-9H06 0.50” 1.25” Input: 4.5V J (PTO-9H06S) Cervis SmaRT MODEL: OO-9H06S FCC ID: LOB9H06 IC: 7955A-9H06 0.50” 1.25” Input: 4.5V K (OO-9H06S) Cervis SmaRT MODEL: DO-9H06S FCC ID: LOB9H06 IC: 7955A-9H06 0.50” 1.25” Input: 4.5V L (DO-9H06S) Cervis SmaRT MODEL: PTO-9H06B FCC ID: LOB9H06 IC: 7955A-9H06 0.50” 1.25” Input: 4.5V M (PTO-9H06B) Cervis SmaRT MODEL: PTO-9H04B FCC ID: LOB9H06 IC: 7955A-9H06 0.50” 1.25” Input: 4.5V N (PTO-9H04B) Cervis SmaRT MODEL: PTO-9H02B FCC ID: LOB9H06 IC: 7955A-9H06 0.50” 1.25” Input: 4.5V O (PTO-9H02B) Cervis SmaRT MODEL: OO-9H06B FCC ID: LOB9H06 IC: 7955A-9H06 0.50” 1.25” Input: 4.5V P (OO-9H06B) Cervis SmaRT MODEL: OO-9H04B FCC ID: LOB9H06 IC: 7955A-9H06 0.50” 1.25” Input: 4.5V Q (OO-9H04B) Cervis SmaRT MODEL: OO-9H02B FCC ID: LOB9H06 IC: 7955A-9H06 0.50” 1.25” Input: 4.5V R (OO-9H02B) Cervis SmaRT MODEL: DO-9H06B FCC ID: LOB9H06 IC: 7955A-9H06 0.50” 1.25” Input: 4.5V S (DO-9H06B) Cervis SmaRT MODEL: DO-9H04B FCC ID: LOB9H06 IC: 7955A-9H06 0.50” 1.25” Input: 4.5V T (DO-9H04B) Cervis SmaRT MODEL: DO-9H02B FCC ID: LOB9H06 IC: 7955A-9H06 0.50” 1.25” Input: 4.5V U (DO-9H02B) 3. Dimensions in inches. 4. Indelible BLACK print. 5. Scale 1:1 L079.2.0 SmaRT HH-9H06 External Radio LabelsRefer to sales order or BOM for specific model that is to be printed (as shown in A-U below).

091213 Report Number: F2LQ5836-04E Page 1 of 7 Issue Date: Mar. 14, 2014 F2 Labs 16740 Peters Road Middlefield, Ohio 44062 United States of America www.f2labs.com CERTIFICATION TEST REPORT Manufacturer: Structured Mining Systems, Inc. d.b.a. Cervis Inc. 170 Thorn Hill Road Warrendale, Pennsylvania 15086 United States of America Applicant: Same As Above Product: SmaRT Portable Radio Model: HH-9H06 FCC ID: LOB9H06 Testing Commenced: Nov. 22, 2013 Testing Ended: Dec. 23, 2013 Summary of Test Results: Page 4 Standards: • OET FCC Bulletin 65 • KDB447498 Evaluation Conducted by: Ken Littell, EMC Tech. Mgr. Report Reviewed by: Wendy Fuster, President F2 Labs F2 Labs 26501 Ridge Road 16740 Peters Road Damascus, MD 20872 Middlefield, OH 44062 Ph 301.253.4500 Ph 440.632.5541 Fax 301.253.5179 Fax 440.632.5542 This test report may be reproduced in full; partial reproduction only may be made with the written consent of F2 Labs. The results in this report apply only to the equipment tested. Order Number: F2LQ5836 Client: Cervis Inc. Model: HH-9H06 012413 Report Number: F2LQ5836-04E Page 2 of 7 Issue Date: Mar. 14, 2014 TABLE OF CONTENTS Section Title Page 1 ADMINISTRATIVE INFORMATION 3 2 SUMMARY OF TEST RESULTS/MODIFICATIONS 4 3 ENGINEERING STATEMENT 5 4 EUT INFORMATION AND DATA 6 5 RF EXPOSURE FOR DEVICE >20cm FROM HUMAN 7 Order Number: F2LQ5836 Client: Cervis Inc. Model: HH-9H06 012413 Report Number: F2LQ5836-04E Page 3 of 7 Issue Date: Mar. 14, 2014 1 ADMINISTRATIVE INFORMATION 1.1 Measurement Location: F2 Labs in Middlefield, Ohio. Site description and attenuation data are on file with the FCC's Sampling and Measurement Branch at the FCC Laboratory in Columbia, MD. 1.2 Measurement Procedure: All measurements were performed according to KDB558074. 1.4 Document History Document Number Description Issue Date Approved By F2LQ5836-04E First Issue Mar. 14, 2014 W. Fuster Order Number: F2LQ5836 Client: Cervis Inc. Model: HH-9H06 012413 Report Number: F2LQ5836-04E Page 4 of 7 Issue Date: Mar. 14, 2014 2 SUMMARY OF TEST RESULTS Test Name Standard(s) Results RF Exposure for Device >20cm from Human OET FCC Bulletin 65 KDB447498 Complies Note: product was operated using AAA batteries. Modifications Made to the Equipment None Order Number: F2LQ5836 Client: Cervis Inc. Model: HH-9H06 012413 Report Number: F2LQ5836-04E Page 5 of 7 Issue Date: Mar. 14, 2014 3 ENGINEERING STATEMENT This report has been prepared on behalf of Cervis Inc. to provide documentation for the testing described herein. This equipment has been tested and found to comply with OET FCC Bulletin 65 and KDB447498. The test results found in this test report relate only to the items tested. Order Number: F2LQ5836 Client: Cervis Inc. Model: HH-9H06 012413 Report Number: F2LQ5836-04E Page 6 of 7 Issue Date: Mar. 14, 2014 4 EUT INFORMATION AND DATA 4.1 Equipment Under Test: Product: SmaRT Portable Radio Model: HH-9H06 Serial No.: None FCC ID: LOB9H06 4.2 Trade Name: Structured Mining Systems, Inc., d.b.a. Cervis Inc. 4.3 Power Supply: Non-rechargeable AAA Batteries 4.4 Applicable Rules: • OET FCC Bulletin 65 • KDB447498 4.5 Equipment Category: Radio Transmitter-DTS 4.6 Antenna: 1.49dBi Chip Antenna 4.7 Accessories: N/A 4.8 Test Item Condition: The equipment to be tested was received in good condition. Order Number: F2LQ5836 Client: Cervis Inc. Model: HH-9H06 012413 Report Number: F2LQ5836-04E Page 7 of 7 Issue Date: Mar. 14, 2014 5. RF EXPOSURE FOR DEVICE >20cm FROM HUMAN 5.1 Requirements: Limit: .604mW/cm 2 Formula used for result: E.I.R.P. 4 π R 2 Results: E.I.R.P. with 1.49dBi Integral Antenna. Integral Antenna: 12.942mW at the 906.2 MHz Low Channel, which is the highest. 12.942mW = 12.942mW = .00257473mW/cm2 4 π R 2 5026.55 The minimum antenna-to-user separation distance is 5mm; however, the device is exempt from SAR testing for <20cm separation due to the low output power. The limit of 16mW in accordance with KDB 447498 is not exceeded.

112113 Report Number: F2LQ5836-01E Page 1 of 60 Issue Date: Mar. 14, 2014 F2 Labs 16740 Peters Road Middlefield, Ohio 44062 United States of America www.f2labs.com CERTIFICATION TEST REPORT Manufacturer: Structured Mining Systems, Inc. d.b.a. Cervis Inc. 170 Thorn Hill Road Warrendale, Pennsylvania 15086 United States of America Applicant: Same As Above Product: SmaRT Portable Radio Model: HH-9H06 FCC ID: LOB9H06 Testing Commenced: Nov. 22, 2013 Testing Ended: Dec. 23, 2013 Summary of Test Results: 4 Standards: • FCC Part 15 Subpart C, Section 15.247 Evaluation Conducted by: Ken Littell, EMC Tech. Mgr. Report Reviewed by: Wendy Fuster, President F2 Labs F2 Labs 26501 Ridge Road 16740 Peters Road Damascus, MD 20872 Middlefield, OH 44062 Ph 301.253.4500 Ph 440.632.5541 Fax 301.253.5179 Fax 440.632.5542 This test report may be reproduced in full; partial reproduction only may be made with the written consent of F2 Labs. The results in this report apply only to the equipment tested. Order Number: F2LQ5836 Client: Cervis Inc. Model: HH-9H06 112113 Report Number: F2LQ5836-01E Page 2 of 60 Issue Date: Mar. 14, 2014 TABLE OF CONTENTS Section Title Page 1 ADMINISTRATIVE INFORMATION 3 2 SUMMARY OF TEST RESULTS/MODIFICATIONS 4 3 TABLE OF MEASURED RESULTS 5 4 ENGINEERING STATEMENT 6 5 EUT INFORMATION AND DATA 7 6 LIST OF MEASUREMENT INSTRUMENTATION 8 7 FCC Part 15.247(a)(2) – -6dB Occupied Bandwidth 9 8 FCC Part 15.247(b)(3) – Conducted Output Power 13 9 FCC Part 15.247(d) – Conducted Spurious Emissions 17 10 Radiated Spurious Emission 36 11 FCC PART 15.247 – Peak Power Spectral Density (PSD) 56 12 Photos/Exhibits – Product Photos, Test Setups 60 Order Number: F2LQ5836 Client: Cervis Inc. Model: HH-9H06 112113 Report Number: F2LQ5836-01E Page 3 of 60 Issue Date: Mar. 14, 2014 1 ADMINISTRATIVE INFORMATION 1.1 Measurement Location: F2 Labs in Middlefield, Ohio. Site description and attenuation data are on file with the FCC's Sampling and Measurement Branch at the FCC Laboratory in Columbia, MD. 1.2 Measurement Procedure: All measurements were performed according to the 2003 version of ANSI C63.4 and recommended FCC procedure of measurement of DTS operating under Section 15.247 and in KDB558074. A list of the measurement equipment can be found in Section 6. 1.3 Uncertainty Budget: Radiated Emission • Combined Uncertainty (+ or -) 2.67 dB • Expanded Uncertainty (+ or -) 5.35 dB This uncertainty represents an expanded uncertainty expressed at approximately the 95% confidence level using a coverage factor of k=2. 1.4 Document History Document Number Description Issue Date Approved By F2LQ5836-01E First Issue Mar. 14, 2014 W. Fuster Order Number: F2LQ5836 Client: Cervis Inc. Model: HH-9H06 112113 Report Number: F2LQ5836-01E Page 4 of 60 Issue Date: Mar. 14, 2014 2 SUMMARY OF TEST RESULTS Test Name Standard(s) Results -6dB Occupied Bandwidth CFR 47 Part 15.247(a)(2) / KDB558074 Complies Conducted Output Power CFR 47 Part 15.247(b)(3) / KDB558074 Complies Conducted Spurious Emissions CFR 47 Part 15.247(d) / Part 15.209 / KDB558074 Complies Radiated Spurious Emission with 1.49dBi Chip Antenna CFR 47 Part 15.247(d) / Part 15.209 / KDB558074 Complies Peak Power Spectral Density CFR 47 Part 15.247(e) / KDB558074 Complies Note: Product was operated using AAA batteries. Requirements of 15.31 were met by using new batteries. Modifications Made to the Equipment None Order Number: F2LQ5836 Client: Cervis Inc. Model: HH-9H06 112113 Report Number: F2LQ5836-01E Page 5 of 60 Issue Date: Mar. 14, 2014 3 TABLE OF MEASURED RESULTS Test High Channel 924.2 MHz Mid Channel 916.1 MHz Low Channel 906.2 MHz Conducted Output Power 8.710mW (9.40dBm) 9.120mW (9.60dBm) 9.183mW (9.63dBm) Conducted Output Power Limit 1 Watt, (30dBm) 1 Watt, (30dBm) 1 Watt, (30dBm) E.I.R.P. with 1.49dBi Chip Antenna 12.274mW (10.89dBm) 12.853mW (11.09dBm) 12.942mW (11.12dBm) E.I.R.P. Limit 4 Watts, (36.02dBm) 4 Watts, (36.02dBm) 4 Watts, (36.02dBm) Peak Power Spectral Density -1.07 dBm -1.07 dBm -0.9 dBm Peak Power Spectral Density Limit 8 dBm 8 dBm 8 dBm -6dB Occupied bandwidth .504810 MHz .504810 MHz .504810 MHz -6dB Occupied Bandwidth Limit > 500KHz > 500KHz > 500KHz Order Number: F2LQ5836 Client: Cervis Inc. Model: HH-9H06 112113 Report Number: F2LQ5836-01E Page 6 of 60 Issue Date: Mar. 14, 2014 4 ENGINEERING STATEMENT This report has been prepared on behalf of Cervis Inc., to provide documentation for the testing described herein. This equipment has been tested and found to comply with Part 15.247 of the FCC Rules using ANSI C63.4 2003 and KDB558074 standards. The test results found in this test report relate only to the items tested. Order Number: F2LQ5836 Client: Cervis Inc. Model: HH-9H06 112113 Report Number: F2LQ5836-01E Page 7 of 60 Issue Date: Mar. 14, 2014 5 EUT INFORMATION AND DATA 5.1 Equipment Under Test: Product: SmaRT Portable Radio Model: HH-9H06 Serial No.: None FCC ID: LOB9H06 5.2 Trade Name: Structured Mining Systems, Inc. d.b.a. Cervis Inc. 5.3 Power Supply: Non-rechargeable AAA Batteries 5.4 Applicable Rules: CFR 47, Part 15.247, subpart C 5.5 Equipment Category: Radio Transmitter-DTS 5.6 Antenna: 1.49dBi Chip Antenna 5.7 Accessories: N/A 5.8 Test Item Condition: The equipment to be tested was received in good condition. 5.9 Testing Algorithm: The EUT was configured to permit frequency changes from low-mid-upper transmission channel using digital modulation (required for digital transmission systems). For RF antenna conducted tests, the EUT was equipped with an SMA connector for connection to the measuring equipment. For radiated emissions tests, in a semi-anechoic chamber and on the OATS, the EUT was equipped with integral/internal chip antenna. The highest emissions were recorded in the data tables. Order Number: F2LQ5836 Client: Cervis Inc. Model: HH-9H06 112113 Report Number: F2LQ5836-01E Page 8 of 60 Issue Date: Mar. 14, 2014 6 LIST OF MEASUREMENT INSTRUMENTATION Equipment Type Asset Number Manufacturer Model Serial Number C…

Text truncated - open the document above for the full version.

F2 Labs Job No.: F2LQ5836 Jan. 16, 2014 CERVIS SmaRT Portable Radio HH9-H06 FCC ID: LOB9H06 PHOTOGRAPHS/EXHIBITS – PRODUCT PHOTOS, TEST SETUPS Radiated Spurious Emission with 0dBi Chip Antenna Conducted Output Power, Peak Power Spectral Density, -6dB Occupied Bandwidth, and Conducted Spurious Emissions
