LX8765EAutomotive Security Receiver

Bayerische Motoren Werke AG

Click to zoom

Application Details

Equipment Class: CYY - Communications Receiver used w/Pt 15 Transmitter
Date of Grant: Jun 27, 2001
Application Purpose: Original Equipment
Date of Application: Jun 27, 2001
Equipment Note: Automotive Security Receiver
Frequency Range: 868.40000000 - 868.40000000
Company: Bayerische Motoren Werke AG
Country: Germany

Documents & Files

Select a file to view

Document Text

Text extracted from the exhibit documents filed with the FCC. Open a document above to read the original.

External Photos

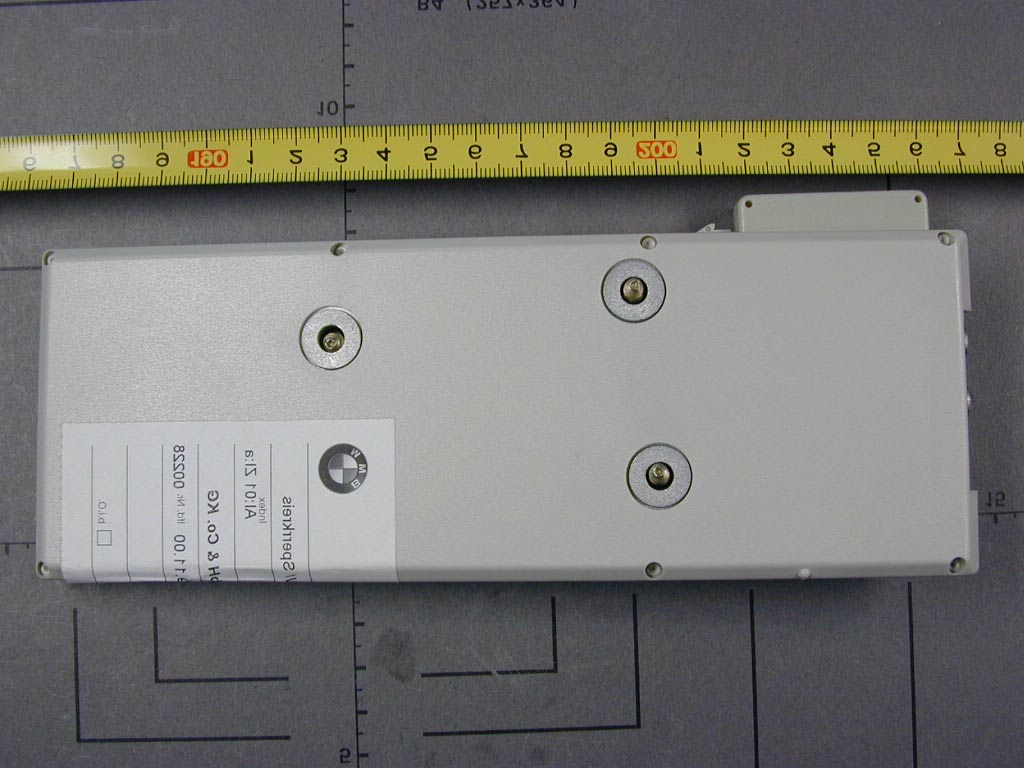

FCC ID LX8765E FCC ID: LX8765E External Photographs FCC ID LX8765E

ID Label/Location Info

FCC ID LX8765E FCC ID: LX8765E Label Information

Internal Photos

FCC ID LX8765E FCC ID: LX8765E Internal Photographs FCC ID LX8765E

Test Report

Page 1 of 35 Pages EMI/EMC-TestcenterEMV-Pr ̧fzentrum Straubing, January 18, 2001 T E S T - R E P O R T No. 50217-00696-2 for Funkfernbedienung 868 MHz, Typ 765 Remote control receiver Applicant:Bayerische Motorenwerke AG Purpose of testing:To show compliance with FCC Code of Federal Regulations, Part 15 Subpart B Class B I Canada Radio Standards Specification RSS-210 Issue 2, Section 6.1 (Category I Equipment) Note: The test data of this report relate only to the individual item which has been tested. This report shall not be reproduced except in full extent without the written approval of the testing laboratory. Test report for FCC Part 15 Subpart BTest Report No. 50217-00696-2 Page 2 of 35 Pages EMI/EMC-TestcenterEMV-Pr ̧fzentrum Table of Contents 1. Administrative Data ..............................................................................................3 2. Identification of Test Laboratory ...........................................................................4 3. Summary of Test Results.....................................................................................5 4. Operation Mode of EUT .......................................................................................6 5. Configuration of EUT and Peripheral Devices ......................................................7 6. Measuring Methods..............................................................................................8 6.1. Antenna power conducted emissions (FCC ß15.111)..................................12 6.2. Radiated Emission 30 MHz - 1 GHz (FCC ß15.109 / RSS-210 Sections 7.3) .................................................................................................8 6.3. Radiated Emission 1 GHz - 4.5 GHz (FCC ß15.109 / RSS-210 Sections 7.3) ...............................................................................................10 7. Equipment List ...................................................................................................13 8. Photographs Taken During Testing....................................................................15 9. List of Measurements.........................................................................................18 9.1. List of Measurements According To FCC Part 15 Subpart C ......................19 9.2. List of Measurements According To Industry Canada RSS- 210 20 10. Test Results .......................................................................................................22 Test report for FCC Part 15 Subpart BTest Report No. 50217-00696-2 Page 3 of 35 Pages EMI/EMC-TestcenterEMV-Pr ̧fzentrum 1.Administrative Data Equipment Under Test (EUT):Funkfernbedienung 868 MHz, Typ 765 Serial number(s):00228 Type of equipment:Remote control receiver Parts/accessories:--- FCC-ID:--- Applicant:Bayerische Motorenwerke AG (full address)Petuelring 130 D-80788 M ̧nchen Contract identification:--- Contact person:Mr. Hochleitner Manufacturer:Bayerische Motorenwerke AG Receipt of EUT:December 6, 2000 Date of test:December 2000 to January 2001 Note:--- Responsible for testing:Rupert Kohlh‰ufl Responsible for test report:Rupert Kohlh‰ufl (cj) Test report for FCC Part 15 Subpart BTest Report No. 50217-00696-2 Page 4 of 35 Pages EMI/EMC-TestcenterEMV-Pr ̧fzentrum 2.Identification of Test Laboratory Test Laboratory:Senton GmbH EMI/EMC Test Center (full address):Aeussere Fruehlingstrasse 45 D-94315 Straubing Germany Contact person:Mr. Johann Roidt Communication:Telephone(+49) 0 94 21 / 55 22-0 Fax (+49) 0 94 21 / 55 22-99 eMail:[email protected] FCC registration number:90926 Industry Canada file number:IC 3050 Test report for FCC Part 15 Subpart BTest Report No. 50217-00696-2 Page 5 of 35 Pages EMI/EMC-TestcenterEMV-Pr ̧fzentrum 3.Summary of Test Results The tested sample complies with the limits forth in the Code of Regulations FCC Part 15 Subpart B Class B of the Federal Communication Commission (FCC). and the Radio Standards Specification RSS-210 Issue 2, Section 6.1 for Low Power Licence-Exempt Radiocommuniction Devices of Industry Canada. Johann RoidtRupert Kohlh‰ufl Technical ManagerTest Engineer Test report for FCC Part 15 Subpart BTest Report No. 50217-00696-2 Page 6 of 35 Pages EMI/EMC-TestcenterEMV-Pr ̧fzentrum 4.Operation Mode of EUT Receiver in RX mode Test report for FCC Part 15 Subpart BTest Report No. 50217-00696-2 Page 7 of 35 Pages EMI/EMC-TestcenterEMV-Pr ̧fzentrum 5.Configuration of EUT and Peripheral Devices Configuration of cables of EUT --- Configuration of peripheral devices connected to EUT --- Test report for FCC Part 15 Subpart BTest Report No. 50217-00696-2 Page 8 of 35 Pages EMI/EMC-TestcenterEMV-Pr ̧fzentrum 6.Measuring Methods 6.1.Radiated Emission 30 MHz - 1 GHz (FCC ß15.109 / RSS-210 Section 7.3) Radiated emissions are measured over the frequency range from 30 MHz to 1 GHz. The bandwidth of the EMI-receiver is set to 120 kHz and the detector-function is set to CISPR quasi-peak. The test setup is made in accordance with ANSI C63.4-1992. Measurements are made in both the horizontal and vertical planes of polarization. Preliminary scans are taken in a semi-anechoic room using a spectrum analyzer with the detector function set to peak. Hand-held or body-worn devices are rotated through three orthogonal axes to determine which attitude and configuration produces the highest emission relative to the limit and therefore shall be used for final testing. All tests are performed at a test-distance of 3 meters. For final testing an open-area test-site is used. During the tests the EUT is rotated all around and the receiving-antenna is raised and lowered from 1 meter to 4 meters to find the maximum levels of emissions. The cables and equipment is placed and moved within the range of position likely to find their maximum emissions. See figure 1 for the measurement setup. Test equipment used (see equipment list for details): 01, 02, 05, 12, 38, 39, 40, 41, 58, 61, 64, 66 Test report for FCC Part 15 Subpart BTest Report N…

Text truncated - open the document above for the full version.

Test Setup Photos

Test report for FCC Part 15 Subpart BTest Report No. 50217-00696-2 Page 16 of 35 Pages EMI/EMC-TestcenterEMV-Pr ̧fzentrum Photos No. 8.1 - 8.2 Test setup for radiated emission pre-test 30 MHz - 1 GHz and final test 1 GHz - 4.5 GHz (semi anechoic room) Test report for FCC Part 15 Subpart BTest Report No. 50217-00696-2 Page 17 of 35 Pages EMI/EMC-TestcenterEMV-Pr ̧fzentrum Photos No. 8.3 - 8.4 Test setup for radiated emission final test 30 MHz - 1 GHz (open area test site)
