LX8CAS2Inductive Reader

Request for Confidentiality 10 December 2002 PHOENIX TEST-LAB GmbH Kˆnigswinkel 10 D32825 Blomberg Germany RE: Certification Application FCC ID: LX8CAS2 Please be advised that the following information is to be held confidential on behalf of Bayerische Motoren Werke AG: • Schematics • Block Diagram • Technical Description • Parts Lists The application contains technical information which Bayerische Motoren Werke deems to be trade secrets and proprietary. If made public, the information might be used to the disadvantage of the applicant in the market place. Thank you for your attention to this matter. Signatory

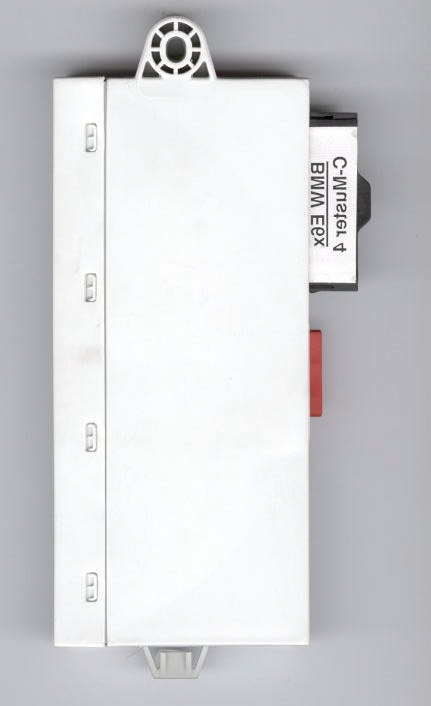

BMW Group Empfänger BMW AG Datum 25.10.2002 Seite 7 4. CAS2 photographs CAS2 package (top view) BMW Group Empfänger BMW AG Datum 25.10.2002 Seite 8 CAS2 package (bottom view) BMW Group Empfänger BMW AG Datum 25.10.2002 Seite 9 CAS2 package (front view)

LX8CAS2

BMW Group Empfänger BMW AG Datum 25.10.2002 Seite CAS2 (top view of PCB) 9 BMW Group Empfänger BMW AG Datum 25.10.2002 Seite 10 CAS2 (bottom view of PCB)

FCC-ID: LX8CAS2 Test Report No. 50217-20770 Page 1 of 20 Pages Straubing, 12 December 2002 T E S T - R E P O R T No. 50217-20770 for CAS 2 Inductive Reader Applicant: Bayerische Motoren Werke AG Purpose of testing: To show compliance with FCC Code of Federal Regulations, CFR 47, Part 15, Subpart C, Section 15.209 Note: The test data of this report relate only to the individual item which has been tested. This report shall not be reproduced except in full extent without the written approval of the testing laboratory. FCC-ID: LX8CAS2 Test Report No. 50217-20770 Page 2 of 20 Pages Table of Contents 1. Identification of the Test Laboratory .....................................................................3 2. Administrative Data ..............................................................................................4 3. Summary of Test Results.....................................................................................6 4. Deviations from the Test Specifications ...............................................................7 5. Additional Information to EUT and Testing ...........................................................8 6. Measuring Methods..............................................................................................9 6.1. Field strength emissions < 30 MHz (15.209) .................................................9 6.2. Unwanted Emission 30 MHz - 1 GHz (§15.225 (b)) .....................................10 7. Photographs of Test Setups...............................................................................11 7.1. Radiated Emissions 9 kHz – 30 MHz ...............................................................11 7.2. Radiated Emissions 30 – 1000 MHz ................................................................12 8. Equipment List ...................................................................................................13 9. Referenced Regulations.....................................................................................15 10. List of Measurements.........................................................................................16 11. Test Results .......................................................................................................17 12. Charts taken during testing ................................................................................19 FCC-ID: LX8CAS2 Test Report No. 50217-20770 Page 3 of 20 Pages 1. Identification of the Test Laboratory DETAILS OF THE TEST LABORATORY COMPANY NAME: Senton GmbH EMI/EMC Test Center ADDRESS: Aeussere Fruehlingstrasse 45 D-94315 Straubing Germany LABORATORY ACCREDITATION: DAR-Registration No. TTI-P-G 062/94-40 FCC TEST SITE REGISTRATION NUMBER: 90926 INDUSTRY CANADA FILE NUMBER: IC 3050 NAME FOR CONTACT PURPOSES: Mr. Johann Roidt TELEPHONE: (+49) 09421 5522-0 FAX: (+49) 09421 5522-99 EMAIL: [email protected] PERSONNEL INVOLVED IN THIS TEST REPORT TECHNICAL DIRECTOR: Mr. Johann Roidt RESPONSIBLE FOR TESTING: Mr. Johann Roidt RESPONSIBLE FOR TEST REPORT: Mr. Johann Roidt FCC-ID: LX8CAS2 Test Report No. 50217-20770 Page 4 of 20 Pages 2. Administrative Data IDENTIFICATION OF EUT TYPE DESIGNATION OF EUT (i.e. system if EUT consists of more than one part): CAS 2 PARTS OF THE SYSTEM (including appropriate type designations) SERIAL NUMBER(S): Prototype APPLICATION (see note): Inductive Applications SECTION OF FCC RULES 15.209 FREQUENCY RANGE: N/A OPERATING FREQUENCY: 125 kHz CARRIER POWER 19.5 μV/m at 300 meters CHANNEL SPACING: Not applicable ITU DESIGNATION: 10K0A1D NUMBER OF RF-CHANNELS: 1 NUMBER OF CONTROL FUNCTIONS: N/A POWER SUPPLY: 12 regulated lead acid battery TYPE OF ANTENNA: Fix connected SIZE / LENGTH OF ANTENNA: N/A INTERFACE(S): N/A FCC-ID: LX8CAS2 Test Report No. 50217-20770 Page 5 of 20 Pages ADMINISTRATIVE DATA APPLICANT (full address): Bayerische Motoren Werke Petuelring 130 D-80788 München CONTACT PERSON: Mr. Richard Hochleitner TELEPHONE NO.: +49 (0) 89 382 32965 FAX NO.: +49 (0) 89 382 732965 EMAIL-ADDRESS: [email protected] RECEIPT OF EUT: 9 December 2002 VERSION OF EUT: As delivered DATE(S) OF TEST: 11 December 2002 NOTE(S): --- FCC-ID: LX8CAS2 Test Report No. 50217-20770 Page 6 of 20 Pages 3. Summary of Test Results The tested sample complies with the requirements for set forth in the The Code of Federal Regulations 47, Part 15, Subpart C, Section 15.209 of the Federal Communication Commission (FCC). FCC-ID: LX8CAS2 Test Report No. 50217-20770 Page 7 of 20 Pages 4. Deviations from the Test Specifications All tests were performed without deviations from the test specifications. FCC-ID: LX8CAS2 Test Report No. 50217-20770 Page 8 of 20 Pages 5. Additional Information to EUT and Testing EUT MODE OF OPERATION Continously reading a TAG LIST OF ANCILLARY DEVICES USED FOR TESTING (SEE NOTE) Description Designation Serial no. Manufacturer None LIST OF PERIPHERAL DEVICES USED FOR TESTING Description Designation Serial no. Manufacturer None FCC-ID: LX8CAS2 Test Report No. 50217-20770 Page 9 of 20 Pages 6. Measuring Methods 6.1. Field strength emissions < 30 MHz (15.209) Radiated emissions in the frequency range 9 kHz – 30 MHz will be measured initially at a distance of 3 meters. A prescan at 3 meter distance will be performed in a shielded room with the detector of the spectrum analyzer or EMI Receiver set to peak. Final measurement is then performed at 30 meter distance. In case the regulation requires testing at other distances, the result will be extrapolated. The extrapolation factor will be determined by making a second measurement at 10 meter distance. The provisions of 15.31 (d) apply. According to section 15.209 (d) final measurementis performed with the detector set to Quasi Peak except for the frequency bands 9 – 90 kHz and 110 – 490 kHz where average detector is employed. FCC-ID: LX8CAS2 Test Report No. 50217-20770 Page 10 of 20 Pages 6.2. Unwanted Emission 30 MHz - 1 GHz (§15.225 (b)) Radiated emissions were measured over the frequenc…

Text truncated - open the document above for the full version.

FCC-ID: LX8CAS2 Test Report No. 50217-20770 Page 11 of 20 Pages 7. Photographs of Test Setups 7.1. Radiated Emissions 9 kHz – 30 MHz FCC-ID: LX8CAS2 Test Report No. 50217-20770 Page 12 of 20 Pages 7.2. Radiated Emissions 30 – 1000 MHz
