LX8CASAutomotive Remote Control Security Transmitter

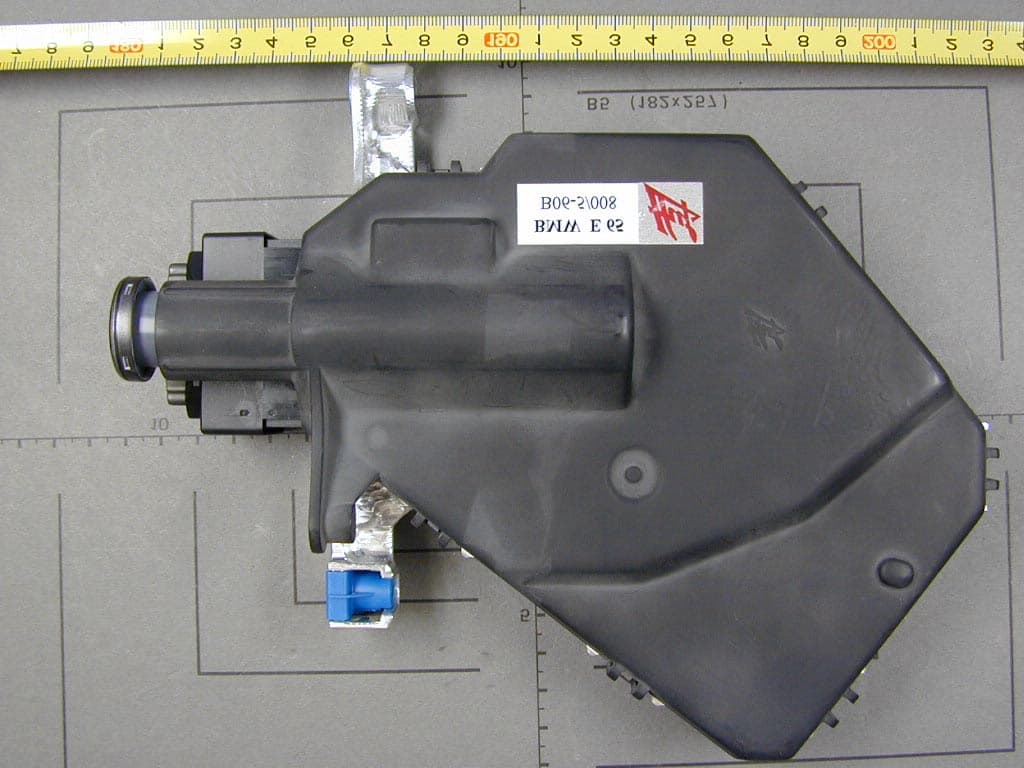

FCC ID LX8CAS FCC ID: LX8CAS External Photographs

FCC ID LX8CAS FCC ID: LX8CAS Label Information

FCC ID LX8CAS FCC ID: LX8CAS Label Location

FCC ID LX8CAS FCC ID: LX8CAS Internal Photographs FCC ID LX8CAS

Page 1 of 98 Pages EMI/EMC-TestcenterEMV-Pr ̧fzentrum Straubing, January 25, 2001 T E S T - R E P O R T No. 50217-00699 for Car Access System 125 kHz CAS Transceiver Applicant:Bayerische Motorenwerke AG Purpose of testing:To show compliance with FCC Code of Federal Regulations, Part 15 Subpart C, Section ß15.209 Industry Canada Radio Standards Specification RSS-210 Issue 2, Section 6.1 (Category I Equipment) Note: The test data of this report relate only to the individual item which has been tested. This report shall not be reproduced except in full extent without the written approval of the testing laboratory. Test report for FCC Part 15 Subpart CTest Report No. 50217-00699 Page 2 of 98 Pages EMI/EMC-TestcenterEMV-Pr ̧fzentrum Table of Contents 1. Administrative Data ..............................................................................................3 2. Identification of Test Laboratory ...........................................................................4 3. Summary of Test Results.....................................................................................5 4. Operation Mode of EUT .......................................................................................6 5. Configuration of EUT and Peripheral Devices ......................................................7 6. Measuring Methods..............................................................................................8 6.1. Radiated Emission 9 kHz - 30 MHz ($15.31.d,f, ß15.209, ß15.205 a,b / RSS-210 Sections 6.2.1, 6.3) ..................................................8 6.2. Radiated Emission 30 MHz - 1 GHz (FCC ß15.209, / RSS-210 Sections 6.1.1.b, 6.3) ..................................................................................10 7. Equipment List ...................................................................................................12 8. Photographs Taken During Testing....................................................................14 9. List of Measurements.........................................................................................22 9.1. List of Measurements According To FCC Part 15 Subpart C ......................23 9.2. List of Measurements According To Industry Canada RSS- 210 24 10. Referenced Regulations.....................................................................................25 11. Test Results .......................................................................................................26 Test report for FCC Part 15 Subpart CTest Report No. 50217-00699 Page 3 of 98 Pages EMI/EMC-TestcenterEMV-Pr ̧fzentrum 1.Administrative Data Equipment Under Test (EUT):Car Access System 125 kHz CAS Serial number(s):Sample 1: CM5LL; Ser.-No. 302 Sample 2: CM5RL; Ser.-No. 400 Parts/accessories:--- FCC-ID:--- Applicant:Bayerische Motorenwerke AG (full address)Petuelring 130 D-80788 M ̧nchen Contract identification:--- Contact person:Mr. Hochleitner Manufacturer:Bayerische Motorenwerke AG Receipt of EUT:December 6, 2000 Date of test:December 2000 to January 2001 Note:--- Responsible for testing:Rupert Kohlh‰ufl Responsible for test report:Rupert Kohlh‰ufl (cj) Test report for FCC Part 15 Subpart CTest Report No. 50217-00699 Page 4 of 98 Pages EMI/EMC-TestcenterEMV-Pr ̧fzentrum 2.Identification of Test Laboratory Test Laboratory:Senton GmbH EMI/EMC Test Center (full address):Aeussere Fruehlingstrasse 45 D-94315 Straubing Germany Contact person:Mr. Johann Roidt Communication:Telephone(+49) 0 94 21 / 55 22-0 Fax (+49) 0 94 21 / 55 22-99 eMail:[email protected] FCC registration number:90926 Industry Canada file number:IC 3050 Test report for FCC Part 15 Subpart CTest Report No. 50217-00699 Page 5 of 98 Pages EMI/EMC-TestcenterEMV-Pr ̧fzentrum 3.Summary of Test Results The tested samples are in compliance with the requirements set forth in the Code of Regulations Part 15 Subpart C, Section ß15.209 (intentional radiators) of the Federal Communication Commission (FCC) and the Radio Standards Specification RSS-210 Issue 2, Section 6.1 for Low Power Licence-Exempt Radiocommuniction Devices of Industry Canada. Johann RoidtRupert Kohlh‰ufl Technical ManagerTest Engineer Test report for FCC Part 15 Subpart CTest Report No. 50217-00699 Page 6 of 98 Pages EMI/EMC-TestcenterEMV-Pr ̧fzentrum 4.Operation Mode of EUT TX in stand by mode (equal RX mode) TX active with / without tag Test report for FCC Part 15 Subpart CTest Report No. 50217-00699 Page 7 of 98 Pages EMI/EMC-TestcenterEMV-Pr ̧fzentrum 5.Configuration of EUT and Peripheral Devices Configuration of cables of EUT cable connected to test adapter (1 m) Configuration of peripheral devices connected to EUT test adapter connected to EUT Test report for FCC Part 15 Subpart CTest Report No. 50217-00699 Page 8 of 98 Pages EMI/EMC-TestcenterEMV-Pr ̧fzentrum 6.Measuring Methods 6.1.Radiated Emission 9 kHz - 30 MHz ($15.31.d,f, ß15.209, ß15.205 a,b / RSS-210 Sections 6.2.1, 6.3) Radiated emissions were measured over the frequency range from 9 kHz to 30 MHz. The bandwidth of the EMI-receiver was set to 200 Hz below 150 kHz and to 10 kHz above 150 kHz. According to section ß15.209 (d) final measurements were performed with the detector set to CISPR quasi-peak except for the frequency bands 9 - 90 kHz and 110 - 490 kHz where average detector is employed. The test setup was made in accordance with ANSI C63.4-1992. Preliminary scans were taken in a shielded room with a test-distance of 3 meters and detector-function of EMI-receiver set to peak. To search for the maximum emission EUT was placed in three orthogonal planes and rotated all around as well as the vertically polarized loop antenna on its vertical axis by 360∞. Cables and equipment were placed and moved within the range of positions likely to find their maximum emissions. As a result of these preparations worst case configuration was recorded to determine the radiated EMI-profile of the EUT. Final test was performed using an open-area test-site with a test-distance…

Text truncated - open the document above for the full version.

Test report for FCC Part 15 Subpart CTest Report No. 50217-00699 Page 16 of 98 Pages EMI/EMC-TestcenterEMV-Pr ̧fzentrum Photos No. 8.3 - 8.4 Test setup for radiated emission pre-test 9 kHz - 30 MHz - continued - Test report for FCC Part 15 Subpart CTest Report No. 50217-00699 Page 17 of 98 Pages EMI/EMC-TestcenterEMV-Pr ̧fzentrum Photos No. 8.5 - 8.6 Test setup for radiated emission final test 9 kHz - 30 MHz Test report for FCC Part 15 Subpart CTest Report No. 50217-00699 Page 18 of 98 Pages EMI/EMC-TestcenterEMV-Pr ̧fzentrum Photos No. 8.7 - 8.8 Test setup for radiated emission pre- test 30 MHz - 1 GHz - anechoic chamber - Test report for FCC Part 15 Subpart CTest Report No. 50217-00699 Page 19 of 98 Pages EMI/EMC-TestcenterEMV-Pr ̧fzentrum Photos No. 8.9 - 8.10 Test setup for radiated emission pre- test 30 MHz - 1 GHz - anechoic chamber -(continued Test report for FCC Part 15 Subpart CTest Report No. 50217-00699 Page 20 of 98 Pages EMI/EMC-TestcenterEMV-Pr ̧fzentrum Photos No. 8.11 - 8.12 Test setup for radiated emission final test 30 MHz - 1 GHz - open area test site - Test report for FCC Part 15 Subpart CTest Report No. 50217-00699 Page 21 of 98 Pages EMI/EMC-TestcenterEMV-Pr ̧fzentrum Photos No. 8.13 - 8.14 Test setup for radiated emission final test 30 MHz - 1 GHz - open area test site - (continued)
