LYHMPCI1V1Siemens Industrial Access Point/ EAP Family

SIMATIC NET Betriebsanleitung (kompakt) Operating Instructions (Compact) Ausgabe/Release 03/2007 SCALANCE W786-1PRO SCALANCE W786-2PRO SCALANCE W786-3PRO Deutsch/English A5E01048819-01 A5E01048819-01 © SIEMENS AG 2007 Änderungen vorbehalten Subject to change ii Betriebsanleitung (kompakt) SCALANCE W786 A5E01048819-01 Inhaltsverzeichnis / Table of Contents Seite / Page Deutsch.......................................................................................................................1 English ......................................................................................................................59 Betriebsanleitung (kompakt) SCALANCE W786 iii A5E01048819-01-04-04 Bitte beachten Sie die Warnhinweise und zusätzlichen Informationen in der Be- triebsanleitung (kompakt) in Ihrer Sprache im Internet: http://www4.ad.siemens.de/view/cs/at/18690255 http://www4.ad.siemens.de/view/cs/ch/18690255 http://www4.ad.siemens.de/view/cs/de/18690255 http://www4.ad.siemens.de/view/cs/li/18690255 http://www4.ad.siemens.de/view/cs/lu/18690255 Please observe the warnings and additional information in the user manual (com- pact) in your language in the Internet: http://www4.ad.siemens.de/view/cs/au/18690255 http://www4.ad.siemens.de/view/cs/ca/18690255 http://www4.ad.siemens.de/view/cs/gb/18690255 http://www4.ad.siemens.de/view/cs/ie/18690255 http://www4.ad.siemens.de/view/cs/us/18690255 http://www4.ad.siemens.de/view/cs/za/18690255 Veuillez observer les avertissements et informations supplémentaires du manuel d’utilisation (compact) dans votre langue dans l’internet: http://www4.ad.siemens.de/view/cs/be/18690255 http://www4.ad.siemens.de/view/cs/ch/18690255 http://www4.ad.siemens.de/view/cs/fr/18690255 http://www4.ad.siemens.de/view/cs/lu/18690255 Osservare le avvertenze di sicurezza e le informazioni aggiuntive nel manuale d'istruzioni (compatto) nella propria lingua in Internet: http://www4.ad.siemens.de/view/cs/it/18690255 Por favor, observe las indicaciones de advertencia y las informaciones adicionales en las instrucciones de servicio (compactas) en su idioma disponibles en Internet: http://www4.ad.siemens.de/view/cs/cl/18690255 http://www4.ad.siemens.de/view/cs/es/18690255 Berte prosím v úvahu výstražné pokyny a dodatečné informace v provozním návodu (kompakt) na internetu ve vaší řeči: http://www4.ad.siemens.de/view/cs/cz/18690255 De bedes iagttage advarselsanvisningerne og de yderligere informationer i betjeningsvejledningen (kompakt) for Deres sprog på internettet: http://www4.ad.siemens.de/view/cs/dk/18690255 iv Betriebsanleitung (kompakt) SCALANCE W786 A5E01048819-01 Huomioi internetissä oman kielisessäsi käyttöohjeessa (kompakti) olevat varoitusohjeet ja lisäinformaatiot: http://www4.ad.siemens.de/view/cs/fi/18690255 Προσέξτε παρακαλώ τις προειδοποιητικές υποδείξεις και τις πρόσθετες πληροφορίες στις οδηγίες λειτουργίας (συνεπτηγμένες) στη γλώσσα σας στο διαδίκτυο. http://www4.ad.siemens.de/view/cs/gr/18690255 请遵守互联网上用您的语言编写的用户手册（简易版）中的警告信息和附加说明： http://www4.ad.siemens.de/view/cs/cn/18690255 http://www4.ad.siemens.de/view/cs/hk/18690255 http://www4.ad.siemens.de/view/cs/sg/18690255 Kérjük, vegye figyelembe az Interneten található magyar nyelvű használati utasításban (kompakt) olvasható figyelmeztető utasításokat és a kiegészítő információkat! http://www4.ad.siemens.de/view/cs/hu/18690255 Vinsamlegast athugið varúðarábendingar og viðbótarupplýsingar í notendahandbók- inni (stytt útgáfa) á Netinu: http://www4.ad.siemens.de/view/cs/is/18690255 以下のインターネットアドレスでお客様の言語による取扱説明書（コンパクト版） をご覧 http://www4.ad.siemens.de/view/cs/jp/18690255 いただけます。同取扱説明書内に記載された警告事項および補足情報にご注意くだ さい。 인터넷 http://www4.ad.siemens.de/view/cs/kr/18690255에서 귀하의 사용 언어로 된 사용자 설명서(컴팩트)의 경고 및 추가 정보를 확인하십시오. بدليل الملحقة الإضافية والمعلومات التحذير إرشادات مراعاة برجاء التشغيل)المدمج (وبالالإنترنت شبكة طريق عن وذلك بها تتحدث التي لغة: http://www4.ad.siemens.de/view/cs/kw/18690255 Betriebsanleitung (kompakt) SCALANCE W786 v A5E01048819-01-04-04 Neem de waarschuwingen en de bijkomende informatie in acht, te vinden in de handleiding (compact) in uw taal in het internet: http://www4.ad.siemens.de/view/cs/be/18690255 http://www4.ad.siemens.de/view/cs/nl/18690255 Vennligst se advarsler og ytterligere opplysninger i driftsveiledningen (kompakt) på ditt språk i Internett: http://www4.ad.siemens.de/view/cs/no/18690255 Por favor observe as advertências e as informações adicionais no manual de instruções (compacto) na sua língua na internet: http://www4.ad.siemens.de/view/cs/po/18690255 Var vänlig observera varningarna och tilläggsinformationerna i bruksanvisningen (kompakt) på ditt språk på Internet: http://www4.ad.siemens.de/view/cs/se/18690255 Lütfen internette sizin dilinizde sunulan işletme kılavuzundaki (yoğunlaştırılmış) uyarı bilgilerine ve ek bilgilere dikkat ediniz: http://www4.ad.siemens.de/view/cs/tr/18690255 vi Betriebsanleitung (kompakt) SCALANCE W786 A5E01048819-01 Safety Guidelines This manual contains notices you have to observe in order to ensure your personal safety, as well as to prevent damage to property. The notices referring to your personal safety are highlighted in the manual by a safety alert symbol, notices referring only to property damage have no safety alert symbol. These notices shown below are graded according to the degree of danger. Danger indicates that death or severe personal injury will result if proper precautions are not taken. Warning indicates that death or severe personal injury may result if proper precautions are not taken. Caution with a safety alert symbol, indicates that minor personal injury can result if proper precautions are not taken. Caution without a safety alert symbol, indicates that property damage can result if proper precautions are not taken. Notice indicates that an unintended result or situation can occur if the corresponding information is not taken into account. If more than one degree of danger is present, the warning notice representing the highest degree of dang…

Text truncated - open the document above for the full version.

Federal Communications Commission Authorization and Evaluation Division Confidentiality Request regarding application for certification of FCC ID: LYHMPCI1V1 Pursuant to Sections 0.457 and 0.459 of the Commission’s Rules, our client Siemens AG, hereby request confidential treatment of information accompanying this application as outlined below: Exhibit Type File Name Block Diagram FCC ID LYHMPCI1V1 Block Diagram.pdf Schematics FCC ID LYHMPCI1V1 Schematics.pdf Parts List FCC ID LYHMPCI1V1 Parts List .pdf Operating Description FCC ID LYHMPCI1V1 Operating Description.pdf The above materials contain trade secrets and proprietary information not customarily released to the public. The public disclosure of these materials may be harmful to the applicant and provide unjustified benefits to its competitors. The applicant understands that pursuant to Section 0.457 of the Rules, disclosure of this application and all accompanying documentation will not be made before the date of the Grant for this application. Sincerely, Thomas Ring Manager: Certification Date: 23.03.2007 mikes-testingpartners gmbh Ohmstrasse 2-4 94342 Strasskirchen Germany Phone: 0049 9424 9481 0 Fax: 0049 9424 9481 240

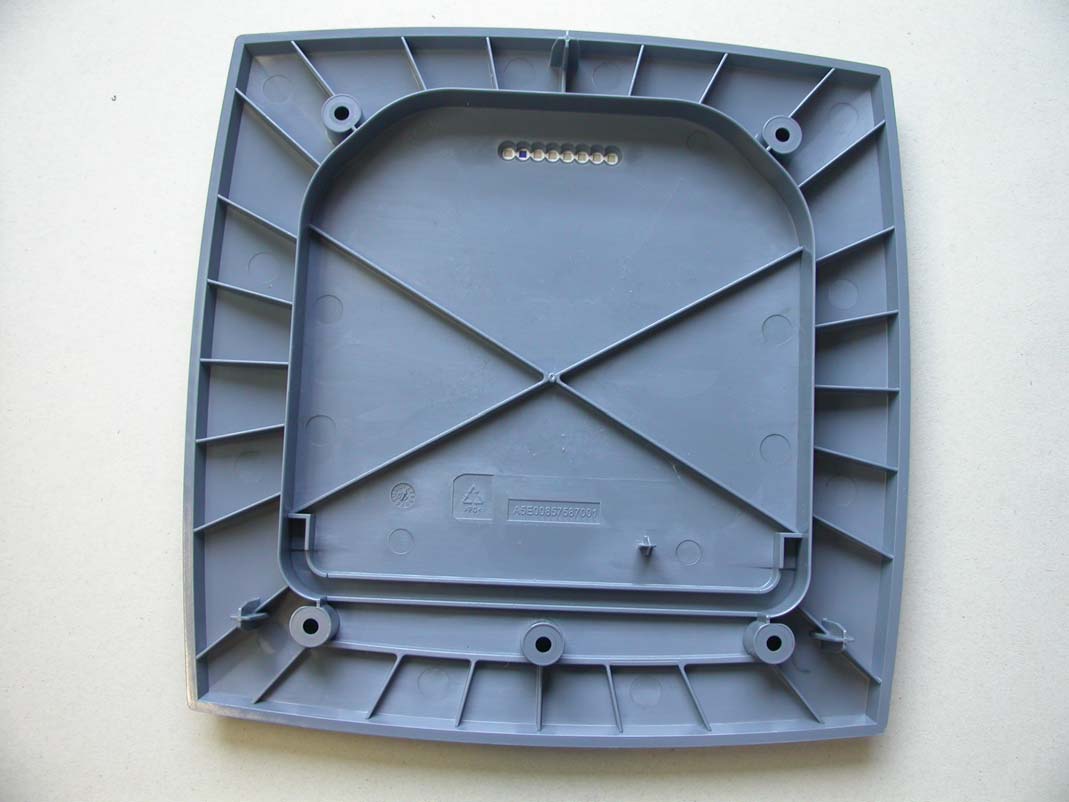

mikes-testingpartners gmbh File No. T 31583-00-KG Attachment A, page 1 of 13 Ohmstrasse 2-4 x 94342 Strasskirchen Tel.:+49(0)9424-94810 x Fax:+49(0)9424-9481240 Rev. No. 1.1 Attachment A to Test Report T31583-00-00KG 1 Photo documentation of the EUT EAP External View Front mikes-testingpartners gmbh File No. T 31583-00-KG Attachment A, page 2 of 13 Ohmstrasse 2-4 x 94342 Strasskirchen Tel.:+49(0)9424-94810 x Fax:+49(0)9424-9481240 Rev. No. 1.1 EAP External View Bottom mikes-testingpartners gmbh File No. T 31583-00-KG Attachment A, page 3 of 13 Ohmstrasse 2-4 x 94342 Strasskirchen Tel.:+49(0)9424-94810 x Fax:+49(0)9424-9481240 Rev. No. 1.1 EAP External View Lid

mikes-testingpartners gmbh File No. T 31583-00-KG Attachment A, page 4 of 13 Ohmstrasse 2-4 x 94342 Strasskirchen Tel.:+49(0)9424-94810 x Fax:+49(0)9424-9481240 Rev. No. 1.1 EAP Internal View Connectors mikes-testingpartners gmbh File No. T 31583-00-KG Attachment A, page 5 of 13 Ohmstrasse 2-4 x 94342 Strasskirchen Tel.:+49(0)9424-94810 x Fax:+49(0)9424-9481240 Rev. No. 1.1 EAP Internal View Connectors mikes-testingpartners gmbh File No. T 31583-00-KG Attachment A, page 6 of 13 Ohmstrasse 2-4 x 94342 Strasskirchen Tel.:+49(0)9424-94810 x Fax:+49(0)9424-9481240 Rev. No. 1.1 EAP Internal View Circuit Board in housing mikes-testingpartners gmbh File No. T 31583-00-KG Attachment A, page 7 of 13 Ohmstrasse 2-4 x 94342 Strasskirchen Tel.:+49(0)9424-94810 x Fax:+49(0)9424-9481240 Rev. No. 1.1 EAP Internal View Circuit Board (Bottom) with modules mikes-testingpartners gmbh File No. T 31583-00-KG Attachment A, page 8 of 13 Ohmstrasse 2-4 x 94342 Strasskirchen Tel.:+49(0)9424-94810 x Fax:+49(0)9424-9481240 Rev. No. 1.1 EAP Internal View Circuit Board (Bottom) without modules mikes-testingpartners gmbh File No. T 31583-00-KG Attachment A, page 9 of 13 Ohmstrasse 2-4 x 94342 Strasskirchen Tel.:+49(0)9424-94810 x Fax:+49(0)9424-9481240 Rev. No. 1.1 EAP Internal View Circuit Board (Top) mikes-testingpartners gmbh File No. T 31583-00-KG Attachment A, page 10 of 13 Ohmstrasse 2-4 x 94342 Strasskirchen Tel.:+49(0)9424-94810 x Fax:+49(0)9424-9481240 Rev. No. 1.1 EAP Internal View Circuit Board (Top) / Connectors mikes-testingpartners gmbh File No. T 31583-00-KG Attachment A, page 11 of 13 Ohmstrasse 2-4 x 94342 Strasskirchen Tel.:+49(0)9424-94810 x Fax:+49(0)9424-9481240 Rev. No. 1.1 EAP Internal View Module with shielding mikes-testingpartners gmbh File No. T 31583-00-KG Attachment A, page 12 of 13 Ohmstrasse 2-4 x 94342 Strasskirchen Tel.:+49(0)9424-94810 x Fax:+49(0)9424-9481240 Rev. No. 1.1 EAP Internal View Module without shielding mikes-testingpartners gmbh File No. T 31583-00-KG Attachment A, page 13 of 13 Ohmstrasse 2-4 x 94342 Strasskirchen Tel.:+49(0)9424-94810 x Fax:+49(0)9424-9481240 Rev. No. 1.1 EAP Internal View Module

mikes-testingpartners gmbh File No. T31583-00-02KG, page 1 of 20 Ohmstrasse 2-4 x 94342 Strasskirchen Tel.:+49(0)9424-94810 x Fax:+49(0)9424-9481240 Rev. No. 1.1 EMI -- T E S T R E P O R T Test Report No. : T31583-00-02KG April 04, 2007 ______________________________________________________________________________________________ Date of issue Type / Model Name : EAP Family Product Description : Wireless-LAN-Accesspoint Applicant : Siemens AG Address : Östliche Rheinbrückenstr. 50 D-76187 Karlsruhe Manufacturer : Siemens AG Address : Östliche Rheinbrückenstr. 50 D-76187 Karlsruhe Licence holder : Siemens AG Address : Östliche Rheinbrückenstr. 50 D-76187 Karlsruhe Test Result according to the standards listed in clause 1 test standards: POSITIVE The test report merely corresponds to the test sample. It is not permitted to copy extracts of these test results without the written permission of the test DAT-P-207/0500 laboratory. mikes-testingpartners gmbh File No. T31583-00-02KG, page 2 of 20 Ohmstrasse 2-4 x 94342 Strasskirchen Tel.:+49(0)9424-94810 x Fax:+49(0)9424-9481240 Rev. No. 1.1 Contents 1 TEST STANDARDS 3 2 SUMMARY 4 3 EQUIPMENT UNDER TEST 7 3.1 PHOTO DOCUMENTATION OF THE EUT – DETAILED PHOTOS SEE ATTACHMENT A 7 3.2 POWER SUPPLY SYSTEM UTILISED 7 3.3 SHORT DESCRIPTION OF THE EQUIPMENT UNDER TEST (EUT) 7 4 TEST ENVIRONMENT 8 4.1 ADDRESS OF THE TEST LABORATORY 8 4.2 ENVIRONMENTAL CONDITIONS 8 4.3 STATEMENT OF THE MEASUREMENT UNCERTAINTY 8 4.4 MEASUREMENT PROTOCOL FOR FCC, VCCI AND AUSTEL 9 5 TEST CONDITIONS AND RESULTS 10 5.1 POWER LINE CONDUCTED EMISSIONS 10 5.2 RADIATED EMISSIONS (ELECTRIC FIELD) 16 5.3 SPURIOUS EMISSIONS (ANTENNA CONDUCTED) 19 6 USED TEST EQUIPMENT AND ACCESSORIES 20 mikes-testingpartners gmbh File No. T31583-00-02KG, page 3 of 20 Ohmstrasse 2-4 x 94342 Strasskirchen Tel.:+49(0)9424-94810 x Fax:+49(0)9424-9481240 Rev. No. 1.1 1 TEST STANDARDS The tests were performed according to following standards: FCC Rules and Regulations Part 15 Subpart B - Unintentional Radiators (October 01, 2006) Part 15, Subpart B, Section 15.107(a) AC Line conducted emissions Part 15, Subpart B, Section 15.109(a) Radiated emissions, general requirements Part 15, Subpart B, Section 15.111(a) Antenna power conduction mikes-testingpartners gmbh File No. T31583-00-02KG, page 4 of 20 Ohmstrasse 2-4 x 94342 Strasskirchen Tel.:+49(0)9424-94810 x Fax:+49(0)9424-9481240 Rev. No. 1.1 2 SUMMARY GENERAL REMARKS: For the unit EAP are different variants with following applications existing: Variant Certification-Name WLAN Modules Ethernet Antennas V01 EAP-W1-RJ-E1 1 RJ45 2 x R-SMA V02 EAP-W1-RJ-I1 1 RJ45 1 x intern V03 EAP-W2-RJ-E2 2 RJ45 4 x R-SMA V04 EAP-W2-RJ-I2 2 RJ45 2 x intern V05 EAP-W3-RJ-E3 3 RJ45 6 x R-SMA V06 EAP-W1-MM-E1 1 optical 2 x R-SMA V07 EAP-W1-MM-I2 1 optical 1 x intern V08 EAP-W2-MM-E2 2 optical 4 x R-SMA V09 EAP-W2-MM-I2 2 optical 2 x intern V10 EAP-W3-MM-E3 3 optical 6 x R-SMA The used WLAN modules (Atheros AR5414) are compatible with 802.11a, 802.11b and 802.11g modulation. The WLAN modules are able to operate in 2.4 GHz and 5 GHz on following Frequency bands: - 802.11a Mode 5.15 GHz – 5.25 GHz and 5.75 GHz – 5.85 GHz - 802.11b/g Mode 2400 – 2483.5 MHz The module used DSSS or OFDM modulation and is cabable to provide following data rates: - 802.11b Mode 11, 5.5, 2, 1 Mbps, auto-fallback - 802.11g Mode 54, 48, 36, 24, 18, 12, 9, 6 Mbps, auto-fallback - 802.11g turbo Mode 108, 96, 72, 54, 48, 36, 24, 18, 12 Mbps, auto-fallback - 802.11a 54, 48, 36, 24, 18, 12, 9, 6 Mbps, auto-fallback - 802.11a turbo Mode 108, 96, 72, 54, 48, 36, 24, 18, 12 Mbps, auto-fallback There are different external antennas provided, which are listed in following table: Number Characteristics Certification name Connection Frequency Gain 1* Omni ANT795-6MN N 2,4 GHz band 5 GHz bands 6dBi 8dBi 2 Omni ANT792-6MN N 2,4 GHz band 6 dBi 3 Omni ANT793-6MN N 5 GHz bands 5 dBi 4* Patch ANT795-6DN N 2,4 GHz band 5 GHz bands 9 dBi 9 dBi 5 Directed ANT792-8DN N 2,4 GHz band 14 dBi 6 Directed ANT793-8DN N 5 GHz bands 18 dBi 7 Helix ANT792-4DN N 2,4 GHz band 4 dBi 8 Λ5/8 ANT793-4MN N 5 GHz band 6 dBi 9 R-Coax IWLAN Rcoax PE 1/2" 2,4 GHz N 2,4 GHz band 0 dBi 10 R-Coax IWLAN Rcoax PE 1/2" 5 GHz N 5 GHz band 0 dBi 11* Patch A5E00982361 R-SMA 2,4 GHz band 5 GHz bands 3 dBi 3,5 dBi 12* Patch A5E00982362 R-SMA 2,4 GHz band 5 GHz bands 3 dBi 3,5 dBi *) marked antennas are dual band antennas which can be used both in 2.4 GHz and 5 GHz bands. mikes-testingpartners gmbh File No. T31583-00-02KG, page 5 of 20 Ohmstrasse 2-4 x 94342 Strasskirchen Tel.:+49(0)9424-94810 x Fax:+49(0)9424-9481240 Rev. No. 1.1 Following channels are provided to this EUT: Operation in 2400 – 2483.5 MHz band: 802.11b/g mode: Channel Frequency Channel Frequency 1 2412 MHz 7 2442 MHz 2 2417 MHz 8 2447 MHz 3 2422 MHz 9 2452 MHz 4 2427 MHz 10 2457 MHz 5 2432 MHz 11 2462 MHz 6 2437 MHz 802.11g turbo mode: Channel Frequency 6 2437 MHz 802.11a mode Operation in 5750 MHz – 5850 MHz band – ISM band Channel Frequency 165 5825 MHz Operation in 5150 MHz – 5250 MHz (UNII-1) band 802.11a mode: Channel Frequency 36 5180 MHz 40 5200 MHz 44 5220 MHz 48 5240 MHz 802.11a turbo mode: Channel Frequency 42 5180 MHz Operation in 5750 MHz – 5828 MHz (UNII-3) band 802.11a mode: Channel Frequency 149 5745 MHz 153 5765 MHz 157 5785 MHz 161 5805 MHz 802.11a turbo mode: Channel Frequency 152 5760 MHz 160 5800 MHz mikes-testingpartners gmbh File No. T31583-00-02KG, page 6 of 20 Ohmstrasse 2-4 x 94342 Strasskirchen Tel.:+49(0)9424-94810 x Fax:+49(0)9424-9481240 Rev. No. 1.1 FINAL ASSESSMENT: The equipment under test fulfills the EMI requirements cited in clause 1 test standards. Date of receipt of test sample : acc. to storage records Testing commenced on : 22. March 2007 Testing concluded on : 23. March 2007 Checked by: Tested by: Thomas Weise Dipl.-Ing.(FH) Laboratory Manager Klaus Gegenfurtner Dipl.-Ing.(FH) mikes-testingpartners gmbh File No. T31583-00-02KG, page 7 of 20 Ohmstrasse 2…

Text truncated - open the document above for the full version.

FCC ID: LYHMPCI1V1 mikes-testingpartners gmbh File No. T31583-00-00KG, page 13 of 103 Ohmstrasse 2-4 x 94342 Strasskirchen Tel.:+49(0)9424-94810 x Fax:+49(0)9424-9481240 Rev. No. 1.1 5 TEST CONDITIONS AND RESULTS 5.1 Power Line conducted emissions (Worst case data) For test instruments and accessories used see section 6 Part A 4. 5.1.1 Description of the test location Test location: Shielded room S2 5.1.2 Photo documentation of the test set-up 5.1.3 Description of Measurement The final level, expressed in dBμV, is arrived at by taking the reading directly from the EMI receiver. This level is compared directly to the FCC Limit or to the CISPR limit. To convert between dBμV and μV, the following conversions apply: dBμV = 20(log μV) μV = Inverse log(dBμV/20) Conducted emissions on the 50 Hz and/or 60 Hz power interface of the EuT are measured in the frequency range of 150 kHz to 30 MHz. The measurements are performed using a receiver, which has CISPR characteristic bandwidth and quasi-peak detection and a Line Impedance Stabilization Network (LISN) with 50Ω/50 μH (CISPR 16) characteristics. Table top equipment is placed on a non-conducting table 80 centimeters above the floor and is positioned 40 centimeters from the vertical ground plane (wall) of the screen room. If the minimum limit margin appears to be less than 20 dB with a peak mode measurement, the emissions are remeasured using a tuned receiver with quasi-peak and average detection and recorded on the data sheets. FCC ID: LYHMPCI1V1 mikes-testingpartners gmbh File No. T31583-00-00KG, page 19 of 103 Ohmstrasse 2-4 x 94342 Strasskirchen Tel.:+49(0)9424-94810 x Fax:+49(0)9424-9481240 Rev. No. 1.1 Test results according to §15.247 and RSS-210, Annex 8 5.2 Maximum Output Power conducted For test instruments and accessories used see section 6 Part CPC 3. 5.2.1 Description of the test location Test location: AREA4 5.2.2 Photo documentation of the test set-up 5.2.3 Description of Measurement Conducted maximum output power: A spectrum analyzer / EMI test receiver is connected to the ouput of the transmitter via a suitable attenuator while EuT was operating in transmit mode using the assigned frequency. Analyzer Settings: - Detector: Max hold - RBW: greater than 20 dB Bandwidth - VBW: ≥ RBW - Sweep Time: Coupled Alternative test procedure: If antenna conducted tests cannot be performed on the EuT, radiated tests to show compliance with the various conducted requirements of Section 15.247 and RSS-Gen are performed. A pre-amp have been used in making the following requirements. FCC ID: LYHMPCI1V1 mikes-testingpartners gmbh File No. T31583-00-00KG, page 25 of 103 Ohmstrasse 2-4 x 94342 Strasskirchen Tel.:+49(0)9424-94810 x Fax:+49(0)9424-9481240 Rev. No. 1.1 5.3 Radiated emissions 9 kHz – 25 GHz For test instruments and accessories used see section 6 Part SER 1, SER2 and SER 3. 5.3.1 Description of the test location Test location: OATS1 Test location: Anechoic Chamber A2 Test distance: 3 metres 5.3.2 Photo documentation of the test set-up SER 1 FCC ID: LYHMPCI1V1 mikes-testingpartners gmbh File No. T31583-00-00KG, page 26 of 103 Ohmstrasse 2-4 x 94342 Strasskirchen Tel.:+49(0)9424-94810 x Fax:+49(0)9424-9481240 Rev. No. 1.1 SER2 FCC ID: LYHMPCI1V1 mikes-testingpartners gmbh File No. T31583-00-00KG, page 27 of 103 Ohmstrasse 2-4 x 94342 Strasskirchen Tel.:+49(0)9424-94810 x Fax:+49(0)9424-9481240 Rev. No. 1.1 SER 3 FCC ID: LYHMPCI1V1 mikes-testingpartners gmbh File No. T31583-00-00KG, page 35 of 103 Ohmstrasse 2-4 x 94342 Strasskirchen Tel.:+49(0)9424-94810 x Fax:+49(0)9424-9481240 Rev. No. 1.1 5.4 Spurious RF Conducted Emission For test instruments and accessories used see section 6 Part SEC 1, SEC 2 and SEC 3. 5.4.1 Description of the test location Test location: AREA4 5.4.2 Description of Measurement A Spectrum analyzer / EMI test receiver is connected to the ouput of the transmitter via a suitable attenuator while EuT was operating in transmit mode using the assigned frequency. Analyzer Settings: - Detector: Max Hold - RBW: 100 kHz - VBW: ≥ RBW - Sweep Time: Coupled - Detecter function: Peak 5.4.3 Photo documentation of the test set-up FCC ID: LYHMPCI1V1 mikes-testingpartners gmbh File No. T31583-00-00KG, page 39 of 103 Ohmstrasse 2-4 x 94342 Strasskirchen Tel.:+49(0)9424-94810 x Fax:+49(0)9424-9481240 Rev. No. 1.1 5.5 6 dB Bandwidth For test instruments and accessories used see section 6 Part MB. 5.5.1 Description of the test location Test location: AREA4 5.5.2 Photo documentation of the test set-up FCC ID: LYHMPCI1V1 mikes-testingpartners gmbh File No. T31583-00-00KG, page 45 of 103 Ohmstrasse 2-4 x 94342 Strasskirchen Tel.:+49(0)9424-94810 x Fax:+49(0)9424-9481240 Rev. No. 1.1 5.6 99%-Bandwidth For test instruments and accessories used see section 6 Part MB. 5.6.1 Description of the test location Test location: AREA4 5.6.2 Photo documentation of the test set-up FCC ID: LYHMPCI1V1 mikes-testingpartners gmbh File No. T31583-00-00KG, page 51 of 103 Ohmstrasse 2-4 x 94342 Strasskirchen Tel.:+49(0)9424-94810 x Fax:+49(0)9424-9481240 Rev. No. 1.1 5.7 Band edge test For test instruments and accessories used see section 6 Part MB. 5.7.1 Description of the test location Test location: AREA4 5.7.2 Photo documentation of the test set-up FCC ID: LYHMPCI1V1 mikes-testingpartners gmbh File No. T31583-00-00KG, page 58 of 103 Ohmstrasse 2-4 x 94342 Strasskirchen Tel.:+49(0)9424-94810 x Fax:+49(0)9424-9481240 Rev. No. 1.1 5.8 Power Spectral Density For test instruments and accessories used see section 6 Part CPC 3. 5.8.1 Description of the test location Test location: AREA4 5.8.2 Photo documentation of the test set-up FCC ID: LYHMPCI1V1 mikes-testingpartners gmbh File No. T31583-00-00KG, page 60 of 103 Ohmstrasse 2-4 x 94342 Strasskirchen Tel.:+49(0)9424-94810 x Fax:+49(0)9424-9481240 Rev. No. 1.1 Test results according to §15.407 and RSS-210, Annex 9 5.9 Maximum Output Power - Conducted For test instruments and accessories used see section 6 Part CPC 3 5.…

Text truncated - open the document above for the full version.
