LYHSIDTAB01Service and diagnostic device for vehicles

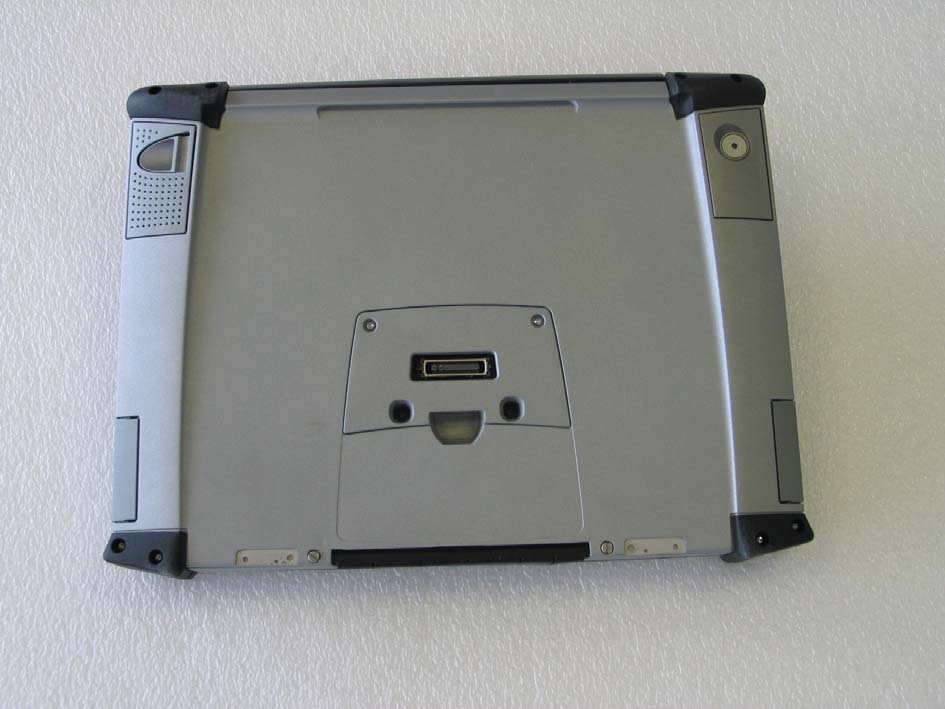

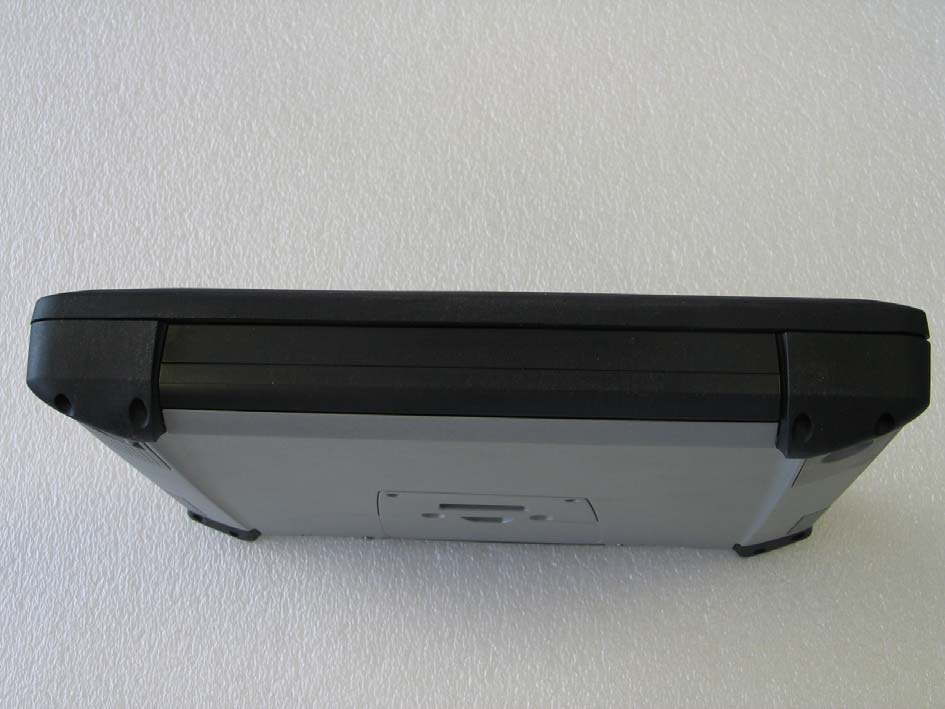

Top View Bottom View

19,5V/16,0V 2,8A For further type approval information see user manual SIDIS tablet 7KE3110 7C99 GARAGE EQUIPMENT VAS 5052A Siemens AG A&D PT3 SE3 A5E01246227A Typenschild VAS5052A BT ROW / without WLAN 25.07.07 Lorenz C D E A B 1234 PROPRIETARY DATAALL RIGHTS RESERVED ALS BETRIEBSGEHEIMNIS ANVERTRAUTALLE RECHTE VORBEHALTEN CONFIADO COMO SECRETO INDUSTRIALRESERVADOS TODOS LOS DERECHOS Blatt Dok.Typ von Dokument Artikel Datum: Urheber: Massstab: Änd.-Nr.: DS:ES: Änd.-Datum: Bearbeiter: Ers. f.: Fab-Gr.: 79B34623 03 10.10.07 Hofheinz 1 1 Ausgangsteil: Klebeschild Rohteil 3M 7876E bedruckt A5E01246431 123456789123 Barcode 2D 12345678910 Made in XXX 3) 4) 5) 6) 1) A5E01237949 7) Schriftfeld 34 x 28 mm Hintergrund ws 2) 4) 5) 6) 7) Bedruckungsbeispiel A5E01246227 This device complies with Part 15 of the FCC Rules. Operation is subject to the following two conditions: (1) this device may not cause harmful interference, and (2) this device must accept any interference received, including interference that may cause undesired operation. IC: 267AA-SIDTAB1 FCC-ID: LYHSIDTAB01 Schrift: tiefschwarz halbmatt RAL 9005; Auflösung 300dpi min. mit Thermotransferdrucker + Farbband Armor AXR7+ aufgebracht Schrifttyp: nach SN 34181 Siemens Sans Roman und Siemens Sans Black Beständigkeit: Wischfest / Abriebfestigkeit : nach DIN 30643-A-4-B; -H; -S 1) Artikelnummer Schrift nach SN34181 Siemens Sans Roman Höhe = 2mm 2) Artikelnummer Schrift nach SN34181 Siemens Sans Roman Höhe = 2,5mm 3) Erzeugnisstand Schrift nach SN34181 Siemens Sans Roman Höhe = 1,5mm 4) Barcode 2D Datamatrix nach SN60450 8x8mm Inhalt Barcode: 1PArtikelnummer+Sseriennummer Beispiel: 1PA5E01237892+S000001 5) 1S: Seriennummer nach SN37040 Schrift nach SN34181 Siemens Sans Black Höhe = 1,5mm FID z.B. Q6-/U8173201-SPVT Q6-/ = Produktionsstandort (Wien), U= Jahr (2006), 8= Monat (August) (Wertebereich entspr. /1/ Kap.) 173201= VW-Gerätenummern (173.201 vbis 199.999), SPV= SIDIS tablet VAS 5052A, T= Tester Die Produktion beginnt bei der Gerätenummer 173.201 und zählt lückenlos hoch. 6) 7) Made in xxx Schrift nach SN34181 Siemens Sans Roman Höhe = 1,5mm

Top View “Insulation removed” Bottom View “Insulation removed” Top View “Shielding removed”

DAT-P-152/98-01 SAR Report, 7layers_6620_640_FCC_Body_Tablet_2GHz_5GHz_ISID Page 1 of 26 Appendix for the Report Dosimetric Assessment of the Portable Device Integrated Service Information Display (ISID) from Siemens (FCC ID: LYHISID0001) According to the FCC Requirements SAR Distribution Plots August 24, 2007 IMST GmbH Carl-Friedrich-Gauß-Str. 2 D-47475 Kamp-Lintfort Customer 7layers AG Borsigstrasse 11 D-40880 Ratingen The test results only relate to the items tested. This report shall not be reproduced except in full without the written approval of the testing laboratory. dasy_report_fcc_WLAN_plots_1.0.doc/06.12.2005/AR SAR Report, 7layers_6620_640_FCC_Body_Tablet_2GHz_5GHz_ISID Page 2 of 26 dasy_report_fcc_1900_plots_1.1.doc/08.07.2005/CH Table of Contents 1 SAR DISTRIBUTION PLOTS, 2.450 MHZ RANGE.............................................................................3 2 SAR DISTRIBUTION PLOTS, 5.200 GHZ RANGE...........................................................................10 3 SAR DISTRIBUTION PLOTS, 5.800 GHZ RANGE...........................................................................16 4 SAR Z-AXIS SCANS (VALIDATION) ................................................................................................22 5 SAR Z-AXIS SCANS (MEASUREMENTS)........................................................................................26 SAR Report, 7layers_6620_640_FCC_Body_Tablet_2GHz_5GHz_ISID Page 3 of 26 dasy_report_fcc_1900_plots_1.1.doc/08.07.2005/CH 1 SAR Distribution Plots, 2.450 MHz range Test Laboratory: Imst GmbH, DASY Yellow (II); File Name: BT_yhm_mid_side.da4 DUT: Siemens; Type: WPD CRTU; Program Name: Body Worn Communication System: Bluetooth; Frequency: 2441 MHz;Duty Cycle: 1:1.3 Medium parameters used (interpolated): f = 2441 MHz; σ = 1.95 mho/m; ε r = 51.9; ρ = 1000 kg/m 3 Phantom section: Flat Section DASY4 Configuration: - Probe: EX3DV4 - SN3536; ConvF(7.76, 7.76, 7.76); Calibrated: 27.09.2006 - Sensor-Surface: 2mm (Mechanical Surface Detection) - Electronics: DAE3 Sn335; Calibrated: 09.02.2007 - Phantom: SAM Sugar 1341; Type: QD 000 P40 CB; Serial: TP-1341 - Measurement SW: DASY4, V4.7 Build 53; Postprocessing SW: SEMCAD, V1.8 Build 172 d=10mm, Pin=250mW/Area Scan (13x14x1): Measurement grid: dx=10mm, dy=10mm Maximum value of SAR (measured) = 1.59 mW/g d=10mm, Pin=250mW/Zoom Scan (7x7x7)/Cube 0: Measurement grid: dx=5mm, dy=5mm, dz=5mm Reference Value = 8.92 V/m; Power Drift = -0.178 dB Peak SAR (extrapolated) = 2.37 W/kg SAR(1 g) = 1.01 mW/g; SAR(10 g) = 0.434 mW/g Fig. 1: Worst SAR distribution for the Siemens ISID, Bluetooth, channel 39, side edge touching the phantom (August 23, 2007; Ambient Temperature: 22.4°C; Liquid Temperature: 21.4°C). SAR Report, 7layers_6620_640_FCC_Body_Tablet_2GHz_5GHz_ISID Page 4 of 26 dasy_report_fcc_1900_plots_1.1.doc/08.07.2005/CH Test Laboratory: Imst GmbH, DASY Yellow (II); File Name: WPD CRTU_ywhm_b_ch11_Ant_A_side.da4 DUT: Siemens; Type: WPD CRTU; Program Name: Body Worn Communication System: WLAN 2450; Frequency: 2462 MHz;Duty Cycle: 1:1 Medium parameters used: f = 2462 MHz; σ = 2 mho/m; ε r = 53; ρ = 1000 kg/m 3 Phantom section: Flat Section DASY4 Configuration: - Probe: EX3DV4 - SN3536; ConvF(7.76, 7.76, 7.76); Calibrated: 27.09.2006 - Sensor-Surface: 2mm (Mechanical Surface Detection) - Electronics: DAE3 Sn335; Calibrated: 09.02.2007 - Phantom: SAM Sugar 1341; Type: QD 000 P40 CB; Serial: TP-1341 - Measurement SW: DASY4, V4.7 Build 53; Postprocessing SW: SEMCAD, V1.8 Build 172 d=10mm, Pin=250mW/Area Scan (13x14x1): Measurement grid: dx=10mm, dy=10mm Maximum value of SAR (measured) = 0.170 mW/g d=10mm, Pin=250mW/Zoom Scan (7x7x7)/Cube 0: Measurement grid: dx=5mm, dy=5mm, dz=5mm Reference Value = 3.85 V/m; Power Drift = 0.171 dB Peak SAR (extrapolated) = 0.270 W/kg SAR(1 g) = 0.134 mW/g; SAR(10 g) = 0.072 mW/g Maximum value of SAR (measured) = 0.200 mW/g d=10mm, Pin=250mW/Zoom Scan (7x7x7)/Cube 1: Measurement grid: dx=5mm, dy=5mm, dz=5mm Reference Value = 3.85 V/m; Power Drift = 0.171 dB Peak SAR (extrapolated) = 0.262 W/kg SAR(1 g) = 0.113 mW/g; SAR(10 g) = 0.069 mW/g Maximum value of SAR (measured) = 0.192 mW/g Fig. 2: Worst case SAR distribution the Siemens ISID, Antenna 2, b-mode channel 11, upper edge touching the phantom (August 14, 2007; Ambient Temperature: 22.2° C; Liquid Temperature : 21.3° C). SAR Report, 7layers_6620_640_FCC_Body_Tablet_2GHz_5GHz_ISID Page 5 of 26 dasy_report_fcc_1900_plots_1.1.doc/08.07.2005/CH Test Laboratory: Imst GmbH, DASY Yellow (II); File Name: WPD CRTU_ywhm_b_ch11_Ant_B_side.da4 DUT: Siemens; Type: WPD CRTU; Program Name: Body Worn Communication System: WLAN 2450; Frequency: 2462 MHz;Duty Cycle: 1:1 Medium parameters used: f = 2462 MHz; σ = 2 mho/m; ε r = 53; ρ = 1000 kg/m 3 Phantom section: Flat Section DASY4 Configuration: - Probe: EX3DV4 - SN3536; ConvF(7.76, 7.76, 7.76); Calibrated: 27.09.2006 - Sensor-Surface: 2mm (Mechanical Surface Detection) - Electronics: DAE3 Sn335; Calibrated: 09.02.2007 - Phantom: SAM Sugar 1341; Type: QD 000 P40 CB; Serial: TP-1341 - Measurement SW: DASY4, V4.7 Build 53; Postprocessing SW: SEMCAD, V1.8 Build 172 d=10mm, Pin=250mW/Area Scan (13x14x1): Measurement grid: dx=10mm, dy=10mm Maximum value of SAR (measured) = 1.23 mW/g d=10mm, Pin=250mW/Zoom Scan (7x7x7)/Cube 0: Measurement grid: dx=5mm, dy=5mm, dz=5mm Reference Value = 8.30 V/m; Power Drift = -0.147 dB Peak SAR (extrapolated) = 1.76 W/kg SAR(1 g) = 0.806 mW/g; SAR(10 g) = 0.383 mW/g Fig. 3: Worst case SAR distribution the Siemens ISID, Antenna 3, b-mode channel 11, side edge touching the phantom (August 14, 2007; Ambient Temperature: 22.3° C; Liquid Temperature: 21.3° C). SAR Report, 7layers_6620_640_FCC_Body_Tablet_2GHz_5GHz_ISID Page 6 of 26 dasy_report_fcc_1900_plots_1.1.doc/08.07.2005/CH Test Laboratory: Imst GmbH, DASY Yellow (II); File Name: WPD CRTU_ywhm_g_ch11_Ant_A_side.da4 DUT: Siemens; Type: WPD CRTU; Program Name: Body Worn Communication System: WLAN 2450; Frequenc…

Text truncated - open the document above for the full version.

DAT-P-152/98-01 SAR Report_7layers_6620_640_FCC_CalData_ISID dasy_report_fcc_850_1900_cal_data_2.0.doc/08.01.2005/CH Appendix for the Report Dosimetric Assessment of the Portable Device Integrated Service Information Display (ISID) from Siemens (FCC ID: LYHISID0001) According to the FCC Requirements Calibration Data August 23, 2007 IMST GmbH Carl-Friedrich-Gauß-Str. 2 D-47475 Kamp-Lintfort Customer 7layers AG Borsigstrasse 11 D-40880 Ratingen This report shall not be reproduced except in full without the written approval of the testing laboratory. Dasy_Report_ FCC_Body_Tablet_2.4_5.0_Bluettooth_WLAN_1.1.doc/10.08.2007/CH

DAT-P-152/98-01 SAR Report_7layers_6620_640_FCC_Body_Tablet_2GHz_5GHz_ISID Page 1 of 54 Report Dosimetric Assessment of the Portable Device Integrated Service Information Display (ISID) from Siemens (FCC ID: LYHISID0001) According to the FCC Requirements August 27, 2007 IMST GmbH Carl-Friedrich-Gauß-Str. 2 D-47475 Kamp-Lintfort Customer 7layers AG Borsigstrasse 11 D-40880 Ratingen The test results only relate to the items tested. This report shall not be reproduced except in full without the written approval of the testing laboratory. Dasy_Report_ FCC_Body_Tablet_2.4_5.0_Bluettooth_WLAN_1.1.doc/10.08.2007/CH SAR Report_7layers_6620_640_FCC_Body_Tablet_2GHz_5GHz_ISID Page 2 of 54 Dasy_Report_ FCC_Body_Tablet_2.4_5.0_Bluettooth_WLAN_1.1.doc/10.08.2007/CH Executive Summary The ISID is a service and operation tool intended for the use in the shop-floor level. The ISID device is a tablet PC from Siemens operating in the 2.4 GHz and 5.0 GHz frequency range. The device has integrated antennas (1 x Bluetooth and 3 x WLAN) and the system concepts used are the Bluetooth (lesswire modul, FCC ID: LYHBTCOMB01) and IEEE 802.11 a/b/g/n (INTEL module, FCC ID: PD94965AAGN) standards. The objective of the measurements done by IMST was the dosimetric assessment of one device in body worn configuration in the Bluetooth and WLAN standards. The device was tested in the worst case positions with the housing of the tablet PC in direct contact against the flat phantom. The examinations have been carried out with the dosimetric assessment system „DASY4“. The measurements were made according to the Supplement C to OET Bulletin 65 of the Federal Communications Commission (FCC) Guidelines [OET 65] for evaluating compliance of mobile and portable devices with FCC limits for human exposure (general population) to radiofrequency emissions. Additional information and guidelines given by the following FCC document were used: SAR Measurement Procedures for 802.11 a/b/g Transmitters [FCC 802.11]. All measurements have been performed in accordance to the recommendations given by SPEAG. SAR Report_7layers_6620_640_FCC_Body_Tablet_2GHz_5GHz_ISID Page 3 of 54 Dasy_Report_ FCC_Body_Tablet_2.4_5.0_Bluettooth_WLAN_1.1.doc/10.08.2007/CH Compliance statement The Siemens ISID tablet PC (FCC ID: LYHISID0001) is in compliance with the Federal Communications Commission (FCC) Guidelines [OET 65] for uncontrolled exposure. The tablet PC was tested in the position, that results the highest SAR value in the following configurations: For Antenna 2: Upper edge touching the phantom For Antenna 3: Side edge touching the phantom Bluetooth Antenna: Side edge touching the phantom Maximum SAR 1g = 1.15 W/kg (802.11 a, Channel 64, Antenna 3) prepared by: ........................................... reviewed by:............................................. André van den Bosch Dipl.-Ing. Christoph Hennes test engineer quality assurance engineer SAR Report_7layers_6620_640_FCC_Body_Tablet_2GHz_5GHz_ISID Page 4 of 54 Dasy_Report_ FCC_Body_Tablet_2.4_5.0_Bluettooth_WLAN_1.1.doc/10.08.2007/CH Table of Contents 1 SUBJECT OF INVESTIGATION.................................................................................................................... 5 2 THE IEEE STANDARD C95.1 AND THE FCC EXPOSURE CRITERIA................................................. 8 2.1 DISTINCTION BETWEEN EXPOSED POPULATION, DURATION OF EXPOSURE AND FREQUENCIES........... 8 2.2 DISTINCTION BETWEEN MAXIMUM PERMISSIBLE EXPOSURE AND SAR LIMITS....................................... 8 2.3 SAR LIMIT.................................................................................................................................................. 9 3 THE FCC MEASUREMENT PROCEDURE............................................................................................... 10 3.1 GENERAL REQUIREMENTS....................................................................................................................... 10 3.2 PHANTOM REQUIREMENTS...................................................................................................................... 10 3.3 POSITIONING OF MODULES IN PORTABLE DEVICES (PCMCIA CARDS, USB CARDS).......................... 10 3.4 ADDITIONAL INFORMATION FOR 802.11 A/B/G TRANSMITTERS.............................................................. 12 4 THE MEASUREMENT SYSTEM................................................................................................................. 14 4.1 PHANTOM................................................................................................................................................. 15 4.2 PROBE...................................................................................................................................................... 16 4.3 MEASUREMENT PROCEDURE.................................................................................................................. 17 4.4 UNCERTAINTY ASSESSMENT................................................................................................................... 18 5 SAR RESULTS............................................................................................................................................... 19 6 EVALUATION................................................................................................................................................. 25 7 APPENDIX....................................................................................................................................................... 28 7.1 ADMINISTRATIVE DATA............................................................................................................................ 28 7.2 DEVICE UNDER TEST AND TEST CONDITIONS......................................................................................... 28 7.3 TISSUE RECIPES................................................................................................…

Text truncated - open the document above for the full version.

File: R69060 Page 1 of 22 TEST REPORT DYNAMIC FREQUENCY SELECTION REQUIREMENTS OF FCC Part 15 Subpart E (UNII) Intel Corporation Model(s): Wireless WiFi Link 4965AGN and 4965AG_ FCC ID: PD94965AGN and PD94965AG MANUFACTURER: Intel Corporation 2111 N.E. 25 th Avenue Hillsboro, OR 97124 TEST SITE: Elliott Laboratories, Inc. 684 W. Maude Ave Sunnyvale, CA 94086 REPORT DATE: August 22, 2007 FINAL TEST DATE: August 22, 2007 AUTHORIZED SIGNATORY: ______________________________ David W. Bare CTO Elliott Laboratories, Inc. is accredited by the A2LA, certificate number 2016-01, to perform the test(s) listed in this report. This report shall not be reproduced, except in its entirety, without the written approval of Elliott Laboratories, Inc. 2016-01 Elliott Laboratories, Inc. -- EMC Department Test Report Report Date: August 22, 2007 File: R69060 Page 2 of 22 TABLE OF CONTENTS COVER PAGE..................................................................................................................................................................................1 TABLE OF CONTENTS.................................................................................................................................................................2 LIST OF FIGURES AND TABLES...............................................................................................................................................3 SCOPE...............................................................................................................................................................................................4 OBJECTIVE.....................................................................................................................................................................................4 STATEMENT OF COMPLIANCE................................................................................................................................................4 DEVIATIONS FROM THE STANDARD....................................................................................................................................4 EQUIPMENT UNDER TEST (EUT) DETAILS............................................................................................................................5 GENERAL......................................................................................................................................................................................5 ENCLOSURE.................................................................................................................................................................................5 MODIFICATIONS.......................................................................................................................................................................5 SUPPORT EQUIPMENT.............................................................................................................................................................6 EUT INTERFACE PORTS...........................................................................................................................................................6 EUT OPERATION........................................................................................................................................................................6 TEST RESULTS...............................................................................................................................................................................7 TEST RESULTS SUMMARY – FCC PART 15, CLIENT DEVICE........................................................................................7 MEASUREMENT UNCERTAINTIES.......................................................................................................................................7 DFS TEST METHODS....................................................................................................................................................................8 RADIATED TEST METHOD.....................................................................................................................................................8 CONDUCTED TEST METHOD...............................................................................................................................................10 DFS MEASUREMENT INSTRUMENTATION.........................................................................................................................11 RADAR GENERATION SYSTEM...........................................................................................................................................11 CHANNEL MONITORING SYSTEM......................................................................................................................................12 DFS MEASUREMENT METHODS.............................................................................................................................................13 DFS RADAR DETECTION BANDWIDTH..........................................................................................................................13 DFS – CHANNEL CLOSING TRANSMISSION TIME AND CHANNEL MOVE TIME.................................................13 DFS CHANNEL AVAILABILITY CHECK TIME..................................................................................................................14 UNIFORM LOADING...............................................................................................................................................................14 TRANSMIT POWER CONTROL (TPC).................................................................................................................................14 SAMPLE CALCULATIONS........................................................................................................................................................15 DETECTION PRO…

Text truncated - open the document above for the full version.

7 layers AG Aufsichtsratsvorsitzenderh Registergerichth registered in: Borsigstrasse 11 Chairman of the Supervisory Board: Düsseldorf, HRB 44096 40880 Ratingen, Germany Markus Becker USt-IdNr h VAT Nr: Phone: +49 (0) 2102 749 0 Vorstandh Board: DE 203159652 Fax: +49 (0) 2102 749 350 Dr. Hans-Jürgen Meckelburg www.7Layers.com René Schildknecht InterLab  is a registered trademark of 7 layers AG FCC Measurement/Technical Report on Bluetooth - WLAN transceiver ISID Report Reference: MDE_Siem_0617_FCCe Test Laboratory: 7 layers AG Borsigstrasse 11 40880 Ratingen Germany email: [email protected] DAT-P-192/99-01 Note: The following test results relate only to the devices specified in this document. This report shall not be reproduced in parts without the written approval of the testing laboratory. Test report reference: MDE_Siem_0617_FCCe Page 2 of 33 Table of Contents 0 Summary 3 0.1 Technical Report Summary 3 0.2 Measurement Summary 4 1 Administrative Data 5 1.1 Testing Laboratory 5 1.2 Project Data 5 1.3 Applicant Data 5 1.4 Manufacturer Data 5 2 Product labelling 6 2.1 FCC ID label 6 2.2 Location of the label on the EUT 6 3 Test object Data 7 3.1 General EUT Description 7 3.2 EUT Main components 8 3.3 Ancillary Equipment 8 3.4 EUT Setups 8 3.5 Operating Modes 9 4 Test Results 10 4.1 Spurious radiated emissions 10 4.2 Band edge compliance 15 5 Test Equipment 19 6 Photo Report 22 7 Setup Drawings 23 8 Annex measurement plots 24 8.1 Band edge compliance 24 Test report reference: MDE_Siem_0617_FCCe Page 3 of 33 0 Summary 0.1 Technical Report Summary Type of Authorization Certification for an Intentional Radiator (Frequency Hopping Spread Spectrum and Digital Device / Spread Spectrum). Applicable FCC Rules Prepared in accordance with the requirements of FCC Rules and Regulations as listed in 47 CFR Ch.1 (10-1-06 Edition). The following parts and subparts are applicable to the results in this test report. - Part 2, Subpart J - Equipment Authorization Procedures, Certification - Part 15, Subpart C – Intentional Radiators Note: - Summary Test Results: The EUT complied with all performed tests as listed in chapter 0.2 Measurement Summary. Test report reference: MDE_Siem_0617_FCCe Page 5 of 33 1 Administrative Data 1.1 Testing Laboratory Company Name: 7 Layers AG Address Borsigstr. 11 40880 Ratingen Germany This facility has been fully described in a report submitted to the FCC and accepted under the registration number 96716 . The test facility is also accredited by the following accreditation organisation: - Deutscher Akkreditierungs Rat DAR-Registration no. DAT-P-192/99-01 Responsible for Accreditation Scope: Dipl.-Ing. Bernhard Retka Dipl.-Ing. Robert Machulec Dipl.-Ing. Thomas Hoell Report Template Version: 2007-07-25 1.2 Project Data Responsible for testing and report: Dipl.-Ing. Andreas Petz Date of Test(s): 2007-05-15 to 2007-06-01 Date of Report: 2007-07-31 1.3 Applicant Data Company Name: Siemens AG Address: Siemensallee 84 76187 Karlsruhe Germany Contact Person: Markus Rödle 1.4 Manufacturer Data Company Name: please see applicant data Address: Contact Person: Test report reference: MDE_Siem_0617_FCCe Page 6 of 33 2 Product labelling 2.1 FCC ID label At the time of the report there was no FCC label available. 2.2 Location of the label on the EUT see above Test report reference: MDE_Siem_0617_FCCe Page 7 of 33 3 Test object Data 3.1 General EUT Description Equipment under Test Bluetooth and WLAN Transceiver Type Designation: ISID Kind of Device: (optional) Integrated Service Integration Display, WLAN/Bluetooth handheld device Voltage Type: AC Voltage level: 115 V General product description: Bluetooth is a short-range radio link intended to be a cable replacement between portable and/or fixed electronic devices. Bluetooth operates in the unlicensed ISM Band at 2.4 GHz. In the US a band of 83.5 MHz width is available. In this band, the Bluetooth technology defines 79 RF channels spaced 1 MHz (2402 - 2480 MHz). The actual RF channel is chosen from a pseudo-random hopping sequence through the 79 channels. A channel is occupied for a defined amount of time slots, with a nominal slot length of 625 μs. The maximum dwell time on one channel is defined by the packet type and is 0.625 ms for DH1 packets, 1.875 ms for DH3 and 3.125 ms for DH5. The nominal hop rate is 1600 hops/s for DH1, 1600/3 for DH3 and 1600/5 for DH5. All frequencies are equally used. The maximum nominal average time of occupancy is 0.4 s within a period of 79*0.4 seconds. WLAN Transceiver operating in the 2.4 GHz ISM band using Direct Sequence Spread Spectrum (DSSS) Modulation. The EUT supports the modes 802.11b (maximum data rate 11Mbps), 802.11g (maximum data rate 54Mbps) and 802.11n (maximum data rate = two times 54Mbps = 108Mbps distributed on two transmit antennas) WLAN 5 GHz high performance RLAN equipment that is intended to operate in the frequency ranges 5 150 MHz to 5 350 MHz and 5 725 MHz to 5 825 MHz. The EUT supports the modes 802.11a (maximum data rate 54Mbps and 802.11n (maximum data rate = two times 54Mbps = 108Mbps distributed on two transmit antennas) The EUT provides the following ports: Ports Enclosure AC Port (power line) The main components of the EUT are listed and described in Chapter 3.2 Test report reference: MDE_Siem_0617_FCCe Page 8 of 33 3.2 EUT Main components Type, S/N, Short Descriptions etc. used in this Test Report Short Description Equipment under Test Type Designation Serial No. HW Status SW Status Date of Receipt EUT A (Code: 01120d01) Bluetooth Transceiver ISID - 1.0 1.0 2007-04-16 Remark: none EUT B (Code: 01120d02) Bluetooth Transceiver ISID - 1.0 1.0 2007-06-01 Remark: The rated maximum RF output power of the Bluetooth transceiver is reduced acc. to the manufacturer’s declaration (compared to EUT A). NOTE: The short description is used to simplify the identification of the EUT in this test report. 3.3 Ancillary Equipment For the purposes of this test report, ancillary equipment is defined …

Text truncated - open the document above for the full version.

7 layers AG Aufsichtsratsvorsitzenderh Registergerichth registered in: Borsigstrasse 11 Chairman of the Supervisory Board: Düsseldorf, HRB 44096 40880 Ratingen, Germany Markus Becker USt-IdNr h VAT Nr: Phone: +49 (0) 2102 749 0 Vorstandh Board: DE 203159652 Fax: +49 (0) 2102 749 350 Dr. Hans-Jürgen Meckelburg www.7Layers.com René Schildknecht InterLab ® is a registered trademark of 7 layers AG FCC Measurement/Technical Report on Bluetooth Transceiver ISID Report Reference: MDE_Siem_0617_FCCc Test Laboratory: 7 layers AG Borsigstrasse 11 40880 Ratingen Germany email: [email protected] DAT-P-192/99-01 Note: The following test results relate only to the devices specified in this document. This report shall not be reproduced in parts without the written approval of the testing laboratory. Test report Reference: MDE_Siem_0617_FCCc Page 2 of 20 Table of Contents 0 Summary 3 0.1 Technical Report Summary 3 0.2 Measurement Summary 4 1 Administrative Data 5 1.1 Testing Laboratory 5 1.2 Project Data 5 1.3 Applicant Data 5 1.4 Manufacturer Data 5 2 Product labeling 6 2.1 FCC ID label 6 2.2 Location of the label on the EUT 6 3 Test object Data 7 3.1 General EUT Description 7 3.2 EUT Main components 8 3.3 Ancillary Equipment 8 3.4 EUT Setups 8 3.5 Operating Modes 8 4 Test Results 9 4.1 Conducted emissions (AC power line) 9 4.2 Spurious radiated emissions 11 5 Test Equipment 14 6 Photo Report 17 7 Setup Drawings 18 8 Annex measurement plots 19 8.1 AC Mains conducted 19 8.2 Spurious radiated emissions 20 Test report Reference: MDE_Siem_0617_FCCc Page 3 of 20 0 Summary 0.1 Technical Report Summary Type of Authorization Certification for an Intentional Radiator (Periodic operation in the band above 70 MHz) Applicable FCC Rules Prepared in accordance with the requirements of FCC Rules and Regulations as listed in 47 CFR Ch.1 Parts 2 (10-1-06 Edition) and 15 (10-1-06 Edition). The following subparts are applicable to the results in this test report. Part 2, Subpart J - Equipment Authorization Procedures, Certification Part 15, Subpart A – General § 15.33 Frequency range of radiated measurements Part 15, Subpart B – Unintentional Radiators § 15.101 Equipment authorization of unintentional radiators § 15.107 Conducted limits § 15.109 Radiated emission limits Note: none Summary Test Results: The EUT complied with all performed tests as listed in chapter 0.2 Measurement Summary. Test report Reference: MDE_Siem_0617_FCCc Page 4 of 20 0.2 Measurement Summary FCC Part 15, Subpart B § 15.107 Conducted emissions (AC power line) The measurement was performed according to ANSI C63.4 2003 OP-Mode Setup Port Final Result op-mode 1 Setup_a01 AC Port (power line) passed FCC Part 15, Subpart B § 15.109 Spurious Radiated Emissions The measurement was performed according to ANSI C63.4 2003 OP-Mode Setup Port Final Result op-mode 1 Setup_a01 enclosure passed Responsible for Accreditation Scope: Responsible for Test Report: Test report Reference: MDE_Siem_0617_FCCc Page 5 of 20 1 Administrative Data 1.1 Testing Laboratory Company Name: 7 Layers AG Address Borsigstr. 11 40880 Ratingen Germany This facility has been f…
