M5LHR4STSHeart Rate Monitor

bpm kmh rpm watt ALTITUDE ExpAnsIon cadence hEArT rATE powEr cALcULATIon BIKE coMpUTEr DE US/GB FR IT ES ROX 8.1 BEDIEnUngsAnLEITUng InsTrUcTIon MAnUAL MoDE D‘EMpLoI IsTrUZIonE D‘Uso MAnUAL DE InsTrUccIonEs DEUTsch EngLIsh FrAnÇAIs ITALIAno EspAÑoL 2 www.sigmasport.com InhalTSvERzEIchnIS 1 vorwort und verpackungsinhalt ..................................................................................................... 4 1.1 Vorwort ............................................................................................................................................................ 4 1.2 Verpackungsinhalt ........................................................................................................................................ 4 2 Montage des SIGMa ROX 8.1 und seine accessoires ............................................................. 5 2.1 Montage der Halterung .............................................................................................................................. 5 2.2 Montage der Sender – Geschwindigkeit und Trittfrequenz ............................................................ 5 2.3 Montage der Magnete – Geschwindigkeit und Trittfrequenz ........................................................ 5 2.4 Montage des SIGMA ROX 8.1 auf die Halterung ............................................................................... 5 2.5 Die Synchronisierung .................................................................................................................................. 6 2.5.1 Synchronisieren der Geschwindigkeit .................................................................................................... 6 2.5.2 Synchronisieren der Trittfrequenz .......................................................................................................... 6 2.5.3 Synchronisieren des Brustgurtes ........................................................................................................... 6 3 alles über den SIGMa ROX 8.1 ....................................................................................................... 7 3.1 First Wake-up ................................................................................................................................................ 7 3.2 Navigationsprinzip des SIGMA ROX 8.1 ............................................................................................... 7 3.3 Tastenbelegung ............................................................................................................................................ 8 3.4 Displayaufbau – Funktionalität ................................................................................................................. 8 3.4.1 Oberer DOT-Matrix Block .......................................................................................................................... 9 3.4.2 Mittlere Segment/Ikonen Anzeige ...................................................................................................... 10 3.4.3 Unterer DOT-Matrix Block ...................................................................................................................... 10 3.5 Menübaum des SIGMA ROX 8.1 .......................................................................................................... 11 3.6 Welche Funktionen und Eigenschaften hat der SIGMA ROX 8.1? ............................................ 12 3.6.1 Funktionsumfang ....................................................................................................................................... 12 3.6.2 Bewegungssensor .................................................................................................................................... 12 3.6.3 Favoriten ...................................................................................................................................................... 13 3.6.4 Ausblenden der Werte während der Fahrt ....................................................................................... 13 3.6.5 7 Touren ....................................................................................................................................................... 13 3.6.6 PC Schnittstelle ......................................................................................................................................... 13 4 Inbetriebnahme ................................................................................................................................. 14 4.1 Verlassen des „Schlafmodus“ ............................................................................................................... 14 4.2 Funktionsumfang des SIGMA ROX 8.1 ............................................................................................... 14 5 Funktionsbeschreibung (Funktionen, die während der Fahrt eingeblendet sind) ........... 15 5.1 Favoriten A und Favoriten B ................................................................................................................... 15 5.2 Fahrrad-Funktionen ................................................................................................................................... 15 5.3 Herzfrequenz-Funktionen ........................................................................................................................ 17 5.4 Temperatur-Funktionen ........................................................................................................................... 17 5.5 Bergauf-Funktionen ................................................................................................................................... 18 5.6 Bergab-Funktionen .................................................................................................................................... 18 5.7 Zeit-Funktionen .............................................................................................................…

Text truncated - open the document above for the full version.

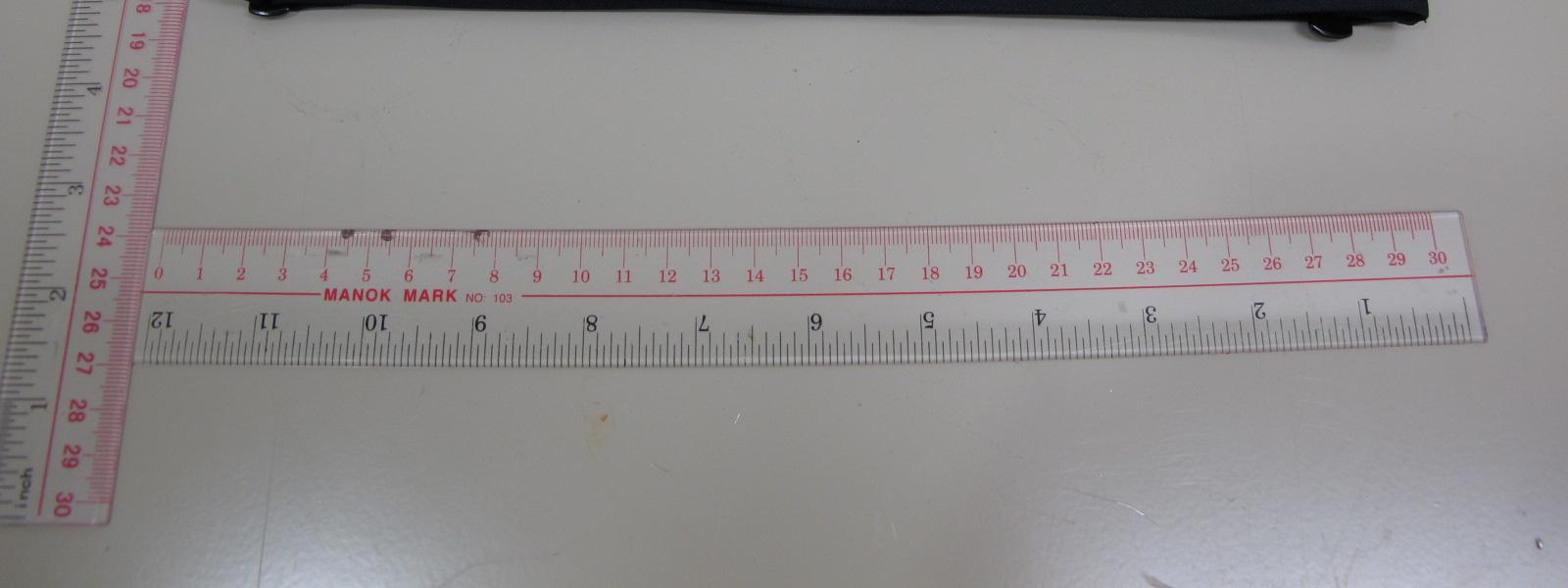

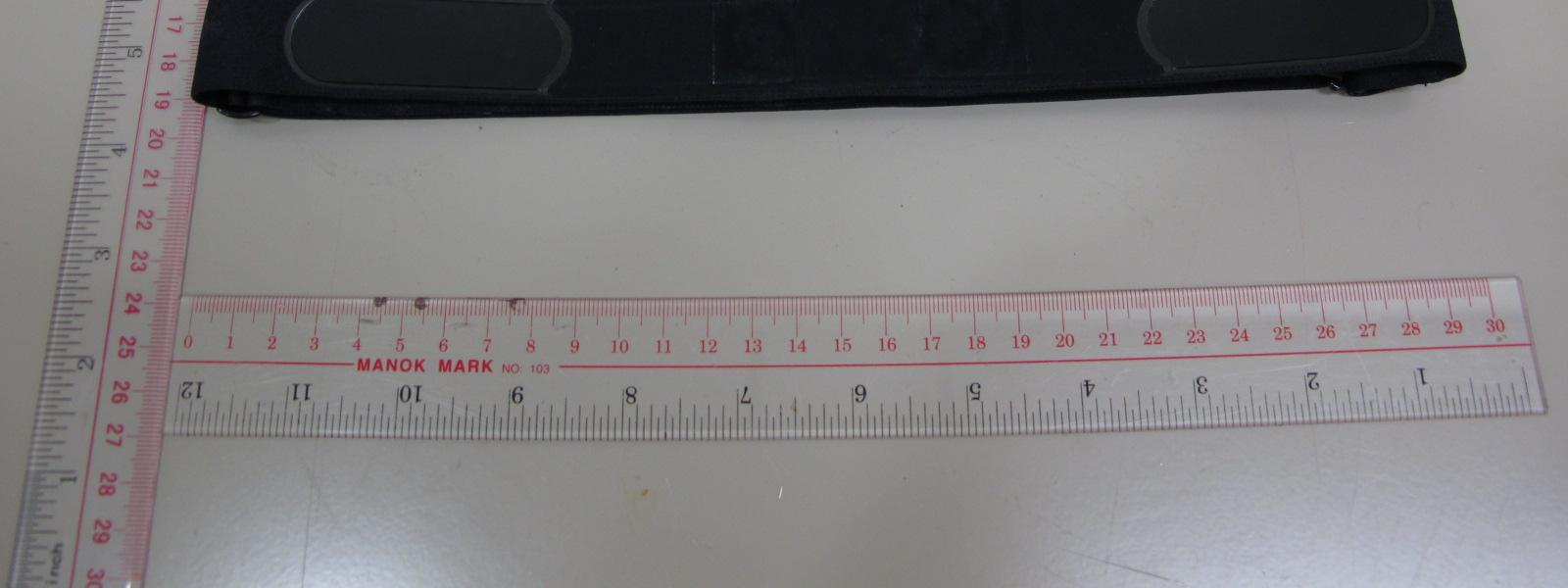

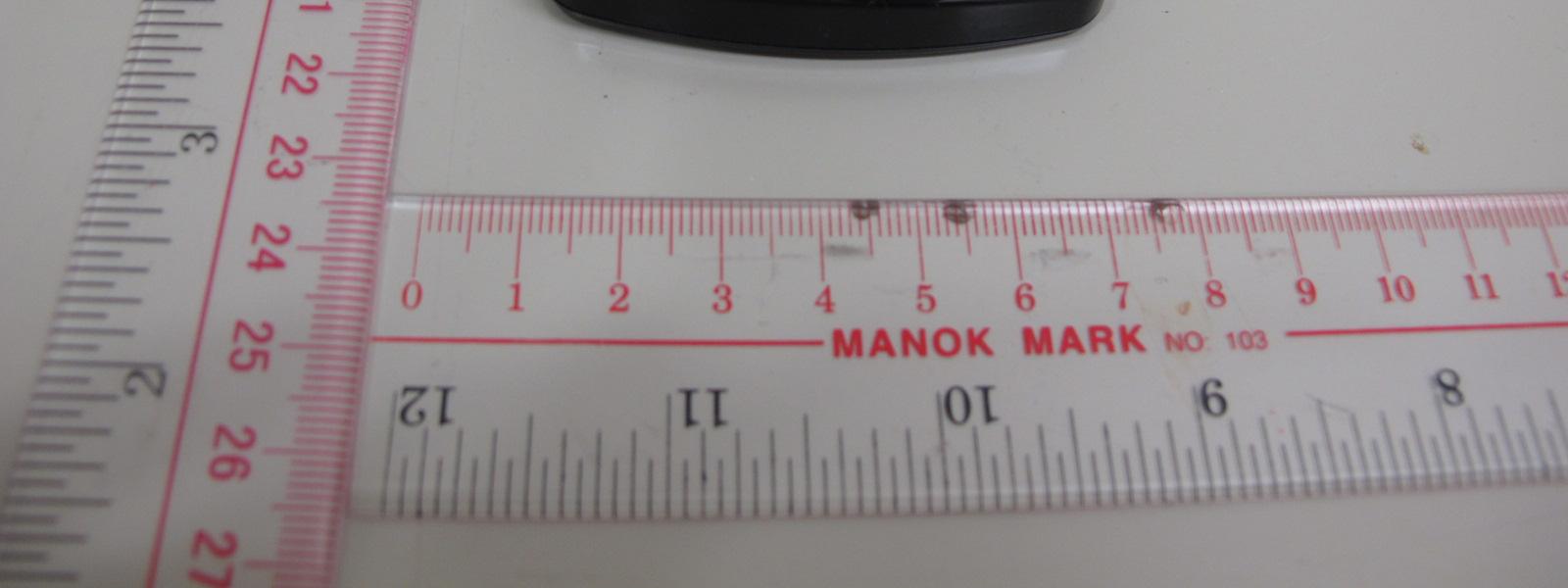

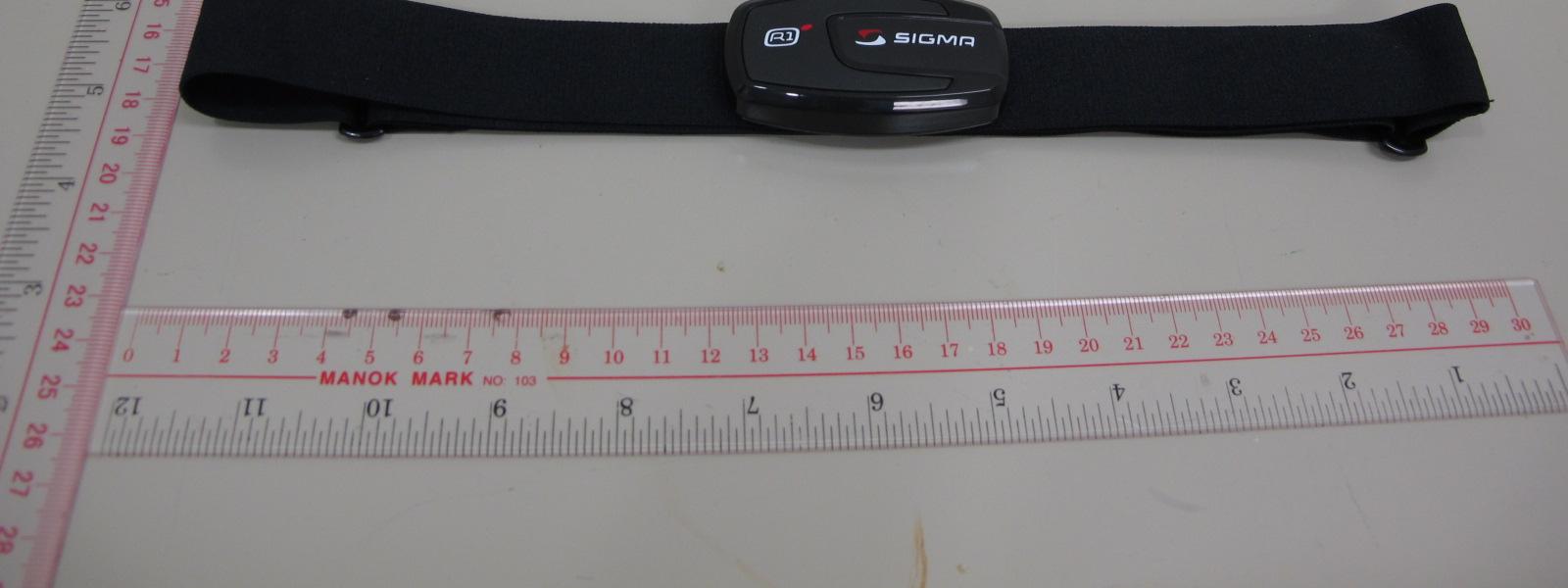

Page 1 of 3 TÜV SÜD Hong Kong Ltd. 3/F, West Wing, Phase 2, 10 Science Park West Avenue, Shatin, Hong Kong. Appendix B Date: 2011-08-26 Test report no.: 60.870.11.014.01F Model no.: STS-F-4 Photos of EUT – External EUT Photos Page 2 of 3 TÜV SÜD Hong Kong Ltd. 3/F, West Wing, Phase 2, 10 Science Park West Avenue, Shatin, Hong Kong. Test report no.: 60.870.11.014.01F Model no.: STS-F-4 Page 3 of 3 TÜV SÜD Hong Kong Ltd. 3/F, West Wing, Phase 2, 10 Science Park West Avenue, Shatin, Hong Kong. Test report no.: 60.870.11.014.01F Model no.: STS-F-4

Page 1 of 1 TÜV SÜD Hong Kong Ltd. 3/F, West Wing, Phase 2, 10 Science Park West Avenue, Shatin, Hong Kong. Appendix C Date: 2011-08-26 Test report no.: 60.870.11.014.01F Model no.: STS-F-4 Photos of EUT – Internal EUT Photos

Report No.: 60.870.11.014.01F Date: 2011-08-26 Page 1 of 18 TÜV SÜD Hong Kong Ltd. 3/F, West Wing, Phase 2, 10 Science Park West Avenue, Shatin, Hong Kong. TEST REPORT Applicant: SIGMA Elektro GmbH.. Dr. Julius Leber Str.15 Neustadt 67433 Germeny Description of Samples:Model name: R1 Transmitter Brand name: SIGMA Model no.:STS-F-4 FCCID:M5LHR4STS IC:7580A-HR4STS Date Samples Received:2011-07-12 Date Tested:2011-07-12 to 2011-08-02 Investigation Requested:FCC Part 15, Section 15.209 RSS-210 Issue 8, RSS-Gen Issue 3 Conclusions:The submitted product COMPLIED with the requirements of Federal Communications Commission [FCC] Rules and Regulations Part 15. The tests were performed in accordance with the standards described above and on Section 2.2 in this Test Report. The submitted product COMPLIED with the requirements of RSS-210, and RSS-Gen. The tests were performed in accordance with the standards described above and on Section 2.2 in this Test Report. Remarks:---- Checked by:Approved by:- Nicolas ChengJeff Pong Project ManagerOperating Manager Wireless & Telecom departmentWireless & Telecom department Report No.: 60.870.11.014.01F Date: 2011-08-26 Page 2 of 18 TÜV SÜD Hong Kong Ltd. 3/F, West Wing, Phase 2, 10 Science Park West Avenue, Shatin, Hong Kong. CONTENT: Cover Page 1 of 18 Content Page 2 of 18 1.0General Details 1.1Test Laboratory Page 4 of 18 1.2Applicant Details Page 4 of 18 1.3Equipment Under Test [EUT] Page 5 of 18 1.4 Equipment Modification Page 5 of 18 1.5 Related Submittal(s) Grants Page 5 of 18 2.0Technical Details 2.1Investigations Requested Page 6 of 18 2.2Test Standards and Results Summary Page 6 of 18 3.0Test Methodology 3.1Radiated Emission Page 7 of 18 3.2Field Strength Calculation Page 7 of 18 3.3Conducted Emission Page 7 of 18 4.0Test Results 4.1Field Strength of Fundamental and Harmonics Page 8-9 of 18 4.2Spurious Radiated Emission Page 10-13 of 18 4.3Bandwidth Measurement Page 14-15 of 18 4.4Conducted Emission Page 16 of 18 5.0Exposure of Humans to Radio Frequency Fields RSS-102 Issue 2 5.1Exemption from Routine Evaluation limits – SAR Evaluation Page 17 of 18 Report No.: 60.870.11.014.01F Date: 2011-08-26 Page 3 of 18 TÜV SÜD Hong Kong Ltd. 3/F, West Wing, Phase 2, 10 Science Park West Avenue, Shatin, Hong Kong. 6.0List of Measurement Equipments Page 18 of 18 Appendix A Photos of Test Setup Appendix B External EUT Photos Appendix C Internal EUT Photos Report No.: 60.870.11.014.01F Date: 2011-08-26 Page 4 of 18 TÜV SÜD Hong Kong Ltd. 3/F, West Wing, Phase 2, 10 Science Park West Avenue, Shatin, Hong Kong. 1.0General Details 1.1Test Laboratory Neutron Engineering Inc. No.3, Jinshagang 1 st Road, ShiXia, Dalang Town, Dong Guan, China. Registration Number: 319330 File Number: IC4428B-1 1.2Applicant Details Applicant SIGMA ELEKTRO GmbH. Dr. Julius Leter Str. 15 Neustadt 67433 Germany. Report No.: 60.870.11.014.01F Date: 2011-08-26 Page 5 of 18 TÜV SÜD Hong Kong Ltd. 3/F, West Wing, Phase 2, 10 Science Park West Avenue, Shatin, Hong Kong. 1.3Equipment Under Test [EUT] Description of EUT Model Name:R1 Transmitter Brand Name: SIGMA Model Number: STS-F-4 FCCID:M5LHR4STS IC:7580A-HR4STS Rating:DC 3.0V (CR 2 battery) Antenna Type:Integral Operated Frequency:112kHz No. of Channel:1 Accessories and Auxiliary Equipment:None EUT Exercising Software:None General Operation of EUT The Equipment Under Test (EUT) is a transmitter of Heart Rate Meter operated at 112kHz. 1.4Equipment Modification No modification was made to the tested unit by TÜV SÜD Hong Kong Ltd. 1.5Related Submittal(s) Grants This is a single application of certification for this transmitter. Report No.: 60.870.11.014.01F Date: 2011-08-26 Page 6 of 18 TÜV SÜD Hong Kong Ltd. 3/F, West Wing, Phase 2, 10 Science Park West Avenue, Shatin, Hong Kong. 2.0Technical Details 2.1Investigations Requested Perform ElectroMagnetic Interference measurement in accordance with CFR 47, Part 15: 2009 and ANSI C63.4: 2003. RSS-GEN Issue 3, RSS-210 Issue 8 and RSS-102 Issue 4. 2.2Test Standards and Results Summary Tables EMISSION Results Summary Test ConditionTest RequirementTest Result PassN/A Field Strength of Fundamental and Harmonics Part 15.209 (a) RSS-210 Issue 8 Section 2.2, 2.5 Spurious Radiated Emission Part 15.209 (a), Part 15.205 RSS-210 Issue 8 Section 2.2, 2.5 Bandwidth Measurement Part 15.215 (c) RSS-Gen Issue 3, Section 4.6 Conducted Emission Part 15.207 RSS-Gen Issue 3, Section 7.2.4 SAR EvaluationRSS-102 Issue 4 Section 2.5.1 RF Exposure EvaluationRSS-102 Issue 4 Section 2.5.2 Note: N/A - Not Applicable Report No.: 60.870.11.014.01F Date: 2011-08-26 Page 7 of 18 TÜV SÜD Hong Kong Ltd. 3/F, West Wing, Phase 2, 10 Science Park West Avenue, Shatin, Hong Kong. 3.0Test Methodology 3.1Radiated Emission The sample was placed 0.8m above the ground plane on a standard emission test site *. Measurements in both horizontal and vertical polarities were performed. During the test, each emission was maximized by: having the EUT continuously working, investigated all operating modes, rotated about all 3 axis (X, Y & Z) and considered typical configuration to obtain worst position, manipulating interconnecting cables, rotating turntable, varying antenna height from 1m to 4m in both horizontal and vertical polarizations. The emissions worst-case are shown in Test Results of the following pages. 3.2Field Strength Calculation The field strength at 3 m was established by adding the meter reading of the spectrum analyzer to the factors associated with antenna correction factor, cable loss, preamplifiers and filter attenuation. The equation is expressed as follow: FS = R + System Factor System Factor = AF + CF + FA – PA Where FS = Net Field Strength in dBuV/m at 3 meters. R = Reading of Spectrum Analyzer / Test Receiver in dBuV. AF = Antenna Factor in dB. CF = Cable Attenuation Factor in dB. FA = Filter Attenuation Factor in dB. PA = Preamplifier Factor in dB. FA and PA are only be used for the measuring frequency above 1 GHz. 3.3Conducte…
