M695200VGA Card

NVIDIA RIVA TNT TNT2 VANTA TNT2 M64 3D GRAPHIC ACCELERATOR MANUAL Model No.: SP-5200B NVIDIA RIVA TNT/TNT2 & NVIDIA VANTA TABLE OF CONTENTS TABLE OF CONTENTS..................................................................................................1 1. NVIDIA RIVA TNT/TNT2 & NVIDIA VANTA......................................................................2 1.1 NVIDIA RIVA TNT Features..................................................................................2 1.2 NVIDIA RIVA TNT2 Features................................................................................3 1.3 NVIDIA VANTA Features......................................................................................4 2. NVIDIA RIVA TNT / TNT2 & NVIDIA VANTA Board Outline............................................6 2.1 TNT using SGRAM (SP5000)...............................................................................6 2.2 TNT2 using SDRAM (SP5100).............................................................................6 2.3 VANTA using SDRAM (SP5200)..........................................................................7 2.4 Feature Connector Pin Out (26 Pin).....................................................................8 3. Hardware Installation..........................................................................................................9 3.1 Package Contents.................................................................................................9 3.2 Installing the Card..................................................................................................9 3.3 MDR20 PanelLink Connector Pin out Wiring Diagram (Optional).......................9 3.4 Resolutions and colors supported:......................................................................10 4. Smart Installation..............................................................................................................11 5. Manually install Windows 95 & Windows 98 drivers.......................................................13 5.1 Installation and Setup..........................................................................................13 5.1.1 Windows95............................................................................................13 5.1.2 Windows98............................................................................................13 5.2 How to Change Color Depth and Resolution.....................................................14 5.3 How to Change Refresh Rate.............................................................................14 6. Windows NT 4.0...............................................................................................................16 FCC Statement.....................................................................................................................17 Warning:.....................................................................................................................17 Trademark Acknowledgments..............................................................................................17 1. NVIDIA RIVA TNT/TNT2 & NVIDIA VANTA Memory Size: SP5000 RIVA TNT: 16MB on Board with SGRAM/SDRAM SP5100 RIVA TNT2: 32MB on Board with SDRAM SP5200 VANTA: 8/16/32MB on Board with SDRAM/SGRAM SP5300 RIVA TNT2 M64: 16/32MB on Board with SDRAM 1.1 NVIDIA RIVA TNT Features Visually stunning interactive 3D * Optimized Direct3D acceleration * Complete DirectX 5.0 and DirectX 6.0 support * 100% hardware triangle setup * Twin texel (TNT) 32-bit graphics pipeline 2 texture mapped, lit pixels per clock single pass multi-texturing support(DirectX 6.0 and OpenGL)Square and non-square texture support. * Texture Blend support examples: -Multi-texture-Reflection maps -Bump map-Detail texture -Texture modulation-Environmental maps -Light maps-Procedural textures * Backend blend -DirectX 5.0:121 modes supported for source and alpha blending -32-bit ARGB rendering with destination alpha -Point sampled, Bilinear, Trilinear and 8-tap -Anisotropic filtering (batter than Trilinear Mip mapping) * Per pixel perspective correct texture mapping -Fog -Light -Mip mapping * 24-bit or 16-bit Z buffer (floating point or integer) * 8-bit stencil buffer * Anti-aliasing, full scene, order independent High performance 128-bit 2D acceleration * High performance 128-bit 2D Acceleration * Pipeline optimized for multiple color depths including 32, 24, 16, 15 and 8-bits per pixel. * Multi-buffering for smooth animation and video playback * Fast 32-bit VGA/SVGA support * On board 16MB SGRAM/SDRAM frame buffer Video Support * Video Acceleration for Direct Show, MPEG 1/2 and indeo Planar 4:2:0 and package 4:2:2 Color Space Conversion X and Y smooth up and down scaling with filtering DVD sub-picture alpha blend YUV * NTSC and PAL TV output with AV and S-Video output connector (Optional) Robust system interface * Side band addressing AGP2.0 Bus with 2X transfer rate mode * Memory configurations up to 16MB SGRAM/SDRAM 1.2 NVIDIA RIVA TNT2 Features * Optimized Direct3D and OpenGL acceleration * Complete DirectX5.0, 6.x and OpenGL support * 2 nd Generation 128-bit Twin Texel architecture -2 texture–mapped, lit pixels-per-clock cycle -Single-pass multi-texturing * 32-bit Z/stencil Buffer * 32-bit ARGB rendering with destination alpha * Point-sampled, bilinear, and 8 tap Anisotropic filtering * Texture Blend support -Multi-texture-Reflection maps -Bump map-Detail texture -Texture modulation-Environmental maps -Light maps-Procedural textures High performance 128-bit 2D acceleration * Hardware acceleration for Windows GDI operations * Optimized for multiple color depths including 32, 24, 16, 15, and 8-bits per pixel * Multi-buffering (up to quad buffering) for smooth animation and video playback * Fast 32-bit VGA/SVGA support High quality video playback * 30fps full screen DVD playback * DVD sub-picture alpha-blended compositing * Video acceleration for DirectShow, MPEG-1, MPEG-2, and…

Text truncated - open the document above for the full version.

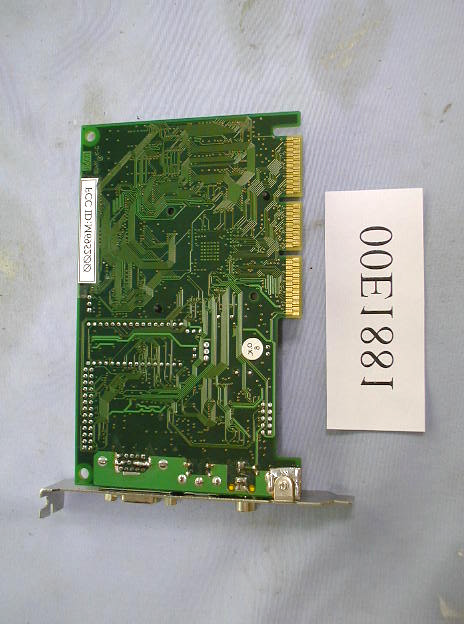

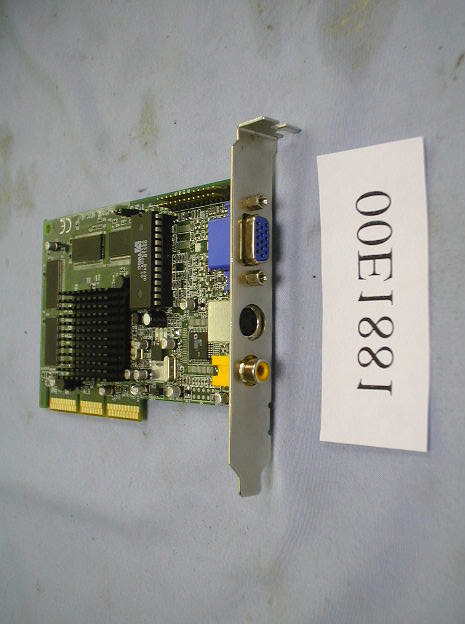

Photo # 1 Front View Photo # 2 Rear View Photo # 3 Side View

2. Product Labeling 2-1. FCC ID label The remained portion of label statement required by FCC is attached in the user’s manual. 2-2 Location of Label on EUT 4cm FCC ID:M6952∅∅ 0.5cm

Photo # 1 Front View Photo # 2 Rear View Photo # 3 Side View

NEUTRON EMC LAB. FCC ID: M6952∅∅ 1/22 MEASUREMENT/TECHNICAL REPORT APPLICTNT: Sparkle Computer Co., Ltd. MODEL NO.: SP-5200B FCC ID: M6952∅∅ This report concerns ( check one ) : Original Grant ̧ Class II Change Equipment type: VGA Card Deferred grant requested per 47CFR 0.457(d)(1)(ii)? Yes No ̧ If yes, defer until: (date) We, the undersigned, agree to notify the Commission by (date) / / of the intended date of announce ment of the product so that the grant can be issued on that date. Transiyion Rules Request per 15.37? Yes No ̧ If no, assumed Part 15, Subpart B for unintentional radiator the new 47 CFR (10-1-90 Edition) provision. Report Prepared by Testing House :Neutron Engineering Inc. for Company Name: Sparkle Computer Co., Ltd. Address: 3F-6, No. 1, Fu Hsing N. Rd., Taipei, Taiwan, R.O.C. Applicant Signature : Jack Hsiao/ Manager NEUTRON EMC LAB. FCC ID: M6952∅∅ 2/22 CERTIFICATION We hereby certify that: The test data, data evaluation, test procedures, and equipment configurations shown in this report were made in accordance with the procedures given in ANSI C63.4 (1992)/ CISPR22(1996) and the energy emitted by the sample EUT tested as described in this report is in compliance with CLASS B conducted and radiated emission limits of FCC Rules Part 15, Subpart B/ CISPR22(1996). Prepared by :Carol Chen Reviewed by :Vincent Su Approved by :George Yao Issued Date :Nov. 28, 2000 Report No. :NEI-FCCB-00154 Company Stamp : NEUTRON ENGINEERING INC. No. 132-1, Lane 329, Sec. 2, Palain Rd., Shijr Jen, Taipei, Taiwan TEL : (02) 2646-5426 FAX : (02) 2646-6815 NEUTRON EMC LAB. FCC ID: M6952∅∅ 3/22 Table of Contents 1. General Information...................................................................................................................... 1-1 Product Description................................................................................................................4 1-2 Related Submittal(s)/Grant(s)..................................................................................................4 1-3 Tested System Details.............................................................................................................5 1-4 Test Methodology...................................................................................................................6 1-5 Test Facility............................................................................................................................6 6 2. System Test Configuration............................................................................................................ 2-1 Justification.............................................................................................................................7 2-2 EUT Exercise Software...........................................................................................................7 2-3 Special Accessories.................................................................................................................8 2-4 Equipment Modifications.....................................................................................................8 2-5 Configuration of Tested System............................................................................................9 Figure 2-1 Configuration of Tested System.................................................................................11 3. Block Diagram(s)............................................................................................................................12 4. Conducted Emission Datas............................................................................................................13 5. Radiated Emission Datas .............................................................................................................. 5-1 Radiated Emission Data...........................................................................................................16 5-2 Field Strength Calculation.......................................................................................................19 5-3 Correction Factor Table VS Frequency..................................................................................20 6.Attachment.................................................................................................................................. Photos of Tested EUT.......................................................................................................................21 User’s Manual...................................................................................................................................22 NEUTRON EMC LAB. FCC ID: M6952∅∅ 4/22 1. GENERAL INFORMATION 1-1. Product Description The Sparkle Computer Co., Ltd. Model: SP-5200B (referred to as the EUT in this report) is a VGA Card 32MB on Board with SDRAM/SGRAM. The summarized feature of EUT as following: l Hardware acceleration for all Windows GDI operations l Optimized for multiple color depths including 32, 24, 16, 15, and 8bits per pixel l Ture-color hardware cursor l Hardware color dithering l Multi-buffering (up to quad buffering)for smooth animation and video playback l Fast 32-bit VGA/SVGA support l Maximum resolution of 1920x1200x32 @72Hz l Second-generation 128-bit Twin Texel architecture l Complete DirectX 6.0 and 5.0 support l Single-pass multi-texturing l 32-bit rendering with destination alpha l Anti-aliasing:full scene, order independent l Point-sampled, bilineare, and 8 tap anisotropic filitering l 100% hardware triangle setup l Texture Blend support -Multi-texture -Reflection maps -Bump map -Detail texture -Texture modulation -Envirionmental maps -Light maps -Procedural textures l Per-pixel perspective-correct texture mapping l Fog, light, mip mapping l Optimized for Pentium III and K6-2 processors l Full-screen, full-frame DVD playback l Advanced support for DirectDraw l Back-end hardware video scaling for video conferencing and playback l Hardware color…

Text truncated - open the document above for the full version.

5. Conducted and Radiated Measurement Photos 5-1. Conducted Measurement Photos Mode : CRT Monitor 5. Conducted and Radiated Measurement Photos 5-1. Conducted Measurement Photos Mode : TV 5-2. Radiated Measurement Photos Mode : CRT Monitor 5-2. Radiated Measurement Photos Mode : TV
