1 3D GRAPHIC ACCELERATOR MANUAL SIS Model No.: SP6326 2 SIS 6326 1. SIS 6326..........................................................2 1.1 SIS 6326 Features........................................2 2. SIS 6326 Board Outline.......................................3 2.1 SIS using SGRAM(SP6326:A4).......................3 2.2 Feature Connector Pin Out(26 Pin..................3 3. Resolutions and colors supported:.......................4 3.1 Enhanced Video Modes.................................6 4. Hardware Installation...........................................10 4.1 Package Contents.........................................10 4.2 Installing the Card.........................................10 5. Smart Installation................................................11 6. Manually install Windows95 & Windows 98 & Windows Me drives......13 6.1 Installation and Setup..................................13 6.1.1 Windows95.......................................13 6.1.2 Windows98 & Windows ME..................13 6.2 How to Change Color Depth and Resolution......14 6.3 How to Change Refresh Rate............................14 7. Windows NT 4.0....................................................16 8. Windows 2000......................................................16 FCC Statement..........................................................17 Warning..............................................................17 Trademark Acknowledgments.......................................17 3 1. SIS 6326 Memory Size: SP6326:Using 512*32MB & 1M*32 on Board with SGRAM 1.1 SIS 6326 Features AGP Interface • Supports AGP 1.0 compliant configuration setting • Supports AGP 133 MHz High Performance & High Quality 3D Accelerator • Built-in a high performance 3Dengine • Built-in a high quality 3D engine High Performance 2D Accelerator • Built-in 42 double-words hardware command queue • Built-in Direct Draw Accelerator • Supports burst frame buffer read/write for SDRAM/SGRAM • Built-in 64x64x2 bit-mapped hardware cursor • Maximum 8M Bytes frame buffer with line are addressing • Built-in 4 stages engine write-buffer • Built-in 64x32 CRT FIFOs to support super high resolution graphics modes Complete TV-OUT Solution(optional) • Built-in complete NTSC/PAL video encoder • Supports NTSC/PAL interlaced display in • Supports under-scan and over-scan scaling Video Accelerator • Supports single frame buffer architecture • Supports bi-linear video interpolation with integer increments of 1/64 • Supports Direct Draw Drivers Display Memory Interface • Supports SDRAM, and SGRAM timing • Supports 8MB memory configurations • Supports up to 1Mx16 SDRAM and 1Mx32 SGRAM types up to 90MHz High Integration • Built-in programmable24-bit true-color RAMDAC up to 175MHz pixel clock • Built-in two 196x64 video line buffers for MPEG video playback Full Software Support • Windows 2000, WindowsNT4.0/5.0, WindowsMe, Windows98 and Windows95 4 2. SIS 6326 Board Outline 2.1 SIS using SGRAM(SP6326:A4) 8M On board DB 15 FC S-VIDEO 14.318MHZ RCA BIOS AGP NOTE : TV output connector and encoder are reserved for optional. 2.2 Feature Connector Pin Out(26 Pin) 1 11 25 2 12 26 Pin [1,3,5,7,9,11,13,15]: D0-D7] Pin [17]: VCK/LCK Pin [19]: -BLANK Pin [21]: HSYNC Pin [23]: VSYNC Pin [2,4,6,16,18,20,22,25]: GND Pin [8]: VREQ/EVIDE0 Pin [10]: ESYNC Pin [12]: CREQ/EVCLK Pin [14,24,26]: NC SIS 6326 1MX32 1MX32 5 3. Resolutions and colors supported: MODETYPEDISPLAY SIZE COLORS SHADES ALPHA FORMAT BUFFER START BOX SIZE MAX. PAGES 0A/N320x2001640x25B8008x88 0*A/N320x3501640x25B8008x148 0+A/N360x4001640x25B8009x168 1A/N320x2001640x25B8008x88 1*A/N320x3501640x25B8008x148 1+A/N360x4001640x25B8009x168 2A/N640x2001680x25B8008x88 2*A/N640x3501680x25B8008x148 2+A/N720x4001680x25B8009x168 3A/N640x2001680x25B8008x88 3*A/N640x3501680x25B8008x148 3+A/N720x4001680x25B8009x168 4APA320x200440x25B8008x81 5APA320x200440x25B8008x81 6APA640x200280x25B8008x81 7A/N720x350480x25 B000 9x148 7+A/N720x400480x25 B000 9x168 0DAPA320x2001640x25A0008x88 0EAPA640x2001680x25A0008x84 0FAPA640x350280x25 B000 8x142 10APA640x3501680x25A0008x142 11APA640x480280x30A0008x161 12APA640x4801680x30A0008x161 13APA320x20025640x25A0008x81 NOTE:1. A/N: Alpha/Numeric 2. APA: All Point Addressable (Graphics) 6 MODEDISPLAY SIZE COLORS SHADES FRAME RATE. H-SYNC.VIDEO FREQ. 0320x200167031.5 K25.1 M 0*320x350167031.5 K25.1 M 0+360x400167031.5 K28.3 M 1320x200167031.5 K25.1 M 1*320x350167031.5 K25.1 M 1+360x400167031.5 K28.3 M 2640x200167031.5 K25.1 M 2*640x350167031.5 K25.1 M 2+720x400167031.5 K28.3 M 3640x200167031.5 K25.1 M 3*640x350167031.5 K25.1 M 3+720x400167031.5 K28.3 M 4320x20047031.5 K25.1 M 5320x20047031.5 K25.1 M 6640x20027031.5 K25.1 M 7*720x35047031.5 K28.3 M 7+720x40047031.5 K28.3 M 0D320x200167031.5 K25.1 M 0E640x200167031.5 K25.1 M 0F640x35027031.5 K25.1 M 10640x350167031.5 K25.1 M 11640x48026031.5 K25.1 M 12640x480166031.5 K25.1 M 13320x2002567031.5 K25.1 M NOTE:i - interlaced mode n - noninterlaced mode 7 3.1 Enhanced Video Modes MODETYPEDISPLAY SIZE COLORS SHADES ALPHA FORMAT BUFFER START BOX SIZE MAX. PAGES 22A/N1056x35216132x44B8008x82 23A/N1056x35016132x25B8008x144 24A/N1056x36416132x28B8008x134 25APA640x4801680x60A0008x81 26A/N720x4801680x60B8009x83 29APA800x60016100x37A0008x161 2AA/N800x60016100x40B8008x154 2DAPA640x35025680x25A0008x141 2EAPA640x48025680x30A0008x161 2FAPA640x40025680x25A0008x161 30APA800x600256100x37A0008x161 37APA1024x76816128x48A0008x161 38APA1024x768256128x48A0008x161 39APA1280x102416160x64A0008x161 3AAPA1280x1024256160x64A0008x161 3BAPA1600x120016200x75A0008x161 3CAPA1600x1200256200x75A0008x161 40APA320x20032K40x25A0008x81 41APA320x20064K40x25A0008x81 42APA320x20016.8M40x25A0008x81 43APA640x48032K80x30A0008x161 44APA640x48064K80x30A0008x161 45APA640x48016.8M80x30A0008x161 46APA800x60032K100x37A0008x161 47APA800x60064K100x37A0008x161 48APA800x60016.8M100x37A0008x161 49APA1024x76832K128x48A0008x161 4AAPA1024x76864K128x48A0008x161 4BAPA1024x76816.8M128x48A0008x161 4CAPA1280x102432K160x64A0008x…

Text truncated - open the document above for the full version.

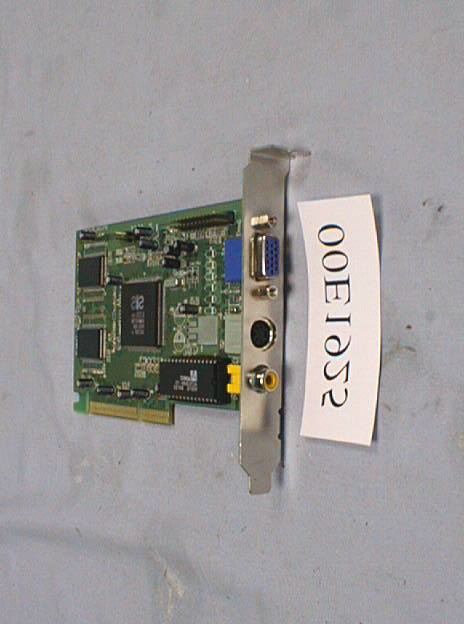

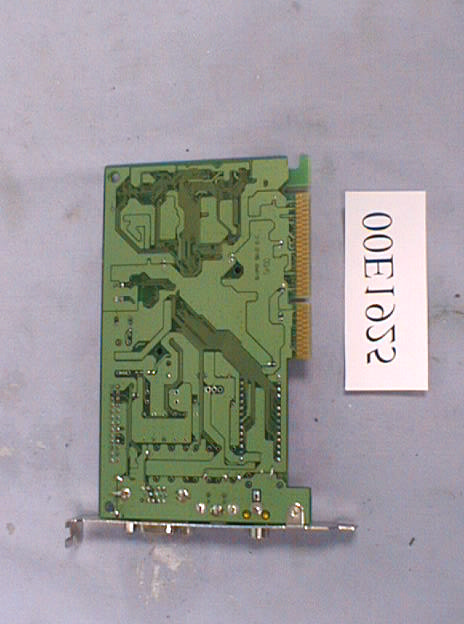

Photo # 1 Front View Photo # 2 Rear View Photo # 3 Side View

2. Product Labeling 2-1. FCC ID label FCC ID:M696326 0.5 cm The remained portion of label statement required by FCC is attached in the user’s manual. 2-2 Location of Label on EUT 4cm

Photo # 1 Front View Photo # 2 Rear View Photo # 3 Side View

NEUTRON EMC LAB. FCC ID: M696326 1/24 MEASUREMENT/TECHNICAL REPORT APPLICTNT: Sparkle Computer Co., Ltd. MODEL NO.: SP6326 FCC ID: M696326 This report concerns ( check one ) : Original Grant ̧ Class II Change Equipment type: VGA Card Deferred grant requested per 47CFR 0.457(d)(1)(ii)? Yes No ̧ If yes, defer until: (date) We, the undersigned, agree to notify the Commission by (date) / / of the intended date of announce ment of the product so that the grant can be issued on that date. Transiyion Rules Request per 15.37? Yes No ̧ If no, assumed Part 15, Subpart B for unintentional radiator the new 47 CFR (10-1-90 Edition) provision. Report Prepared by Testing House : Neutron Engineering Inc. for Company Name : Sparkle Computer Co., Ltd. Address: 13F, No. 2, Sec. 1, Fu Hsing S. Rd., Taipei, Taiwan, R.O.C. Applicant Signature : Jack Hsiao/ Manager NEUTRON EMC LAB. FCC ID: M696326 2/24 CERTIFICATION We hereby certify that: The test data , data evaluation , test procedures, and equipment configurations shown in this report were made in accordance with the procedures given in ANSI C63.4 (1992)/ CISPR22(1996) and the energy emitted by the sample EUT tested as described in this report is in compliance with CLASS B conducted and radiated emission limits of FCC Rules Part 15, Subpart B/ CISPR22(1996). Prepared by :Carol Chen Reviewed by :Vincent Su Approved by :George Yao Issued Date :Dec. 08, 2000 Report No. :NEI-FCCB-00165 Company Stamp : NEUTRON ENGINEERING INC. No. 132-1, Lane 329, Sec. 2, Palain Rd., Shijr Jen, Taipei, Taiwan TEL : (02) 2646-5426 FAX : (02) 2646-6815 NEUTRON EMC LAB. FCC ID: M696326 3/24 Table of Contents 1. General Information...................................................................................................................... 1-1 Product Description................................................................................................................4 1-2 Related Submittal(s)/Grant(s)..................................................................................................4 1-3 Tested System Details.............................................................................................................5 1-4 Test Methodology...................................................................................................................6 1-5 Test Facility............................................................................................................................6 2. System Test Configuration............................................................................................................ 2-1 Justification.............................................................................................................................7 2-2 EUT Exercise Software...........................................................................................................7 2-3 Special Accessories.................................................................................................................8 2-4 Equipment Modifications.........................................................................................................8 2-5 Configuration of Tested System...............................................................................................9 Figure 2-1 Configuration of Tested System....................................................................................11 3. Block Diagram(s)............................................................................................................................12 4. Conducted Emission Datas............................................................................................................13 5. Radiated Emission Datas .............................................................................................................. 5-1 Radiated Emission Data...........................................................................................................17 5-2 Field Strength Calculation.......................................................................................................21 5-3 Correction Factor Table VS Frequency....................................................................................22 6.Attachment..................................................................................................................................... Photos of Tested EUT.......................................................................................................................23 User’s Manual...................................................................................................................................24 NEUTRON EMC LAB. FCC ID: M696326 4/24 1. GENERAL INFORMATION 1-1. Product Description The Sparkle Computer Co., Ltd. Model: SP6326(referred to as the EUT in this report) is a VGA Card 8MB on Board with SDRAM or SGRAM. The summarized feature of EUT as following: l Supports AGP 1.0 compliant configuration setting l Supports AGP 133MHz l Built-in a high performance 3Dengine l Built-in a high quality 3D engine l Built-in 42 double-words hardware command queue l Built-in Direct Draw Accelerator l Supports burst frame buffer read/write for SDRAM/SGRAM l Built-in 64x64x2 bit-mapped hardware cursor l Maximum 8M Bytes frame buffer with linear addressing l Built-in 4 stages engine write-buffer l Built-in 64x32 CRT FIFOs to support super high resolution graphics modes l Built-in complete NTSC/PAL video encoder l Supports NTSC/PAL interlaced display in l Supports under-scan and over-scan scaling l Supports single frame buffer architecture l Supports bi-linear video interpolation with integer increments of 1/64 l Support Direct Draw Drivers l Supports SDRAM, and SGRAM timing l Supports 8MB memory configurations l Supports up to 1Mx16 SDRAM and 1Mx32 SGRAM types up to 90MHz l Built-in programmable 24-bit true-color RAMDAC up to 175MHz pixel clock l Built-in two 196x64 video line buffers for MPEG video playback l Windows2…
