M696600TIVGA Card

NVIDIA GeForce2 Ti 3D GRAPHIC ACCELERATOR MANUAL Model No. : SP6600Ti 2.0 1 NVIDIA GeForce2 Ti User’s Manual TABLE OF CONTENTS 1. NVIDIA GeForce2 Ti..............................................................2 2. GeForce2 Ti Board Outline...................................................3 2.1 GeForce2 Ti using DDR SDRAM (SP6600TI/32M, SP6600TI/32M-TV)3 2.2 GeForce2 Ti using DDR SDRAM (SP6600TI/64M, SP6600TI/64M-TV)4 3.Hardware installation...............................................................5 3.1 Package Contents........................................................5 3.2 Installing the card...........................................................5 3.3 Micro Cross DVI Connector System...........................6 3.4 Resolutions and colors supported:..............................7 4. Smart Installation....................................................................8 5. Manually install Windows XP drivers..................................10 5.1 Installation and Setup..................................................10 5.2 How to Change Color Depth and Resolution in Windows XP10 5.3 How to Change Refresh Rate in Windows XP.........11 5.4 NVIDIA Utility in Windows System.............................12 5.4.1 GeForce2 Ti.....................................................12 5.4.2 Device selection...............................................13 5.4.3 Color correction................................................14 6. Manually install Windows 98 and Windows ME drivers...15 6.1 Installation and Setup..................................................15 6.2 How to Change Color Depth and Resolution...........15 6.3 How to Change Refresh Rate....................................16 7. Manually install Windows 2000 drivers..............................16 2 1. NVIDIA GeForce2 Ti Memory Size: SP6600TI/32MGeForce2 Ti32MB on Board with DDRSDRAM SP6600TI/32M-TVGeForce2 Ti32MB on Board with DDRSDRAM +TV out SP6600TI/64MGeForce2 Ti64MB on Board with DDRSDRAM SP6600TI/64M-TVGeForce2 Ti64MB on Board with DDRSDRAM +TV out GeForce2 Ti, redefines graphics for mainstream computers, delivering 1 billion pixels/sec. rendering power and producing an amazing 6.4GB/sec. of bandwidth. The GeForce2 Ti provides consumers with unprecedented visual experiences at mainstream price points. Transform and Lighting (T&L) are two very mathematically intense processes. Combined, T&L radically enhance photo-realism to create worlds that come alive on your screen. NVIDIA GPUs use separate T&L engines so that each can run at maximum efficiency. The NVIDIA Shading Rasterizer(NSR) combined with the blazing fill rate of an NVIDIA GPU, delivers incomparable resolution and accuracy. Complex scenes are now rich with detail. Features such as per- pixel bump mapping can be utilized to a more dramatic visual effect. NVIDIA's high-definition video processor covers the most expensive part of HDTV by transforming your computer into the optimal home entertainment system. 1.1 NVIDIA GeForce2 Ti DDR SDRAM Features 2ND-GENERATION GPU FEATURES •Per-Pixel Shading•8 Texels Per Clock •High Definition Video Processor•2nd-generation T&L Engines •High Performance Hardware Anti-aliasing•Double Data Rate (DDR) Memory •256-bit Graphics Architecture•Cube Environment Mapping •AGP 4X with Fast Writes•Industry’s only true 32-bit Z/Stencil •32-bit color•DirectX Texture Compression •DXTC Support PERFORMANCE •1.0 Giga Texel Fill Rate•>31 Million Triangles/sec •6.4GB/sec Memory Bandwidth•350 MHz RAMDAC •Maximum 3D/2D resolution of 2048 x 1536 @ 75Hz •Complete DirectX 7, DirectX 6 and DirectX 5 support •Memory configurations, up to 64MB DDR SDRAM VISUALLY STUNNING INTERACTIVE 3D •Optimized DirectX and OpenGL acceleration•256-bit graphics engine •8 texture-mapped, filtered, lit texels per clock cycle•Single pass multi-texturing •HW Anti-aliasing•32-bit Z/stencil buffer •High Quality Texture Filtering, including Anisotropic•Per-pixel lighting and shading •Per-pixel dot product 3 bump mapping•Cub environment mapping •Projective textures •Multi-texture and multi-pass •Texture modulation•Light maps •Reflection maps•Procedural textures •DX6 texture compression•Fog and Depth Cueing •Radial or linear•Per-vertex or per-pixel •Advanced per-pixel, perspective-correct texturing and shading •BRDF Support: Bi-Directional Reflectance Distrubtion Functions HIGH-PERFORMANCE 256-BIT 2D ACCELERATION •Optimized for multiple color depths including 32, 24, 16, 15, and 8-bits per pixel •True-color hardware cursor •Multi-buffering (double, triple, quad buffering) for smooth animation and video playback HIGH-QUALITY HDTV/DVD PLAYBACK •Independent hardware color controls for video overlay •Hardware color space conversion (YUV 4:2:2 and 4:2:0) •5-tap horizontal by 3-tap vertical filtering •8:1 upscaling and downscaling •Per-pixel color keying •DVD sub-picture alpha blended compositing •High Definition Video Processor (HDVP) for full-screen, full-frame video playback of all 3 HDTV and DVD and resolutions •Multiple video windows with hardware color space conversion and filtering •Video acceleration for DirectShow, MPEG-1, MPEG-2, and Indeo COMPREHENSIVE SYSTEM INTERFACE •AGP 4X support, including Fast Writes and Execute Mode •NTSC or PAL TV output (optional) •DVI digital output connector, support TMDS Panellink resolution up to SXGA (optional) OPERATING SYSTEM Support •Windows XP, Windows 2000, Windows ME, Windows 98 and Linux API Support •OpenGL 1.2 and lower •DirectX 7 and lower 4 2. GeForce2 Ti Board Outline 2.1 GeForce2 Ti using DDR SDRAM (SP6600TI/32M, SP6600TI/32M-TV) 32M on board – 2Mx32 DDR SDRAM x 4 DVI S-VIDEO DB15 14.318MHZ NOTE 1: TV output connector and TV encoder are reserved for optional NOTE 2: DVI connector and LCD encoder are reserved for optional NVIDIA GeForce 2 Ti BIOS 2 M*32 2 M*32 2M*32 2M*32 Power LCD Encode TV Encoder 5 2.2 GeForce2 Ti using DDR SDRAM (SP6600TI/64M, SP6600TI/64M-TV) 64M on board – 4Mx32 DDR SDRAM x4 64M on board – 2Mx32 DDR SDRAM x8 …

Text truncated - open the document above for the full version.

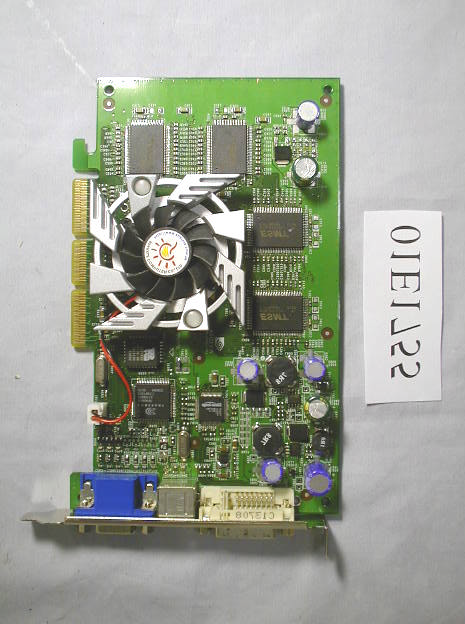

Photo 1 Photo 2

NEUTRON EMC LAB. FCC ID: M696600TI 7/30 2. Product Labeling 2-1. FCC ID label FCC ID:M696600TI 0.5 cm The remained portion of label statement required by FCC is attached in the user’s manual. 2-2 Location of Label on EUT 4cm

Photo 1

NEUTRON EMC LAB. FCC ID: M696600TI 1/29 MEASUREMENT/TECHNICAL REPORT APPLICTNT:Sparkle Computer Co., Ltd. MODEL NO.:SP6600Ti FCC ID:M696600TI This report concerns ( check one ) : Original Grant ̧ Class II Change Equipment type:VGA Card Deferred grant requested per 47CFR 0.457(d)(1)(ii)? Yes No ̧ If yes, defer until: (date) We, the undersigned, agree to notify the Commission by (date) / / of the intended date of announce ment of the product so that the grant can be issued on that date. Transiyion Rules Request per 15.37? Yes No ̧ If no, assumed Part 15, Subpart B for unintentional radiator the new 47 CFR (10-1-90 Edition) provision. Report Prepared by Testing House Neutron Engineering Inc. for Company Name:Sparkle Computer Co., Ltd. Address:13F, No. 2, Sec. 1, Fu Hsing S. Rd., Taipei, Taiwan, R.O.C. Applicant Signature Jack Hsiao/ Manager NEUTRON EMC LAB. FCC ID: M696600TI 2/29 CERTIFICATION We hereby certify that: The test data , data evaluation , test procedures, and equipment configurations shown in this report were made in accordance with the procedures given in ANSI C63.4 (1992)/ CISPR22(1997) and the energy emitted by the sample EUT tested as described in this report is in compliance with CLASS B conducted and radiated emission limits of FCC Rules Part 15, Subpart B/ CISPR22(1996). Prepared by Lydia Chiang Reviewed by Vincent Su Approved by George Yao Issued Date Dec. 04, 2001 Report No. NEI-FCCB-01204 Company Stamp NEUTRON ENGINEERING INC. No. 132-1, Lane 329, Sec. 2, Palain Rd., Shijr Jen, Taipei, Taiwan TEL : (02) 2646-5426 FAX : (02) 2646-6815 NEUTRON EMC LAB. FCC ID: M696600TI 3/29 Table of Contents 1.General Information...................................................................................................................... 1-1 Product Description................................................................................................................4 1-2 Related Submittal(s)/Grant(s)..................................................................................................4 1-3 Tested System Details.............................................................................................................5 1-4 Test Methodology...................................................................................................................6 1-5 Test Facility............................................................................................................................6 2.System Test Configuration............................................................................................................ 2-1 Justification.............................................................................................................................8 2-2 EUT Exercise Software...........................................................................................................8 2-3 Special Accessories.................................................................................................................9 2-4 Equipment Modifications.........................................................................................................9 2-5 Configuration of Tested System...............................................................................................10 Figure 3-1 Configuration of Tested System....................................................................................12 3.Block Diagram(s)............................................................................................................................13 4.Conducted and Radiated Measurement Photos............................................................................ Figure 4-1.Conducted Measurement Photos...................................................................................14 Figure 4-2 Radiated Measurement Photos......................................................................................15 5.Conducted Emission Datas............................................................................................................16 6.Radiated Emission Datas .............................................................................................................. 6-1 Radiated Emission Data...........................................................................................................21 6-2 Field Strength Calculation.......................................................................................................26 6-3 Correction Factor Table VS Frequency....................................................................................27 7.Attachment............................................................................................................................................ Photos of Tested EUT.......................................................................................................................28 User’s Manual...................................................................................................................................29 NEUTRON EMC LAB. FCC ID: M696600TI 4/29 1. GENERAL INFORMATION 1-1. Product Description The Sparkle Computer Co., Ltd. Model: SP6600Ti(referred to as the EUT in this report) is a VGA Card 64MB on Board with DDR or SDRM. The summarized feature of EUT as following: l Windows XP,Windows2000,WindowsMe,Windows98 and Linux A more detailed and/or technical description of EUT is attached in User’s Manual. 1-2. Related Submittal(s) / Grant (s) 1-2-1.Models Covered Models covering in this test report is : SP6600Ti 1-2-2.Models Difference N/A NEUTRON EMC LAB. FCC ID: M696600TI 5/29 1-3. Tested System Details The FCC IDs for all equipment, plus descriptions of all cables used in the tested system (including inserted cards, which have grants) are: Model No.FCC IDEquipmentCable SP6600TiM696600TIVGA Card (1)Add-On Card , Shielded Data Cable CM753ET N/A (3) Monitor Shielded Data Cable (2) Un-Shielded Power Cord 444N/A (3)PCUn-Shielded Power Cord. DPU-414N/A (3)…
