M696900VGA Card

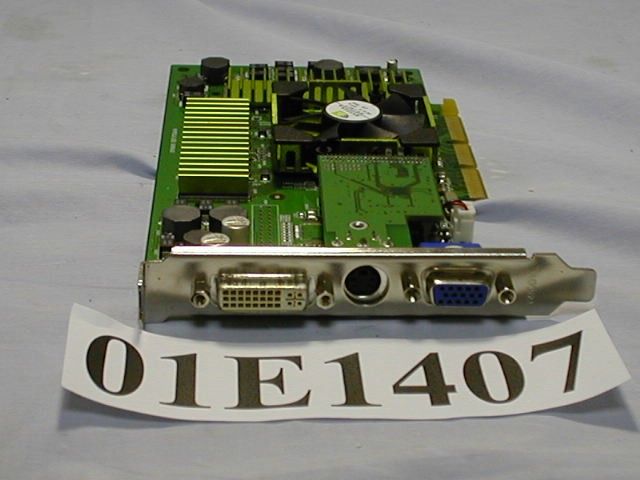

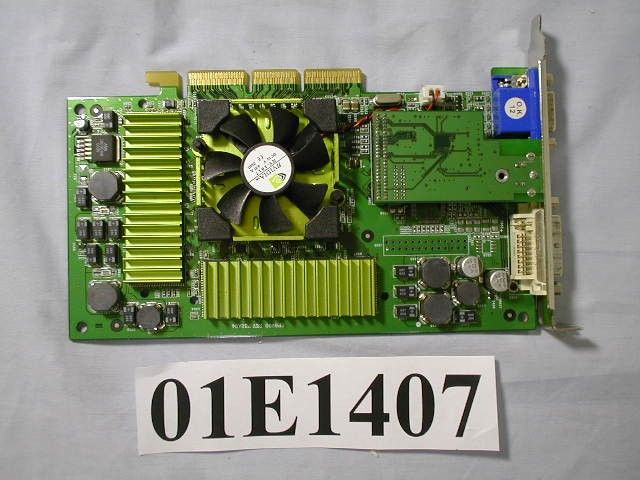

0 NVIDIA GeForce2 ULTRA 3D GRAPHIC ACCELERATOR Brand : SPARKLE Model : SP6900 MANUAL 1 NVIDIA GeForce2 ULTRA User’s Manual TABLE OF CONTENTS 1. NVIDIA GeForce2 ULTRA.............................................................................................2 2. GeForce2 ULTRA Board Outline...................................................................................2 2.1 GeForce2 ULTRA using DDR SDRAM (SP6900)...............................................2 3.Hardware installation.....................................................................................................3 3.1 Package Contents.............................................................................................3 3.2 Installing the card..............................................................................................3 3.3 Micro Cross DVI Connector System..................................................................4 3.4 Resolutions and colors supported:...................................................................5 4. Smart Installation...........................................................................................................7 5. Manually install Windows 95 & Windows 98 drivers...................................................9 5.1 Installation and Setup........................................................................................9 5.1.1 Windows95.........................................................................................9 5.1.2 Windows98.........................................................................................9 5.2 How to Change Color Depth and Resolution.....................................................9 5.3 How to Change Refresh Rate...........................................................................9 6. Windows NT 4.0.........................................................................................................11 7. Windows 2000...........................................................................................................12 8.Windows Me................................................................................................................13 FCC Statement................................................................................................................14 Warning:................................................................................................................14 Trademark Acknowledgments........................................................................................14 2 1. NVIDIA GeForce2 ULTRA SP6900 GeFORCE2 ULTRA 64MB on Board with DDR SDRAM 1.1 NVIDIA GeForce2 ULTRA DDR SDRAM Features 2ND-GENERATION GPU FEATURES •Per-Pixel Shading•8 Texels Per Clock •High Definition Video Processor•2nd-generation T&L Engines •High Performance Hardware Anti-aliasing•Integrated Single-link TMDS Transmitter •256-bit Graphics Architecture•Double Data Rate (DDR) Memory •AGP 4X with Fast Writes•Cube Environment Mapping •32-bit color•Industry’s only true 32-bit Z/Stencil •DirectX Texture Compression•DirectXTC, S3TC Support PERFORMANCE •2.0 GigaTexel Fill Rate•31 Million Triangles/sec •7.4GB/sec Memory Bandwidth•350 MHz RAMDAC •Maximum 3D/2D resolution of 2048 x 1536 x 32bpp @ 75Hz •Complete DirectX 7, DirectX 6 and DirectX 5 support •Memory configurations, up to 64MB DDR SDRAM VISUALLY STUNNING INTERACTIVE 3D •Optimized DirectX and OpenGL acceleration •256-bit graphics engine •8 texture-mapped, filtered, lit texels per clock cycle •Single pass multi-texturing •HW Anti-aliasing •32-bit Colors, Z/stencil buffer •High Quality Texture Filtering, including Anisotropic •Advanced per-pixel, •perspective-correct texturing and shading •Per-pixel dot product 3 bump mapping•Per-pixel lighting and •shading •Cube environment mapping•Projective textures •BRDF Support: •Bi-Directional Reflectance Distrubtion Functions •Texture modulation•Light maps •Reflection maps•Procedural textures •DX6 texture compression•Fog and Depth Cueing HIGH-PERFORMANCE 256-BIT 2D ACCELERATION •Optimized for multiple color depths including 32, 24, 16, 15, and 8-bits per pixel •True-color hardware cursor •Multi-buffering (double, triple, quad buffering) for smooth animation and video playback HIGH-QUALITY HDTV/DVD PLAYBACK •Independent hardware color controls for video overlay •5-tap horizontal by 3-tap vertical filtering •8:1 upscaling and downscaling •Per-pixel color keying •DVD sub-picture alpha blended compositing •High Definition Video Processor (HDVP) for full-screen, full-frame video playback of all HDTV and DVD and resolutions •Multiple video windows with hardware color space conversion and filtering •Video acceleration for DirectShow, MPEG-1, MPEG-2, and Indeo COMPREHENSIVE SYSTEM INTERFACE •AGP 4X support, including Fast Writes and Execute Mode •NTSC or PAL TV output (optional) •DVI digital output connector, support TMDS Panellink resolution up to SXGA/UXGA (optional) •Windows 2000, Windows NT 4.0 display drivers •Windows Me ,Windows 98 and Windows 95 display drivers, DirectDraw, Direct3D, Direct Video, ActiveX •OpenGL ICD for Windows 95, Windows 98, Windows Me, Windows 2000, Windows NT, and Linux 2. GeForce2 ULTRA Board Outline 2.1 GeForce2 ULTRA using DDR SDRAM (SP6900) 64M on board 1 DVI S-VIDEO DB15 14.318MHZ NOTE 1: TV output connector and encoder are reserved for optional NOTE 2: DVI connector and LCD encoder are reserved for optional NVIDIA GeForce 2 ULTRA BIOS Power 4M*1 6 4M*1 6 4M*1 6 4M*1 6 4M*16 4M*16 4M*16 4M*16 3 3.Hardware installation 3.1 Package Contents 1. NVIDIA GeForce2 ULTRA 3D Accelerator card 2. CD title or Software diskettes 3. This manual 3.2 Installing the card 1. Turn off your computer 2. Remove the cover of the computer per the owner’s manual 3. Install the card in the AGP bus slots 4. Replace the cover. 4 3.3 Micro Cross DVI Connector System “Micro Cross:”/high speed pins; C1Analog Red Video Out C2Analog Green Video Out C3Analog Blue Video Out C4Analog Horizontal Sync C5A…

Text truncated - open the document above for the full version.

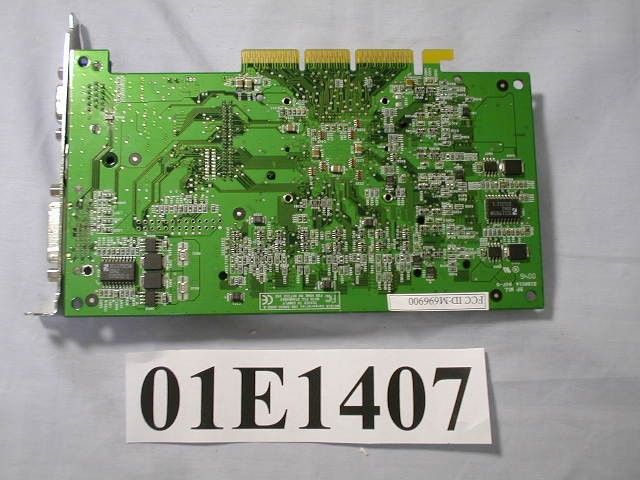

2. Product Labeling 2-1. FCC ID label FCC ID:M696900 0.5 cm The remained portion of label statement required by FCC is attached in the user’s manual. 2-2 Location of Label on EUT 4cm

NEUTRON EMC LAB. FCC ID: M696900 1/20 MEASUREMENT/TECHNICAL REPORT APPLICTNT:Sparkle Computer Co., Ltd. MODEL NO.:SP6900 FCC ID:M696900 This report concerns ( check one ) : Original Grant ̧ Class II Change Equipment type:VGA Card Deferred grant requested per 47CFR 0.457(d)(1)(ii)? Yes No ̧ If yes, defer until: (date) We, the undersigned, agree to notify the Commission by (date) / / of the intended date of announce ment of the product so that the grant can be issued on that date. Transiyion Rules Request per 15.37? Yes No ̧ If no, assumed Part 15, Subpart B for unintentional radiator the new 47 CFR (10-1-90 Edition) provision. Report Prepared by Testing House Neutron Engineering Inc. for Company Name:Sparkle Computer Co., Ltd. Address:13F, No. 2, Sec. 1, Fu Hsing S. Rd., Taipei, Taiwan, R.O.C. Applicant Signature Jack Hsiao/ Manager NEUTRON EMC LAB. FCC ID: M696900 2/20 CERTIFICATION We hereby certify that: The test data , data evaluation , test procedures, and equipment configurations shown in this report were made in accordance with the procedures given in ANSI C63.4 (1992)/ CISPR22(1997) and the energy emitted by the sample EUT tested as described in this report is in compliance with CLASS B conducted and radiated emission limits of FCC Rules Part 15, Subpart B/ CISPR22(1996). Prepared by Kathy Hsu Reviewed by Vincent Su Approved by George Yao Issued Date Jul. 09, 2001 Report No. NEI-FCCB-01102 Company Stamp NEUTRON ENGINEERING INC. No. 132-1, Lane 329, Sec. 2, Palain Rd., Shijr Jen, Taipei, Taiwan TEL : (02) 2646-5426 FAX : (02) 2646-6815 NEUTRON EMC LAB. FCC ID: M696900 3/20 Table of Contents 1.General Information...................................................................................................................... 1-1 Product Description................................................................................................................4 1-2 Related Submittal(s)/Grant(s)..................................................................................................4 1-3 Tested System Details.............................................................................................................5 1-4 Test Methodology...................................................................................................................6 1-5 Test Facility............................................................................................................................6 2.System Test Configuration............................................................................................................ 2-1 Justification.............................................................................................................................7 2-2 EUT Exercise Software...........................................................................................................7 2-3 Special Accessories.................................................................................................................8 2-4 Equipment Modifications.........................................................................................................8 2-5 Configuration of Tested System...............................................................................................9 Figure 2-1 Configuration of Tested System....................................................................................11 3.Block Diagram(s)............................................................................................................................12 4.Conducted Emission Datas............................................................................................................13 5.Radiated Emission Datas .............................................................................................................. 5-1 Radiated Emission Data...........................................................................................................15 5-2 Field Strength Calculation.......................................................................................................17 5-3 Correction Factor Table VS Frequency....................................................................................18 6.Attachment............................................................................................................................................ Photos of Tested EUT.......................................................................................................................19 User’s Manual...................................................................................................................................20 NEUTRON EMC LAB. FCC ID: M696900 4/20 1. GENERAL INFORMATION 1-1. Product Description The Sparkle Computer Co., Ltd. Model: SP6900(referred to as the EUT in this report) is a VGA Card 8MB on Board with SDRAM or SGRAM. The summarized feature of EUT as following: l Supports AGP 1.0 compliant configuration setting l Supports AGP 133MHz l Built-in a high performance 3Dengine l Built-in a high quality 3D engine l Built-in 42 double-words hardware command queue l Built-in Direct Draw Accelerator l Supports burst frame buffer read/write for SDRAM/SGRAM l Built-in 64x64x2 bit-mapped hardware cursor l Maximum 8M Bytes frame buffer with linear addressing l Built-in 4 stages engine write-buffer l Built-in 64x32 CRT FIFOs to support super high resolution graphics modes l Built-in complete NTSC/PAL video encoder l Supports NTSC/PAL interlaced display in l Supports under-scan and over-scan scaling l Supports single frame buffer architecture l Supports bi-linear video interpolation with integer increments of 1/64 l Support Direct Draw Drivers l Supports SDRAM, and SGRAM timing l Supports 8MB memory configurations l Supports up to 1Mx16 SDRAM and 1Mx32 SGRAM types up to 90MHz l Built-in programmable 24-bit true-color RAMDAC up to 175MHz pixel clock l Built-in two 196x64 video line buffers for MPEG video playback l Windows2000,WindowsNT 4.0…

Text truncated - open the document above for the full version.

5. Conducted and Radiated Measurement Photos 5-1. Conducted Measurement Photos Mode : CRT 5. Conducted and Radiated Measurement Photos 5-1. Conducted Measurement Photos Mode : DVI 5-2. Radiated Measurement Photos Mode : CRT 5-2. Radiated Measurement Photos Mode : DVI
