M697000VGA Card

NVIDIA GeForce 3 3D GRAPHIC ACCELERATOR Model No. : SP7000 MANUAL 1 NVIDIA GeForce 3 User’s Manual TABLE OF CONTENTS 1. NVIDIA GeForce 3 Features....3 2. GeForce 3 Board Outline.........4 2.1 GeForce 3 using DDR SDRAM (SP7000)4 3.Hardware installation................5 3.1 Package Contents.............5 3.2 Installing the card..............5 3.3 Micro Cross DVI Connector System6 3.4 Resolutions and colors supported:7 4. Smart Installation....................8 5. Manually install Windows 95 & Windows 98 drivers10 5.1 Installation and Setup.......10 5.1.1 Windows95...............10 5.1.2 Windows98...............10 5.2 How to Change Color Depth and Resolution11 5.3 How to Change Refresh Rate11 6. Windows NT 4.0....................12 7. Windows 2000.......................13 8. Windows Me..........................14 2 FCC Statement.........................15 Warning:................................15 Trademark Acknowledgments....15 3 1. NVIDIA GeForce 3 Features SP7000 GeForce 3AGP bus, with 64MB DDR SDRAM on Board nfiniteFX engine for full programmability Lightspeed Memory Architecture for unmatched performance Surface engine for high-order surfaces and patches Programmable Vertex Shader - Procedural deformations- Morphing - Programmable matrix palette skinning- Keyframe animation interpolation - Fog effects- Lens effects Programmable Pixel Shader - Phong-style lighting for per-pixel accuracy- Dot3 bump mapping - Environmental bump mapping (EMBM)- Procedural textures - Per-pixel reflections HRAA—high-resolution antialiasing - Featuring Quincunx AA mode Integrated hardware transform engine Integrated hardware lighting engine DirectX ® and S3TC ® texture compression Dual cube environment mapping capability - Reflection maps- Accurate, real-time environment reflections Hardware accelerated real-time shadows Performance - 3.2 billion AA samples per second fill rate- 7.36GB/sec memory bandwidth Lightspeed Memory Architecture amplifies memory bandwidth True, reflective bump mapping - Z-correct bump mapping - Phong-style lighting effects on bump maps with reflections High-performance 2D rendering engine - Optimized for 32-, 24-, 16-, 15- and 8-bpp modes - True-color hardware cursor with alpha - Multi-buffering (double, triple or quad) for smooth animation and video playback High-quality HDTV/DVD playback - High-definition video processor (HDVP) for full-screen, full-frame video playback of HDTV and DVD content - Motion compensation - 8:1 up/down scaling - DVD sub-picture alpha-blended compositing Comprehensive system interface - AGP 4X support, including Fast Writes and Execute Mode - NTSC or PAL TV output (optional) - DVI 29 pin output connector, support TMDS Panellink resolution up to SXGA/UXGA and analog RGB output (optional) - Windows 2000, Windows NT 4.0 display drivers - Windows Me, Windows 98 display drivers, DirectDraw, Direct3D, DirectVideo, ActiveX - OpenGL ICD for Windows 98, Windows Me, Windows 2000, Windows NT, and Linux 4 2. GeForce 3 Board Outline 2.1 GeForce 3 using DDR SDRAM (SP7000) 64M DDR SDRAM on board 1 DVI S-VIDEO DB15 14.318MHZ NOTE 1: TV output connector and encoder are reserved for optional NOTE 2: DVI connector and LCD encoder are reserved for optional NVIDIA GeForce 3 BIOS Power 4M*1 6 4M*1 6 4M*1 6 4M*1 6 4M*16 4M*16 4M*16 4M*16 5 3.Hardware installation 3.1 Package Contents 1. NVIDIA GeForce 3 3D Accelerator card 2. CD title or Software diskettes 3. This manual 3.2 Installing the card 1. Turn off your computer 2. Remove the cover of the computer per the owner’s manual 3. Install the card in the AGP bus slots 4. Replace the cover. 6 3.3 Micro Cross DVI Connector System “Micro Cross:”/high speed pins; C1Analog Red Video Out C2Analog Green Video Out C3Analog Blue Video Out C4Analog Horizontal Sync C5Analog Common Ground Return (Red , Green , Blue Video Out) Main Pin Field: 1. TMDS Data 2- 2. TMDS Data 2+ 3. TMDS Data 2/4 Shield 4. TMDS Data 4- 5. TMDS Data 4+ 6. DDC Clock 7. DDC Data 8. Analog Vertical Sync 9. TMDS Data 1- 10. TMDS Data1+ 11. TMDS Data1/3 Shield 12. TMDS Data 3- 13. TMDS Data 3+ 14. +5V Power 15. Ground (+5, Analog H/V Sync) 16. Hot Plug Detect 17. TMDS Data 0- 18. TMDS Data 0+ 19. TMDS Data 0/5 Shield 20. TMDS Data 5- 21. TMDS Data 5+ 22. TMDS Clock Shield 23. TMDS Clock 24. TMDS Clock 1 9 17 2 1 0 18 3 1 1 19 4 12 20 5 1 3 21 6 14 22 7 15 23 8 16 24 C1 C2 C3 C4 C5 7 3.4 Resolutions and colors supported: Bits Per pixel Memory Req. (MB) Refresh Rates (HZ) 81MB60/70/72/75/85/100/120/140/144/150/170/200/240 640*480161MB60/70/72/75/85/100/120/140/144/150/170/200/240 322MB60/70/72/75/85/100/120/140/144/150/170/200/240 81MB60/70/72/75/85/100/120/140/144/170/200/240 800*600161MB60/70/72/75/85/100/120/140/144/170/200/240 322MB60/70/72/75/85/100/120/140/144/170/200/240 81MB60/70/72/75/85/100/120/140/144/150/170/200/240 1024*768162MB60/70/72/75/85/100/120/140/144/150/170/200/240 324MB60/70/72/75/85/100/120/140/144/150/170/200 81MB60/70/72/75/85/100/120/140/144/150/170/200 1152*864162MB60/70/72/75/85/100/120/140/144/150/170/200 324MB60/70/72/75/85/100/120/140/144/150 82MB60/70/72/75/85/100/120/140/144/150/170 1280*960164MB60/70/72/75/85/100/120/140/144/150/170 328MB60/70/72/75/85/100/120/140/144/150 82MB60/70/72/75/85/100/120/140/144/150/170 1280*1024164MB60/70/72/75/85/100/120/140/144/150/170 328MB60/70/72/75/85/100/120/140/144/150 82MB60/70/72/75/85/100/120/140/144/150 1600*900164MB60/70/72/75/85/100/120/140/144/150 328MB60/70/72/75/85/100/120 82MB60/70/72/75/85/100/120 1600*1200164MB60/70/72/75/85/100/120 328MB60/70/72/75/85/100 84MB60/70/72/75/85/100 1920*1080168MB60/70/72/75/85/100 3216MB60/70/72/75/85 84MB60/70/72/75/85/100 1920*1200168MB60/70/72/75/85/100 3216MB60/70/72/75/85 84MB60/70/72/75/85 1920*1440168MB60/70/72/75/85 3216MB60/70/72/75 84MB60/70/72/75 2048*1536168MB60/70/72/75 3216MB60 8 4. Smart Installation For Windows 95 OSR2.1, Windows 98, WindowsNT4.0 SP3, Windows Me 4.1 Put the DRIVERS CD in your CD-ROM 4.2 Click the Driver installation 4.3 If ever…

Text truncated - open the document above for the full version.

SPARKLE SP7000 Block diagram: SP7000 AGP BUS Memory BIOS Nvidia GeForce3 CRT Monitor X’TAL 14.318MHZ TV X’TAL 13.5MHZ DVI

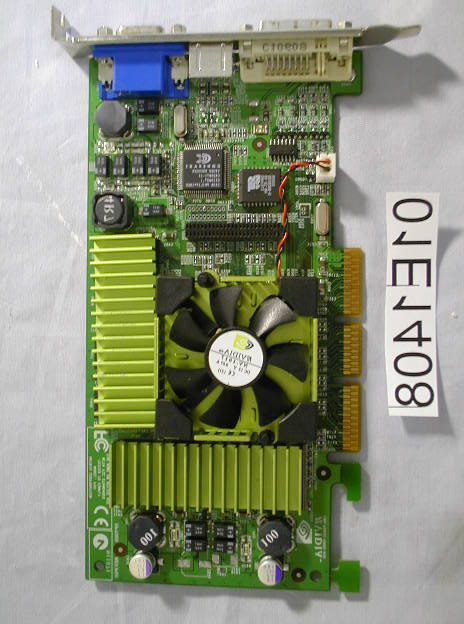

Photo # 1. Front View Photo # 2. Rear View

2. Product Labeling 2-1. FCC ID label FCC ID:M697000 0.5 cm The remained portion of label statement required by FCC is attached in the user’s manual. 2-2 Location of Label on EUT 4cm

Photo # 1 Side View

NEUTRON EMC LAB. FCC ID: M697000 1/27 MEASUREMENT/TECHNICAL REPORT APPLICTNT:Sparkle Computer Co., Ltd. MODEL NO.:SP7000 FCC ID:M697000 This report concerns ( check one ) : Original Grant ̧ Class II Change Equipment type:VGA Card Deferred grant requested per 47CFR 0.457(d)(1)(ii)? Yes No ̧ If yes, defer until: (date) We, the undersigned, agree to notify the Commission by (date) / / of the intended date of announce ment of the product so that the grant can be issued on that date. Transiyion Rules Request per 15.37? Yes No ̧ If no, assumed Part 15, Subpart B for unintentional radiator the new 47 CFR (10-1-90 Edition) provision. Report Prepared by Testing House Neutron Engineering Inc. for Company Name:Sparkle Computer Co., Ltd. Address:13F, No. 2, Sec. 1, Fu Hsing S. Rd., Taipei, Taiwan, R.O.C. Applicant Signature Jack Hsiao/ Manager NEUTRON EMC LAB. FCC ID: M697000 2/27 CERTIFICATION We hereby certify that: The test data , data evaluation , test procedures, and equipment configurations shown in this report were made in accordance with the procedures given in ANSI C63.4 (1992)/ CISPR22(1997) and the energy emitted by the sample EUT tested as described in this report is in compliance with CLASS B conducted and radiated emission limits of FCC Rules Part 15, Subpart B/ CISPR22(1996). Prepared by Lydia Chiang Reviewed by Vincent Su Approved by George Yao Issued Date Sep. 14, 2001 Report No. NEI-FCCB-01103 Company Stamp NEUTRON ENGINEERING INC. No. 132-1, Lane 329, Sec. 2, Palain Rd., Shijr Jen, Taipei, Taiwan TEL : (02) 2646-5426 FAX : (02) 2646-6815 NEUTRON EMC LAB. FCC ID: M697000 3/27 Table of Contents 1.General Information...................................................................................................................... 1-1 Product Description................................................................................................................4 1-2 Related Submittal(s)/Grant(s)..................................................................................................4 1-3 Tested System Details.............................................................................................................5 1-4 Test Methodology...................................................................................................................6 1-5 Test Facility............................................................................................................................6 2.System Test Configuration............................................................................................................ 2-1 Justification.............................................................................................................................7 2-2 EUT Exercise Software...........................................................................................................7 2-3 Special Accessories.................................................................................................................8 2-4 Equipment Modifications.........................................................................................................8 2-5 Configuration of Tested System...............................................................................................9 Figure 2-1 Configuration of Tested System....................................................................................11 3.Block Diagram(s)............................................................................................................................13 4.Conducted Emission Datas............................................................................................................14 5.Radiated Emission Datas .............................................................................................................. 5-1 Radiated Emission Data...........................................................................................................19 5-2 Field Strength Calculation.......................................................................................................24 5-3 Correction Factor Table VS Frequency....................................................................................25 6.Attachment.......................................................................................................................................... Photos of Tested EUT.......................................................................................................................26 User’s Manual...................................................................................................................................27 NEUTRON EMC LAB. FCC ID: M697000 4/27 1. GENERAL INFORMATION 1-1. Product Description The Sparkle Computer Co., Ltd. Model: SP7000(referred to as the EUT in this report) is a VGA Card 64MB on Board with DDR or SDRM. The summarized feature of EUT as following: l Windows2000,WindowsNT 4.0/5.0,Windows98 and Windows95 A more detailed and/or technical description of EUT is attached in User’s Manual. 1-2. Related Submittal(s) / Grant (s) 1-2-1.Models Covered Models covering in this test report is : SP7000 1-2-2.Models Difference N/A NEUTRON EMC LAB. FCC ID: M697000 5/27 1-3. Tested System Details The FCC IDs for all equipment, plus descriptions of all cables used in the tested system (including inserted cards, which have grants) are: Model No.FCC IDEquipmentCable SP7000M697000VGA CardAdd-On Card , Shielded Data Cable CM753ET N/A (3) Monitor Shielded Data Cable (2) Un-Shielded Power Cord 444N/A (3)PCUn-Shielded Power Cord. DPU-414N/A (3)Printer Shielded Serial Data Cable Un-Shielded Power Cord DM-1414VN/A (3)Modem Shielded Parallel Data Cable Un-Shielded Power Cord FDA-104GAF42FDA-104GKeyboardShielded Data Cable M-S34N/A (3)Mouse Shielded Data Cable PVM-1390AK896APVM1390TV Shielded Data Cable (2) Un-Shielded Power Cord PRIMAX N/A (3) Projector Shielded Data Cable (2) Un-Shielded Power Cord Notes: (1) EUT submitted for grant. (2) …
