M697000T5VGA Card

NVIDIA GeForce3 Ti500 3D GRAPHIC ACCELERATOR MANUAL 2.0 1 NVIDIA GeForce 3 Ti500 User’s Manual TABLE OF CONTENTS 1. NVIDIA GeForce 3 Ti500 Features...............................................................................2 2. GeForce3 Ti500 Board Outline.....................................................................................4 2.1 GeForce3 Ti500 using DDR SDRAM (SP7000T5/64M-DVI)...............................4 3.Hardware installation.....................................................................................................5 3.1 Package Contents.............................................................................................5 3.2 Installing the card..............................................................................................5 3.3 Micro Cross DVI Connector System..................................................................6 3.4 Resolutions and colors supported:...................................................................7 4. Smart Installation...........................................................................................................8 5. Manually install Windows XP drivers..........................................................................10 5.1 Installation and Setup......................................................................................10 5.2 How to Change Color Depth and Resolution in Windows XP..........................10 5.3 How to Change Refresh Rate in Windows XP................................................11 5.4 NVIDIA Utility in Windows System...................................................................12 5.4.1 GeForce3 Ti500.................................................................................12 5.4.2 Device selection................................................................................13 5.4.3 Color correction.................................................................................14 6. Manually install Windows 98 and Windows ME drivers.............................................15 6.1 Installation and Setup......................................................................................15 6.2 How to Change Color Depth and Resolution...................................................15 6.3 How to Change Refresh Rate.........................................................................16 7. Manually install Windows 2000 drivers......................................................................16 FCC Statement................................................................................................................17 Warning:................................................................................................................17 Trademark Acknowledgments........................................................................................17 2 1. NVIDIA GeForce 3 Ti500 Features SP7000T2 GeForce 3 Ti500AGP bus, with 64MB DDR SDRAM on Board Graphics core 256-BIT Fill rate (AA samples/sec.) 3.84 BILLION Operations/sec. 960 BILLION Memory bandwidth 8.0GB/SEC nfiniteFX engine for full programmability Lightspeed Memory Architecture for unmatched performance Surface engine for high-order surfaces and patches Programmable Vertex Shader - Programmable matrix palette skinning- Morphing -,Keyframe animation interpolation- Procedural deformations - Lens effects Lens effects: Fish-eye, Wide-angle Fresnel effects, Water refraction - Fog effects: Radial, Elevation, Non-linear Programmable Pixel Shader - Phong-style lighting for per-pixel accuracy- Dot3 bump mapping - Environmental bump mapping (EMBM)- Procedural textures - Per-pixel reflections HRAA—high-resolution antialiasing - Featuring Quincunx AA mode Integrated hardware transform engine Integrated hardware lighting engine DirectX ® and S3TC ® texture compression Dual cube environment mapping capability - Reflection maps- Accurate, real-time environment reflections Hardware accelerated real-time shadows Performance - 3.84 billion AA samples per second fill rate- 8.0GB/sec memory bandwidth Lightspeed Memory Architecture amplifies memory bandwidth True, reflective bump mapping - Z-correct bump mapping - Phong-style lighting effects on bump maps with reflections High-performance 2D rendering engine - Optimized for 32-, 24-, 16-, 15- and 8-bpp modes - True-color hardware cursor with alpha - Multi-buffering (double, triple or quad) for smooth animation and video playback High-quality HDTV/DVD playback - High-definition video processor (HDVP) for full-screen, full-frame video playback of HDTV and DVD content - Motion compensation- 8:1 up/down scaling - DVD sub-picture alpha-blended compositing Comprehensive system interface - AGP 4X support, including Fast Writes and Execute Mode - NTSC or PAL TV output (optional) - DVI 29 pin output connector, support TMDS Panellink resolution up to SXGA and analog RGB output (optional) 3 Operating systems support - Windows XP, Windows 2000, Windows Me, Windows 98, Linux Compatible API Support - OpenGL 1.3 and lower - DirectX 8.1 and lower 4 2. GeForce3 Ti500 Board Outline 2.1 GeForce3 Ti500 using DDR SDRAM (SP7000T5/64M-DVI) 64M on board – 4Mx16 DDR SDRAM x8 DB15 S-VIDEO DVI 14.318MHZ NOTE 1: TV output connector and encoder are reserved for optional NOTE 2: DVI connector and LCD encoder are reserved for optional NVIDIA GeForce 3 Ti500 BIOS Power 4M*1 6 4M*1 6 4M*1 6 4M*1 6 4M*16 4M*16 4M*16 4M*16 P 0 W E R TV ENCODER 5 3.Hardware installation 3.1 Package Contents 1. NVIDIA GeForce3 Ti500 3D Accelerator card 2. CD title or Software diskettes 3. This manual 3.2 Installing the card 1. Turn off your computer 2. Remove the cover of the computer per the owner’s manual 3. Install the card in the AGP bus slots 4. Replace the cover. 6 3.3 Micro Cross DVI Connector System “Micro Cross:”/high speed pins; C1Analog Red Video Out C2Analog Green Video Out C3Analog Blue Video Out C4Analog Horizontal Sync C5Analog Common Ground Return (Red , Green , Blue Video Ou…

Text truncated - open the document above for the full version.

SPARKLE SP7000T Block diagram: SP7000T AGP BUS Memory BIOS Nvidia GeForce3 TI500 CRT Monitor X’TAL 14.318MHZ TV X’TAL 13.5MHZ DVI FC Port

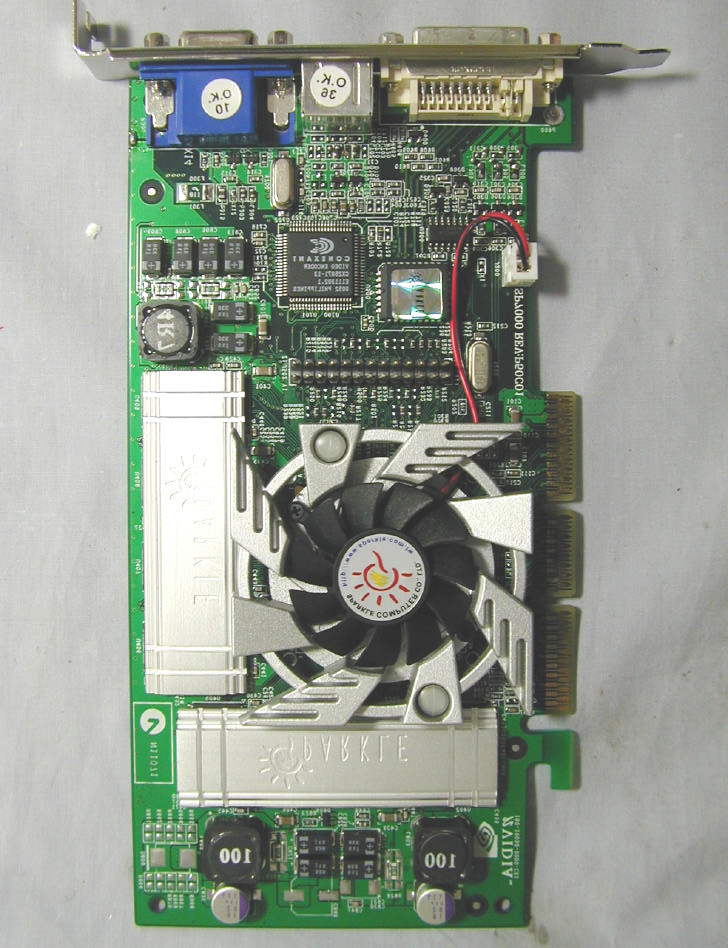

Photo 1 Photo 2

NEUTRON EMC LAB. FCC ID: M697000T5 7/34 2. Product Labeling 2-1. FCC ID label FCC ID:M697000T5 0.5 cm The remained portion of label statement required by FCC is attached in the user’s manual. 2-2 Location of Label on EUT 4cm

Photo 1

NEUTRON EMC LAB. FCC ID: M697000T5 1/34 MEASUREMENT/TECHNICAL REPORT APPLICTNT:Sparkle Computer Co., Ltd. MODEL NO.:SP7000T5 FCC ID:M697000T5 This report concerns ( check one ) : Original Grant ̧ Class II Change Equipment type:VGA Card Deferred grant requested per 47CFR 0.457(d)(1)(ii)? Yes No ̧ If yes, defer until: (date) We, the undersigned, agree to notify the Commission by (date) / / of the intended date of announce ment of the product so that the grant can be issued on that date. Transiyion Rules Request per 15.37? Yes No ̧ If no, assumed Part 15, Subpart B for unintentional radiator the new 47 CFR (10-1-90 Edition) provision. Report Prepared by Testing House Neutron Engineering Inc. for Company Name:Sparkle Computer Co., Ltd. Address:13F, No. 2, Sec. 1, Fu Hsing S. Rd., Taipei, Taiwan, R.O.C. Applicant Signature Jack Hsiao/ Manager NEUTRON EMC LAB. FCC ID: M697000T5 2/34 CERTIFICATION We hereby certify that: The test data , data evaluation , test procedures, and equipment configurations shown in this report were made in accordance with the procedures given in ANSI C63.4 (1992)/ CISPR22(1997) and the energy emitted by the sample EUT tested as described in this report is in compliance with CLASS B conducted and radiated emission limits of FCC Rules Part 15, Subpart B/ CISPR22(1996). Prepared by Lydia Chiang Reviewed by Vincent Su Approved by George Yao Issued Date Jan. 09,2002 Report No. NEI-FCCB-01221 Company Stamp NEUTRON ENGINEERING INC. No. 132-1, Lane 329, Sec. 2, Palain Rd., Shijr Jen, Taipei, Taiwan TEL : (02) 2646-5426 FAX : (02) 2646-6815 NEUTRON EMC LAB. FCC ID: M697000T5 3/34 Table of Contents 1.General Information...................................................................................................................... 1-1 Product Description................................................................................................................4 1-2 Related Submittal(s)/Grant(s)..................................................................................................4 1-3 Tested System Details.............................................................................................................5 1-4 Test Methodology...................................................................................................................6 1-5 Test Facility............................................................................................................................6 2.Product Labeling............................................................................................................................ Figure 2-1 FCC ID Label...............................................................................................................7 Figure 2-2 Location of Label on EUT............................................................................................7 3.System Test Configuration............................................................................................................ 3-1 Justification.............................................................................................................................8 3-2 EUT Exercise Software...........................................................................................................8 3-3 Special Accessories.................................................................................................................9 3-4 Equipment Modifications.........................................................................................................9 3-5 Configuration of Tested System...............................................................................................10 Figure 3-1 Configuration of Tested System....................................................................................12 4.Block Diagram(s)............................................................................................................................14 5.Conducted and Radiated Measurement Photos............................................................................ Figure 5-1.Conducted Measurement Photos...................................................................................15 Figure 5-2 Radiated Measurement Photos......................................................................................16 6.Conducted Emission Datas............................................................................................................17 7.Radiated Emission Datas .............................................................................................................. 7-1 Radiated Emission Data...........................................................................................................24 7-2 Field Strength Calculation.......................................................................................................31 7-3 Correction Factor Table VS Frequency....................................................................................32 8.Attachment............................................................................................................................................ Photos of Tested EUT.......................................................................................................................33 User’s Manual...................................................................................................................................34 NEUTRON EMC LAB. FCC ID: M697000T5 4/34 1. GENERAL INFORMATION 1-1. Product Description The Sparkle Computer Co., Ltd. Model: SP7000T5(referred to as the EUT in this report) is a VGA Card 64MB on Board with DDR or SDRAM. The summarized feature of EUT as following: l Windows XP,Windows2000,WindowsMe,Windows98 and Linux A more detailed and/or technical description of EUT is attached in User’s Manual. 1-2. Related Submittal(s) / Grant (s) 1-2-1.Models Covered Models covering in this test report is : SP7000T5 1-2-2.Models Difference N/A NEUTRON EMC L…

Text truncated - open the document above for the full version.

NEUTRON EMC LAB. FCC ID: M697000T5 15/34 5. Conducted and Radiated Measurement Photos 5-1. Conducted Measurement Photos NEUTRON EMC LAB. FCC ID: M697000T5 16/34 5. Conducted and Radiated Measurement Photos 5-2. Radiated Measurement Photos
