M697100P73VGA Card

NVIDIA GeForce4 MX420/440/460 SP7100M273X032PU ; SP7100M273X032TV SP7100M273V064PU ; SP7100M273V064TV 3D GRAPHIC ACCELERATOR MANUAL 2 NVIDIA GeForce4 MX420/440/460 User’s Manual TABLE OF CONTENTS TABLE OF CONTENTS.................................................................................................2 1. NVIDIA GeForce4 MX420/440/460 Features..............................................................3 2. Hardware installation..................................................................................................4 3. Resolutions and colors supported:..............................................................................5 4. Smart Installation........................................................................................................5 5. Manually install Windows XP drivers..........................................................................8 5.1 Installation and Setup........................................................................................8 5.2 How to Change Color Depth and Resolution in Windows XP.............................8 5.3 How to Change Refresh Rate in Windows XP...................................................9 5.4 NVIDIA Utility in Windows System...................................................................10 5.4.1 GeForce4 MX (NVIDIA).........................................................................10 5.4.2 nView.....................................................................................................11 5.4.2.1 Standard mode:...........................................................................12 5.4.2.2 Color correction............................................................................13 5.4.2.3 Screen Adjustment.......................................................................14 5.4.2.4 nView enable mode.....................................................................15 6. Manually install Windows 98 and Windows ME drivers.............................................16 6.1 Installation and Setup......................................................................................16 6.2 How to Change Color Depth and Resolution....................................................16 6.3 How to Change Refresh Rate..........................................................................18 7. Manually install Windows 2000 drivers.....................................................................18 FCC Statement.............................................................................................................20 Warning:................................................................................................................20 Trademark Acknowledgments......................................................................................20 3 1. NVIDIA GeForce4 MX420/440/460 Features GeForce4 MX420 AGP bus, with 64MB or 128MB SDRAM on Board Graphics core 256-BIT Fill rate (AA samples/sec.) 1 BILLION Triangles/sec 31 MILLION Memory bandwidth 2.7 GB/SEC GeForce4 MX440 AGP bus, with 64MB DDR SDRAM on Board Graphics core 256-BIT Fill rate (AA samples/sec.) 1.1 BILLION Triangles/sec 34 MILLION Memory bandwidth 6.4 GB/SEC GeForce4 MX460 AGP bus, with 64MB DDR SDRAM on Board Graphics core 256-BIT Fill rate (AA samples/sec.) 1.2 BILLION Triangles/sec 38 MILLION Memory bandwidth 8.8 GB/SEC nView Display Technology Provides unprecedented flexibility and control for using multiple displays. nView boosts productivity by enabling the user to have two simultaneous displays for every GPU. Multiple graphics cards can be used if more than two displays are required. Lightspeed Memory Architecture (LMA) II Technology LMA II boosts effective memory bandwidth by up to 300% Radical new technologies – including Z occlusion culling, fast Z clear, and auto precharge – effectively multiplies the memory bandwidth to ensure fluid frame rates for the latest 3D and 2D games and applications MX Memory Crossbar Dual memory controllers allow more efficient utilization of memory bandwidth Integrated Dual 350MHz DACs Drivers two independent CRT display with crisp and clear image quality at 2048x1536 resolution @ 75Hz (2 CRT output is optional function) Integrated TV Encoder supporting 1024x768 Resolution Provides best-in-class TV-out functionality (optional) Accuview Antialiasing Delivers unprecedented AA performance and quality to the mainstream market and enables high resolution, high frame rate, full-scene antialiasing for the first time ever in this market segment Video Processing Engine (VPE) Enables the highest quality, full-frame rate, full-screen HDTV and DVD without requiring a high performance CPU AGP 4X/2X with AGP Texturing and Fast Writes AGP 4X is the highest performance connection between the CPU and graphics processor. Taking advantage of new methods for transferring information more efficiently allows content developers to use high-quality 32-bit color textures and high-polygon count scenes. 4 Other Features 2 dual-rendering pipelines 4 texels per clock cycle Cube environment mapping 64M high-speed 128-bit DDR RAM memory High-performance 2D rendering engine AGP 4X with Fast Writes NVIDIA Shading Rasterizer AGP 4X/2X and AGP Texturing Support Integrated hardware transform engine Integrated hardware lighting engine True-color hardware cursor High-quality HDTV/DVD playback True, reflective bump mapping Multibuffering (double, triple, quad) for smooth animation and video playback Operating systems support Windows XP, Windows 2000, Windows Me, Windows 98, Linux Compatible API Support OpenGL 1.3 and lower DirectX 8.1 and lower 2. Hardware installation 1. NVIDIA GeForce4 MX 3D Accelerator card 2. CD title or Software diskettes 3. This manual 1. Turn off your computer 2. Remove the cover of the computer per the owner’s manual 3. Install the card in the AGP bus slots 4. Replace the cover. 5 3. Resolutions and colors supported: GeForce4 MX420/440/460 B.P.P. Refresh Rates (HZ) 8 60/70/72/7…

Text truncated - open the document above for the full version.

SPARKLE SP7100M2 Block diagram: SP7100M2 TV AGP BUS Memory BIOS Nvidia GeForce4 MX420 CRT Monitor X’TAL 27.0MHZ

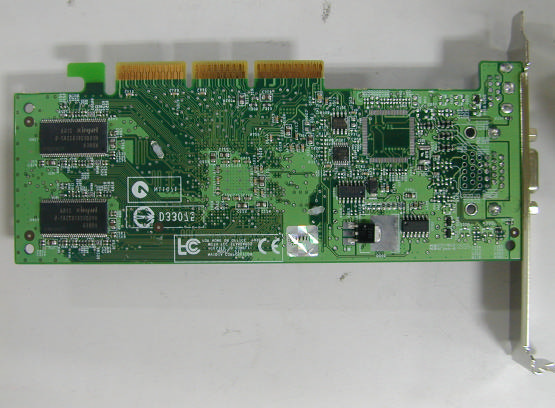

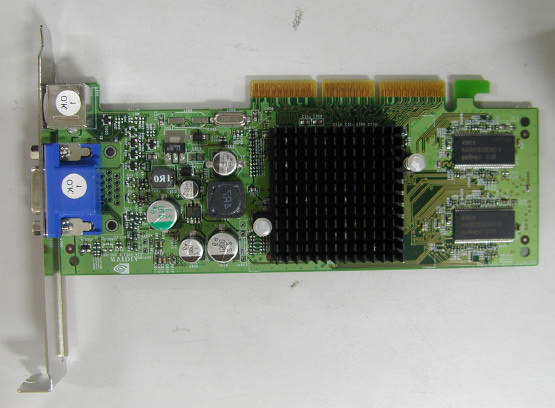

Photo # 1 Front View, Rear View Model NO.:SP7100M273V064TV Photo # 3 Front View, Rear View Model NO.:SP7100M273X032PU Photo # 4 Front View, Rear View Model NO.:SP7100M273X032TV Photo # 5 Front View, Rear View Model NO.:SP7100M273V064PU

NEUTRON EMC LAB. FCC ID: M697100P73 7/26 2. Product Labeling 2-1. FCC ID label FCC ID:M697100P73 0.5 cm The remained portion of label statement required by FCC is attached in the user’s manual. 2-2 Location of Label on EUT 4cm FCC ID:M697100P73

Photo # 2 Side View

NEUTRON EMC LAB. FCC ID: M697100P73 1/26 MEASUREMENT/TECHNICAL REPORT APPLICTNT: Sparkle Computer Co., Ltd. MODEL NO.: SP7100M273V064TV;SP7100M273X032PU; SP7100M273X032TV;SP7100M273V064PU FCC ID: M697100P73 This report concerns ( check one ) : Original Grant ̧ Class II Change Equipment type: VGA Card Deferred grant requested per 47CFR 0.457(d)(1)(ii)? Yes No ̧ If yes, defer until: (date) We, the undersigned, agree to notify the Commission by (date) / / of the intended date of announce ment of the product so that the grant can be issued on that date. Transiyion Rules Request per 15.37? Yes No ̧ If no, assumed Part 15, Subpart B for unintentional radiator the new 47 CFR (10-1-90 Edition) provision. Report Prepared by Testing House Neutron Engineering Inc. for Company Name: Sparkle Computer Co., Ltd. Address: 13F, No. 2, Sec. 1, Fu Hsing S. Rd., Taipei, Taiwan, R.O.C. Applicant Signature Jeffrey Lien/ Manager NEUTRON EMC LAB. FCC ID: M697100P73 2/26 CERTIFICATION We hereby certify that: The test data , data evaluation , test procedures, and equipment configurations shown in this report were made in accordance with the procedures given in ANSI C63.4 (1992)/ CISPR22(1997) and the energy emitted by the sample EUT tested as described in this report is in compliance with CLASS B conducted and radiated emission limits of FCC Rules Part 15, Subpart B/ CISPR22(1996). Prepared by Lydia Chiang Reviewed by Andy Chiu Approved by George Yao Issued Date Oct. 30,2002 Report No. NEI-FCCB-02145 Company Stamp NEUTRON ENGINEERING INC. No. 132-1, Lane 329, Sec. 2, Palain Rd., Shijr Jen, Taipei, Taiwan TEL : (02) 2646-5426 FAX : (02) 2646-6815 NEUTRON EMC LAB. FCC ID: M697100P73 3/26 Table of Contents 1. General Information...................................................................................................................... 1-1 Product Description................................................................................................................ 4 1-2 Related Submittal(s)/Grant(s).................................................................................................. 4 1-3 Tested System Details............................................................................................................. 5 1-4 Test Methodology................................................................................................................... 6 1-5 Test Facility............................................................................................................................ 6 2. Product Labeling............................................................................................................................ Figure 2-1 FCC ID Label............................................................................................................... 7 Figure 2-2 Location of Label on EUT............................................................................................ 7 3. System Test Configuration............................................................................................................ 3-1 Justification............................................................................................................................. 8 3-2 EUT Exercise Software........................................................................................................... 8 3-3 Special Accessories................................................................................................................. 9 3-4 Equipment Modifications......................................................................................................... 9 3-5 Configuration of Tested System............................................................................................... 10 Figure 3-1 Configuration of Tested System.................................................................................... 12 4. Block Diagram(s)............................................................................................................................ 14 5. Conducted and Radiated Measurement Photos............................................................................ Figure 5-1.Conducted Measurement Photos................................................................................... 15 Figure 5-2 Radiated Measurement Photos...................................................................................... 16 6. Conducted Emission Datas............................................................................................................ 17 7. Radiated Emission Datas .............................................................................................................. 7-1 Radiated Emission Data........................................................................................................... 20 7-2 Field Strength Calculation....................................................................................................... 23 7-3 Correction Factor Table VS Frequency.................................................................................... 24 8. Attachment.......................................................................................................................................... Photos of Tested EUT....................................................................................................................... 25 User’s Manual................................................................................................................................... 26 NEUTRON EMC LAB. FCC ID: M697100P73 4/26 1. GENERAL INFORMATION 1-1. Product Description The Sparkle Computer Co., Ltd. Model: SP7100M273V064TV;SP7100M273X032PU;SP7100M273X032TV;SP7100M273V064PU (referred to as the EUT in this report) is a VGA Card (AGP Bus). The summarized feature of EUT as following: l Windows XP,Windows2000,WindowsMe,Windows98 and Linux A more detailed and/or technical description of EUT is attached in User’s Manual. 1-2. Related…

Text truncated - open the document above for the full version.

NEUTRON EMC LAB. FCC ID: M697100P73 15/26 5. Conducted and Radiated Measurement Photos 5-1. Conducted Measurement Photos NEUTRON EMC LAB. FCC ID: M697100P73 16/26 5. Conducted and Radiated Measurement Photos 5-2. Radiated Measurement Photos
