1 ZRC-90 (Scene Master) Operating Instructions Master your home, Master your life 2 Introduction The ZRC-90 Scene Master (Figure 1) is a Z-Wave Central Scene Controller. When one of the buttons on the ZRC-90 is pushed, your Z- Wave central controller will receive a signal which it can use to trigger unlimited control possibilities. With 8 buttons, each supporting a long- press capability, you can control 16 different actions in your central controller. The ZRC-90 is a great solution for triggering events more quickly than taking out your smart-phone and running a home control App. The Scene Master is ideal for kids, elderlies and guests who may not have full access to your smart home’s mobile application and hence may not have the rights to switch on various lighting, heating, air conditioning and other home appliance. With a convenient snap-in wall mount, the ZRC-90 can also be removed to keep it handy while you go about your home for the ultimate in simple convenience. Figure 1 ZRC-90 Gateway Requirements Please make sure your gateway supports below functions before use ZRC-90. Z-Wave Command Class Controlled Supported Association command class Y N Association Group Information (AGI) command class Y N Central Scene command class Y Y 3 Key Features - Controls up to 8x2 pre-set scenes and 8 groups dimming function - One learn-key setup and simple operation - Report for key pressed 1 time, 2 times, released and held down - Unlimited controlling capability through gateway - Able to act as a primary or secondary controller - Z-Wave Plus compliant - Super thin, elegant design and able to mount to the wall-bracket Glossary Device or Node Devices and nodes are all terms to describe an individual Z‐Wave device. These are all interchangeable when setting up your Z- Wave network. Inclusion Add a Z-Wave device to the network. Exclusion Remove a Z-Wave device from the network. Z-Wave Network A collection of Z-Wave devices controlled by primary and secondary controllers operating on the same system. A Z-Wave network has its own unique ID code so that controllers not in the network cannot control the system. Scene A collection of Z-Wave devices configured to turn to a specific level, setting, mode, or perform an operation. Scenes are usually activated by a controller, timed event, or specific conditions. Primary Controller The first controller used to set up your devices and network. Only the Primary Controller can be used to include or remove modules from a network. It is recommended that you mark the primary controller for each network for ease in modifying your network. Secondary Controller A controller containing network information about other modules within the network and is used for controlling devices. Secondary controller is created from the Primary Controller and cannot include or remove modules to the network. 4 SUC ID Server (SIS) When a SUC is also configured as a node ID server (SIS) it enables all other controllers to include/exclude nodes. The SIS automatically becomes the Primary Controller in the network when enabled. There can only be one SIS in each individual network. To avoid inconsistency, all node ID allocations are maintained by the SIS. Inclusion Controller The SIS enables other controllers to include/exclude nodes to/from the network. When SIS functionality is enabled the controller also takes the role as the Primary Controller because it has both latest network topology and allocated node IDs. All the other controllers are called Inclusion Controllers because they can include/exclude nodes to/from the network. 5 Product Overview Figure 2 Setup and control keys of ZRC-90 LED indication for Operation and Setup Wall mount bracket Scene control keyboard Setup buttons Upgrade header Upgrade slide switch Battery door Back block for plastic insert LED indication for Operation and Setup 6 Description of Function Keys Keys Functions Scene control buttons Learn mode (Click once) Wake up (Click once) Remove device (Click once) + Add device (Press the keys until LED light up) + Create Primary (Press the keys until LED light up) + Create Secondary (Press the keys until LED light up) Reset to factory default (Press and keep holding 10 seconds then triple click) Slide switch OP = Normal operation (default) PC = PC firmware upgrade mode (The slide switch is designed for firmware upgrade by supplier, please switch to "OP" direction for normal operation.) 7 Setup and Operations Before using the ZRC-90, please install the batteries:  2xAAA (alkaline is recommended) batteries are required for operation.  Remove the battery cover on the back of your remote.  Check the polarity of the batteries and the "+/-" marks inside the battery compartment.  Insert the batteries.  Push the battery cover back in place.  CAUTION (battery safety)  Use new batteries of the recommended type and size only.  Never mix used and new batteries together.  To avoid chemical leaks, remove batteries from the remote controller if you do not intend to use the remote for an extended period of time.  Dispose of used batteries properly; do not burn or bury them. (Please carefully read through the following sections of this user manual and store for future reference.) ZRC-90 can be included and operated in any Z-Wave network with other Z-Wave certified devices from other manufacturers and/or other applications. All non-battery operated devices within the network will act as repeaters regardless of vendor to increase reliability of the network. ZRC-90 can act as a secondary Central Scene Controller and trigger the pre-defined scenes through the gateway. Please follow “Add ZRC- 90 into gateway network” by the procedures of “Learn mode” and “Scene activation and deactivation”. Z-Wave Learn mode ZRC-90 can also receive network information from other controllers by enter “Learn mode”. (Add / Remove ZRC-90 into / from gateway network) Step Setup Key Setup LED Indication on ZRC-90 1 Refer to your primary controller instru…

Text truncated - open the document above for the full version.

Remotec Technology Limited Workshop No. B2, 2/F., Block B, Tonic Industrial Centre, 19 Lam Hing Street, Kowloon Bay, Hong Kong 香港九龍灣臨興街19號同力工業中心座樓B2B2室 Tel 電話 : (852)-2314 0330 • Fax 傳真 : (852)-2314 1006 • Website 網址 : www.remotec.com.hk Date: Nov 16, 2015 Federal Communications Commission 7435 Oakland Mills Road Columbia MD 21046 To whom it may concern: I, the undersigned, hereby authorize UL International Ltd to act on our behalf in all manners relating to application for equipment authorization, including signing of all documents relating to these matters. Any and all acts carried out by UL International Ltd. on our behalf shall have the same effect as acts of our own. I, the undersigned, hereby certify that we are not subject to a denial of federal benefits, that includes FCC benefits, pursuant to Section 5301 of the Anti-Drug Abuse Act of 1988, 21 U.S.C. 853(a). In authorizing UL International Ltd. as our representative, we still recognize that we are responsible to: a) comply with the relevant provisions of the certification program; b) make all necessary arrangements for the conduct of the evaluation, including provision for examining documentation and access to all areas, records (including internal audit reports) and personnel for the purposes of evaluation (e.g. testing, inspection, assessment, surveillance, reassessment) and resolution of complaints; c) make claims regarding certification only in respect of the scope for which certification has been granted; d) do not use our product certification in such a manner as to bring the Certification Division into disrepute and not make any statement regarding our product certification which the Certification Division may consider misleading or unauthorized; e) upon suspension or cancellation of certification, discontinue use of all advertising matter that contains any reference thereto and return any certification documents as required by the Certification Division; f) use certification only to indicate the products are certified as being in conformity with specified standards; Remotec Technology Limited Workshop No. B2, 2/F., Block B, Tonic Industrial Centre, 19 Lam Hing Street, Kowloon Bay, Hong Kong 香港九龍灣臨興街19號同力工業中心座樓B2B2室 Tel 電話 : (852)-2314 0330 • Fax 傳真 : (852)-2314 1006 • Website 網址 : www.remotec.com.hk g) endeavor to ensure that no certificate or report nor any part thereof is used in a misleading manner; h) ensure that any reference to our product certification in communication media such as documents, brochures or advertising, complies with the requirements of the Certification Division; i) keep a record of all complaints made known to us relating to the product’s compliance with requirements of the relevant standard and to make these records available to the when requested; j) take appropriate action with respect to such complaints and any deficiencies found in products or services that affect compliance with the requirements for certification; k) document the actions taken. This authorization is valid until further written notice from the applicant.

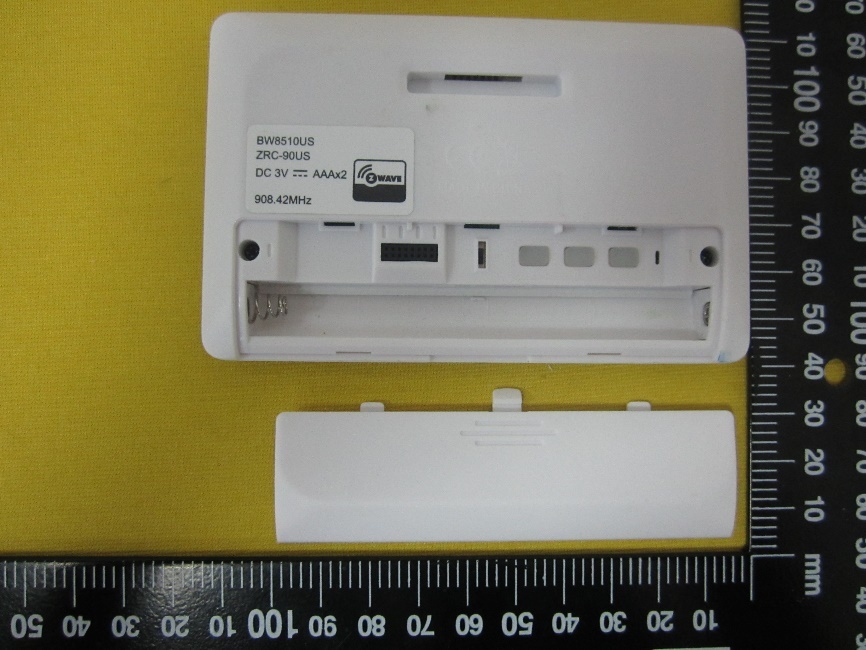

LWR OP PC 1 Reference Label 5x20mm Back Label VX.XX FW Label This device complies with Part 15 of the FCC Rules. Operation is subject to the following two conditions: (1) this device may not cause harmful interference, and (2) this device must accept any interference received, including interference that may cause undesired operation. FCC ID: M7N-BW8510 FCC Label BW8510US ZRC-90US DC 3V AAAx2 908.42MHz BW8510US ZRC-90US DC 3V AAAx2 908.42MHz F-BW8510 Label This device complies with Part 15 of the FCC Rules. Operation is subject to the following two conditions: (1) this device may not cause harmful interference, and (2) this device must accept any interference received, including interference that may cause undesired operation. FCC ID: M7N-BW8510

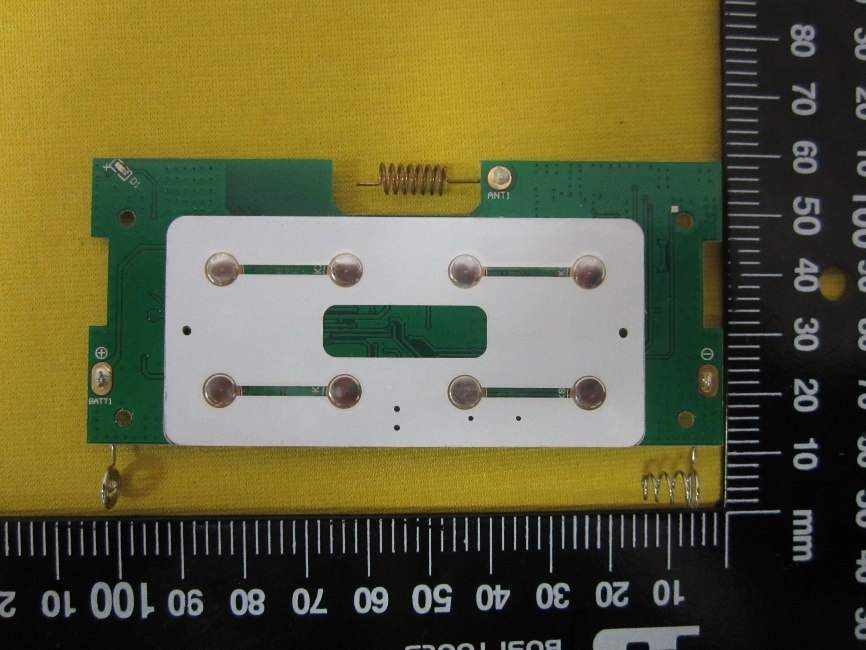

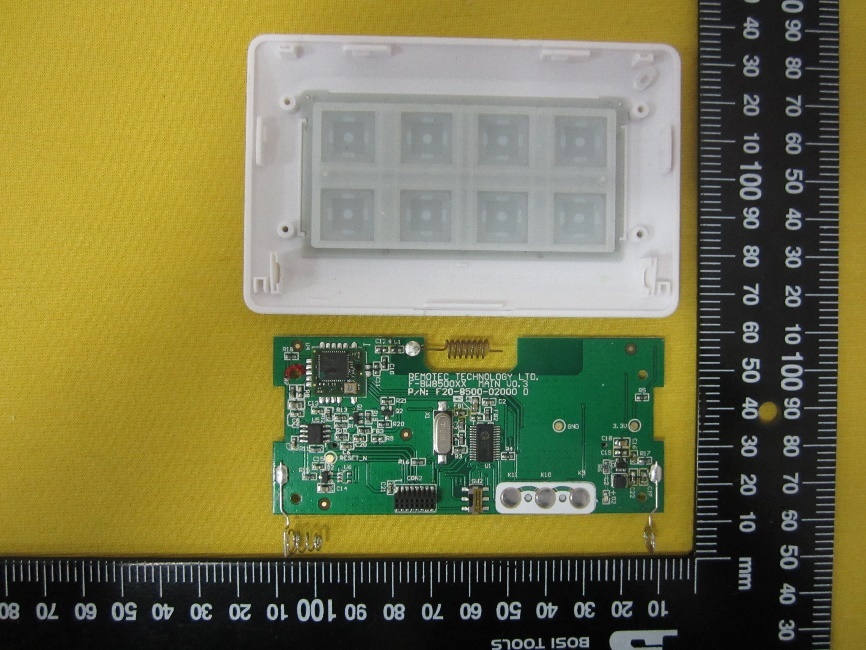

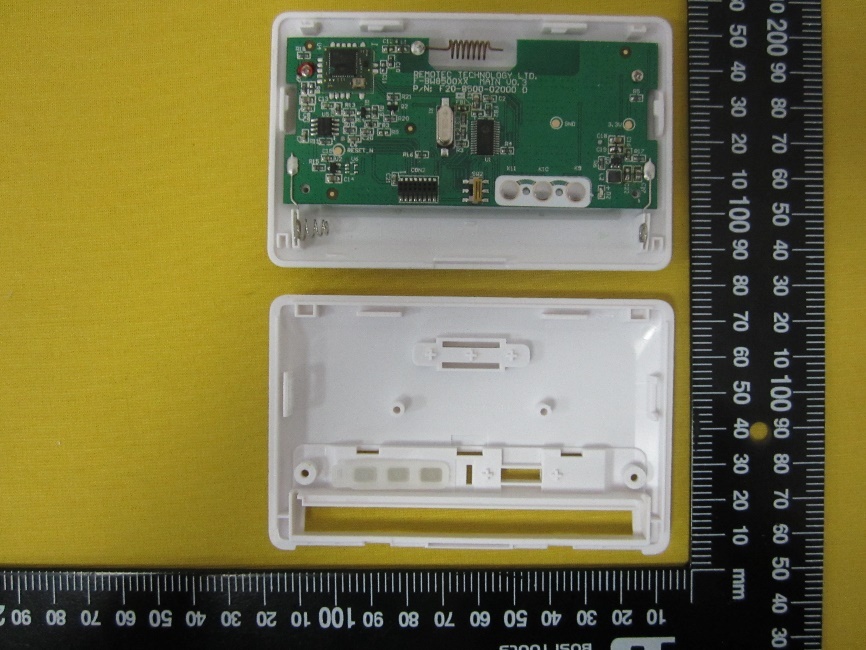

Internal Photos ANT

The test r It is not pe Report R FCC ID ... Applican Address .. Manufactu Address.. Test item Trade Ma Model/Typ Listed Mo Standard Date of re Date of te Date of is Result .... Compiled ( position + Supervise ( position+ Approved ( position + Testing L Address .. Shenzhen This publi Huatongw Shenzhen for damag context. report merely ermitted to c Reference No .................... t’s name ..... .................... urer.............. .................... m description ark ................ pe reference odel(s) .......... d ................... eceipt of test esting............ sue............ .............. ...... by +printed nam ed by +printed nam by +printed nam Laboratory N .................... n Huatongw cation may b wei Internatio n Huatongwe ges resulting y correspond opy extracts o. ................. .................... .................... .................... .................... .................... n ................. .................... e ................... .................... .................... sample...... .................. ..................... .................. me+signature me+signature me+signature Name .......... .................... wei Internatio be reproduce onal Inspectio ei Internation from the rea ds to the test of these te s TES ... : TRE1 ... : M7N ... : Rem .... : Wor k St, K .....: Rem ......: Wor k St, K ... : ZRC- .... : - .... : BW 8 .... : BW 8 RMZ ... : FCC .....: Sept ......: Sept ......: Sept ......: PASS e) .. : File a e) .. : Proj e e) .. : RF M ... : She n .... : Keji N onal Inspec ed in whole o on Co., Ltd is nal Inspection ader's interpr sample. st result witho ST RE 15090055 -BW8510 otec Techn kshop No. 2, Kowloon Bay, otec Techn kshop No. 2, Kowloon Bay, -90US Scen 8510US 8510NA, BW8 Z3103 CFR Title 4 17, 2015 18,2015- S e 29,2015 S administrator ect Engineer Manager Han nzhen Huato Nan No.12 R ction Co., Ltd or in part for s acknowledg n Co., Ltd tak retation of th out the writte EPOR ology Ltd 2 nd Fl, Blk , HK ology Ltd 2 nd Fl, Blk , HK e Maste r 8511US, BW 47 Part 15 Su ept 28,2015 rs Shayne Zh Jerry Wang ns Hu ongwei Inter Road, Hi-tech d. All rights non-commer ged as copy kes no respo e reproduce en permission RT R/C......... B, Tonic In d B, Tonic Ind W8511NA, BW ubpart C Se hu rnational Ins h Park, Shen reserved. rcial purpose right owner a onsibility for a d material du n of the test l ....:65253 dustrial Centr dustrial Centr W8500US, B ection 15.249 spection Co nzhen, China es as long as and source o and will not a ue to its plac laboratory. re, 19 Lam H re, 19 Lam H BW8500NA, 9 o., Ltd a s the Shenzh of the materia assume liabil cement and Hing Hing hen al. lity Report No: TRE15090055 Page: 2 of 16 Issued: 2015-09-29 Contents 1. TEST STANDARDS AND TEST DESCRIPTION 3 1.1. Test Standards 3 1.2. Test Description 3 2. SUMMARY 4 2.1. Client Information 4 2.2. Product Description 4 2.3. EUT operation mode 4 2.4. EUT configuration 4 2.5. Modifications 4 3. TEST ENVIRONMENT 5 3.1. Test Facility 5 3.2. Environmental conditions 6 3.3. Statement of the measurement uncertainty 6 3.4. Equipments Used during the Test 7 4. TEST CONDITIONS AND RESULTS 8 4.1. Antenna requirement 8 4.2. AC Power Conducted Emission 9 4.3. Radiated Emission 10 4.4. 20dB Bandwidth 15 4.5. Outside of Band Emission 16 Report No: TRE15090055 Page: 3 of 16 Issued: 2015-09-29 1. TEST STANDARDS AND TEST DESCRIPTION 1.1. Test Standards The tests were performed according to following standards: FCC Rules Part 15.249: Operation within the bands 902-928 MHz, 2400-2483.5 MHz, 5725-5875 MHZ, and 24.0-24.25 GHz. ANSI C63.10-2013: AmericanNationalStandardforTestingUnlicensedWirelessDevices. 1.2. Test Description Test Item Section in CFR 47 Result Conducted Emissions 15.207 N/A Radiated Emissions 15.249(a)/15.209/15.205(a) PASS 20dB Bandwidth 15:215(c) PASS Outside of Band Emission 15.249/15.205/15.209 PASS Remark: The measurement uncertainty is not included in the test result. Report No: TRE15090055 Page: 4 of 16 Issued: 2015-09-29 2. SUMMARY 2.1. Client Information Applicant: Remotec Technology Ltd Address: Workshop No. 2, 2 nd Fl, Blk B, Tonic Industrial Centre, 19 Lam Hing St, Kowloon Bay, HK Manufacturer: Remotec Technology Ltd Address: Workshop No. 2, 2 nd Fl, Blk B, Tonic Industrial Centre, 19 Lam Hing St, Kowloon Bay, HK 2.2. Product Description Name of EUT ZRC-90US Scene Master Trade Mark: - Model No.: BW8510US Listed Model(s): BW8510NA, BW8511US, BW8511NA, BW8500US, BW8500NA, RMZ3103 Power supply: DC3.0V AAAx2 Adapter information: / Operation frequency: 908.42MHz Channel number: 1 Antenna type: Intergral Antenna Antenna gain: 0dBi 2.3. EUT operation mode The EUT has been tested under typical operating condition. The Applicant providessoftware to control the EUT for staying in continous transmitting mode for testing. 2.4. EUT configuration The following peripheral devices and interface cables were connected during the measurement: ● - supplied by the manufacturer ○ - supplied by the lab ○ PowerCable Length (m) : / Shield : / Detachable : / ○ Multimeter Manufacturer : / Model No. : / 2.5. Modifications No modifications were implemented to meet testing criteria. Report No: TRE15090055 Page: 5 of 16 Issued: 2015-09-29 3. TEST ENVIRONMENT Laboratory:Shenzhen Huatongwei International Inspection Co., Ltd. (Gongming) Address: Bldg3, Hongfa Hi-tech Industrial Park, Genyu Road, Shenzhen, China Phone: 86-755-26748019 Fax: 86-755-26748089 3.1. Test Facility The test facility is recognized, certified, or accredited by the following organizations: CNAS-Lab Code: L1225 Shenzhen Huatongwei International Inspection Co., Ltd. has been assessed and proved to be in compliance with CNAS-CL01 Accreditation Criteria for Testing and Calibration Laboratories (identical to ISO/IEC 17025: 2005 General Requirements) for the Competence of Testing and Calibration Laboratories, Date of Registration: February 28, 2015. Valid time is until February 27, 2018. A2LA-Lab Cert. No. 2243.01 Shenzhen Huatongwe…
