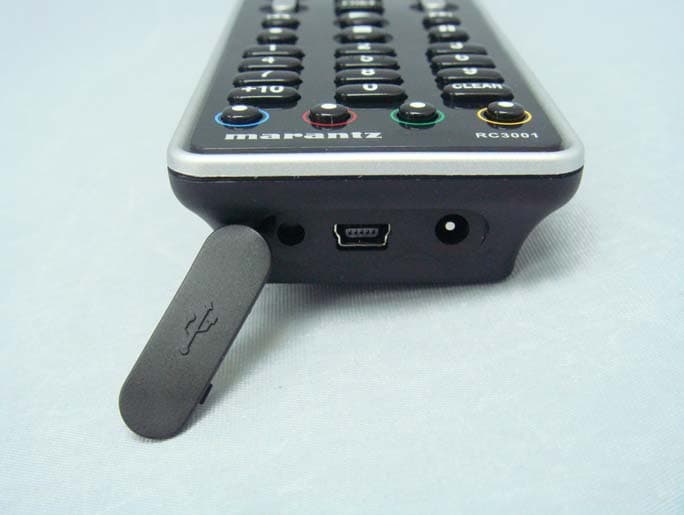

M7N-RC3001Remote Controller: RC3001

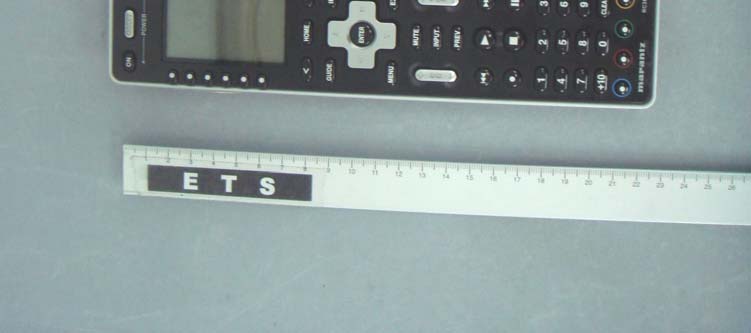

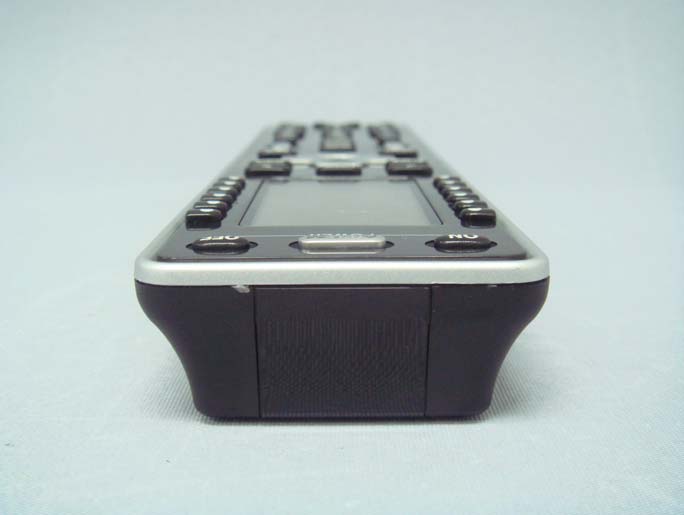

REGISTRATIONNUMBER: H1M20707-6008-C-1 ETS PRODUCT SERVICE AG Appendix A STORKOWER STRASSE 38c, D-15526 REICHENWALDE B. BERLIN Page 1 of 7 Appendix A. Pictures REGISTRATIONNUMBER: H1M20707-6008-C-1 ETS PRODUCT SERVICE AG Appendix A STORKOWER STRASSE 38c, D-15526 REICHENWALDE B. BERLIN Page 2 of 7 REGISTRATIONNUMBER: H1M20707-6008-C-1 ETS PRODUCT SERVICE AG Appendix A STORKOWER STRASSE 38c, D-15526 REICHENWALDE B. BERLIN Page 3 of 7 REGISTRATIONNUMBER: H1M20707-6008-C-1 ETS PRODUCT SERVICE AG Appendix A STORKOWER STRASSE 38c, D-15526 REICHENWALDE B. BERLIN Page 4 of 7

REGISTRATIONNUMBER: H1M20707-6008-C-1 ETS PRODUCT SERVICE AG Appendix A STORKOWER STRASSE 38c, D-15526 REICHENWALDE B. BERLIN Page 5 of 7 REGISTRATIONNUMBER: H1M20707-6008-C-1 ETS PRODUCT SERVICE AG Appendix A STORKOWER STRASSE 38c, D-15526 REICHENWALDE B. BERLIN Page 6 of 7

ETS PRODUCT SERVICE AG TEST - REPORT FCC RULES 47CFR PART 15 / SUBPART C (Section 15.231) Test report no.: H1M20707-6008-C-1 FCC ID: M7N-RC3001 Certificate 1983-01 ETS PRODUCT SERVICE AG STORKOWER STRASSE 38C D-15526 REICHENWALDE B. BERLIN PHONE +49-33631-888 0 FAX +49-33631-888 660 Registration number: H1M20707-6008-C-1 Page 1 of 29 TABLE OF CONTENTS 1 General information 2 1.1 Notes 2 1.2 Testing laboratory 3 1.3 Details of approval holder 3 1.4 Application details 4 1.5 Test item 4 1.6 Test standards 5 2 Technical test 5 2.1 Summary of test results 5 2.2 Test environment 5 2.3 Test equipment utilized 6 2.4 Test Procedure 20 3 Test Results 21 3.1 Field strength of the Fundamental Wave 22 3.2 Correction for Pulse Operation (Duty Cycle) 23 3.3 Radiated Spurious Emissions 24 3.4 Emission bandwidth 26 3.5 Automatically deactivation 27 3.6 AC Power line Conducted emissions 28 Appendix: Detail Picture of EUT and measurements results 29 Registration number: H1M20707-6008-C-1 Page 2 of 29 1 General Information 1.1 Notes The purpose of conformity testing is to increase the probability of adherence to the essential requirements or conformity specifications, as appropriate. The complexity of the technical specifications, however, means that full and thorough testing is impractical for both technical and economic reasons. Furthermore, there is no guarantee that a test sample which has passed all the relevant tests conforms to a specification. Neither is there any guarantee that such a test sample will interwork with other genuinely open systems. The existence of the tests nevertheless provides the confidence that the test sample possesses the qualities as maintained and that is performance generally conforms to representative cases of communications equipment. The test results of this test report relate exclusively to the item tested as specified in 1.5. The test report may only be reproduced or published in full. Reproduction or publication of extracts from the report requires the prior written approval of the ETS PRODUCT SERVICE AG. Tester: 09.10.2007 Schulz Date ETS PS Name Signature Technical responsibility for area of testing: 09.10.2007 Kaspar i.A. ____________________________________________________________________ Date ETS PS Name Signature Registration number: H1M20707-6008-C-1 Page 3 of 29 1.2 Testing laboratory 1.2.1 Location ETS PRODUCT SERVICE AG Storkower Straße 38c D-15526 Reichenwalde b. Berlin Germany Telefon : +49 33631 888 0 Telefax : +49 33631 888 660 1.2.2 Details of accreditation status DAR Accredited Testing Laboratory DAR-Registration number: DAT-P-201/96 A2LA Accredited Testing Laboratory Certification number 1983-01 Conformity Assessment Body (USA) B-NetzA-CAB-02/21-103 FCC registered measurement facility Reg. No. 96970 Conformity Assessment Body (Canada) B-NetzA-CAB-07/22-54 Industry Canada registered measurement facility Reg. No. IC 3470 1.3 Details of approval holder Name : Remotec Technology Limited Street : Room 1301, Swire & Maclaine House, 19-23 Austin Avenue Town : Tsimshatsui, Kowloon Country : Hong Kong Telephone : +852 2314 1071 Fax : +852 2314 1006 Contact : MR. CHEUNG LEE HON Telephone : +852 2314 1071 Registration number: H1M20707-6008-C-1 Page 4 of 29 1.4 Application details Date of receipt of application : 01.08.2007 Date of receipt of test item : 01.08.2007 Date of test : 07.08. – 01.10.2007 1.5 Test item Description of test item: Remote Controller Type identification: RC3001 Brand name: Marantz Transmitting frequency: 433.92 MHz Operation mode: simplex Transmitting mode: F1D Voltage supply: 110VAC (9V AC/DC adaptor) Antenna: integral antenna Photos: see Appendix A. Manufacturer: Name : Remotec Technology Limited Street : Room 1301, Swire & Maclaine House, 19-23 Austin Avenue Town : Tsimshatsui, Kowloon Country : Hong Kong Registration number: H1M20707-6008-C-1 Page 5 of 29 1.6 Test standards Technical standard: FCC RULES 47CFR PART 15 / SUBPART C (Section 15.231), Section §15.35(c) 2 Technical test 2.1 Summary of test results No deviations from the technical specification(s) were ascertained in the course
of the tests performed. or The deviations as specified in 2.5 were ascertained in the course of the tests  performed. 2.2 Test environment Temperature : 23 o C Relative humidity content : 49 % Air pressure : 990 hPa Registration number: H1M20707-6008-C-1 Page 6 of 29 2.3 Test equipment utilized No. Test equipment Type Manufacturer ETS 0001 ESD Gun SESD 30000 Schlöder ETS 0002 Test receiver ESVP Rohde & Schwarz ETS 0003 Diode power sensor NRV-Z2 Rohde & Schwarz ETS 0004 Spectrum and network analyzer FSMS 26 Rohde & Schwarz ETS 0005 Test receiver SMV 11 MEB ETS 0006 Test receiver system SME 12 MEB ETS 0007 Horn antenna AT 4004 ar ETS 0008 Antenna Loop antenna Siemens ETS 0009 Antenna ARA 2 MEB ETS 0010 Antenna Loop antenna MEB ETS 0011 Antenna van Veen/ Frame Rohde & Schwarz ETS 0012 Antenna HK 116 Rohde & Schwarz ETS 0013 Antenna HL 223 Rohde & Schwarz ETS 0014 Antenna HL 025 Rohde & Schwarz ETS 0015 Antenna HL 025 Rohde & Schwarz ETS 0016 Precision antenna kit VHAP Schwarzbeck ETS 0017 Precision antenna kit UHAP Schwarzbeck ETS 0018 Horn antenna BBHA 9120 D Schwarzbeck ETS 0019 Horn antenna BBHA 9120 D Schwarzbeck ETS 0020 Antenna DP 21 MEB ETS 0021 Antenna DP 3 MEB ETS 0022 Antenna SAS-200/ 521 A.H. Systeme+D65 ETS 0023 Antenna DP 1 MEB ETS 0024 Antenna mast AF 2 MEB ETS 0025 Antenna mast AF 2 MEB ETS 0026 Tripod Heinrich Deisel ETS 0027 Tripod Heinrich Deisel ETS 0028 Tripod STA 2 C. Lorenz AG ETS 0029 Tripod Berlebach ETS 0030 Antenna HK 116 Rohde & Schwarz ETS 0031 Turn table DS 412 Heinrich Deisel ETS 0032 Controller HD 050 Heinrich Deisel Registration number: H1M20707-6008-C-1 Page 7 of 29 No. Test equipment Type Manufacturer ETS 0033 Calibration Set CDN 3xAdapter 50-150 Ohm ETS ETS 0034 RF generator/ Amplifier SMLR Rohde & Schwarz ETS 0035 RF generator/ Amplifier SMLM Rohde & Schwarz ETS 0036 Zirc. Antenna 3102 EMCO ETS 0037 Zirc. Antenna 3102…

Text truncated - open the document above for the full version.

REGISTRATIONNUMBER: H1M20707-6008-C-1 ETS PRODUCT SERVICE AG Appendix A STORKOWER STRASSE 38c, D-15526 REICHENWALDE B. BERLIN Page 7 of 7 Conducted Setup Picture Radiated Setup Picture
