M8C-EEC118RF433Remote control transmitter

EEC118A0 6 SPEED FAN CONTROLLER MANUAL EEC118A0 RL-167 FCC ID: M8C-EEC118RF433 POWER:AC 120V 60 Hz RATING: 100W FOR AC MOTOR FAN 100 W FOR LIGHT Thank you and we are delighted you have chosen the 6 Speed Fan controller for your home please read all instructions carefully before assembly and use. 1 7. This product is for indoor use only. 8. This product requires 120 Vac 60 Hz power supply. 9. This product is to be used only for controlling a ceiling fan with an A.C. (Alternating Current) motor. 10. Do not pull or cut short lead wires. 11. Do not drop or bump the remote controller set. 12. Do not use this remote controller in conjunction with any variable (rheostat) wall controller. 13. Do not use the remote controller transmitter (handset) with any other receiver. 14. Keep battery out of reach of children. 15. This manual is not intended to instruct or assist untrained or unqualified persons to install this remote controller. 16. It is the responsibility of qualified, licensed installer and user to apply common sense and care at all times during installation and operation. INSTALLATION INSTRUCTIONS Make sure electricity is turned off at the main power box before commencing work. Turn off the power by removing fuse or turning off circuit breaker before installing remote controller. 3 SAFETY PRECAUTIONS Please observe the following general safety precautions carefully before and during all phases of handling, installation, removal, operation and maintenance of this product. Failure to comply with these precautions violates safety standards of design, manufacture and intended use of the product. We assumes no liability for customer’s failure to comply with these requirements. SAFETY WARNINGS 1. Read all instructions and safety information. Review assembly diagrams provided before installing your new ceiling fan. 2. This remote controller must be installed according to local authority regulations. 3. This product is not intended for use by persons (including children) with reduced physical, sensory or mental capabilities, or lack of experience and knowledge, unless they have been given supervision or instruction concerning use of the appliance by a person responsible for their safety. 4. Young children should be supervised to ensure that they do not play with the appliance. 5. All electrical works must only be undertaken after disconnection of the power by removing fuses or turning off the circuit breaker, to ensure all pole isolation of the electrical supply. 6. Do not use outdoors where it could be exposed to water or moisture. 2 READ BEFORE INSTALLATION 1. Power supply to input wires of remote controller receiver must be connected through an isolation switch (e.g. wall switch). 2. Install remote controller receiver inside ceiling fan canopy to ensure proper protection. 3. Set ceiling fan speed control rotary switch (if any) to HIGH setting and control switch for light kit (if any) to ON position before operating remote control functions. 4. For ceiling fan with pull chain switches, set pull chain switches accordingly so that ceiling fan speed setting is at HIGH and fan light setting (if any) is at ON position before operating remote control functions. 5. Battery will weaken over time and should be replaced before leaking takes place as this will damage the transmitter. Dispose of used battery properly. 6. If remote controller is to be used for controlling a ceiling fan (i) with a low profile (hugger) design, or (ii) that has a smaller hanging bracket, then you should make sure the hanging bracket will fit remote controller receiver. Otherwise, if the receiver cannot be inserted into the hanging bracket due to dimension limitations or because there is no hanging bracket as may be in the case of a low profile (hugger design) ceiling fan, then the receiver can be enclosed in an Electrical Insulation Box (installation must comply to Australian wiring regulations) and placed in the ceiling. Electrical Insulation Box is not supplied. In this case, remember to draw the antenna / aerial wire away from the insulation box through a small hole. 4 HOW TO INSTALL REMOTE CONTROLLER ID CODE LEARNING Each transmitter (handset) of this remote controller carries a unique Identity Code (ID Code) to facilitate communication between paired devices. The ID Code is set by factory and is not user changeable. The length of ID Code allows up to a million different code combinations, enabling independent control of multiple fans installed within a close proximity. A remote receiver must undergo an “ID code learning” process before it recognises and can communicate with the remote handset. However, you will be required to perform an “ID code learning” process manually under these circumstances: • When you have multiple fans installed within a close proximity and want to control all fans using a same remote transmitter. Note: Each fan requires its own receiver • When your remote controller is not responding (make sure battery is not flat) • After you have replaced a faulty transmitter or receiver with a new one. Otherwise the remote controller will not work. To perform this process manually, follow below steps: INSTRUCTION: Turning on the AC power to the remote receiver, press and hold the transmitter “ FAN ” button for 5 seconds until the receiver beeps to indicate the code learning process had been completed. This operation must be completed within 1 minute after turning on the AC power. 5 FUNCTIONS FAN CONTROL FAN ON/OFF: Press to turning fan on or off SPEED: Press Up or Down key to set 1-6 fan speed . LIGHT SETTING: Before first use, set the slide switch position to "on" side if the light without dimming funtion. set the slide switch position to "DIM" side if the light with dimming funtion. NOTICE: If the light is not dimmable DO NOT slide the switch to right position, It may cause the light to flicker LIGHT CONTROL Press light key to Turing Light On or Off Press and hold light key to dimming light brightness or y…

Text truncated - open the document above for the full version.

Agent letter FCC attestation statement Kiwa Page 1 of 1 RF_753, Issue 2 15-02-2023 Fego Precision Industrial Co., Ltd U.S. Agent Designation for Service of Process (Applicant and U.S. Agent are Separate Parties) TO: Kiwa Nederland B.V. Wilmersdorf 50 7327 AC Apeldoorn Postbus 137 7300 AC Apeldoorn Netherlands ATTENTION: FCC Certification – Section 2.911(d)(7) Information Designated U.S. Agent Name: Ivy Hsu FRN: 0033415266 Street address: 8 Ravendale, Irvine CA. 92602 ZIP/City/State 92602 Telephone number: (949)923-1870 Email address: [email protected] Signature: Date: 2024.7.22 This letter is to confirm that we (“the Designated U.S. Agent) have accepted the responsibility to act as the Designated U.S. Agent for Service of Process as required by section 47 CFR 2.911(d)(7) on behalf of the Applicant noted below. The Applicant acknowledges that they must maintain an agent for no less than one year after terminating all marketing and importation OR the conclusion of any Commission- related proceeding involving the equipment. The applicant further acknowledges their responsibility to inform the FCC whenever the Designated U.S. Agent information above changes. Applicant Company name: Fego Precision Industrial Co., Ltd FCC ID: M8C-EEC118RF433 Contact person name: Bruce Chang Street address: 947 Lin-Sen Rd. ZIP/City/State Wu-Fong /Tai-Chung /Taiwan Telephone number: +886 4 23391802 Email address: [email protected] Signature: Date: 7/5/2024

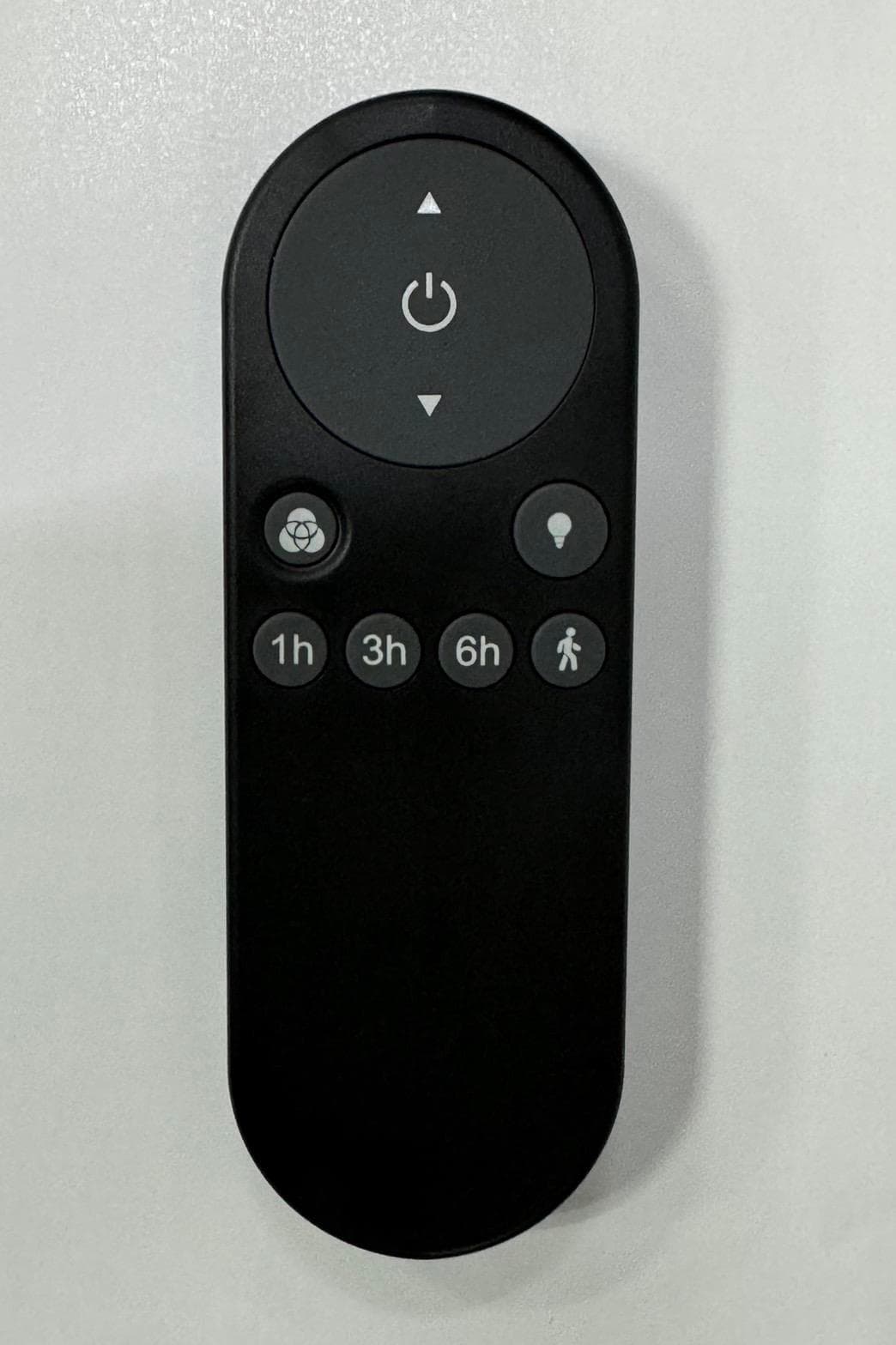

External photo of EUT External photo of EUT

Internal photo of EUT Internal photo of EUT Antenna Internal photo of EUT IC

Copyright © 2024 Intertek STATEMENT ON EXPOSURE TO ELECTROMAGNETIC FIELDS Report No.: 240600039THC-001 Equipment Information Type of equipment ： Remote control transmitter Type / Model ： EEC118A0, EEC118B0, EEC118B1 FCC ID: ： M8C-EEC118RF433 Applicant ： Fego Precision Industrial Co., Ltd. No 947 Lin-Sen Rd. Wu Fong Shiang, Taichung Hsien, Taiwan By request of ： 47 CFR FCC 1.1310 KDB 447498 D04 V01 JUSTIFICATION 2.1.2 1-mW Test Exemption Per § 1.1307(b)(3)(i)(A), a single RF source is exempt RF device (from the requirement to show data demonstrating compliance to RF exposure limits, as previously mentioned) if the available maximum time-averaged power is no more than 1 mW, regardless of separation distance. This exemption applies to all operating configurations and exposure conditions, for the frequency range 100 kHz to 100 GHz, regardless of fixed, mobile, or portable device exposure conditions. This is a standalone exemption, and it cannot be applied in conjunction with any other test exemption. The maximum RF output power was -10.40 dBm(0.0912mW).The product has an average emitted power less than 1mW. The emitted peak power is also less than 1mW. Since the above conducted output power is well below the SAR Exclusion threshold level, so the EUT is considered to comply with SAR requirement without testing. Date of issue: Jul. 15, 2024 Zero Chen Engineer Intertek Testing Services Taiwan Ltd., Hsinchu Laboratory No. 17, Ln. 246, Niupu S. Rd., Xiangshan Dist, Hsinchu City 300075, Taiwan

Fego Precision Industrial Co., Ltd. TEST REPORT Model: EEC118A0, EEC118B0, EEC118B1 REPORT NUMBER 240600020THC-001 ISSUE DATE Jul. 15, 2024 PAGES 18 DOCUMENT CONTROL NUMBER GFT-OP-10h (28-Nov-2018) © 2020 Intertek Report No.: 240600020THC-001 This report is for the exclusive use of Intertek's Client and is provided pursuant to the agreement between Intertek and its Client. Intertek's responsibility and liability are limited to the terms and conditions of the agreement. Intertek assumes no liability to any party, other than to the Client in accordance with the agreement, for any loss, expense or damage occasioned by the use of this report. Only the Client is authorized to permit copying or distribution of this report and then only in its entirety. Any use of the Intertek name or one of its marks for the sale or advertisement of the tested material, product or service must first be approved in writing by Intertek. The observations and test results in this report are relevant only to the sample tested. This report by itself does not imply that the material, product, or service is or has ever been under an Intertek certification program. GFT-OP-10h (28-Nov-2018) Page 1 of 18 Test Report 0597 Radio Spectrum TEST REPORT Applicant: Fego Precision Industrial Co., Ltd. No 947 Lin-Sen Rd. Wu Fong Shiang, Taichung Hsien, Taiwan Product: Remote control transmitter Model No.: EEC118A0, EEC118B0, EEC118B1 FCC ID: M8C-EEC118RF433 Test Method/ Standard: 47 CFR FCC Part 15.231 Test By: Intertek Testing Services Taiwan Ltd., Hsinchu Laboratory No. 17, Ln. 246, Niupu S. Rd., Xiangshan Dist, Hsinchu City 300075, Taiwan Rich Nien Engineer Zero Chen Reviewer Report No.: 240600020THC-001 GFT-OP-10h (28-Nov-2018) Page 2 of 18 TEST REPORT Revision History Report No. Issue Date Revision Summary 240600020THC-001 Jul. 15, 2024 Original report Report No.: 240600020THC-001 GFT-OP-10h (28-Nov-2018) Page 3 of 18 TEST REPORT Table of Contents 1. General Information ............................................................................................................... 5 1.1 Identification of the EUT .................................................................................................. 5 1.2 Additional information about the EUT ............................................................................. 5 1.3 Antenna description ......................................................................................................... 5 1.4 Operation mode ............................................................................................................... 6 1.5 Peripherals equipment ..................................................................................................... 6 2. Radiated emission test FCC 15.231 (b) ................................................................................... 7 2.1.1 Radiated emission from 9kHz to 30MHz uses Loop Antenna: ...................................... 7 2.1.2 Radiated emission below 1GHz using Bilog Antenna .................................................... 8 2.1.3 Radiated emission above 1GHz using Horn Antenna .................................................... 8 3. Measured bandwidth FCC 15.231(C) ................................................................................... 14 4. Timing requirement of operated transmitter....................................................................... 15 5. Conducted emission FCC 15.207 .......................................................................................... 16 Appendix A: Test equipment list ............................................................................................... 17 Appendix B: Measurement Uncertainty ................................................................................... 18 Report No.: 240600020THC-001 GFT-OP-10h (28-Nov-2018) Page 4 of 18 TEST REPORT Summary of Test Data Test Requirement Applicable Rule Result Radiated Emission test 15.231(b), 15.209 Pass Measured bandwidth 15.231(c) Pass Timing requirement of operated transmitter 15.231(b) Pass Conducted Emission test 15.207 N/A Antenna Requirement 15.203 Pass Note: Please note that the test results with statement of conformity, the decision rules which are based on: Safety Testing: the specification, standard or IEC Guide 115. Other Testing: the specification, standard and not taking into account the measurement uncertainty. Report No.: 240600020THC-001 GFT-OP-10h (28-Nov-2018) Page 5 of 18 TEST REPORT 1. General Information 1.1 Identification of the EUT Product: Remote control transmitter Model No.: EEC118B1 Operating Frequency: 433.92MHz Rated Power: DC 3V Power Cord: N/A Sample receiving date: 2024/06/04 Sample condition: Workable Test Date(s): 2024/06/19 ~ 2024/06/21 1.2 Additional information about the EUT The customer confirmed EEC118A0, EEC118B0 are series models to EEC118B1 (EUT), the different is in enclosure. 1.3 Antenna description Antenna Type : Printed Antenna Connector Type : Fixed Report No.: 240600020THC-001 GFT-OP-10h (28-Nov-2018) Page 6 of 18 TEST REPORT 1.4 Operation mode The EUT was supplied with DC 3V from battery. The EUT will transmit continuously when power on. The signal is maximized through rotation and placement in the three orthogonal axes. X axis Y axis Z axis After verifying three axes, we found the maximum electromagnetic field was occurred at X axis. The final test data was executed under this configuration. Frequency (MHz) Signal on time (ms) Signal on & off time (ms) Duty Cycle Duty Cycle factor 433.92 32.64 100.00 0.326 9.72 1.5 Peripherals equipment Peripherals Brand Model No. Serial No. Data cable Battery × 2 GP 24G R03 N/A N/A Report No.: 240600020THC-001 GFT-OP-10h (28-Nov-2018) Page 7 of 18 TEST REPORT 2. Radiated emission test FCC 15.231 (b) 2.1 Test setup & procedure 2.1.1 Radiated emission from 9kHz to 30MHz uses Loop Antenna: EUT & Peripherals 0.8m EMI Test Receiver □ 3 meters Loop Antenna 1m Report No.: 240600020THC-001 GFT-OP-10h (…
