M8CRF7091BLN01Remote Control

>> - [ - 10 Remote Control Set-up ! Note: Code matching is required even if the remote control may control the fan out of the box ! Code match the transmitter with the receiver Note: receiver itself has NO DIP switch. Speed Up 1-2-3-4-5-6 Down 6-5-4-3-2-1 To start the fan press speed button To change speed of fan press or (indicated by a short buzzer sound) LCD indicates maximal speed (max) On/Off Press the button to start or switch off the fan Forward For cooling effect and in combination with Air Condition System (clockwise rotation) Reverse To support heating system to exchange temperature (counter clockwise rotation) Light Press the button to turn on or switch off the LED light (Light is optional) Code match the Transmitter (Hand held) with the Receiver 1. Set the code to be encoded by the Dip Switch of transmitter 2. Switch on the main power to activate the receiver, indicated by (one beep) 3. Within 3 minutes after the power is turned on (one beep)͕ƉƌĞƐƐƚŚĞƚƌĂŶƐŵŝƚƚĞƌ͛Ɛ͞KEͬK&&͟ key and do not release (min. 5 seconds) until receiver issues (four beep) short sounds which indicates successful code match 4. After successful code match, the fan automatically returns to the original speed as indicated on LCD screen 5. Press any transmitter button to check for proper functioning 6. For code changes, repeat steps 1 to 5 Æ The transmitter and receiver will memorise the code for future use (also if switched off). Remote Control Code Setting Set your Dip Switch to control individual fan(s) (one per fan handset) and only power to one fan receiver per time. Chose same code setting for up to 10 fans controlled by one handset within a 7m radius with power to all fans. Dip Switch RF7091BLN01 Fego Precision Industrial Co Ltd Federal Communication Commission Interference Statement 15.21 FCC Caution: Any changes or modifications not expressly approved by the party responsible for compliance could void the user's authority to operate this equipment. 15.19 This device complies with Part 15 of the FCC Rules. Operation is subject to the following two conditions: (1) This device may not cause harmful interference, and (2) this device must accept any interference received, including interference that may cause undesired operation. FCC RF Radiation Exposure Statement: 1. This Transmitter must not be co-located or operating in conjunction with any other antenna or transmitter. 2. This equipment complies with FCC RF radiation exposure limits set forth for an uncontrolled environment.

Fego Precision Industrial Co Ltd Date (24/04/2015) BABT TCB Forsyth House, Churchfield Road, Walton-on-Thames, Surrey, KT12 2TD Dear Sir or Madam, We, Fego Precision Industrial Co Ltd, hereby authorize Compliance Certification Services Inc. / Gloria Chang to act as our agent in all matters relating to applications for equipment authorization. This authorization expires on Oct. 20. 2015. Sincerely, Company Officer: Bruce Chang Telephone Number: +886-4-2339-1802 Email: [email protected]

Fego Precision Industrial Co Ltd Date (24/04/2015) BABT TCB Forsyth House, Churchfield Road, Walton-on-Thames, Surrey, KT12 2TD Confidentiality Request FCC ID: M8CRF7091BLN01 Pursuant to Sections 0.457(d)(1)(ii) and 0.459 of the Commission’s Rules, Fego Precision Industrial Co Ltd hereby requests permanent confidential treatment of information accompanying this application as outlined below: Common exhibits for which confidentiality is requested are: Schematics Block Diagrams Theory of Operation Fego Precision Industrial Co Ltd also hereby requests short-term confidential treatment of information accompanying this application as outlined below for a period of (20/10/2015): [Common exhibits for which short-term confidentiality is requested are: Internal Photos External Photos User Manual Test Set-up Photographs The above materials contain trade secrets and proprietary information not customarily released to the public. The public disclosure of these matters might be harmful to the Applicant and provide unjustified benefits to its competitors. The Applicant understands that pursuant to Rule 0.457(d)(1)(ii), disclosure of this Application and all accompanying materials will not be made before the date of the Grant for this Application. Yours sincerely, Company Officer: Bruce Chang (signed) Telephone Number: +886-4-2339-1802 Email: [email protected]

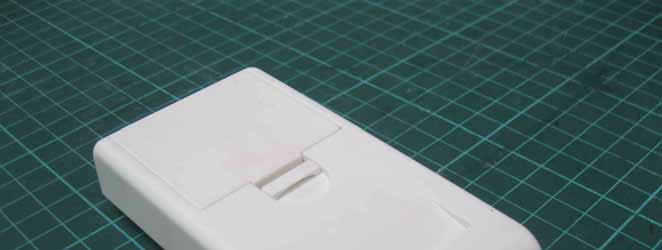

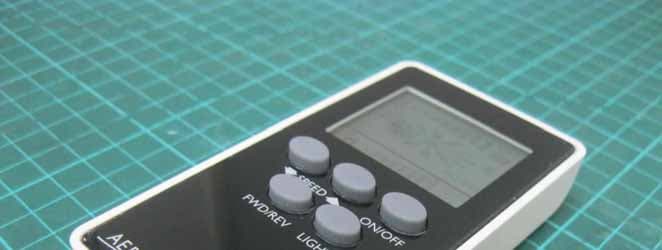

Report No.T150123J06 Page 1 of 1 External Photo

RF7091BLN01 Label design and label location

Report No.T150123J06 Page 1 of 7 Internal Photo Report No.T150123J06 Page 2 of 7 Report No.T150123J06 Page 3 of 7 Report No.T150123J06 Page 4 of 7 Report No.T150123J06 Page 5 of 7 Report No.T150123J06 Page 6 of 7 Battery Report No.T150123J06 Page 7 of 7 Antenna

Compliance Certification Services Inc. Report No.: T150123J06-RP1-1 Date of Issue: May 21, 2015 Page 1 Rev.00 This report shall not be reproduced except in full, without the written approval of Compliance Certification Services. According to KDB 447498 section 4.3.1, the 1-g SAR test exclusion thresholds at test separation distance ≤ 50 mm are determined by: [(max. power of channel, including tune-up tolerance, mW) / (min. test separation distance, mm)] *·[f(GHz)] ≤ 3.0 The tune-up power is -14 dBm +/- 2dB, therefore the highest tune-up power is -14.13 dBm(0.04 mW)@ 433.9 MHz When the minimum test separation distance is < 5 mm, a distance of 5 mm according to 5) in section 4.1 is applied to determine SAR test exclusion. So, (0.04mW / 5mm)* (0.433GHz ^0.5 )= 0.0 [(max. power of channel, including tune-up tolerance, mW) / (min. test separation distance, mm)] * [f(GHz)] = 0.0 < 3.0 Therefore, standalone SAR measurements are not required for both head and body.

FCC IDM8CRF7091BLN01 Report No.T150123J06-RP1 Page 1 / 26 This report shall not be reproduced, except in full, without the written approval of Compliance Certification Services Inc. FCC 47 CFR PART 15 SUBPART C AND ANSI C63.10:2009 TEST REPORT For Remote Control Model : RF7091BLN01 Issued for Fego Precision Industrial Co Ltd No 947, Lin-Sen Rd., Wu Fong Shiang, Taichung Hsien, Taiwan Issued by Compliance Certification Services Inc. Hsinchu Lab. NO. 989-1 Wen Shan Rd., Shang Shan Village, Qionglin Shiang Hsinchu County 30741, Taiwan, R.O.C TEL: +886-3-5921698 FAX: +886-3-5921108 http://www.ccsrf.com E-Mail : [email protected] Issued Date: April 20, 2015 Note: This report shall not be reproduced except in full, without the written approval of Compliance Certification Services Inc. This document may be altered or revised by Compliance Certification Services Inc. personnel only, and shall be noted in the revision section of the document. The client should not use it to claim product endorsement by TAF or any government agencies. The test results of this report relate only to the tested sample identified in this report. FCC IDM8CRF7091BLN01 Report No.T150123J06-RP1 Page 2 / 26 This report shall not be reproduced, except in full, without the written approval of Compliance Certification Services Inc. Revision History Rev. Issue Date Revisions Effect Page Revised By 00 04/20/2015 Initial Issue All Page 26 Dola Hsieh FCC IDM8CRF7091BLN01 Report No.T150123J06-RP1 Page 3 / 26 This report shall not be reproduced, except in full, without the written approval of Compliance Certification Services Inc. TABLE OF CONTENTS TITLE PAGE NO. 1. TEST REPORT CERTIFICATION ................................................................................ 4 2. EUT DESCRIPTION ..................................................................................................... 5 3. DESCRIPTION OF TEST MODES ............................................................................... 6 4. TEST METHODOLOGY ............................................................................................... 6 5. FACILITIES AND ACCREDITATION ........................................................................... 7 5.1 FACILITIES ............................................................................................................ 7 5.2 ACCREDITATIONS................................................................................................ 7 5.3 MEASUREMENT UNCERTAINTY ......................................................................... 8 6. SETUP OF EQUIPMENT UNDER TEST...................................................................... 9 7. FCC PART 15.231 REQUIREMENTS.......................................................................... 10 7.1 20dB BANDWIDTH ................................................................................................ 10 7.2 LIMIT OF TRANSMISSION TIME .......................................................................... 12 7.3 DUTY CYCLE CORRECTION FACTOR ................................................................ 14 7.4 RADIATED EMISSION........................................................................................... 16 7.5 CONDUCTED EMISSION ...................................................................................... 23 APPENDIX SETUP PHOTOS .......................................................................................... 26 FCC IDM8CRF7091BLN01 Report No.T150123J06-RP1 Page 4 / 26 This report shall not be reproduced, except in full, without the written approval of Compliance Certification Services Inc. 1. TEST REPORT CERTIFICATION Applicant Fego Precision Industrial Co Ltd Address No 947, Lin-Sen Rd., Wu Fong Shiang, Taichung Hsien, Taiwan Equipment Under Test Remote Control Model RF7091BLN01 Tested Date January 23 ~ February 04, 2015 APPLICABLE STANDARD Standard Test Result FCC Part 15 Subpart C AND ANSI C63.10:2009 PASS WE HEREBY CERTIFY THAT: The above equipment has been tested by Compliance Certification Services Inc., and found compliance with the requirements set forth in the technical standards mentioned above. The results of testing in this report apply only to the product/system, which was tested. Other similar equipment will not necessarily produce the same results due to production tolerance and measurement uncertainties. Approved by: Reviewed by: Sb. Lu Gundam Lin Sr. Engineer Sr. Engineer FCC IDM8CRF7091BLN01 Report No.T150123J06-RP1 Page 5 / 26 This report shall not be reproduced, except in full, without the written approval of Compliance Certification Services Inc. 2. EUT DESCRIPTION Product Name Remote Control Model Number RF7091BLN01 Identify Number T150123J06 Received Date January 23, 2015 Frequency Range 433.9 MHz Transmit Power 81.10 dBμV/m Type of Modulation ASK Antenna Type PCB Antenna, Antenna Gain 0 dBi Power Rating 3Vdc (From Battery) Test Voltage 3Vdc Remark : 1. The sample selected for test was engineering sample that approximated to production product and was provided by manufacturer. 2. For more details, please refer to the User’s manual of the EUT. 3. This submittal(s) (test report) is intended for FCC ID: M8CRF7091BLN01 filing to comply with Section 15.207, 15.209 and 15.231 of the FCC Part 15, Subpart C Rules. FCC IDM8CRF7091BLN01 Report No.T150123J06-RP1 Page 6 / 26 This report shall not be reproduced, except in full, without the written approval of Compliance Certification Services Inc. 3. DESCRIPTION OF TEST MODES Radiated Emission (Below 1 GHz) Test: 1. The following test modes were scanned during the preliminary test: No. Pre-Test Mode 1 TX Mode 2. After the preliminary scan, the following test mode was found to produce the highest emission level. Final Test Mode Radiated Emission TX Mode Emission Conducted Emission N/A Remark : Then, the above highest emission mode of the configuration of the EUT and cable was chosen for all final test items. Radiated Emission Test (Above 1 GHz) : …

Text truncated - open the document above for the full version.

FCC IDM8CRF7091BLN01 Report No.T150123J06-RP1 Page 26 / 26 This report shall not be reproduced, except in full, without the written approval of Compliance Certification Services Inc. APPENDIX SETUP PHOTOS RADIATED EMISSION SETUP
