M8C-TP48RF433Remote Controller

6 Speeds Fan Controller Model: TP48 Thank you and we are delighted you have chosen the 6 Speed Fan controller for your home please read all instructions carefully before assembly and use. 1 7. This product is for indoor use only. 8. This product requires 220 Vac 50/60Hz power supply. 9. This product is to be used only for controlling a ceiling fan with an A.C. (Alternating Current) motor. 10. The remote controller receiver must be earthed during installation. 11. Do not pull or cut short lead wires. 12. Do not drop or bump the remote controller set. 13. Do not use this remote controller in conjunction with any variable (rheostat) wall controller. 14. Do not use the remote controller transmitter (handset) with any other receiver. 15. Keep battery out of reach of children. 16. This manual is not intended to instruct or assist untrained or unqualifi ed persons to install this remote controller. 17. It is the responsibility of qualifi ed, licensed installer and user to apply common sense and care at all times during installation and operation. INSTALLATION INSTRUCTIONS Make sure electricity is turned off at the main power box before commencing work. Turn off the power by removing fuse or turning off circuit breaker before installing remote controller. 3 SAFETY PRECAUTIONS Please observe the following general safety precautions carefully before and during all phases of handling, installation, removal, operation and maintenance of this product. Failure to comply with these precautions violates safety standards of design, manufacture and intended use of the product. We assumes no liability for customer’s failure to comply with these requirements. SAFETY WARNINGS 1. Read all instructions and safety information. Review assembly diagrams provided before installing your new ceiling fan. 2. This remote controller must be installed according to local authority regulations. 3. This product is not intended for use by persons (including children) with reduced physical, sensory or mental capabilities, or lack of experience and knowledge, unless they have been given supervision or instruction concerning use of the appliance by a person responsible for their safety. 4. Young children should be supervised to ensure that they do not play with the appliance. 5. All electrical works must only be undertaken after disconnection of the power by removing fuses or turning off the circuit breaker, to ensure all pole isolation of the electrical supply. 6. Do not use outdoors where it could be exposed to water or moisture. 2 READ BEFORE INSTALLATION 1. Power supply to input wires of remote controller receiver must be connected through an isolation switch (e.g. wall switch). 2. Install remote controller receiver inside ceiling fan canopy to ensure proper protection. 3. Set ceiling fan speed control rotary switch (if any) to HIGH setting and control switch for light kit (if any) to ON position before operating remote control functions. 4. For ceiling fan with pull chain switches, set pull chain switches accordingly so that ceiling fan speed setting is at HIGH and fan light setting (if any) is at ON position before operating remote control functions. 5. Battery will weaken over time and should be replaced before leaking takes place as this will damage the transmitter. Dispose of used battery properly. 6. If remote controller is to be used for controlling a ceiling fan (i) with a low profile (hugger) design, or (ii) that has a smaller hanging bracket, then you should make sure the hanging bracket will fit remote controller receiver. Otherwise, if the receiver cannot be inserted into the hanging bracket due to dimension limitations or because there is no hanging bracket as may be in the case of a low profile (hugger design) ceiling fan, then the receiver can be enclosed in an Electrical Insulation Box (installation must comply to Australian wiring regulations) and placed in the ceiling. Electrical Insulation Box is not supplied. In this case, remember to draw the antenna / aerial wire away from the insulation box through a small hole. 4 HOW TO INSTALL REMOTE CONTROLLER ID CODE LEARNING Each transmitter (TP50) of RL-166 remote controller carries a unique Identity Code (ID Code) to facilitate communication between paired devices. The ID Code is set by factory and is not user changeable. The length of ID Code allows up to a million different code combinations, enabling independent control of multiple fans installed within a close proximity. A remote receiver must undergo an “ID code learning” process before it recognises and can communicate with the remote handset. However, you will be required to perform an “ID code learning” process manually under these circumstances: • When you have multiple fans installed within a close proximity and want to control all fans using a same remote transmitter. Note: Each fan requires its own receiver • When your remote controller is not responding (make sure battery is not flat) • After you have replaced a faulty transmitter or receiver with a new one. Otherwise the remote controller will not work. To perform this process manually, follow below steps: INSTRUCTION: Turning on the AC power to the remote receiver, press and hold the transmitter “OFF” button for 5 seconds until the receiver beeps to indicate the code learning process had been completed. This operation must be completed within 1 minute after turning on the AC power. 5 FUNCTIONS 1. Fan speed: Press once of the 1-6 key to turn the fan on and set fan speed. 2. Fan off: Press once of the “ ” key to turn the fan off. 3. Change Wind direction 4. Nature wind 7 NOTE: 1. If the fan is not responding to the transmitter, turn off the power to the receiver and repeat the INSTRUCTION. 2. Check that battery is installed. 3. Remove the battery if not used for long period of time to prevent damage to the handset. 1. Make sure power supply is cut off before removing fan canopy 2. Think about best orientation of remote receiver inside fan canopy. …

Text truncated - open the document above for the full version.

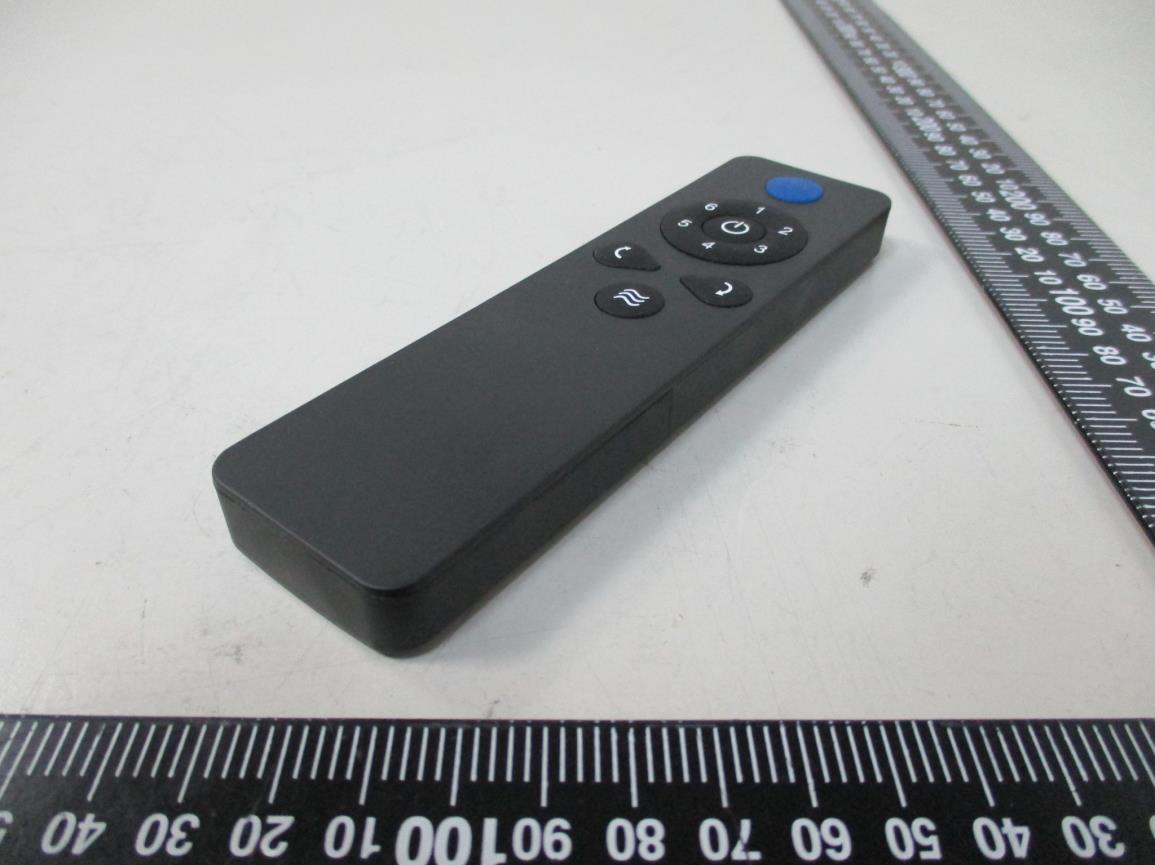

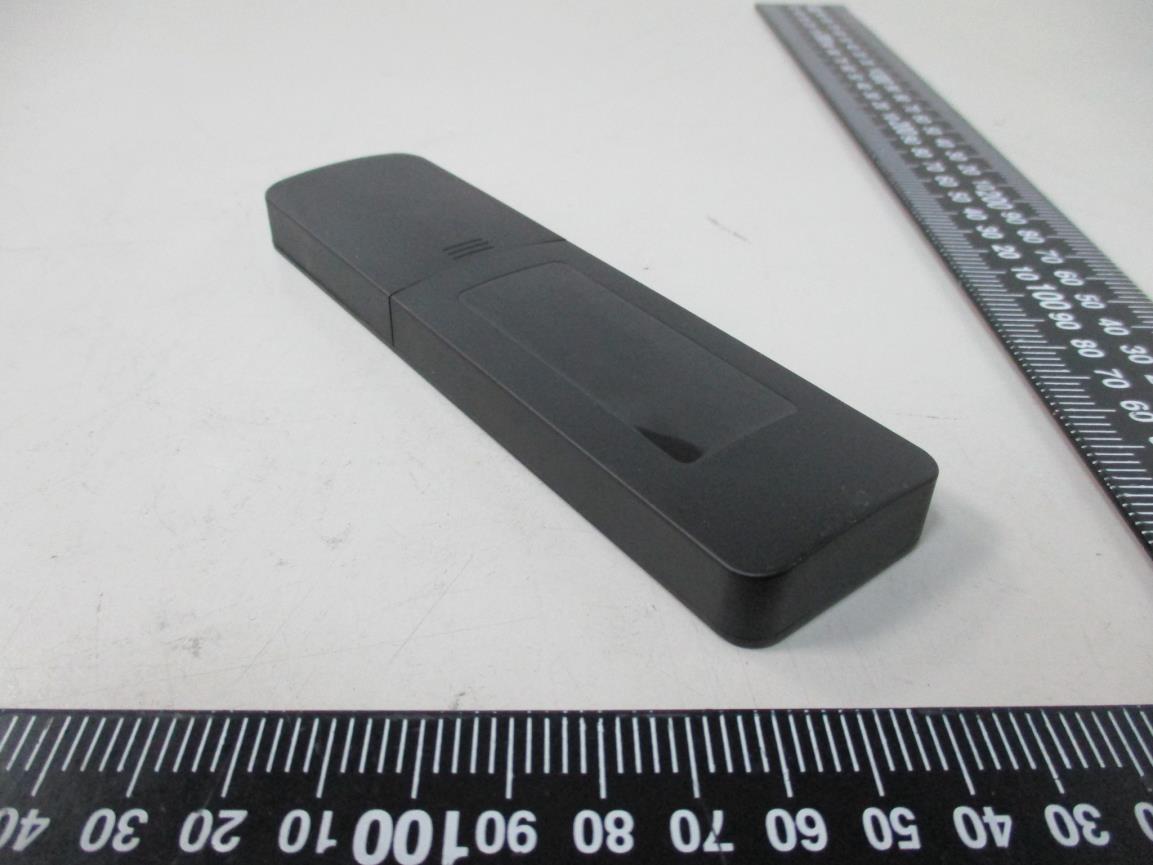

External photo of EUT External photo of EUT

Internal photo of EUT Internal photo of EUT Antenna

Fego Precision Industrial Co., Ltd. TEST REPORT SCOPE OF WORK: 47 CFR FCC Part 15.231 – Radio Spectrum report Model: TP48 REPORT NUMBER 201200127TWN-001 ISSUE DATE Jun. 22, 2021 PAGES 21 DOCUMENT CONTROL NUMBER GFT-OP-10h (28-Nov-2018) © 2020 Intertek Report No.: 201200127TWN-001 This report is for the exclusive use of Intertek's Client and is provided pursuant to the agreement between Intertek and its Client. Intertek's responsibility and liability are limited to the terms and conditions of the agreement. Intertek assumes no liability to any party, other than to the Client in accordance with the agreement, for any loss, expense or damage occasioned by the use of this report. Only the Client is authorized to permit copying or distribution of this report and then only in its entirety. Any use of the Intertek name or one of its marks for the sale or advertisement of the tested material, product or service must first be approved in writing by Intertek. The observations and test results in this report are relevant only to the sample tested. This report by itself does not imply that the material, product, or service is or has ever been under an Intertek certification program. GFT-OP-10h (28-Nov-2018) Page 1 of 21 Test Report 0597 Radio Spectrum TEST REPORT Applicant: Fego Precision Industrial Co., Ltd. 947 LIN-SEN RD WU-FONG TAI-CHUNG 413 TAIWAN R.O.C. Product: Remote Controller Model No.: TP48 FCC ID: M8C-TP48RF433 Test Method/ Standard: 47 CFR FCC Part 15.231 Test By: Intertek Testing Services Taiwan Ltd., Hsinchu Laboratory No. 11, Lane 275, Ko-Nan 1 Street, Chia-Tung Li, Shiang-Shan District, Hsinchu City, Taiwan Zero Chen Engineer Durant Wei Reviewer Report No.: 201200127TWN-001 GFT-OP-10h (28-Nov-2018) Page 2 of 21 TEST REPORT Revision History Report No. Issue Date Revision Summary 201200127TWN-001 Jun. 22, 2021 Original report Report No.: 201200127TWN-001 GFT-OP-10h (28-Nov-2018) Page 3 of 21 TEST REPORT Table of Contents Summary of Test Data ................................................................................................................ 4 1. General Information ............................................................................................................... 5 1.1 Identification of the EUT .................................................................................................. 5 1.2 Antenna description ......................................................................................................... 5 2. Test specifications ................................................................................................................... 6 3. Radiated emission test FCC 15.231 (b) ................................................................................... 7 3.2.1 Radiated emission from 9kHz to 30MHz uses Loop Antenna: ...................................... 7 3.2.2 Radiated emission below 1GHz using Bilog Antenna .................................................... 8 3.2.3 Radiated emission above 1GHz using Horn Antenna .................................................... 8 4. Measured bandwidth FCC 15.231(C) .................................................................................... 17 5. Timing requirement of manual activation operated transmitter ........................................ 18 6. Conducted emission FCC 15.207 .......................................................................................... 19 Appendix A: Test equipment list ............................................................................................... 20 Appendix B: Measurement Uncertainty ................................................................................... 21 Report No.: 201200127TWN-001 GFT-OP-10h (28-Nov-2018) Page 4 of 21 TEST REPORT Summary of Test Data Test Requirement Applicable Rule Result Radiated Emission test 15.231(b), 15.209 Pass Measured bandwidth 15.231(c) Pass Timing requirement of manually operated transmitter 15.231(a)(1) Pass Conducted Emission test 15.207 N/A Antenna Requirement 15.203 Pass Note: Please note that the test results with statement of conformity, the decision rules which are based on: Safety Testing: the specification, standard or IEC Guide 115. Other Testing: the specification, standard and not taking into account the measurement uncertainty. Report No.: 201200127TWN-001 GFT-OP-10h (28-Nov-2018) Page 5 of 21 TEST REPORT 1. General Information 1.1 Identification of the EUT Product: Remote Controller Model No.: TP48 Operating Frequency: 433.92 MHz Access scheme: ASK Rated Power: DC 3V Power Cord: N/A Sample receiving date: 2020/12/10 Sample condition: Workable Test Date(s): 2020/12/11 ~ 2020/12/15 1.2 Antenna description Antenna Type : Printed Antenna Connector Type : Fixed Report No.: 201200127TWN-001 GFT-OP-10h (28-Nov-2018) Page 6 of 21 TEST REPORT 2. Test specifications 2.1 Test standard The EUT was performed according to the procedures in FCC Part 2.1053 and the requirement in FCC Part 15 Subpart C Section 15.231. 2.2 Operation mode The EUT was supplied with DC 3V from battery, and press EUT button to transmit. 2.3 Peripherals equipment Peripherals Brand Model No. Serial No. Description of Data Cable Battery GP 24G R03 N/A N/A Report No.: 201200127TWN-001 GFT-OP-10h (28-Nov-2018) Page 7 of 21 TEST REPORT 3. Radiated emission test FCC 15.231 (b) 3.1 Operating environment 3.2 Test setup & procedure 3.2.1 Radiated emission from 9kHz to 30MHz uses Loop Antenna: Temperature: 24 °C Relative Humidity: 60 % EUT & Peripherals 0.8m RF Test Receiver □ 3 meters Loop Antenna Report No.: 201200127TWN-001 GFT-OP-10h (28-Nov-2018) Page 8 of 21 TEST REPORT 3.2.2 Radiated emission below 1GHz using Bilog Antenna 3.2.3 Radiated emission above 1GHz using Horn Antenna RF Test Receiver 0.8m Antenna Tower Ground Plane Receiver Antenna 1.0~4.0 meters 3 meters □ EUT & Peripherals Horn or Bilog Antenna Spectrum Analyzer Ground Plane Antenna Tower □ 3 meters 1-4 meter 1.5 m HPF and Pre-Amp. (if necessary) EUT …

Text truncated - open the document above for the full version.

Radiated Emission Test set-up photo 9kHz~30MHz Radiated Emission Test set-up photo 30MHz~1GHz Radiated Emission Test set-up photo Above 1GHz
