M8CBCH4138Heater Fan Remote Control

GALILEO digital heater MODEL BCH4138-U Read instructions before operating. Retain for future reference. Instruction Leaflet INFO-LINE If after having read this leaflet, you have any questions or comments on your heater, call 1-800-253-2764 in North America.  428-0768 MODEL BCH4138-U SHOWN ™ HEATER SAFETY PLEASE READ AND SAVE THESE IMPORTANT SAFEGUARDS.IMPORTANT INSTRUCTIONSWhen using electrical appliances, basic safety precautionsshould always be followed to reduce the risk of fire, electricshock, and injury to persons, including the following:1. Read all instructions before using the appliance.2. To avoid fire or shock hazard, plug the appliance directly into a 120V AC electrical outlet. 3. The heater is hot when in use. To avoid burns, DO NOT let bare skin touch hot surfaces. If provided, use handleswhen moving this heater. Keep combustible materials,such as furniture, pillows, bedding, papers, clothes, andcurtains at least 3 ft (0.9 m) from the front of the heaterand keep them away from the sides and rear. 4. DO NOT run cord under carpeting. DO NOT cover cord with throw rugs, runners, or the like. Arrange cord awayfrom traffic area and where it will not be tripped over. 5. This heater is not intended for use in bathrooms, laundry areas and similar indoor location. NEVER locate heaterwhere it may fall into a bathtub or other water container. 6. Extreme caution is necessary when any heater is used by, or near, children or disabled persons, and wheneverthe heater is left operating and unattended. 7. DO NOT insert or allow foreign objects to enter any ventilation or exhaust opening as this may cause anelectric shock or fire, or damage the heater. 8. DO NOT operate heater with a damaged cord or plug, or after the heater malfunctions, has been dropped or damaged in any manner. Return appliance to manufacturer for examination, electrical or mechanical adjustment, or repair. 9. A heater has hot and arcing, or sparking, parts inside. DO NOT use it in areas where gasoline, paint, or flammable liquids are used or stored. 10. Use appliance only for intended household use as described in this manual. Any other use not 1 recommended by the manufacturer may cause fire,electric shock, or injury to persons. The use ofattachments not recommended or sold by Bionaire®may cause hazards. 11. DO NOT use outdoors.12. To prevent a possible fire, DO NOT block air intakes or exhaust in any manner. DO NOT use on soft surfaces, like a bed, where openings may become blocked. 13. To disconnect heater, set controls to OFF, then remove plug from outlet. 14. Avoid the use of an extension cord because the extension cord may overheat and cause a risk of fire.However, if you have to use an extension cord, thecord shall be No. 14 AWG minimum size and rated notless than 1875 watts. 15. Always unplug the heater when not in use.16. Discontinue use if plug outlet is hot.17. We recommend outlet be replaced if plug or outlet is hot to touch. PLEASE SAVE THESE INSTRUCTIONS.CONSUMER SAFETY INFORMATION THIS PRODUCT IS EQUIPPEDWITH A POLARIZED AC(Alternating Current) PLUG (aplug having one blade wider than the other). This plug will fitinto the power outlet only oneway. If the plug does not fit fully into the outlet, reverse the plug. If it still does not fit, contact qualified personnel to install the proper outlet. DO NOT DEFEAT THE SAFETY PURPOSE OF THISPOLARIZED PLUG IN ANY WAY.The length of the cord used on this product was selected to reduce the hazards of becoming tangled in, or tripping over a longer cord. If a longer cord is necessary anapproved extension cord may be used. The electrical rating of the extension cord must be equal to or greaterthan the rating of the heater. Care must be taken to arrange the extension cord where it cannot be pulled on by children or accidentally tripped over.☛ TIP: Over time, dust may accumulate on the front grills. This can be removed by wiping the unit with a dampcloth. Always unplug unit and allow to cool prior tocleaning. This device complies with Part15 of the FCC Rules.Operation is subjected to the following two conditions: (1)this device may not cause harmful interference, and (2) thisdevice must accept any interference received, includinginterference that may cause undesired operation.AUTO SHUT-OFFThis heater is equipped with a patented, technologically-advanced safety system that requires the user to reset theheater if there is a potential overheat situation. When apotential overheat temperature is reached, the system willautomatically shut the heater off. It can only resume operation when the user resets the unit.To Reset the Heater:1. Unplug the heater and wait 20 minutes for the unit to cool down 2. After the 20 minutes, plug the unit in again and operate normally. TIP OVER PROTECTIONIf unit tips over it will shut off. To reset simply place uprighton level surface.PRE-OPERATING INSTRUCTIONS1. Carefully remove your heater from the box. (please save the carton for off-season storage). 2. Place heater on firm level surface.3. Avoid overloading your circuit by not using other high wattage appliances in the same outlet. At 1500 Watts, this unit draws 12.5 Amps. Note: The power light will remain lit during operation 2 3 FIRST USE ONLY:1. Put batteries into Remote. The "Room" temperature is displayed at all times. (Use 3 AAA Alkaline batteries only, do not mix batteries) 2. Plug unit into outlet. The first time the unit is plugged in, it will beep every two seconds until it is synced withthe remote. To sync unit with remote follow the belowsteps:Unlock remote. (This must be done before each use of the remote) To Unlock remote, hold down the mode button for 2 seconds until the lock symbol disappears on the screen. Once the remote is unlocked, press themode button again and the unit will quickly beep 5 times telling the user the signal was received. DO NOT SYNC more than 1 unit at once. A hazardous situation may occur. Note: If the batteries are running low on power, a low battery indica…

Text truncated - open the document above for the full version.

123456 A B C D 654321 D C B A Title NumberRevisionSize B Date:7-May-2002 Sheet of File:D:\WWWRoot\TaChang\IFC\Block.schDrawn By: Galileo Block BATTERYREGULATOR MCU LCD DRIVER LCD RF CIRCUIT RF BACKLIGHT

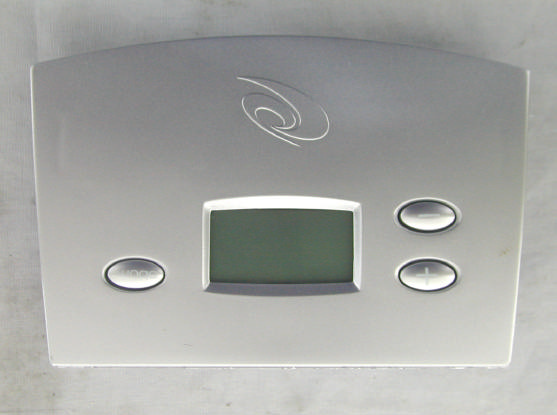

Photo 1 Front View Rear View

NEUTRON EMC LAB. FCC ID: M8CBCH4138 5/19 2. Product Labeling 2-1. FCC ID Label The remained portion of label statement required by FCC is attached in the user’s manual. 2-2 Location of Label on EUT 0.8 cm 2.5 cm FCC ID : M8CBCH4138

Photo 2 Unit partially Disassembled Photo 3 Unit partially Disassembled Photo 4 Unit partially Disassembled

The Fego Precision Industrial Co., Ltd. Model: Galileo BCH4138 (referred to as the EUT in this report) is a wireless transmitter of Heater Fan Remote Control. A major technical descriptions of EUT is described as following: A). Fundamental Frequency: 315 MHz B). Modulation : Pulse Modulation C). Antenna Designation: Non-User Replaceable (Fixed) D). Power Supply: DC 4.5V, Battery Operated. E). Transmitting Time: Periodic < 5 seconds by manual F) Associated Receiver: FCC Doc

123456 A B C D 654321 D C B A Title NumberRevisionSize B Date:6-May-2002 Sheet of File:D:\WWWRoot\TaChang\IFC\Remote.schDrawn By: 1 2 3 4 5 6 7 8 9 10 11 12 13 14 LCD1 IFC-LCD 1 PAD1 B+ 1 PAD2 B- E1 100uF/10V VCC R1 220K R2 503 C1 103J Galileo IN I GND G OUT O U1 HT7027A VCCVIN R3 39K R4 0R C2 2P C4 1P C5 8P C6 103 L1 1UH ANT1 VC1 3P N2 N3 N4 N5 C3 2P Q1 C3838 RF N1 REF SNR R5 10K COM0 COM1 COM2 COM3 SEG0 SEG1 SEG2 SEG3 SEG4 SEG5 SEG6 SEG7 SEG8 SEG9 P50 1 P67 2 P66 3 VDD 4 P65/OSCI 5 P64/OSCO 6 P63/RST/VPP 7 P62/TCC 8 P61 9 P60/INT 10 GND 11 P53 12 P52 13 P51 14 U2 EM78P153S R10 330K R11 100K CRG CC2 1 VO15N 2 VEE 3 COM0 4 COM1 5 COM2 6 COM3 7 SEG0 8 SEG1 9 SEG2 10 SEG3 11 SEG4 12 SEG5 13 SEG6 14 SEG7 15 SEG8 16 SEG9 17 SEG10 18 SEG11 19 SEG12 20 SEG13 21 SEG14 22 SEG15 23 SEG16 24 SEG17 25 SEG18 26 SEG19 27 SEG20 28 SEG21 29 SEG22 30 SEG23 31 SEG24 32 SEG25 33 SEG26 34 SEG27 35 SEG28 36 SEG29 37 SEG30 38 SEG31 39 CS 40 RD 41 WR 42 DATA 43 VSS 44 OSC0 45 OSC1 46 VDD 47 IRQ 48 BZ 49 BZ 50 CC1 51 U3 HT1620 U4 32.768KHz C7 0.1uF C8 0.1uF R12 3M VCC C9 0.1uF VCC COM0COM1COM2COM3 R13 1M VCC DATA IRQ Q2 2412 R14 51R 1 PAD3 BackLight Vin Vref L2 100mH Q3 2N3904 D1 1N4148 C10 47uF/16v Vref R6 10K SNR REF CRG VCC RF IRQ ZD1 9V/0.5W SW1 DOWN SW2 UP D2 1N4148 D3 1N4148 D4 1N4148 SW3 OSC SW4 MODE SW5 F_C D5 1N4148 D6 1N4148 WR CS DATA K1 N6 N7 N8 N9 N10 K2 CS WR K1 K2 CS WR DATA R7 10K R8 10K R9 10K Light Light SEG0SEG1SEG2SEG3SEG4SEG5 SEG6 SEG7 SEG8 SEG9 VCC 1 PAD4 4.5v

NEUTRON EMC LAB. FCC ID: M8CBCH4138 1/19 MEASUREMENT/TECHNICAL REPORT APPLICTNT:Fego Precision Industrial Co., Ltd. MODEL NO.:Galileo BCH4138 FCC ID:M8CBCH4138 This report concerns ( check one ) : Original Grant 3 Class II Change Equipment type: 314.768 MHz Remote Controller (Transmitter) Deferred grant requested per 47CFR 0.457(d)(1)(ii)? Yes No 3 If yes, defer until: (date) We, the undersigned, agree to notify the Commission by (date) / / of the intended date of announce meant of the product so that the grant can be issued on that date. Transition Rules Request per 15.37? Yes No 3 If no, assumed Part 15, Subpart B for unintentional radiator the new 47 CFR (10-1-90 Edition) provision. Report Prepared by Testing House Neutron Engineering Inc. for Company Name Fego Precision Industrial Co., Ltd. Address No 947 Lin-Sen Rd. Taichung Hsien, Taiwan Applicant Signature Bruce Chang / Director NEUTRON EMC LAB. FCC ID: M8CBCH4138 2/19 CERTIFICATION We hereby certify that: The test data , data evaluation , test procedures, and equipment configurations shown in this report were made in accordance with the procedures given in ANSI C63.4 (1992) and the en- ergy emitted by the sample EUT tested as described in this report is in compliance with con- ducted and radiated emission limits of FCC Rules Part 15. Prepared by Lydia Chiang Reviewed by Vincent Su Approved by George Yao Issued Date May 17, 2002 Report No. NEI-FCCB-02113 Company Stamp NEUTRON ENGINEERING INC. No. 132-1, Lane 329, Sec. 2, Palain Rd., Shijr Jen, Taipei, Taiwan TEL: (02) 2646-5426 FAX : (02) 2646-6815 NEUTRON EMC LAB. FCC ID: M8CBCH4138 3/19 Table of Contents 1.General Information...................................................................................................................... 1-1 Product Description................................................................................................................4 1-2 Related Submittal(s)/Grant(s)..................................................................................................4 1-3 Test Methodology.............................................................................................................4 1-4 Test Facility...................................................................................................................4 2.Product Labeling............................................................................................................................ Figure 2-1 FCC ID Label...............................................................................................................5 Figure 2-2 Location of Label on EUT............................................................................................5 3.System Test Configuration............................................................................................................. 3-1 EUT Configuration...................................................................................................................6 3-2 EUT Exercise............................................................................................................................6 3-3 Test Procedure..........................................................................................................................6 3-4 Limitation..................................................................................................................................7 3-5 Special Accessories...................................................................................................................7 3-6 Equipment Modifications...........................................................................................................7 3-7 Test Set-UP...............................................................................................................................8 3-8 Test Equipment........................................................................................................................9 4.Block Diagram(s)..............................................................................................................................10 5.Radiated Measurement Photos............................................................................ ........... ........... Figure 5-1. Radiated Emission Data................................................................................... ...........11 6.Radiated Emission Data............................................................................................................ 6-1 Radiated Emission Data...........................................................................................................12 6-2 Field Strength Calculation.......................................................................................................14 6-3 Duty Cycle Correction Factor Calculated .............................................................................15 7.Supplementary Information for Section 15.231(C) Requirement .............................................16 8.Attachment...................................................................................................................................... A. Technical Information of Pulse Code Definition & Timing Chart ................................................17 B. Photos of Tested EUT...................................................................................................................18 C. User Manual..................................................................................................................................19 NEUTRON EMC LAB. FCC ID: M8CBCH4138 4/19 1. GENERAL INFORMATION 1-1. Product Description The Fego Precision Industrial Co., Ltd. Model: Galileo BCH4138 (referred to as the EUT in this report) is a wireless transmitter of Heater Fan Remote Control. A major technical descriptions of EUT is described as following: A). Fundamental Frequency: 315 MHz B). Modulation : Pulse Modulation C). Antenna Designation: Non-U…

Text truncated - open the document above for the full version.

NEUTRON EMC LAB. FCC ID: M8CBCH4138 11/19 5. Radiated Measurement Photos
