M8CFPG2003BFEGO BLE GlucoPedo Pedometer and Blood Glucose Monitoring System

1 FEGO BLE GlucoPedo Pedometer and Blood Glucose Monitoring system User Guide Table of Content Introduction ................................................... 2 FEDERAL COMMUNICATIONS COMMISSION INTERFERENCE STATEMENT .......................................................................... 3 Getting to Know Your System.................. .4 Intended Use............................................. 4 Meter.......................................................... 4 LCD Screen Display.................................5 Blood Glucose Test Strip......................... 6 Battery........................................................ 6 Setting You Meter......................................... 7 Step Counter .................................................. 8 Before Using the Step Counter............... 8 Step Counting Mode ............................... 8 Receive your pedometer test data from the phone APP ........................................................ 9 Blood Glucose Test..................................... 10 Before Using the Blood Glucose Meter10 Principle of Measurement.....................11 Performance Characteristics .................12 About Alternative Site Testing.............12 Prepare For Blood Sampling.................13 Performing Blood Test...........................14 Blood Glucose Memory Recall .............18 Receive your blood glucose measurement test data from the phone APP ...........................17 Understanding Your Blood Glucose Levels........................................................17 Control Solution Test.............................18 Caring for Your Meter and Test Strip..20 Bluetooth 4.0 BLE function ........................22 Display Messages........................................22 System Specifications.................................25 Symbol Description....................................26 Dealer / Manufacturer Information.........28 2 Introduction Thank you for choosing BLE GlucoPedo. The BLE GlucoPedo system allows you to record daily steps, measure your blood glucose values, and use as a USB driver. Please read all instructions carefully before use. To ensure you operate the BLE GlucoPedo correctly to measure the accurate blood glucose (blood sugar), read all instructions thoroughly and practice the test. Call your local agent or contact our sales representative if you have any question. IMPORTANT SAFETY INFORMATION
Please read all instructions before use and follow below precautions.
Use the device only for the intended use described in this manual.
The product has measurement and record function. If the time and date are not set correctly, the data might get loss or error. Please set the current time and date correctly before use. Time setting is guided in the manual.
No modification is allowed on the product.
If the electromagnetic field is too strong, it will interfere with the correct operation of BLE GlucoPedo . Do not use the product at a place close to strong electromagnetic radiation.
To avoid the generation of static electricity, please do not use the product in a very dry environment, especially in the artificial synthetic material environment.
Close supervision is necessary when the device is used by, on, or near children, handicapped persons or invalids.
Please discard the product properly according to the regulations of your country.
Do not use the device if it is not working properly, or if it has suffered any damage. CAUTION： Please keep all small parts out of the reach of children. The bottle cap, the test strip, and the lancets may cause a choking hazard. Please do not swallow. Go to the doctor immediately if accidentally swallowed. Keep the user guide in case of emergency. 3 FEDERAL COMMUNICATIONS COMMISSION INTERFERENCE STATEMENT This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to Part 15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful interference in a residential installation. This equipment generates, uses and can radiate radio frequency energy and, if not installed and used in accordance with the instructions, may cause harmful interference to radio communications. However, there is no guarantee that interference will not occur in a particular installation. If this equipment does cause harmful interference to radio or television reception, which can be determined by turning the equipment off and on, the user is encouraged to try to correct the interference by one or more of the following measures: -- Reorient or relocate the receiving antenna. -- Increase the separation between the equipment and receiver. -- Connect the equipment into an outlet on a circuit different from that to which the receiver is connected. -- Consult the dealer or an experienced radio/TV technician for help. CAUTION: To assure continued FCC compliance: 1. Any changes or modifications not expressly approved by the grantee of this device could void the user's authority to operate the equipment. FCC Label Compliance Statement: This device complies with Part 15 of the FCC Rules. Operation is subject to the following two conditions: (1) this device may not cause harmful interference, and (2) this device must accept any interference received, including interference that may cause undesired operation. 4 Getting to Know Your System The BLE GlucoPedo is for recording personal daily blood glucose and recording daily walking steps. Intended use The glucose test function in BLE GlucoPedo is intended for use outside of the body self-testing (in vitro diagnostic use only). It should be used only for testing blood glucose (blood sugar) and only with fresh capillary whole blood samples. The system should not be used for the diagnosis of diabetes or for the testing of newborns. It can use in the home and in clinical settings. This pedometer function in BLE GlucoPedo counts and stores the number of steps (0~100000 steps), the covere…

Text truncated - open the document above for the full version.

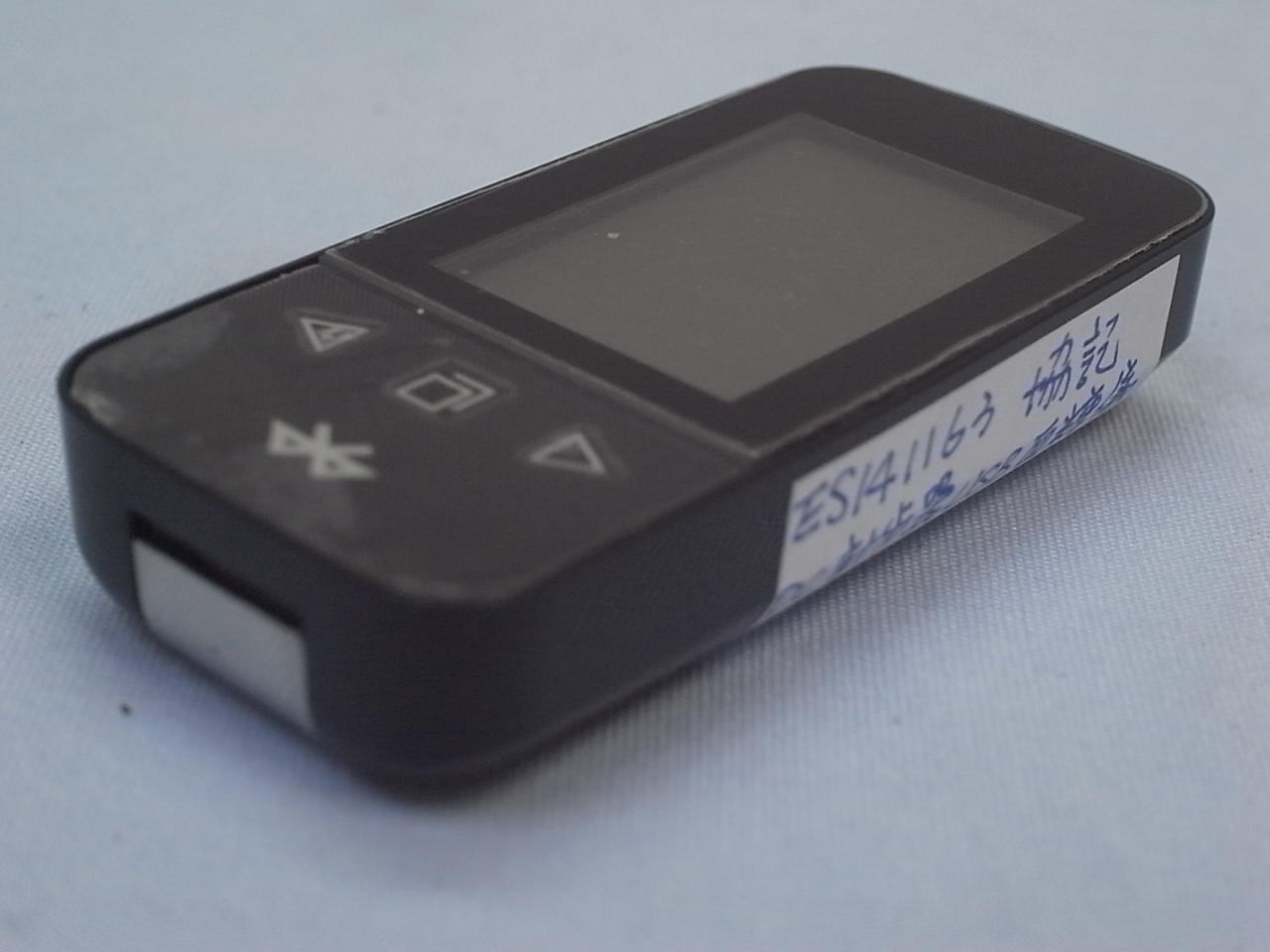

FEGO Precision Industrial Co., Ltd. FEGO BLE GlucoPedo Pedometer and Blood Glucose Monitoring System FCC ID. : M8CFPG2003B EUT External Photos Figure 1 General Appearance (Front and Side View) Figure 2 General Appearance (Back and Side View)

FEGO Precision Industrial Co., Ltd. FEGO BLE GlucoPedo Pedometer and Blood Glucose Monitoring System FCC ID. : M8CFPG2003B FCC ID Label Location z Label Placement Location z FCC ID Label Format FCC ID Label Placement Location

FEGO Precision Industrial Co., Ltd. FEGO BLE GlucoPedo Pedometer and Blood Glucose Monitoring System FCC ID. : M8CFPG2003B EUT Internal Photos Figure 3 Internal View (Removed Cover/LCD Display, Front View) Figure 4 Internal View (Removed Battery and Main Board) FEGO Precision Industrial Co., Ltd. FEGO BLE GlucoPedo Pedometer and Blood Glucose Monitoring System FCC ID. : M8CFPG2003B Figure 5 Internal View (Battery) Figure 6 Internal View (LCD Display, Back View) FEGO Precision Industrial Co., Ltd. FEGO BLE GlucoPedo Pedometer and Blood Glucose Monitoring System FCC ID. : M8CFPG2003B Figure 7 Internal View (Main Board, Back View) Figure 8 Internal View (Main Board, Front View) FEGO Precision Industrial Co., Ltd. FEGO BLE GlucoPedo Pedometer and Blood Glucose Monitoring System FCC ID. : M8CFPG2003B Figure 9 Internal View (BLE Module, Front View) Figure 10 Internal View (BLE Module, Back View)

Maximum Permissive Exposure FCC ID: M8CFPG2003B Product Name: FEGO BLE GlucoPedo Pedometer and Blood Glucose Monitoring System Model No: FPG2003B We hereby that FPG2003B is satisfying with SAR exclusion requirement for This application FCC ID: M8CFPG2003B has the most closely distance from antenna to user is 2 mm and the max output power presented as following table. Max Output Power(dBm) Max Output Power(W) Exclusion threshold Level Calculation note1 Exclusion threshold Requirement -6.70 0.000021 0.16 ≤ 3.0 Note 1: Pursuant to KDB 447498 D01 v05r02 that following equation is implemented to determine a threshold level. Equation: [(max. power of channel, including tune-up tolerance, mW)/(min. test separation distance, mm)] · [√f (GHz) ] ≤ 3.0 Thus exclusion threshold is (0.21 mW/2 mm)*√2.402=0.16 < 3.0. Figure 1: Distance to 4 sides Antenna 11 mm 2 mm 25 mm 36 mm Figure 2: Distance to top and bottom Sincerely Yours, ____________________________________ Mr. Ben Cheng Manager AUDIX Technology Corporation 6 mm 7 mm

FCC ID: M8CFPG2003B Page 1 of 55 AUDIX Technology Corporation Report No. EM-F150005 APPLICATION FOR CERTIFICATION On Behalf of FEGO Precision Industrial Co., Ltd. FEGO BLE GlucoPedo Pedometer and Blood Glucose Monitoring System Model No.: FPG2003B FCC ID: M8CFPG2003B Prepared for : FEGO Precision Industrial Co., Ltd. 947 Lin-Sen Rd. Wu-Fong Tai-Chung 413 Taiwan R.O.C. Prepared by : AUDIX Technology Corporation EMC Department No. 53-11, Dingfu, Linkou Dist., New Taipei City 244, Taiwan Tel : (02) 2609-9301, 2609-2133 Fax: (02) 2609-9303 File Number : C1M1412287 Report Number : EM-F150005 Date of Test : 2014. 12. 30 ~ 2015. 01. 22 Date of Report : 2015. 01. 22 FCC ID: M8CFPG2003B Page 2 of 55 AUDIX Technology Corporation Report No. EM-F150005 TABLE OF CONTENTS Description Page TEST REPORT CERTIFICATION ..............................................................................................4 1. DESCRIPTION OF REVISION HISTORY ........................................................................... 5 2. GENERAL INFORMATION .................................................................................................. 6 2.1. Description of Device (EUT) ........................................................................................................... 6 2.2. Description of Test Facility ............................................................................................................. 7 2.3. Measurement Uncertainty ................................................................................................................ 7 3. CONDUCTED EMISSION MEASUREMENT ..................................................................... 8 4. RADIATED EMISSION MEASUREMENT ......................................................................... 9 4.1. Test Equipment ................................................................................................................................ 9 4.2. Test Setup ........................................................................................................................................ 9 4.3. Radiated Emission Limits (§15.209) ............................................................................................. 11 4.4. Operating Condition of EUT ......................................................................................................... 11 4.5. Test Procedure ............................................................................................................................... 12 4.6. Test Results .................................................................................................................................... 13 5. DUTY CYCLE CORRECTION FACTOR .......................................................................... 25 5.1. Test Equipment .............................................................................................................................. 25 5.2. Test Setup ...................................................................................................................................... 25 5.3. Test Results .................................................................................................................................... 25 6. 6dB BANDWIDTH MEASUREMENT ................................................................................ 27 6.1. Test Equipment .............................................................................................................................. 27 6.2. Block Diagram of Test Setup......................................................................................................... 27 6.3. Specification Limits [§15.247(a)(2)] ............................................................................................. 27 6.4. Operating Condition of EUT ......................................................................................................... 27 6.5. Test Procedure ............................................................................................................................... 27 6.6. Test Results .................................................................................................................................... 28 7. MAXIMUM PEAK OUTPUT POWER MEASUREMENT .............................................. 31 7.1. Test Equipment .............................................................................................................................. 31 7.1. 2014. 06. 16 ................................................................................................................................... 31 7.2. Block Diagram of Test Setup......................................................................................................... 31 7.3. Specification Limits [§15.247(b)-(3)] ............................................................................................ 32 7.4. Operating Condition of EUT ......................................................................................................... 32 7.5. Test Procedure ............................................................................................................................... 32 7.6. Test Results .................................................................................................................................... 32 8. EMISSION LIMITATIONS MEASUREMENT ................................................................. 36 8.1. Test Equipment .............................................................................................................................. 36 8.2. Block Diagram of Test Setup......................................................................................................... 36 8.3. Specification Limits (§15.247(c)) .................................................................................................. 36 8.4. Operating Condition of EUT ........................................................................…
