M8CTP36RF315Transmitter

Transmitter ：TP36RF315 SPEC  Power：AAA battery*2  Distance：40 feet(air)  Frequency：RF 315 MHZ fixed frequency.  ID：65535 sets  Dim：DIP SW ON -> Light Dimmer，OFF -> Light On/Off。 FA N Function  OFF KEY：Fan off  HI KEY：Fan high speed  MED KEY：Fan medium speed  LO KEY：Fan low speed LIGHT Function  LIGHT KEY：Light on/off or Dimmer。 Receiver：RL-142 Spec  Power：120V/60HZ  Frequency：RF 315MHZ.  FAN：Hi-Med-Lo 3 speeds.  LIGHT：Light On/Off or dim is controlled by Transmitter DIP SW. FA N Function  HI：Fan runs in high speed and the receiver long beeps for 3 times.  Med：Fan runs in medium speed and the receiver long beeps for 2 times.  Low：Fan runs in low speed and the receiver long beeps for 1 times.  Off ：Fan stops running and the receiver beeps for 4 times. LIGHT Function  Non-dim mode：Light runs only full On and Off. The receiver short beeps for one time. This mode is only used for CFL bulb.  Dim Mode：Light can be dimmed. It dims from lightest to lowest back and forth. When the light is the brightest or lowest, it short beeps for 2 times. This mode is not suitable for CFL bulb. FAN & LIGHT Memory Function  The Receiver would memorize the FAN speed and Bulb brightness. If in Dim mode, the brightness of the bulb would be memorized in the receiver. When the AC power is turned off for more than 2 seconds and then back to work, the FAN speed and bulb will recover. Automatic Pairing  The receiver and transmitter pair each other automatically. By learning process, the receiver memorize the transmitter code in build-in memory automatically.  Learning process: in one minute when the receiver first time gets powered, press and hold the Off button on the transmitter for about 5 seconds. The receiver beeps for 4 times to complete the learning process. The pairing is done and you can start to use it. FCC ID : M8CTP36RF315 This device complies with Part 15 of the FCC Rules. Operation is subject to the following two conditions: (1) this device may not cause harmful interference, and (2) this device must accept any interference received, including interference that may cause undesired operation. “Changes or modifications not expressly approved by the party responsible for compliance could void the user's authority to operate the equipment.”

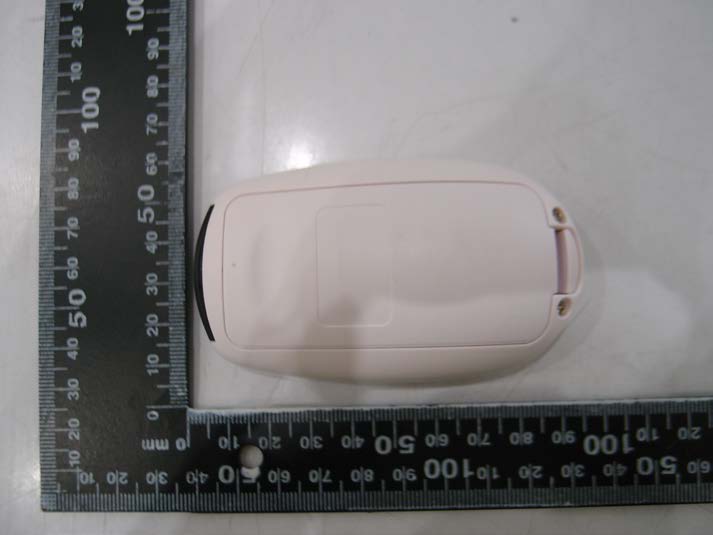

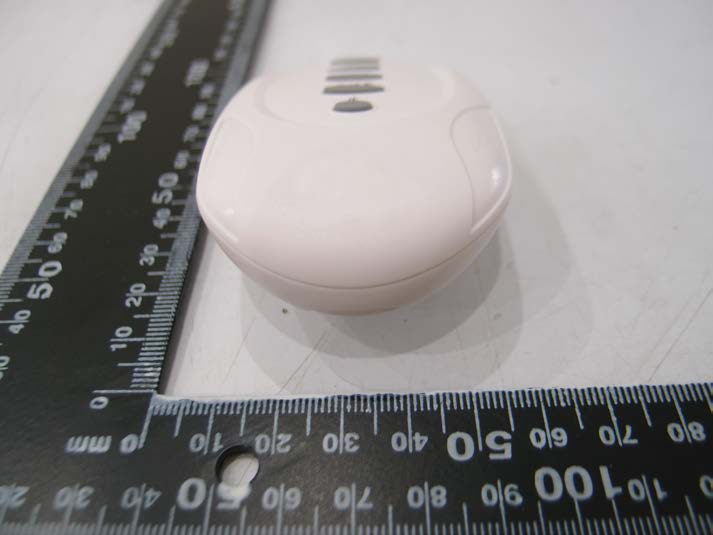

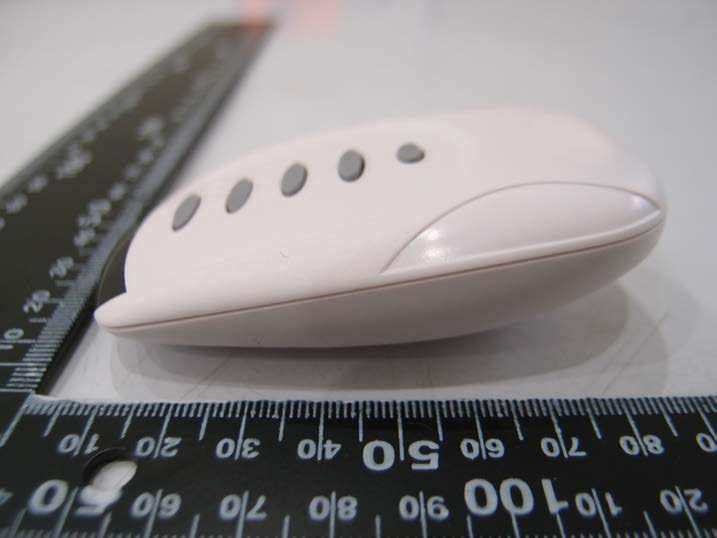

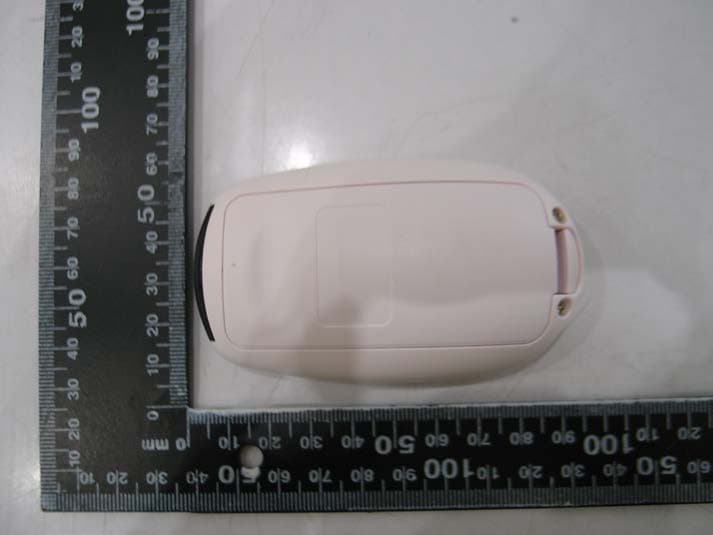

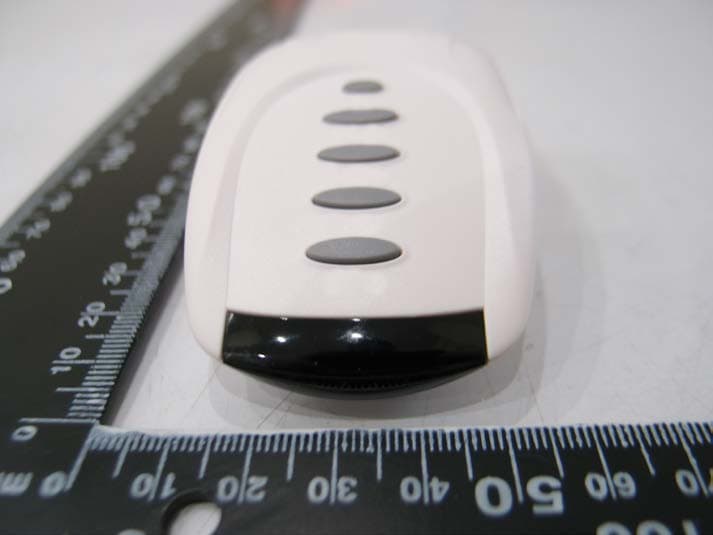

HongAn TECHNOLOGY CO., LTD. Report No.: HA141017-RA Contents 1 External Photographs of the EUT 2 FCC Test Report Page 1 of 5 HongAn TECHNOLOGY CO., LTD. Report No.: HA141017-RA 1 External Photographs of the EUT To p View of the EUT Bottom View of the EUT FCC Test Report Page 2 of 5 HongAn TECHNOLOGY CO., LTD. Report No.: HA141017-RA Front View of the EUT Rear View of the EUT FCC Test Report Page 3 of 5 HongAn TECHNOLOGY CO., LTD. Report No.: HA141017-RA Side View of the EUT -1 Side View of the EUT -2 FCC Test Report Page 4 of 5 HongAn TECHNOLOGY CO., LTD. Report No.: HA141017-RA View of the EUT Control Panel FCC Test Report Page 5 of 5

HongAn TECHNOLOGY CO., LTD. Report No.: HA141017-RA 1 Label Artwork and Location Label Artwork Label Location FCC Test Report Page 1 of 1

HongAn TECHNOLOGY CO., LTD. Report No.: HA141017-RA Contents 1 Internal Photographs of the EUT 2 FCC Test Report Page 1 of 4 HongAn TECHNOLOGY CO., LTD. Report No.: HA141017-RA 1 Internal Photographs of the EUT Inside View of the EUT Inside View of the EUT FCC Test Report Page 2 of 4 HongAn TECHNOLOGY CO., LTD. Report No.: HA141017-RA Front View of the EUT’s PCB Rear View of the EUT’s PCB FCC Test Report Page 3 of 4 HongAn TECHNOLOGY CO., LTD. Report No.: HA141017-RA View of the Chip IC: HT46R01T3 View of the Crystal FCC Test Report Page 4 of 4

RF Exposure evaluation Product Name: Transmitter FCC ID: M8CTP36RF315 According to 447498 D01 General RF Exposure Guidance v05 The 1-g and 10-g SAR test exclusion thresholds for 100 MHz to 6 GHz at test separation distances ≤ 50 mm are determined by: [(max. power of channel, including tune-up tolerance, mW)/(min. test separation distance, mm)] ·[√f(GHz)] ≤ 3.0 for 1-g SAR and ≤ 7.5 for 10-g extremity SAR, where  f(GHz) is the RF channel transmit frequency in GHz  Power and distance are rounded to the nearest mW and mm before calculation  The result is rounded to one decimal place for comparison eirp = pt x gt = (EXd) 2 /30 where: pt = transmitter output power in watts, gt = numeric gain of the transmitting antenna (unitless), E = electric field strength in V/m, --- 10 ((dBuV/m)/20) /10 6 d = measurement distance in meters (m)--- 3m So pt = (EXd) 2 /30 x gt Field strength =70.58dBuV/m @3m Ant gain =0dBi ;so Ant numeric gain=1 So pt={ [10 (70.58/20) /10 6 x3] 2 /30x1 }x1000 mW = 0.00343 mW So ( 0.00343 mW/5mm)x √0.315GHz= 0.000384863 <3 Then SAR evaluation is not required

HongAn TECHNOLOGY CO., LTD. Report No.: HA141017-RA FCC Test Report Page 1 of 26 FCC COMPLIANCE TEST REPORT Technical Statement of Conformity in accordance with 47 CFR Part 15 Subpart C The product Equipment Under Test ： Transmitter Model Number ： TP36RF315 Product Series ： N/A Report Number ： HA141017-RA Issue Date ： 28-JAN-2015 Test Result ： Compliance is produced by FEGO Precision Industrial Co., Ltd 947 Lin-Sen Rd. Wu-Fong Tai-Chung 413 Taiwan ROC. HongAn TECHNOLOGY CO., LTD. NO.15-1, CWEISHUH KENG, CWEIPIN VILLAGE, LINKOU, TAIPEI COUNTY, TAIWAN, R. O. C. TEL: +886-2-26030362 FAX: +886-2-26019259 E-mail: [email protected] BSMI Registration No.: SL2-IN-E-0023, SL2-A1-E-0023, FCC Designation No.: TW1071 SL2-IS-E-0023, SL2-R1-E-0023, TAF Accreditation No.: 1163 SL2-R2-E-0023, SL2-L1-E-0023 VCCI Registration No.：R-2156, C-2329, T-219, G-696 HongAn TECHNOLOGY CO., LTD. Report No.: HA141017-RA FCC Test Report Page 2 of 26 Contents 1 General Description 5 1.1 Description of EUT 5 1.2 Test Instruments 6 1.3 Auxiliary Equipments 7 1.4 EUT SETUP 7 1.5 Identifying the Final Test Mode 7 1.6 Final Test Mode 8 1.7 Condition of Power Supply 8 1.8 EUT Configuration 8 1.9 Test Methodology 8 1.10 General Test Procedures 8 1.11 Modification 8 2 Power line Conducted Emission Measurement 9 2.1 Test Instruments 9 2.2 Test Arrangement and Procedure 9 2.3 Limit 9 2.4 Test Result 10 3 Radiated Emission Test 11 3.1 Test Instruments 11 3.2 Test Arrangement and Procedure 11 3.3 Limit (§ 15.205 & § 15.231(b)) 12 3.4 Test Result 14 4 Conditions for intentional radiators to comply with periodic operation 21 4.1 Test Instruments 21 4.2 Test Arrangement and Procedure 21 4.3 Limit (§ 15.231(a)) 21 4.4 Test Result 22 5 Emission Bandwidth 24 5.1 Test Instruments 24 5.2 Test Arrangement and Procedure 24 5.3 Limit (§ 15.231(c)) 24 5.4 Test Result 24 6 Antenna requirement 26 6.1 Limit (§ 15.203) 26 6.2 Test Result 26 HongAn TECHNOLOGY CO., LTD. Report No.: HA141017-RA FCC Test Report Page 3 of 26 Test Result Certification Applicant ： FEGO Precision Industrial Co., Ltd Address of Applicant ： 947 Lin-Sen Rd. Wu-Fong Tai-Chung 413 Taiwan ROC. Manufacturer ： FEGO Precision Industrial Co., Ltd Address of Manufacturer ： 947 Lin-Sen Rd. Wu-Fong Tai-Chung 413 Taiwan ROC. Trade Name ： N/A Equipment Under Test ： Transmitter Model Number ： TP36RF315 Product Series ： N/A FCC ID ： M8CTP36RF315 Filing Type ： Certification Sample Received Date ： 17-DEC-2014 Test Standard ： FCC Part 15 Subpart C §15.231 Deviations from standard test methods & any other specifications : NONE Remark: 1. This report details the results of the test carried out on one sample. 2. The test data, data evaluation, test procedures, and equipment configurations shown in this report were made in accordance with the procedures given in ANSI C63.4 (2003) and the energy emitted by the sample EUT tested as described in this report is in compliance with the requirements of FCC Rules Part 15.203, 15.207, 15.209, 15.231. 3. This report applies to the above sample only and shall not be reproduced in part without written approval of HongAn Technology Co., Ltd. Documented by: Date: 2015-01-28 Zoe Chen/ ADM. Dept Staff Tested by: Date: 2015-01-28 Ben Chen / ENG. Dept. Staff Approved by: Date: 2015-01-28 Adam Yang / SEC. Manager HongAn TECHNOLOGY CO., LTD. Report No.: HA141017-RA FCC Test Report Page 4 of 26 Summary of Test Result Test Item Applicable Standard Test Result 1 Antenna Requirement FCC part 15 subpart C §203 Compliance 2 Conducted Limits FCC part 15 subpart C §207 N/A 3 Radiated Emission Limits FCC part 15 subpart C §209 Compliance 4 Conditions of Intentional Radiators to Comply with Periodic Operation FCC part 15 subpart C §231(a) Compliance 5 Field Strength FCC part 15 subpart C §231(b) Compliance 6 Emission Bandwidth FCC part 15 subpart C §231(c) Compliance 7 Requirements for Devices Operating within 40.66~40.70MHz Band FCC part 15 subpart C §231(d) N/A 8 Conditions for Intentional Radiators to Comply with Periodic Operation FCC part 15 subpart C §231(e) N/A HongAn TECHNOLOGY CO., LTD. Report No.: HA141017-RA FCC Test Report Page 5 of 26 1 General Description 1.1 Description of EUT Equipment Under Test : Transmitter Model Number of EUT : TP36RF315 Product Series : N/A Power Supply : DC 3 V (AAA Battery * 2pcs) Frequency Range : 315.05 MHz Number of Channels : 1 Channel Spacing : N/A Antenna Specification : PCB Antenna, 0 dBi Gain Modulation Technique : ASK Specification : Dimensions : 9 cm (L) X 5.5 cm (W) X 2.5 cm (H) Function：The EUT is a Transmitter. Its transmitting frequency is 315.05MHz ※For more detail specification, please refer to the User Manual. HongAn TECHNOLOGY CO., LTD. Report No.: HA141017-RA FCC Test Report Page 6 of 26 1.2 Test Instruments 1.2.1 Instruments Used for Measurement Instrument Name Manufacture Model Number Serial NumberLast Cal. Date Next Cal. Date LISN EMCO 3810/2NM 9702-1821 18-Aug-2014 18-Aug-2015 LISN Rolf Heine Hochfrequenz technik NNB-4/32T 00001 24-Feb-2014 24-Feb-2015 EMI Receiver R&S ESCI 100931 17-Jul-2014 17-Jul-2015 Spectrum Analyzer R&S FSL6 100323 05-Sep-2014 05-Sep-2015 Spectrum Analyzer Advantest R3172 101202158 08-Aug-2014 08-Aug-2015 Spectrum Analyzer R&S FSV30 101629 30-Jul-2014 30-Jul-2015 Preamplifier CHASE CPA 9231A 0405 22-Aug-2014 22-Aug-2015 Preamplifier HD HD17187 004 26-May-2014 26-May-2015 Micorwave Preamplifier Com-Power PAM-840 461269 02-Jul-2014 02-Jul-2015 Bilog Antenna TESEQ CBL6111D 25769 11-Mar-2014 11-Mar-2015 Double-Ridged Waveguide Horn EMCO 3115 9912-5992 22-May-2014 22-May-2015 Horn Antenna Com-Power AH-840 101042 03-Jul-2014 03-Jul-2015 Temp. & Humidity Chamber Giant Force GTH-150-20-SP -AR MMA0907-01209-Jun-2014 09-Jun-2015 ※ The test equipments used are calibrated and can be traced to National ITRI and International Standards. HongAn TECHNOLOGY CO., LTD. Report No.: HA141017-RA FCC Test Report Page 7 of 26 1.3 Auxiliary Equipments 1.3.1 Provided by HongAn Technology Co., Ltd. For Emission…

Text truncated - open the document above for the full version.

HongAn TECHNOLOGY CO., LTD. Report No.: HA141017-RA FCC Test Report Page 1 of 3 Contents 1 Photographs of the Tests 2 1.1 Radiated Disturbances Emission Test (Below 1G) 2 1.2 Radiated Disturbances Emission Test (Above 1G) 3 HongAn TECHNOLOGY CO., LTD. Report No.: HA141017-RA FCC Test Report Page 2 of 3 1 Photographs of the Tests 1.1 Radiated Disturbances Emission Test (Below 1G) Front View Rear View HongAn TECHNOLOGY CO., LTD. Report No.: HA141017-RA FCC Test Report Page 3 of 3 1.2 Radiated Disturbances Emission Test (Above 1G) Front View Rear View
