MI7-B32150-25Base Station Data Radio

I I P P S S e e r r i i e e s s B B 3 3 2 2 1 1 5 5 0 0 - - 2 2 5 5 B B a a s s e e S S t t a a t t i i o o n n P P r r o o d d u u c c t t O O w w n n e e r r ’ ’ s s M M a a n n u u a a l l Date Released: December 4, 2003 Document #: 516.80517.POM Version: X1 Copyright 2003 IPMobileNet, Inc. . 16842 Von Karman Avenue, Suite 200  Irvine, CA 92606 Voice: (949) 417-4590 Fax: (949) 417-4591 402004 Page ii The term “IC”: before the radio certification number only signifies that Industry of Canada technical specifications were met. Operation is subject to the following two (2) conditions: (1) this devise may not cause interference, and (2) this device must accept any interference, including interference that may cause undesired operation of this device. The following U.S. Patents apply to this product: U.S. Patent numbers 5,640,695,6,018,647,6,243,393 Information contained in this document is subject to change without notice. All rights reserved. Reproductions, adaptations, or translation without prior written permission is prohibited, except as allowed under copyright laws. TABLE OF CONTENTS 402004 Page 3 SECTION 1: THEORY OF OPERATION.................................................................................................... 4 General Block Diagram.................................................................................................................. 4 General Block Diagram Definitions ..................................................................................... 4 Input/Output........................................................................................................... 4 System Controller................................................................................................... 4 Modems ........................................................................................................... 5 Diversity Reception .......................................................................................... 5 RX Injection............................................................................................................ 5 Transmitter ............................................................................................................. 5 Receiver 1/ 2/ 3 ...................................................................................................... 5 Power Supply......................................................................................................... 5 B32150-25 Base Station Section Descriptions........................................................................... 6 System Controller ................................................................................................................ 6 Input/Output ........................................................................................................................ 6 Modem Switching ................................................................................................................ 6 Modem ...............................................................................................................................7 Receive Signal Strength Indication Comparator ................................................................. 7 Baseband ............................................................................................................................ 8 Receiver Board ................................................................................................................... 8 IF Amplifier .......................................................................................................................... 8 Receiver Injection ................................................................................................................ 9 Exciter Board ....................................................................................................................... 9 Analog Modulation ............................................................................................................ 10 Phase Locked Loop .......................................................................................................... 10 Power Amplifier ................................................................................................................. 11 SECTION 2: FCC LABEL.......................................................................................................................... 12 B32150-25 Base Station FCC Label Placement........................................................................ 12 B32150-25 Base Station FCC Label............................................................................................ 12 APPENDIX A: B32150-25 CIRCUIT BOARD DIAGRAM.......................................................................... 13 APPENDIX B: B32150-25 TEST DATA SHEET........................................................................................ 17 SECTION 1: THEORY OF OPERATION 402004 Page 4  GENERAL BLOCK DIAGRAM General Block Diagram Definitions For increased data security, the modem supports the U.S. Government developed Digital Encryption Standard (DES) data encryption and decryption protocols. This capability requires installation of third- party IP compliant DES encryption and decryption software. The standard IPSeries base station circuit board contains five (5) main sections defined below: Input/Output Circuitry associated with one of the following base station’s data connectors: ‰ RS232 Serial Port DB9 Data Connector ‰ RJ45 Ethernet 10 Base T Interface Connection System Controller Houses the modem, diversity, and Ethernet circuitry. Manages the operation of the base station’s modem providing transmit timeout protection in the event a fault causes the base station to become halted in the transmit mode. The system controller also handles the loading of selected transmit and receive frequencies into the injection synthesizer. Includes memory for storage through Elect…

Text truncated - open the document above for the full version.

DC Voltages – 13.8 V

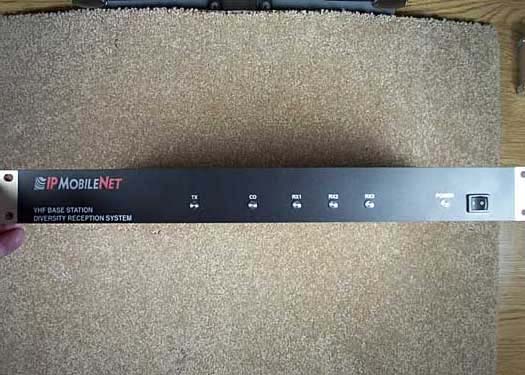

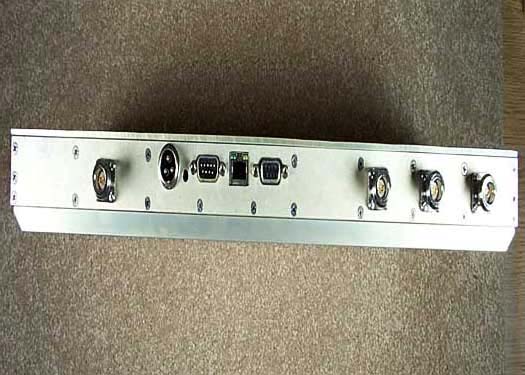

Front Back Top Bottom Left Side Right Side

SECTION 2: FCC LABEL B32150-25 Base Station FCC Label Placement LABEL B32150-25 Base Station FCC Label SECTION 2: FCC LABEL

Internal Overall PCB 1 Top PCB 1 Bottom PCB 2 Top PCB 2 Bottom PCB 3 Top PCB 3 Bottom PCB 4 Top PCB 4 Bottom PCB 5 Top PCB 5 Bottom

 GENERAL BLOCK DIAGRAM General Block Diagram Definitions For increased data security, the modem supports the U.S. Government developed Digital Encryption Standard (DES) data encryption and decryption protocols. This capability requires installation of third- party IP compliant DES encryption and decryption software. The standard IPSeries base station circuit board contains five (5) main sections defined below: Input/Output Circuitry associated with one of the following base station’s data connectors: ‰ RS232 Serial Port DB9 Data Connector ‰ RJ45 Ethernet 10 Base T Interface Connection System Controller Houses the modem, diversity, and Ethernet circuitry. Manages the operation of the base station’s modem providing transmit timeout protection in the event a fault causes the base station to become halted in the transmit mode. The system controller also handles the loading of selected transmit and receive frequencies into the injection synthesizer. Includes memory for storage through Electrically Erasable Programmable Read Only Memory (EEPROM) of the base station’s operating parameters, which are retained after the base stations power is cycled off. Modems Convert data into an analog audio waveform for transmission and analog audio from the receiver to serial data interface. There is one (1) modem that is dedicated to the transmit operation and two (2) modems dedicated to the receive operation. The modem dedicated to the transmit supports a 115.2 KBPS data transmission rate on the serial port, SLIP protocol, and a 32 KBPS over-the-air data transmission rate. Provides Forward Error Correction (FEC) and Error Detection (CRC), bit interleaving for more robust data communications, and third generation collision detection and correction capabilities. Diversity Reception Circuitry selects one of three (3) diversity receiver audio outputs for processing by the modem by comparing the Received Signal Strength Indication (RSSI) output from each receiver. Audio from the receiver with the highest RSSI value is passed to the modems. RX Injection The Injection Synthesizer board provides a highly stable local oscillator signal for the three (3) receivers. This displays a serial data input/output interface, synthesizer, and VCO. Transmitter Consists of an exciter and a power amplifier module covering various frequency bands in segments. A different power amplifier module is required for each segment. The transmitter power control is included with the power supply circuitry on the same board. Receiver 1/Receiver 2/ Uses three (3) discrete receivers tuned to the same frequency. Receiver 3 The three (3) receivers are required to support IPMobileNet’s base station Diversity Reception System (DRS). NOTE : Some installations use only two (2) receivers. The receivers are double-conversion superhetrodynes with an Intermediate Frequency (IF) of 45 MHz. Each receiver consist of bandpass filters, RF amplifiers, a mixer, 45 MHz crystal filter, and a one-chip IF system. The injection synthesizer provides the first local oscillator signal and outputs from each receiver including RSSI and analog audio for Diversity Reception. Power Supply Power supply circuitry derives the various operating voltages required by the base station. Fixed voltage regulators are employed through the base station for this purpose. B32150-25 Base Station Section Descriptions System Controller This section displays the Central Processing Unit (CPU)(U1), clock, and power-on reset circuitry. It provides more processing power than required for future capabilities to be incorporated without changing processors. Such capabilities include data encryption/decryption (DES) and remote fault monitoring. U1 features a 16-bit address bus and 128K of internal flash random access memory (RAM). NOTE : To enter the programming mode it is necessary to reset the switch (S1) and power up again. CPU operations are controlled by Y3 an 18.432 MHz clock module. Capacitor (C1) and an internal Schmidt trigger circuit inside of U1 generates the power on reset signal. The RESET* output from U1 drives a latch and decoder found elsewhere on the board. This section displays the RAM, decoder, EEPROM, and programming power supply circuitry. U2 is a 512K x 8 bit static RAM chip, which provides temporary storage of base station configuration data while the power is on. This is necessary in order to program the base station. U2 is controlled directly by the address, data, and control busses from the CPU. Chip U5 decodes the A11-A14 address bus to provide chip selects for the modem and EEPROM memory. Chip U6 is an 8-bit latch. It latches inputs from the D0-D7 bus and lights the front panel status indicators ( TX, CD, RX1, RX2, and RX3). Chip U3 is a serial EEPROM, which provides 2K bits of pre-programmed data storage for the CPU. Data is clocked out of U3 by EECLK, and back into the CPU via EEDATA. A programming power supply is required for the flash RAM inside of the CPU, and this function is performed by U4. This chip is a low dropout voltage regulator with a shutdown control. Resistors R22 and R21 set the output voltage. When the base station configuration data is to be stored in flash RAM, the CPU makes VPP_ENABLE high. This turns on the regulator, producing a 12-volt output via VPP for the flash RAM. This section displays a dedicated processor and voltage regulator. Chip U7 is a processor, which permits manual keyboard operation of the base station. Regulator VR2 provides 5 volts DC power for all logic circuitry on the System Controller Board. Input/Output This section displays the CPU input/output circuitry. Chip U8 is an RS232 transceiver, which interfaces the CPU to the modem via J1. From there, the RS232 data goes directly to a rear panel DB9 connector. U8 converts 5-volt logic-level data to +/-12 volt data in RS232C form, and vice-versa. A charge pump power supply on the chip converts the +5 volt DC power to the +/-12 volt levels required. The charge pump uses capacitors…
