MI7-F32700N25700/800 MHz 32k Fixed Radio

IPSeries F32700N25 Fixed Radio Product Owner‟s Manual Date Released: March 16, 2011 Document #: 516-80618-POM Rev B Copyright 2011 IPMobileNet, LLC. 1221 East Dyer Road, Suite # 250 Santa Ana CA 92705 Voice: (714) 434 6019  Fax: (714) 434 6019 F32700N25.doc Page ii The term “IC”: before the radio certification number only signifies that Industry of Canada technical specifications were met. Operation is subject to the following two (2) conditions: (1) this devise may not cause interference, and (2) this device must accept any interference, including interference that may cause undesired operation of this device. The following U.S. Patents apply to this product: 5,640,695 6,018,647 6,243,393 Information contained in this document is subject to change without notice. All rights reserved. Reproductions, adaptations, or translation without prior written permission is prohibited, except as allowed under copyright laws. TABLE OF CONTENTS F32700N25.doc Page 2 SECTION 1: THEORY OF OPERATION ..................................................................... 3 General Block Diagram .................................................................................... 3 General Block Diagram Definitions .......................................................... 3 F32700N25 Fixed Radio Section Descriptions ............................................... 5 Microcontroller ......................................................................................... 5 Support Circuitry .......................................................................... 5 Inputs/Outputs ......................................................................................... 5 Modem ..................................................................................................... 6 VLogic and Digital Ground ....................................................................... 6 Receiver 1 Front-End ............................................................................... 7 Receiver 1 IF ........................................................................................... 7 Transmit Modulation ................................................................................ 7 Injection Synthesizer ................................................................................ 8 Transmitter/TR Switch ............................................................................. 8 Power and Analog Ground ....................................................................... 8 SECTION 2: FACTORY TEST PROCEDURE ............................................................. 9 Equipment List .................................................................................................. 9 Programming and Configuring Fixed Radio ................................................ 10 Adjustment / Alignment Procedures ............................................................. 11 Receiver Injection .................................................................................. 11 Receiver ................................................................................................. 11 Transmit Data ........................................................................................ 12 Transmit Power Control ......................................................................... 12 Receive Data ......................................................................................... 13 Final Test ............................................................................................... 13 Uplink Hardware Timing Verification ...................................................... 15 Downlink Hardware Timing Verification ................................................. 17 SECTION 3: FCC LABEL .......................................................................................... 19 F32700N25 Data Transceiver FCC Label Placement ................................... 19 F32700N25 Data Transceiver FCC Label ...................................................... 19 APPENDIX A: F32700N25 CIRCUIT BOARD DIAGRAMS ...................................... 20 APPENDIX B: F32700N25 TEST DATA SHEET ...................................................... 21 F32700N25.doc Page 3  Section 1: Theory of Operation Digital Board Inputs/ outputs Micro- controller Injection synthesizer Receiver Transmit modulation Transmitter Modem Antenna TR Switch RF Board Transmit Processing Figure 1: Block Diagram Block Diagram Definitions For increased data security, the modem supports the Federal Government developed Digital Encryption Standard (DES) data encryption and decryption protocols. This capability requires installation of third party, Internet Protocol (IP) compliant DES encryption and decryption software on the system. The F32700N25 Fixed Radio is comprised of two (2) circuit boards, the digital board and the RF board. The digital circuit board contains the following sections: Input/Output Circuitry associated with the radio’s DB9 data connector providing all the RS232 data and handshake functions, including the necessary level changes. F32700N25.doc Page 4 RJ45 Ethernet 10 Base T Interface Connector  For further details on the Ethernet Controller, refer to the Crystal LANEthernet Controller Product Bulletin (CS8900A-EthernetCtrlr.pdf) available on the Product Documentation CD. Microcontroller Manages the operation of the radio, the modem, and provides transmit time-out protection in the event a fault causes the radio to halt in the transmit mode. Further, uses feedback data from the base and adjust the frequency to lock to the base within 0.1 ppm. Modem Converts serial data into an analog audio waveform for transmission and analog audio from the receiver to serial data. Within a single chip it provides forward error detection and correction, bit interleaving for more robust data communications, and third generation collision detection and correction capabilities. Power Supply The power supply creates the various vol…

Text truncated - open the document above for the full version.

Non-Conformities FCC ID: MI7-F32700N-25 (CKC CS Re f # 90892-10-FCC) The items listed below represent requests for infor mation following review of this application for cer tification under United States (FCC) regulations. Further question may arise pending review of responses to t hese items. OK ID # Non-Conformity or Comment Submitted Respons e Respondent / Date of Response x C 1 The FCC ID used on the ID Label provided does not match the FCC ID provided in the confidentiality letter. Please clarify which is correct and provide updated documentation for consi stency. The ID label shows MI7-F32700N25 The Cover letter shows MI7-F32700N-25 MI7-F32700N25 is correct DC Mar 16, 2011 x C 2 The confidentiality letter requests informati on to be held confidential which additionally resides in the users manual. Th e users manual cannot be held confidential. This item is to infor m the grantee that the information held in the users manual will be he ld open for pubic inspection regardless of the request for confident iality. Should modifications be necessary to the users manual exhi bit, please provide updated documentation. Revised Letter Provided DC 3/16/11 x C 3 Because the primary contact for grantee code MI7 has changed, please provide an updated confidentiality letter si gned by the authorized individual (Dan Cicchetti). Revised letter; revised contact information to Frank Romanin DC 3/16/11 Ckccs 3/18/11 X TL/R 4 The OBW section of the report is shows the ACCP requirements of 90.542. Please provide Occupied Bandwidth Measurem ents as required by 2.1049. Updated report provided. CKC 3/3/11 X TL/R 5 The 90.543 ACCP measurements provided demo nstrate compliance neither with the requirements of 400kHz to 12MHz no r with the requirements of the paired receive band. Please pr ovide demonstration of compliance with these sections for the transmit band of 799-805. However, for the transmit band of 793- 798 MHz, please provide demonstration of compliance to 90.543(e). Updated test report provided. CKC 3/3/11 TL 6 It is unclear how the measurements reported f or the radiated emissions test meet the requirements of 90.210 and 90.542. Please clarify and revise data as necessary. x C 7 Please provide a statement regarding the inte roperability requirements for the 799-805 MHz band in accordance with 90.547 and 90.548. The F32700N25 Fixed Radio is designed for operation from a fixed location and is neither Mobile or Mar 16, 2011 Portable, so the requirement is not applicable. CKC CS notes 90.531(a) allows fixed operations for the requested band; however 90.20 lists mobile. Nevertheless, comment 77 refers to 90531 which takes precedence. See also reference below in slide 107 Client confirmed operation on 25kHz general use channels only. DC 3/29/11 x TL 8 The MPE calculations provided are insufficie nt to demonstrate compliance with RF exposure requirements. Please n ote that operations under part 90R are categorically exclude d from routine RF Exposure evaluation. RF Exposure info provided. CKC 3/3/11 x C 9 Please provide DC voltages and currents as re quired by 2.1033(c)(8), “ The dc voltages applied to and dc currents into t he several elements of the final radio frequency amplifying device for normal operation over the power range.” The DC power required for transmission at the rated power is 13.8 VDC @ 2.7A. Mar 16, 2011 Reviewing references: https://apps.fcc.gov/eas/comments/GetPublishedDocum ent.html?id=13&tn=476992

SECTION 3: FCC LABEL F32700N-25.doc Page 28 F32700N-25 Data Transceiver FCC Label Placement F32700N-25 Data Transceiver FCC Label

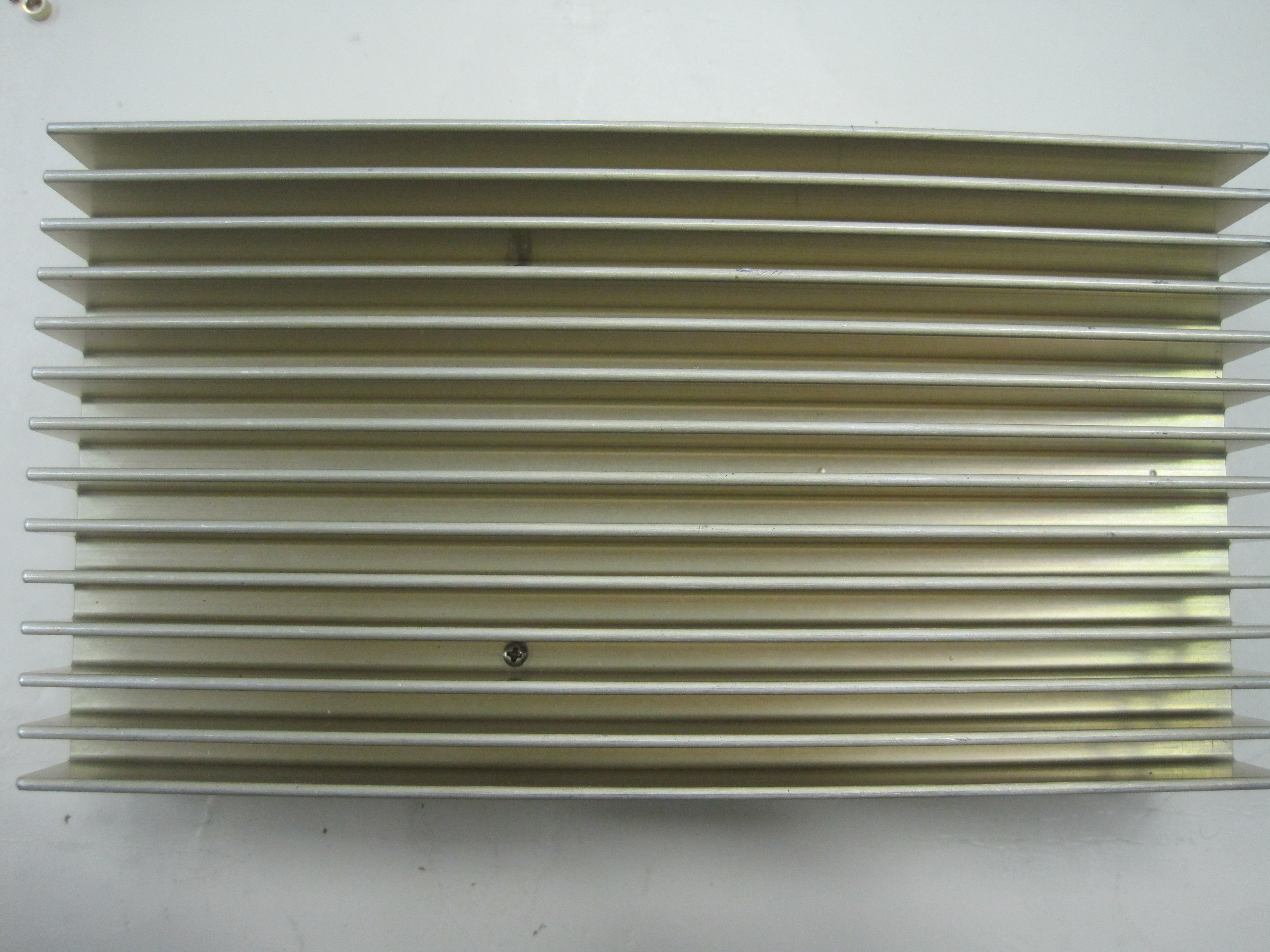

Operational Description The IP Series 32-fixed digital transceiver requirements of fixed site data applications. Mounted in road signs applications, intelligent devices may connect to the serial port or Ethernet port for connectivity the IPMobileNet mobile data infrastructure and other application servers. The mobile radio utilizes a high-performance, modem for 32 kbps operation in 25 kHz channels. A multi signal reliability including data scrambling, data interleaving, Forward Error Correction (FEC), and Viterbi soft-decision error correction noise environments. Built specifically for use in the licensed 700 MHz spectrum, this radio is both use only on a 25 kHz General Use or Stat with the IPSeries 700 MHz Base Station for connectivity within the IPMobileNet mobile data infrastructure. Operation in any segment of the band where interoperability and / or trunking channels are reserved is disallowed by internal firmware The radio is equipped with an internal duplexer that allows for transmission and reception on a single antenna. A typical installation will use a high gain antenna directed towards the base station used to satisfy the RF link. Its low power consumption allows for where traditional power infrastructure is nonexistent or intermittent. 1221 E Dyer Rd, Suite 250 Santa Ana, California 92705 Voice & Fax: (714) 434-6019 www.ipmn.com Model Number F32700N25 fixed digital transceiver is an intelligent mobile radio designed for the cations. Mounted in road signs and other seldom moved , intelligent devices may connect to the serial port or Ethernet port for connectivity the IPMobileNet mobile data infrastructure back to the Internet Protocol Network Controller (IPNC) performance, 4 level Frequency-Shift Keying (FSK) wireless data modem for 32 kbps operation in 25 kHz channels. A multi-layered approach is taken to maximize signal reliability including data scrambling, data interleaving, Forward Error Correction (FEC), and algorithms. The result is increased performance in Built specifically for use in the licensed 700 MHz spectrum, this radio is both FCC and IC certified for 25 kHz General Use or State channel. Typical use is duplex operation Base Station for connectivity within the IPMobileNet mobile data Operation in any segment of the band where interoperability and / or trunking channels by internal firmware. The radio is equipped with an internal duplexer that allows for transmission and reception on a single antenna. A typical installation will use a high gain antenna directed towards the base station used to allows for easy integration with solar panel power systems in locations where traditional power infrastructure is nonexistent or intermittent. Model Number F32700N25 designed for the unique and other seldom moved , intelligent devices may connect to the serial port or Ethernet port for connectivity through Network Controller (IPNC) Shift Keying (FSK) wireless data layered approach is taken to maximize signal reliability including data scrambling, data interleaving, Forward Error Correction (FEC), and performance in low signal-to- FCC and IC certified for . Typical use is duplex operation in conjunction Base Station for connectivity within the IPMobileNet mobile data Operation in any segment of the band where interoperability and / or trunking channels The radio is equipped with an internal duplexer that allows for transmission and reception on a single antenna. A typical installation will use a high gain antenna directed towards the base station used to power systems in locations 1221 E Dyer Rd, Suite 250



Santa Ana, CA 92705 Model Number F32700N25 Specifications General Certification Spectrum Data Rate Bandwidth Number of Channels Mode of Operation Supply Voltage Operating Current Operating Temperature Range Data Interface Antenna Connection Dimensions (H x W x D) Weight Transmit Frequency Range Power Output Adjacent Channel Power Paired RX Channel Emissions Frequency Stability Emission Designation Receive Distortion SINAD 12 dB Santa Ana, CA 92705



Voice & Fax: (714) 434-6019



www.ipmn.com FCC and IC 700 MHz narrowband 32 kbps 25 kHz 50 Half – Duplex 13.8 VDC +/- 20% 3A max, 2.5A typ (TX) / 0.4A typ (RX) Operating Temperature Range -30C to +60C (-22F to 140F) 10BaseT Ethernet (RJ45) or Serial (RS232) One (1) Type ‘N’ female (TX/RX) 2” x 4.5” x 8” 2.5 lbs 794 to 806 MHz 5 Watts +/- .5W >80 dBc, 90 dBc typ Paired RX Channel Emissions >100 dBc, 104 dBc typ 0.5ppm max, 0.1ppm typ 20K0F1D 3% max, 1.6% typ -116 dB max, -120 dB typ www.ipmn.com (TX) / 0.4A typ (RX) 10BaseT Ethernet (RJ45) or Serial (RS232) 700 MHz 32 Kbps

Programming and Configuring Fixed Radio Once the appropriate equipment for performing the factory test is gathered, perform the following steps to program and configure an F32700N-25 Fixed Radio: Step 1 Enter the following information on the Test Data Sheet (see Appendix A):  Radio Serial number  Date test being performed  Tester's Name Step2 Connect the power cable with a voltage source of 13.8vDC able to deliver 5 amps continuous and apply power to the mobile radio. Step 3 Program the radio to the current Firmware revision using the AVR programming utility. Step 3 Program the radio to the current Firmware revision using the AVR programming utility. Step 4 Connect a PC to the radio and launch the IPMessage program. In the IPMessage window, and verify the IP Message connection using the “?” command. Step 5 The radio will need to be unlocked using the command “Unlock=Password” using the appropriate password and placed into testmode using the command “testmode=1” for all tests unless specified otherwise. Step 6 Type ‘pll type=Analog Devices”. Step 7 Enter the appropriate values for the radio's frequency band. The following values were used for the fixed radio: [From: 172.16.64.1] Host serial = 115200,N,8,1, timeout=200 [From: 172.16.64.1] Channel = 0 [From: 172.16.64.1] Channel Tx freq Rx freq Inj freq [From: 172.16.64.1] Frequency= 0, 799.000000 769.000000 814.000000 [From: 172.16.64.1] IP Address = 172.16.64.1 (VIU = 0.0.0.0, PC = 192.168.3.5) [From: 172.16.64.1] IPNC = 172.16.112.200 [From: 172.16.64.1] netmask = 255.255.255.0 [From: 172.16.64.1] Radio Mac Address = 00:08:ce:00:00:00 [From: 172.16.64.1] Hosting framing = SLIP no status messages [From: 172.16.64.1] channel spacing = 25000 [From: 172.16.64.1] Injection = HIGH SIDE, 45 MHz [From: 172.16.64.1] TX Power = 150 [From: 172.16.64.1] Car to car TX power = 0 [From: 172.16.64.1] serial number: undefined [From: 172.16.64.1] TX quiet time = 5 [From: 172.16.64.1] TX sync time = 2- milliseconds [From: 172.16.64.1] TX tail time = 5 [From: 172.16.64.1] TX delay = 0 slots [From: 172.16.64.1] Radio data rate = 32000 [From: 172.16.64.1] Max data tx time = 60 seconds [From: 172.16.64.1] PLL load to txkey delay = 2 milliseconds [From: 172.16.64.1] Carrier detect delay time = 6 milliseconds [From: 172.16.64.1] roam status times = 900 seconds [From: 172.16.64.1] roam lost time = 60 seconds [From: 172.16.64.1] Polarity = TX+, RX- [From: 172.16.64.1] RSSI step = 12 (=234mV) [From: 172.16.64.1] noise = -126dBm, -126dBm [From: 172.16.64.1] num timeslots = 16 [From: 172.16.64.1] timeslot period = 992ms [From: 172.16.64.1] timeslots per voice packet = 4 [From: 172.16.64.1] 06Feb2036 22:28:34 (PST), calibration=43 [From: 172.16.64.1] diversity speed = 5 [From: 172.16.64.1] receiver = AUTO [From: 172.16.64.1] Receiver Hysteresis = 2 [From: 172.16.64.1] Internal GPS Port Address = 5000 [From: 172.16.64.1] Internal GPS Input Protocol = TSIP [From: 172.16.64.1] Internal GPS Output Protocol = TSIP [From: 172.16.64.1] 12dB SINAD = -120dBm (54 on RX0) [From: 172.16.64.1] 12dB SINAD = -120dBm (54 on RX1) [From: 172.16.64.1] 30dB S/N = -106dBm (72 on RX0) [From: 172.16.64.1] 30dB S/N = -106dBm (72 on RX1) [From: 172.16.64.1] 40dB S/N = -90dBm (114 on RX0) [From: 172.16.64.1] 40dB S/N = -90dBm (114 on RX1) [From: 172.16.64.1] –40dBm = (214) on RX0) [From: 172.16.64.1] –40dBm = (214) on RX1) [From: 172.16.64.1] Suspend Tx = 0 seconds [From: 172.16.64.1] DHCP Client disabled [From: 172.16.64.1] DHCP Server disabled [From: 172.16.64.1] diag message level = 0 [From: 172.16.64.1] TFTP options = 512 (block size), 0 (interval) [From: 172.16.64.1] Internal GPS not found [From: 172.16.64.1] Modem FEC = on Adjustment / Alignment Procedures Receiver Injection Perform the following steps to adjust the receiver injection frequency: Step 1 Connect the RF output/input of HP8920 to the TX/RX antenna port of the radio and HP RF probe to the antenna port of the service monitor . Step 2 Enter the test frequency using the command ( For example “frequency=0,799,769”). Set the reference calibration using the command “reference calibration=128”. Measure the refmod voltage input to the tcxo (at JMP1). It should be close to 1.50 volts. Step 3 Select the monitor on TX measurement mode tune the measurement frequency to the injection frequency. (for example 814 MHz) Step 4 While monitoring the receiver injection frequency at RXINJ1, Select the reference calibration number by using “reference calibration = x”. Change the value of X (between 0-255) to obtain the minimum frequency error of< +/- 50 Hz. Record this value of x and the injection frequency on the Test Data Sheet. Step 5 While monitoring the 44.545 MHz 2nd injection frequency at U13 pin 4, adjust trimmer capacitor CV10 to midway between the points where the oscillation stops, then slightly turn to get the amplitude between -3 to 0 dBm. Measure the frequency and make sure that is between 44.500 and 44.590 Record this value on the Test Data Sheet. Receiver Adjustment Perform the following steps to adjust receiver: Step1 Set the monitor in spectrum analyzer mode; a. In the main menu select; Antenna, frequency 45 MHz, Reference level -20dBm, and span=100 kHz. b. In the RF Gen. menu select; Track, Offset frequency to; (receive frequency- 45 MHz) (For example 724MHz), Level -50 dBm, and Port/sweep RF out/invert. Step2 While monitoring C80 pin1, adjust the capacitors CV7, CV8, CV9, and CV11 to measure; flat, wide, and the maximum level of the signal. Step3 Set the monitor at RX mode; select the frequency: 769 MHz, Amplitude: -80, Atten: Hold Off, AFGen1 Freq: 1.00 kHz, AFGen1to: FM 5 kHz, AFGen2Freq: 1.00 kHz, AFGen2 to; Off, Filter1: 300 Hz HPF, Filter2: 3 kHz LPF, Ext Load R: 600 Ohm, Output Port: RF Out. Step 4 Connect audio probe to the HI audio port on service monitor. Step 5 While monitoring the recovered audio signal from pin 7 Of U9, Inject carrier signal with amplitude of -80 dBm, modulated with a 1 kHz test tone at +/- 5.0 k…

Text truncated - open the document above for the full version.

Page 1 of 15 Report No: 90892-24 MPE EVALUATION REPORT FOR THE F32789N25 7/800 MHZ 32K FIXED RADIO FCC OET Bulletin 65, Edition 97-01, ANSI / IEEE C95.1-1992, ANSI / IEEE C95.3-1992 & RSS102 Issue 3 June 2009 RF EXPOSURE COMPLIANCE DATE OF ISSUE: MARCH 24, 2011 PREPARED FOR: IP MobileNet LLC. 1221 E. Dyer Road, Suite 250 City: Santa Ana CA 92705 PREPARED BY: Eddie Wong CKC Laboratories, Inc. 110 N. Olinda Place Brea, CA 92823 W.O. No.: 90892 Date of test:December 24,2010 Report No.: 90892-24 This report contains a total of 19 pages and may be reproduced in full only. Partial reproduction may only be done with the written consent of CKC Laboratories, Inc. The results in this report apply only to the items tested, as identified herein. Page 2 of 15 Report No: 90892-24 TABLE OF CONTENTS Administrative Information .............................................................................................3 Summary of Results .........................................................................................................3 Approvals .........................................................................................................................3 Equipment Under Test .....................................................................................................3 Peripheral Devices ...........................................................................................................3 Specifications and Requirements .....................................................................................4 Summary of RF Exposure Conditions .............................................................................6 Report of Measurements ..................................................................................................7 Test Configuration ...........................................................................................................8 Test Procedure .................................................................................................................8 Reference Documents ......................................................................................................13 Appendix A: Photographs of the Test Setup Used ..........................................................14 Appendix B: Test Equipment List ...................................................................................15 Page 3 of 15 Report No: 90892-24 ADMINISTRATIVE INFORMATION PURPOSE OF TEST: To demonstrate the compliance of the F32789N25, 7/800 MHZ 32K FIXED RADIO with the RF Exposure Requirements for mobile devices. REPRESENTATIVE: Dan Cicchetti SUMMARY OF RESULTS VEHICLE MOUNTED ANTENNA For General Population / Uncontrolled Exposure, the Maximum Permissible Exposure (MPE) limit for the operating frequency range (793-805 MHz) is 0.53 mW/cm 2 . The data in this report demonstrates that this device complies with the Maximum Permissible Exposure (MPE) requirements set forth in 47 CFR §2.1091, §1.1310, OET Bulletin 65, Edition 97-01 and RSS102 Issue 3 June 2009 Radio Frequency (RF) Exposure Compliance of Radiocommunication Apparatus (All Frequency Bands)for General Population / Uncontrolled Exposure environment at a minimum distance of 10 cm through a ground plane from the vehicle mounted antenna (operator requirement), and for General Population / Uncontrolled Exposure environment at a minimum distance of 70 cm laterally from the vehicle mounted antenna (bystander requirement). APPROVALS Steve Behm, Director of Engineering Services EQUIPMENT UNDER TEST Function Manufacturer Model # S/N 7/800 MHz 32k fixed radio IPMobileNet F32789N25 NA PERIPHERAL DEVICES The EUT was tested with the following peripheral device(s): None Page 4 of 15 Report No: 90892-24 SPECIFICATIONS AND REQUIREMENTS The following summarizes the specifications and requirements for Maximum Permissible Exposure for mobile devices applied during RF exposure evaluation. Excerpt from 47 CFR §1.1310 Radio Frequency radiation exposure limits RSS102 Issue 3 June 2009 Radio Frequency (RF) Exposure Compliance of Radiocommunication Apparatus (All Frequency Bands) 4.2 Table 1. - Limits for Maximum Permissible Exposure (MPE) (A) Limits for Occupational/Controlled Exposures Frequency Range (MHz) Electric Field Strength (V/m) Magnetic Field Strength (A/m) Power Density (mW/cm 2 ) Averaging Time (Minutes) 0.3-3.0 614 1.63 *(100) 6 3.0-30 1842/f 4.89/f *(900/f2) 6 30-300 61.4 0.163 1 6 300-1500 --- --- f/300 6 1500- 100,000 --- --- 5 6 (B) Limits for General Population/Uncontrolled Exposure Frequency Range (MHz) Electric Field Strength (V/m) Magnetic Field Strength (A/m) Power Density (mW/cm 2 ) Averaging Time (Minutes) 0.3-1.34 614 1.63 *(100) 30 1.34-30 824/f 2.19/f *(180/f2) 30 30-300 27.5 0.073 0.2 30 300-1500 --- --- f/1500 30 1500- 100,000 --- --- 1 30 f = frequency in MHz * = Plane-wave equivalent power density NOTE 1 to Table 1: Occupational/controlled limits apply in situations in which persons are exposed as a consequence of their employment provided those persons are fully aware of the potential for exposure and can exercise control over their exposure. Limits for occupational/controlled exposure also apply in situations when an individual is transient through a location where occupational/controlled limits apply provided he or she is made aware of the potential for exposure. Page 5 of 15 Report No: 90892-24 NOTE 2 to Table 1: General population/uncontrolled exposures apply in situations in which the general public may be exposed, or in which persons that are exposed as a consequence of their employment may not be fully aware of the potential for exposure or can not exercise control over their exposure. Page 6 of 15 Report No: 90892-24 SUMMARY OF RF EXPOSURE CONDITIONS Operating Frequency Range (MHz) 793-805 Rated Power Output (Watts) 5.4 (conducted) MPE Limit = f/1500 (mW/cm 2 ) = 0.53 (mW/cm 2 ) All Frequency Ranges Operator Exposure Condition Occupational / Controlled Exposure X General Populat…
