MI7-B64700G25700/800 MHz Base Station

I I P P S S e e r r i i e e s s B B 6 6 4 4 7 7 0 0 0 0 G G 2 2 5 5 7 7 0 0 0 0 M M H H z z B B a a s s e e S S t t a a t t i i o o n n P P r r o o d d u u c c t t O O w w n n e e r r ’ ’ s s M M a a n n u u a a l l Version Date: November 17, 2004 Document #: 516.80531.POM Version: X1 Copyright 2004 IPMobileNet, Inc. . 16842 Von Karman Avenue, Suite 200  Irvine, CA 92606 Voice: (949) 417-4590 Fax: (949) 417-4591 489287.DOC Page ii Operation is subject to the following two (2) conditions: (1) this devise may not cause interference, and (2) this device must accept any interference, including interference that may cause undesired operation of this device. The following U.S. Patents apply to this product: U.S. Patent numbers 5,640,695,6,018,647,6,243,393 Information contained in this document is subject to change without notice. All rights reserved. Reproductions, adaptations, or translation without prior written permission is prohibited, except as allowed under copyright laws. TABLE OF CONTENTS 489287.DOC Page 2 SECTION 1: OVERVIEW............................................................................................................................. 3 Product Description....................................................................................................................... 3 Product Functionality.................................................................................................................... 3 External Features........................................................................................................................... 4 SECTION 2: INSTALLATION INSTRUCTIONS......................................................................................... 6 Base Station Setup........................................................................................................................ 6 Rack Mounting Unit ............................................................................................................. 6 Installation Overview..................................................................................................................... 7 Installation Instructions................................................................................................................. 8 Interconnection Diagram ..................................................................................................... 8 Base Station Installation into Rack Unit .............................................................................. 8 Single Base Station Configuration .................................................................................... 10 Multiple Base Station Configurations ................................................................................ 10 Typical Antenna Configuration .......................................................................................... 11 Near-Field Exclusion Zone................................................................................... 12 Power Connection ............................................................................................................. 13 Post Installation Checklist ................................................................................................. 14 SECTION 3: PROGRAMMING INSTRUCTIONS...................................................................................... 15 Overview ....................................................................................................................................... 15 HyperTerminal Setup................................................................................................................... 15 Additional Programming Needs................................................................................................. 17 SECTION 4: FACTORY TEST PROCEDURE.......................................................................................... 18 Equipment List............................................................................................................................. 18 Programming and Configuring the Base Station..................................................................... 19 Adjustment / Alignment Procedure............................................................................................ 20 Startup ............................................................................................................................. 20 Receiver Injection .............................................................................................................. 20 Receiver ............................................................................................................................ 20 Diversity Reception ........................................................................................................... 21 Receive Data ..................................................................................................................... 22 Exciter ............................................................................................................................. 23 Power Amplifier ................................................................................................................. 23 SECTION 5: FCC LABEL.......................................................................................................................... 24 700 MHZ Base Station FCC Label Placement........................................................................... 24 700 MHZ Base Station FCC Label............................................................................................... 24 SECTION 6: 700 MHZ TEST DATA SHEET.............................................................................................. 25 SECTION 1: OVERVIEW 489287.DOC Page 3 Product Description  The content of this manual applies to all frequency ranges of the IPSeries Base Stations, unless otherwise specified. This manual will note key differ…

Text truncated - open the document above for the full version.

CHAPTER 3: PROGRAMMING INSTRUCTIONS Typical Antenna Configuration Base station antenna configurations may vary from site to site depending on the type of mounting structure, the presence of existing antennas, mounting structure loading limitations, etc. The following information is provided as a guideline for a typical scenario. Figure 6: Typical Antenna Configuration An otpimal antenna mounting configuration is shown in the figure above. The transmit antenna and receive antennas are located at different elevations. This vertical separation provides the greatest degree of isolation between transmit and receive antennas. The three (3) receive antennas are mounted at the same elevation and are oriented in a 120 degree triangular pattern. A triangular orientation of the receive antennas provides optimal diversity performance in an omnidirectional pattern.  The greater the separation between receive antennas, the greater the diversity gain; therefore, the distance between antennas should be made as great as is practical. In the event only two (2) receive antennas are used (i.e. a dual receiver diversity reception system), the receive antennas should be mounted in a broadside orientation with respect to the radio coverage area.  To prevent the antenna’s radiation pattern from becoming distorted, the immediate area surrounding each antenna should be kept free from conductive objects (i.e. other antennas, guy wires, or the tower structure itself). The amount of clear area required to prevent pattern distorion is equal to the antenna’s near-field exclusion. CHAPTER 3: PROGRAMMING INSTRUCTIONS Near-Field Exclusion Zone The near-field exclusion zone (NFEZ) is the required distance between antennas to any other surfaces to improve transmit and receive performance. The large radio frequency field that builts up around the antenna upon transmitting is essential for proper data transmission. It can be severely corrupted by metal objects in the NFEZ. As seen in the previous figure, the transmitting antenna is placed at the very top of the tower especially if the base station will be required to transmit in all directions (omni-directional).  If the transmitting antenna cannot be positioned on the top of the tower and must be placed on a tower arm, then it is important to realize that coverage will be shaded in the area behind the tower from the anetnna. The installer must be certain that the area of desired coverage is away from the tower and not behind it. Receiving and transmitting antennas should not be on the same plane, especially VHF and UHF systems where the frequency splits are relatiely small. An antenna in the near-field exclusion zone that is tuned for the same frequency as the transmitting antenna will reradiate the signal and create unwanted effects on the transmittal signal. The receivers will be inundated by high levels of radio frequency energy from the transmitting antenna. This is why it is important to include vertical separation in the plan for the base station installation. The isolation provided by 30 feet of vertical spearation can dramatically improve the performance of the base station. An antenna’s NFEZ can be calculated as follows: D = 2d 2 λ Where: D is the distance to the anenna’s near field boundary d is the antenna’s longest linear dimension (in the same units as D) λ is the wavelength (in the same units as D) Maximizing the distance between the receive antennas will provide maximum diversity gain and will minimize antenna radiation pattern distortion. CHAPTER 3: PROGRAMMING INSTRUCTIONS Power Connection Figure 7: Base Station Power Connection NOTE : The base station shown in the figure only displays Ethernet connectivity and is not display the actual 700 MHz base station. To connect the base station power connector, perform the following steps: Step 1 Connect the power cable to the base station power supply connection (as shown in the figure above). Step 2 Connect the wires to the appropriate output (+ and -) output posts on the power supply (as shown in the figure above). CHAPTER 3: PROGRAMMING INSTRUCTIONS Post Installation Checklist The following table lists the tasks that should be performed upon completing installation. TABLE 4: POST INSTALLATION CHECKLIST NO. CHECKLIST ITEM ; 1 Scope out the entire area setup to locate any obvious problem areas. … 2 Check antenna routing for safety concerns and near-field boundary setup. … 3 Use tie wraps, where possible to ensure that all cables routed in parallel are bundled together. … 4 Perform appropriate testing to ensure base station works properly. …  Once installation is complete make sure the area is clear of debris that would prevent proper airflow and ventilation. Overview  This section applies to all frequency ranges of the IPSeries Base Stations. Important! The base station’s IP address must be known prior to performing the procedures in this section. The programming procedure should be performed when it is necessary to upgrade a base station’s Firmware or to change the operating parameters to suit the customer’s needs before putting into complete operation. HyperTerminal Setup To communicate and access parameters from the base station, the base station must be connected to a HyperTerminal session setup on a personal computer. Perform the following steps to setup the base station for communication with HyperTerminal: Step 1 Connect the base station and the PC as shown in the figure below. CHAPTER 3: PROGRAMMING INSTRUCTIONS Figure 8: Base Station-to-HyperTerminal Connection Diagram NOTE : The base station shown in the figure only displays Ethernet connectivity and is not display the actual 700 MHz base station. Step 2 Power on the PC. Step 3 Power on the base station using the front panel power switch. Step 4 On the PC’s desktop, click on the Start button and select Accessories, Communications, and HyperTerminal. Step 5 At the Connection Description window enter IPMNBS and click on the OK button. Step 6 At the Co…

Text truncated - open the document above for the full version.

Response to E04-000094-2 1. An updated manual and confidentiality letter have been uploaded with the revised FCC ID number. 2. A revised test report has been uploaded with additional information regarding the frequency stability. 3. A revised test report has been uploaded with additional information regarding this issue.

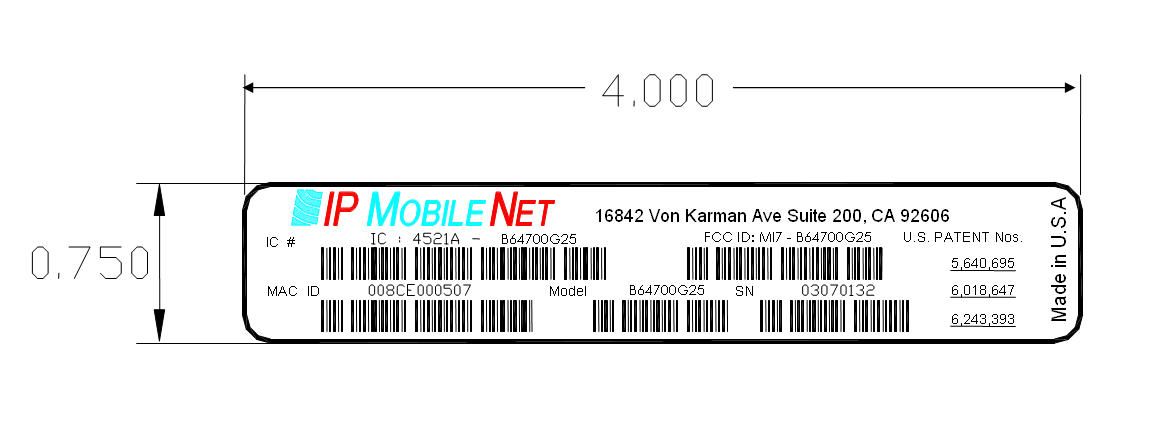

700 MHZ Base Station FCC Label Placement 700 MHZ Base Station FCC Label Model SNMAC ID 6,243,393 6,018,647 5,640,695 U.S. PATENT Nos. Made in U.S.A 16842 Von Karman Ave Suite 200, CA 92606

Equipment List The following table lists the equipment required to perform the 700 MHZ Base Station Factory Test Procedure. CHECKLIST OF REQUIRED MATERIAL FOR PRELIMINARY TESTING OF THE IPSeries BASE STATION NO. REQUIRED TOOLS ; 1 Calibrated Base Station System – Consisting of the following components: (1) Appropriate version IPSeries Base Station to be tested (2) Desktop or laptop computer configured as an Internet Protocol Network Controller (IPNC) (3) Corresponding IPSeries Mobile radio (If an 700 MHZ base station, use IP8 mobile radio) (4) Desktop or laptop computer with two (2) available serial ports and Microsoft Windows 95 or greater and IPMobileNet Dial-Up Networking, IPMessage software (SLIP2IPMN.exe), and HyperTerminal for base station installed … 2 Comm Test Set (HP 8920A or B) … 3 High Frequency Probe (85024A) … 4 Power Supply for 85024A Probe (HP1122A) … 5 Four (4) Channel Scope (Tektronix TDS 460A) … 6 General Purpose Scope Probe … 7 Digital multi-meter Tektronix Fluke (DMM912 77) … 8 DC power supply with ammeter, 13.8V, 12 amps or more (Astron VS12M or equivalent) … 9 100-watt dummy load/attenuator (Pasternack PE7021-40 or equivalent) … 10 Four (4) antennas (generic mag mounts) tuned to frequency or transceiver … 11 Serial cable DB9M – DB9F connectors (generic) … 12 Input/Output (I/O) Board (IPMN p/n: 502-80081) … 13 IPSeries Base Station power cable specified for use with the specific base station being used … 14 Three (3) serial DB9F-DB9M Null Modem cables …  Programming and Configuring the Base Station Important! The base station’s IP address must be known prior to performing the procedures in this section. The programming procedure should be performed when it is necessary to upgrade a base station’s Firmware or to change the operating parameters to suit client needs. Viewing the Base Station’s Configuration Data Step 1 At the HyperTerminal window, type in the appropriate password and press [ENTER]. Step 2 Type ? and press [ENTER]. The following example displays in the HyperTerminal window: Adjustment / Alignment Procedures Make appropriate notations of any items that require attention during this procedure. This information is needed later during the repair process. Startup Step 1 Remove the base station cover placing the screws in a location where they will not be misplaced. Step 2 Connect the base station to the appropriate components. Step 3 Power up the base station and computer. The power supply ammeter must read 1.2 amps or less with a 13.8 VDC input. Receiver Injection Step 1 Connect the base station to gps antenna and wait until the frequencies of OCXO and VCTCXOs are corrected and the error is below 0.1 ppm. You can check the error by typing gpsstatus. Step 2 Using the high frequency prob,at AL7 check the amplitude of the signal. The amplitude of the injection frequency should read approximately 0 dBm ±1 dBm. Receiver Step 1 Using the high frequency probe, monitor the 44.545 MHz second injection frequency at AU4 pin 3, adjust trimmer capacitor (C22) to the center of the oscillator’s oscillation range. The amplitude level of pin 3 of AU4 should read between +5 and +10 dBm. Step 2 Inject an on-frequency signal at a level of –80 dBm, modulated with a 1 KHz test tone at ±5.0 KHz deviation into the receiver under test. Step 3 Check the receiver’s sensitivity, verifying that the SINAD is 12 dB or better at a maximum level of –119 dBm (-120 is typical).    Diversity Reception Step 1 Inject an on-frequency signal at a level equal to Receiver 1 12dB SINAD level, modulated with a 1 KHz test tone at ±5.0 KHz deviation into Receiver 1. Step 2 While monitoring TP1 with the digital multi-meter, adjust RSSI1 low adjust potentiometer (R12) for a reading of 0.750 VDC ±10 mV. Step 3 Increase the amplitude of the signal by 50 dBm. Step 4 While monitoring TP1 with the digital multi-meter, adjust RSSI1 high adjust potentiometer (R11) for a reading of 2.75 VDC ±10 mV. Adjustments R11 and R12 are interactive adjustments, therefore continue adjustments until the DC voltage at TP1 is 0.750 VDC for the receiver’s 12 dB SINAD level and 2.75 VDC for a 50 dBm increase from the receiver’s 12 dB SINAD level. Step 5 Inject an on-frequency signal at a level equal to Receiver 2 12dB SINAD level, modulated with a 1 KHz test tone at ±5.0 KHz deviation into Receiver 2. Step 6 While monitoring TP2 with the digital multi-meter, adjust RSSI1 low adjust potentiometer (R10) for a reading of 0.750 VDC ±10 mV. Step 7 Increase the amplitude of the signal by 50 dBm. Step 8 While monitoring TP2 with the digital multi-meter, adjust RSSI1 high adjust potentiometer (R9) for a reading of 2.75 VDC ±10 mV. Adjustments R9 and R10 are interactive adjustments, therefore continue adjustments until the DC voltage at TP2 is 0.750 VDC for the receiver’s 12 dB SINAD level and 2.75 VDC for a 50 dBm increase from the receiver’s 12 dB SINAD level. Step 9 Inject an on-frequency signal at a level equal to Receiver 3 12dB SINAD level, modulated with a 1 KHz test tone at ±5.0 KHz deviation into Receiver 3. Step 10 While monitoring TP3 with the digital multi-meter, adjust RSSI1 low adjust potentiometer (R33) for a reading of 0.750 VDC ±10 mV. Step 11 Increase the amplitude of the signal by 50 dBm. Step 12 While monitoring TP3 with the digital multi-meter, adjust RSSI1 high adjust potentiometer (R35) for a reading of 2.75 VDC ±10 mV. Adjustments R33 and R35 are interactive adjustments, therefore continue adjustments until the DC voltage at TP3 is 0.750 VDC for the receiver’s 12 dB SINAD level and 2.75 VDC for a 50 dBm increase from the receiver’s 12 dB SINAD level. Step 13 Inject on-frequency signal at a level of –80 dBm, modulated with a 1 KHz test tone at ±5.0 KHz deviation into Receiver 1.    Step 14 While monitoring the AC voltage at RXMOD1,pin 4 of AU6C adjust audio 1 AC adjustment potentiometer (R72) for 350 mVRMS (±1 mV). Step 15 While monitoring the DC voltage at RXMOD1,pin4 of AU6C adjust audio 1 DC adjustment po…

Text truncated - open the document above for the full version.

Page 1 of 46 Report No.: FC04-067A ADDENDUM TO IP MOBILENET INC. TEST REPORT FC04-067 FOR THE 700/800 MHZ BASE STATION, B64700G25 FCC PART 90 COMPLIANCE DATE OF ISSUE: NOVEMBER 3, 2004 PREPARED FOR: IP MobileNet Inc. 16842 Von Karman Irvine, CA 92606 PREPARED BY: Mary Ellen Clayton CKC Laboratories, Inc. 5473A Clouds Rest Mariposa, CA 95338 P.O. No.: 003611-00 W.O. No.: 82622 Date of test: October 11-16, 2004 Report No.: FC04-067A This report contains a total of 46 pages and may be reproduced in full only. Partial reproduction may only be done with the written consent of CKC Laboratories, Inc. The results in this report apply only to the items tested, as identified herein. Page 2 of 46 Report No.: FC04-067A TABLE OF CONTENTS Administrative Information .............................................................................................3 Summary of Results .........................................................................................................4 Conditions for Compliance ..............................................................................................4 Approvals .........................................................................................................................4 Equipment Under Test (EUT) Description ......................................................................5 Equipment Under Test .....................................................................................................5 Peripheral Devices ...........................................................................................................5 Temperature and Humidity During Testing.....................................................................6 FCC 2.1033(c)(3) User’s Manual ....................................................................................6 FCC 2.1033(c)(4) Type of Emissions ..............................................................................6 FCC 2.1033(c)(5) Frequency Range................................................................................6 FCC 2.1033(c)(6) Operating Power.................................................................................6 FCC 2.1033(c)(7) Maximum Power Rating ....................................................................6 FCC 2.1033(c)(8) DC Voltages .......................................................................................6 FCC 2.1033(c)(9) Tune-Up Procedure ............................................................................6 FCC 2.1033(c)(10) Schematics and Circuitry Description..............................................6 FCC 2.1033(c)(11) Label and Placement ........................................................................6 FCC 2.1033(c)(12) Submittal Photos ..............................................................................6 FCC 2.1033(c)(13) Modulation Information ...................................................................6 FCC 2.1033(c)(14)/2.1046/90.541(b) - RF Power Output ..............................................7 FCC 2.1033(c)(14)/2.1047(b) - Audio Frequency Response...........................................8 FCC 2.1033(c)(14)/2.1047(b) - Modulation Limiting Response.....................................8 FCC 90.209(b)(5) Bandwidth Limitations.......................................................................9 FCC 90.210(g) Emissions Mask ......................................................................................13 FCC 2.1033(c)(14)/2.1051/90.210(g) - Spurious Emissions at Antenna Terminal .........20 FCC 2.1033(c)(14)/2.1053/90.210(g) - Field Strength of Spurious Radiation................23 FCC 2.1033(c)(14)/2.1055/90.539 - Frequency Stability................................................28 FCC 90.543 - Adjacent Channel Power...........................................................................30 FCC 90.543 ......................................................................................................................46 Page 3 of 46 Report No.: FC04-067A ADMINISTRATIVE INFORMATION DATE OF TEST: October 11-16, 2004 DATE OF RECEIPT: October 11, 2004 PURPOSE OF TEST: To demonstrate the compliance of the 700/800 MHz Base Station, B64700G25 with the requirements for FCC Part 90 devices. Addendum A is to revise the Frequency Stability data and add 90.543(e) data. TEST METHOD: FCC Part 90 FREQUENCY RANGE TESTED: 4 MHz-8 GHz MANUFACTURER: IP MobileNet Inc. 16842 Von Karman Irvine, CA 92606 REPRESENTATIVE: Eric Tanner TEST LOCATION: CKC Laboratories, Inc. 110 Olinda Place Brea, CA 92621 Page 4 of 46 Report No.: FC04-067A SUMMARY OF RESULTS As received, the IP MobileNet Inc. 700/800 MHz Base Station, B64700G25 was found to be fully compliant with the following standards and specifications: United States
FCC Part 90 CONDITIONS FOR COMPLIANCE No modifications to the EUT were necessary to comply. APPROVALS Steve Behm, Director of Engineering Services QUALITY ASSURANCE:TEST PERSONNEL: Joyce Walker, Quality Assurance Administrative Manager Stuart Yamamoto, EMC Engineer Eddie Wong, EMC Engineer Page 5 of 46 Report No.: FC04-067A EQUIPMENT UNDER TEST (EUT) DESCRIPTION The customer declares the EUT tested by CKC Laboratories was a production unit EQUIPMENT UNDER TEST Base Data Radio Manuf: IP MobileNet Inc. Model: B64700G25 Serial: 04363367 FCC ID: MI7 (pending) PERIPHERAL DEVICES The EUT was tested with the following peripheral device(s): Laptop Computer Manuf: Dell Corporation Model: PP02L Inspiron I2500 Serial: 5TZ6611 DC Power Supply Manuf: Samplex America Model: SEC 1223 Serial: 03061-0D01-0632 High Power Termination Manuf: Weinschel Corporation Model: 45-40-43 Serial: MN216 GPS Antenna Manuf: San Jose Navigation, Inc. Model: SM-25 Serial: 2569790 High Power Attenuator Manuf: Weinschel Corporation Model: 53-30-34 Serial: MG378 Page 6 of 46 Report No.: FC04-067A TEMPERATURE AND HUMIDITY DURING TESTING The temperature during testing was within +15
C and + 35
C. The relative humidity was be…

Text truncated - open the document above for the full version.

FCC 90.541(b) RF POWER OUTPUT PHOTOGRAPH SHOWING DIRECT CONNECT TEST SETUP PHOTOGRAPH SHOWING RADIATED EMISSIONS PHOTOGRAPH SHOWING TEMPERATURE TESTING PHOTOGRAPH SHOWING ADJACENT CHANNEL POWER
