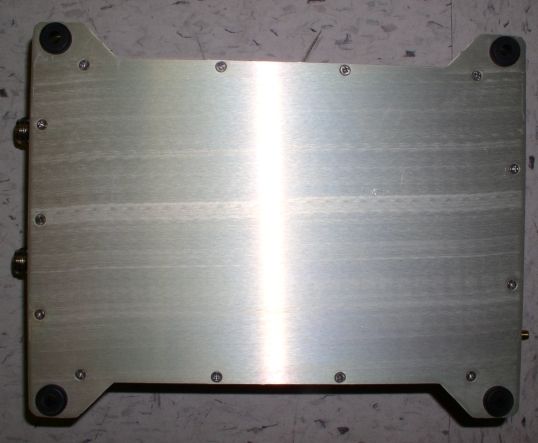

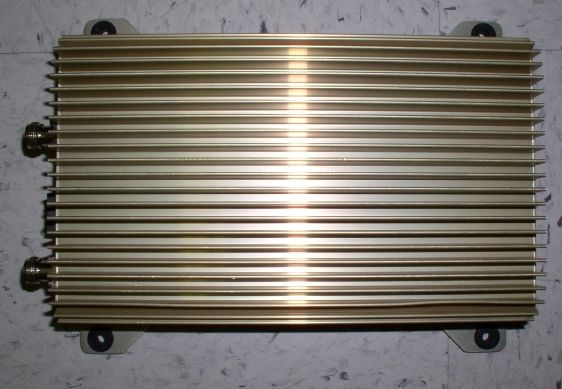

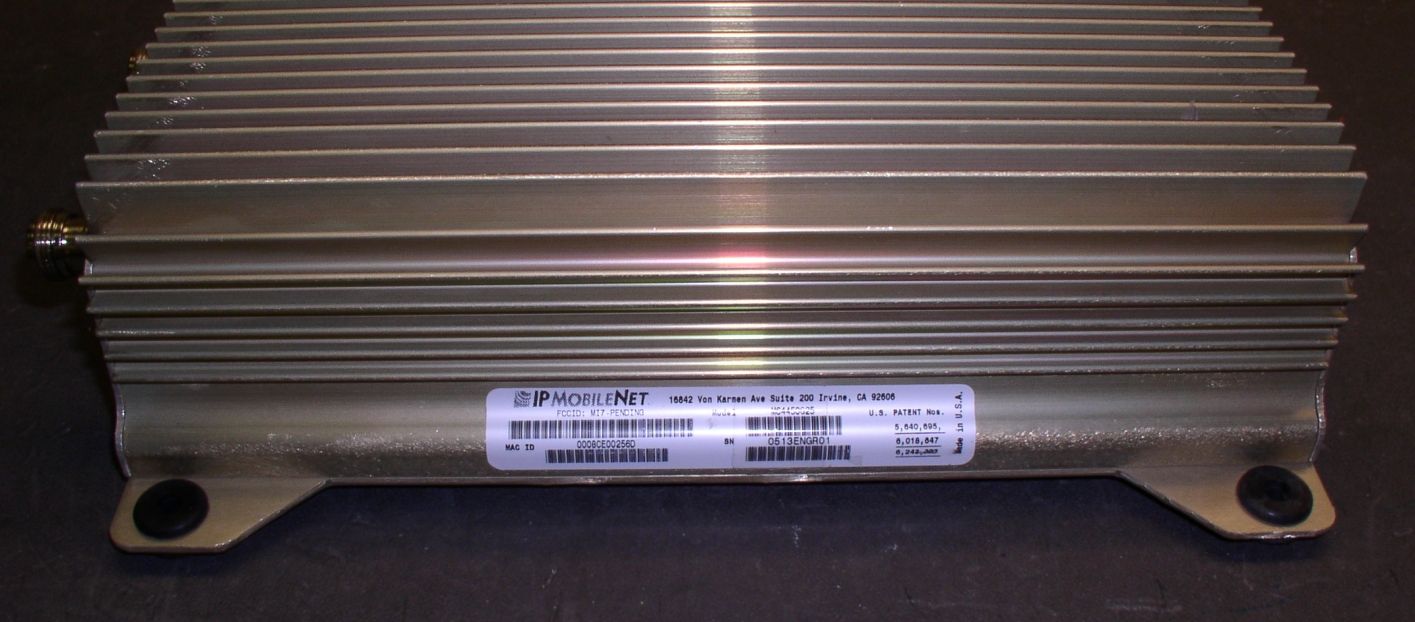

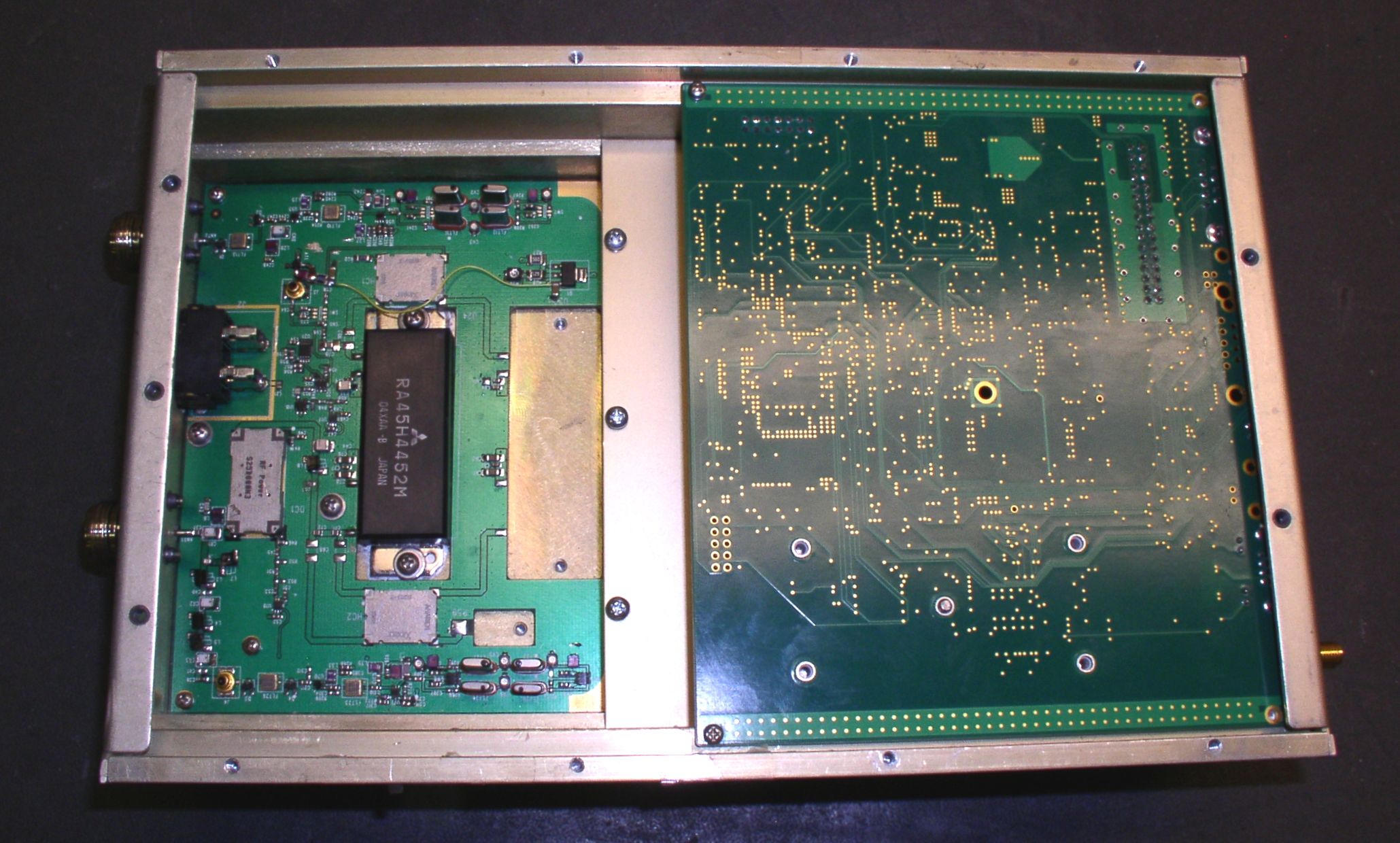

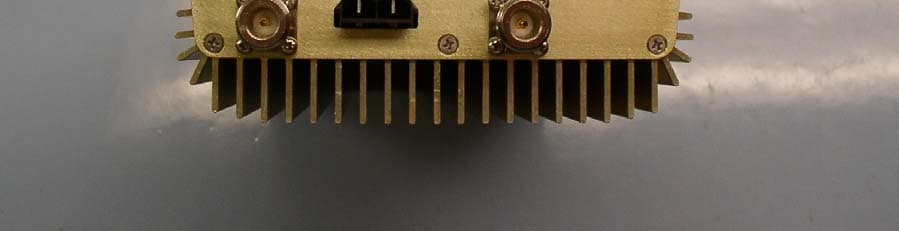

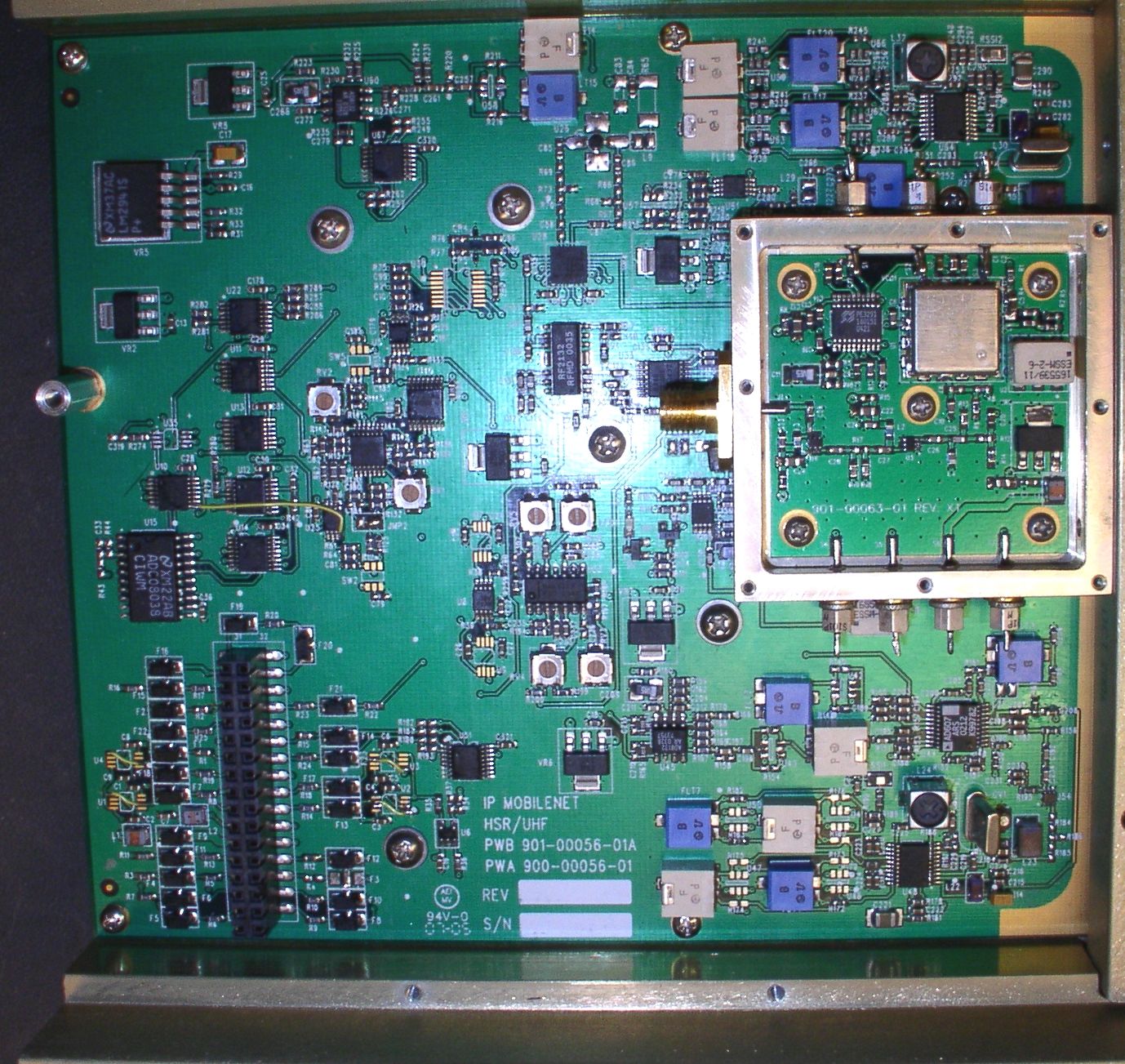

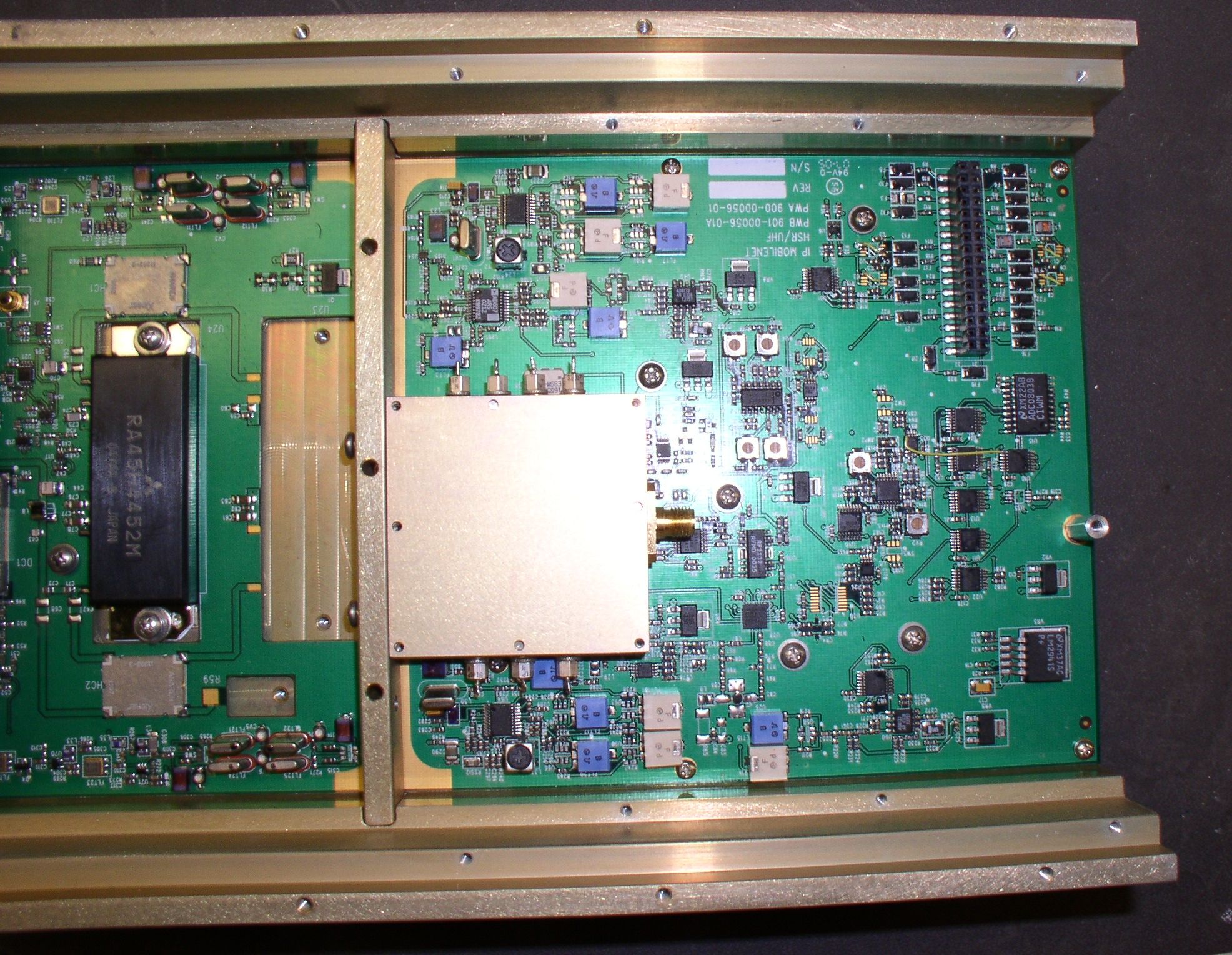

MI7-M64450G25High Speed Mobile Radio

MDCMR-Guide.doc\4-Sep-03 Page 1 of 20 INSTALLATION GUIDE Mobile Data Computer for Communication with the IPSeries Mobile Radio INSTALLATION GUIDE CONTENTS: Section Title Page ƒ MDC-to-Mobile Radio Illustration ............................................. 2 ƒ Installation Requirements......................................................... 2 ƒ SLIP2IPMN Dial-up Installation ................................................ 3 ƒ Modem Settings ....................................................................... 6 ƒ SLIP2IPMN Dial-up Settings for Win 98/Me............................. 7 ƒ Creating a SLIP2IPMN Shortcut for Win 98/Me ....................... 9 ƒ SLIP2IPMN Dial-up Settings for Win 2000............................. 10 ƒ SLIP2IPMN Dial-up Settings for Win NT................................ 13 ƒ Creating a SLIP2IPMN Shortcut for Win NT .......................... 15 ƒ SLIP2IPMN Dial-up Settings for Win XP ................................ 16 ƒ MDC-To-Radio Connection and Settings ............................... 17 ƒ DHCP Setting for IPMN Mobile Radio without Ethernet Port. 17 ƒ Mobile Radio-to-VIU-to-MDC Illustration ................................ 19 ƒ Mobile Radio-to-VIU-to-MDC Connection .............................. 19 ƒ VIU Address Programming..................................................... 20 IPMN p/n: 516.80310.IG Version: A 16842 Von Karman Avenue, Suite 200, Irvine, CA 92606 Voice: (949) 417-4590 Fax: (949) 417-4591 Copyright 2001-2003 IPMobileNet, Inc. Notice: While reasonable efforts were made to ensure that the information in this document was complete and accurate at the time of printing, IPMobileNet, Inc. can assume no responsibility for any inaccuracies. Changes and corrections to the information within this document may be incorporated into future releases. MDCMR-Guide.doc\4-Sep-03 Page 2 of 20 Mobile Data Computer-to-Mobile Radio Illustration Installation Requirements Mobile Radio-to-MDC • MDC (Mobile Data Computer) with an available serial communication port and Windows 98 tm or greater installed • IPMobileNet (IPMN) IPSeries Mobile Radio • 20-foot serial cable DB9F – DB9M (BlackBox p/n: EDN12J-0020-MF) to connect MDC to the mobile radio • IPMobileNet Radio SLIP Port Driver Installation diskette (SLIP2IPMN.exe) • IPNC (Internet Protocol Network Controller) VoiceServer Address Mobile Radio-to-VIU-to-MDC (Refer to illustration and instructions on pages 18-19) In addition to the above, the following components will be required for adding a Voice Interface Unit (VIU) to the configuration: • VIU (Voice Interface Unit) • 10-foot serial cable DB9F – DB9M (BlackBox p/n: EDN12J-0010-MF) to connect VIU to the mobile radio (included) NOTE: IP Addressing is site-dependent. MDCMR-Guide.doc\4-Sep-03 Page 3 of 20 SLIP2IPMN Dial-up Network Connection Installation This section provides step-by-step instructions on how to install the IPMN Radio SLIP Port Driver onto the MDC for connection to an IPMN IPSeries Mobile Radio. This setup will also facilitate adding a VIU to the configuration. It will also provide instructions on configuration and settings for the SLIP port to function properly. NOTE : The screens shown were captured using Windows 98 tm . Differences between Windows versions will be noted. Step 1 At the computer desktop, double click on the MyComputer icon. Step 2 Insert the IPMN Radio SLIP Port Driver Installation diskette labeled SLIP2IPMN.exe in the floppy drive. Step 3 Double click on the A:\ drive. Step 4 Double click on the SLIP2IPMN file. Step 5 At the WinZip Self-Extractor window, click on the U nzip button to begin the unzip process. NOTE : The zipped file will self-extract and install the radio port driver files on the MDC. Step 6 Click on the OK button after self-extraction is complete. Step 7 Click on the C lose button to continue. Step 8 Close the A:\ drive folder by clicking on the ⌧ at the top right-hand corner of the window.  6 file(s) unzipped successfully SLIP2IPMN MDCMR-Guide.doc\4-Sep-03 Page 4 of 20 Step 9 At the desktop click on the Start button, select Settings, and C ontrol Panel. Step 10 Double click on the Modems icon. For Windows 2000 & XP, click on the Phone and Modem Options icon. Step 11 In the Modem Properties window, under the General tab, click on the A dd... button to add a modem. For Windows 2000 & XP, on the Phone and Modem Options window, under the Modems tab, click on the Add... button. For Windows Me, 2000, XP & NT , skip to Step 13 on this page. Step 12 On the Install New Modem window, select O ther, then click on the Next > button. Step 13 On the next Install New Modem window, select D on't detect my modem, then click on the Next> button. Step 14 On the next Install New Modem window, click on the H ave Disk... button. Dial-Up Networking Parallel Cable between 2 PCs Dial-Up Networking Serial Cable between 2 PCs Standard 300 bps Modem Standard 1200 bps Modem Standard 2400 bps Modem Standard 9600 bps Modem Standard 14400 bps Modem MDCMR-Guide.doc\4-Sep-03 Page 5 of 20 Step 15 On the Install From Disk window, click on the Browse... button. Step 16 In the Open window, select the following path: C:\Program Files\IPMobileNet Click on the NullModemFast.inf file, then click on the OK button (or in some cases the Open button). Step 17 On the Install From Disk window, click on the OK button. Step 18 On the Install New Modem window (or in some cases Add New Hardware Wizard window), click on the Next> button to continue. Step 19 On the next Install New Modem window, under Select the port to use with this modem: select Communication Port (COM1) or the next available COM port, then click on the Next> button. For Windows 2000 & XP , a Digital Signature message may display. Click on the Yes button to continue. Step 20 On the next Install New Modem window, once install is complete, click on the Finish button. Step 21 On the Modems Properties window, under the General tab, under The following modems are set up on the computer: select IPMob…

Text truncated - open the document above for the full version.

I I P P S S e e r r i i e e s s M M 6 6 4 4 4 4 5 5 0 0 G G 2 2 5 5 H H i i g g h h S S p p e e e e d d M M o o b b i i l l e e R R a a d d i i o o P P r r o o d d u u c c t t O O w w n n e e r r ’ ’ s s M M a a n n u u a a l l Date Released: March 20, 2006 Document #: 516.80539.POM Revision: A Copyright 2005 IPMobileNet, Inc. 16842 Von Karman Avenue, Suite 200  Irvine, CA 92606 Voice: (949) 417-4590 Fax: (949) 417-4591 M64450G25-FCCRpt.doc Page ii The term “IC”: before the radio certification number only signifies that Industry of Canada technical specifications were met. Operation is subject to the following two (2) conditions: (1) this devise may not cause interference, and (2) this device must accept any interference, including interference that may cause undesired operation of this device. The following U.S. Patents apply to this product: U.S. Patent numbers 5,640,695,6,018,647,6,243,393 Information contained in this document is subject to change without notice. All rights reserved. Reproductions, adaptations, or translation without prior written permission is prohibited, except as allowed under copyright laws. TABLE OF CONTENTS M64450G25-FCCRpt.doc Page 2 SECTION 1: OVERVIEW.......................................................................................................................... 3 Product Description.................................................................................................................... 3 SECTION 2: SETUP AND CONFIGURATION METHODS..................................................................... 5 High Speed Mobile Radio Setup and Configuration Method.................................................. 5 Mobile Radio-to-Mobile Computer Setup ......................................................................... 5 SECTION 3: INSTALLATION INSTRUCTIONS...................................................................................... 6 Installation Overview.................................................................................................................. 6 Installation Instructions.............................................................................................................. 8 Pre-Installation Guidelines ............................................................................................... 8 Mounting the High Speed Mobile Radio .......................................................................... 9 Serial Cable Connection and Routing ............................................................................ 10 Ethernet Setup ............................................................................................................... 10 Delay Timer Installation ................................................................................................. 10 Switch Installation (DPST Heavy Duty Toggle) ............................................................. 12 Mobile Radio Power Supply Installation ......................................................................... 13 Antenna Configuration ................................................................................................... 14 Post Installation Checklist .............................................................................................. 16 Mobile Installation Layout Diagrams...................................................................................... 17 Preliminary Testing and Troubleshooting.............................................................................. 19 Checklist of Requirement Materials ............................................................................... 19 Base Station Setup for Testing ...................................................................................... 20 Preliminary Test Procedure and Troubleshooting................................................................ 21 Confirming High Speed Mobile Radio Receiver Sensitivity ........................................... 24 SECTION 4: FACTORY TEST PROCEDURE....................................................................................... 25 Equipment List ......................................................................................................................... 25 Programming and Configuring Mobile Radio........................................................................ 26 Test Connections...................................................................................................................... 27 Test Equipment .............................................................................................................. 27 Mobile Radio Connections ............................................................................................. 27 Receiver Alignments and Tests............................................................................................... 28 TCXO Operation ............................................................................................................ 28 Receiver Injection ........................................................................................................... 28 45 MHz Filters – Waveform ........................................................................................... 28 Receiver 12 dB SINAD .................................................................................................. 29 Receivers Minimum Distortion ....................................................................................... 30 Data Quality and Message Success Rate ..................................................................... 31 Audio AC and DC Voltages and Balances ..................................................................... 32 Receiver Calibration ....................................................................................................... 33 Transmitter Alignment Tests................................................................................................... 35 Transmitter …

Text truncated - open the document above for the full version.

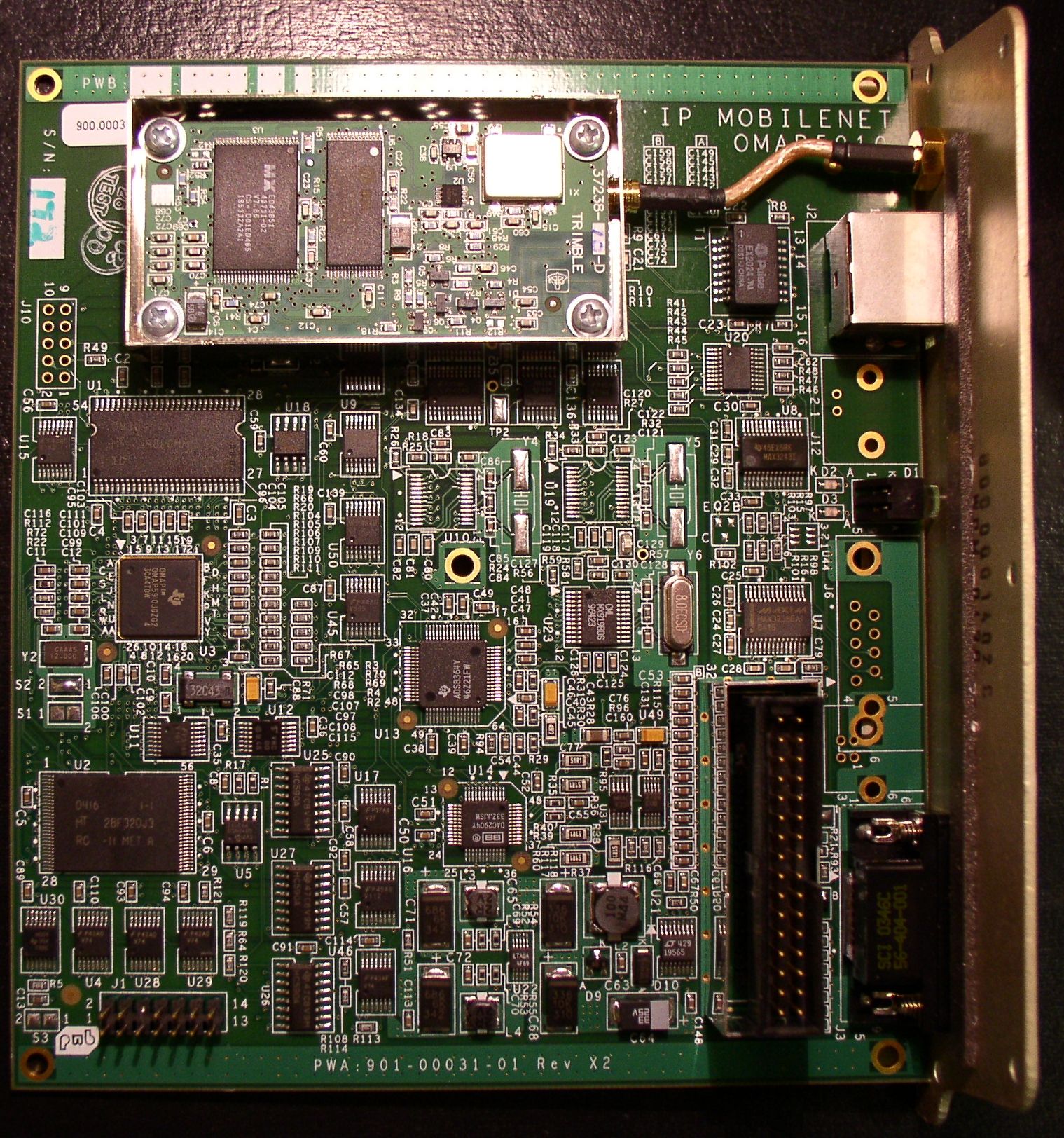

Trimble Key Features and Benefits • 3.3 V for battery powered applications • Programmable power management • Sized for portable devices Lassen LP GPS Low power module for portable applications Trimble’s new Lassen ™ LP GPS is a low power miniature GPS receiver module that is ideal for power-conscious portable appli- cations. It is intended specifically for system designers and integra- tors who are developing the next generation of portable devices. This embedded technology gives the system developer the programming flexibility to achieve a significant reduction in power consumption. Power management The Lassen LP GPS features a new set of power management tools that puts the power budget decision in the developer’s hands. The developer now can deter- mine the best balance between operational frequency and power conservation for a particular application. In Schedule Track ™ operat- ing mode, the developer can program the unit to power up, quickly acquire satellites and out- put position to a schedule. After gathering satellite data and com- puting its location, the receiver may be directed to power down to a minimal mode of operation for a programmed interval or until awakened by a hardware interruption. Schedule Track provides hot start performance at a programmed interval or in response to a hardware event. Schedule Track mode provides an advantage over normal battery-backed fast start modes with automatic wakeup to maintain current satellite data for fastest possible acquisition. Schedule Track offers the lowest power consumption in a deep sleep mode but provides position data as quickly as possible when needed. Ease of integration Lassen LP GPS provides a choice of data protocols for maximum flexibility. The TSIP binary data protocol incorporates new power management features and provides maximum control over system operation. The TAIP and NMEA protocols are available where ASCII data is preferred. A secondary serial input port is available for RTCM SC-104 differential correction data for high accuracy applications. The Lassen LP GPS also incorporates Trimble’s antenna detection and protection circuit to monitor the condition of the antenna system. And a new high performance, miniature 3.3 V antenna is available for the Lassen LP GPS. Getting started The Starter Kit makes it easy to evaluate the Lassen LP GPS and begin development. Actual size Lassen LP GPS Low power module for portable applications PHYSICAL CHARACTERISTICS Dimensions2.605′′L×1.250′′W×0.475′′H (66.167 mm×31.750 mm×12 mm) Weight0.4 oz. (12.5 grams) ConnectorsRF:right angle MCX Power, I/O:8-pin (2×4), 2 mm header ACCESSORIES GPS antennaCompact, 3.3 V active micropatch antenna with 5-meter cable and magnetic mount. 1.65′′×1.99′′×0.55′′high (42 mm×50.5 mm×13.8 mm) ORDERING INFORMATION Module Lassen LP GPS Module, Extended Temperature, TSIP (binary) protocol, NMEA 0183 (ASCII) protocol and TAIP (ASCII) protocol, DGPS ready Antennas 3.3 V antenna, 5-meter cable with MCX connector Starter Kit Includes Lassen LP GPS module mounted on interface motherboard in a durable metal enclosure with dual DB9, RS232 interface, AC/DC power converter, magnetic-mount 3 V antenna, TSIP, NMEA and TAIP protocols, software toolkit for TSIP, interface cable and manual. Manual Lassen LP GPS Module System Designer Reference Guide © Copyright 1999, Trimble Navigation Limited. All rights reserved. The Trimble logo with Trimble is a trademark of Trimble Navi gation Limited registered in the United States Patent and Trademark Office. Lassen and Schedule Track are trademarks of Trimble Navigation Limited. All other marks are the property of their respective own ers. TID11547C (11/99) PERFORMANCE SPECIFICATIONS GeneralL1 frequency, C/A code (SPS), 8-channel, continuous tracking receiver, 32 correlators Update rateTSIP @ 1 Hz NMEA @ 1 Hz TAIP @ 1 Hz Accuracy Position 25 m CEP (50%) w/o SA Velocity0.1 m/sec without SA Time±95 nano-seconds (over-determined clock mode) DGPS accuracy Position 2 m CEP (50%) Velocity0.05 m/sec Acquisition (typical)Cold start*:< 130 seconds (90%) Warm start**:< 45 seconds (90%) Hot start***:< 20 seconds (90%) Reacquisition after signal loss< 2 seconds (90%) Dynamics Acceleration 4 g (39.2 m/sec 2 ) Motional Jerk20 m/sec 3 Operational limitsAltitude <18,000 m or velocity < 515 m/sec either limit may be exceeded but not both ENVIRONMENTAL SPECIFICATIONS Operating temp–40°C to +85°C (standard) Storage temp–55°C to +100°C Vibration0.008 g 2 /Hz5 Hz to 20 Hz 0.05 g 2 /Hz20 Hz to 100 Hz –3 dB/octave100 Hz to 900 Hz Operating humidity5% to 95% R.H. non-condensing, + 60°C Altitude–400 m to +18,000 m TECHNICAL SPECIFICATIONS Prime power+3.3 V DC, ± 0.3 V Power consumption Normal operation GPS board only: 55 mA, 0.182 W with antenna: 67 mA, 0.221 W Deep sleep8 mA, board only Backup power+3.0 to +3.6 V DC 2–5 μA at +25°C (nominal) Serial ports/1PPSCMOS TTL levels I/O ProtocolsTSIP (binary data) NMEA 0183 v2.1 (ASCII data) TAIP (ASCII data) NMEA messagesGGA, VTG, GLL, ZDA, GSA, GSV and RMC messages selectable by TSIP command; selection stored in non-volatile memory. Antenna power3.3 V at 12 mA, feedline fault detect/protect * Cold start requires no initialization ** Warm start implies last position, time and almanac are saved in battery-backed memory *** Hot start implies ephemeris also saved. All GPS receivers are subject to degradation of position and velocity accuracies under Department of Defense imposed Selective Availability (SA). Visit our website at www.trimble.com/oem Specifications subject to change without notice. Trimble Navigation Limited Corporate Headquarters 645 North Mary Avenue Sunnyvale, CA 94086 +1-408-481-8940 +1-408-481-7744 Fax www.trimble.com Trimble Navigation Europe Limited Trimble House Meridian Office Park Osborne Way Hook, Hampshire RG27 9HX U.K. +44 1256-760-150 +44 1256-760-148 Fax Trimble Navigation Singapore PTE Limited 79 Anson Road #05-02 Singapore 079906 SINGAPORE +65-325-5668 +65-225-9989 Fax
