MI7-IPM4547IP Series IPM4 Mobile Radio

I I P P S S e e r r i i e e s s I I P P M M 4 4 M M o o b b i i l l e e R R a a d d i i o o P P r r o o d d u u c c t t O O w w n n e e r r ’ ’ s s M M a a n n u u a a l l Date Released: January 9, 2003 Document #: 516-80485-POM Revision: B (Special Release) Copyright 2002 IPMobileNet, Inc. 16842 Von Karman Avenue, Suite 200  Irvine, CA 92606 Voice: (949) 417-4590 Fax: (949) 417-4591 TABLE OF CONTENTS IPM4-FCCRpt.doc Page 2 SECTION 1: THEORY OF OPERATION................................................................................. 3 General Block Diagram................................................................................................ 3 General Block Diagram Definitions ..................................................................... 3 IPM4 Mobile Radio Section Descriptions................................................................... 5 Microcontroller .................................................................................................... 5 Support Circuitry ................................................................................... 5 Inputs/Outputs .................................................................................................... 5 Modem .............................................................................................................. 6 VLogic and Digital Ground ................................................................................. 6 Receiver 1 Front-End ......................................................................................... 7 Receiver 1 IF ...................................................................................................... 7 Transmit Modulation ........................................................................................... 7 Injection Synthesizer .......................................................................................... 8 Transmitter/TR Switch ........................................................................................ 8 Power and Analog Ground ................................................................................. 8 SECTION 2: FACTORY TEST PROCEDURE......................................................................... 9 Equipment List............................................................................................................. 9 Programming and Configuring Mobile Radio.......................................................... 10 Adjustment / Alignment Procedures........................................................................ 11 Receiver Injection ............................................................................................. 11 Receiver 1 ........................................................................................................ 11 Receiver 2 ........................................................................................................ 12 Transmit Data ................................................................................................... 13 Transmit Power Control .................................................................................... 14 Receive Data .................................................................................................... 15 Final Test .......................................................................................................... 16 Uplink Hardware Timing Verification ................................................................ 16 Downlink Hardware Timing Verification ............................................................ 18 SECTION 3: FCC LABEL...................................................................................................... 20 IPM4 Data Transceiver FCC Label Placement......................................................... 20 IPM4 Data Transceiver FCC Label............................................................................ 20 APPENDIX A: IPM4 CIRCUIT BOARD DIAGRAMS............................................................. 21 APPENDIX B: IPM4 TEST DATA SHEET............................................................................. 22 SECTION 1: THEORY OF OEPRATION IPM4-FCCRpt.doc Page 3  General Block Diagram General Block Diagram Definitions For increased data security, the modem supports the Federal Government developed Digital Encryption Standard (DES) data encryption and decryption protocols. This capability requires installation of third party, Internet Protocol (IP) compliant DES encryption and decryption software on the system. The IPM4 mobile radio is comprised of two (2) circuit boards, the digital board and the RF board. The digital circuit board contains the following sections: Input/Output Circuitry associated with the radio’s DB9 data connector providing all the RS232 data and handshake functions, including the necessary level changes. Microcontroller Manages the operation of the radio, the modem, and determines which receiver provides a better signal from a given transmission. Also provides transmit time-out protection in the event a fault causes the radio to halt in the transmit mode. Modem Converts serial data into an analog audio waveform for transmission and analog audio from the receiver to serial data. Within a single chip it provides forward error detection and correction, bit interleaving for more robust data communications, and third generation collision detection and correction capabilities. Power Supply The power supply creates the various voltages required by the digital portion of the mobile radio. SECTION 1: THEORY OF OPERATION IPM4-FCCRpt.doc Page 4 The RF circuit board contains the following sections: Transmit Processing Circuitry that amplifies the analog audio signal from the modem and uses it to modulate the voltage controlled oscillator (VCO) and 10 MHz reference oscillator in the injection synthesizer section. Modulating the VCO and reference oscillator simultaneously results in a higher quality FM signal.…

Text truncated - open the document above for the full version.

~\Technical Documentation\Install_Guides\MR-Guide\2-May-02 Page 1 of 15 INSTALLATION GUIDE INVADR tm MOBILE RADIO SYSTEM INSTALLATION GUIDE CONTENTS: Section Title Page ƒ INVADR tm Mobile Radio Illustration ..................................... 2 ƒ Installation Overview and Safety Reminder......................... 2 ƒ Installation Requirements .................................................... 3 ƒ Pre-Installation Guidelines ................................................... 5 ƒ Mounting the INVADR tm Mobile Radio ................................. 5 ƒ Serial Cable Connection and Routing.................................. 5 ƒ EMI Filter Installation ........................................................... 6 ƒ Power Supply Installations................................................... 6 ƒ Switch Installation ................................................................ 7 ƒ Delay Timer Installation ....................................................... 7 ƒ Antenna Installation ............................................................. 8 ƒ VIU (Vehicle Interface Unit) Connections ............................ 9 ƒ Testing and Installation Checklist ...................................... 10 ƒ Vehicle Unit Wiring Interconnection Layout ....................... 11 ƒ Diversity Antenna Vehicle Installation Detail Diagram....... 12 ƒ Mobile Antenna Distance Matrix ........................................ 13 ƒ Vehicle Unit Wiring Interconnection Layout with VIU (Voice Interface Unit).......................................................... 14 ƒ Vehicle Unit Wiring Interconnection Layout with Data911 and VIU (Voice Interface Unit)............................. 15 IPMN p/n: 516-80307 Document Control #: DC-10 Version: C-2 11909 East Telegraph Road, Santa Fe Springs, CA 90670-3785 Voice: (562) 946-9493 Fax: (562) 949-0223 Copyright 2001 IPMobileNet, Inc. Notice: While reasonable efforts were made to ensure that the information in this document was complete and accurate at the time of printing, IPMobileNet, Inc. can assume no responsibility for any inaccuracies. Changes and corrections to the inforrmation within this document may be incorporated into future releases. ~\Technical Documentation\Install_Guides\MR-Guide\2-May-02 Page 2 of 15 INVADR tm Mobile Radio Illustration Installation Overview This guide will provide standard steps involved in the installation process of an INVADR tm Mobile Radio. This guide includes wire routing and connections between the radio, other components, and the vehicle’s power. Safety Reminder 1. To prevent personal injury and vehicle damage, exercise extreme caution throughout this installation process. ‰ Follow safety precautions for handling wiring, tools, and a vehicle’s engine. ‰ Handle the vehicle’s battery with extreme caution to avoid burns. ‰ Do not alter the components listed in the Installation Requirements on page 3 unless substitutions are noted within this document. ‰ Once the antennas are installed, as directed within this guide on page 8 of 15, all persons must maintain a distance of no less than 39 inches from the antennas. Black Red TX/RX1 RX2 Serial Cable DB9 Power Cable Mounting Bracket TX FCC ID M17-EC8DT450TX xxxxxxxxxxx xxxxwweddd xxxxxxxx xxxxwweddd ~\Technical Documentation\Install_Guides\MR-Guide\2-May-02 Page 3 of 15 INSTALLATION REQUIREMENTS PL502-82019-51 - INVADR MOBILE ACCESSORY KIT -- An INVADR Mobile Radio includes the following components (part of mobile top assembly): Qty Description IPMN Part Number 1 Cable, Power Extension 502-82020-53 2 ‘L’ Brackets 50026749 2 Screws Skt Cap Button Head 10-32 X 5/8 37081032-10 6 Washers Split Lock #10 271-0062-010 2 Washers Fender 1” O.D. X .28 I.D. X .05 THK 271-0059-001 4 Washers Rubber 1” O.D. X .65 I.D. X .12 THK 36040001 2 Hoses, Rubber Black .380 O.D. X .191 I.D. X .3 34010295 4 Screws Self-Tapping #10 X 5/8 37040010-10 0 Installation Manual 516-80307 0 Technical Manual 516-82025 PL502-80208-51 - INSTALLATION KIT – The following components are required for an INVADR Mobile Radio Installation and are available for purchase through IPMobileNet, Inc. Qty Description IPMN Part Number 1 EMI Filter 127-0020-001 1 Timer, 2 hours 150-0127-001 1 Relay 128-0117-001 1 Relay Socket 128-0116-001 2 Butt Connectors #8 AWG 120-0256-001 1 Terminal, Ring #8 AWG, #10 Screw Insulated 120-0127-001 4 Terminal, Ring #18-22 AWG, #10 Screws Insulated 120-0250-004 4 Terminal, Ring #10-12 AWG, #10 Screws Insulated 120-0250-005 4 Terminal, Disconnect #14-16 F 120-0244-002 18 Terminal, Disconnect #10-12 F 120-0244-003 2 Disconnect Tab, Quad Male 200-1377-001 1 Wire, 12 AWG Black, order 5 ft. 156-0242-001 1 Wire, 12 AWG Red, order 44 ft. 156-0242-003 1 Fuse, 30 AMPS ATO 122-0042-001 1 Fuse Holder, 30 AMPS 120-0253-001 1 Switch, Toggle DPST 144-0136-001 1 Diagram, Mobile Installation without VIU 502-80259 1 Diagram, Mobile Installation with VIU 502-80260 1 Diagram, Mobile Installation with Data 911 and VIU 502-80306 ~\Technical Documentation\Install_Guides\MR-Guide\2-May-02 Page 4 of 15 OPTIONAL INSTALLATION SUPPLIES – Order each item individually: Qty Description IPMN Part Number 1 Serial Cable (DB9MF), 20 ft. 156-0245-020 1 Wire, 8 (133/29) AWG VW-1 Red, by foot, order 19.5 ft. 156-0243-003 1 Wire, 8 (133/29) AWG VW-1 Black, by foot, order 19.5 ft. 156-0243-001 2 RG58U Cable and Mount, VHF, 17 ft. (incl ¾” Brass Mount and N Male Crimp) 102-0200-001 2 RG8X Cable and Mount, UHF & 800 MHz, 17 ft. (incl ¾“ Brass Mount & N Male Crimp) 102-0200-002 2 Antenna, Radome Type, 142-164 MHz, Unity Gain (requires 1 MB8UN for ea antenna) 102-0205-001 2 Antenna, Radome Type, 150-174 MHz, Unity Gain (requires 1 MB8UN for ea antenna) 102-0205-002 2 Antenna, Radome Type, 410-430 MHz, 3dB Gain (requires 1 MB8XN for ea antenna) 102-0206-001 2 Antenna, Radome Type, 430-450 MHz, 3dB Gain (requires 1 MB8XN for ea antenna) 102-0206-002 2 Antenna, Radome Type, 450-470 MHz, 3dB Gain (requires 1 MB8XN for ea antenna) 102-0206-003 2 Antenna, …

Text truncated - open the document above for the full version.

FCC ID: M17-IPM4547 to be

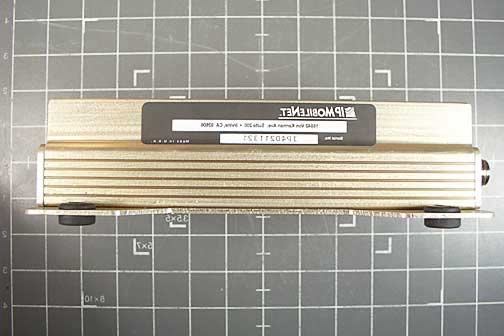

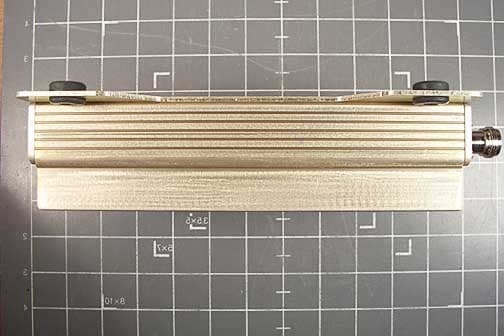

Front Back Top Bottom Side 1 Side 2

2002 IPMobileNet, Inc. Page 1 IPM4 Mobile Radio FCC Label IPM4 Data Transceiver FCC Label Placement IPM4 Data Transceiver FCC Label 400 – 512 MHz DIVERSITY MOBILE DATA FCCID: M17-IPM4547 Serial No. Model: IPM4 MUST BE SUITABLE FOR TYPING. Model: IPM4 Serial No. 400-512MHz DIVERSITY MOBILE DATA RADIO 6,243,393 U.S. PATENT Nos. 5.640.695, 6,018,647, Made in U.S.A. Model: IPM4 Serial No. Made in U.S.A. U.S. PATENT Nos. 5.640.695, 6,018,647, 400-512MHz DIVERSITY MOBILE DATA RADIO 6,243,393

Cover Removed PCB’s Removed Top PCB 1 Top PCB 1 Bottom PCB 1 Top PCB 2 Top PCB 2 Bottom PCB 2 Top PCB 3 Bottom PCB 3 PCB 3 Shield Removed

SECTION 1: THEORY OF OEPRATION IPM4-FCCRpt.doc Page 1  IPM4 Mobile Radio Section Descriptions The IPM4 Mobile Radio works within a frequency range of 450 to 470 MHz and requires a 1/4-wavelength antenna. This section provides detailed descriptions of each of the sections within the IPM4 Mobile Radio. Refer to Appendix A to view the IPM4 Mobile Radio Circuit Board Diagram. Microcontroller The microcontroller (U30) is a major component of the radio as it manages the operation of the radio. It also controls the operation of the modem, and determines which receiver provides a better signal from a given transmission. It provides transmit time-out protection in the event a fault causes the radio to halt in the transmit mode. It utilizes a reduced instruction set computer (RISC) architecture which provides low power operation and a powerful instruction set. Other features include a watchdog timer, serial universal asynchronous receiver/transmitter (UART), two 8-bit timers, and 2 KB of electrically erasable programmable read only memory (EEPROM) storage. NOTE : The EEPROM Random Access Memory (RAM) stores the setup data entered by the technician even if there is a loss of power. Support circuitry The support circuitry consists of the following: ƒ A Supervisor Control Chip (U25) provides power-on reset. ƒ The clock controls microcontroller operation and is generated by crystal Y3 and a Pierce oscillator circuit (inside the U30-microcontroller). ƒ The latch (U28) decodes low order address bits (A0-A7) from the address/data bits (AD0-AD7). It is controlled by Address Latch Enable (ALE) output of U30 and the bits are used by the modem. ƒ A 512Kx8 Static RAM Chip (U31) provides temporary storage of the radio’s configuration data facilitating the technician with access to make changes. ƒ Control logic is also an important part in the microcontroller section. The RAM chip select (RAMCS*) and modem chip select (MODEMCS*) command lines are created by U26A, U27BCD, and U44ABC. These gates decode four (4) high order address bits (A11-A15). The RAM is addressed by five (5) memory addresses (MA14-MA18) bits decoded by U26D, U27A, and U24. This logic decodes port address bits (PA14-PA18) to produce memory address bits (MA14-MA18) for the RAM chip. Input/Output Input/output components convert serial and handshake data from the modem section to RS232 levels, and vice-versa. Chip U22 is an RS232 transmitter and receiver. It converts data in 5-volt logic form to data in +/-12-volt form, as required by the RS232 standard. A charge pump power supply on the chip converts the +5-volt DC logic power on pin 26 to the +12-volt and –12-volt levels required. Capacitors C106-C109 generate these voltages by a charge pump. These values determine the operating voltages. SECTION 1: THEORY OF OPERATION Modem The single-chip modem circuit converts parallel data to an analog audio waveform for transmission and analog audio from a receiver to parallel data. In addition to the modem functions, the chip provides forward error detection and correction (FEC), bit interleaving and Viterbi Soft Decision Algorithms for more robust data communications. The microcontroller section controls the modem operation. Address bus, address/data bus, and control lines operate the modem chip. The modem circuitry is also run by a crystal-controlled clock, which consists of crystal Y1 and an internal Pierce oscillator. The received audio signal is demodulated into digital data appearing on the AD0-AD07 lines when the MODEMCS* and RD* lines are low. The data goes to the microcontroller section for futher processing, and then to the input/output section for conversion to RS232 or Ethernet signal levels. During a transmission, outgoing data appearing on the AD0-AD07 lines is converted into a 4-level FSK analog signal by the modem chip. This operation takes place when the MODEMCS* and WR* lines are low. Data from the user’s MDC or VIU passes through the input/output section and microcontroller section to the AD0-AD07 bus. After processing, data passes through a root raised cosine filter and is output to TXMOD. This modem supports 115.2 KBPS (serial port) and 19.2 KBPS (over-the-air) data transmission rates. VLogic and Digital Ground The VLogic and Digital Ground section consists of a pulse-width modulation (PWM) step-down DC-DC converter (U20) that provides an adjustable output. It also reduces noise in sensitive communications applications and minimizes drop out voltage. An external Schottky diode (D2) is required as an output rectifier to pass inductor current during the second half of each cycle to prevent the slow internal diode of the N-channel MOSFET from turning on. This diode operates in pulse-frequency modulation (PFM) mode and during transition periods while the synchronous rectifier is off. SECTION 1: THEORY OF OPERATION   Receiver 1 Front-End This section contains components that include several RF Bandpass filters, a low-noise amplifier, and a MMIC mixer. Incoming signals pass through one (1) pre-selector filter (FLT7) that selectively provides a high degree of out-of-band signal rejection. A low-noise amplifier (U3) amplifies the selected signals and is followed by an image and noise reject filter (FLT8). The output from FLT8 passes through a mixer (U4). U4 is a MMIC mixer which mixes the receive injection (RXINJ1) signal from the synthesizer and the RF signal from the antenna to produce a 45 MHz IF signal. This 45 MHz signal passes through crystal filters (FLT3 and FLT4) to the Receiver 1 IF section to provide the bulk of the Receiver’s selectivity. Receiver 2 Front-End operates identical to Receiver 1 Front-End. Receiver 1 IF The major contributor of the IF subsystem (U33) a complete 45 MHz superheterodyne receiver chip incorporating a mixer/oscillator, two limiting intermediate frequency amplifiers, quadrature detector, logarithmic received signal strength indicator (RSSI), voltage regulator and audio and RSSI op amps. Incoming 45 MHz s…

Text truncated - open the document above for the full version.

450 MHz Power up procedure Connect the RS232 port to COM port of the laptop. Power up the laptop, do not walk away. Used arrow key to highlight the third operating system “Window 98” Enter The laptop will now boot up with Window 98 Click “Slip to INDADR “ Icon to dial the EUT Once communication is established, Click “IpMsg” Enter the ip address 192.168.3.10 in the bottom left “box” Enter “ UNLOCK=DIVERSITY” in the bottom right box. You’ll se a reply (from 192.168.3.10) Unlocked. Enter “ TESTMODE=1” Enter “ frequency =? “ to check transmitting freq. Enter “X=1400,20” to transmit a 10-20 second burst. Note that after a few transmissions, you will need to re-unlock the program again to transmit in 10 sec burst. I know, it’s a pain is the neck.

Page 1 of 100 Report No.: FC03-001 IP MOBILENET TEST REPORT FOR THE IPSERIES IPM4 MOBILE RADIO FCC PART 90 AND PART 15 SUBPART B SECTIONS 15.107, 15.109 AND 15.111 CLASS B COMPLIANCE DATE OF ISSUE: JANUARY 6, 2003 PREPARED FOR: IP MobileNet 16842 Von Karman Ave., Suite 200 Irvine, CA 92606 PREPARED BY: Mary Ellen Clayton CKC Laboratories, Inc. 5473A Clouds Rest Mariposa, CA 95338 P.O. No.: 002400-00 W.O. No.: 79904 Date of test: November 21 - December 20, 2002 Report No.: FC03-001 This report contains a total of 100 pages and may be reproduced in full only. Partial reproduction may only be done with the written consent of CKC Laboratories, Inc. The results in this report apply only to the items tested, as identified herein. Page 2 of 100 Report No.: FC03-001 TABLE OF CONTENTS Administrative Information ............................................................................................. 3 Summary of Results......................................................................................................... 4 Conditions for Compliance.............................................................................................. 4 Approvals......................................................................................................................... 4 Equipment Under Test (EUT) Description...................................................................... 5 Equipment Under Test..................................................................................................... 5 Peripheral Devices ........................................................................................................... 5 Measurement Uncertainty................................................................................................ 6 Temperature and Humidity During Testing .................................................................... 6 2.1033(c)(3) User’s Manual ............................................................................................ 6 2.1033(c)(4) Type of Emissions ...................................................................................... 6 2.1033(c)(5) Frequency Range ........................................................................................ 6 2.1033(c)(6) Operating Power ......................................................................................... 6 2.1033(c)(7) Maximum Power Rating............................................................................. 6 2.1033(c)(8) DC Voltages ............................................................................................... 6 2.1033(c)(9) Tune-Up Procedure .................................................................................... 6 2.1033(c)(10) Schematics and Circuitry Description ...................................................... 6 2.1033(c)(11) Label and Placement................................................................................. 6 2.1033(c)(12) Submittal Photos....................................................................................... 6 2.1033(c)(13) Modulation Information ........................................................................... 6 2.1033(c)(14)/2.1046/90.205(h) - RF Power Output....................................................... 7 2.1033(c)(14)/2.1047(b) - Modulation - Audio Frequency Response............................. 11 2.1033(c)(14)/2.1047(b) - Modulation Limiting Response ............................................. 11 2.1033(c)(14)/2.1049(i)/90.209/90.210 - Occupied Bandwidth...................................... 11 90.210 Emissions Masks ................................................................................................. 15 2.1033(c)(14)/2.1051/90.210 - Spurious Emissions at Antenna Terminal...................... 18 2.1033(c)(14)/2.1053/90.210 - Field Strength of Spurious Radiation............................. 23 2.1033(c)(14)/2.1055/90.213 - Frequency Stability ........................................................ 27 90.214 Transient Frequency Behavior............................................................................. 32 2.1091 – MPE Calculations ............................................................................................. 39 15.107 – AC Conducted Emissions................................................................................. 43 15.109 – Radiated Emissions .......................................................................................... 70 15.111 – Antenna Power Conducted Emissions.............................................................. 94 Page 3 of 100 Report No.: FC03-001 ADMINISTRATIVE INFORMATION DATE OF TEST: November 21 - December 20, 2002 DATE OF RECEIPT: November 21, 2002 PURPOSE OF TEST: To demonstrate the compliance of the IPSeries IPM4 Mobile Radio with the requirements for FCC Part 90 and Part 15 Subpart B Sections 15.107, 15.109 and 15.111 Class B devices. TEST METHOD: ANSI C63.4 (1992) and FCC Part 90 FREQUENCY RANGE TESTED: 150 kHz - 6000 MHz MANUFACTURER: IP MobileNet 16842 Von Karman Ave., Suite 200 Irvine, CA 92606 REPRESENTATIVE: Jim Lukes TEST LOCATION: CKC Laboratories, Inc. 5473A Clouds Rest Mariposa, CA 95338 Page 4 of 100 Report No.: FC03-001 SUMMARY OF RESULTS As received, the IP MobileNet IPSeries IPM4 Mobile Radio was found to be fully compliant with the following standards and specifications: United States ! FCC Part 90 and Part 15 Subpart B Sections 15.107, 15.109 and 15.111 Class B using: ! ANSI C63.4 (1992) and FCC Part 90 method Canada RSS-119 using: ! FCC Part 90 and Part 15 Subpart B Sections 15.107, 15.109 and 15.111 Class B using: ! ANSI C63.4 (1992) and FCC Part 90 method CONDITIONS FOR COMPLIANCE No modifications to the EUT were necessary to comply. APPROVALS QUALITY ASSURANCE:TEST PERSONNEL: Steve Behm, Director of Engineering Services and Quality Assurance Eddie Wong, EMC Engineer Joyce Walker, Quality Assurance Administrative Manager Monika Brandle, EMC Test Engineer Se…

Text truncated - open the document above for the full version.

Page 1 of 100 Report No.: FC03-001 IP MOBILENET TEST REPORT FOR THE IPSERIES IPM4 MOBILE RADIO FCC PART 90 AND PART 15 SUBPART B SECTIONS 15.107, 15.109 AND 15.111 CLASS B COMPLIANCE DATE OF ISSUE: JANUARY 6, 2003 PREPARED FOR: IP MobileNet 16842 Von Karman Ave., Suite 200 Irvine, CA 92606 PREPARED BY: Mary Ellen Clayton CKC Laboratories, Inc. 5473A Clouds Rest Mariposa, CA 95338 P.O. No.: 002400-00 W.O. No.: 79904 Date of test: November 21 - December 20, 2002 Report No.: FC03-001 This report contains a total of 100 pages and may be reproduced in full only. Partial reproduction may only be done with the written consent of CKC Laboratories, Inc. The results in this report apply only to the items tested, as identified herein. Page 2 of 100 Report No.: FC03-001 TABLE OF CONTENTS Administrative Information ............................................................................................. 3 Summary of Results......................................................................................................... 4 Conditions for Compliance.............................................................................................. 4 Approvals......................................................................................................................... 4 Equipment Under Test (EUT) Description...................................................................... 5 Equipment Under Test..................................................................................................... 5 Peripheral Devices ........................................................................................................... 5 Measurement Uncertainty................................................................................................ 6 Temperature and Humidity During Testing .................................................................... 6 2.1033(c)(3) User’s Manual ............................................................................................ 6 2.1033(c)(4) Type of Emissions ...................................................................................... 6 2.1033(c)(5) Frequency Range ........................................................................................ 6 2.1033(c)(6) Operating Power ......................................................................................... 6 2.1033(c)(7) Maximum Power Rating............................................................................. 6 2.1033(c)(8) DC Voltages ............................................................................................... 6 2.1033(c)(9) Tune-Up Procedure .................................................................................... 6 2.1033(c)(10) Schematics and Circuitry Description ...................................................... 6 2.1033(c)(11) Label and Placement................................................................................. 6 2.1033(c)(12) Submittal Photos....................................................................................... 6 2.1033(c)(13) Modulation Information ........................................................................... 6 2.1033(c)(14)/2.1046/90.205(h) - RF Power Output....................................................... 7 2.1033(c)(14)/2.1047(b) - Modulation - Audio Frequency Response............................. 11 2.1033(c)(14)/2.1047(b) - Modulation Limiting Response ............................................. 11 2.1033(c)(14)/2.1049(i)/90.209/90.210 - Occupied Bandwidth...................................... 11 90.210 Emissions Masks ................................................................................................. 15 2.1033(c)(14)/2.1051/90.210 - Spurious Emissions at Antenna Terminal...................... 18 2.1033(c)(14)/2.1053/90.210 - Field Strength of Spurious Radiation............................. 23 2.1033(c)(14)/2.1055/90.213 - Frequency Stability ........................................................ 27 90.214 Transient Frequency Behavior............................................................................. 32 2.1091 – MPE Calculations ............................................................................................. 39 15.107 – AC Conducted Emissions................................................................................. 43 15.109 – Radiated Emissions .......................................................................................... 70 15.111 – Antenna Power Conducted Emissions.........................…

Text truncated - open the document above for the full version.
