MI7-IPM4748IPM4 Mobile Radio

I I P P S S e e r r i i e e s s I I P P M M 4 4 M M o o b b i i l l e e R R a a d d i i o o P P r r o o d d u u c c t t O O w w n n e e r r ’ ’ s s M M a a n n u u a a l l Date Released: May 14, 2003 Document #: 516-80500-POM Revision: A Copyright 2003 IPMobileNet, Inc. 16842 Von Karman Avenue, Suite 200  Irvine, CA 92606 Voice: (949) 417-4590 Fax: (949) 417-4591 IPM4748-FCCRpt.doc Page ii The term “IC”: before the radio certification number only signifies that Industry of Canada technical specifications were met. Operation is subject to the following two (2) conditions: (1) this devise may not cause interference, and (2) this device must accept any interference, including interference that may cause undesired operation of this device. The following U.S. Patents apply to this product: U.S. Patent numbers 5,640,695,6,018,647,6,243,393 Information contained in this document is subject to change without notice. All rights reserved. Reproductions, adaptations, or translation without prior written permission is prohibited, except as allowed under copyright laws. TABLE OF CONTENTS IPM4748-FCCRpt.doc Page 2 SECTION 1: THEORY OF OPERATION................................................................................. 3 General Block Diagram................................................................................................ 3 General Block Diagram Definitions ..................................................................... 3 IPM4 Mobile Radio Section Descriptions................................................................... 5 Microcontroller .................................................................................................... 5 Support Circuitry ................................................................................... 5 Inputs/Outputs .................................................................................................... 5 Modem .............................................................................................................. 6 VLogic and Digital Ground ................................................................................. 6 Receiver 1 Front-End ......................................................................................... 7 Receiver 1 IF ...................................................................................................... 7 Transmit Modulation ........................................................................................... 7 Injection Synthesizer .......................................................................................... 8 Transmitter/TR Switch ........................................................................................ 8 Power and Analog Ground ................................................................................. 8 SECTION 2: FACTORY TEST PROCEDURE......................................................................... 9 Equipment List............................................................................................................. 9 Programming and Configuring Mobile Radio.......................................................... 10 Adjustment / Alignment Procedures........................................................................ 11 Receiver Injection ............................................................................................. 11 Receiver 1 ........................................................................................................ 11 Receiver 2 ........................................................................................................ 12 Transmit Data ................................................................................................... 13 Transmit Power Control .................................................................................... 14 Receive Data .................................................................................................... 15 Final Test .......................................................................................................... 16 Uplink Hardware Timing Verification ................................................................ 16 Downlink Hardware Timing Verification ............................................................ 18 SECTION 3: SCHEMATIC DIAGRAMS AND PARTS LISTS................................................ 20 Schematic and Parts List Listing.............................................................................. 20 IPM4 Data Transceiver FCC Label Placement......................................................... 21 IPM4 Data Transceiver FCC Label............................................................................ 21 APPENDIX A: IPM4 CIRCUIT BOARD DIAGRAMS............................................................. 49 APPENDIX B: IPM4 TEST DATA SHEET............................................................................. 50 SECTION 1: THEORY OF OEPRATION IPM4748-FCCRpt.doc Page 3  General Block Diagram General Block Diagram Definitions For increased data security, the modem supports the Federal Government developed Digital Encryption Standard (DES) data encryption and decryption protocols. This capability requires installation of third party, Internet Protocol (IP) compliant DES encryption and decryption software on the system. The IPM4 mobile radio is comprised of two (2) circuit boards, the digital board and the RF board. The digital circuit board contains the following sections: Input/Output Circuitry associated with the radio’s DB9 data connector providing all the RS232 data and handshake functions, including the necessary level changes. Microcontroller Manages the operation of the radio, the modem, and determines which receiver provides a better signal from a given transmission. Also provides transmit time-out protection in the event a fault causes the radio to halt in the transmit mode. Modem Converts serial data into an analog audio waveform for transmission and a…

Text truncated - open the document above for the full version.

I I P P S S e e r r i i e e s s M M o o b b i i l l e e R R a a d d i i o o U U s s e e r r M M a a n n u u a a l l Released: April 8, 2003 IPMN p/n: 516.80495.UM Revision: A 16842 Von Karman Avenue, Suite 200 Irvine, CA 92606 Voice: (949) 417-4590 Fax: (949) 417-4591 www.ipmobilenetinc.com 2003 IPMobileNet, Inc. Revision & Copyright IPSeries MR User Manual / Rev. A / 08-Apr-03 DOCUMENT REVISION CONTROL Document Title: IPSeries Mobile Radio User Manual New Release Version: A New Release Date Previous Version Action Old Pages New Pages 04/08/03 X6 Release document N/A N/A COPYRIGHTS STATEMENT The IPSeries Mobile Radio User Manual is copyrighted to IPMobileNet, Inc. All rights reserved. This document is confidential and proprietary information of IPMobileNet, Inc. The distribution or duplication of this document is expressly forbidden without IPMobileNet’s prior written consent. Disclaimer. While reasonable efforts were made to ensure that the information in this document was complete and accurate at the time of printing, IPMobileNet, Inc. can assume no responsibility for any inaccuracies. Changes and corrections to the information within this document may be incorporated in future releases. TABLE OF CONTENTS 2003 IPMobileNet, Inc. 3 IPSeries MR User Manual / Rev. A / 08-Apr-03 MANUAL COMPONENTS......................................................................................................................... 5 Manual Purpose ........................................................................................................................... 5 Manual Contents ........................................................................................................................... 5 Manual Use ................................................................................................................................... 6 Audience ....................................................................................................................................... 6 CHAPTER 1: INTRODUCTION................................................................................................................ 7 Product Description....................................................................................................................... 7 Product Functionality..................................................................................................................... 7 External Features.......................................................................................................................... 8 Product Specifications................................................................................................................... 9 Theory of Operation .................................................................................................................... 10 Block Diagram Definitions .............................................................................................. 10 CHAPTER 2: BASIC NETWORK CONFIGURATIONS......................................................................... 12 Basic Network Connection .......................................................................................................... 12 Network Connection to an Existing LAN ..................................................................................... 13 Wireless High Speed Digital IP Voice and Data (over the Internet) ........................................... 14 CHAPTER 3: SETUP AND CONFIGURATION SCENARIOS............................................................... 15 Mobile Radio Setup Scenarios.................................................................................................... 15 Mobile Radio-to-Mobile Computer Setup ....................................................................... 15 Mobile Radio-to-VIU-to-Mobile Computer Setup ........................................................... 16 CHAPTER 4: PRODUCT INSTALLATION............................................................................................ 17 Installation Overview ................................................................................................................... 17 Installation Requirements .............................................................................................. 17 Installation Instructions................................................................................................................ 20 Pre-Installation Guidelines ............................................................................................. 20 Mounting the Mobile Radio ............................................................................................ 21 Serial Cable Connection and Routing ............................................................................ 22 Ethernet Setup ............................................................................................................... 22 Delay Time Installation ................................................................................................... 22 Carling Switch Installation .............................................................................................. 24 Mobile Radio Power Supply Installation ......................................................................... 25 Antenna Configuration ................................................................................................... 26 Measuring Return Loss ..................................................................................... 27 Measuring Voltage Standing Wave Ratio ......................................................... 28 Measuring Insertion Loss.................................................................................. 27 Voice Interface Unit Connections ................................................................................... 28 Post Installation Checklist ............................................................................…

Text truncated - open the document above for the full version.

From: Les Payne [[email protected]] Sent: Friday, June 06, 2003 2:49 PM To: 'Mike Kuo'; 'Anne Liang' Cc: 'Jim Lukes (E-mail)'; 'Erik Tanner (E-mail)' Subject: RE: IP MobileNet Inc, FCC ID:MI7-IPM4748, AN03T2870 Greetings Mike answer are in RED below. IPMobileNet would like to conference call to resolve any open issues this afternoon. -----Original Message----- From: Mike Kuo [mailto:[email protected]] Sent: Wednesday, June 04, 2003 6:07 PM To: 'Les Payne'; Anne Liang; Mike Kuo Cc: Jim Lukes (E-mail); Erik Tanner (E-mail) Subject: RE: IP MobileNet Inc, FCC ID:MI7-IPM4748, AN03T2870 Hi Les: Reply to question #1: Please provide the spectrum plots with RBW greater than the occupied bandwidth. Please do not use calculation to justify the real output power. The real output power is a specified. normaly, you would use a CW signal to determine maximum output power. This transmitter cannot generate a straight CW signal. It can only generate a modulated data signal as referenced in all of our plots. What we did to confirm maximum output power for you was to connect the unit to a power meter and verify the output power. readings using a power meter were 1 db above the readings referenced on the plots in the report. Reply to question #2: O.K. Reply to question #3: Your statement does not agree with the test block diagram. What is the data rate used during the tests ? Please provide the spectrum plots with CW modulation and with data modulation. Reference answer in number one above. Reply to question #4: The statement used to justify radiated spurious emissions is not acceptable. Through out the FCC/TCB training, FCC has made it very clear that substitution measurement procedures per TIA/EIA 603 procedures shall be used for licensed transmitter. 15.209 worst case is not a issue in this case. Please provide radiated spurious emission test data per TIA/EIA 603. This is top confirm that the substitution method per TIA/EIA 603 was used for these measurements. New Plot supplied Reply to question #5: The limits for section 90.214 is T1:25kHz; t2:12.5kHz,; t3:25kHz. Please indicate your measured value on the plots so the max. freq. difference can be verified. I am in the process of drawing in the limits to the plots that were supplied and I should have them to you shortly. Best Regards Mike Kuo -----Original Message----- From: Les Payne [mailto:[email protected]] Sent: Wednesday, June 04, 2003 1:27 PM To: Anne Liang (E-mail); Mike Kuo (E-mail) Cc: Jim Lukes (E-mail); Erik Tanner (E-mail) Subject: FW: IP MobileNet Inc, FCC ID:MI7-IPM4748, AN03T2870 Greetings Mike, Please review answers to questions below. If you require any additional information please let me know. Kindest regards Les ------------- Question #1: The rated output power of this device is 40W but the measured output power at nominal voltage is 31.62W. 13.8Vdc for all tests supplied by a clean dc source. The rated output power for this radio is 40 W, and was producing 40 watts during testing. The measurement noted on page 30 of the test results was taken with a spectrum analyzer using a marker measurement with the resolution bandwidth set to 3 kHz. The radio was modulated at 4.6 to 5.0 kHz. There for the power over the occupied bandwidth would be 44.7 (@ 477 MHz) plus 10log(4.6kHz/3kHz) or 44.7 dBm + 1.85 dB = 46.55 dBm or 45 watts. Please indicate the nominal voltage used during the output power measurement and provide additional output power measurement with DC voltage varied +/- 15%. 13.8 Nominal VDC Temp (C) Voltage Frequency (MHz) Deviation (kHz) Output Power 20 11.7 470.909 0 31.5W 20 13.8 470.909 0 31.6W 20 15.9 470.909 0 31.6W Question #2:What is the channel spacing of this device used ? Channel spacing is 25 kHz Question #3:Occup. BW \ Emission Mask tests: As indicated in page 28 ( test block diagram ) of test report, there is not data modulation used during the tests. Please provide additional occupied BW plots with max. data transmission. EUT was transmitting in accordance with the manufacturer and communications was monitored. Plots as supplied are transmitting worst case transmissions Question #4: Radiated spurious emission tests: 15.209 limits are used as referenced technical limits. This is FCC Part 90 device and 15.209 is for Part 15 subpart C device which is not applicable to this device. In addition, for all licensed transmitter devices, radiated spurious emission shall be made with substitution method per TIA /EIA 603 measurement guideline. Substitution method is not a filed strength measurement. Please provide additional radiated spurious emission measurement with substitution method. The 15.209 limits were used because there were no descernible radiated spurious emissions observed above the ground floor of the spectrum analyzer. Since the 15.209 limits are the "worst case" limits it was deemed appropriate. This has been acceptable to the FCC in the past. Question #5: Transient frequency behavior test (90.214): please provide the test procedure that was used while doing the tests. The test data plots provided do not have any reference level. Please indicate what is t1/t2/t3 setting and reference level. The Transient frequency behavior test is performed per TIA/EIA 603. Test conditions: The RF port of the EUT is connected to a combiner which combines an audio signal (1kHz, +- 5 kHz deviation) from an audio source the combined signal is connected to the input port of a spectrum analyzer. The audio monitor output of the spectrum analyzer is connected to CH1 of an Oscilloscope. Channel 2 of the Oscilloscope is connected to the TX high test point of the EUT. The transient time under investigation is to be the transistion time of the TX high to complete silence of the 1 kHz to (attack) and the transition time of the TX high to complete recovery of the 1 kHz tone for release time. T1 = +- 25 kHz 10 ms T2 = +- 12.5 kHz 25 ms T3 = +- 25 kHz 10 ms

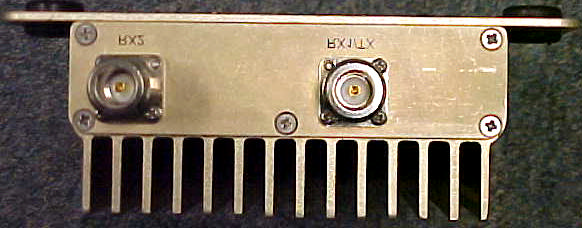

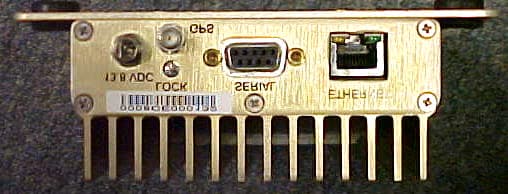

2.1033 (C) (12) Equipment Photographs - External Photo 8 Detail View – External - Side One Photo 9 Detail View – External - Side Two Photo 10 Detail View – External - Side Three 2.1033 (C) (12) Equipment Photographs - External Photo 11 Detail View – External - Side Four Photo 12 Detail View – External - Bottom 2.1033 (C) (12) Equipment Photographs - External Photo 13 Detail View – External - Top

IPM4 Data Transceiver FCC Label Placement IPM4 Data Transceiver FCC Label

2.1033 (C) (12) Equipment Photographs - Internal Photo 1 Detail View – Internal – A Photo 2 Detail View – Internal – B Photo 3 Detail View – Internal – C Photo 4 Detail View – Internal – D Photo 5 Detail View – Internal – E Photo 6 Detail View – Internal – F Photo 7 Detail View – Internal – G

SECTION 1: THEORY OF OEPRATION IPM4748-FCCRpt.doc Page 1 ? General Block Diagram General Block Diagram Definitions For increased data security, the modem supports the Federal Government developed Digital Encryption Standard (DES) data encryption and decryption protocols. This capability requires installation of third party, Internet Protocol (IP) compliant DES encryption and decryption software on the system. The IPM4 mobile radio is comprised of two (2) circuit boards, the digital board and the RF board. The digital circuit board contains the following sections: Input/Output Circuitry associated with the radio’s DB9 data connector providing all the RS232 data and handshake functions, including the necessary level changes. Microcontroller Manages the operation of the radio, the modem, and determines which receiver provides a better signal from a given transmission. Also provides transmit time-out protection in the event a fault causes the radio to halt in the transmit mode. Modem Converts serial data into an analog audio waveform for transmission and analog audio from the receiver to serial data. Within a single chip it provides forward error detection and correction, bit interleaving for more robust data communications, and third generation collision detection and correction capabilities. Power Supply The power supply creates the various voltages required by the digital portion of the mobile radio. SECTION 1: THEORY OF OPERATION The RF circuit board contains the following sections: Transmit Processing Circuitry that amplifies the analog audio signal from the modem and uses it to modulate the voltage controlled oscillator (VCO) and 10 MHz reference oscillator in the injection synthesizer section. Modulating the VCO and reference oscillator simultaneously results in a higher quality FM signal. Injection Synthesizer Provides programmable, ultra stable signals for the radio. Synthesizer incorporates phase lock loop technology used for both receiving and transmitting. Injection In the receive mode, the synthesizer provides a local oscillator signal of 45 MHz above or below the selected receive channel frequency. Transmitter Consists of an exciter and power amplifier module. The transmitter covers the various frequency bands in segments. A different power amplifier module is required for each segment. The transmitter circuitry includes a T/R switch switching the antenna between transmitter and receiver 1 (TX/RX1). Receiver 1/Receiver 2 Required to support the mobile DRS; two (2) discrete receivers are tuned to the same channel and use two (2) antennas. The receivers are double-conversion superheterodyne with a first Intermediate Frequency (IF) of 45 MHz and a second IF frequency of 455 KHz. Each receiver consists of bandpass filters, an RF amplifier, a MMIC mixer, crystal filters, and a one-chip IF system. The injection synthesizer provides the first local oscillator signal. Outputs from each receiver include RSSI and analog audio for the baseband routing circuitry and modem. Power Supply Consists of circuitry that derives the various operating voltages for the RF portion of the mobile radio. SECTION 1: THEORY OF OPERATION ? IPM4 Mobile Radio Section Descriptions The IPM4 Mobile Radio works within a frequency range of 470 to 480 MHz and requires a 1/4-wavelength antenna. This section provides detailed descriptions of each of the sections within the IPM4 Mobile Radio. Refer to Appendix A to view the IPM4 Mobile Radio Circuit Board Diagram. Microcontroller (refer to schematic on page 26 & 27) The microcontroller (U30) is a major component of the radio as it manages the operation of the radio. It also controls the operation of the modem, and determines which receiver provides a better signal from a given transmission. It provides transmit time-out protection in the event a fault causes the radio to halt in the transmit mode. It utilizes a reduced instruction set computer (RISC) architecture which provides low power operation and a powerful instruction set. Other features include a watchdog timer, serial universal asynchronous receiver/transmitter (UART), two 8-bit timers, and 2 KB of electrically erasable programmable read only memory (EEPROM) storage. NOTE : The EEPROM Random Access Memory (RAM) stores the setup data entered by the technician even if there is a loss of power. Support circuitry The support circuitry consists of the following: ??A Supervisor Control Chip (U25) provides power-on reset. ??The clock controls microcontroller operation and is generated by crystal Y3 and a Pierce oscillator circuit (inside the U30-microcontroller). ??The latch (U28) decodes low order address bits (A0-A7) from the address/data bits (AD0-AD7). It is controlled by Address Latch Enable (ALE) output of U30 and the bits are used by the modem. ??A 512Kx8 Static RAM Chip (U31) provides temporary storage of the radio’s configuration data facilitating the technician with access to make changes. ??Control logic is also an important part in the microcontroller section. The RAM chip select (RAMCS*) and modem chip select (MODEMCS*) command lines are created by U26A, U27BCD, and U44ABC. These gates decode four (4) high order address bits (A11-A15). The RAM is addressed by five (5) memory addresses (MA14-MA18) bits decoded by U26D, U27A, and U24. This logic decodes port address bits (PA14-PA18) to produce memory address bits (MA14-MA18) for the RAM chip. Input/Output (refer to schematic on page 28) Input/output components convert serial and handshake data from the modem section to RS232 levels, and vice-versa. Chip U22 is an RS232 transmitter and receiver. It converts data in 5-volt logic form to data in +/-12-volt form, as required by the RS232 standard. A charge pump power supply on the chip converts the +5-volt DC logic power on pin 26 to the +12-volt and –12-volt levels required. Capacitors C106-C109 generate these voltages by a charge pump. These values determine the operating voltages. SECTION 1: THEORY OF OPERA…

Text truncated - open the document above for the full version.

APPENDIX B: IPM4748 TEST DATA SHEET Equipment List The following table lists the equipment required to perform the IPM4 Mobile Radio Factory Test Procedure: QTY DESCRIPTION MANUFACTURER MODEL 2 PC’s One for Mobile One for Base Windows 9X w/ IPMessage AVR 1 Service Monitor – Communication Test Set HP HP8920B or equivalent 1 Digital multi-meter Tektronix Fluke 77 or equivalent 1 DC power supply w/ ammeter, 13.8V, 23 Amps or more Astron RM35A 1 4-Channel Scope Tektronix TDS 460A 1 IPM4 Mobile Radio 1 IPM4 Calibrated Base Station 1 Internet Protocol Network Controller (IPNC) 1 100 watt dummy load/attenuator Pasternack PE7021-40 or equivalent 2 UHF Antennas (generic mag mount) 1 Serial cable DB9M-DB9F connectors IPMN p/n: 156-0245-020 1 IP power cable IPMN p/n: 502-82017-52 1 3-foot RF jumper cable with type N connectors (generic) 1 Scope test probe (generic, X1 attenuation) 1 Ceramic tuning tool IPMN p/n: 44010006 1 ea #0, #1, and #2 Phillips screwdrivers (generic) APPENDIX B: IPM4748 TEST DATA SHEET Programming and Configuring Mobile Radio Once the appropriate equipment for performing the factory test are gathered, perform the following steps to program and configure an IPM4 Mobile Radio: Step 1 Enter the following information on the Test Data Sheet (see Appendix B): ??Radio Serial number ??Date test being performed ??Tester's Name Step 2 Program the radio to the current Firmware revision using the AVR programming utility. Step 3 Connect a PC to the radio and launch the IPMessage program. In the IPMessage window, type factory default, press [ENTER], and the radio displays the radio’s default values. Step 4 Enter the appropriate values for the radio's frequency band. The following values were used for a 470 to 480 MHz radio: [From: 172.16.64.1] Host serial = 115200,N,8,1, timeout=200 [From: 172.16.64.1] Channel = 0 [From: 172.16.64.1] Channel Tx freq Rx freq Inj freq [From: 172.16.64.1] Frequency= 0, 475.000000, 470.000000, 425.000000 [From: 172.16.64.1] IP Address = 172.16.64.1 (VIU = 0.0.0.0, PC = 192.168.3.5) [From: 172.16.64.1] IPNC = 172.16.112.200 [From: 172.16.64.1] netmask = 255.255.255.0 [From: 172.16.64.1] Radio Mac Address = 00:08:ce:00:00:00 [From: 172.16.64.1] Hosting framing = SLIP no status messages [From: 172.16.64.1] channel spacing = 25000 [From: 172.16.64.1] Injection = LOW SIDE, 45 MHz [From: 172.16.64.1] TX Power = 0 [From: 172.16.64.1] Car to car TX power = 0 [From: 172.16.64.1] serial number: undefined [From: 172.16.64.1] TX quiet time = 5 [From: 172.16.64.1] TX sync time = 2- milliseconds [From: 172.16.64.1] TX tail time = 5 [From: 172.16.64.1] TX delay = 0 slots [From: 172.16.64.1] Radio data rate = 19200 [From: 172.16.64.1] Max data tx time = 60 seconds [From: 172.16.64.1] PLL load to txkey delay = 2 milliseconds [From: 172.16.64.1] Carrier detect delay time = 6 milliseconds [From: 172.16.64.1] roam status times = 900 seconds [From: 172.16.64.1] roam lost time = 60 seconds [From: 172.16.64.1] Polarity = TX-, RX+ [From: 172.16.64.1] RSSI step = 12 (=234mV) [From: 172.16.64.1] noise = -126dBm, -126dBm [From: 172.16.64.1] num timeslots = 16 [From: 172.16.64.1] timeslot period = 992ms [From: 172.16.64.1] timeslots per voice packet = 4 [From: 172.16.64.1] 06Feb2036 22:28:34 (PST), calibration=43 [From: 172.16.64.1] diversity speed = 5 [From: 172.16.64.1] receiver = 2 [From: 172.16.64.1] Receiver Hysteresis = 2 [From: 172.16.64.1] Internal GPS Port Address = 5000 [From: 172.16.64.1] Internal GPS Input Protocol = TSIP [From: 172.16.64.1] Internal GPS Output Protocol = TSIP [From: 172.16.64.1] 12dB SINAD = -120dBm (54 on RX0) [From: 172.16.64.1] 12dB SINAD = -120dBm (54 on RX1) [From: 172.16.64.1] 30dB S/N = -106dBm (72 on RX0) [From: 172.16.64.1] 30dB S/N = -106dBm (72 on RX1) [From: 172.16.64.1] 40dB S/N = -90dBm (114 on RX0) [From: 172.16.64.1] 40dB S/N = -90dBm (114 on RX1) [From: 172.16.64.1] –40dBm = (214) on RX0) [From: 172.16.64.1] –40dBm = (214) on RX1) [From: 172.16.64.1] PLL counter: 510.000000 MHz, N = 22200, R = 800 (400x2) [From: 172.16.64.1] Suspend Tx = 0 seconds [From: 172.16.64.1] DHCP Client disabled [From: 172.16.64.1] DHCP Server disabled [From: 172.16.64.1] diag message level = 0 [From: 172.16.64.1] TFTP options = 512 (block size), 0 (interval) [From: 172.16.64.1] Internal GPS not found [From: 172.16.64.1] Modem FEC = on APPENDIX B: IPM4748 TEST DATA SHEET Adjustment / Alignment Procedures Receiver Injection Perform the following steps to adjust the receiver injection and injection frequency: Step 1 While monitoring the receiver injection frequency at RXINJ1, adjust potentiometer R81 for minimum frequency error of +/- 100Hz. Record this value on the Test Data Sheet. Step 2 While monitoring the 44.545 MHz 2nd injection frequency at U34 pin 4, adjust trimmer capacitor CV4 for the maximum amplitude of this injection frequency. The maximum amplitude must be between -3 to -5 dBm. Record this value on the Test Data Sheet. Receiver 1 Perform the following steps to adjust receiver 1: Step1 Inject an on-frequency carrier signal with an amplitude of -80 dBm, modulated with a 1 kHz test tone at +/- 5.0 kHz deviation into receiver 1's antenna port. Step 2 While monitoring the voltage at RSSI1 Test Point with a DMM, adjust trimmer capacitor CV1 to midway between the points where the oscillation stops. Step…

Text truncated - open the document above for the full version.
