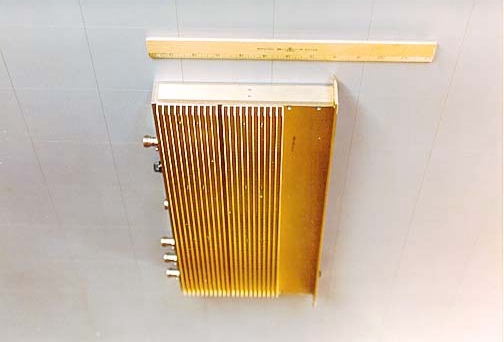

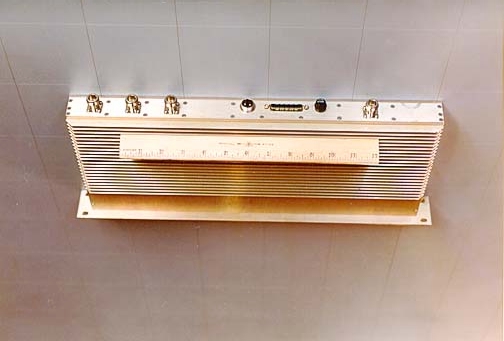

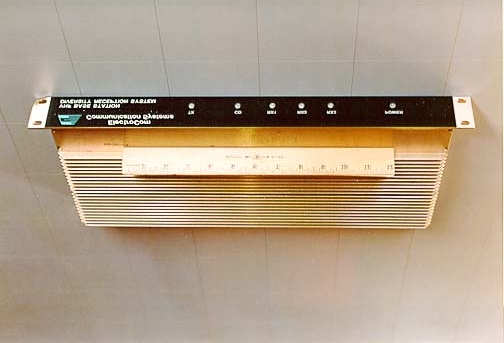

MI7-IPMNIP1BBase Station, IP1B

I I N N V V A A D D R R t t m m I I P P 1 1 B B B B a a s s e e S S t t a a t t i i o o n n Owner’s Manual Date Prepared: April 4, 2002 Document Control #: DC-27 Version: C-2 (Special Release) Copyright 2002 IP MobileNet, Inc. 11909 East Telegraph Road  Santa Fe Springs, CA 90670-3785 Voice: (562) 946-9493 Fax: (562) 949-0223 TABLE OF CONTENTS ~\Technical Documentation\System Manuals\FCC-Reports\IP1B-FCCRpt.doc Page 2 SECTION 1: THEORY OF OPERATION.................................................................................. 3 General Block Diagram........................................................................................................... 3 System Control Block Diagram ...................................................................................... 4 Microcontroller Description ................................................................................. 4 Message Processing .......................................................................................... 4 Synthesizers ....................................................................................................... 5 4-Level FSK Modem Section .............................................................................. 5 Carrier Detect ..................................................................................................... 6 Host Interface ..................................................................................................... 6 Time-Out-Timer .................................................................................................. 6 Font Panel Indicators ......................................................................................... 6 Receiver Injection ............................................................................................... 6 VHF Receiver ..................................................................................................... 7 VHF Front-End Section ...................................................................................... 7 45 MHz Receiver Section ................................................................................... 8 Diversity Reception Controller........................................................................................ 9 Principle of Operation ......................................................................................... 9 Receive Baseband Processing .......................................................................... 9 Exciter .......................................................................................................................... 10 Transmit Baseband Processing ....................................................................... 10 Exciter RF Section ............................................................................................ 11 Power Amplifier Module ................................................................................... 11 SECTION 2: FCC LABEL....................................................................................................... 12 SECTION 1: THEORY OF OPERATION ~\Technical Documentation\System Manuals\FCC-Reports\IP1B-FCCRpt.doc Page 3 General Block Diagram General block diagram of the IP1B, which is comprised of eight (8) PCBs (Printed Circuit Boards). System Controller Consists of a system microcontroller, radio modem, and provides serial communication interfaces. DRC (Diversity Continuously selects the receiver with the best signal level to supply recovered Reception Controller) modulation. Eliminates destructive effects of multi-path fading. Receiver Injection Creates injection signals used by the three (3) VHF (very high frequency) receivers to down-convert the carrier to an IF (intermediate frequency). VHF Receiver Provides reception and demodulation of FM (frequency modulated) VHF RF (radio frequency) signals. The receivers also provide RF carrier amplitude information used by the DRC. VHF Exciter Generates transmit carrier signals and performs frequency modulation. Power Amplifier Amplifies low-level exciter RF carrier signals to the final output power level. SECTION 1: THEORY OF OPERATION ~\Technical Documentation\System Manuals\FCC-Reports\IP1B-FCCRpt.doc Page 4 System Controller Block Diagram Functional block diagram of the System Controller. The system controller controls all programmable devices in the radio and handles internal and external communications. Microcontroller Description The base station uses a SGS/Thomson ST10F167 microcontroller. It is a highly integrated processor with many on chip peripherals including: • 128K bytes of on chip Flash EPROM for program storage • 4K bytes RAM • UART (asynchronous serial interface) • Synchronous serial interface • Analog-to-digital converter • General purpose timers • Watchdog timer • Reset generator • Programmable chip selects • Clock multiplier • General purpose I/O pins In addition to the microcontroller on chip memory, there are also 512K bytes of RAM for data buffers and system use, and 2K bytes of non-volatile memory for configuration information. Message Processing For down-link data transmissions, the microcontroller receives data from the serial port, determines the start and end of data frames, formats the data for transmission, turns on the transmitter, and passes the data to the transmit modem chip. At the end of the transmission, if no other messages are ready, the microcontroller turns off the transmitter. SECTION 1: THEORY OF OPERATION ~\Technical Documentation\System Manuals\FCC-Reports\IP1B-FCCRpt.doc Page 5 For up-link transmissions, the microcontroller receives data from the receive modem chip, checks for errors, adds framing and optionally signal strength information, and sends it out the serial port. Synthesizers The microcontroller is responsible for keeping the base station on channel by programming the digital PLL (phase-locked-loop) frequency synthesizers. This task is accomplished via a serial comm…

Text truncated - open the document above for the full version.

~\Technical Documentation\System Manual s\FCC-Reports\IP1B- BlockDiagrams.doc Page 1 IP1B Base Station General Block Diagram General block diagram of the IP1B, which is compri sed of eight (8) PCBs (Printed Circuit Boards) ~\Technical Documentation\System Manual s\FCC-Reports\IP1B- BlockDiagrams.doc Page 2 IP1B Base Station System Controller Block Diagram Functional block diagram of the System Controller ~\Technical Documentation\System Manual s\FCC-Reports\IP1B- BlockDiagrams.doc Page 3 IP1B Base Station 4-Level FSK Modem Section ~\Technical Documentation\System Manual s\FCC-Reports\IP1B- BlockDiagrams.doc Page 4 IP1B Base Station Receiver Injection Functional block diagram of the receiver injection ~\Technical Documentation\System Manual s\FCC-Reports\IP1B- BlockDiagrams.doc Page 5 IP1B Base Station VHF Front-End Section ~\Technical Documentation\System Manual s\FCC-Reports\IP1B- BlockDiagrams.doc Page 6 IP1B Base Station 45 MHz Receiver Section Functional block diagram of the 45 MHz Receiver ~\Technical Documentation\System Manual s\FCC-Reports\IP1B- BlockDiagrams.doc Page 7 Diversity Reception Controller The DRC is the central processor of a patented triple-receiver DRC. ~\Technical Documentation\System Manual s\FCC-Reports\IP1B- BlockDiagrams.doc Page 8 IP1B Base Station Receive Baseband Processing Functional diagram of the receive baseband processing section. ~\Technical Documentation\System Manual s\FCC-Reports\IP1B- BlockDiagrams.doc Page 9 IP1B Base Station Exciter Transmit Baseband Processing Functional diagram of the IP1B’s transmit baseband processing section ~\Technical Documentation\System Manual s\FCC-Reports\IP1B- BlockDiagrams.doc Page 10 IP1B Base Station Exciter Exciter RF Section Functional block diagram of the exciter RF section ~\Technical Documentation\System Manual s\FCC-Reports\IP1B- BlockDiagrams.doc Page 11 IP1B Base Station Power Amplifier Module Functional diagram of the power amplifier. 60 WATT POWER AMPLIFIER MODULE

SECTION 2: FCC LABEL ~\Technical Documentation\System Manuals\FCC-Reports\IP1B-FCCRpt.doc Page 13 IP1B Base Station FCC Label Placement IP1B Base Station FCC Label ΣΧΑΛΕ : 2Ξ ς ΗΦ (150−15 6 ΜΗζ) ΒΑΣΕ ΣΤΑΤΙΟΝ ∗∆Ις ΕΡΣΙΤΨ ΡΕΧΕΠΤΙΟΝ ΣΨΣΤΕΜ ς ΗΦ (150−156ΜΗζ) ΒΑΣΕ ΣΤΑΤΙΟΝ ∗∆Ις ΕΡΣΙΤΨ ΡΕΧΕΠΤΙΟΝ ΣΨΣΤΕΜ

COMMUNICATION SEMICONDUCTORS MX919B DATA BULLETIN 4-Level FSK Modem Data Pump ©2001 MX•COM, INC. www.mxcom.com Tele: 800 638 5577 336 744 5050 Fax: 336 744 5054 Doc. # 20480170.003 4800 Bethania Station Road, Winston-Salem, NC 27105-1201 USA All trademarks and service marks are held by their respective companies. PRELIMINARY INFORMATION Features Applications • 4-Level Root Raised Cosine FSK Modulation • Half Duplex, 4800 to 19.2kbps • Increase Channel Bit Rate/Hz • Full Data Packet Framing • Impulse and NRZ Signal Modes • Enhanced Performance in Noisy Conditions • Error Detection and Error Correction • Low Power 3.3V/5.0V Operation • Wireless Data Terminals • Two Way Paging Systems • Digital Radio Systems • Wide Area Wireless Data Broadcasts • Point to Point Wireless Data Links MODEM DATA PUMP MX919B ANALOG TX DATA AND CONTROL BUS ANALOG RX RF RADIO DISCRIMINATOR MODULATOR SYSTEM APPLICATION PROCESSING HOST Cμ The MX919B is a low voltage CMOS device containing all of the baseband signal processing and Medium Access Control (MAC) protocol functions required for a high performance 4-level FSK Wireless Packet Data Modem. It interfaces with the modem host μC and the radio modulation/demodulation circuits to deliver reliable two-way transfer of the application data over a wireless link. The MX919B assembles application data received from the host μC, adds forward error correction (FEC) and error detection (CRC) information, and interleaves the result for burst-error protection. After automatically adding symbol and frame sync codewords, the data packet is converted into filtered 4-level analog signals for modulating the radio transmitter. In receive mode, the MX919B performs the reverse function using the analog signals from the receiver discriminator. After error correction and removal of the packet overhead, the recovered application data is supplied to the host μC. CRC detected residual uncorrected data errors will be flagged. A readout of the SNR value during receipt of a packet is also provided. The MX919B uses data block sizes and FEC/CRC suitable for applications where high-speed transfer of data over narrow-band wireless links is required. The device is programmable to operate at standard bit rates from a wide range of Xtal/clock frequencies. The MX919B may be used with a 3.0V to 5.5V power supply and is available in the following package styles: 24-pin SSOP (MX919BDS), 24-pin SOIC (MX919BDW), 24-pin PLCC (MX919BLH), and 24-pin PDIP (MX919BP). 4-Level FSK Modem Data Pump Page 2 of 47 MX919B PRELIMINARY INFORMATION ©2001 MX•COM, INC. www.mxcom.com Tele: 800 638 5577 336 744 5050 Fax: 336 744 5054 Doc. # 20480170.003 4800 Bethania Station Road, Winston-Salem, NC 27105-1201 USA All trademarks and service marks are held by their respective companies. CONTENTS Section Page 1. Block Diagram ............................................................................................................... 6 2. Signal List ...................................................................................................................... 7 3. External Components ................................................................................................... 8 4. General Description ...................................................................................................... 9 4.1 Description of Blocks ......................................................................................................... 9 4.1.1 Data Bus Buffers..................................................................................................................... 9 4.1.2 Address and R/W Decode ...................................................................................................... 9 4.1.3 Status and Data Quality Registers.......................................................................................... 9 4.1.4 Command, Mode, and Control Registers ............................................................................... 9 4.1.5 Data Buffer.............................................................................................................................. 9 4.1.6 CRC Generator/Checker ........................................................................................................ 9 4.1.7 FEC Generator/Checker ......................................................................................................... 9 4.1.8 Interleave/De-Interleave Buffer............................................................................................... 9 4.1.9 Frame Sync Detect ................................................................................................................. 9 4.1.10 Rx Input Amp ........................................................................................................................ 10 4.1.11 RRC Low Pass Filter ............................................................................................................10 4.1.12 Tx Output Buffer.................................................................................................................... 11 4.1.13 Rx Level/Clock Extraction ..................................................................................................... 12 4.1.14 Clock Oscillator and Dividers................................................................................................ 12 4.2 Modem - μC Interaction ................................................................................................... 12 4.3 Binary to Symbol Translation ........................................................................................... 13 4.4 Frame Structure............................................................................................................... 14 4.5 The Programmer’s View................................................................................................... 15 4.5.1 Data Block Buffer ........................................................…

Text truncated - open the document above for the full version.

Page 1 of 43 Report No.: FC02-031A ADDENDUM TO FC02-031A FOR THE BASE STATION, IP1B FCC PART 90 AND PART 15 SUBPART B SECTIONS 15.107, 15.109 AND 15.111 CLASS B COMPLIANCE DATE OF ISSUE: MAY 2, 2002 PREPARED FOR: IP Mobilenet Inc. 11909 East Telegraph Road Santa Fe Springs, CA 90670 PREPARED BY: Mary Ellen Clayton CKC Laboratories, Inc. 5473A Clouds Rest Mariposa, CA 95338 P.O. No.: 001867-00 W.O. No.: 78639 Date of test: March 26 - April 8, 2002 Report No.: FC02-031A This report contains a total of 43 pages and may be reproduced in full only. Partial reproduction may only be done with the written consent of CKC Laboratories, Inc. The results in this report apply only to the items tested, as identified herein. Page 2 of 43 Report No.: FC02-031A TABLE OF CONTENTS Administrative Information ............................................................................................. 3 Summary of Results......................................................................................................... 4 Conditions for Compliance.............................................................................................. 4 Approvals......................................................................................................................... 4 Equipment Under Test (EUT) Description...................................................................... 5 Equipment Under Test..................................................................................................... 5 Peripheral Devices ........................................................................................................... 5 Temperature and Humidity During Testing .................................................................... 5 2.1033(c)(3) User’s Manual ............................................................................................ 5 2.1033(c)(4) Type of Emissions ...................................................................................... 6 2.1033(c)(5) Frequency Range ........................................................................................ 6 2.1033(c)(6) Operating Power ......................................................................................... 6 2.1033(c)(7) Maximum Power Rating............................................................................. 6 2.1033(c)(8) DC Voltages ............................................................................................... 6 2.1033(c)(9) Tune-Up Procedure .................................................................................... 6 2.1033(c)(10) Schematics and Circuitry Description ...................................................... 6 2.1033(c)(11) Label and Placement................................................................................. 6 2.1033(c)(12) Submittal Photos....................................................................................... 6 2.1033(c)(13) Modulation Information ........................................................................... 6 2.1033(c)(14)/2.1046/90.205(d) - RF Power Output....................................................... 7 2.1055/90.205(d) – Voltage Variations on Power Output............................................... 9 2.1033(c)(14)/2.1047(b) - Modulation - Audio Frequency Response............................. 10 2.1033(c)(14)/2.1047(b) - Modulation - Modulation Limiting Response ....................... 10 2.1033(c)(14)/2.1049(i)/90.209/90.210 - Occupied Bandwidth...................................... 11 2.1033(c)(14)/2.1051/90.210 - Spurious Emissions at Antenna Terminal...................... 18 2.1033(c)(14)/2.1053/90.210- Field Strength of Spurious Radiation.............................. 21 2.1033(c)(14)/2.1055/90.213 - Frequency Stability ........................................................ 25 90.214 – Transient Frequency Behavior.......................................................................... 28 15.107 – AC Conducted Emissions – Receiver/Digital .................................................. 33 15.109 – Radiated Emissions – Receiver/Digital ............................................................ 38 15.111 – Antenna Power Conducted Emissions – Receiver/Digital ............................... 42 Page 3 of 43 Report No.: FC02-031A CKC Laboratories, Inc. has received Certificates of Accreditation from the following agencies: A2LA (USA); BSMI (Taiwan); Nemko (Norway); and GOST (Russia). CKC Laboratories, Inc has received test site Registration Acceptance from the following agencies: FCC (USA); VCCI (Japan); and Industry Canada. CKC Laboratories, Inc. has received Letters of Acceptance through an MRA for the following agencies: ACA/NATA (Australia); SABS (South Africa); SWEDAC (Sweden); Radio Communications Agency (RA); HOKLAS (Hong Kong); Bakom (Swiss); BIPT (Belgium); Denmark Telestyrelsen; RvA (Netherlands); SEE (Luxembourg) SITTEL (Bolivia); and UKAS (UK). ADMINISTRATIVE INFORMATION DATE OF TEST: March 26 - April 8, 2002 DATE OF RECEIPT: March 26, 2002 PURPOSE OF TEST: To demonstrate the compliance of the Base Station, IP1B with the requirements for FCC Part 90 and Part 15 Subpart B Sections 15.107, 15.109 and 15.111 Class B devices. The purpose of this addendum is to revise the FCC ID number, add plots for 90.214 testing and revise the 90.213 table. TEST METHOD: ANSI C63.4 (1992) and FCC Part 90 FREQUENCY RANGE TESTED: 450 kHz - 2 GHz MANUFACTURER: IP Mobilenet Inc. 11909 East Telegraph Road Santa Fe Springs, CA 90670 REPRESENTATIVE: Bobby Amin TEST LOCATION: CKC Laboratories, Inc. 110 Olinda Place, Brea, CA 92621 5473A Clouds Rest, Mariposa, CA 95338 Page 4 of 43 Report No.: FC02-031A SUMMARY OF RESULTS As received, the IP Mobilenet Inc. Base Station, IP1B was found to be fully compliant with the following standards and specifications: United States ! FCC Part 90 and Part 15 Subpart B Sections 15.107, 15.109 and 15.111 Class B ! ANSI C63.4 (1992) and FCC Part 90 method CONDITIONS …

Text truncated - open the document above for the full version.

Antenna Terminal Test Setup - Front View Antenna Terminal Test Setup - Back View Radiated Emissions - Front View Radiated Emissions - Back View Antenna Power Conducted Emissions - Front View Antenna Power Conducted Emissions - Back View
